Model Maytag MDG25PDAGW3 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

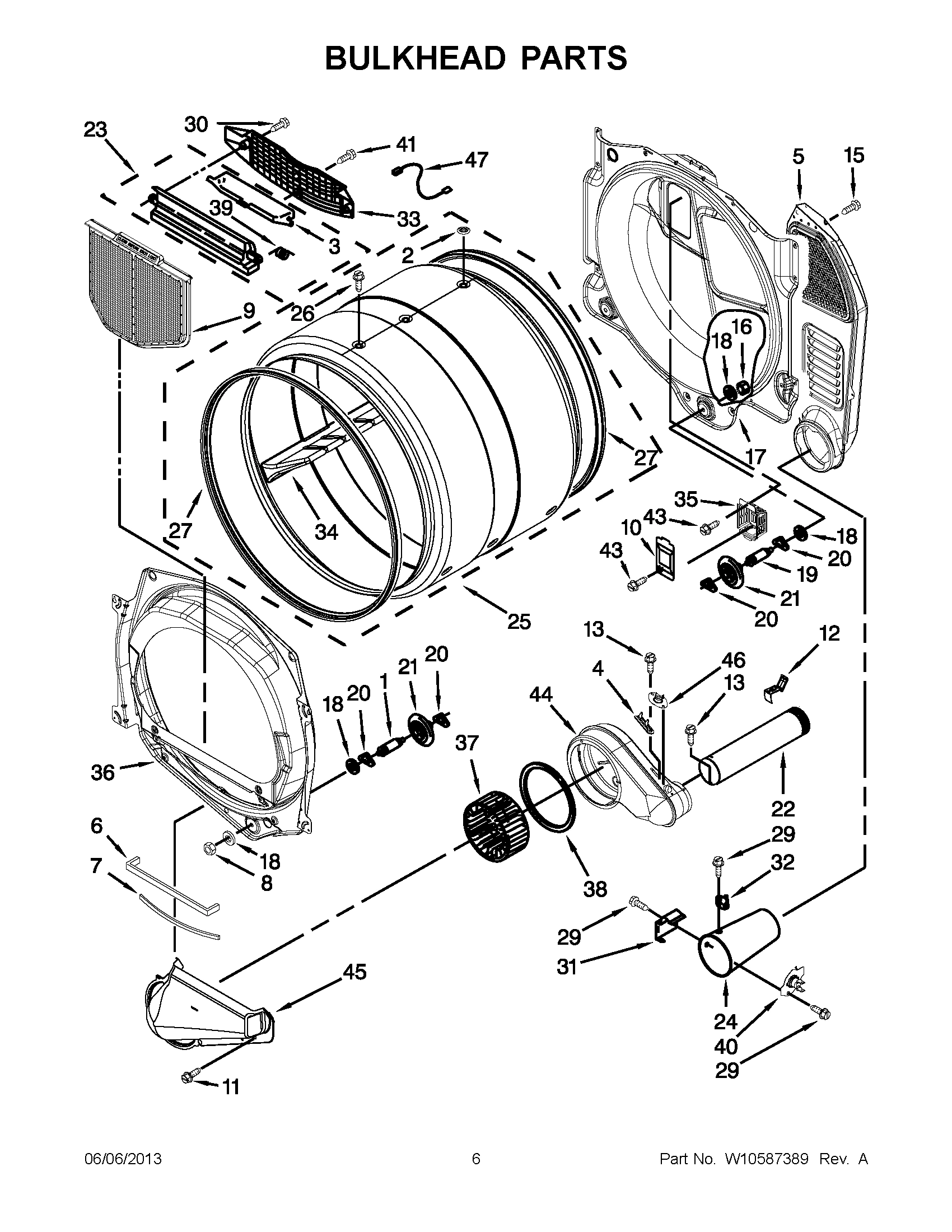

03 - BULKHEAD PARTS

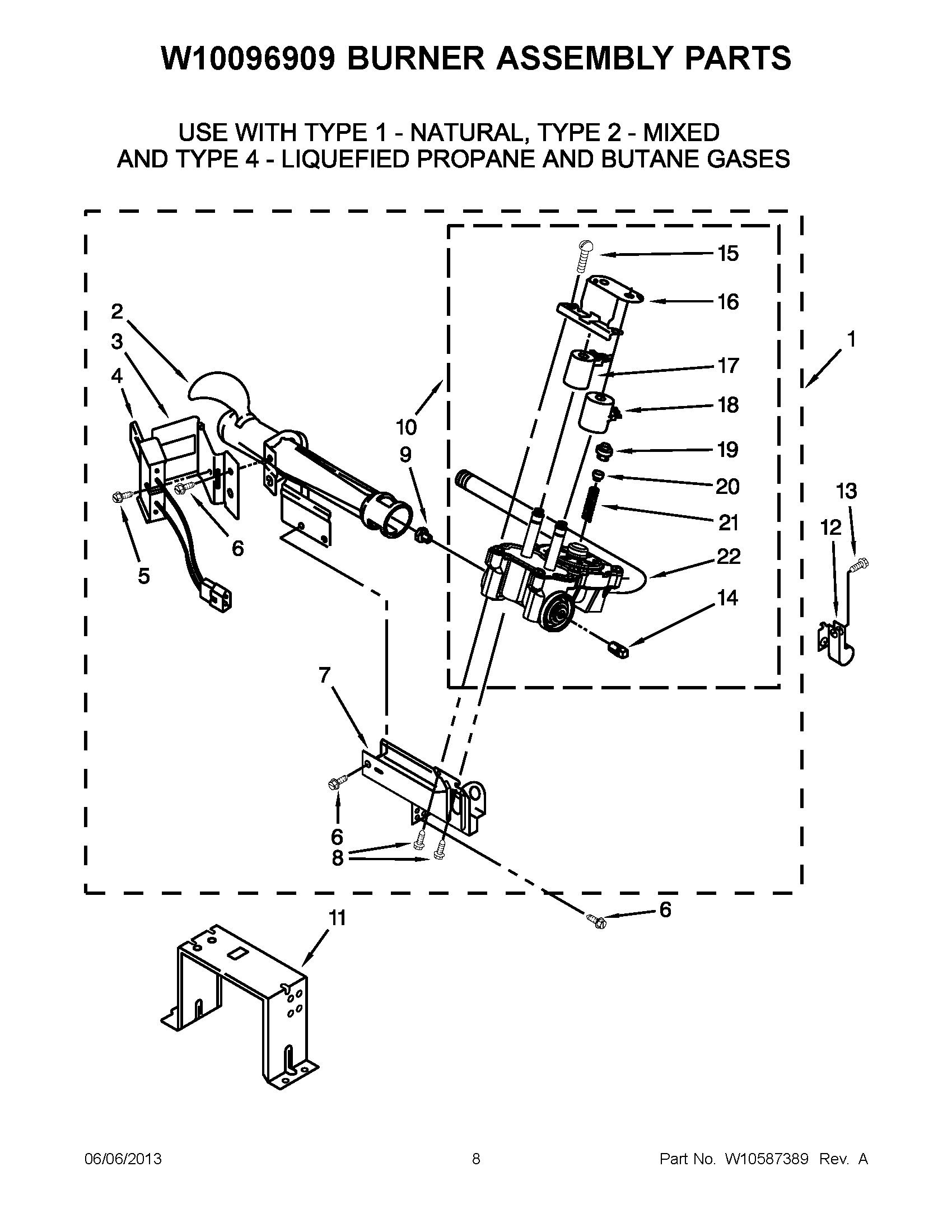

04 - W10096909 BURNER ASSEMBLY PARTS

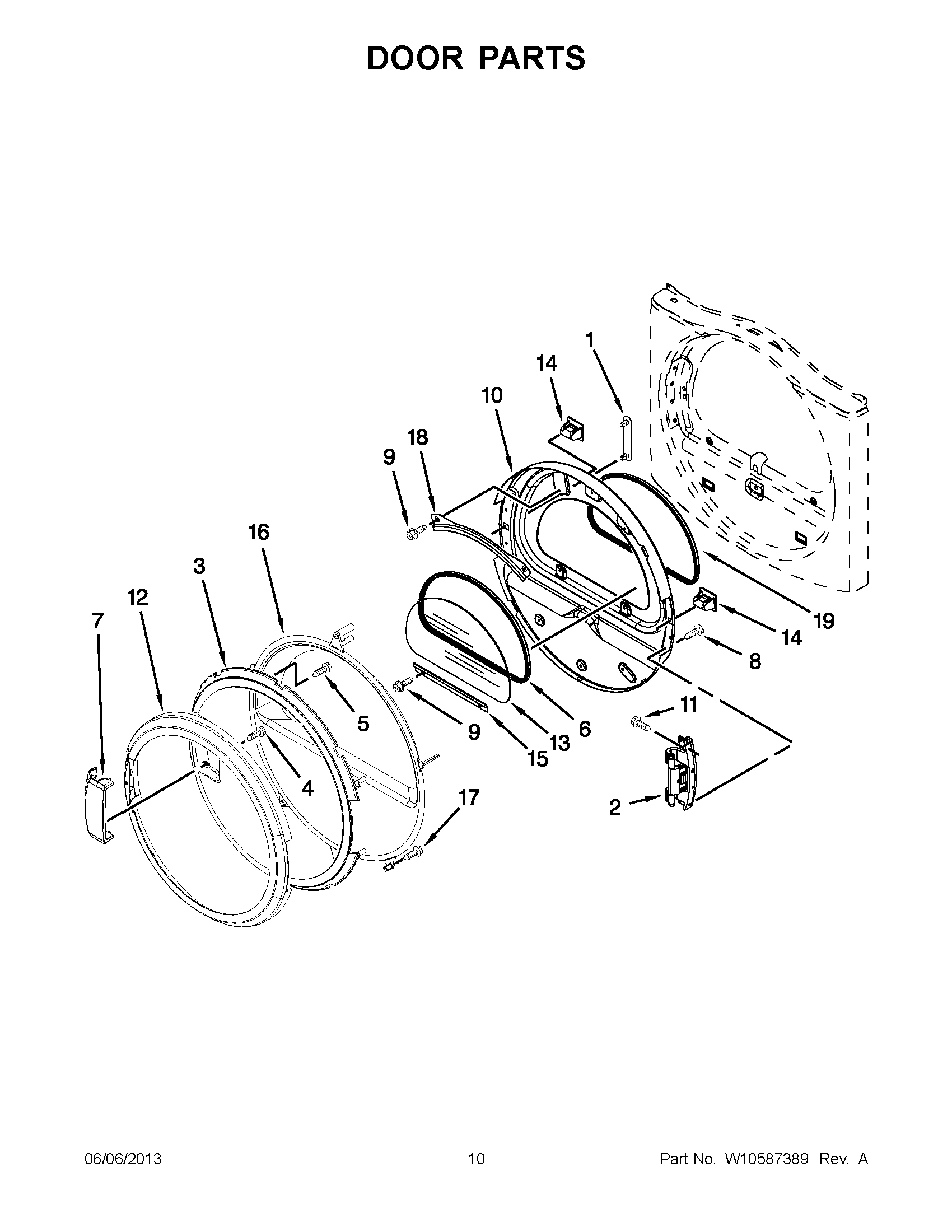

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDG25PDAGW3 GAS DRYER
1
MAY W10233252 MAY W10233252 Contact Us For Availability
1
MAY W10239197 MAY W10239197 Contact Us For Availability
1
MAY W10379555 MAY W10379555 Contact Us For Availability
1
MAY W10096918 MAY W10096918 Contact Us For Availability
1
BURNER ASSEMBLY 50 HZ. (TYPE 1 AND 2) MAY W10096909 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
2
MAY W10137411 MAY W10137411 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
CAP, PLUG MAY W10128544 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
2
MAY W10294646 MAY W10294646 Contact Us For Availability
3
MAY W10555115 MAY W10555115 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10181925 MAY W10181925 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10137459 MAY W10137459 Contact Us For Availability
4
CABINET (WHITE) MAY W10542714 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
7
MAY W10112976 MAY W10112976 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10596627 MAY W10596627 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234660 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
9
Screw MAY 3393258 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
VALVE, GAS 50 HZ. (COMPLETE) MAY 8281918 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10363674 MAY W10363674 Contact Us For Availability
11
SCREW MAY W10142290 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 489463 Contact Us For Availability
11
MAY 3389889 MAY 3389889 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
12
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
12
Bracket, Gas Pipe MAY 3978776 Contact Us For Availability
12
MAY W10112916 MAY W10112916 Contact Us For Availability
13
MAY W10166385 MAY W10166385 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
Screw MAY 8533971 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
Screw MAY 489136 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
MAY W10295523 MAY W10295523 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
MAY 8564011 MAY 8564011 Contact Us For Availability
15
Screw MAY 693995 Contact Us For Availability
15
SCREW, COIL MAY 694421 Contact Us For Availability
15
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
16
CORD-POWER MAY W10476824 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
MAY 694538 MAY 694538 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
17
NUT MAY W10139046 Contact Us For Availability
17
MAY 3393657 MAY 3393657 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
COIL, 50 HZ. MAY 695297 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
HINGE & PIN ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
COIL, 50 HZ. (SPLIT) MAY 695298 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
19
MAY 342055 MAY 342055 Contact Us For Availability
19
MAY W10459028 MAY W10459028 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 694424 MAY 694424 Contact Us For Availability
19
SEAL, DOOR MAY W10163915 Contact Us For Availability
20
MAY 3347825 MAY 3347825 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 694423 MAY 694423 Contact Us For Availability
21
SCREW MAY 98445 Contact Us For Availability
21
PLATE, COVER MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 694422 MAY 694422 Contact Us For Availability
22
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
PIPE, EXHAUST MAY W10225179 Contact Us For Availability
22
MAY W10097610 MAY W10097610 Contact Us For Availability
23
SWITCH, MEMBRANE & BACKER PLATE MAY W10135255 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
24
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
24
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
24
MAY 8573824 MAY 8573824 Contact Us For Availability
25
CASE, METER MAY W10171128 Contact Us For Availability
25
MAY W10225178 MAY W10225178 Contact Us For Availability
25
MAY W10549541 MAY W10549541 Contact Us For Availability
26
SCREW MAY W10137457 Contact Us For Availability
26
MAY W10225180 MAY W10225180 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
ASSEMBLY, MOTOR 50 HZ. MAY W10289662 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
COVER, DISPLAY MAY W10267645 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
29
MAY W10189075 MAY W10189075 Contact Us For Availability
29
MAY W10167237 MAY W10167237 Contact Us For Availability
29
SCREW MAY 90767 Contact Us For Availability
30
MAY W10532923 MAY W10532923 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY 3387230 Contact Us For Availability
31
MAY W10133289 MAY W10133289 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
MAY 338906 MAY 338906 Contact Us For Availability
32
MAY W10133508 MAY W10133508 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT, HIGH LIMIT MAY W10206703 Contact Us For Availability
33
MAY W10139210 MAY W10139210 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10181926 MAY W10181926 Contact Us For Availability
34
MAY W10211244 MAY W10211244 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
MAY W10153409 MAY W10153409 Contact Us For Availability
35
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10166307 MAY W10166307 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 8565061 MAY 8565061 Contact Us For Availability
37
MAY W10166308 MAY W10166308 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY W10137448 MAY W10137448 Contact Us For Availability
40
PANEL, TOE (WHITE) MAY 8540621 Contact Us For Availability
40
CUT-OFF, THERMAL MAY W10181549 Contact Us For Availability
41
BOLT MAY 3349065 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
43
BUTTON, PUSH MAY W10131113 Contact Us For Availability
44
MAY W10334891 MAY W10334891 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10119255 MAY W10119255 Contact Us For Availability
45
DISPENSER, FASCIA MAY W10137461 Contact Us For Availability
45
ASSEMBLY, LINT DUCT MAY W10286419 Contact Us For Availability
46
Insert MAY W10189313 Contact Us For Availability
46
MAY W10166377 MAY W10166377 Contact Us For Availability
46
THERMISTOR MAY 8577274 Contact Us For Availability
47
SCREW MAY 488234 Contact Us For Availability
47
Bracket, Control MAY 8563727 Contact Us For Availability
47
JUMPER, WIRE MAY 3401707 Contact Us For Availability
48
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
48
Plug, Front Panel MAY 8565043 Contact Us For Availability
49
SCREW MAY 3357011 Contact Us For Availability
50
MAY W10257051 MAY W10257051 Contact Us For Availability
50
PANEL, FRONT (WHITE) MAY W10551281 Contact Us For Availability
51
ASSEMBLY, CAM & SECURITY LOCK MAY 8316526 Contact Us For Availability
51
ASSEMBLY, SWITCH & ACTUATOR MAY W10410873 Contact Us For Availability
52
Seal, Foam MAY 8318396 Contact Us For Availability
53
MAY 3391943 MAY 3391943 Contact Us For Availability
54
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
55
MAY W10181903 MAY W10181903 Contact Us For Availability
57
MAY 3977633 MAY 3977633 Contact Us For Availability
58
SCREW MAY 3400000 Contact Us For Availability
60
SCREW MAY 3351614 Contact Us For Availability
62
SCREW MAY W10080630 Contact Us For Availability
65
MAY W10277669 MAY W10277669 Contact Us For Availability
68
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
69
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
CORD, POWER (10A CORD LOCK) MAY W10446855 Contact Us For Availability
NI
CORD, POWER (AUSTRAILIAN) MAY W10476818 Contact Us For Availability
NI
CORD, POWER (10A CORD ADAPTER (BRITISH)) MAY W10476820 Contact Us For Availability
NI
CORD, POWER (10A CORD ADAPTER (EUROPEAN)) MAY W10476822 Contact Us For Availability
NI
CONVERSION KIT, LP MAY W10233219 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
× ![]()
