Model Whirlpool MDE208DAYW ELECTRIC DRYER – Common Parts & Diagrams
01 - BASE, HEATER & MOTOR
04 - SUPPLEMENTAL INFORMATION

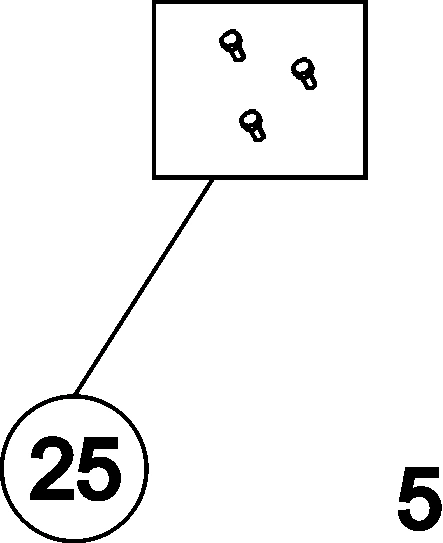

05 - TUMBLER
02 - CABINET & FRONT PANEL

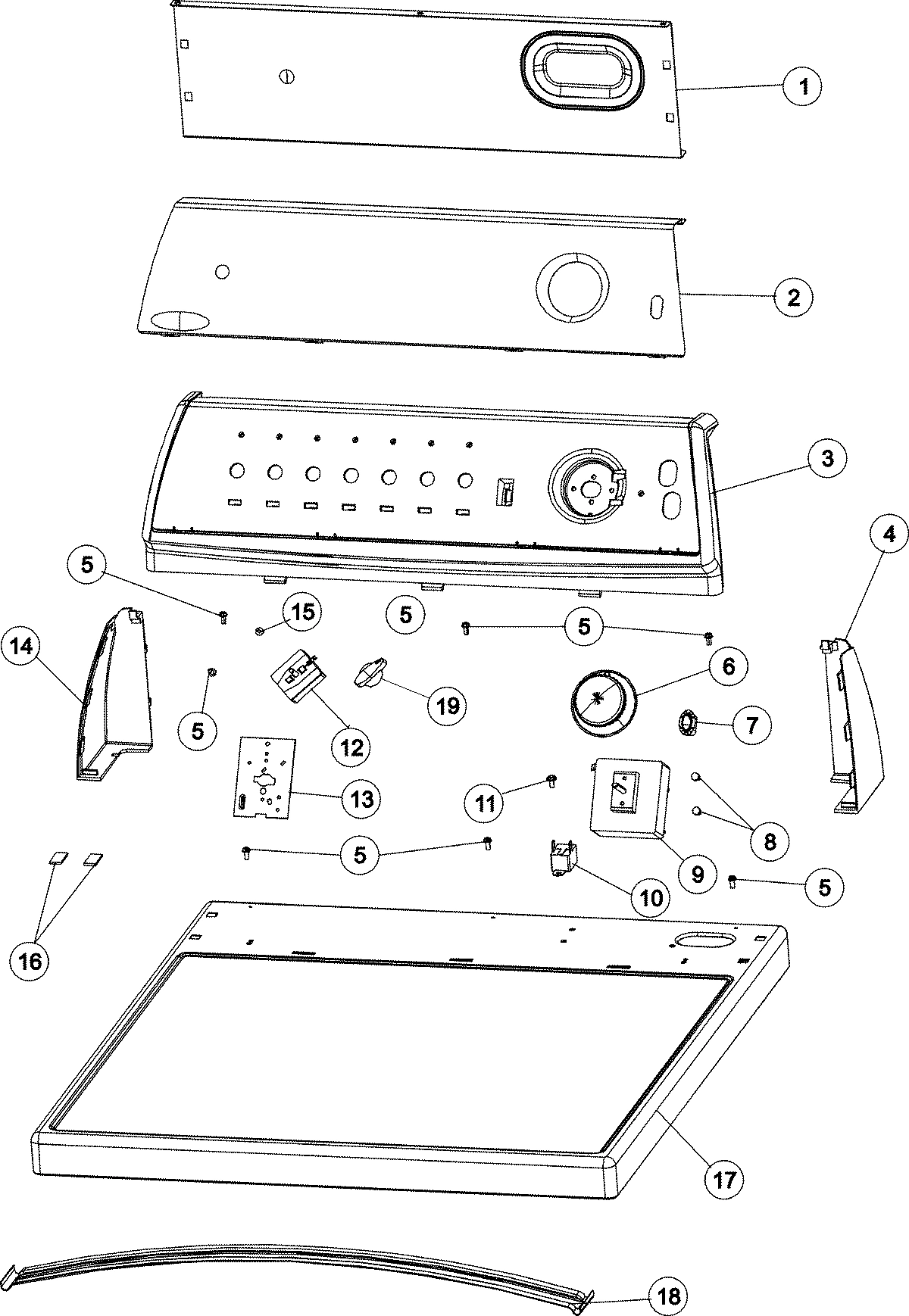

03 - CONTROL PANEL & TOP

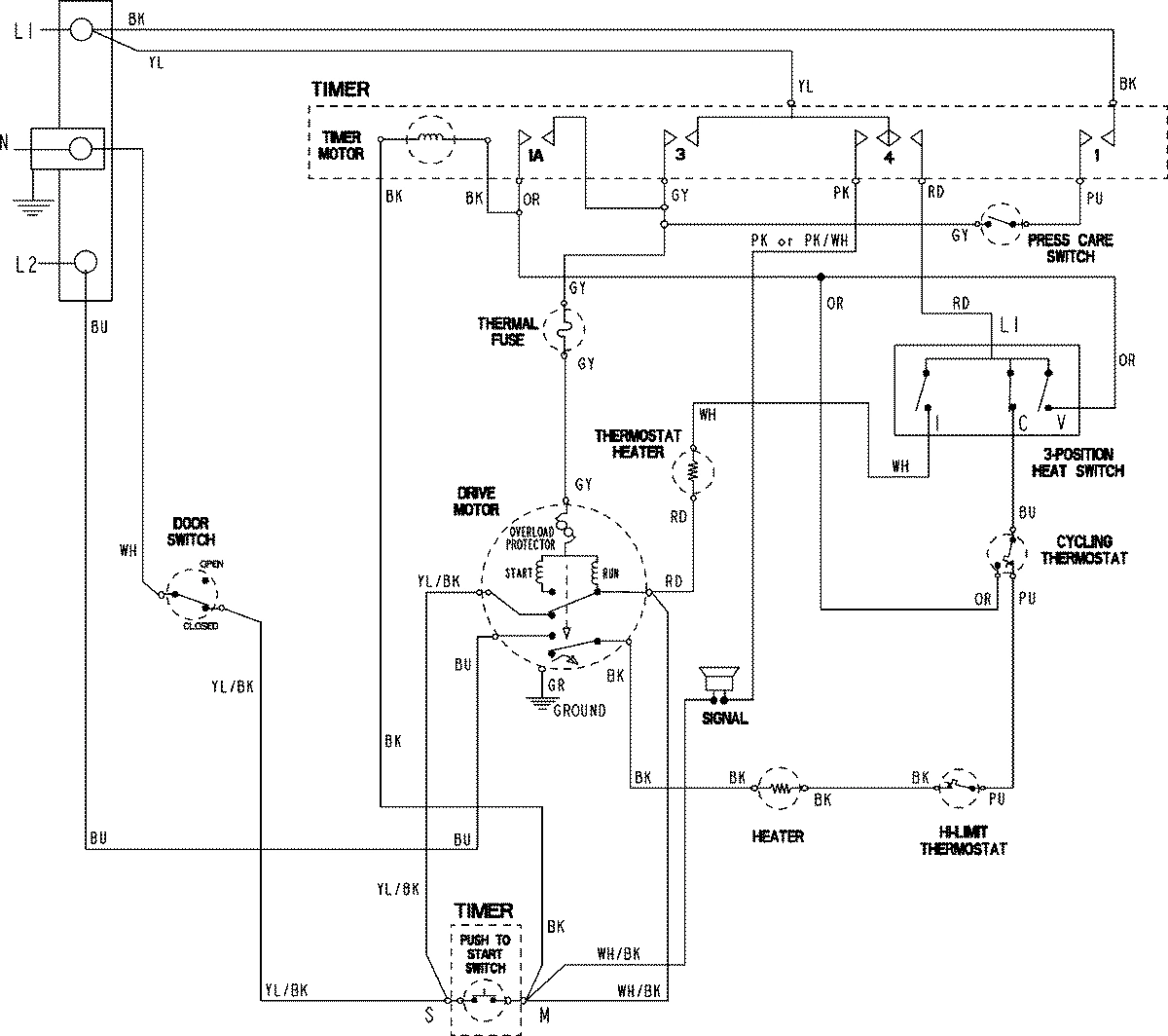

06 - WIRING INFORMATION
Common parts from model Whirlpool MDE208DAYW ELECTRIC DRYER
1
HARNESS, WIRE - DRYER WPL 37001171 Contact Us For Availability
1
SHIELD, BACKGUARD WPL 37001233 Contact Us For Availability
2
PAD, FELT-COIN WPL 500121 Contact Us For Availability
2
GUIDE, ENERGY (DRYER) WPL 37001111 Contact Us For Availability
2
CABINET, WHITE/W/LOUVERS WPL 37001155 Contact Us For Availability
2
FACIA WPL 37001209 Contact Us For Availability
3
MANUAL, USE & CARE WPL 2202687 Contact Us For Availability
3
FRAME, CONTROL PANEL, SUPPORT WPL 21001965 Contact Us For Availability
4
WIRE, GROUND WPL 37001152 Contact Us For Availability
4
ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability
5
SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability
5
PAD, BUMPER WPL Y56128 Contact Us For Availability
6
HINGE, TOP WPL 500003 Contact Us For Availability
6
ASSY,BLKHD FRONT CO WPL 503756W Contact Us For Availability
6
SEE NOTE WPL Y00000000 Contact Us For Availability
8
SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability
8
PLATE, ACCESS COVER WPL 503293 Contact Us For Availability
9
CLIP, WIRE WPL 504034 Contact Us For Availability
9
TIMER - DRYER WPL 37001251 Contact Us For Availability
10
BLOCK, TERMINAL WPL 61923 Contact Us For Availability
10
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
10
BUZZER ASSY. WPL 531639 Contact Us For Availability
11
SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability
12
BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability
12
LOCATOR, PANEL WPL 505187 Contact Us For Availability
12
SWITCH, TEMP - 3 POSITION WPL 37001164 Contact Us For Availability
13
HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability
13
SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability
14
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
14
ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability
15
ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability
15
SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability
16
SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability
16
MOUNT, MOTOR WPL 503613 Contact Us For Availability
17
DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability
17
COVER, TOP - WHITE/DRYER WPL 37001232 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability
18
WASHER, WAVE WPL Y504082 Contact Us For Availability
18
BRACE, TOP WPL 56486 Contact Us For Availability
19
COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability
20
ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability
21
LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability
21
PLUG, HINGE HOLE WPL 503126 Contact Us For Availability
22
SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability
23
BAFFLE, (WHT) WPL 37001125 Contact Us For Availability
23
CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability
23
STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability
24
AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability
24
BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability
25
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
25
DRYER BASE WPL 37001156 Contact Us For Availability
25
SCREW PKG, TERMINAL BLOCK WPL 37001300 Contact Us For Availability
26
FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003818 Contact Us For Availability
× ![]()
