Model Whirlpool MBR2262KES REFRIGERATOR – Common Parts &amp; Diagrams

1

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $64.55

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

1

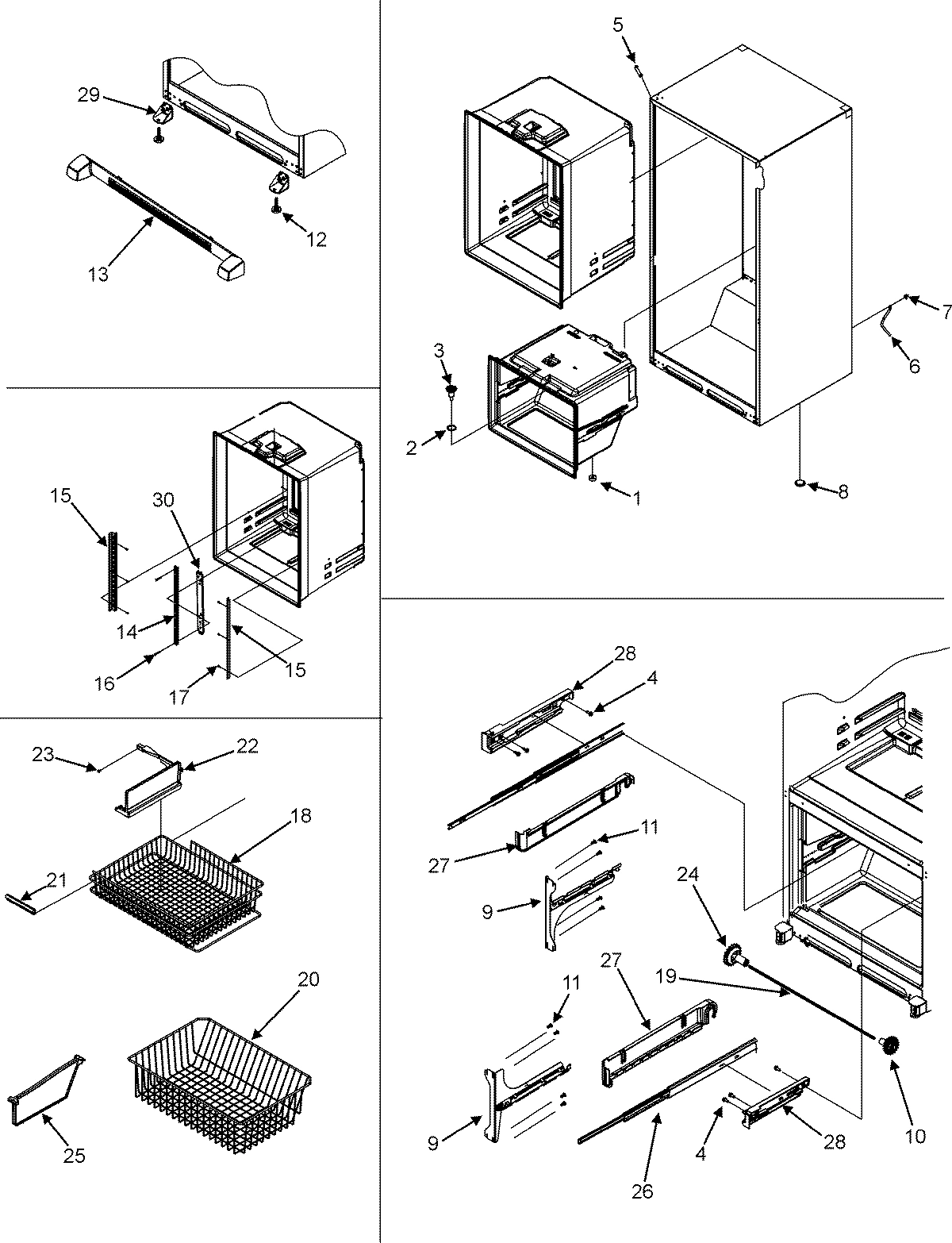

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $32.59

1

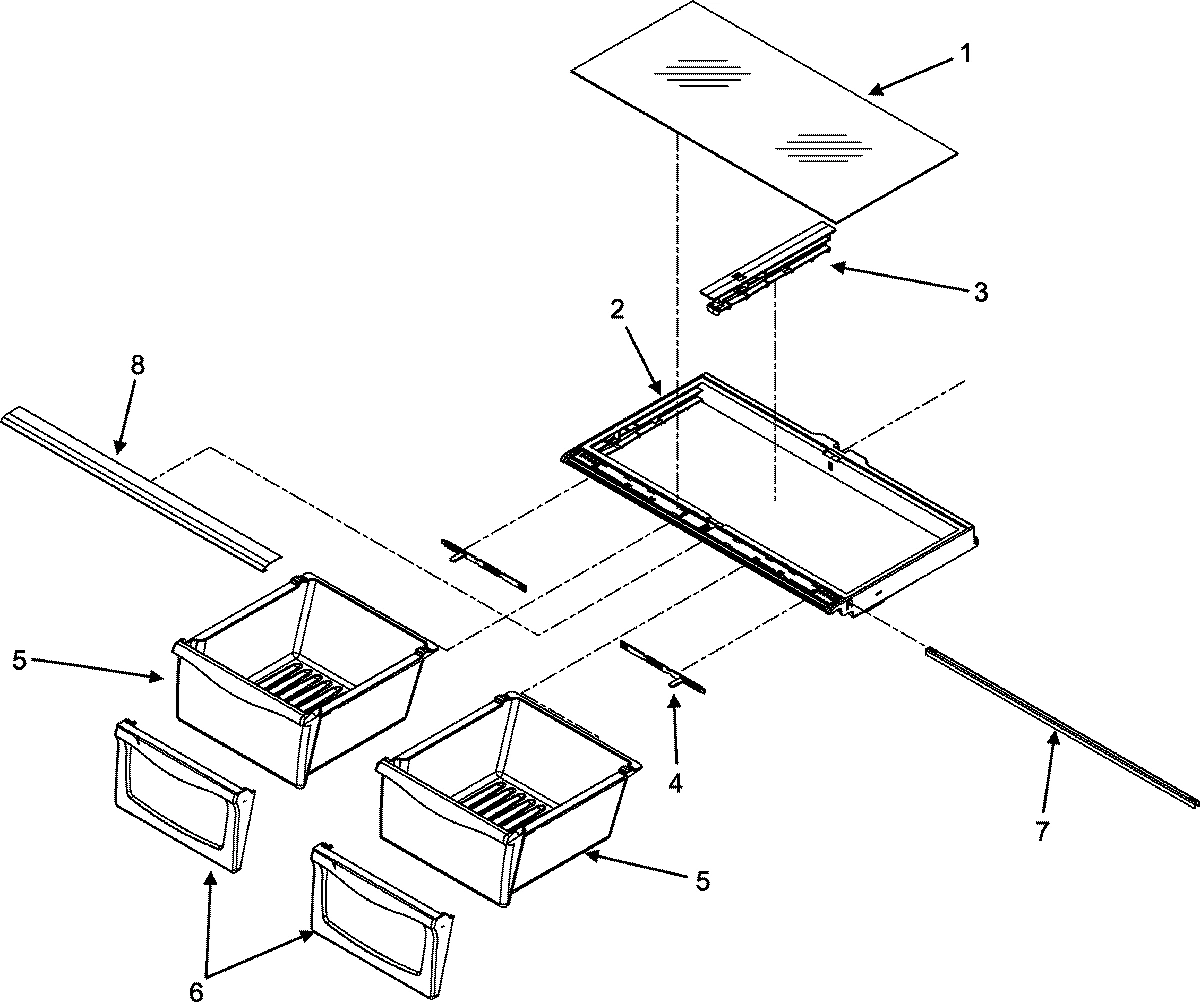

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $128.48

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $30.71

1

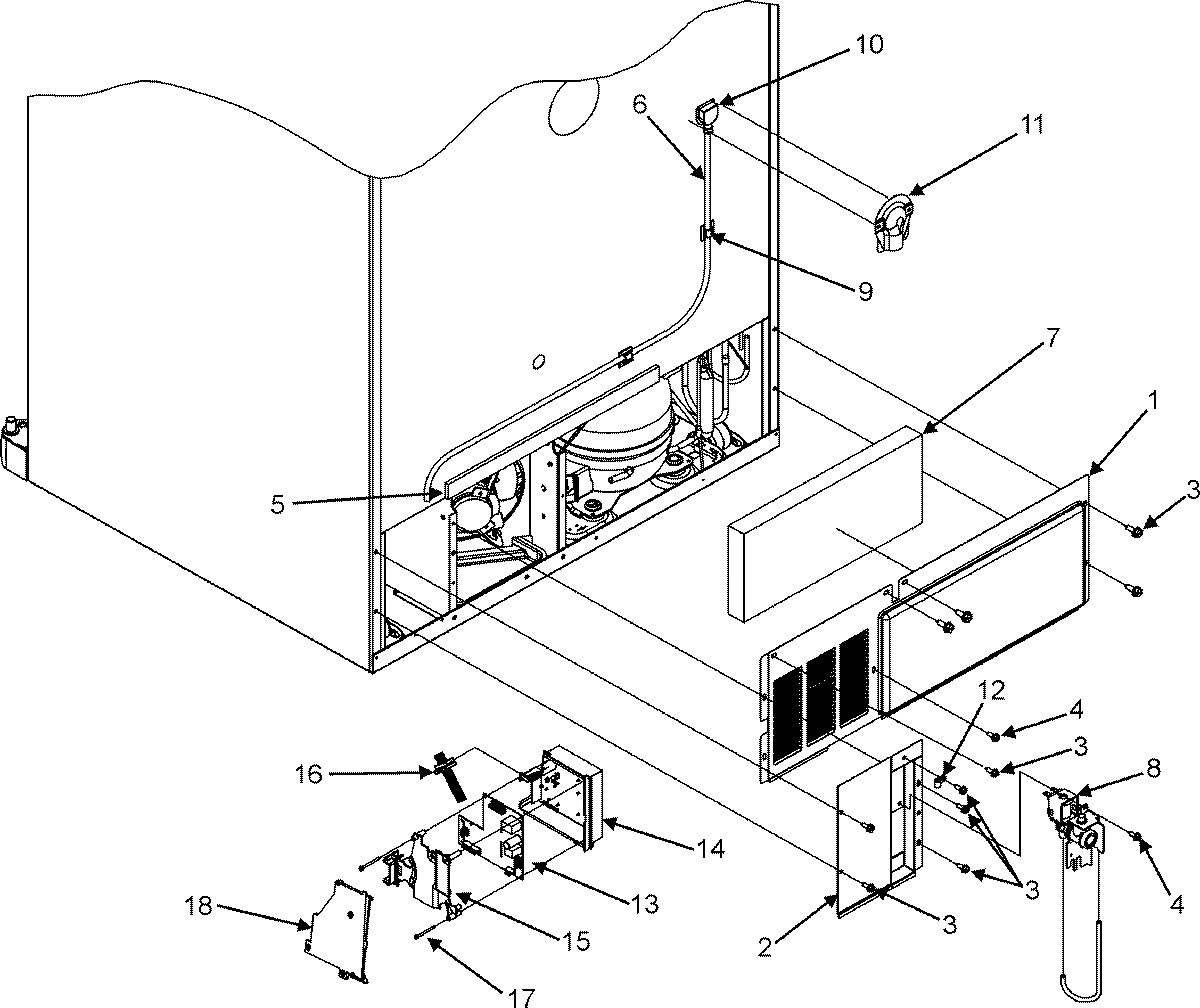

COVER, MC BACK WPL 67006101 Contact Us For Availability

1

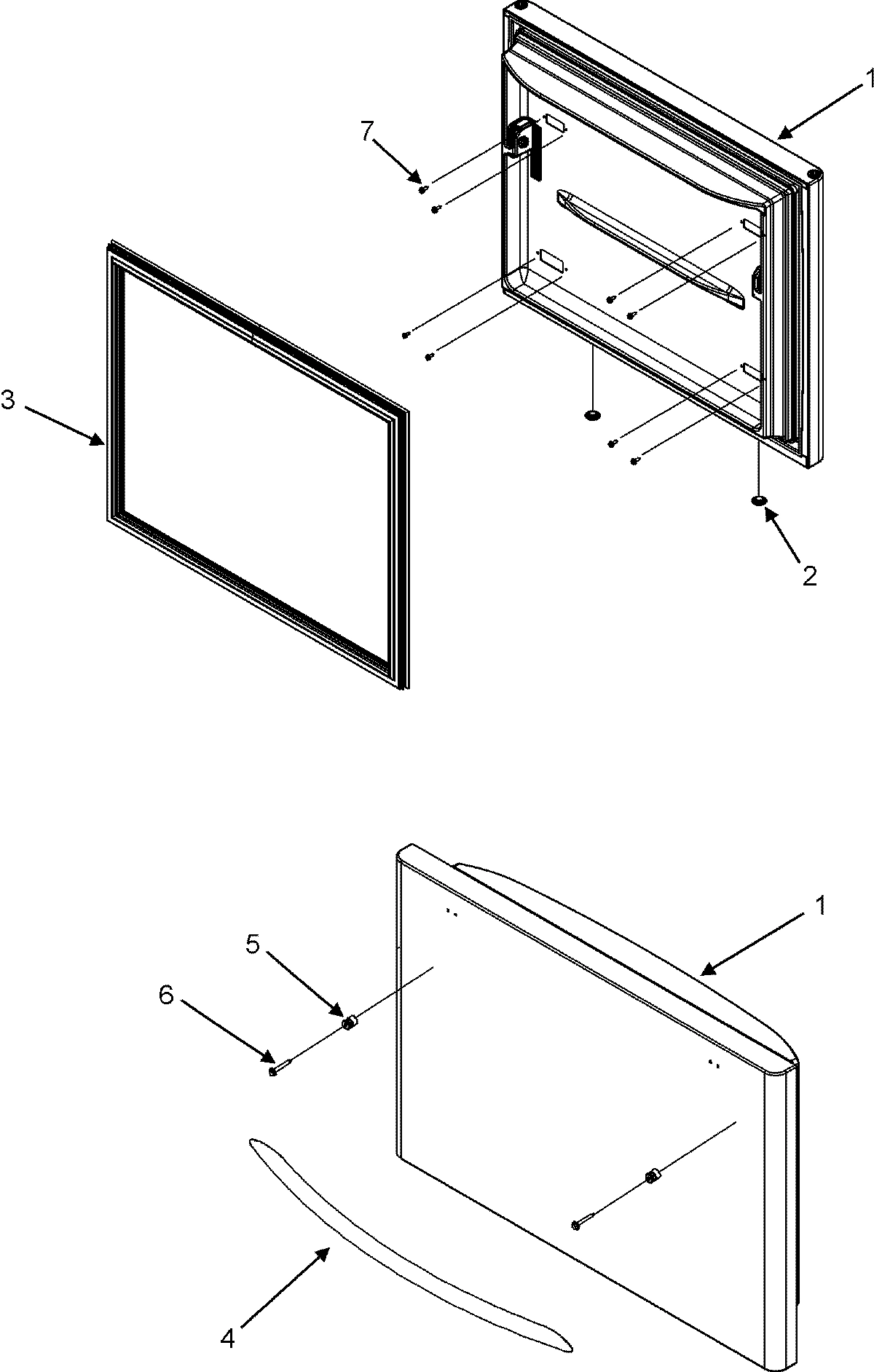

DOOR ASSY., FRZ. FOAM (STNLS) WPL 67006918 Contact Us For Availability

1

MANUAL, USE & CARE WPL 12828151 Contact Us For Availability

1

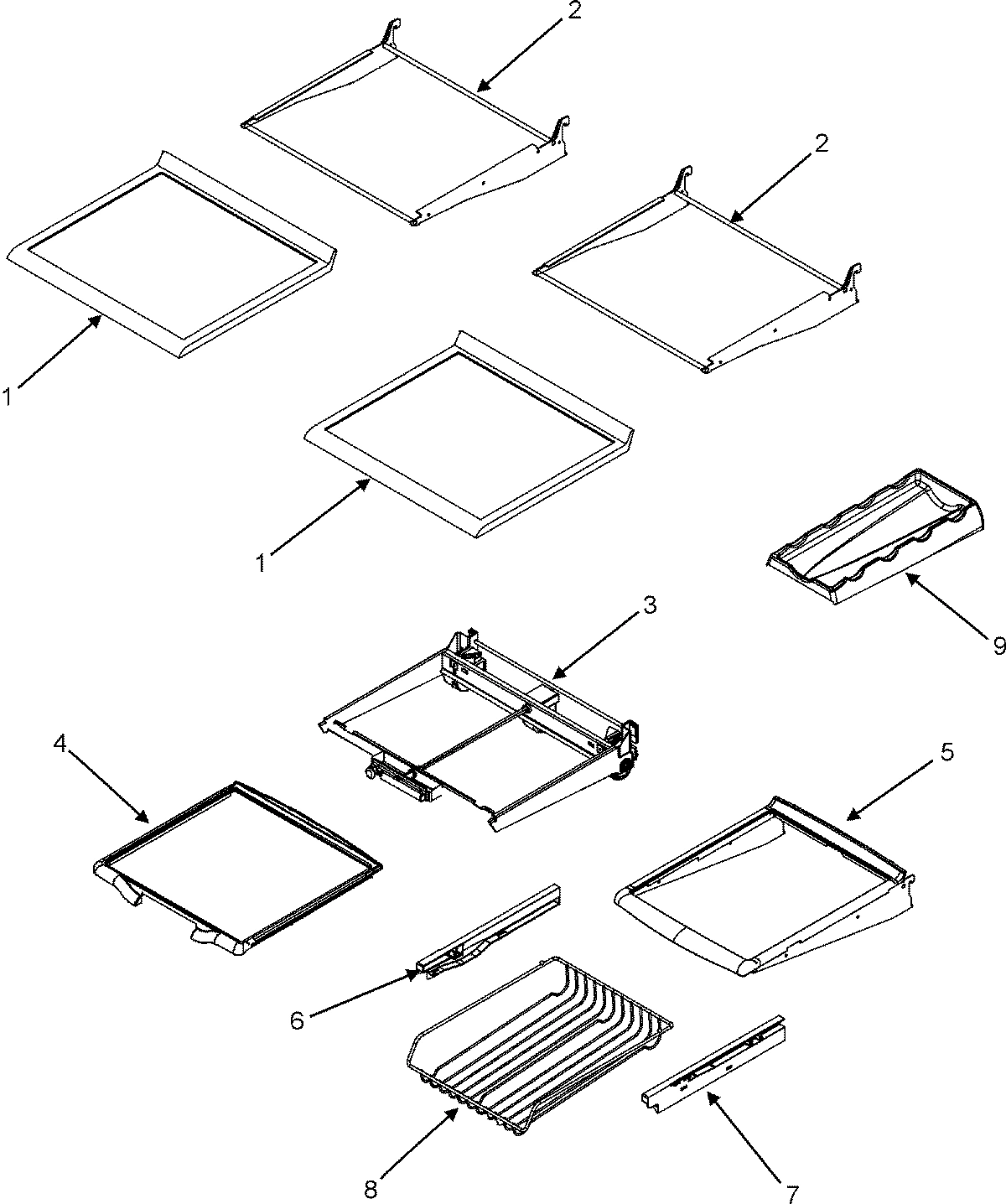

SHELF, SPILLPROOF WPL 61002572 Contact Us For Availability

2

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.80

2

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.24

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.80

2

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.68

2

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $72.04

2

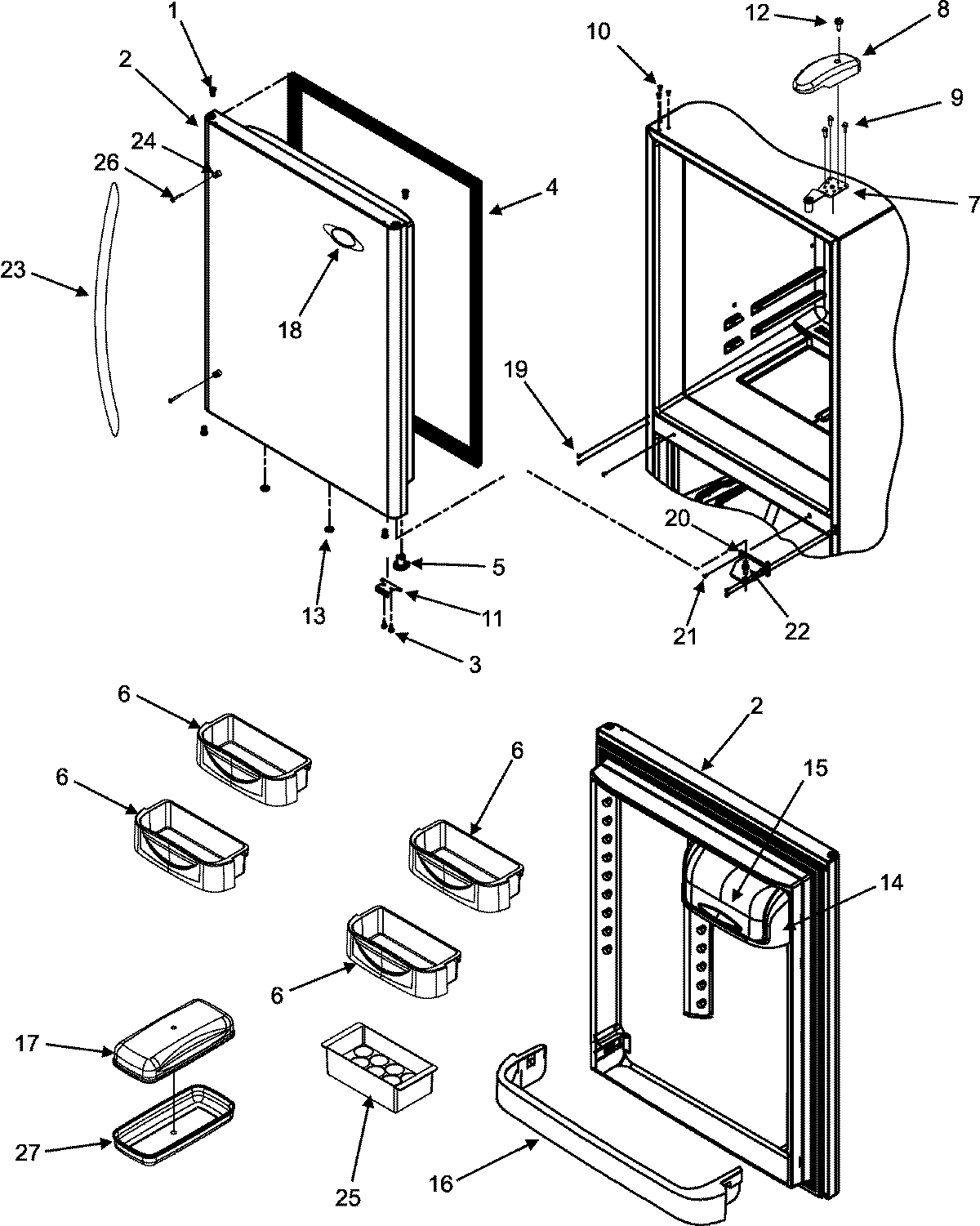

DOOR ASSY., REF. FOAM (STNLS) WPL 67006742 Contact Us For Availability

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

2

SVC MAN, BTM MT WPL 16025629 Contact Us For Availability

2

COVER, WATER VALVE WPL 67001097 Contact Us For Availability

2

FRAME, SHELF WPL 61005964 Contact Us For Availability

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.32

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.07

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $117.52

3

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.83

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

3

TECH SHT, BTM MT WPL 16026957 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

FRAME ASSY., ELEVATOR SHELF WPL 67005271 Contact Us For Availability

4

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $117.94

4

W11690159 Whirlpool Handle Backorder WPL W11690159 $97.48

4

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

4

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

4

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

4

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $114.94

4

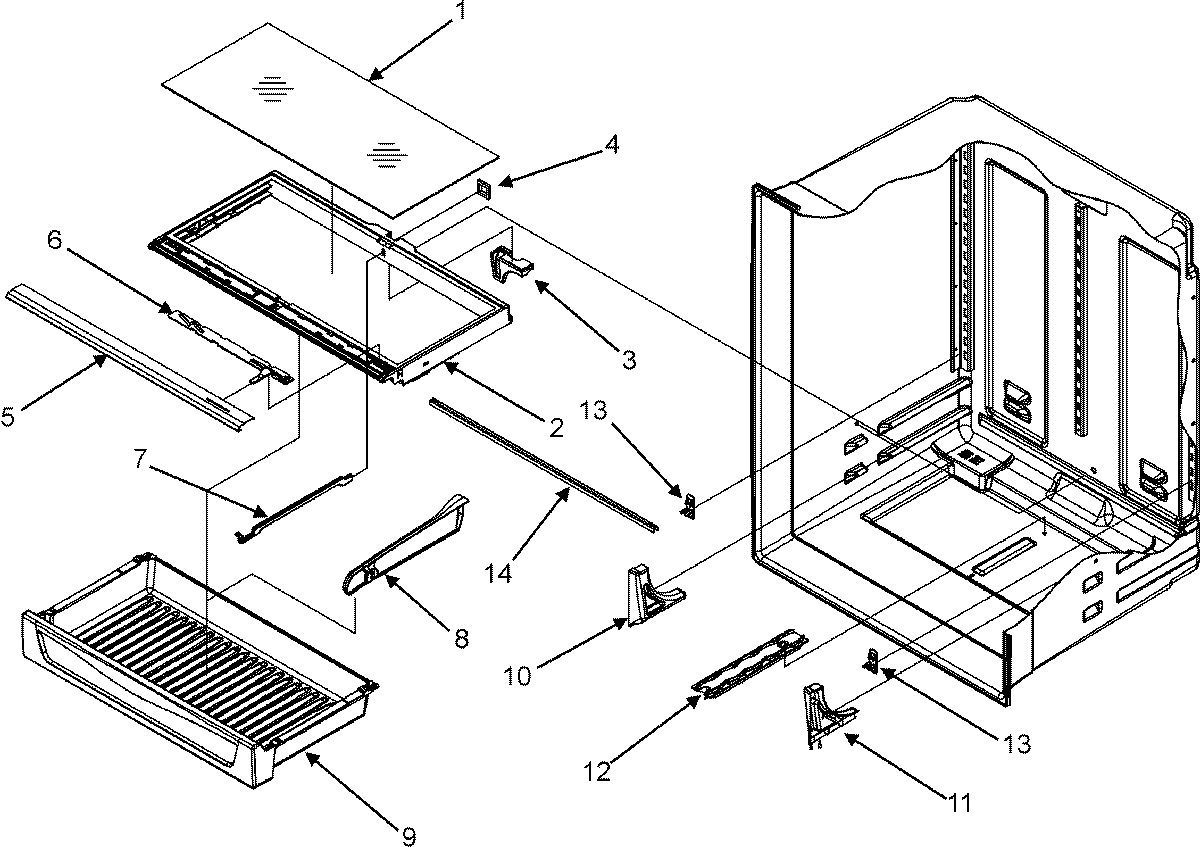

GASKET, PANTRY WPL 67002005 Contact Us For Availability

4

MODULE, REF CONTROL WPL 67005444 Contact Us For Availability

4

TAG, ENERGY WPL 67007169 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SHELF, ELEVATOR WPL 61004709 Contact Us For Availability

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.94

5

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $53.36

5

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.27

5

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $79.71

5

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $30.96

5

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

5

INLET, WATER WPL 951001 Contact Us For Availability

5

GASKET, MC BACK WPL B5759649 Contact Us For Availability

5

SHELF, MEAT WPL 61005752 Contact Us For Availability

6

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $57.90

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.93

6

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

6

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $35.01

6

WP67005920 Whirlpool Refrigerator Crisper Dra Backorder WPL WP67005920 $34.22

6

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

6

Slide,Pantry WPL 67002002 Contact Us For Availability

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

RAIL, MEAT (LT) WPL 67002190 Contact Us For Availability

7

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.75

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.48

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.70

7

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $47.90

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.30

7

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $12.85

7

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $29.63

7

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

7

Bar,Pantry WPL 67002003 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $31.40

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.62

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

8

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $62.30

8

WPW10231343 Whirlpool Shelf Trim Backorder WPL WPW10231343 $46.89

8

DIVIDER, PANTRY WPL 67001923 Contact Us For Availability

8

RACK, CAN WPL 67004436 Contact Us For Availability

9

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.99

9

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $34.26

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

9

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.55

9

PAN, PANTRY WPL 67005921 Contact Us For Availability

9

SCREW WPL 67006573 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

BRACKET, DRAWER SLIDE (LT) WPL 67004012 Contact Us For Availability

9

BRACKET, DRAWER SLIDE (RT) WPL 67004013 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $46.57

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.67

PLUG, TOP HINGE BUTTON (BLK) WPL M0310731 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.27

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.94

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.76

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.55

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $73.07

12001919 Whirlpool Refrigerator Evaporator Re In Stock WPL 12001919 $210.18

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.52

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.20

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $92.90

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.55

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

KEYBOARD, CONTROL WPL 67005439 Contact Us For Availability

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $75.12

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $41.05

HOOK, LADDER WPL 67004438 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

BOARD, HV CONTROLx WPL 67006211 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.08

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $52.77

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

LADDER, SHELF (CTR) WPL 67004439 Contact Us For Availability

BOX, HV CONTROL WPL 67004969 Contact Us For Availability

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $82.30

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $47.30

COVER, FZ LIGHT WPL 67003905 Contact Us For Availability

LADDER, SHELF (RT) WPL 67004440 Contact Us For Availability

LADDER, SHELF (LT) WPL 67004441 Contact Us For Availability

SPACER, HV BOX WPL 67005418 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

RETAINER, DOOR WPL 67001748 Contact Us For Availability

MODULE, FZ CONTROL WPL 67003906 Contact Us For Availability

HARNESS, HV PC BOARD WPL 67005937 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

SCREW WPL 67006550 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $34.76

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

BASKET, UPPER WPL 67004986 Contact Us For Availability

COVER, HV BOX WPL 67005421 Contact Us For Availability

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.49

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.76

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.76

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.76

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $53.74

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.76

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.86

BASKET, LOWER 33 WPL 67006024 Contact Us For Availability

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.76

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.75

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

22

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.76

22

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.76

22

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $33.81

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $35.95

HARNESS, FZ MODULE WPL 67006094 Contact Us For Availability

SCREW WPL 67006608 Contact Us For Availability

24

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.26

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.88

25

TRAY, EGG WPL 672152 Contact Us For Availability

25

DIVIDER, BASKET (LWR) WPL 67006103 Contact Us For Availability

26

RIVET WPL M1205302 Contact Us For Availability

26

SLIDE, DRAWER WPL 67006607 Contact Us For Availability

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.65

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $39.73

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $39.73

TRAY, BUTTER WPL 67004404 Contact Us For Availability

28

ADAPTER, SIDE (LT) WPL 67004864 Contact Us For Availability

28

ADAPTER, SIDE (RT) WPL 67004865 Contact Us For Availability

29

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.86

29

SCREW WPL 67006491 Contact Us For Availability

29

BRACKET, FOOT CABINET WPL 67006112 Contact Us For Availability

30

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.76

30

ADAPTER, CTR LADDER WPL 67003721 Contact Us For Availability

31

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $35.72

32

HARNESS, EVAP HEATER WPL 67005574 Contact Us For Availability

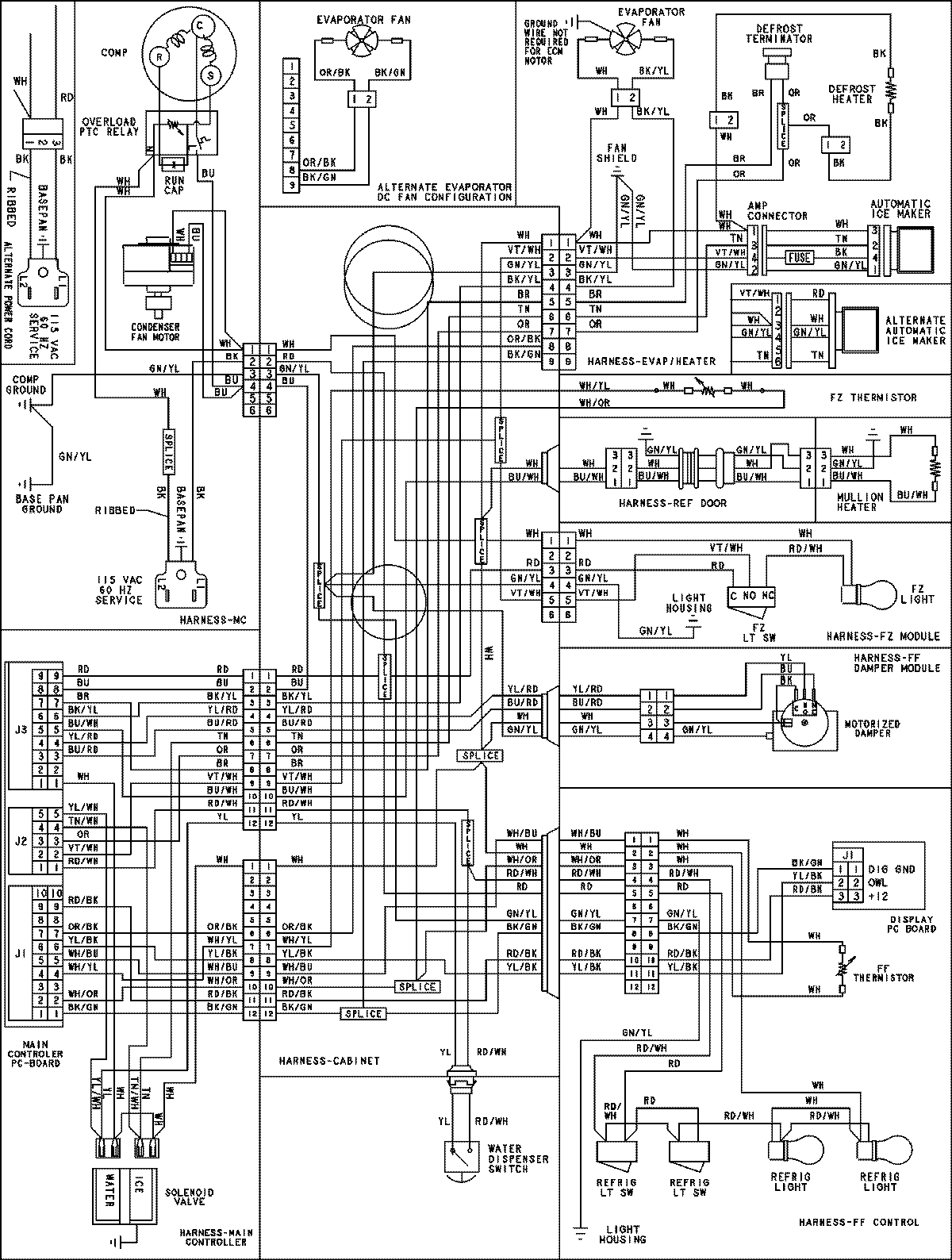

NI

WIRING INFORMATION WPL 15003912 Contact Us For Availability
