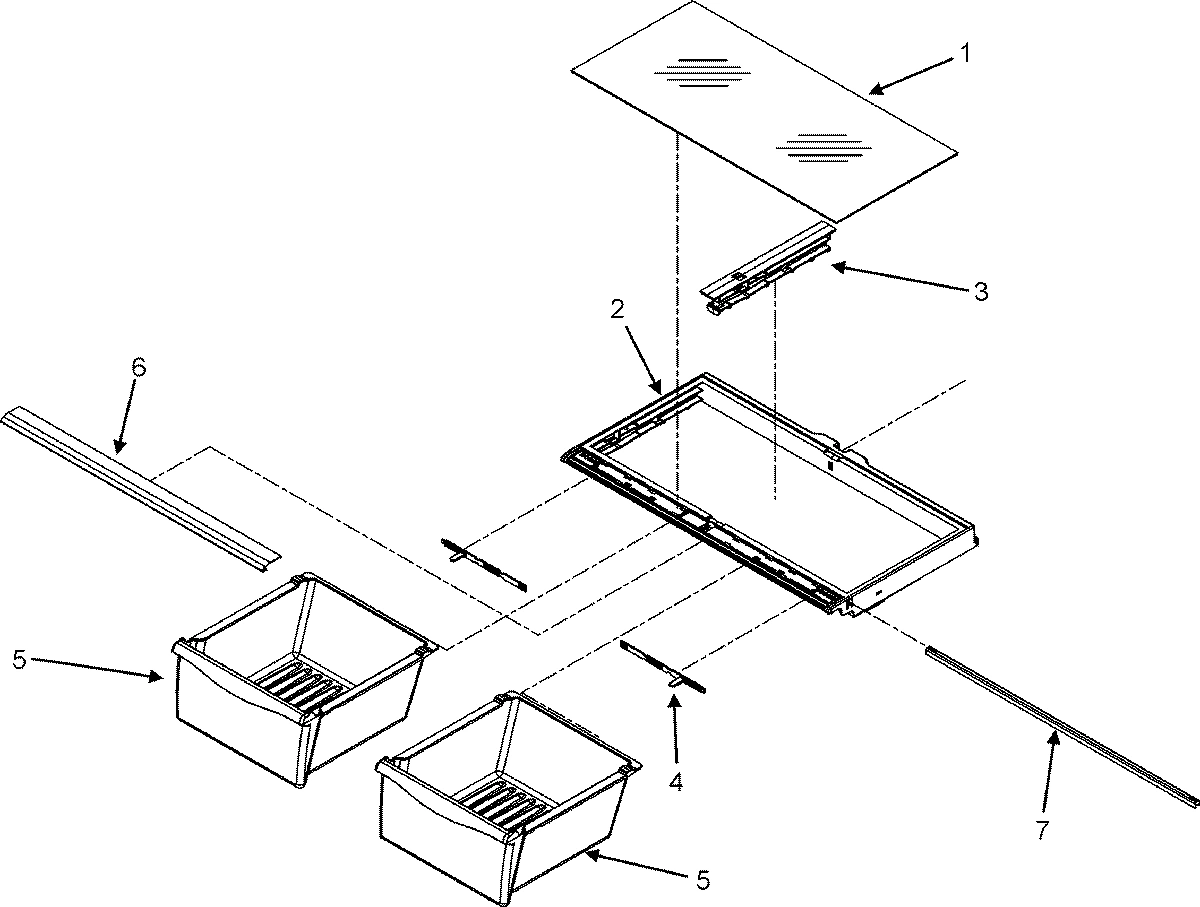

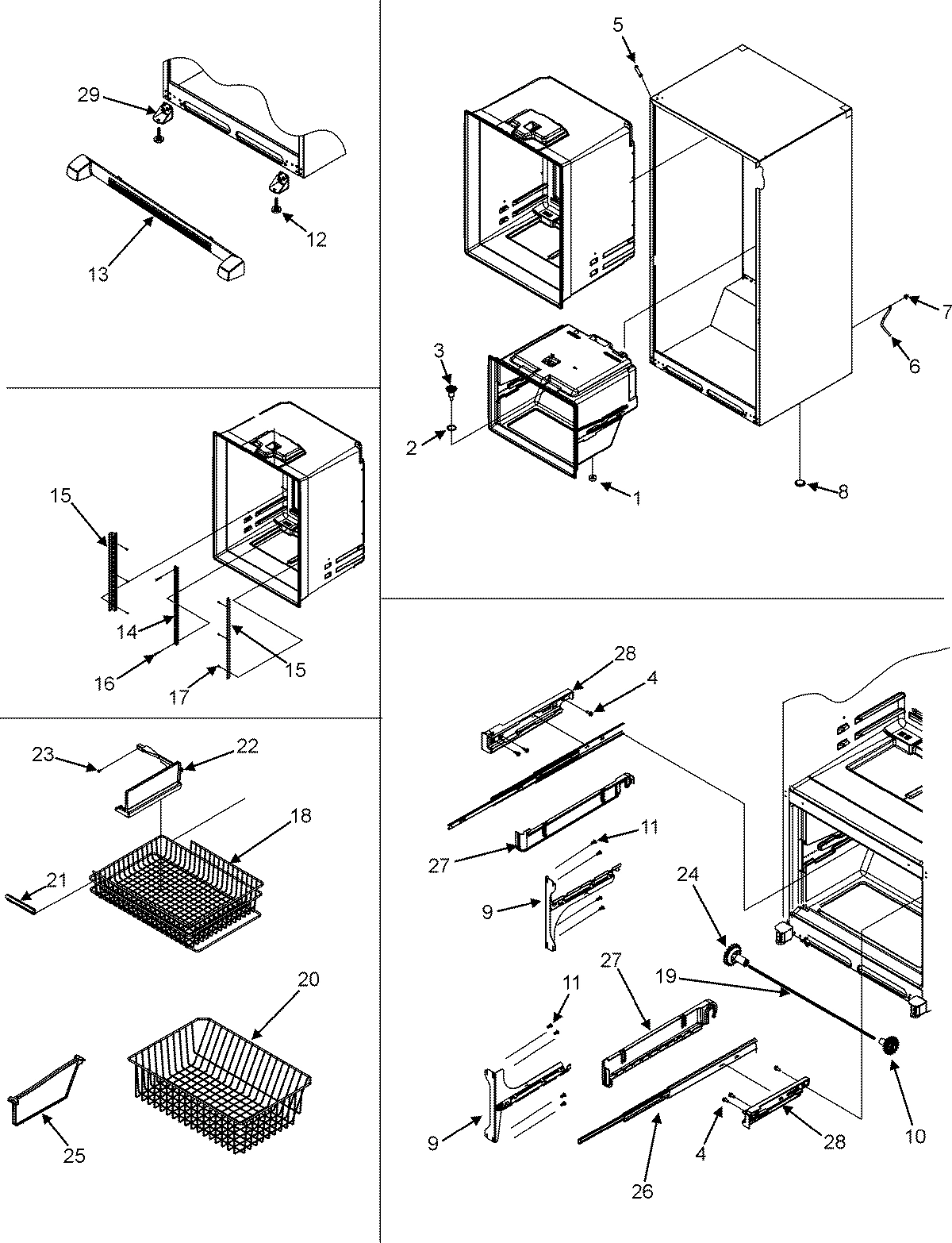

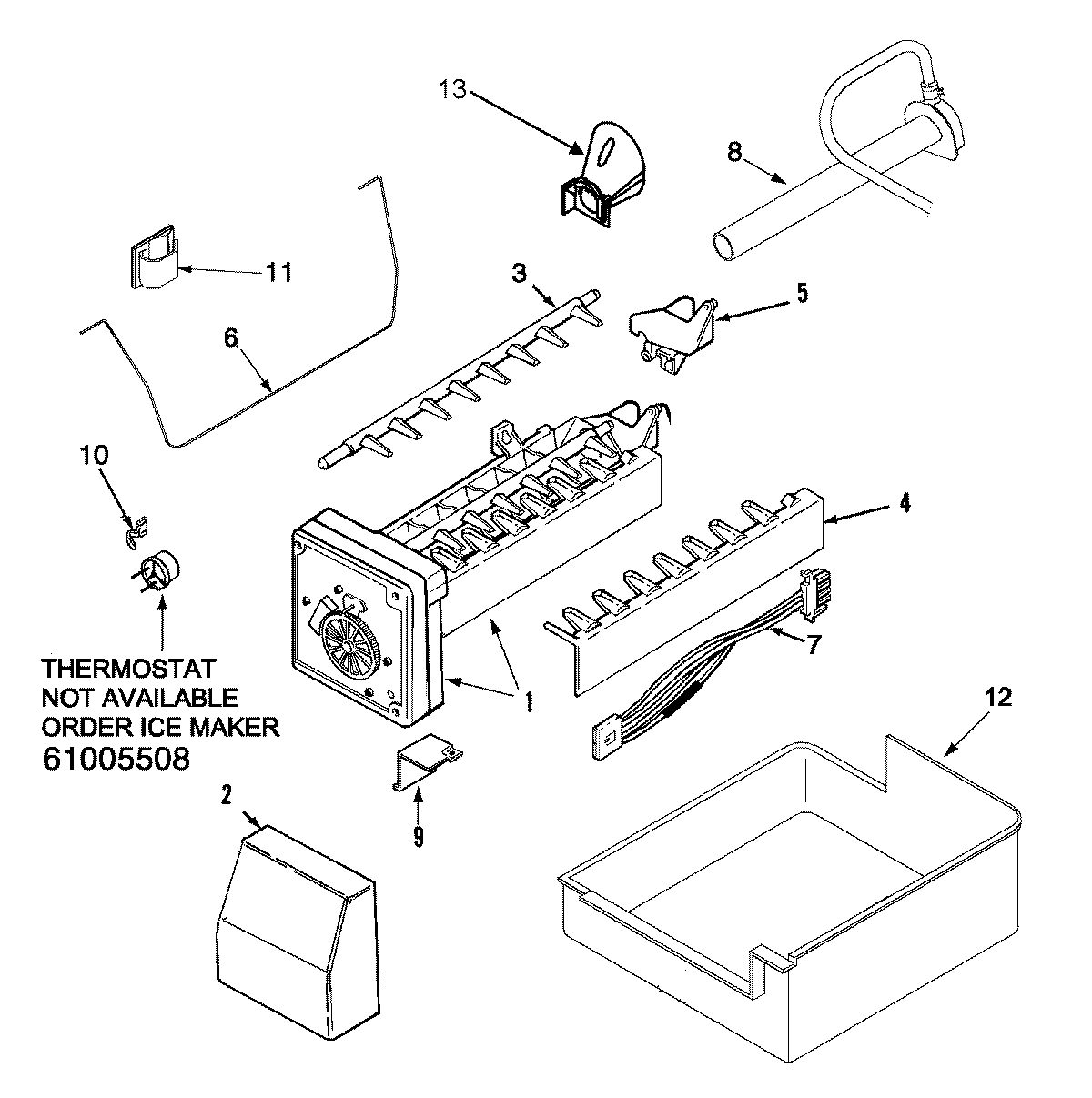

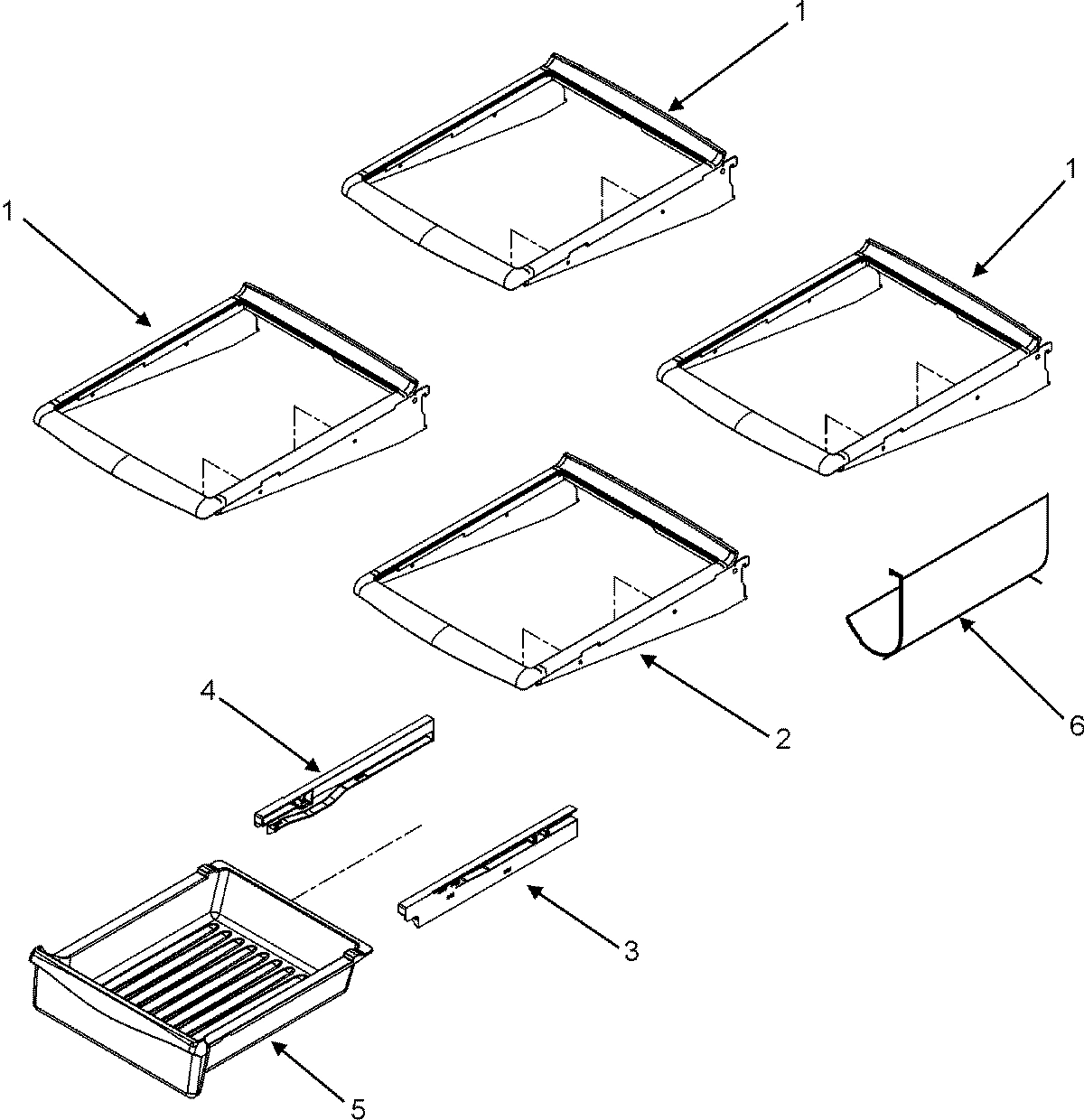

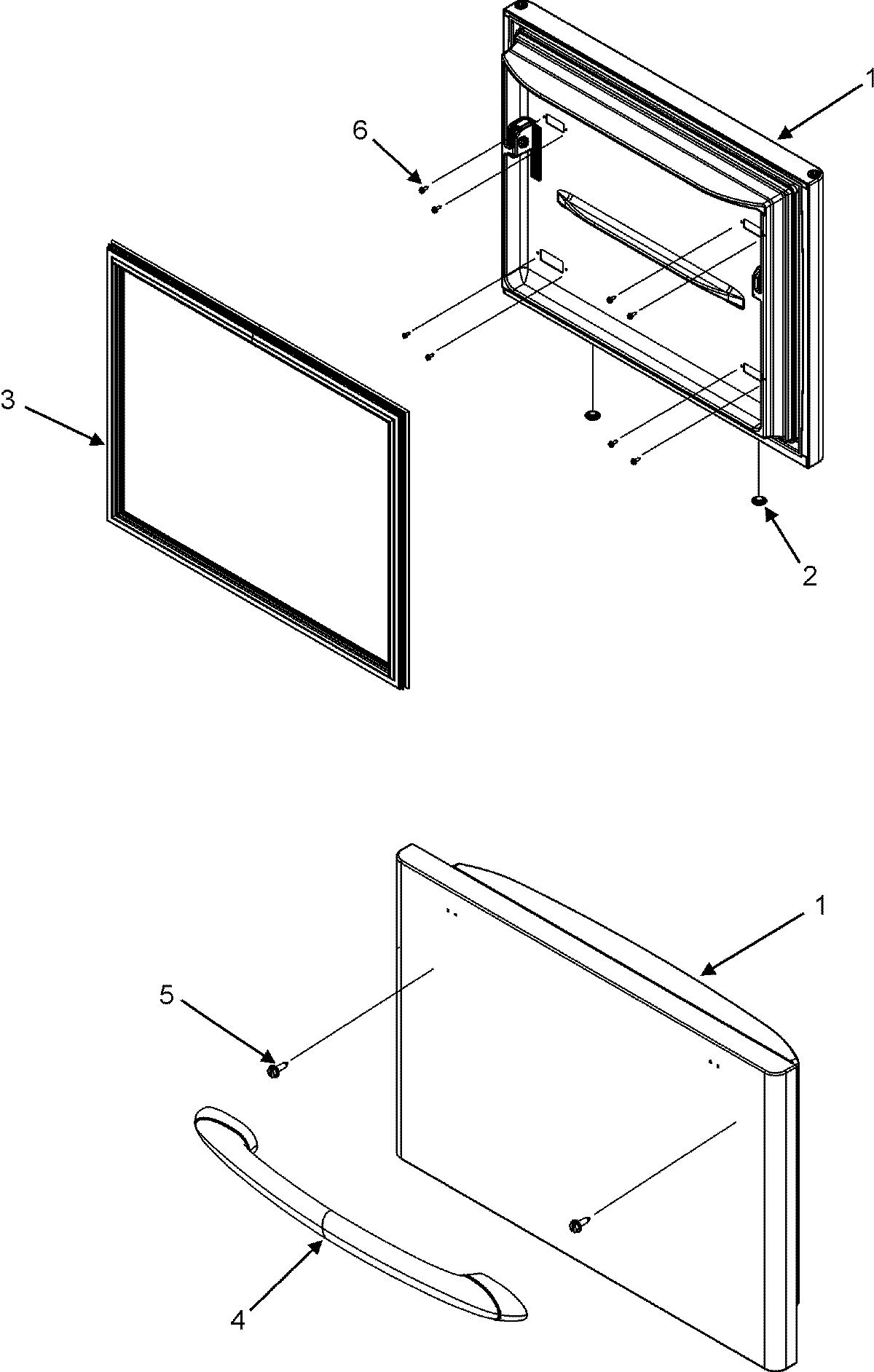

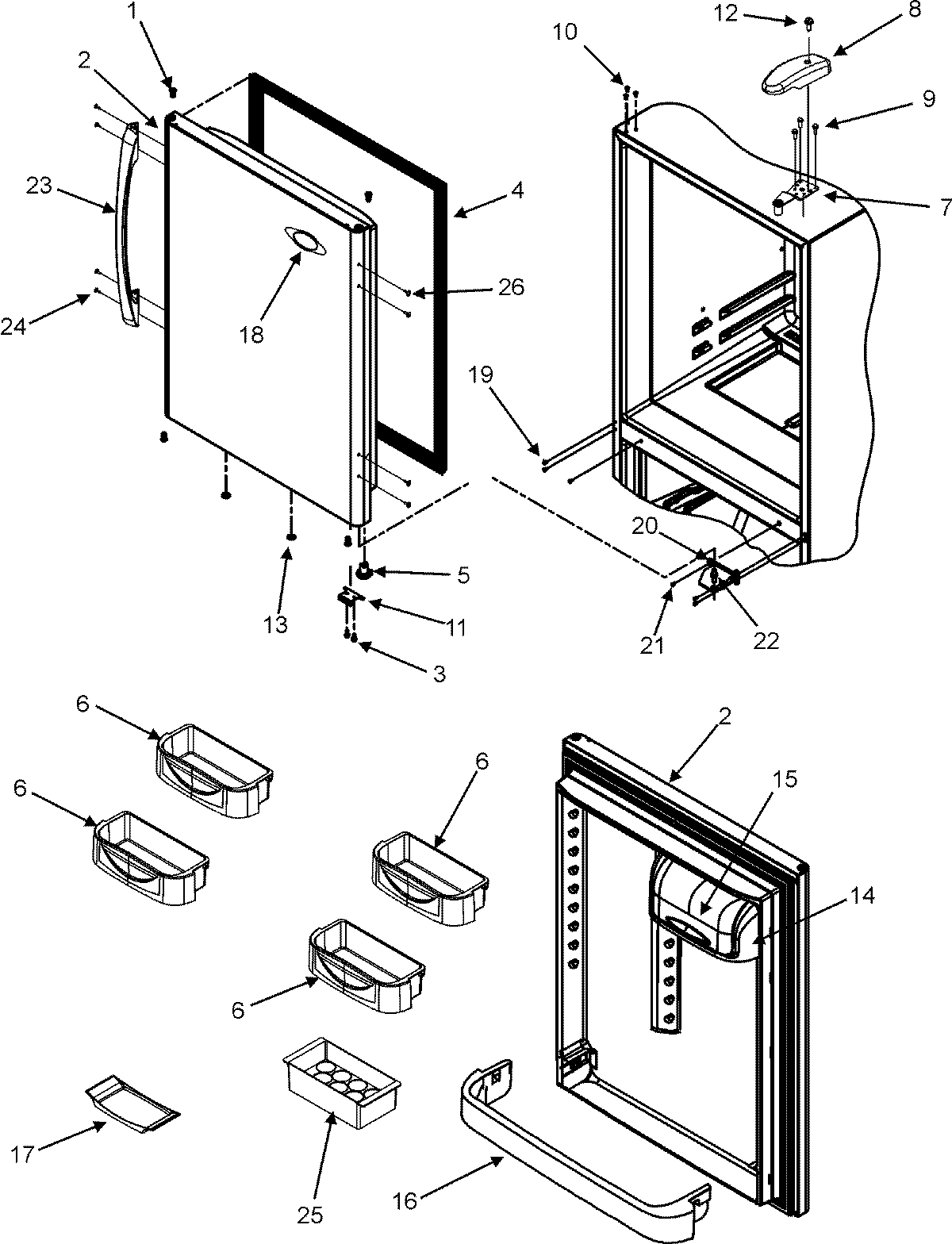

Model Whirlpool MBF2256KEB REFRIGERATOR – Common Parts &amp; Diagrams

1

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.94

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

1

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $128.48

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $30.71

1

COVER, MC BACK WPL 67006101 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (BLK) WPL 67006892 Contact Us For Availability

2

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.80

2

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $75.05

2

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $72.04

2

SHELF, STATIONARY WPL 67004368 Contact Us For Availability

2

MODULE, LIGHT WPL Y67003896 Contact Us For Availability

2

DOOR ASSY., REF. FOAM (BLK) WPL 67004329 Contact Us For Availability

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.12

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.32

3

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $41.07

3

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $3.94

3

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.55

3

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $117.52

3

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.83

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

4

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $117.94

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.79

4

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.94

4

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

4

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $114.94

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $41.85

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.94

5

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.27

5

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.65

5

WP67001314 Whirlpool Snack Pan Backorder WPL WP67001314 $94.12

5

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $79.71

5

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $30.96

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $132.37

5

PAN, DRAIN WPL 67004713 Contact Us For Availability

6

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $9.75

6

67004040 Whirlpool Refrigerator Bucket Door Backorder WPL 67004040 $57.90

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.93

6

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

6

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.51

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

6

WPW10231343 Whirlpool Shelf Trim Backorder WPL WPW10231343 $46.89

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

RACK, BOTTLE WPL 10448903 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.48

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $3.70

7

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $47.90

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.30

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.80

7

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $31.40

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.62

8

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

8

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $62.30

8

MOTOR, CONDENSER FAN WPL 67004432 Contact Us For Availability

9

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.99

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

9

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.55

9

BRACKET, DRAWER SLIDE (LT) WPL 67004012 Contact Us For Availability

9

BRACKET, DRAWER SLIDE (RT) WPL 67004013 Contact Us For Availability

9

SCREW WPL 67006573 Contact Us For Availability

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $46.57

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.67

CLIP, DRIER WPL 10547002 Contact Us For Availability

TUBE, DISCHARGE WPL 67004262 Contact Us For Availability

PLUG, TOP HINGE BUTTON (BLK) WPL M0310731 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.27

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.94

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $73.07

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $210.18

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.52

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.20

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

OVERLAY, CONTROL MODULE WPL 67004058 Contact Us For Availability

BASEPAN, MACHINE COMPARTMENT WPL 67005744 Contact Us For Availability

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.80

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.76

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $75.12

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $41.05

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $31.86

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $52.77

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $17.86

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $82.30

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $47.30

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $149.33

LADDER, SIDES WPL 67001317 Contact Us For Availability

COVER, FZ LIGHT WPL 67003905 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.94

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

MODULE, FZ CONTROL WPL 67003906 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

RETAINER, DOOR WPL 67001748 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $29.92

SHROUD, EVAP FAN WPL 67002777 Contact Us For Availability

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

TRAY, BUTTER WPL 67004412 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $34.76

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $33.28

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

BASKET, UPPER WPL 67004986 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

W11715937 Whirlpool Shaft Backorder WPL W11715937 $42.89

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.55

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.76

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.76

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $53.74

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.76

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.94

BASKET, LOWER 33 WPL 67006024 Contact Us For Availability

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.76

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.75

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

HANDLE, BASKET/SHELF WPL 10508506 Contact Us For Availability

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.76

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.76

DIVIDER, BASKET (UPPER) WPL 67004127 Contact Us For Availability

HARNESS, MC WPL 67005251 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $33.81

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $52.12

SCREW WPL 67006608 Contact Us For Availability

HARNESS, FZ MODULE WPL 67006094 Contact Us For Availability

HANDLE ASSY., REF. DOOR (BLK) WPL 67005145 Contact Us For Availability

24

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

24

67006806 Whirlpool Refrigerator Black High To Backorder WPL 67006806 $9.75

24

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.26

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.88

25

DIVIDER, BASKET (LWR) WPL 67006103 Contact Us For Availability

25

TRAY, EGG WPL 672152 Contact Us For Availability

26

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

26

SLIDE, DRAWER WPL 67006607 Contact Us For Availability

26

RIVET WPL M1205302 Contact Us For Availability

27

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.65

27

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $39.73

27

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $39.73

28

ADAPTER, SIDE (LT) WPL 67004864 Contact Us For Availability

28

ADAPTER, SIDE (RT) WPL 67004865 Contact Us For Availability

29

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.86

29

SCREW WPL 67006491 Contact Us For Availability

29

BRACKET, FOOT CABINET WPL 67006112 Contact Us For Availability

30

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.76

31

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $35.72

32

HARNESS, EVAP HEATER WPL 67003931 Contact Us For Availability

NI

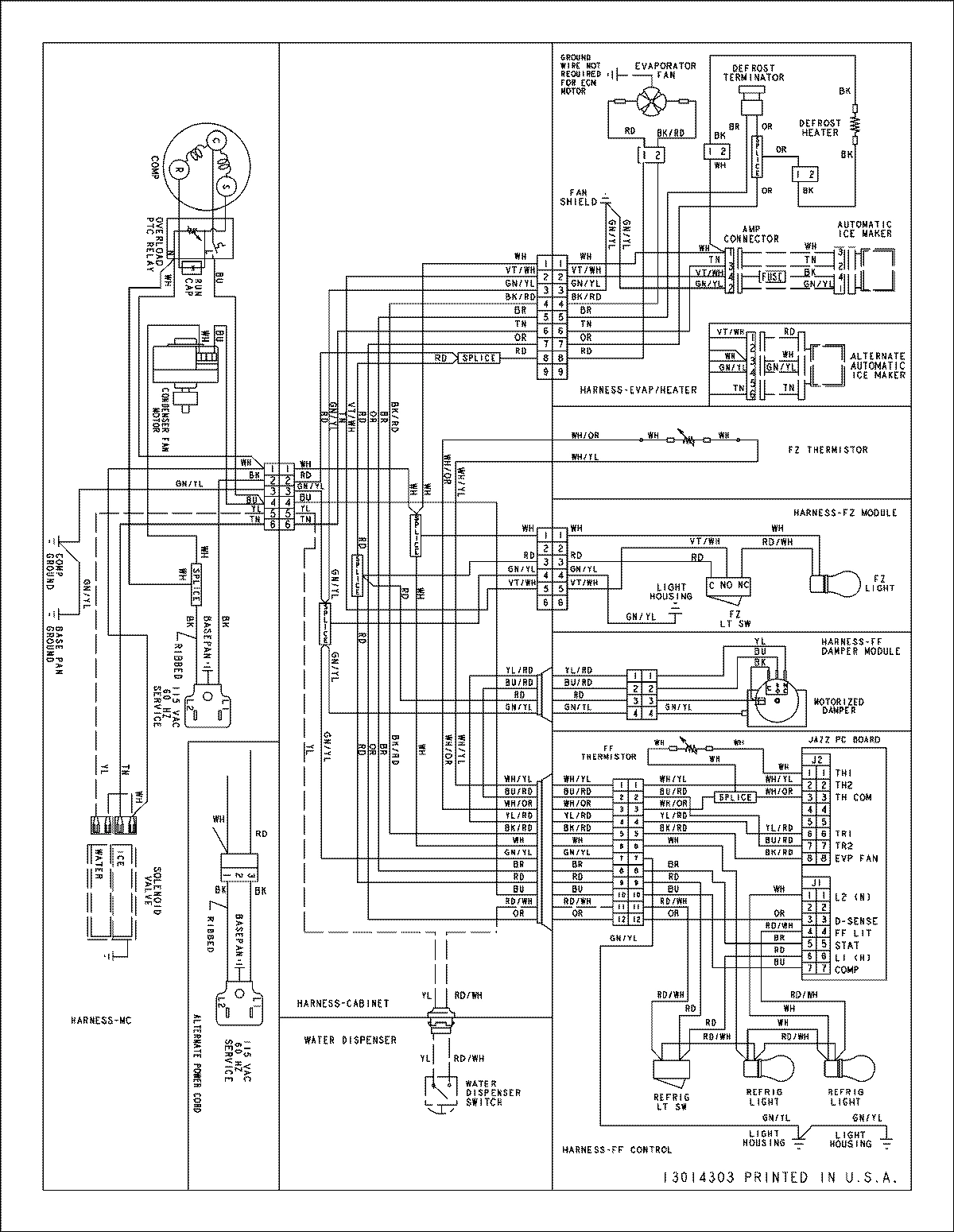

WIRING INFORMATION WPL 15003918 Contact Us For Availability
