Model Speed Queen LTZ80A*H1102 Washer – Common Parts & Diagrams

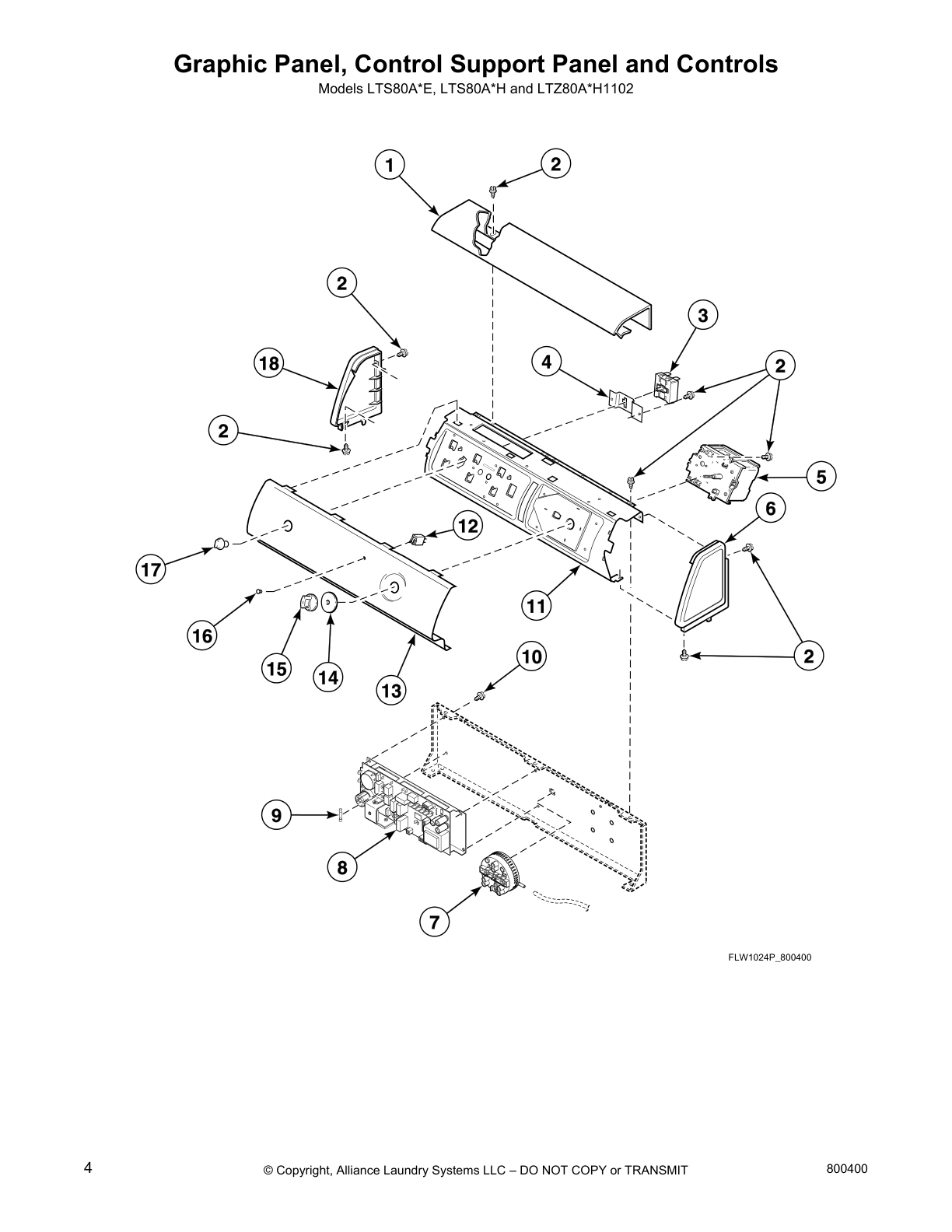

Graphic Panel, Control Support Panel and Controls

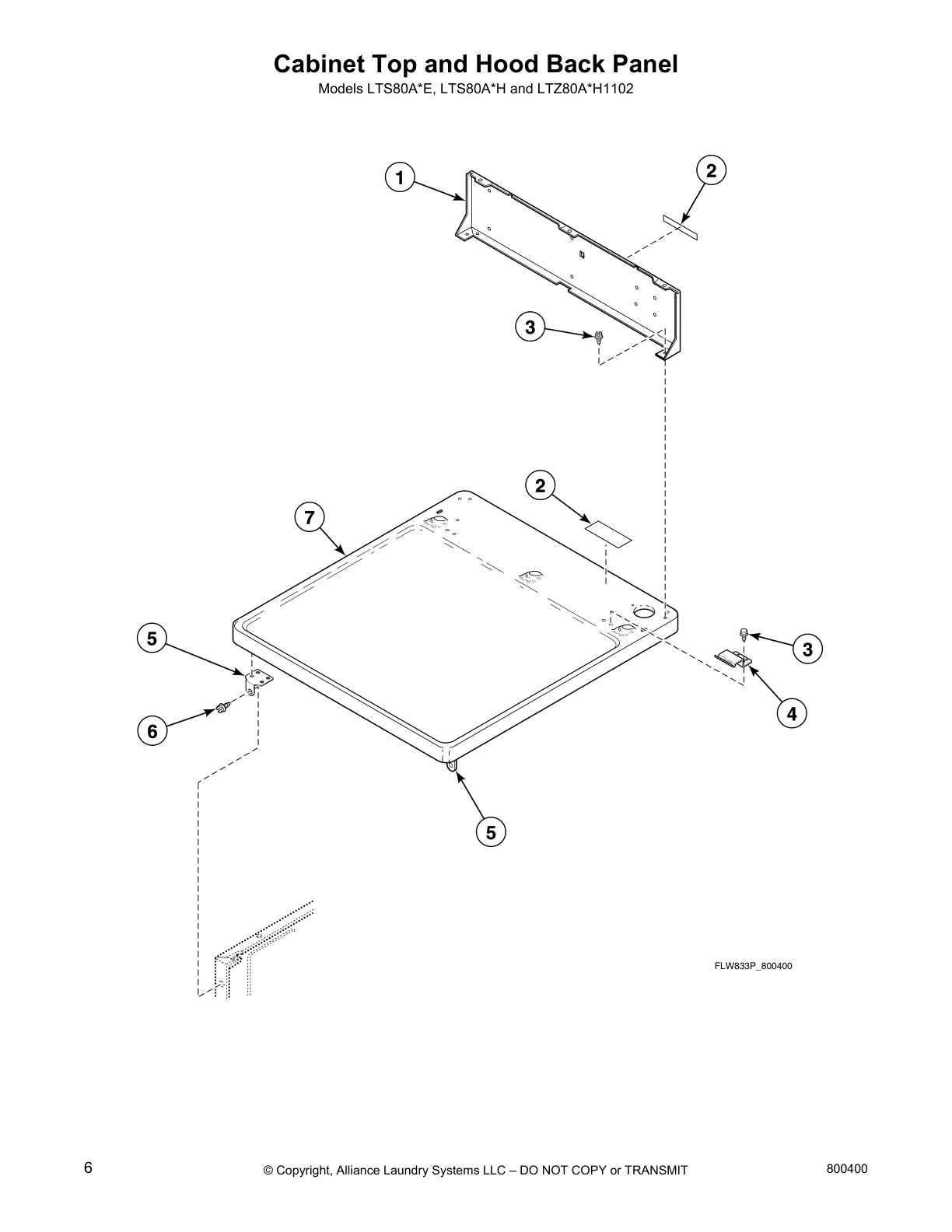

Cabinet Top and Hood Back Panel

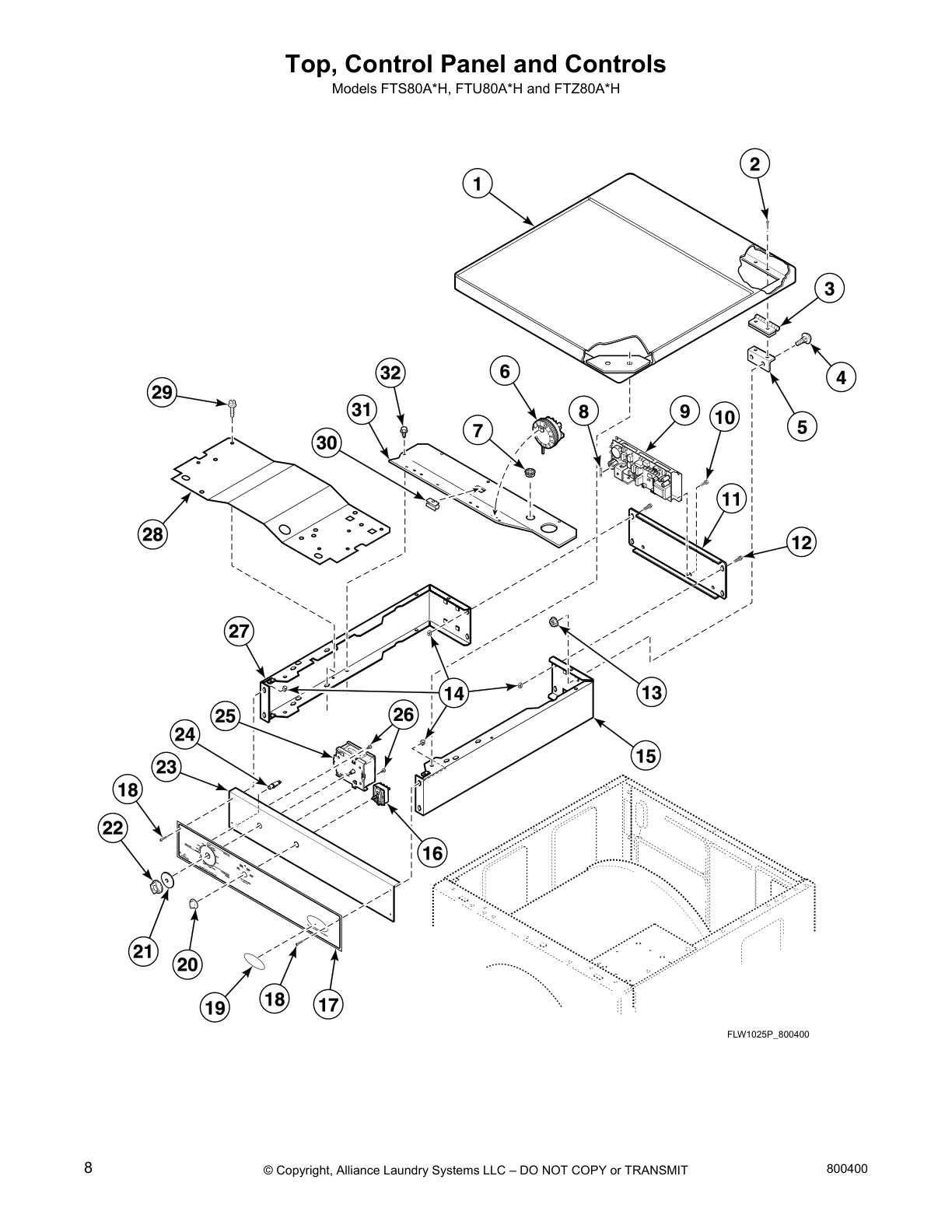

Top, Control Panel and Controls

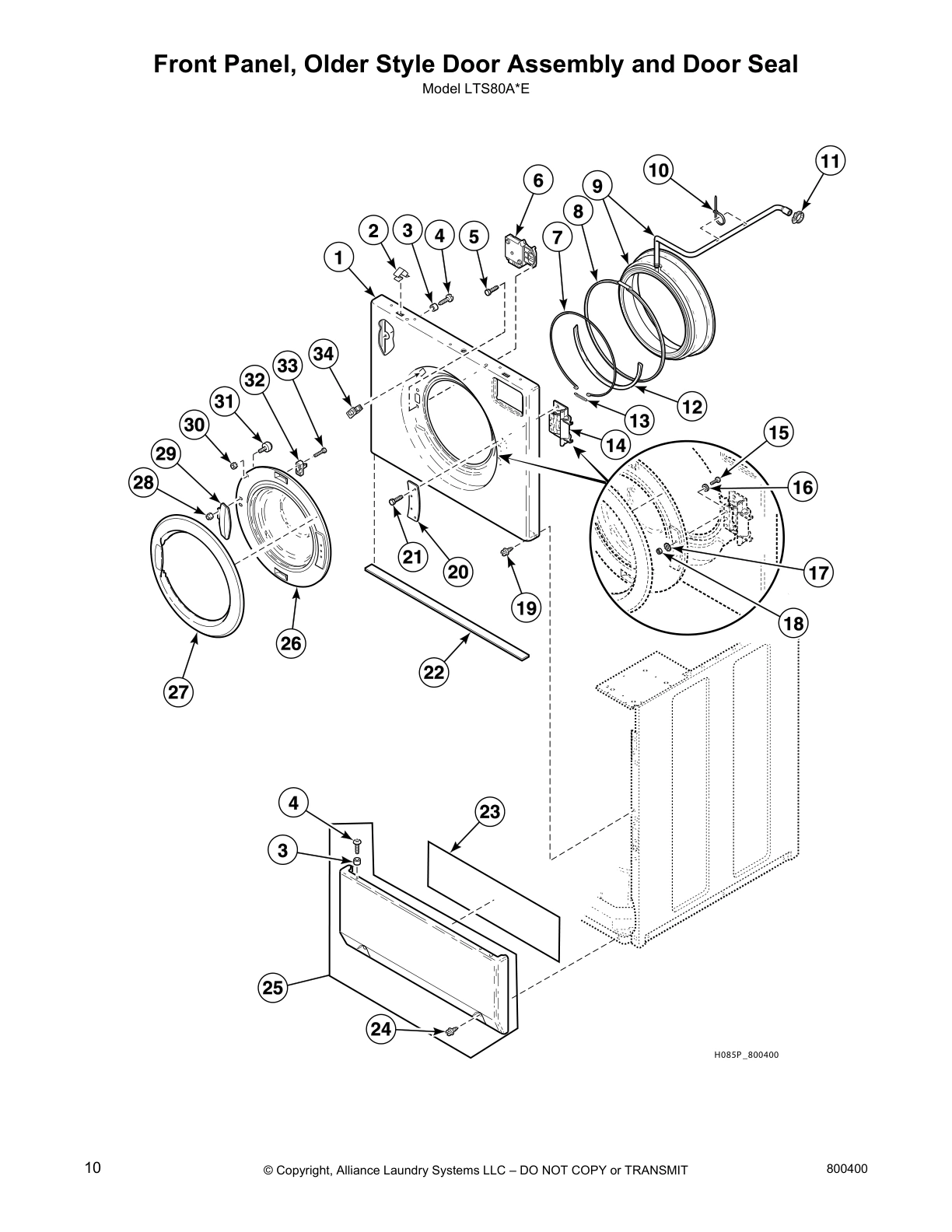

Front Panel, Older Style Door Assembly and Door Seal

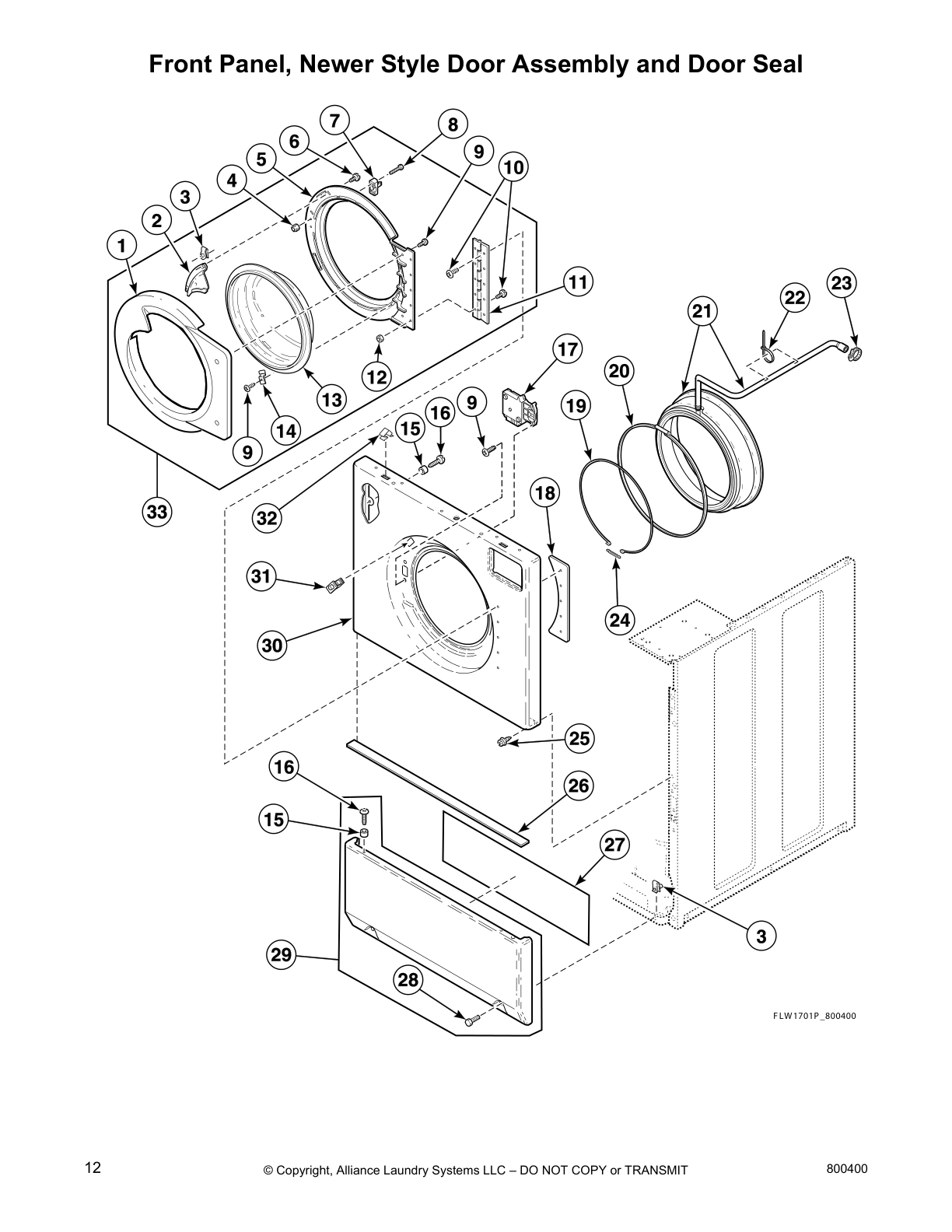

Front Panel, Newer Style Door Assembly and Door Seal

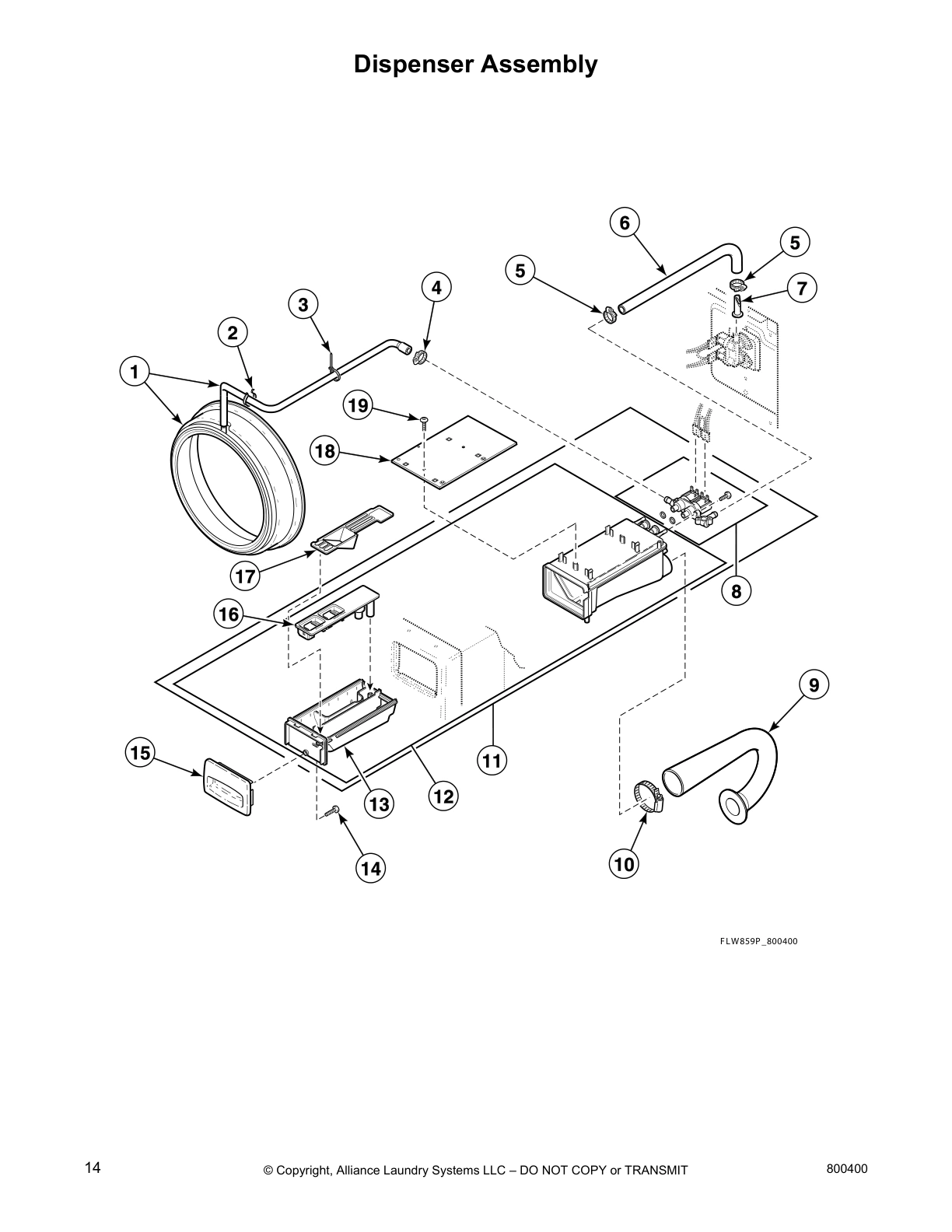

Dispenser Assembly

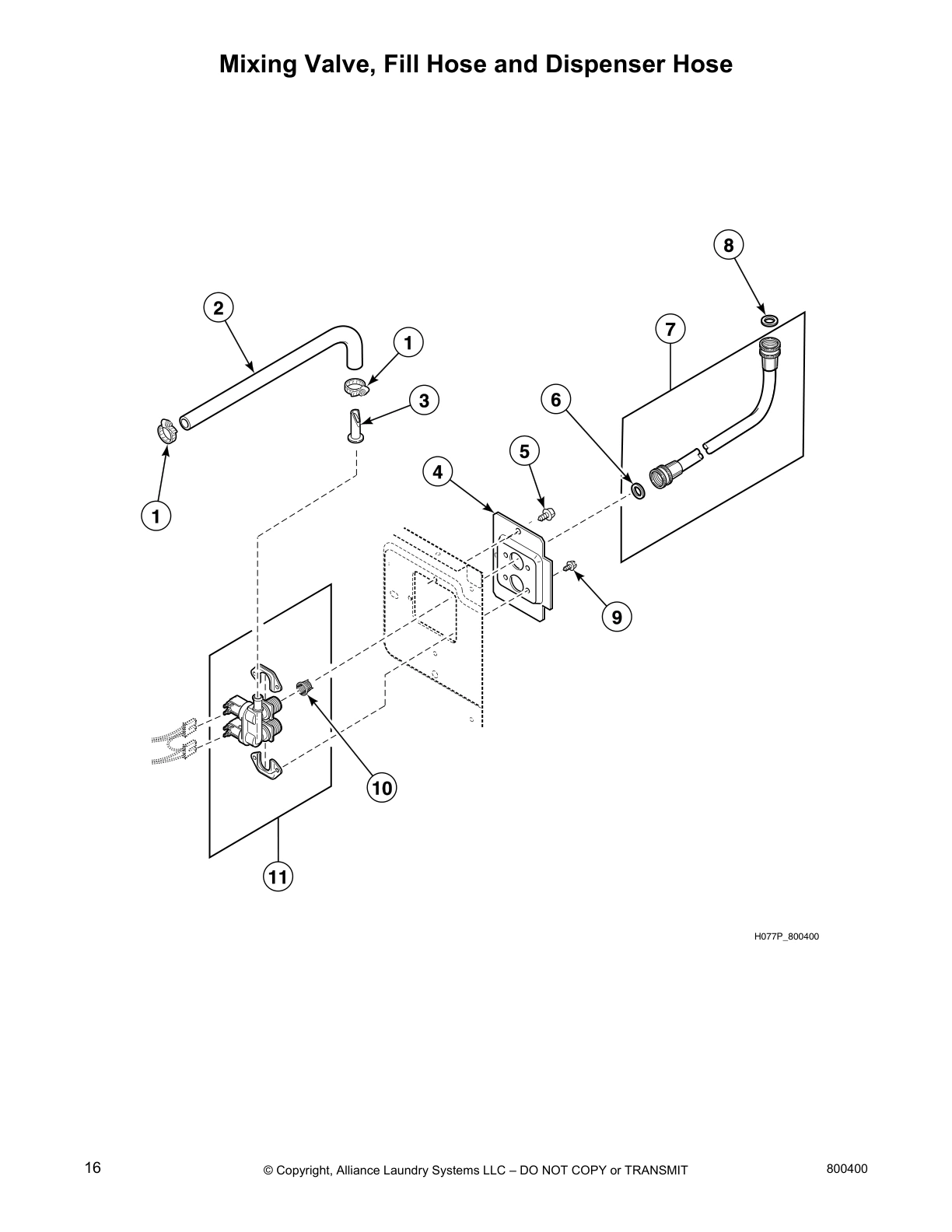

Mixing Valve, Fill Hose and Dispenser Hose

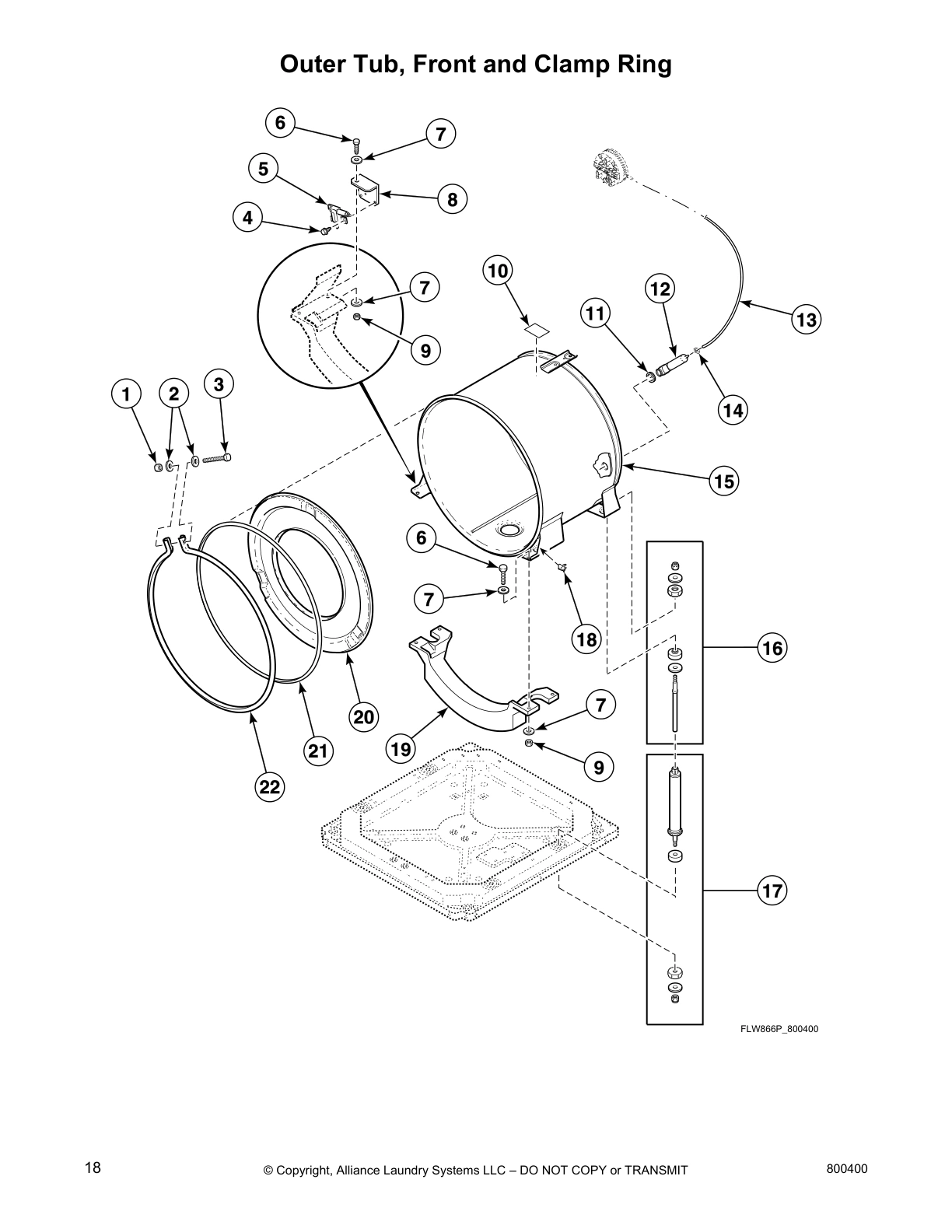

Outer Tub, Front and Clamp Ring

Inner Basket, Trunnion, Bearing Housing and Pulley

Motor and Belt

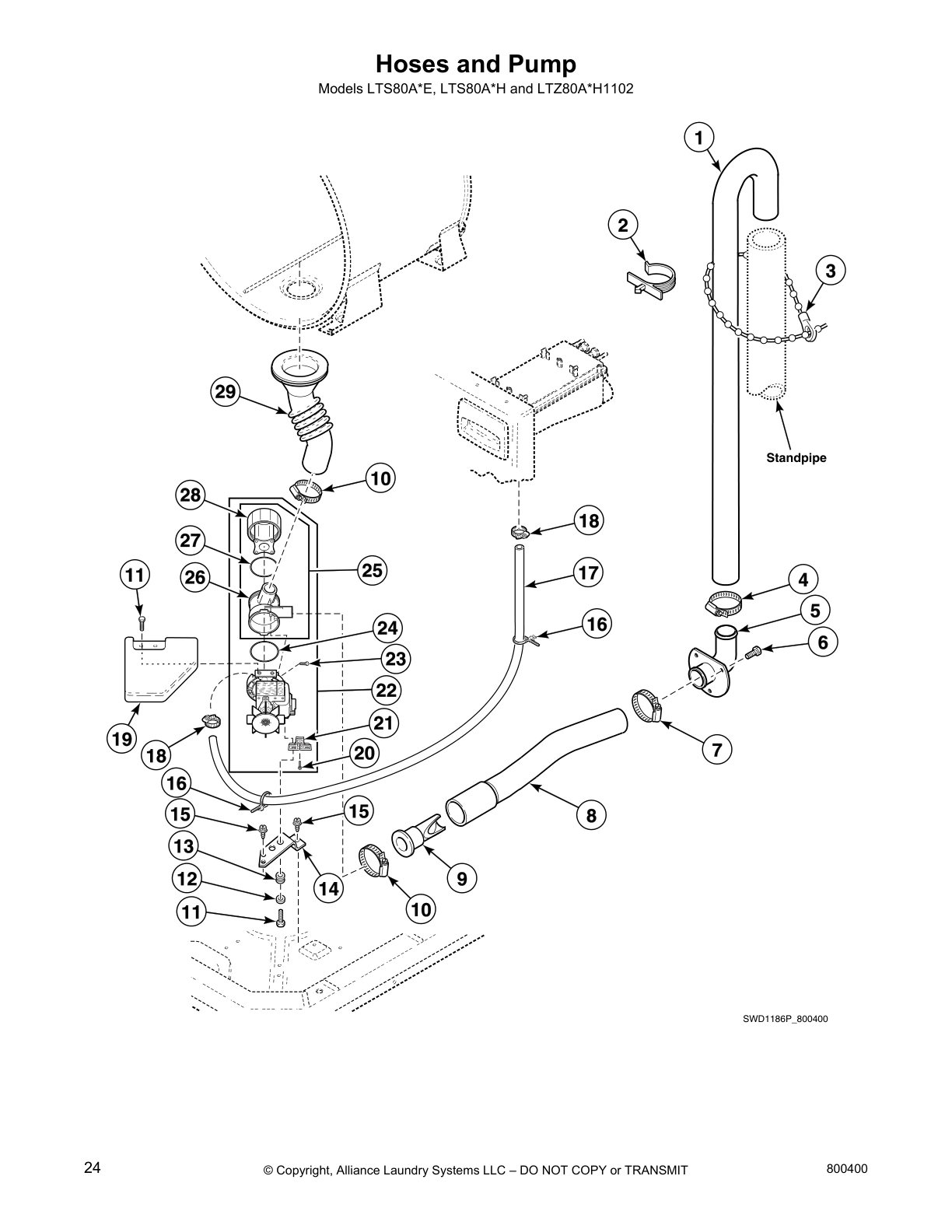

Hoses and Pump

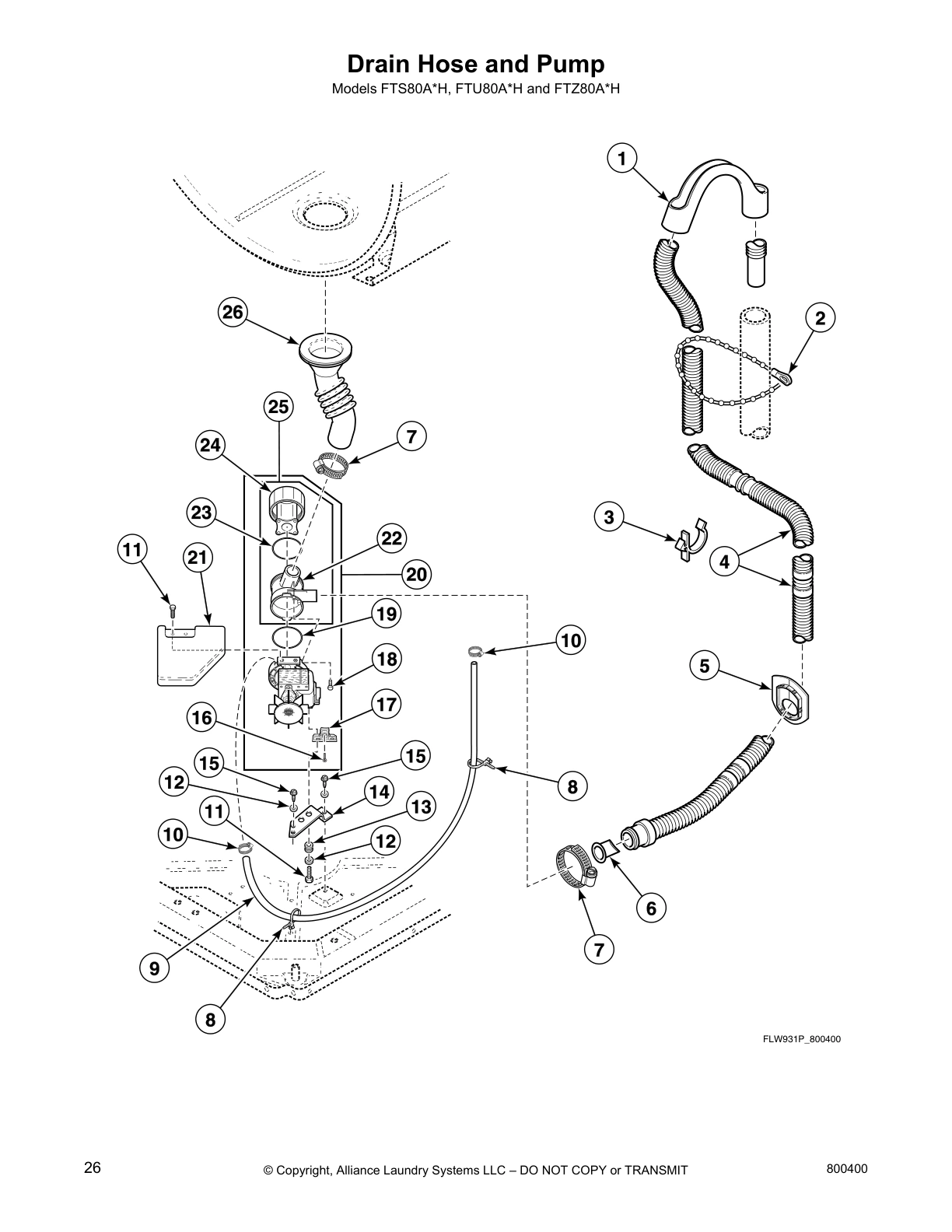

Drain Hose and Pump

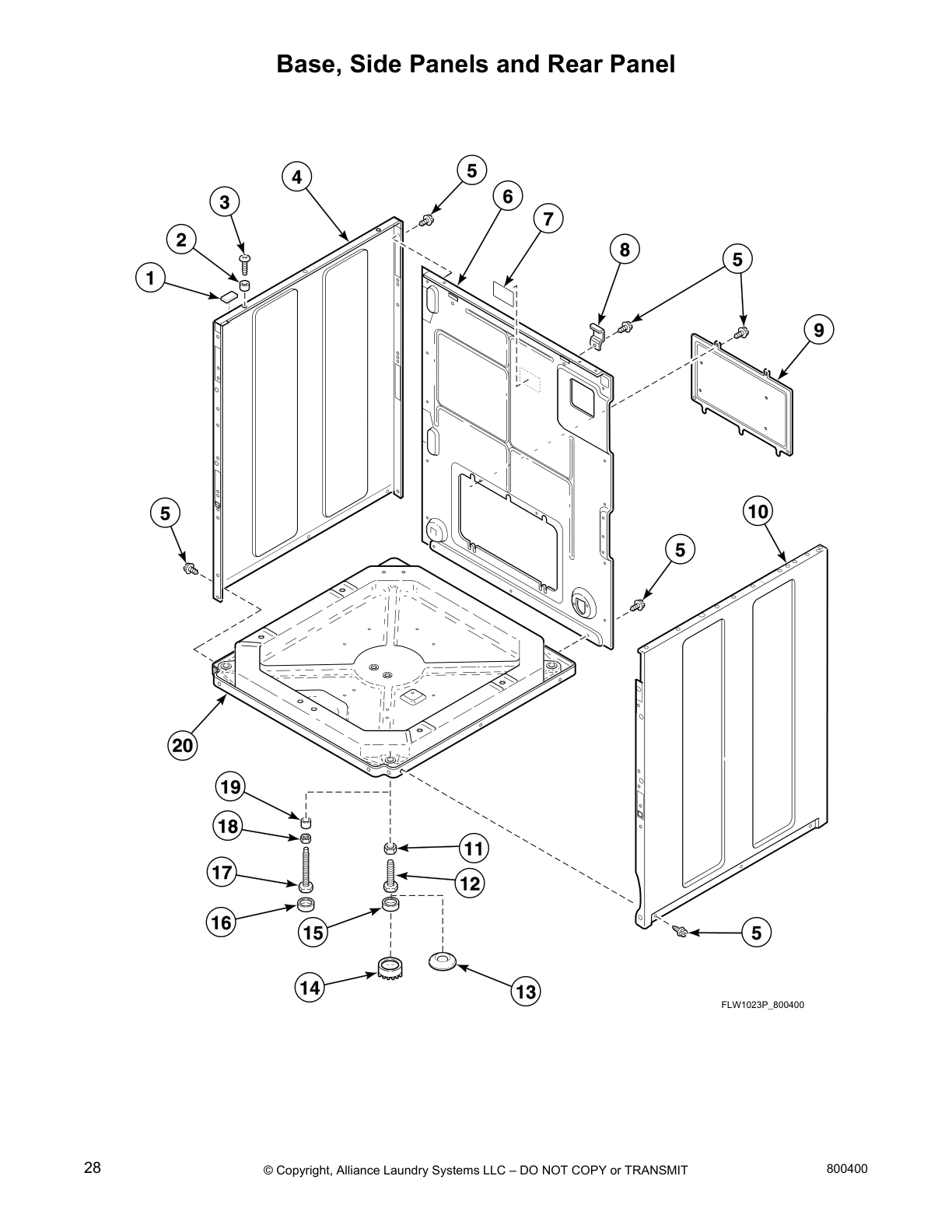

Base, Side Panels and Rear Panel

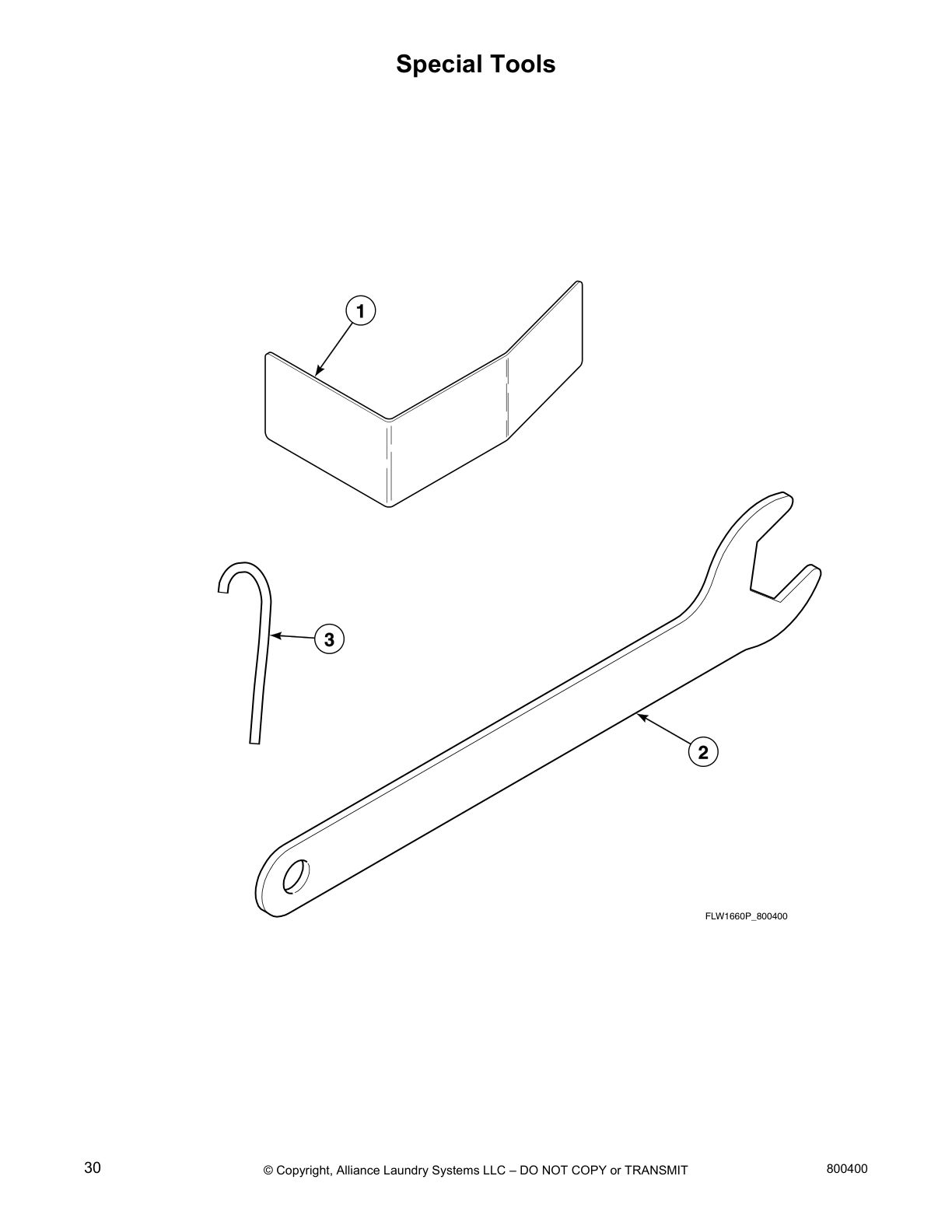

Special Tools

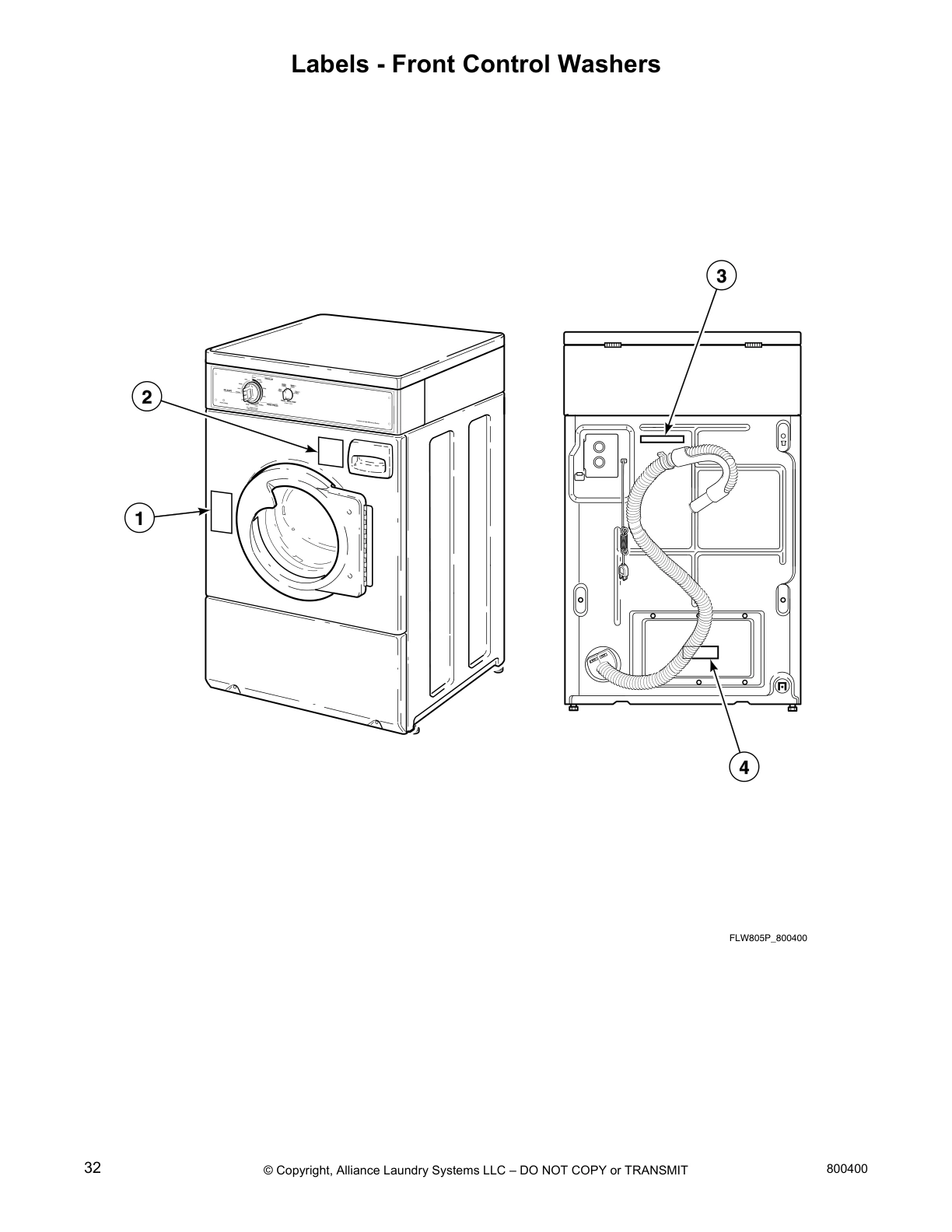

Labels - Front Control Washers

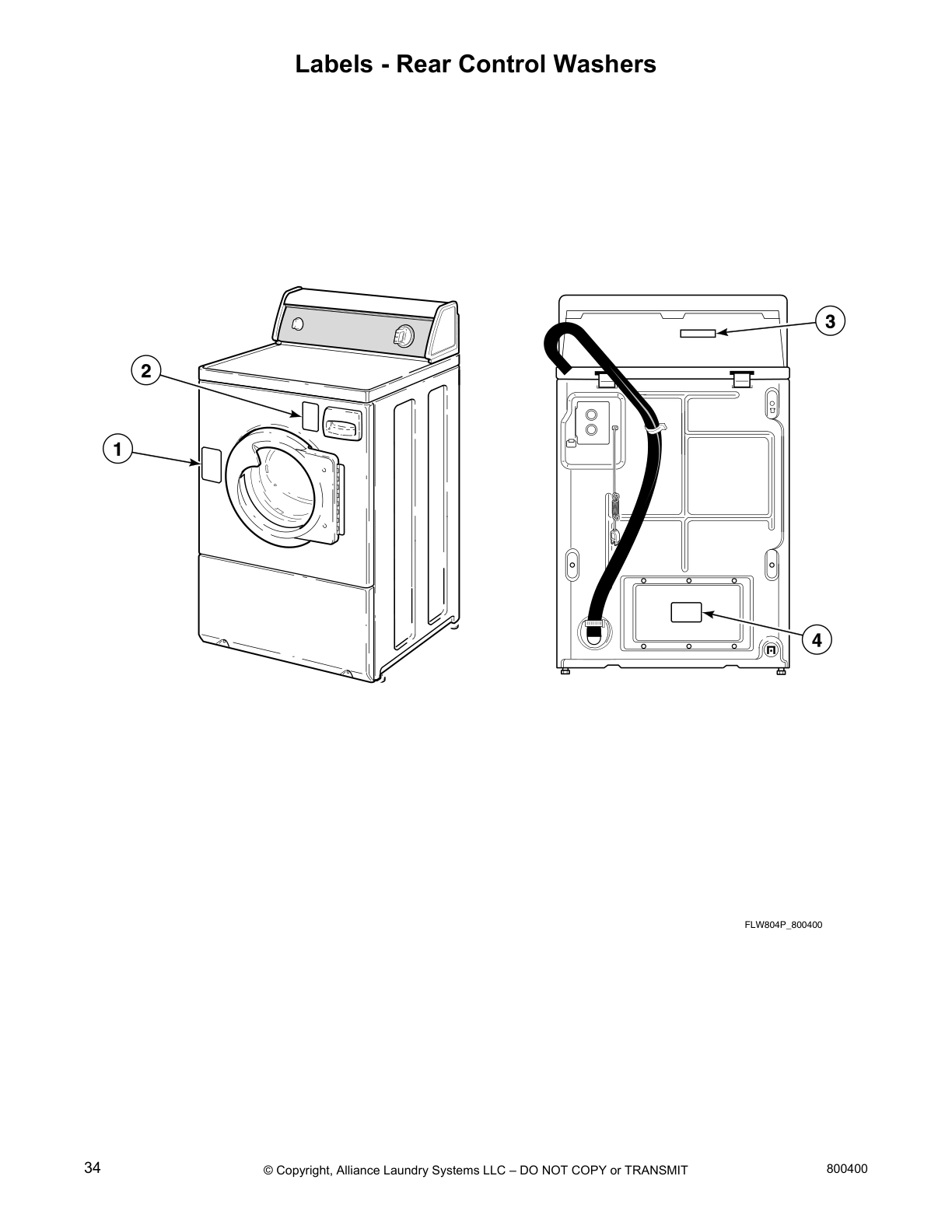

Labels - Rear Control Washers

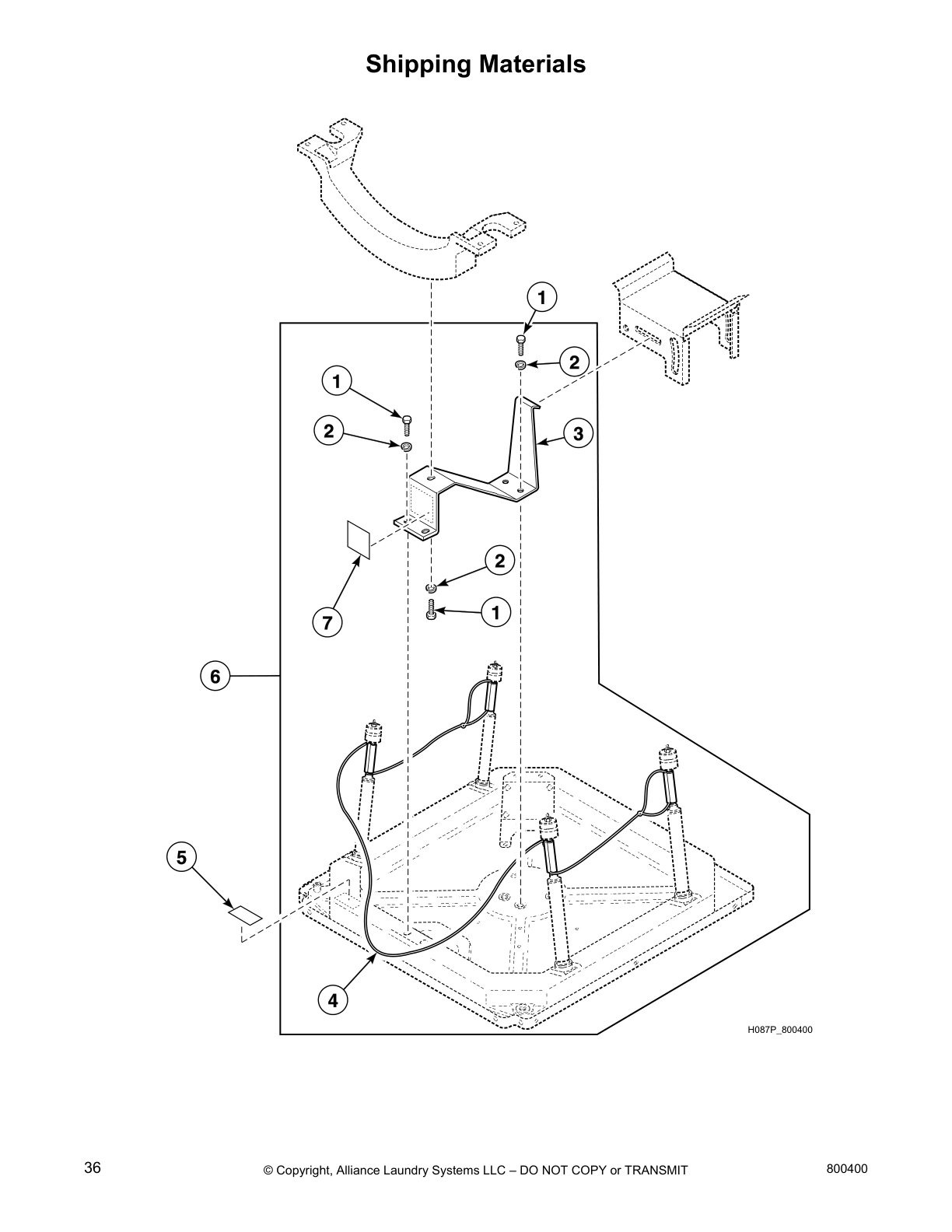

Shipping Materials

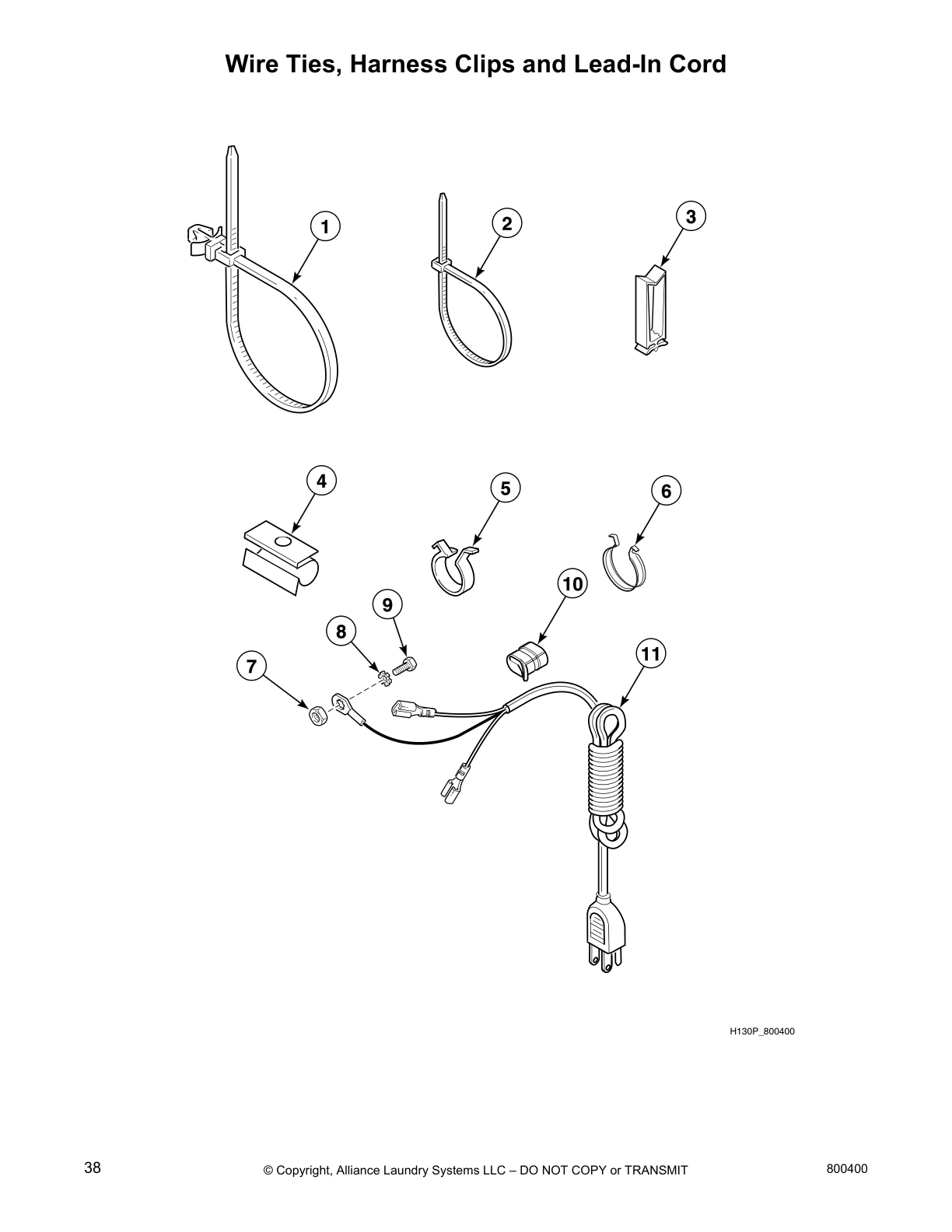

Wire Ties, Harness Clips and Lead-In Cord

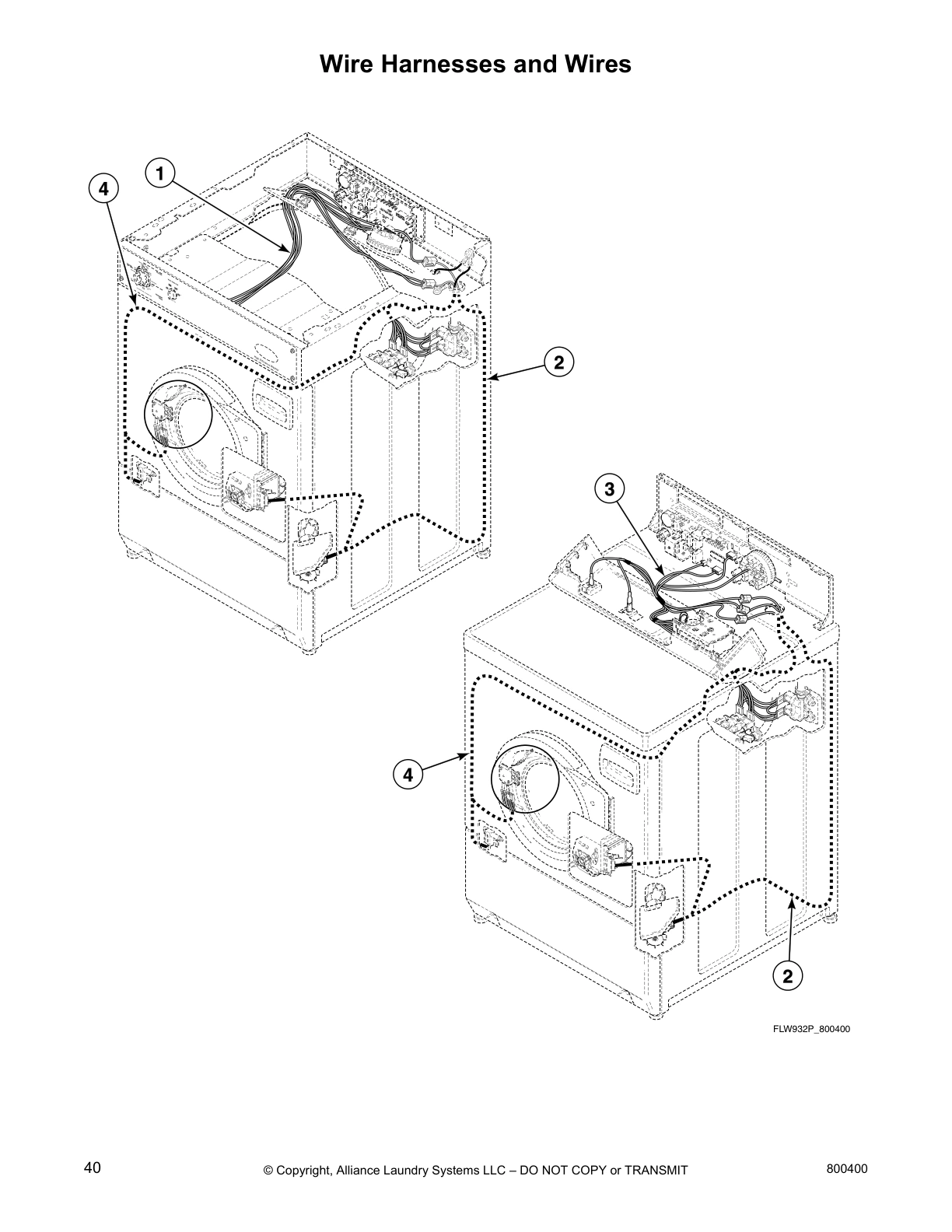

Wire Harnesses and Wires

Common parts from model Speed Queen LTZ80A*H1102 Washer

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $5.19

View on Model

685766P Speed Queen Commercial Dispenser Valv Backorder SPQ 685766P $55.95

View on Model

800468P Speed Queen Pressure Switch Backorder SPQ 800468P $73.55

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $3.17

View on Model

27154 Speed Queen Hose, Elbow to Drain Backorder SPQ 27154 $52.23

View on Model

318P4 Speed Queen Dispenser Drawer Tool Backorder SPQ 318P4 $7.99

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $5.19

View on Model

800666 Speed Queen Complete Tension Rod Assem Backorder SPQ 800666 $104.36

View on Model

D505808W Speed Queen White Top Control Panel Backorder SPQ D505808W $67.73

View on Model

Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $13.16

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.87

View on Model

800899 Speed Queen Detergent Compartment Cove Backorder SPQ 800899 $9.03

View on Model

M400014 Speed Queen Washer Lock Regulator Spr Backorder SPQ M400014 $5.19

View on Model

800749P Speed Queen KIT,TRUNNION Shaft AND HD In Stock SPQ 800749P $660.69

View on Model

801024 Speed Queen Dispenser Plate Backorder SPQ 801024 $65.99

View on Model

802336 Speed Queen Fixture,Pulley BOLT TIGHTE Backorder SPQ 802336 $3.13

View on Model

35358 Speed Queen Hold Down Clip In Stock SPQ 35358 $5.19

View on Model

800004WP Speed Queen Left Hand Cabinet Panel Backorder SPQ 800004WP $173.84

View on Model

801001 Speed Queen T-20 Torx Plastic Screw 10 Backorder SPQ 801001 $2.01

View on Model

685844 Speed Queen Locknut 3/8-16 UNC SS304 Backorder SPQ 685844 $1.37

View on Model

806512 Speed Queen Motor L120 W120INT Backorder SPQ 806512 $113.87

View on Model

D510146 Speed Queen Top Mount Bracket Backorder SPQ D510146 $5.19

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $5.19

View on Model

687500 Speed Queen Wire Clip 1.00 DIA Backorder SPQ 687500 $5.29

View on Model

Pump-to-Dispenser Hose Assembly SPQ 802427 Contact Us For Availability

View on Model

Shipping Materials Kit SPQ 728P3 Contact Us For Availability

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $5.19

View on Model

802426P Speed Queen Lid Assembly with Filter Backorder SPQ 802426P $102.43

View on Model

D504009WP Speed Queen Left Side End Panel, Wh Backorder SPQ D504009WP $16.62

View on Model

D510029WP Speed Queen Kit Top Panel with Hdw- Backorder SPQ D510029WP $319.94

View on Model

F200116 Speed Queen Water Hose 3/8" x 60" FXF Backorder SPQ F200116 $21.29

View on Model

SPQ 800438 SPQ 800438 Contact Us For Availability

View on Model

20618 Speed Queen Inlet Hose 10 Feet Backorder SPQ 20618 $24.47

View on Model

36801 Speed Queen Top Burner Electrode Backorder SPQ 36801 $5.19

View on Model

800317 Speed Queen Tub To Pump Hose In Stock SPQ 800317 $40.94

View on Model

800663 Speed Queen Mounting Bracket for Switc Backorder SPQ 800663 $10.60

View on Model

M400080 Speed Queen Washer Flat 5/16 Standard Backorder SPQ M400080 $5.19

View on Model

20617 Speed Queen Inlet Hose 8 Feet Backorder SPQ 20617 $33.04

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.87

View on Model

685639P Speed Queen Motor and Rods Assembly, Backorder SPQ 685639P $284.82

View on Model

801464 Speed Queen Control Panel Assembly Backorder SPQ 801464 $25.30

View on Model

SPQ 800436WP SPQ 800436WP Contact Us For Availability

View on Model

38384 Speed Queen Strain Relief Backorder SPQ 38384 $2.08

View on Model

800319P Speed Queen Washer Dryer Micro V Driv In Stock SPQ 800319P $48.54

View on Model

800341W Speed Queen Door Bezel Backorder SPQ 800341W $78.20

View on Model

806492 Speed Queen Right Side Panel and Dispe Backorder SPQ 806492 $220.08

View on Model

Mixing Valve Screen SPQ 800232P Contact Us For Availability

View on Model

29175 Speed Queen Grommet Backorder SPQ 29175 $6.41

View on Model

34458 Speed Queen Lead-in Cord In Stock SPQ 34458 $21.09

View on Model

738P3 Speed Queen Motor Brush Kit Front Backorder SPQ 738P3 $247.51

View on Model

800866 Speed Queen Driven Pulley Backorder SPQ 800866 $119.38

View on Model

802220P Speed Queen Water Mixing Valve In Stock SPQ 802220P $33.75

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx Backorder SPQ D501285 $2.07

View on Model

205241 Speed Queen Pressure Bulb Assembly In Stock SPQ 205241 $6.41

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $5.19

View on Model

685831 Speed Queen 3/8-24 Nylon Left-Hand Scr Backorder SPQ 685831 $5.19

View on Model

808210 Speed Queen Screw, Wafer Head Torx In Stock SPQ 808210 $0.31

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $5.19

View on Model

800465 Speed Queen Washer Flat (#12 Std Type Backorder SPQ 800465 $5.19

View on Model

802934 Speed Queen Door Hinge In Stock SPQ 802934 $56.95

View on Model

M403958 Speed Queen 3/8 Ext Tooth Lock Washer Backorder SPQ M403958 $1.87

View on Model

155P3 Speed Queen Anchor, 4 Pack - 4051A In Stock SPQ 155P3 $48.69

View on Model

39282 Speed Queen Clamp Hose Assembly Backorder SPQ 39282 $5.19

View on Model

685756P Speed Queen MLD Dispenser with Valves Backorder SPQ 685756P $66.09

View on Model

807679 Speed Queen Flat Washer (.406 ID x 1.5 Backorder SPQ 807679 $2.18

View on Model

801081P Speed Queen Outer Tub Assembly Backorder SPQ 801081P $2,162.40

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $6.31

View on Model

F430116 Speed Queen Screw Hh Mds Zc Gr5 3/8-1 Backorder SPQ F430116 $2.37

View on Model

34318 Speed Queen Washer/Dryer Rubber Foot Pa In Stock SPQ 34318 $3.17

View on Model

685715WP Speed Queen Front Dispenser Drawer P In Stock SPQ 685715WP $21.73

View on Model

800622P Speed Queen Shock Absorber Kit - Tub In Stock SPQ 800622P $36.53

View on Model

Inner Basket Asembly SPQ 800428P Contact Us For Availability

View on Model

800623P Speed Queen Shock Absorber Kit, Base Backorder SPQ 800623P $85.74

View on Model

685715QP Speed Queen Dispenser Handle, Packag Backorder SPQ 685715QP $16.31

View on Model

800462 Speed Queen Hex Cap Screw 3/8-16 x 4.0 Backorder SPQ 800462 $5.19

View on Model

685429 Speed Queen Door Latch Assembly Backorder SPQ 685429 $101.92

View on Model

685716 Speed Queen Softener/Bleach Dispenser Backorder SPQ 685716 $25.77

View on Model

F200206 Speed Queen Hose Clamp #4 Backorder SPQ F200206 $2.37

View on Model

36701W Speed Queen Knob Temperature Speed Que In Stock SPQ 36701W $15.30

View on Model

Gasket SPQ 802429P Contact Us For Availability

View on Model

36701Q Speed Queen Rotary Knob Assembly Backorder SPQ 36701Q $15.17

View on Model

800342 Speed Queen Door Handle Backorder SPQ 800342 $11.08

View on Model

800432P Speed Queen Front Outer Tub Seal Backorder SPQ 800432P $47.36

View on Model

685743P Speed Queen Door Seal Clamp Backorder SPQ 685743P $30.07

View on Model

Clamp Ring SPQ 800312 Contact Us For Availability

View on Model

204552 Speed Queen Front Panel Pad Backorder SPQ 204552 $1.24

View on Model

888P3 Speed Queen Drain Pump Kit Backorder SPQ 888P3 $251.97

View on Model

Sealant SPQ 801208 Contact Us For Availability

View on Model

36700W Speed Queen Timer Skirt Assembly In Stock SPQ 36700W $11.02

View on Model

Backflow Preventer SPQ 802428 Contact Us For Availability

View on Model

685846 Speed Queen #10-32 UNF Nylon Lock Nut Backorder SPQ 685846 $5.19

View on Model

800346 Speed Queen Spring, Extension 1.25 Backorder SPQ 800346 $5.19

View on Model

201501W Speed Queen Timer Knob In Stock SPQ 201501W $12.37

View on Model

23951 Speed Queen Hex Keps Nut 10-24 STL In Stock SPQ 23951 $5.19

View on Model

801045 Speed Queen Hex Screw WA HD SMS 10-24 Backorder SPQ 801045 $3.17

View on Model

36020 Speed Queen U-Type Nut #10-24 Backorder SPQ 36020 $5.19

View on Model

801993 Speed Queen Hex Head Machine Screw 10- Backorder SPQ 801993 $5.19

View on Model

Wire Clamp Ring SPQ 800211 Contact Us For Availability

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $5.29

View on Model

SEALANT,3M-800 5OZ TUBE Backorder SPQ 27615T-1 $116.94

View on Model

33489 Speed Queen Washer Dryer Beaded Standpi In Stock SPQ 33489 $2.37

View on Model

34500 Speed Queen Duckbill Backflow Preventer Backorder SPQ 34500 $5.19

View on Model

35766 Speed Queen Plastic Drain Hose Elbow Sp Backorder SPQ 35766 $5.89

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.48

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $5.19

View on Model

685430 Speed Queen Door Locking Catch Backorder SPQ 685430 $15.13

View on Model

687542 Speed Queen Temperature Switch Backorder SPQ 687542 $21.15

View on Model

800310 Speed Queen Backflow Preventer - Pump Backorder SPQ 800310 $18.43

View on Model

800331 Speed Queen Detergent Dispenser Hose Backorder SPQ 800331 $52.88

View on Model

800340 Speed Queen Inner Door Bezel Backorder SPQ 800340 $57.71

View on Model

800548 Speed Queen Front Load Washer Door Han In Stock SPQ 800548 $2.90

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $36.81

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $5.19

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $2.07

View on Model

D504008WP Speed Queen Right Side White End Pa Backorder SPQ D504008WP $14.40

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $5.19

View on Model

SPQ 802434P SPQ 802434P Contact Us For Availability

View on Model
