Model Speed Queen LTS85A*H Washer – Common Parts & Diagrams
Graphic Panel, Control Panel Support and Controls

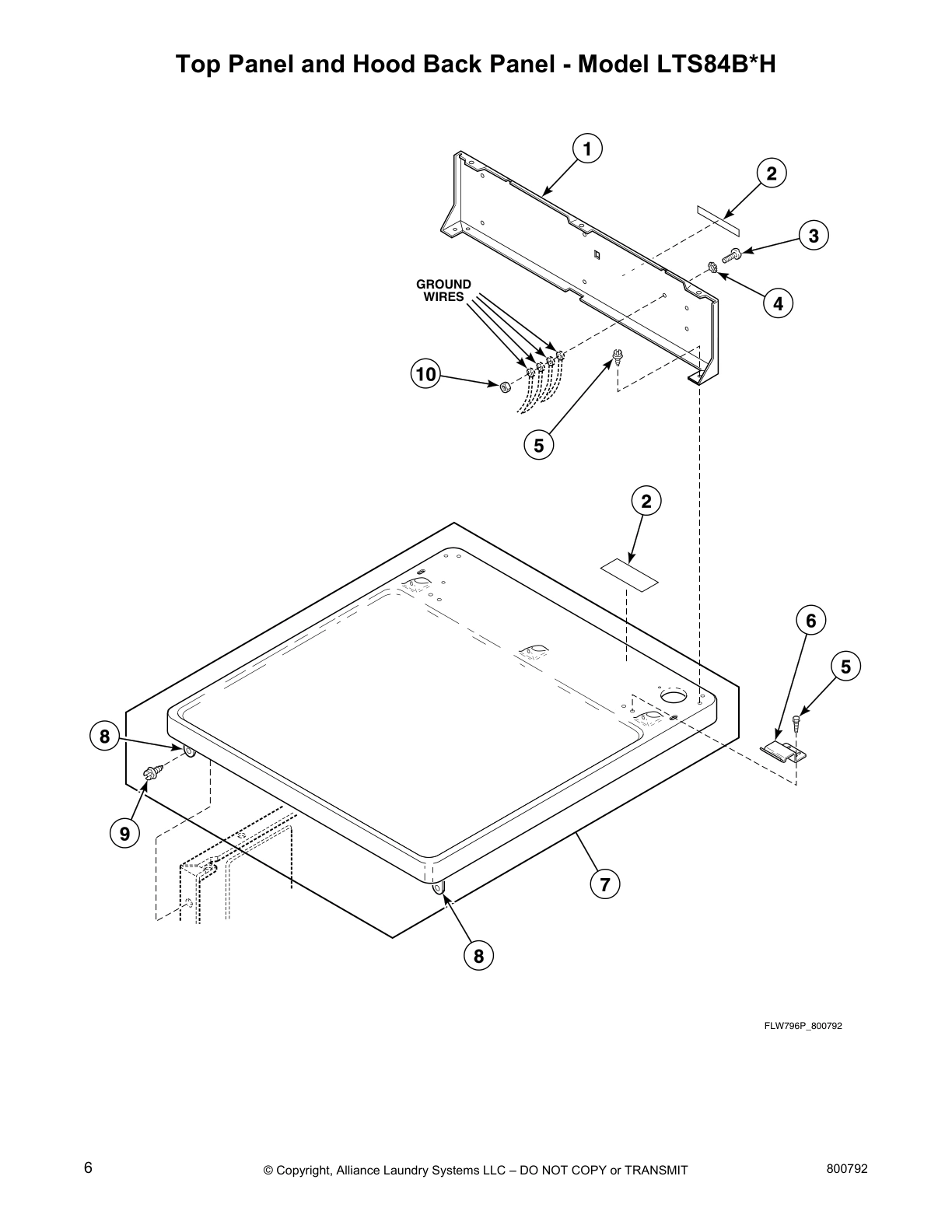

Top Panel and Hood Back Panel - Model LTS84B*H

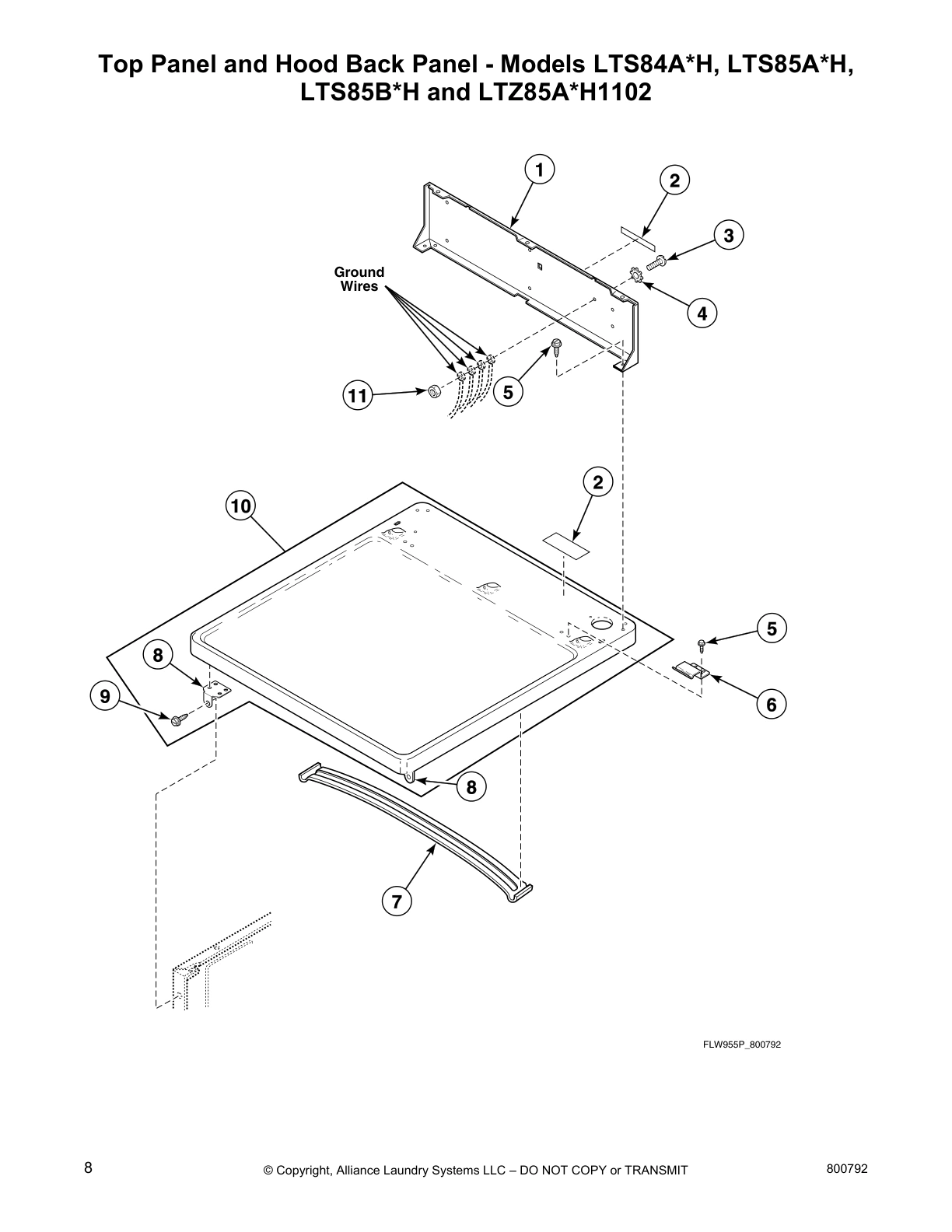

Top Panel and Hood Back Panel - Models LTS84A*H, LTS85A*H,
LTS85B*H and LTZ85A*H1102

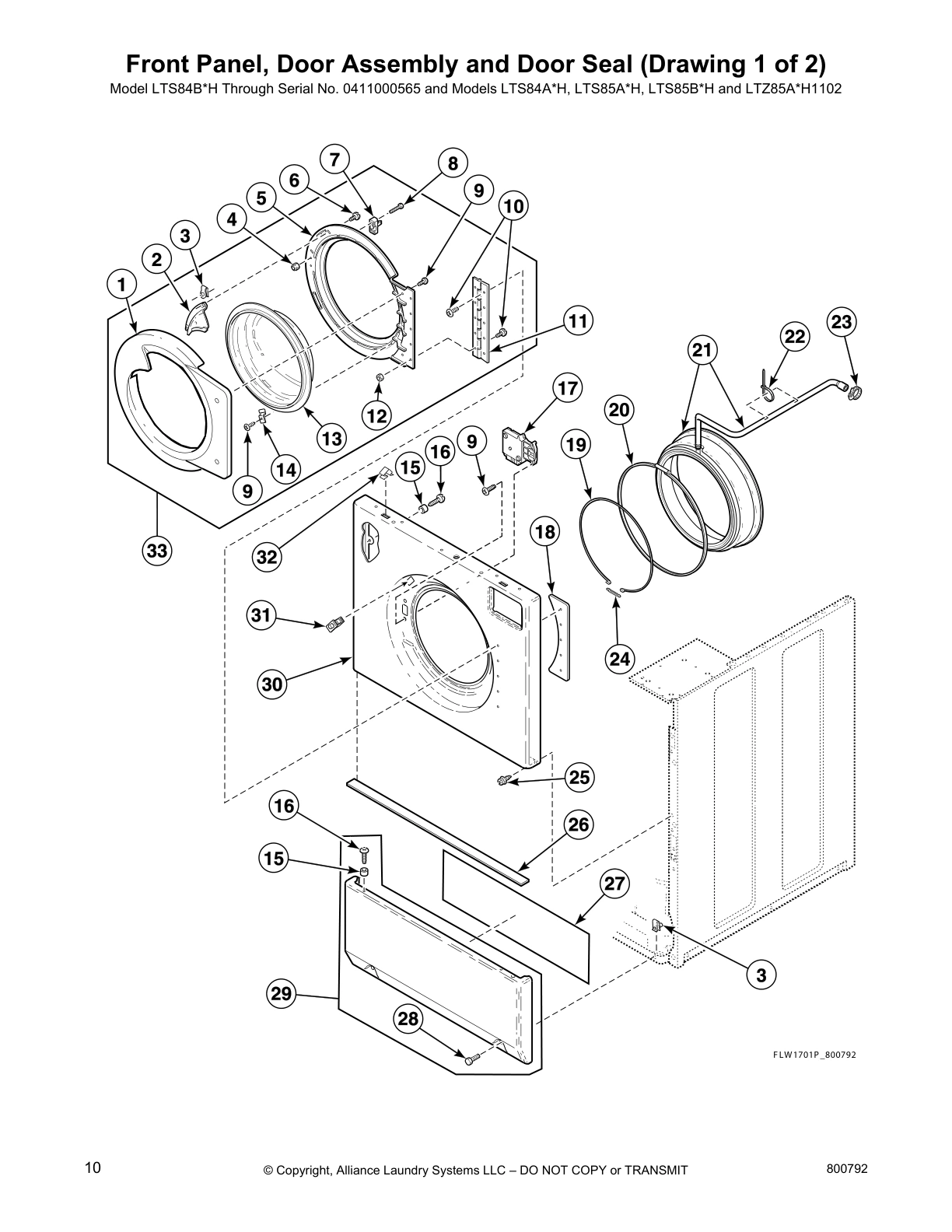

Front Panel, Door Assembly and Door Seal (Drawing 1 of 2)

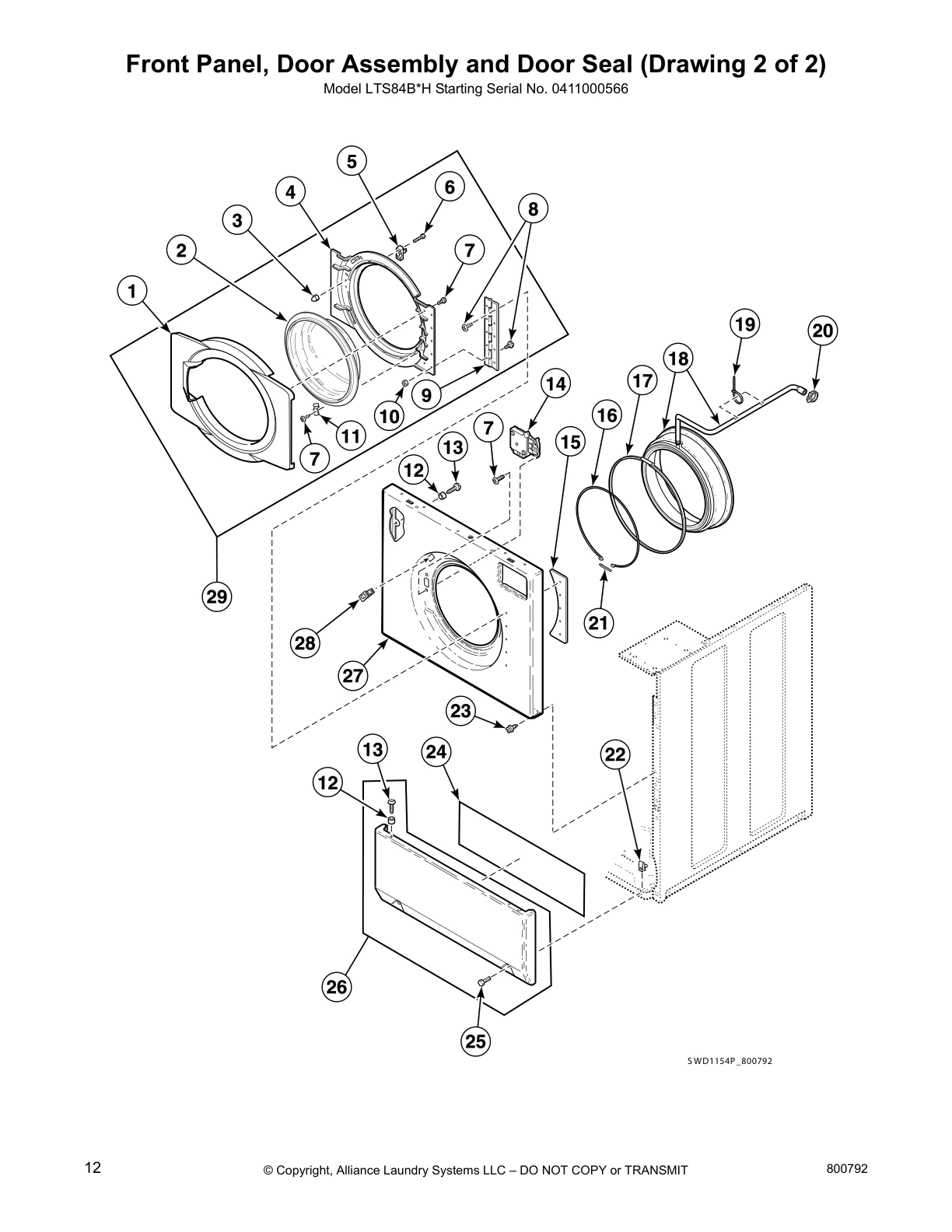

Front Panel, Door Assembly and Door Seal (Drawing 2 of 2)

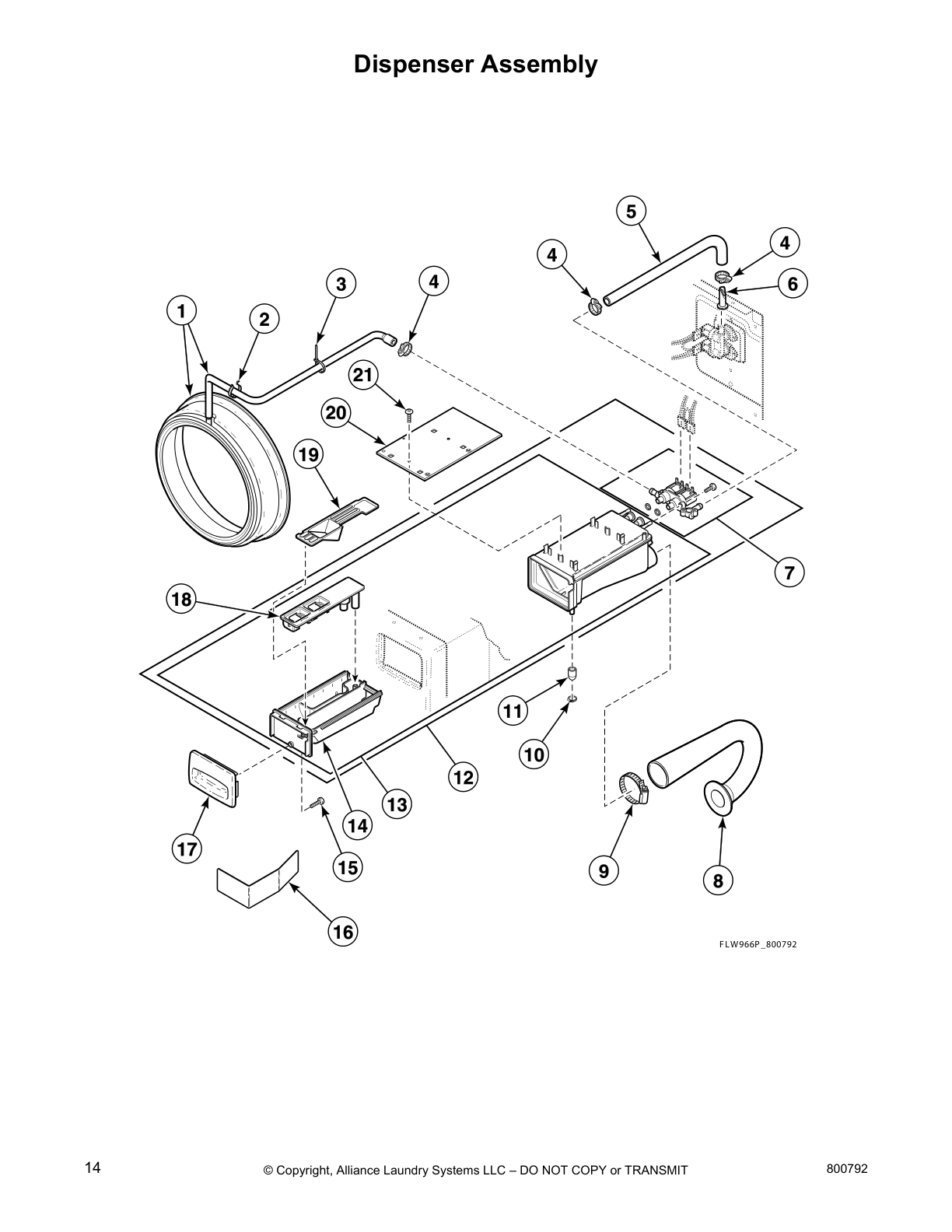

Dispenser Assembly

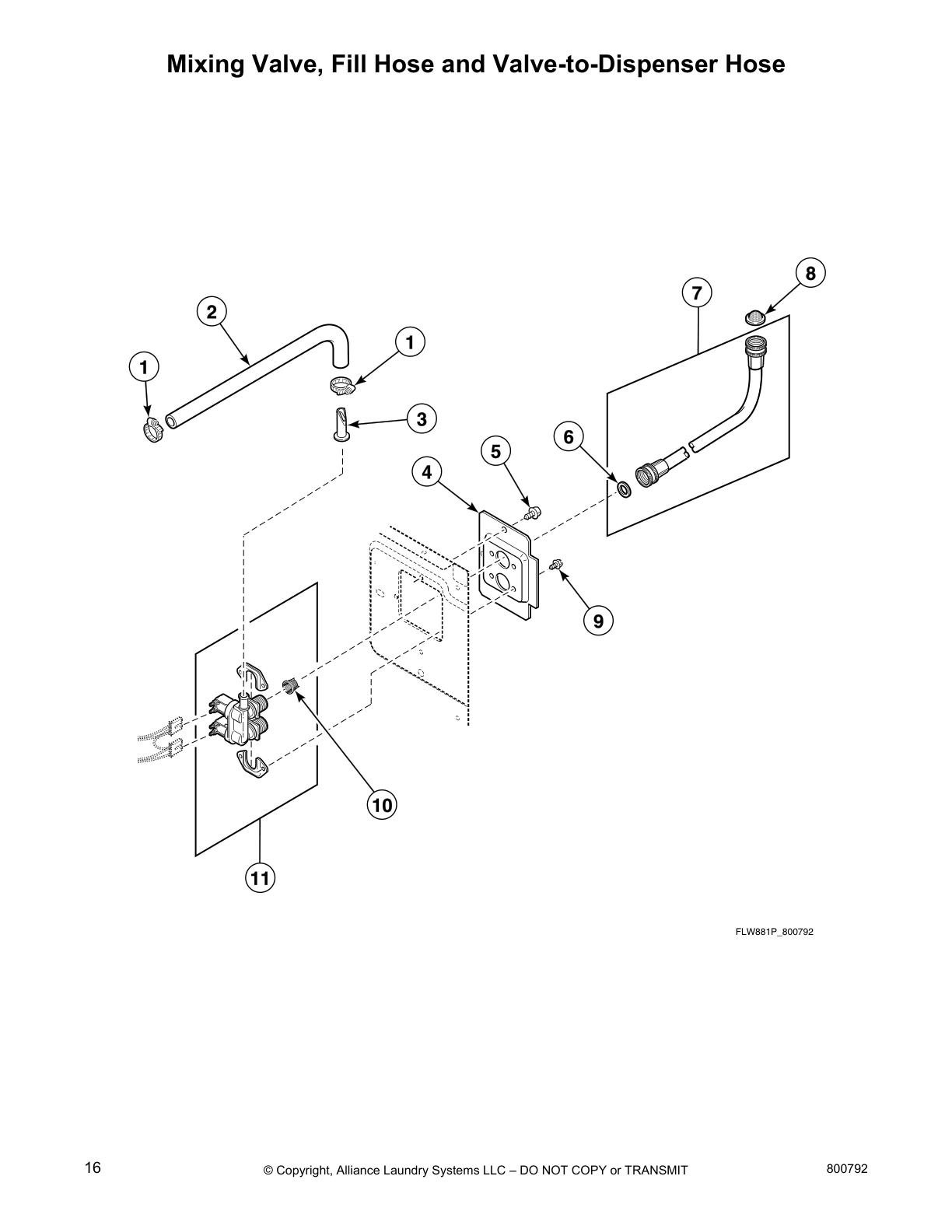

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

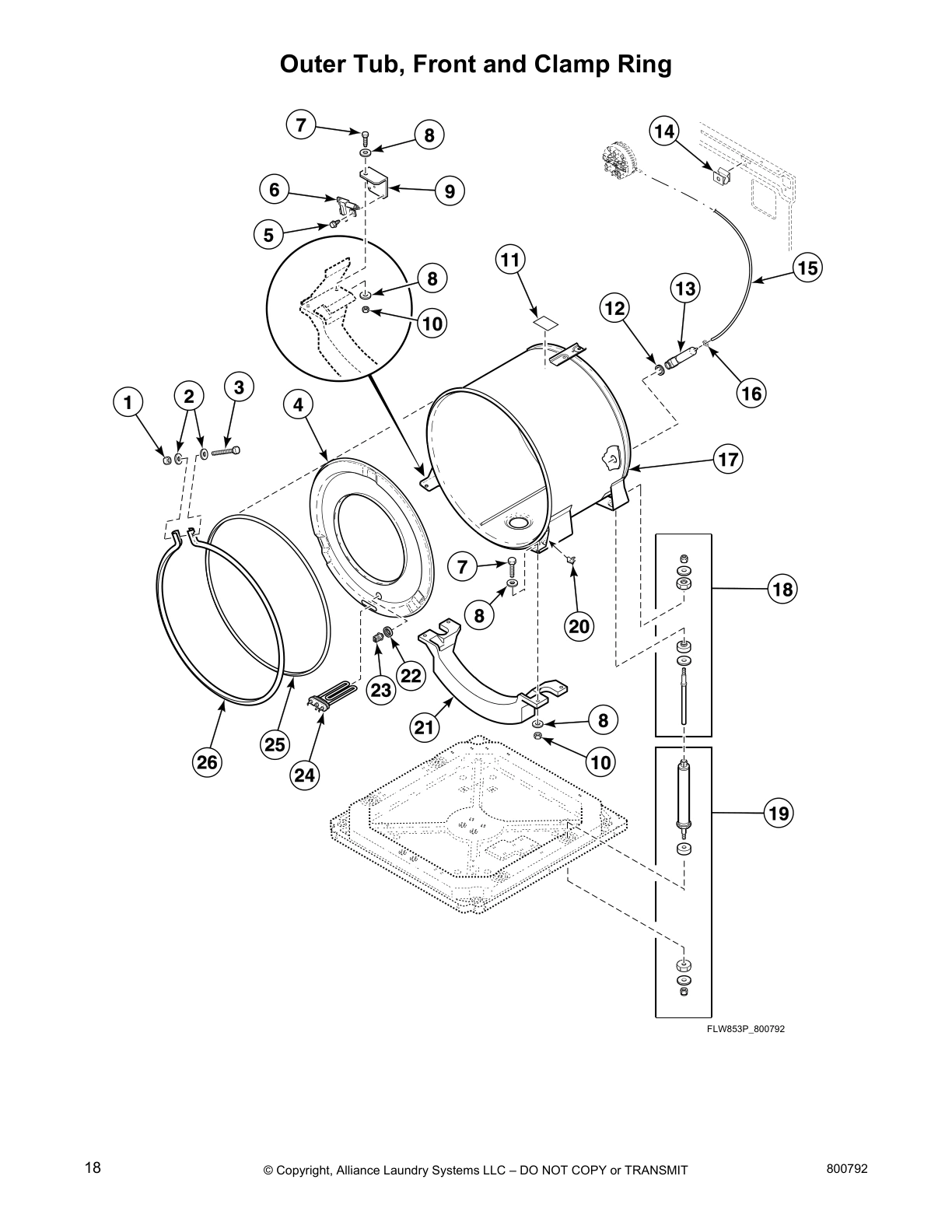

Outer Tub, Front and Clamp Ring

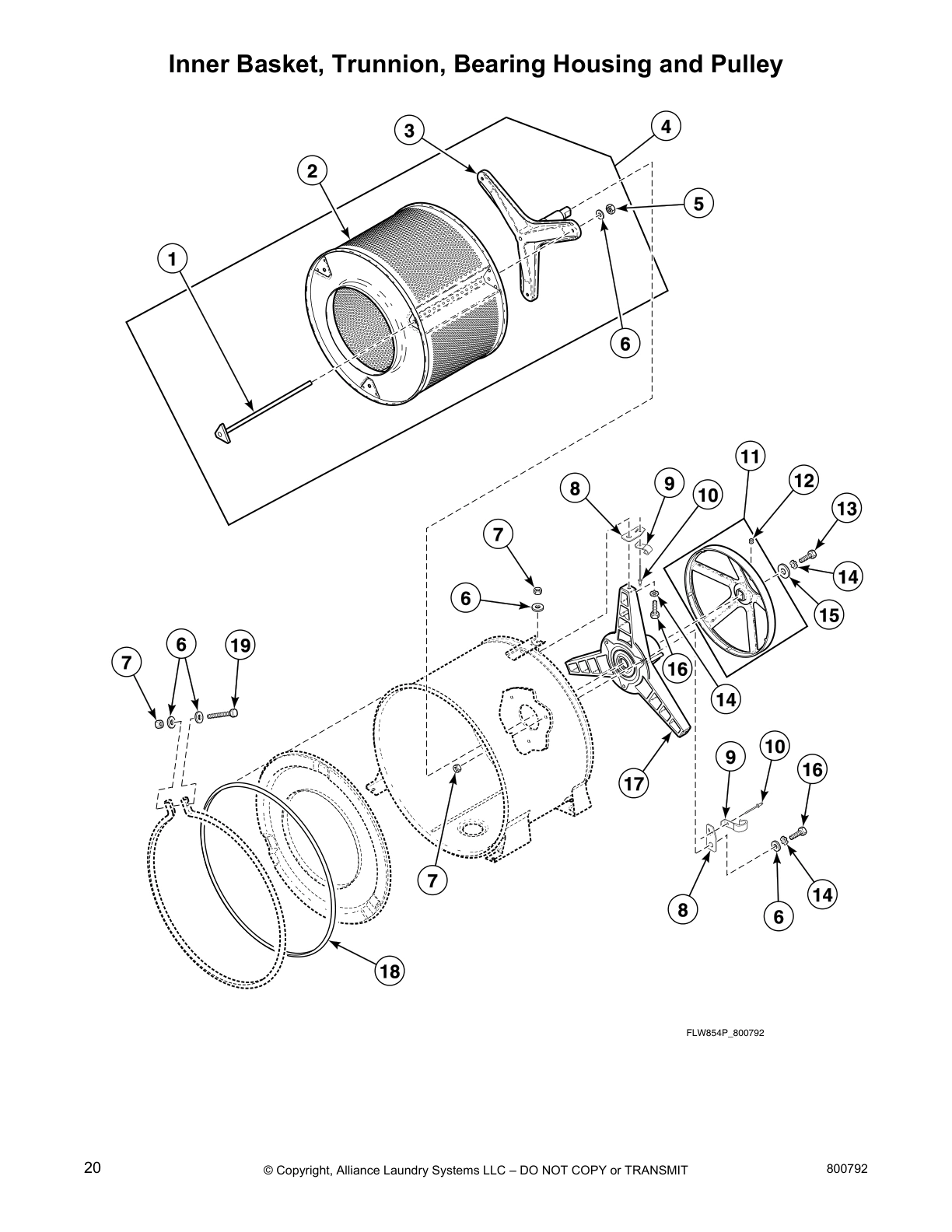

Inner Basket, Trunnion, Bearing Housing and Pulley

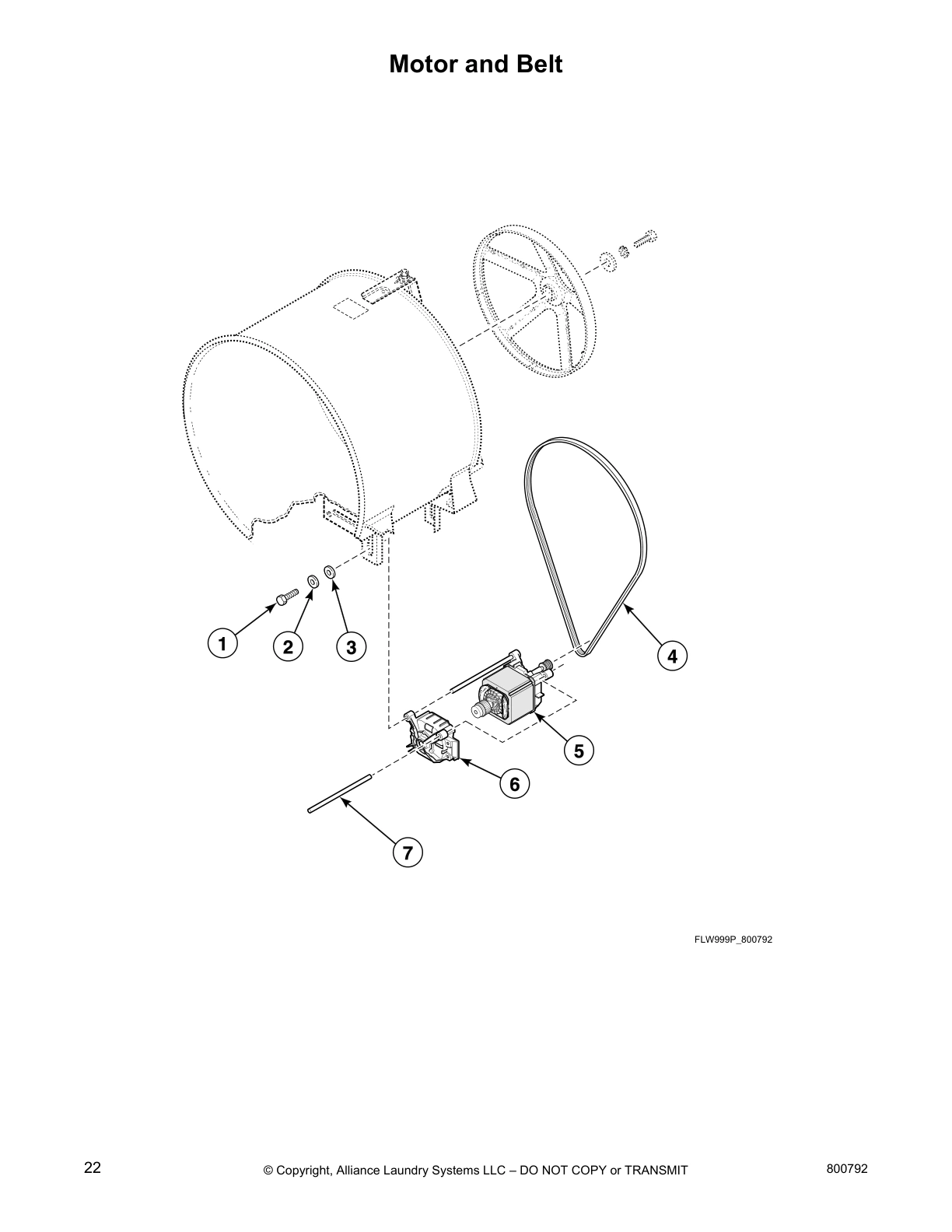

Motor and Belt

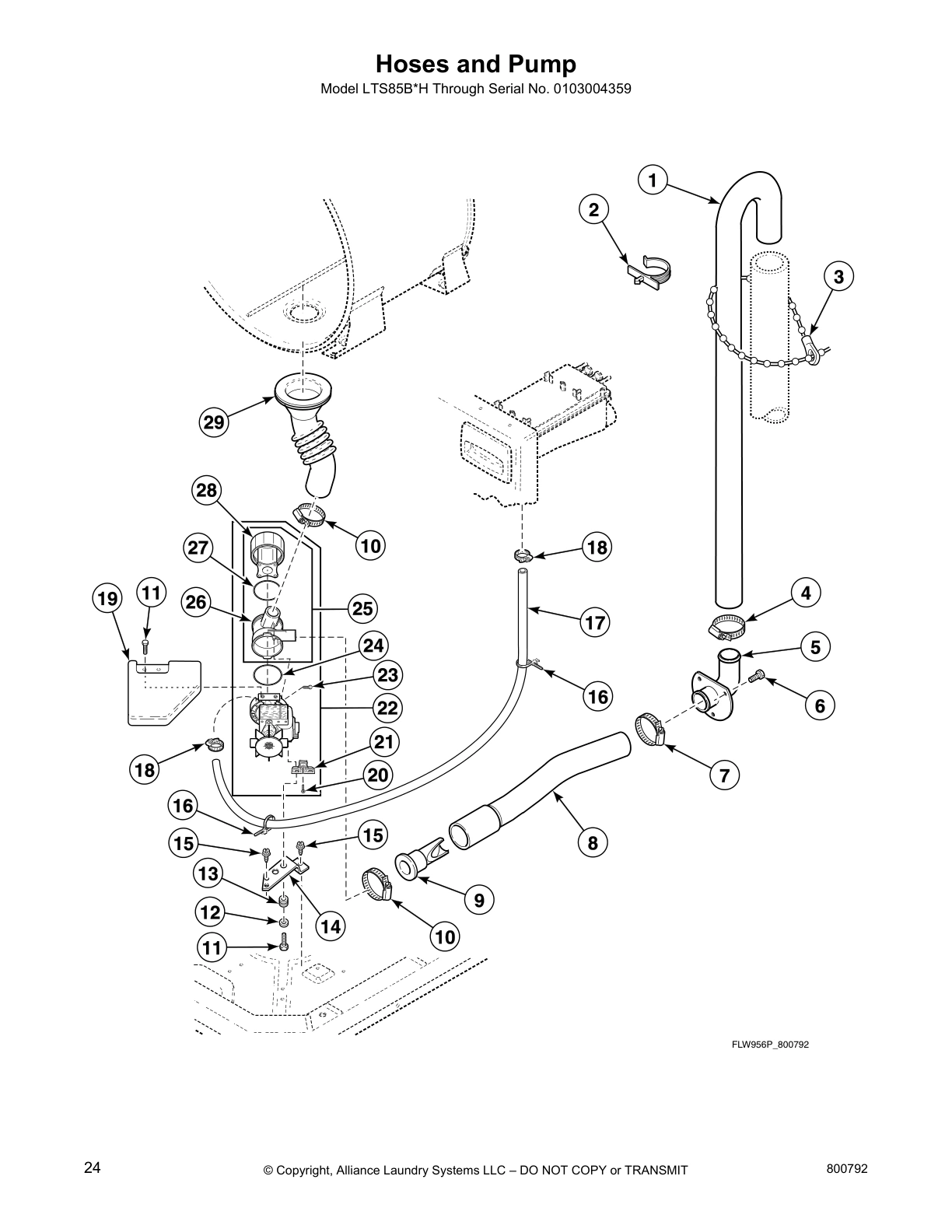

Hoses and Pump

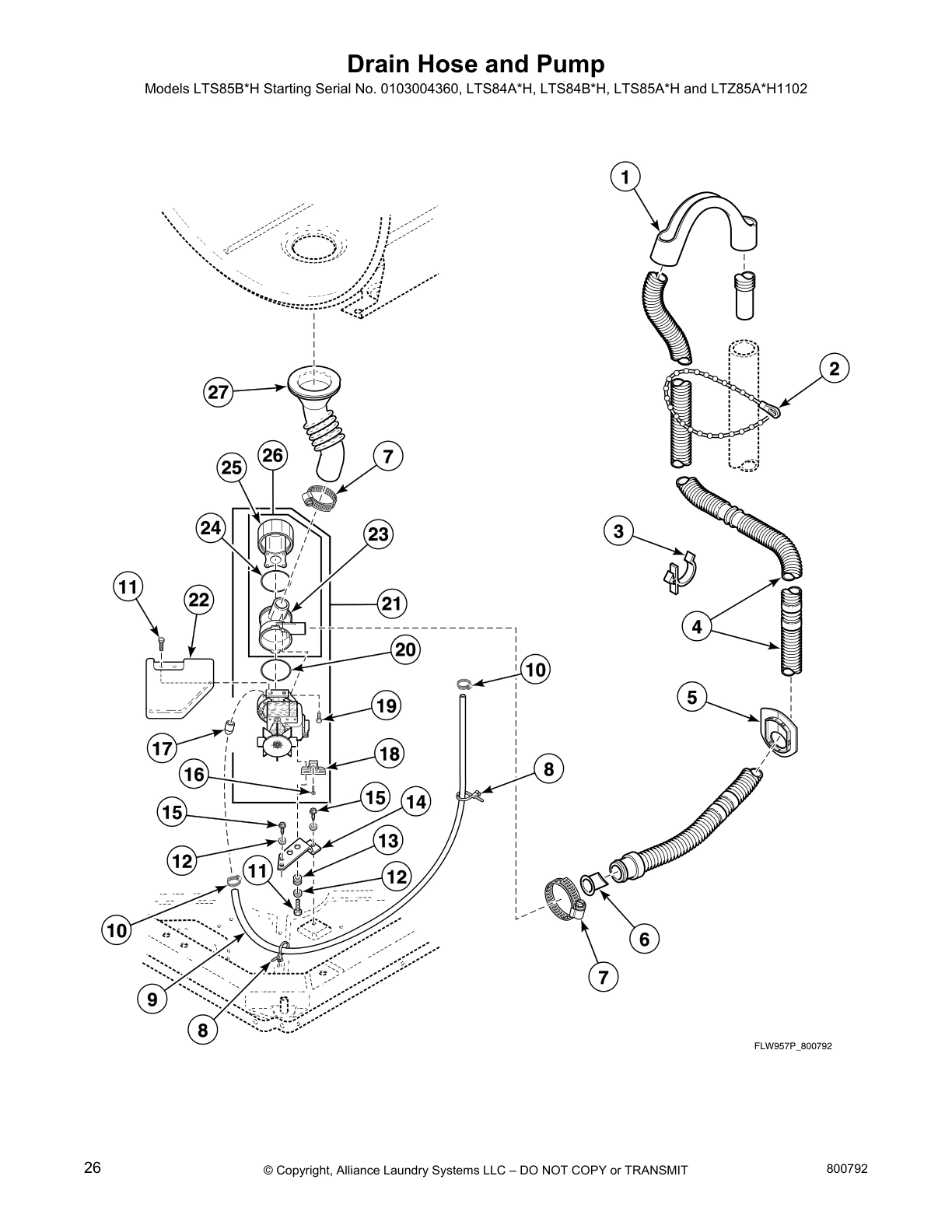

Drain Hose and Pump

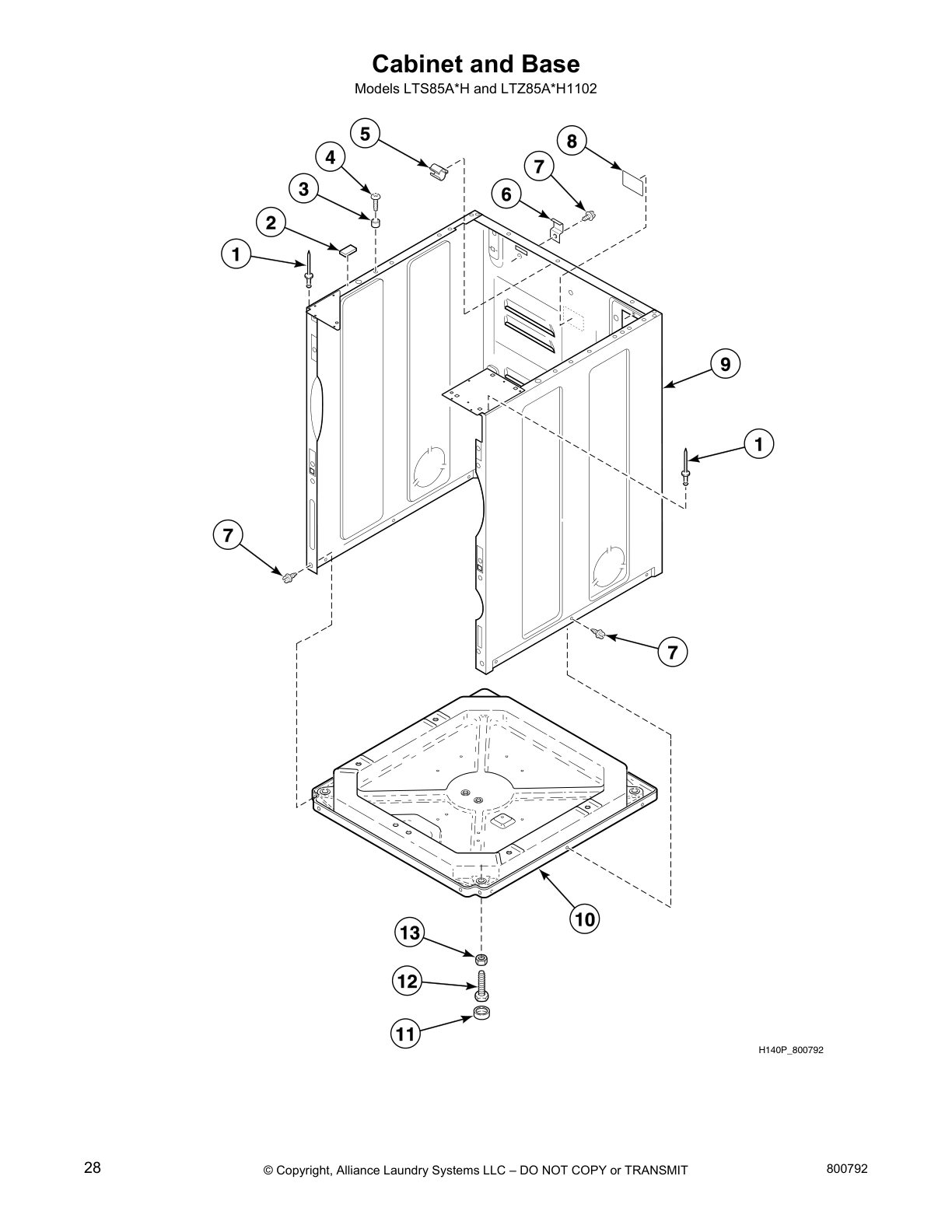

Cabinet and Base

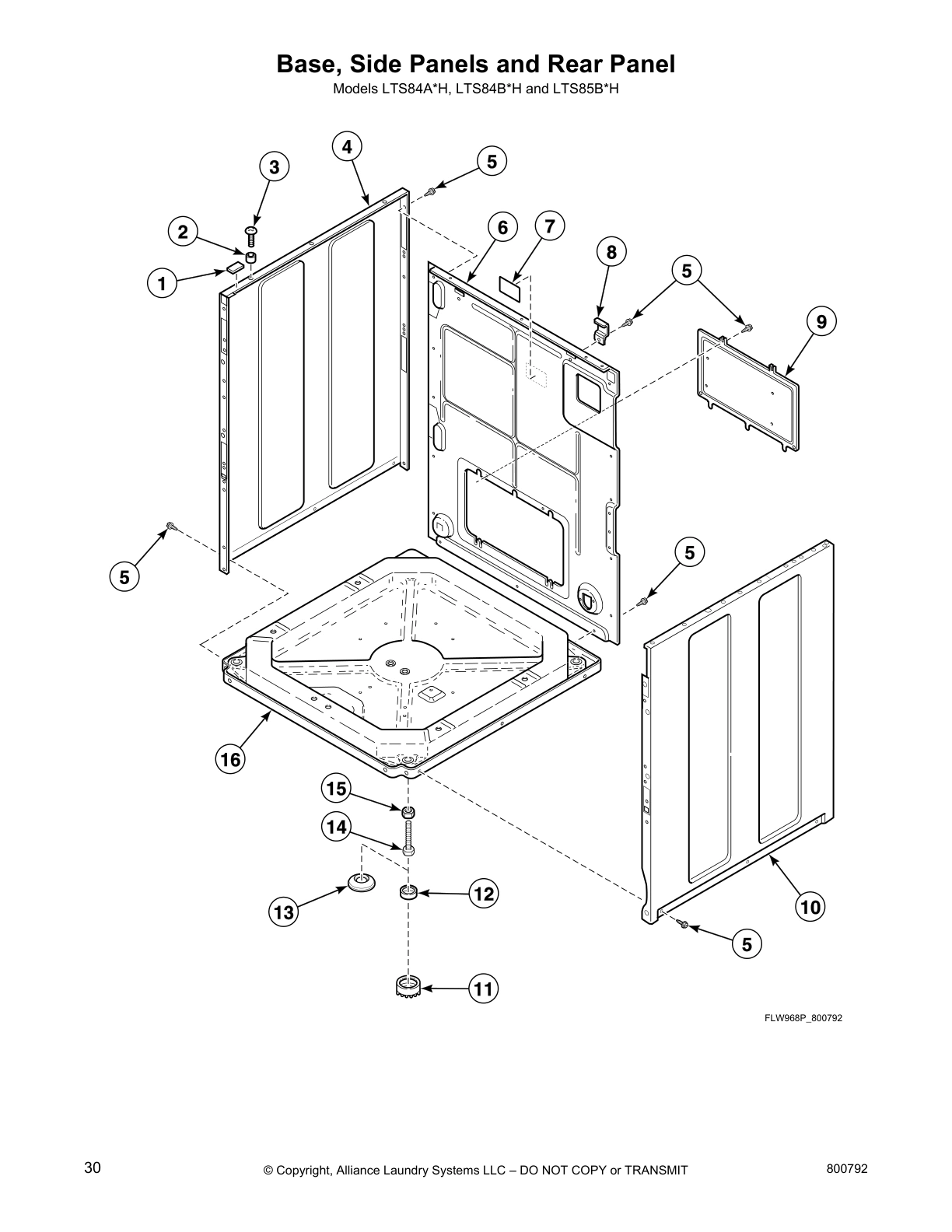

Base, Side Panels and Rear Panel

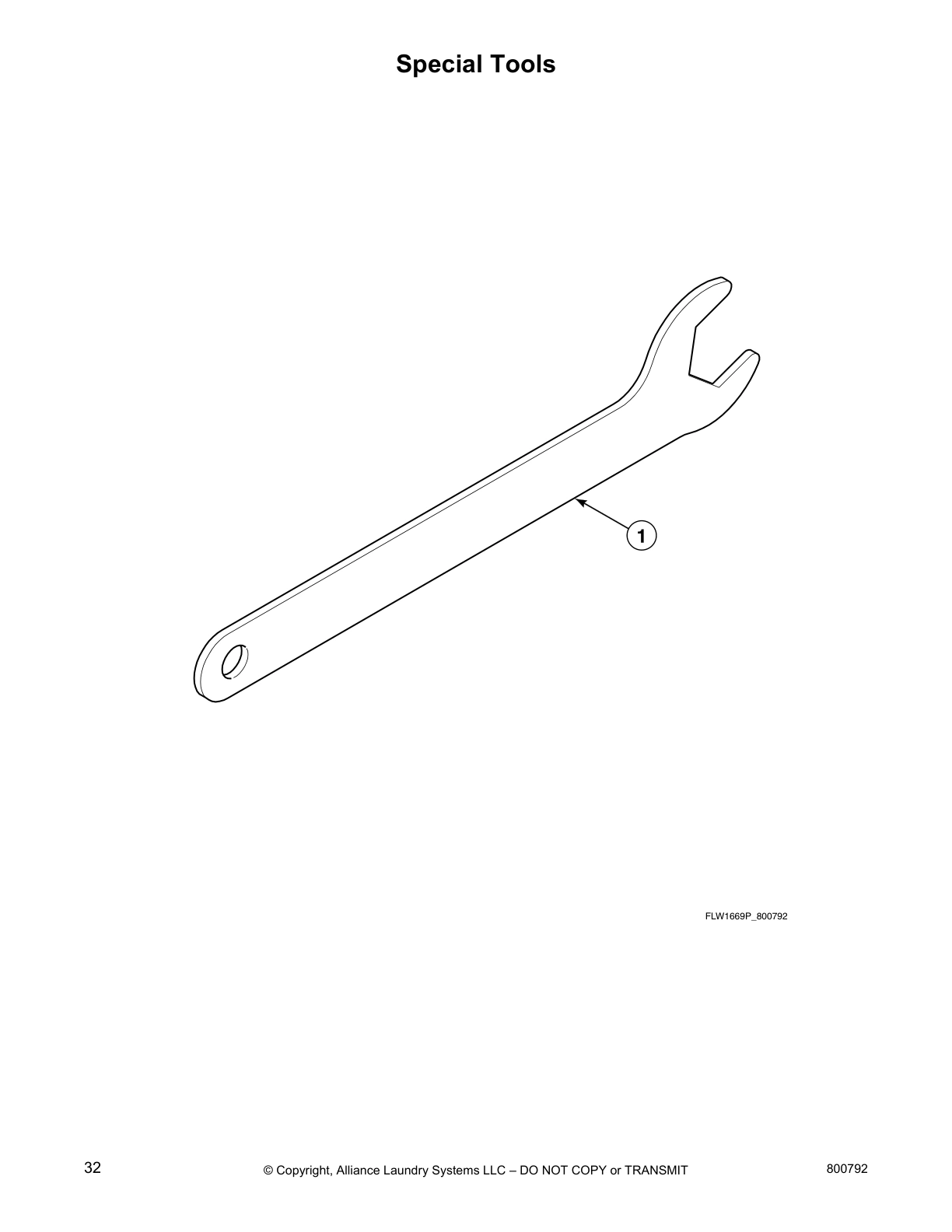

Special Tools

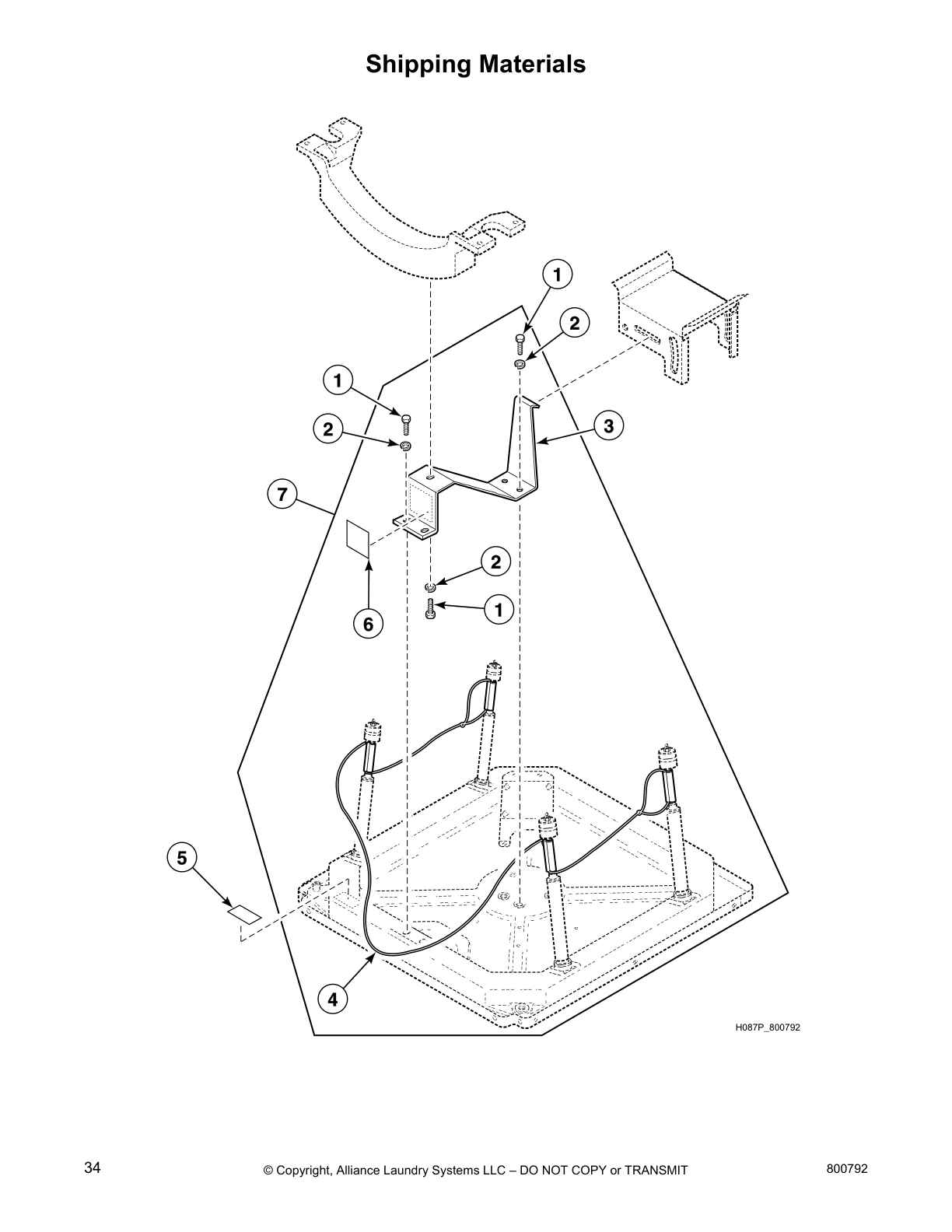

Shipping Materials

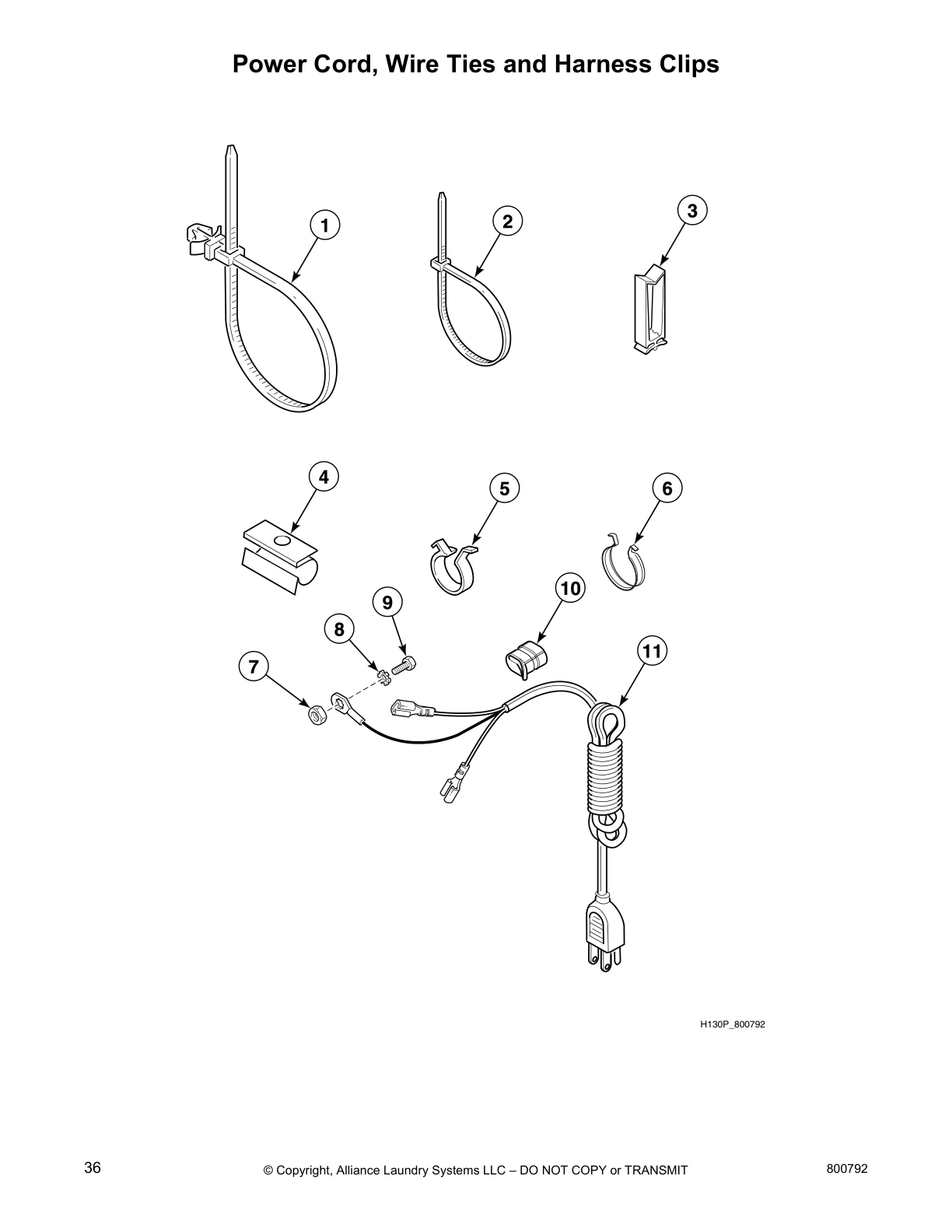

Power Cord, Wire Ties and Harness Clips

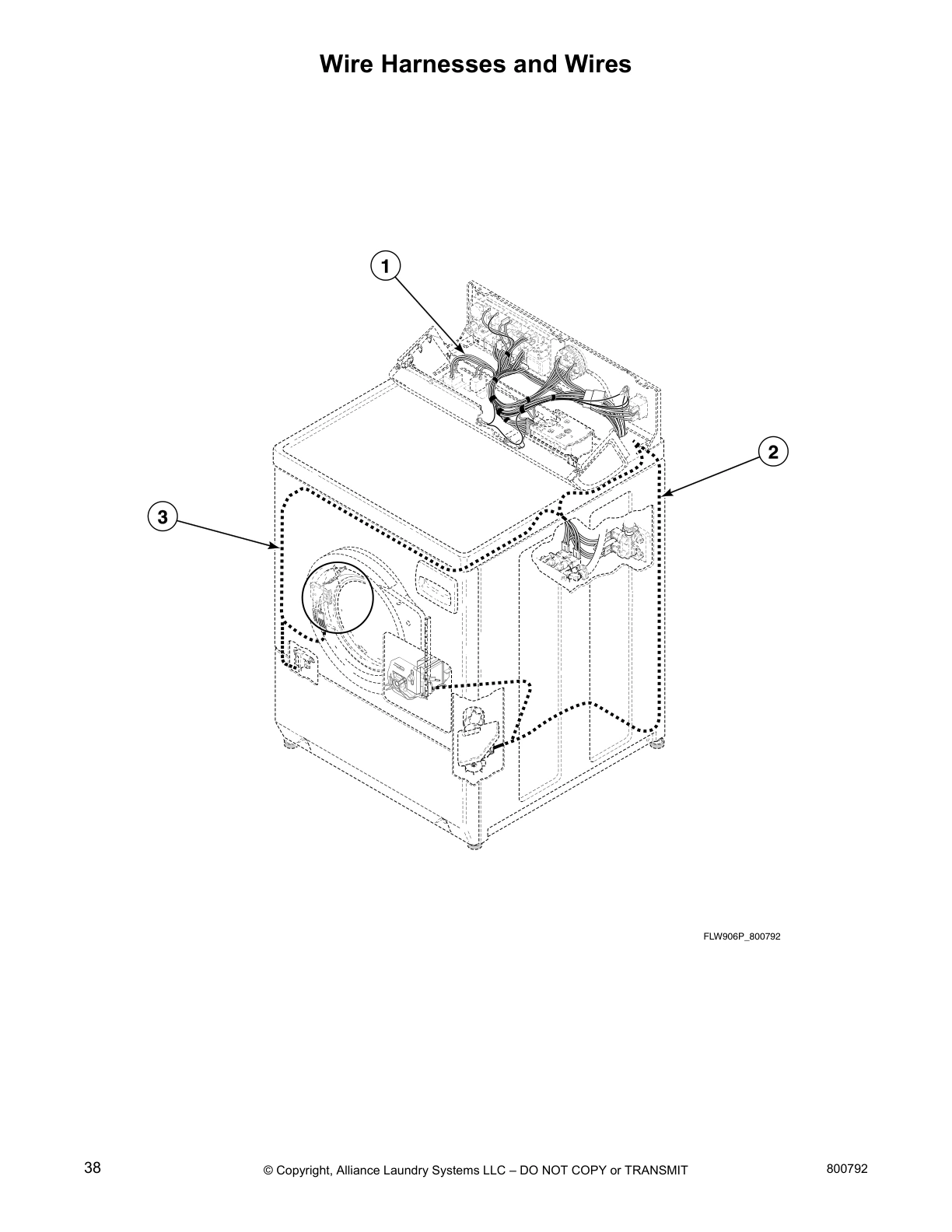

Wire Harnesses and Wires
Common parts from model Speed Queen LTS85A*H Washer
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
6
SPQ 800211 SPQ 800211 Contact Us For Availability
8
Pump-to-Dispenser Hose Assembly SPQ 802434P Contact Us For Availability
10
Hose Clamp SPQ 800232P Contact Us For Availability
17
Trunnion Shaft and Hardware K SPQ 800428P Contact Us For Availability
× ![]()
