Model Whirlpool LT5000XSW2 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

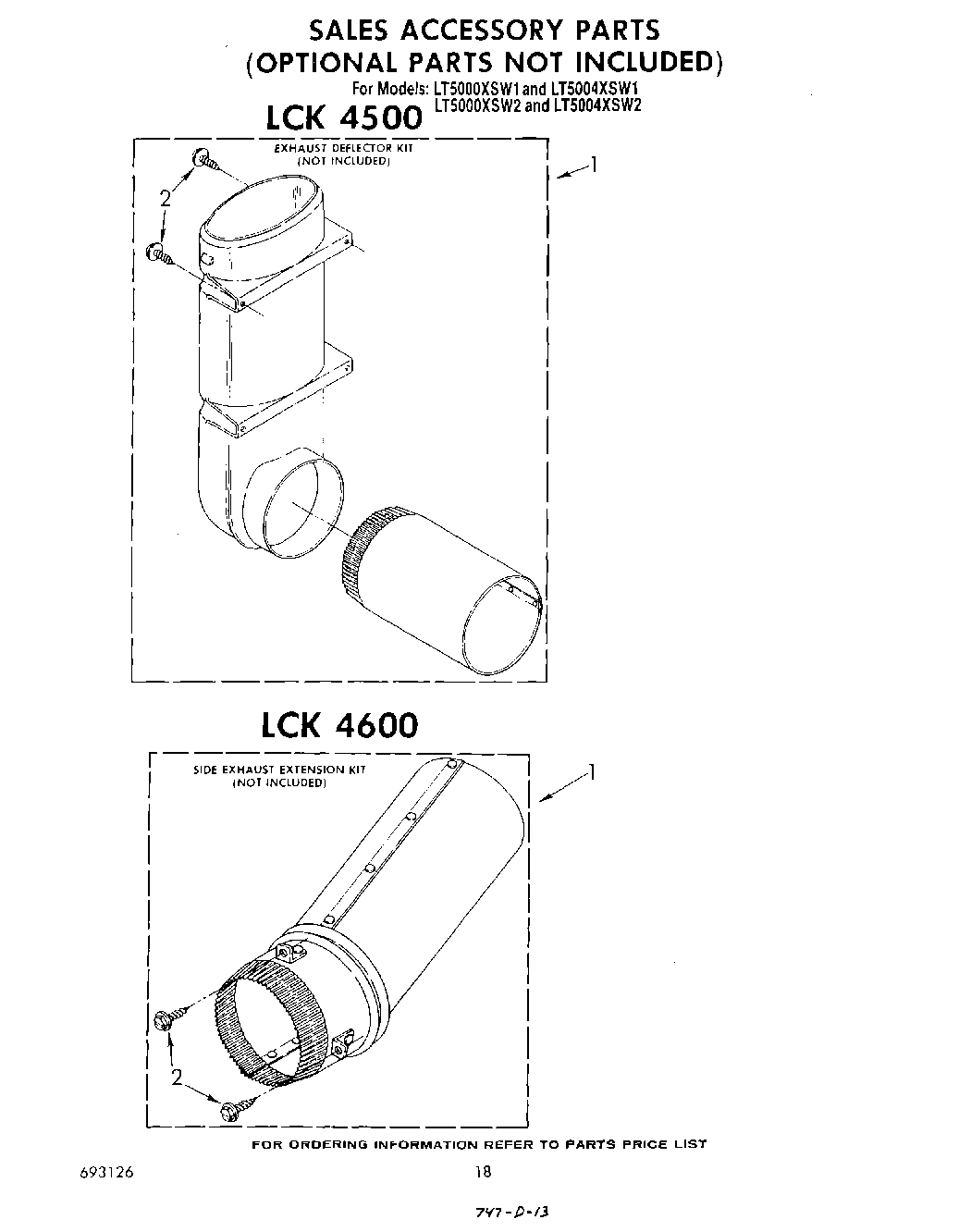

Instructions, Installation (For Models LT5004 WPL LIT3389582 Contact Us For Availability

Label, Energy Guide (For Models LT5000XSW1 an WPL LIT386215 Contact Us For Availability

WPL LIT386216 WPL LIT386216 Contact Us For Availability

WPL LIT693019 WPL LIT693019 Contact Us For Availability

WPL LIT693030 WPL LIT693030 Contact Us For Availability

WPL LIT693126 WPL LIT693126 Contact Us For Availability

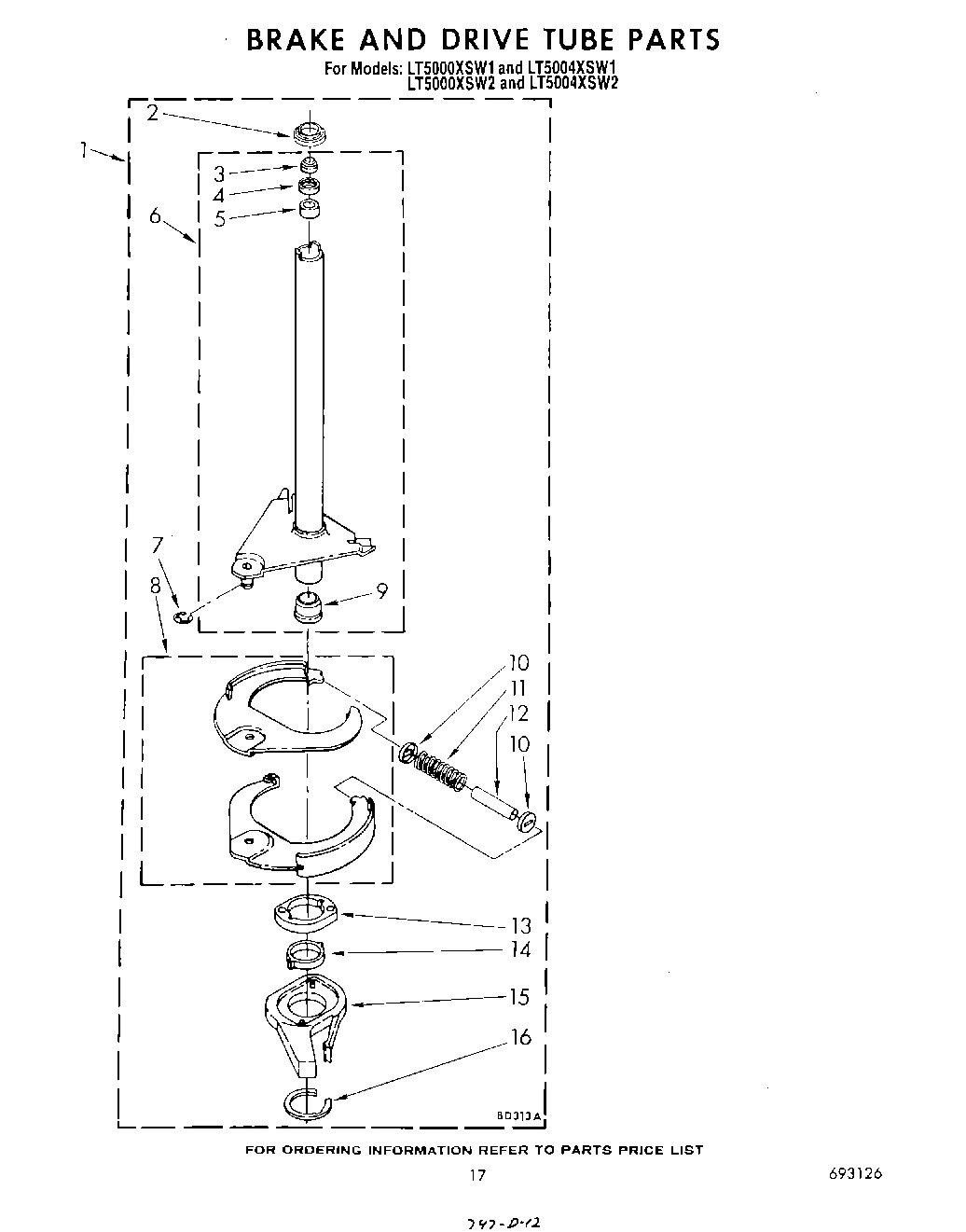

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

1

356746 Whirlpool Clip Backorder WPL 356746 $10.76

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

WPW10112403 Whirlpool Miscellaneous Parts Backorder WPL WPW10112403 $30.49

1

Screw, Lid WPL 359243 Contact Us For Availability

1

Harness, Console Wiring (Automatic) (Includes WPL 3387713 Contact Us For Availability

1

Harness, Door Switch (Includes Illus. 1A) WPL 692728 Contact Us For Availability

1A

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

1A

Plug, Terminal (2-Way) (Connects With Main Dr WPL 342529 Contact Us For Availability

1B

696073 Whirlpool Connector Backorder WPL 696073 $30.25

1C

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

2

345396 Whirlpool Clip Backorder WPL 345396 $27.52

2

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP3946432 Whirlpool Timer In Stock WPL WP3946432 $187.66

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Lid Handle (White) WPL 379884 Contact Us For Availability

2

Lid Handle (Almond) WPL 379885 Contact Us For Availability

2

Lid Handle (Golden Harvest) WPL 379888 Contact Us For Availability

2

Lid Handle (Toast) WPL 379890 Contact Us For Availability

2

Lid Handle (Platinum) WPL 379891 Contact Us For Availability

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Air Duct & Bracket WPL 696547 Contact Us For Availability

3

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Platinum) WPL 3348020 Contact Us For Availability

3

Lid (Toast) WPL 3348021 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

3

Motor, Timer (60 Hz.) WPL 63491 Contact Us For Availability

4

285314 Whirlpool O/S1 Panel In Stock WPL 285314 $203.91

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $2.73

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

Panel, Front (Almond) WPL 692620 Contact Us For Availability

4

Panel, Front (Toast) WPL 692621 Contact Us For Availability

4

Panel, Front (Platinum) WPL 692622 Contact Us For Availability

4

Panel, Front (Golden Harvest) WPL 692623 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

696541 Whirlpool Base Backorder WPL 696541 $30.89

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $20.70

5

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Suspension Assembly (3) WPL 63731 Contact Us For Availability

6

280077 Whirlpool Door Backorder WPL 280077 $122.39

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $134.12

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

6

Screw, Terminal Block To Bracket (2) WPL ARI158834A Contact Us For Availability

6

Bracket, Control WPL 694338 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

7

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $16.56

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

7

Retainer, Wire WPL 357247 Contact Us For Availability

7

Door, Front (Almond) WPL 689314 Contact Us For Availability

7

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

7

Door, Front (Toast) WPL 695214 Contact Us For Availability

7

Door, Front (Platinum) WPL 695215 Contact Us For Availability

8

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

8

Cabinet (White) WPL 696013 Contact Us For Availability

8

Cabinet (Almond) WPL 696014 Contact Us For Availability

8

Cabinet (Golden Harvest) WPL 696015 Contact Us For Availability

8

Cabinet (Toast) WPL 696016 Contact Us For Availability

8

Cabinet (Platinum) WPL 696017 Contact Us For Availability

8

Screw, End Cap Mounting (4) (6-32 x 3/4) WPL 348689 Contact Us For Availability

9

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.70

9

Tub WPL 63782 Contact Us For Availability

279220 Whirlpool Clip In Stock WPL 279220 $11.93

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP696710 Whirlpool Hose In Stock WPL WP696710 $25.46

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Switch, Water Level WPL 64093 Contact Us For Availability

Plug, Button (2) WPL 54690 Contact Us For Availability

Screw, 5/16-24 x 3/16 (3) (Gearcase To Tub Su WPL 62735 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

692790 Whirlpool Plug Backorder WPL 692790 $28.09

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Heater Box (120/240 Volts) WPL 685457 Contact Us For Availability

Spring, Lid (L.H.) (Includes Illus 10) WPL 384460 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

Element, Heater WPL 696632 Contact Us For Availability

Top (Almond) WPL 384694 Contact Us For Availability

Top (Golden Harvest) WPL 384697 Contact Us For Availability

Top (Toast) WPL 384698 Contact Us For Availability

Top (Platinum) WPL 384699 Contact Us For Availability

Switch, Water Temperature 370145 (Alt.) 37014 WPL 660393 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

693711 Whirlpool Sleeve Backorder WPL 693711 $4.59

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.70

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.34

Clamp, Hose WPL 272855 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

Screw, Console Lock (2) WPL 693710 Contact Us For Availability

Clip WPL 3349322 Contact Us For Availability

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

WP3388255 Whirlpool Timer In Stock WPL WP3388255 $179.40

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

Seal, Fan Scroll WPL 696658 Contact Us For Availability

Support Protector WPL 692846 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

63637 Whirlpool Shield Backorder WPL 63637 $12.96

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

WP696418 Whirlpool Fan Scroll Backorder WPL WP696418 $43.37

Strut, Console WPL 693175 Contact Us For Availability

Fastener, Push (2) WPL 693739 Contact Us For Availability

279710 Whirlpool Nut In Stock WPL 279710 $27.52

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP696394 Whirlpool Hose In Stock WPL WP696394 $49.21

Switch, Push-To-Start WPL 693169 Contact Us For Availability

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

THRMST-FIX WPL 696818 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

Harness, Thermostat & Heater (Includes Illus. WPL 696820 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

20A

Plug, Multi-Terminal (Connects With Main Drye WPL 692997 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

694037 Whirlpool Clip Backorder WPL 694037 $30.25

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.30

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384461 Contact Us For Availability

Barrier, Harness WPL 693303 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

3391834 Whirlpool Drum Backorder WPL 3391834 $170.42

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.97

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $30.25

386011 Whirlpool Screw Backorder WPL 386011 $27.74

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $42.93

WP358652 Whirlpool Link In Stock WPL WP358652 $30.25

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Panel, Control WPL 694333 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $30.89

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

BAFFLE-DRM WPL 685207 Contact Us For Availability

Knob & Skirt, Dryer Timer WPL 696352 Contact Us For Availability

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Screw, Baffle Mounting (6) (11-16 x 7/8) WPL 690372 Contact Us For Availability

Harness, Lid Switch WPL 697381 Contact Us For Availability

Button, Push-To-Start WPL 3388562 Contact Us For Availability

25A

Receptacle, Terminal (3-Way) (Connects With H WPL 62888 Contact Us For Availability

26

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $51.71

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

279848 Whirlpool Bulkhead Backorder WPL 279848 $137.22

692933 Whirlpool Panel Backorder WPL 692933 $105.81

Panel, Front (White) WPL 692628 Contact Us For Availability

Panel, Front (Almond) WPL 692629 Contact Us For Availability

Panel, Front (Toast) WPL 692630 Contact Us For Availability

Panel, Front (Platinum) WPL 692631 Contact Us For Availability

Panel, Front (Golden Harvest) WPL 692632 Contact Us For Availability

Knob & Clip, Water Temperature WPL 696342 Contact Us For Availability

28

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $33.01

28

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

28

Dial, Timer WPL 3388182 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Knob, Timer WPL 3347726 Contact Us For Availability

30

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $30.25

30

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $30.25

31

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

31

Pad, Extruder (2) WPL 694398 Contact Us For Availability

32

3390046 Whirlpool Protector Backorder WPL 3390046 $5.38

32

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

34

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

36

Harness, Main Dryer Wiring (Includes Illus. 3 WPL 696821 Contact Us For Availability

36A

Receptacle, Terminal (2-Way) (Connects With D WPL 717252 Contact Us For Availability

36B

Receptacle, Multi-Terminal (Connects With The WPL 692998 Contact Us For Availability

36C

WPL 717315 WPL 717315 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

37

WPL 693141 WPL 693141 Contact Us For Availability

38

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

38

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

38A

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

38B

687000 Whirlpool Connector Backorder WPL 687000 $27.52

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

42

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

45

WPL 61894 WPL 61894 Contact Us For Availability

46

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

48

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25
