Model Whirlpool LHC4900W1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Plug, Terminal WPL 94611 Contact Us For Availability

1

Cap, Agitator WPL 356381 Contact Us For Availability

1

Cover, R.H. WPL 717941 Contact Us For Availability

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Harness, Upper WPL 380780 Contact Us For Availability

2

Baseplate & Centerpost WPL 359179 Contact Us For Availability

2

Screw & Washer (3) WPL 370571 Contact Us For Availability

2

Latch, Cap WPL 717939 Contact Us For Availability

3

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Gasket, Tub (3) WPL 17235 Contact Us For Availability

3

Agitator WPL 367200 Contact Us For Availability

3

Spring, Coupler WPL 717958 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly In Stock WPL 96746 $27.41

4

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Idler Arm WPL 356137 Contact Us For Availability

4

Shield, Tub Ring WPL 356153 Contact Us For Availability

4

Cover, L.H. WPL 717942 Contact Us For Availability

5

Terminal (Use W/352089) WPL 352088 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Idler Arm & Shaft WPL 366856 Contact Us For Availability

5

Tub Ring Retainer Kit (Used To Retain Tub Rin WPL 350987 Contact Us For Availability

5

Tub Ring Assembly WPL 367315 Contact Us For Availability

5

Screw, 8-18 x 3/4 WPL 718032 Contact Us For Availability

6

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Pulley, Idler WPL 366855 Contact Us For Availability

6

Insert, Filter WPL 356423 Contact Us For Availability

6

Hose, Drain WPL 357037 Contact Us For Availability

7

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

7

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

7

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Washer, Thrust WPL 356133 Contact Us For Availability

7

Clip, Tub Ring (5) WPL 356141 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Clip, Harness WPL 356327 Contact Us For Availability

8

Ring, Retainer WPL 356087 Contact Us For Availability

8

Gasket, Tub Ring WPL 356380 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Harness, Lower WPL 358100 Contact Us For Availability

9

Ring, Retainer WPL 356088 Contact Us For Availability

9

Bracket, Hose Storage WPL 356499 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Cap, Terminal WPL 94612 Contact Us For Availability

Magnet WPL 365998 Contact Us For Availability

Locknut WPL 356995 Contact Us For Availability

Barrier, Splash WPL 353885 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

Lid (White) WPL 379979 Contact Us For Availability

Lid (Almond) WPL 379980 Contact Us For Availability

Lid (Coffee) WPL 379981 Contact Us For Availability

Lid (New Avocado) WPL 379982 Contact Us For Availability

Lid (Golden Harvest) WPL 379983 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Block, Basket Drive WPL 357836 Contact Us For Availability

12

Guide, Cam Bar WPL 95462 Contact Us For Availability

12

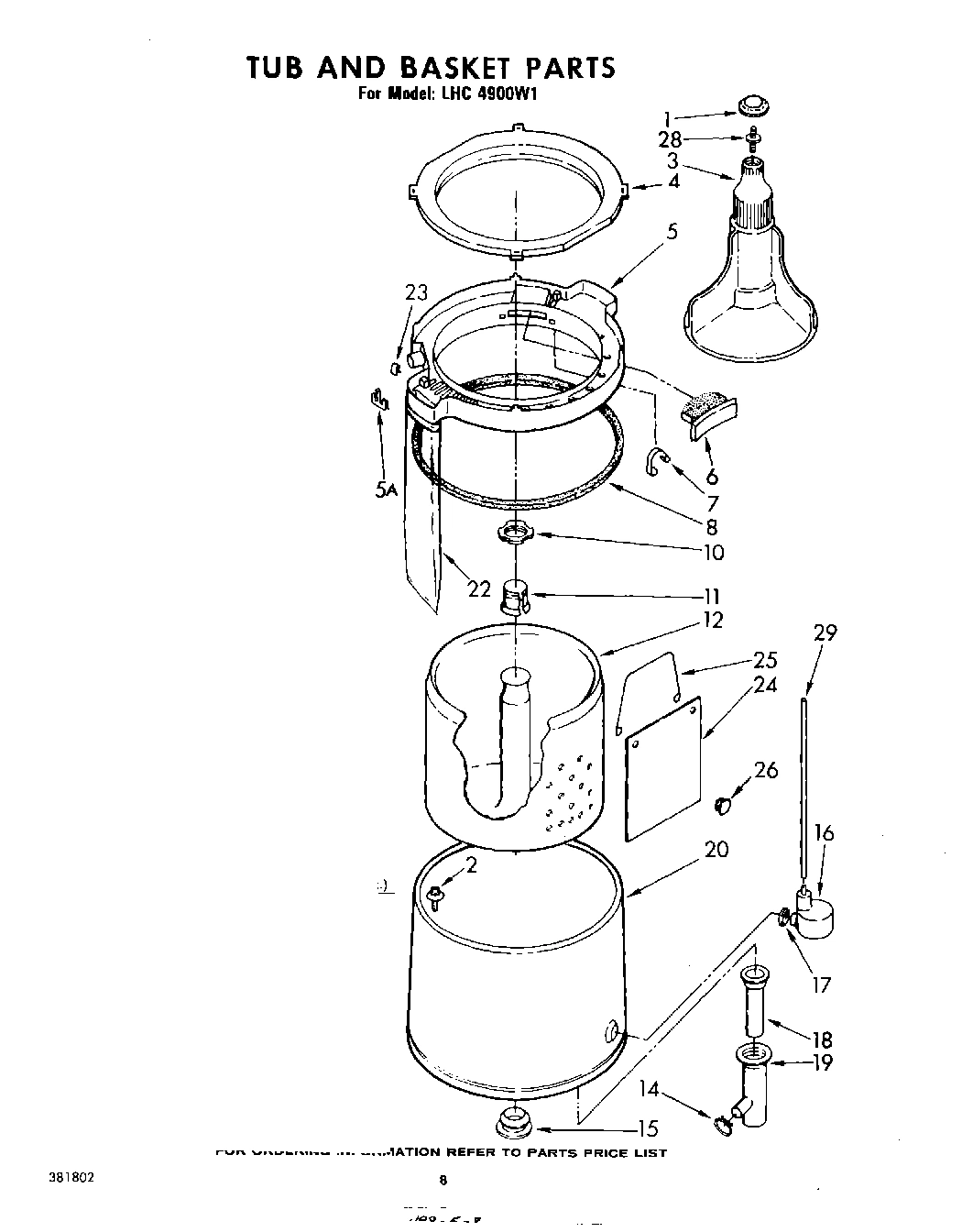

Basket Assembly WPL 359174 Contact Us For Availability

13

Gear, Sector WPL 75073 Contact Us For Availability

13

Cam, Bar Spin WPL 354838 Contact Us For Availability

13

Bumper WPL 91605 Contact Us For Availability

Belt, ``V`` (Alternate) WPL 356402 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Belt, ``V`` ((Alternate)) WPL 356403 Contact Us For Availability

Box, Power Cord WPL 356211 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

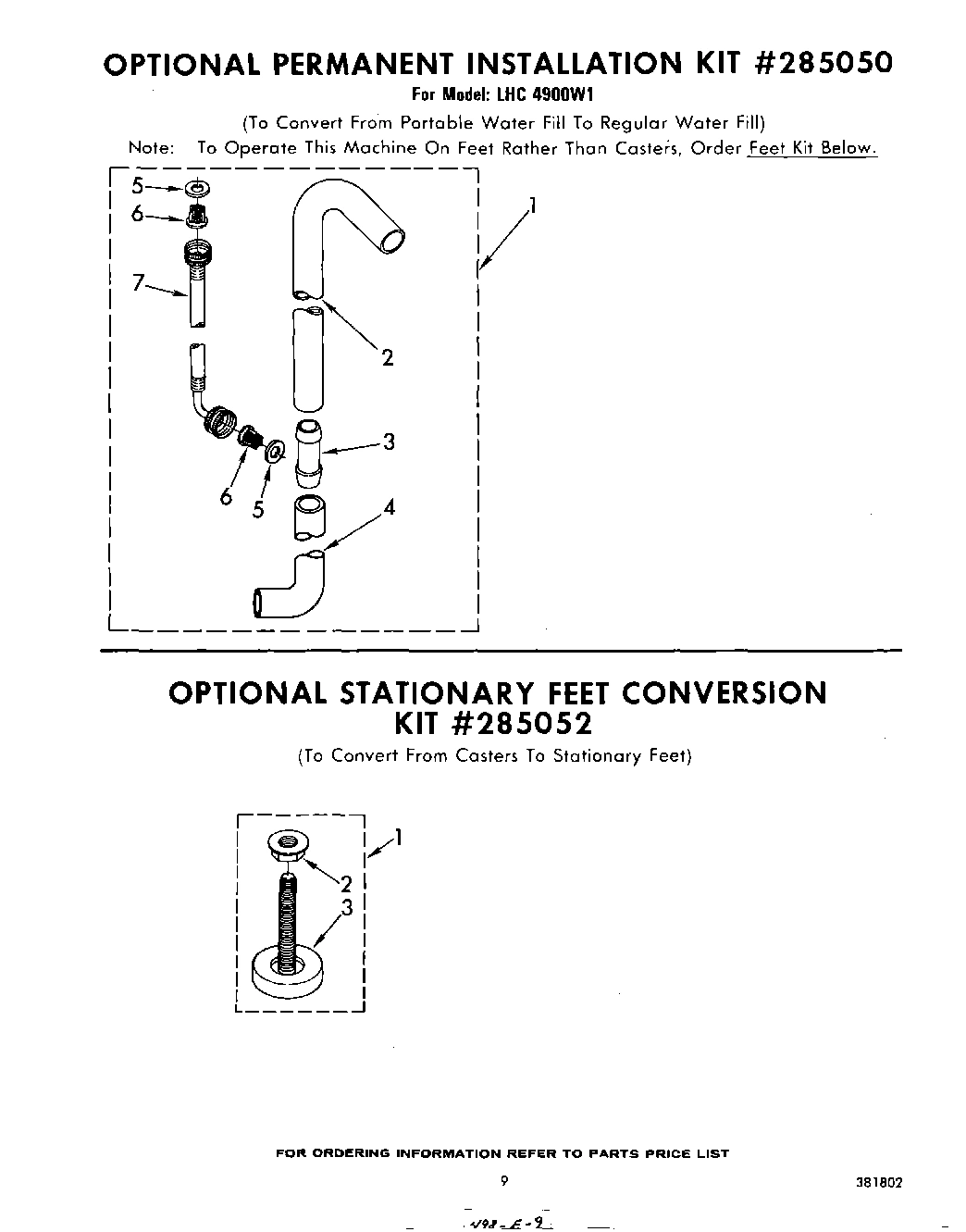

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

Pin, Dowel WPL 5018 Contact Us For Availability

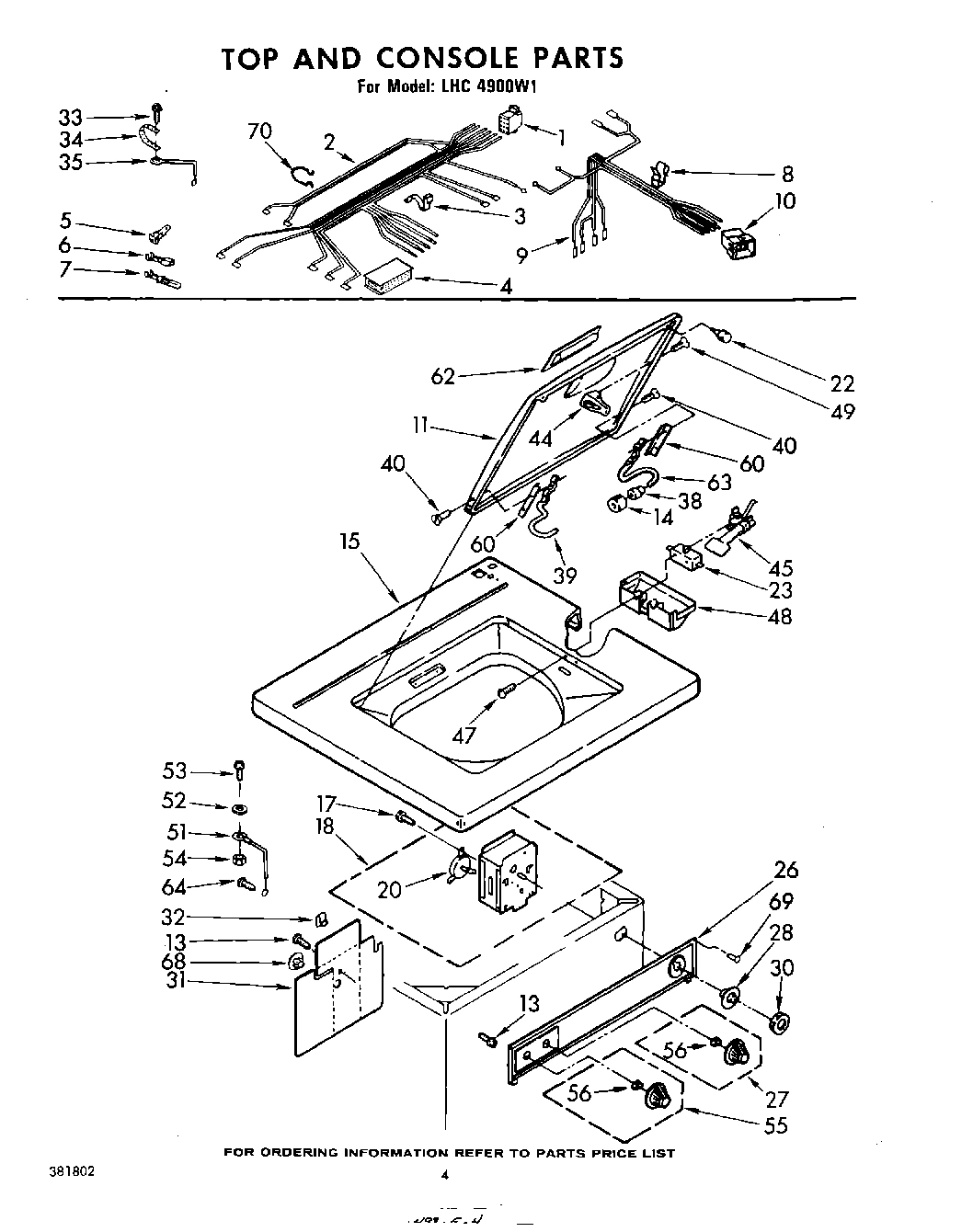

Top (White) WPL 373723 Contact Us For Availability

Top (Almond) WPL 376910 Contact Us For Availability

Top (Coffee) WPL 376911 Contact Us For Availability

Top (New Avocado) WPL 376912 Contact Us For Availability

Top (Golden Harvest) WPL 376913 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Spring, Brake WPL 94726 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (5) WPL 356599 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Seal WPL 351830 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

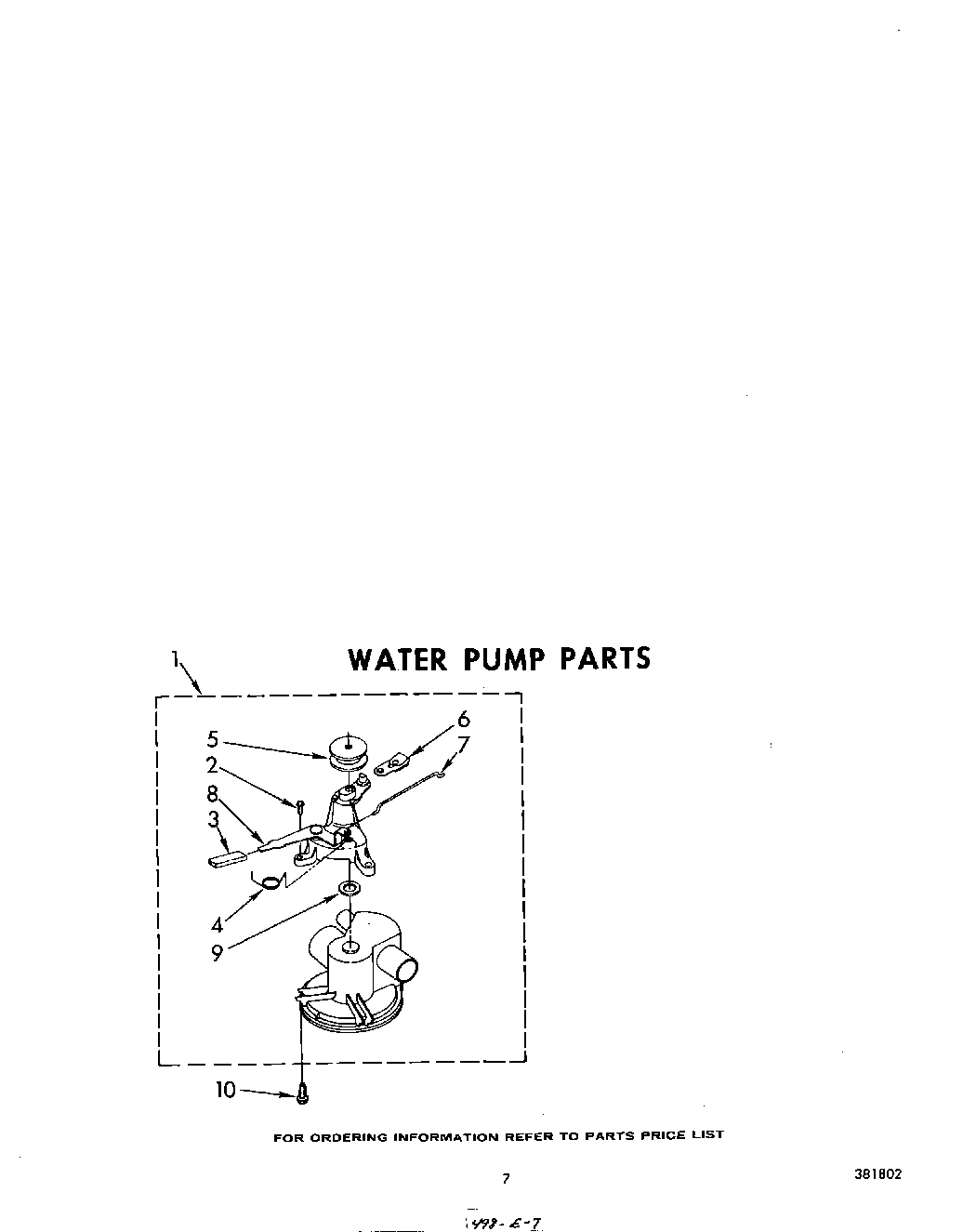

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Hose, Water Inlet WPL 356314 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Timer, Disconnect WPL 359139 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Funnel, Drain WPL 356201 Contact Us For Availability

Screw WPL 98520 Contact Us For Availability

19

Rivet WPL 354959 Contact Us For Availability

19

Manifold, Tub Outlet WPL 357160 Contact Us For Availability

19

Switch, Water Level WPL 370865 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

Motor, Timer WPL 365941 Contact Us For Availability

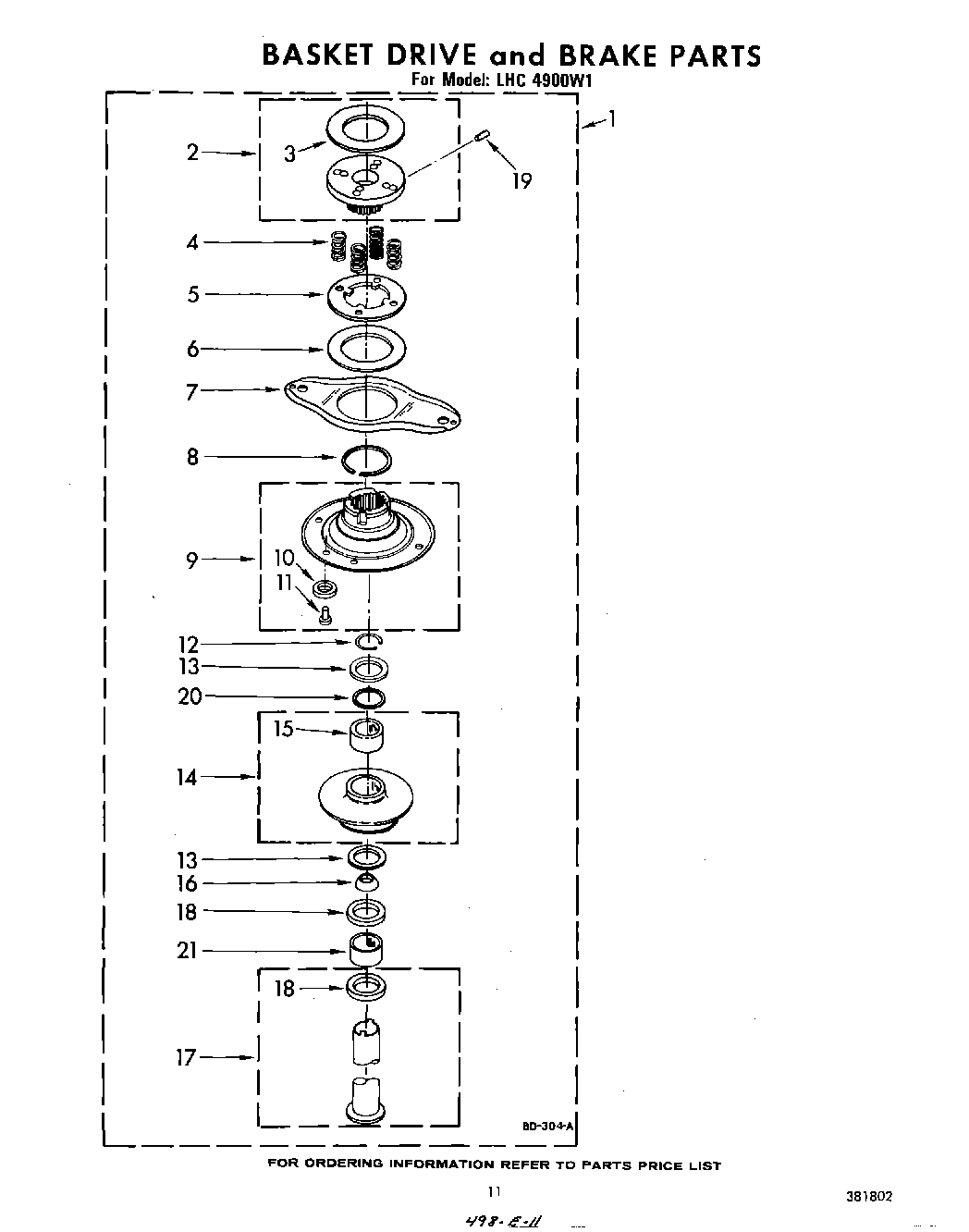

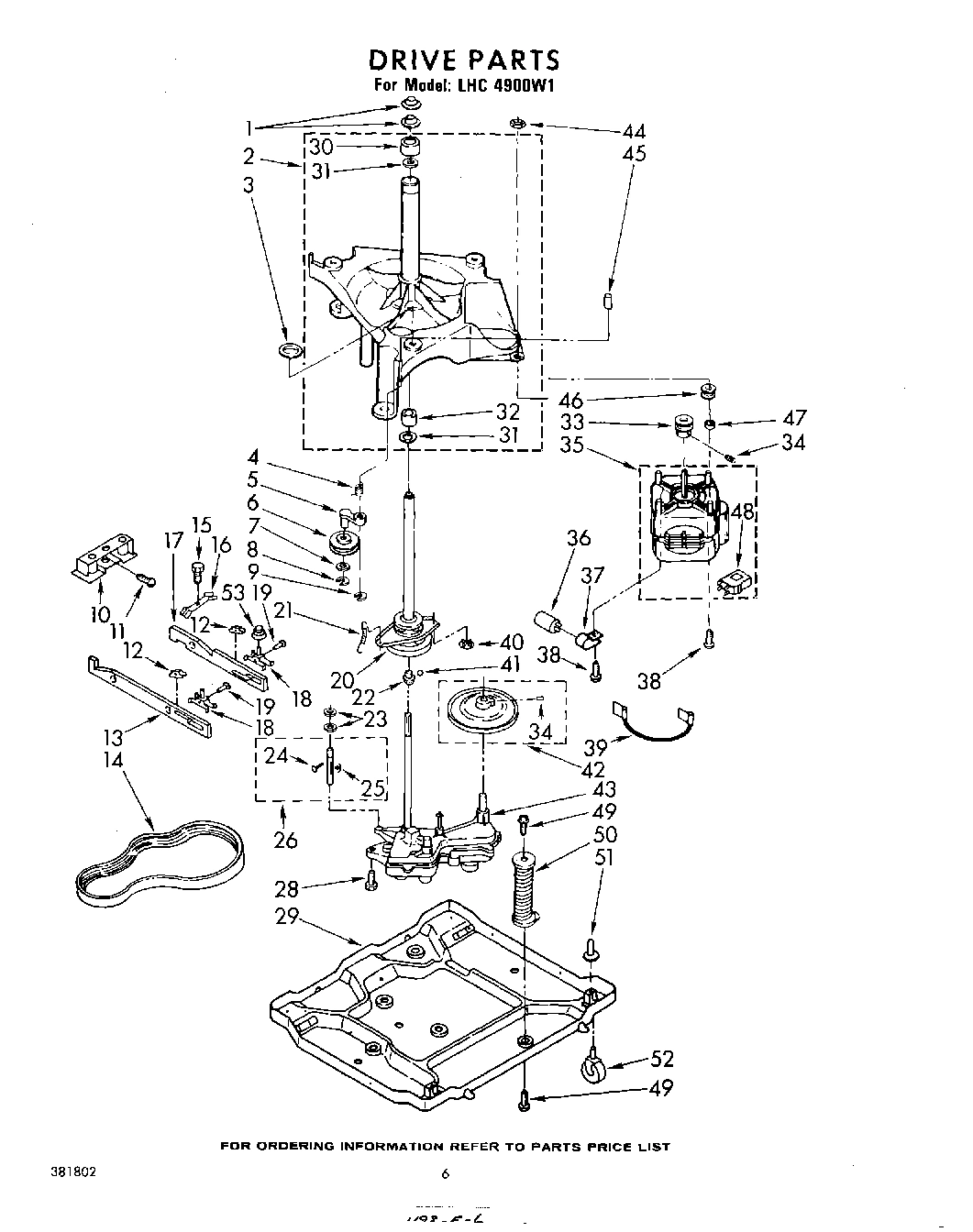

Basket Drive & Brake (Refer To Page 11 For Fu WPL 359175 Contact Us For Availability

Tub WPL 367162 Contact Us For Availability

Bracket, Control WPL 357174 Contact Us For Availability

21

Spring, Brake Yoke WPL 17261 Contact Us For Availability

21

Coupler Assembly WPL 371053 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $28.80

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Support, Spin Tube WPL 358586 Contact Us For Availability

Hose, Drain WPL 356727 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Rod, Connecting WPL 76577 Contact Us For Availability

24

Pin, Roll WPL 90532 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

24

Shield, Splash WPL 357623 Contact Us For Availability

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

Washer, Retainer WPL 95083 Contact Us For Availability

Support, Splash Shield WPL 357622 Contact Us For Availability

Hinge, Cabinet (2) WPL 356606 Contact Us For Availability

Gear, Main Drive WPL 359273 Contact Us For Availability

Panel, Control WPL 375542 Contact Us For Availability

Clip, Push-On (2) WPL 356288 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

27

Washer, Thrust WPL 363362 Contact Us For Availability

27

Knob, Assembly Water Temperature WPL 370269 Contact Us For Availability

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

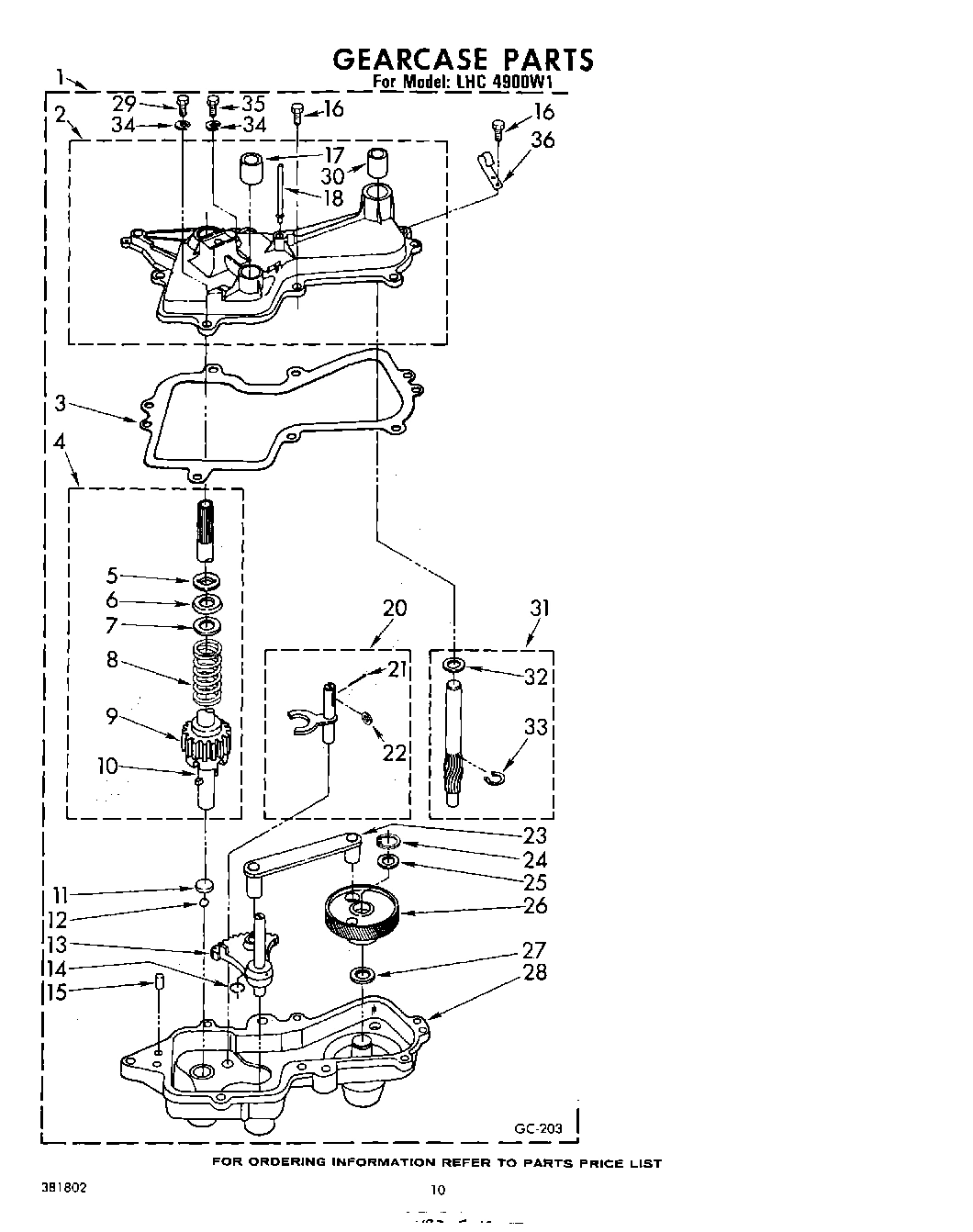

Gearcase WPL 362906 Contact Us For Availability

Dial, Timer WPL 359410 Contact Us For Availability

Screw & Washer (3) WPL 356154 Contact Us For Availability

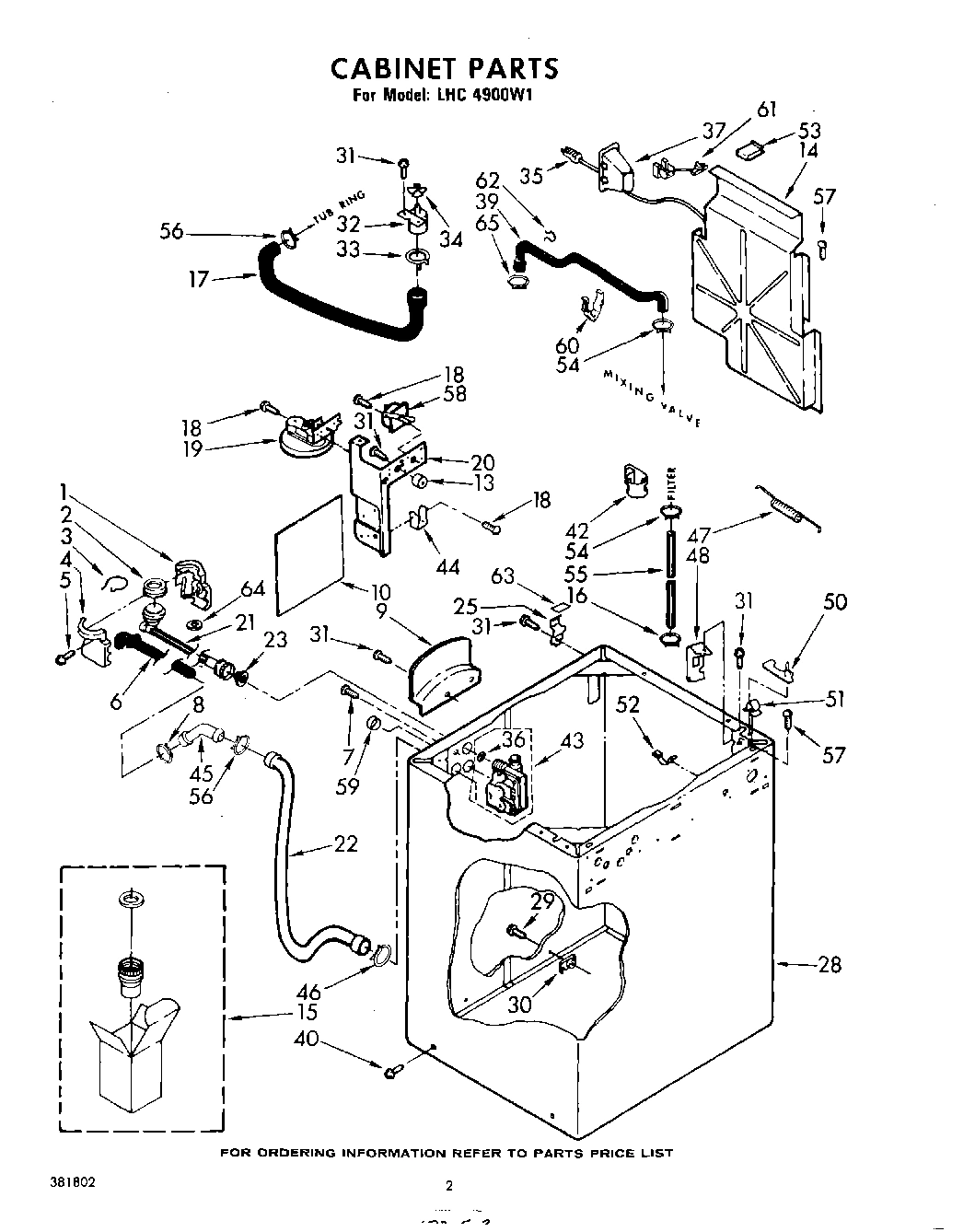

Cabinet (White) WPL 370910 Contact Us For Availability

Cabinet (Almond) WPL 376950 Contact Us For Availability

Cabinet (Coffee) WPL 376951 Contact Us For Availability

Cabinet (New Avocado) WPL 376952 Contact Us For Availability

Cabinet (Golden Harvest) WPL 376953 Contact Us For Availability

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Bolt, 5/16-24 x 1-1/8 (1) WPL 356512 Contact Us For Availability

Baseplate, Lower WPL 359321 Contact Us For Availability

Paint, Pressurized Spray (Coffee) WPL 261886 Contact Us For Availability

xPaint, Touch-Up (1 Qt.) (Coffee (Uncut)) WPL 261887 Contact Us For Availability

Paint, Pressurized Spray (New Avocado) WPL 261888 Contact Us For Availability

xPaint, Touch-Up (1 Qt.) (New Avocado (Uncut) WPL 261889 Contact Us For Availability

Paint, Pressurized Spray (Golden Harvest) WPL 261890 Contact Us For Availability

xPaint, Touch-Up (1 Qt.) (Golden Harvest (Unc WPL 261891 Contact Us For Availability

Paint, Pressurized Spray (White) WPL 35093 Contact Us For Availability

Paint, Pressurized Spray (Leveler (Thinner)) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Bag, Miscellaneous Parts WPL 370577 Contact Us For Availability

Instructions, Installation WPL 378945 Contact Us For Availability

Instruction, Operating WPL 379239 Contact Us For Availability

List, Repair Parts WPL 381802 Contact Us For Availability

Label, Energy Guide WPL 382216 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Screw, 10-16 x 1 WPL 9426223 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Knob, Timer WPL 356500 Contact Us For Availability

Bearing, Upper WPL 356993 Contact Us For Availability

Spacer, Cabinet (2) WPL 357043 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Pinion, Drive WPL 84467 Contact Us For Availability

Shield, Timer WPL 357901 Contact Us For Availability

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.70

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Clip WPL 356387 Contact Us For Availability

Bearing, Lower WPL 354195 Contact Us For Availability

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Ring, Retainer WPL 90094 Contact Us For Availability

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

Pulley, Motor WPL 356939 Contact Us For Availability

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

Lockwasher (2) WPL 138485 Contact Us For Availability

Strap, Ground WPL 22965 Contact Us For Availability

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

Wire, Ground WPL 364089 Contact Us For Availability

Motor, 60 Hz. (Emerson) WPL 358816 Contact Us For Availability

Power, Cord WPL 357500 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Bracket, Hose WPL 357172 Contact Us For Availability

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

37

Housing, Power Cord WPL 356231 Contact Us For Availability

38

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

38

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

39

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

39

Harness, Jumper WPL 370950 Contact Us For Availability

39

Hose, Water Inlet WPL 357048 Contact Us For Availability

40

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

40

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

40

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

41

Ball WPL 358585 Contact Us For Availability

42

Pulley, Main Drive WPL 356155 Contact Us For Availability

42

Bracket WPL 356982 Contact Us For Availability

43

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

43

Gearcase (Refer To Page 10 For Further Breakd WPL 359279 Contact Us For Availability

44

Strike, Lid Switch WPL 357633 Contact Us For Availability

44

Nut, Motor Mounting (4) WPL 98023 Contact Us For Availability

44

Clamp, Hose WPL 357171 Contact Us For Availability

45

W11213338 Whirlpool Connector Backorder WPL W11213338 $26.90

45

Switch Actuator Assembly WPL 357347 Contact Us For Availability

45

Sleeve, Cabinet Support (2) WPL 356638 Contact Us For Availability

46

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

46

Grommet, Motor (4) WPL 356322 Contact Us For Availability

47

Bumper, Motor Stud (2) WPL 19119 Contact Us For Availability

47

Screw & Washer WPL 354764 Contact Us For Availability

47

Spring, Hose Retaining WPL 356887 Contact Us For Availability

48

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

48

Switch, Motor Start (Use W/Emerson Motor) WPL 362738 Contact Us For Availability

48

Bracket, Harness WPL 357504 Contact Us For Availability

49

Screw And Washer WPL 354975 Contact Us For Availability

49

Screw & Washer WPL 425583 Contact Us For Availability

Spring & Dampener (No. 1) WPL 367011 Contact Us For Availability

Spring & Dampener (No. 3) WPL 367012 Contact Us For Availability

Spring & WPL 367013 Contact Us For Availability

Pad, Top (L.H.) WPL 356916 Contact Us For Availability

Pad, Top (R.H.) WPL 356917 Contact Us For Availability

51

Wire, Ground WPL 368715 Contact Us For Availability

51

WPL 717588 WPL 717588 Contact Us For Availability

51

Lock, Front Top WPL 356422 Contact Us For Availability

52

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

52

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $25.57

52

Washer WPL 90918 Contact Us For Availability

53

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

53

WPL 358354 WPL 358354 Contact Us For Availability

53

Clip WPL 356649 Contact Us For Availability

54

W10080180 Whirlpool Nut Backorder WPL W10080180 $9.59

55

Knob Assembly, Water Level WPL 367675 Contact Us For Availability

55

Hose, Pump To Filter WPL 356397 Contact Us For Availability

56

Clip Timer WPL 90015 Contact Us For Availability

56

Clamp, Hose WPL 353094 Contact Us For Availability

57

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

58

Switch, Water Temperature WPL 370145 Contact Us For Availability

59

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

60

356746 Whirlpool Clip Backorder WPL 356746 $10.76

60

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

61

Relief, Strain WPL 357499 Contact Us For Availability

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Coffee) WPL 379886 Contact Us For Availability

Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Clip WPL 357469 Contact Us For Availability

63

18849 Whirlpool Pad Backorder WPL 18849 $9.13

63

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

64

``O`` Ring WPL 718738 Contact Us For Availability

69

Rivet, Plastic WPL 356388 Contact Us For Availability
