Model Speed Queen LDG30RGS113FW28 Dryer – Common Parts & Diagrams

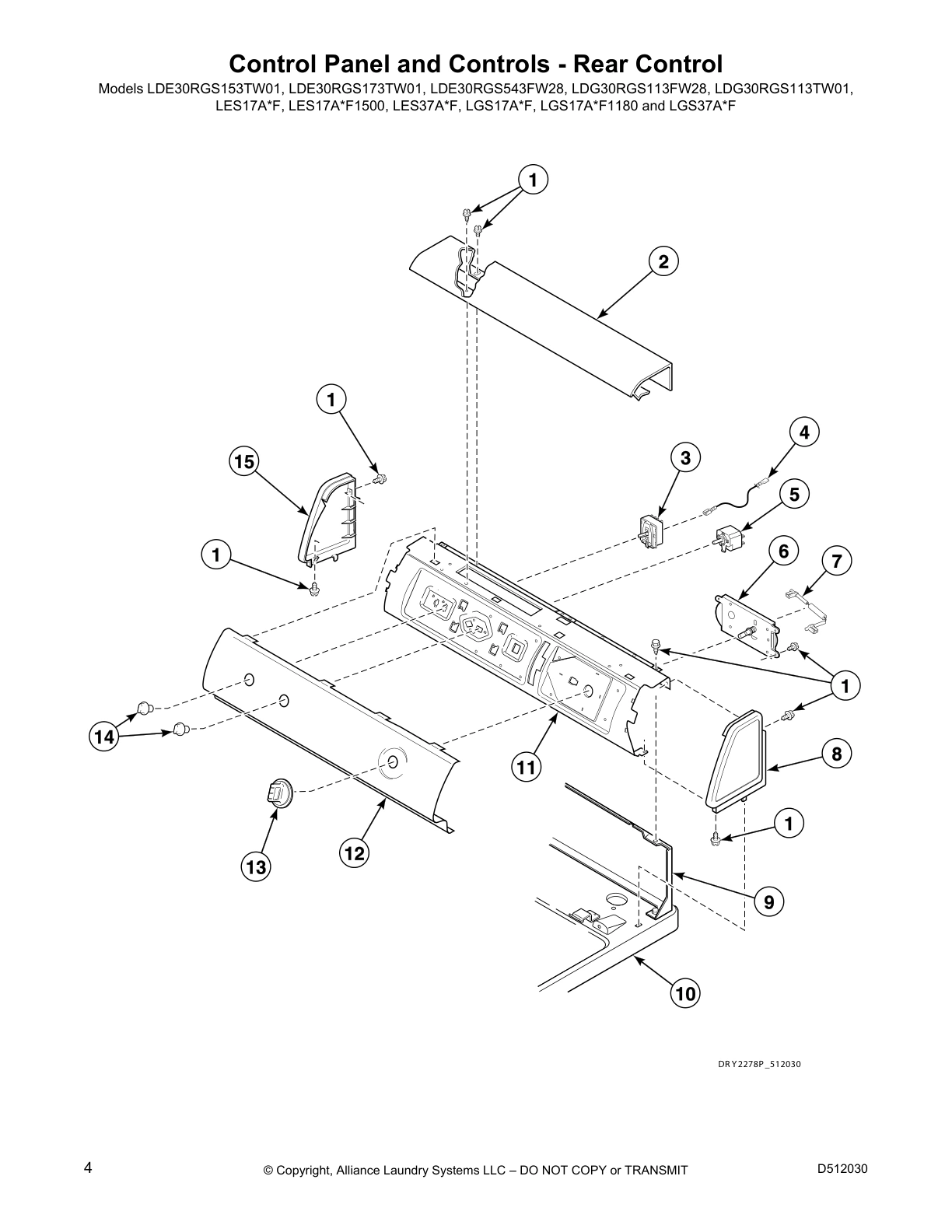

Control Panel and Controls - Rear Control

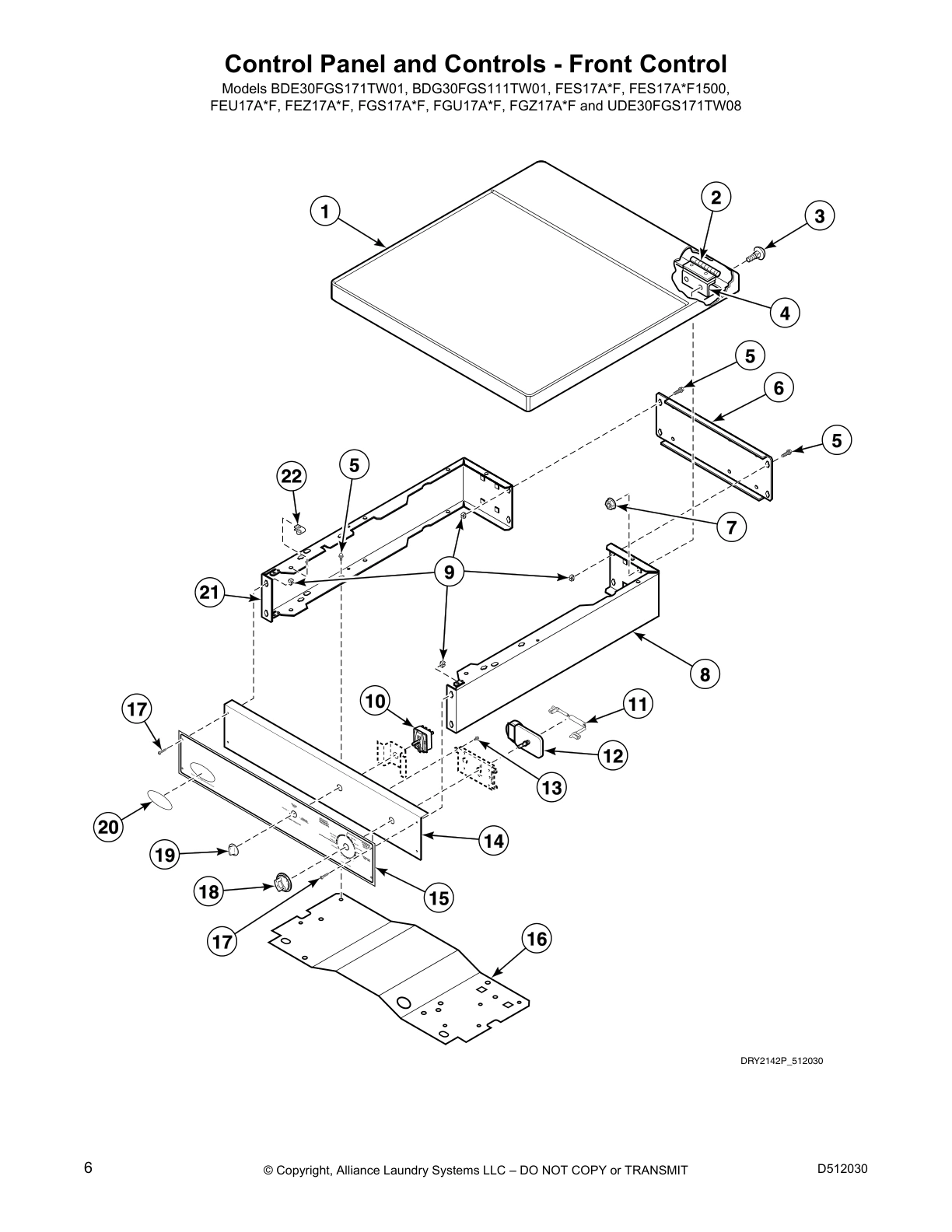

Control Panel and Controls - Front Control
Control Panel and Controls - Stacked Models
Loading Door - With Window
Loading Door - Without Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct, Felt Seal and Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base - Single Dryers
Cabinet, Exhaust Duct and Base - Stacked Dryers
Lead-In Cord
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Stack Models (Drawing 1 of 3)
Wire Harnesses and Wires - Stack Models (Drawing 2 of 3)
Wire Harnesses and Wires - Stack Models (Drawing 3 of 3)
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 3)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 3)
Wire Harnesses and Wires - Front Control Models (Drawing 3 of 3)
Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207
Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Common parts from model Speed Queen LDG30RGS113FW28 Dryer
× ![]()
