Model Whirlpool LC4900XTW0 AUTOMATIC WASHER – Common Parts & Diagrams

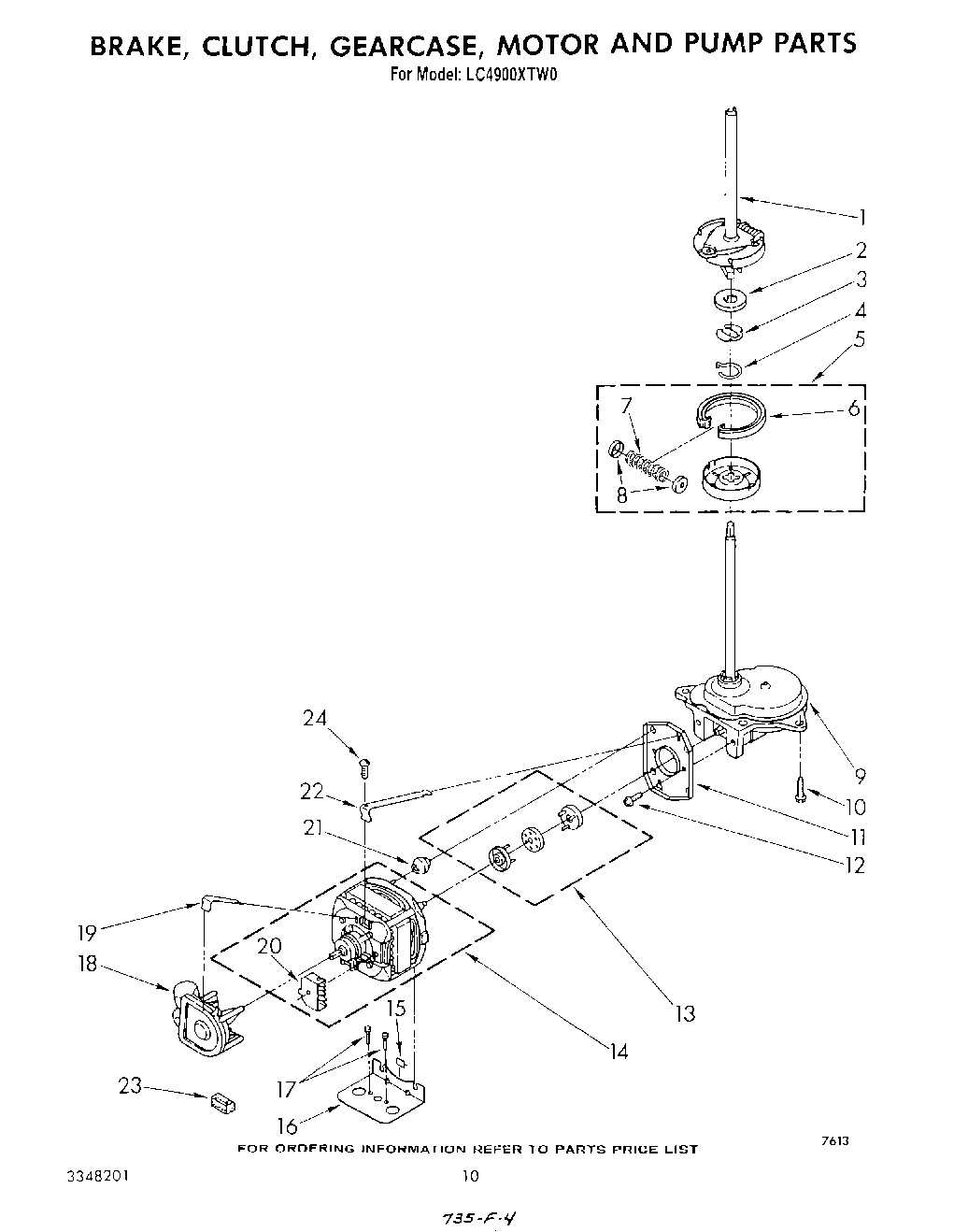

09 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

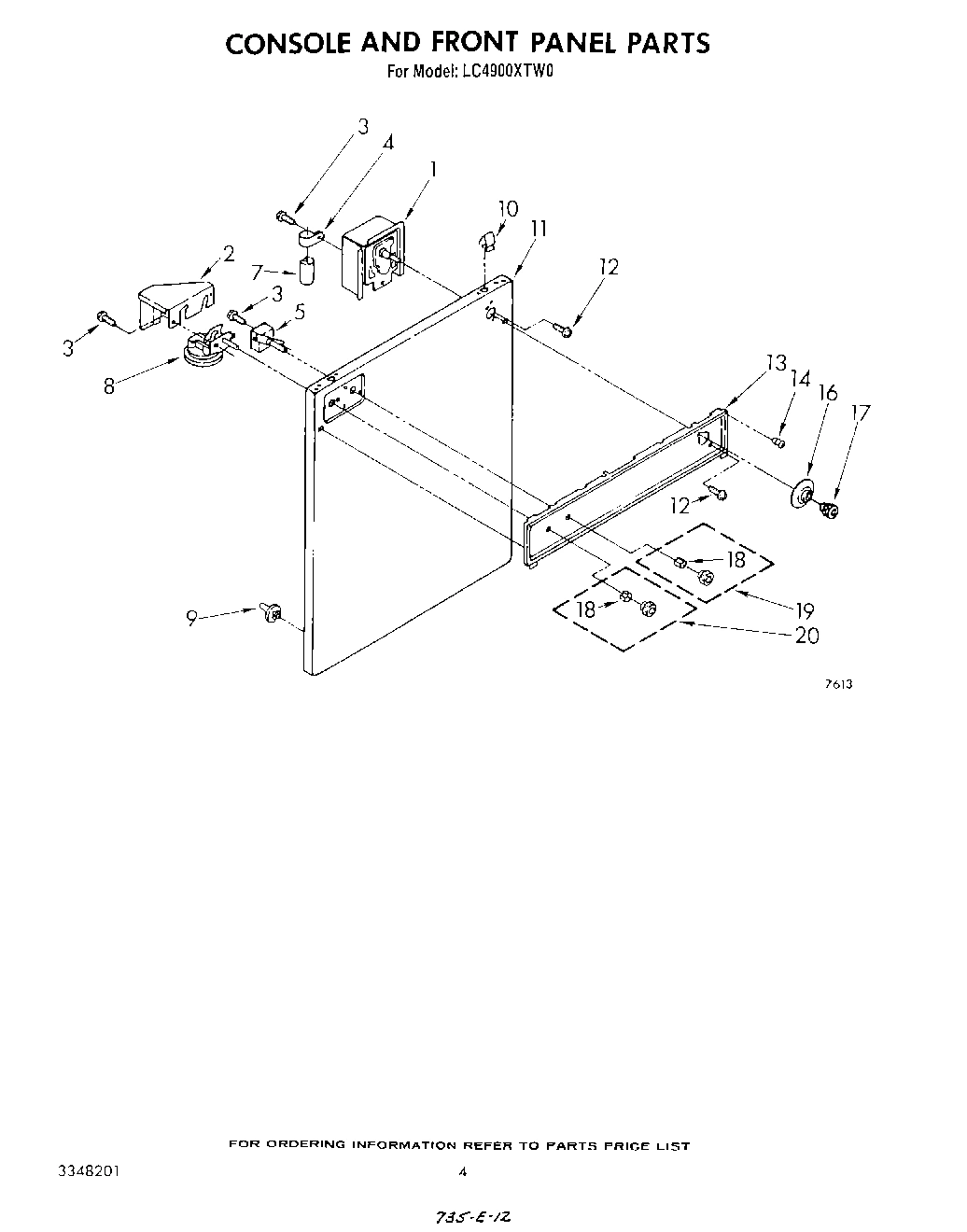

03 - CONSOLE AND FRONT PANEL
05 - WIRING HARNESS
07 - MISCELLANEOUS , PERMANENT INSTALLATION
06 - AGITATOR, BASKET AND TUB
08 - MACHINE BASE
02 - REAR AND SIDE PANEL , LITERATURE AN
04 - WASHER TOP AND LID
10 - GEARCASE
11 - BRAKE AND DRIVE TUBE
Common parts from model Whirlpool LC4900XTW0 AUTOMATIC WASHER
WPL 350930 WPL 350930 Contact Us For Availability
WPL 350956 WPL 350956 Contact Us For Availability
WPL 72110 WPL 72110 Contact Us For Availability
WPL 350572 WPL 350572 Contact Us For Availability
WPL 350938 WPL 350938 Contact Us For Availability
WPL 72113 WPL 72113 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinu WPL 285366 Contact Us For Availability
WPL 285367 WPL 285367 Contact Us For Availability
WPL 285368 WPL 285368 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3347014 WPL LIT3347014 Contact Us For Availability
WPL LIT3348134 WPL LIT3348134 Contact Us For Availability
WPL LIT3348201 WPL LIT3348201 Contact Us For Availability
WPL LIT3349154 WPL LIT3349154 Contact Us For Availability
WPL LIT385238 WPL LIT385238 Contact Us For Availability
1
Centerpost Bearing Kit (Incls. Illus. 10, 11, WPL 285203 Contact Us For Availability
1
Timer, 60 Hz. (Serviced As A Complete Assembl WPL 3347793 Contact Us For Availability
1
Plug, Terminal (3 Way) (Connects To Power Cor WPL 353424 Contact Us For Availability
1
Conversion Kit, Permanent Installation WPL 285418 Contact Us For Availability
1
Miscelleous Parts Bag WPL 3348248 Contact Us For Availability
1
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
1
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
1
Handle, Lid (White) WPL 379889 Contact Us For Availability
1
Handle, Lid (Toast) WPL 379890 Contact Us For Availability
1
Handle, Lid (Platinum) WPL 379891 Contact Us For Availability
2
Bracket, Hose Storage WPL 356499 Contact Us For Availability
3
Bushing, Caster (2) WPL 300450 Contact Us For Availability
3
Cord, Power (Includes Illus. 3A) WPL 63847 Contact Us For Availability
3
Plug, Wire WPL 691707 Contact Us For Availability
3
Lid (White Model) WPL 3348018 Contact Us For Availability
3
Lid (Almond Model) WPL 3348019 Contact Us For Availability
3
Lid (Platinum) WPL 3348020 Contact Us For Availability
3
Lid (Toast) WPL 3348021 Contact Us For Availability
3
Lid (Golden Harvest) WPL 3348022 Contact Us For Availability
4
Clamp, Capacitor WPL 357030 Contact Us For Availability
5
Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability
5
Hinge, Lid (L.H.) WPL 384458 Contact Us For Availability
5
Suspension Assembly (3) WPL 63731 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
6
Panel, Rear (White Model) WPL 63615 Contact Us For Availability
6
Panel, Rear (Almond Model) WPL 63616 Contact Us For Availability
6
Panel, Rear (Toast) WPL 63617 Contact Us For Availability
6
Panel, Rear (Platinum) WPL 63618 Contact Us For Availability
6
Panel, Rear (Golden Harvest) WPL 63619 Contact Us For Availability
7
Locator, Top (6) WPL 98669 Contact Us For Availability
8
Basket WPL 64081 Contact Us For Availability
8
Panel, Side (2) (White Model) WPL 3350063 Contact Us For Availability
8
Panel, Side (2) (Almond Model) WPL 3350064 Contact Us For Availability
8
Panel, Side (2) (Toast) WPL 3350065 Contact Us For Availability
8
Panel, Side (2) (Platinum) WPL 3350066 Contact Us For Availability
8
Panel, Side (2) (Golden Harvest) WPL 3350067 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
9
Tub WPL 63782 Contact Us For Availability
9
Retainer, Spring WPL 62677 Contact Us For Availability
9
Wheel, Front (2) WPL 64057 Contact Us For Availability
10
Plug, Button (2) WPL 54690 Contact Us For Availability
10
Spring, Agitator WPL 62676 Contact Us For Availability
11
Seal WPL 711696 Contact Us For Availability
11
Spring, Lid (L.H.) (Includes Illus. 10) WPL 384463 Contact Us For Availability
12
Washer, Agitator Gear WPL 62619 Contact Us For Availability
12
Valve, Pressure Relief WPL 285171 Contact Us For Availability
12
Top (Almond Model) WPL 384210 Contact Us For Availability
12
Top (Golden Harvest) WPL 384213 Contact Us For Availability
12
Top (Toast) WPL 386544 Contact Us For Availability
12
Top (Platinum) WPL 386545 Contact Us For Availability
13
Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability
13
Pad, Top Hinge (2) WPL 18849 Contact Us For Availability
13
Cam, Brake Release (Alt.) WPL 3348228 Contact Us For Availability
14
Hinge, Rear Panel (2) WPL 356606 Contact Us For Availability
15
Tube, Drain Off WPL 356398 Contact Us For Availability
15
Bracket, Counterweight Spring WPL 63636 Contact Us For Availability
15
Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability
15
Shaft, Agitator WPL 389231 Contact Us For Availability
16
Screw & Washer (4) (Tub Mounting) WPL 98005 Contact Us For Availability
16
Strain Relief, Power Cord WPL 63848 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper (2) WPL 238614 Contact Us For Availability
17
Hinge, Lid (R.H.) WPL 384459 Contact Us For Availability
17
Shield, Tub WPL 63637 Contact Us For Availability
17
Hose, Water Inlet WPL 386932 Contact Us For Availability
18
Nut, 1/2 - 20 (3) WPL 388398 Contact Us For Availability
19
Actuator, Lid Switch WPL 357347 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability
20
Washer, Hex (2) WPL 64259 Contact Us For Availability
20
Gear, Main Drive WPL 62528 Contact Us For Availability
21
Seal, Thrust Plug WPL 285352 Contact Us For Availability
21
Clamp, Hose WPL 272855 Contact Us For Availability
21
Spring, Lid (R.H.) (Includes Illus. 10) WPL 384462 Contact Us For Availability
23
Ring, Retaining WPL 95082 Contact Us For Availability
24
Washer Kit, Thrust WPL 285292 Contact Us For Availability
25
Harness, Lid Switch WPL 3350429 Contact Us For Availability
26
Brace, Tie (2) WPL 3350061 Contact Us For Availability
26
Rivet, Serial Nameplate (2) WPL 354239 Contact Us For Availability
27
Hose, Siphon Break WPL 386933 Contact Us For Availability
29
Hose, Pump Drain WPL 386930 Contact Us For Availability
× ![]()
