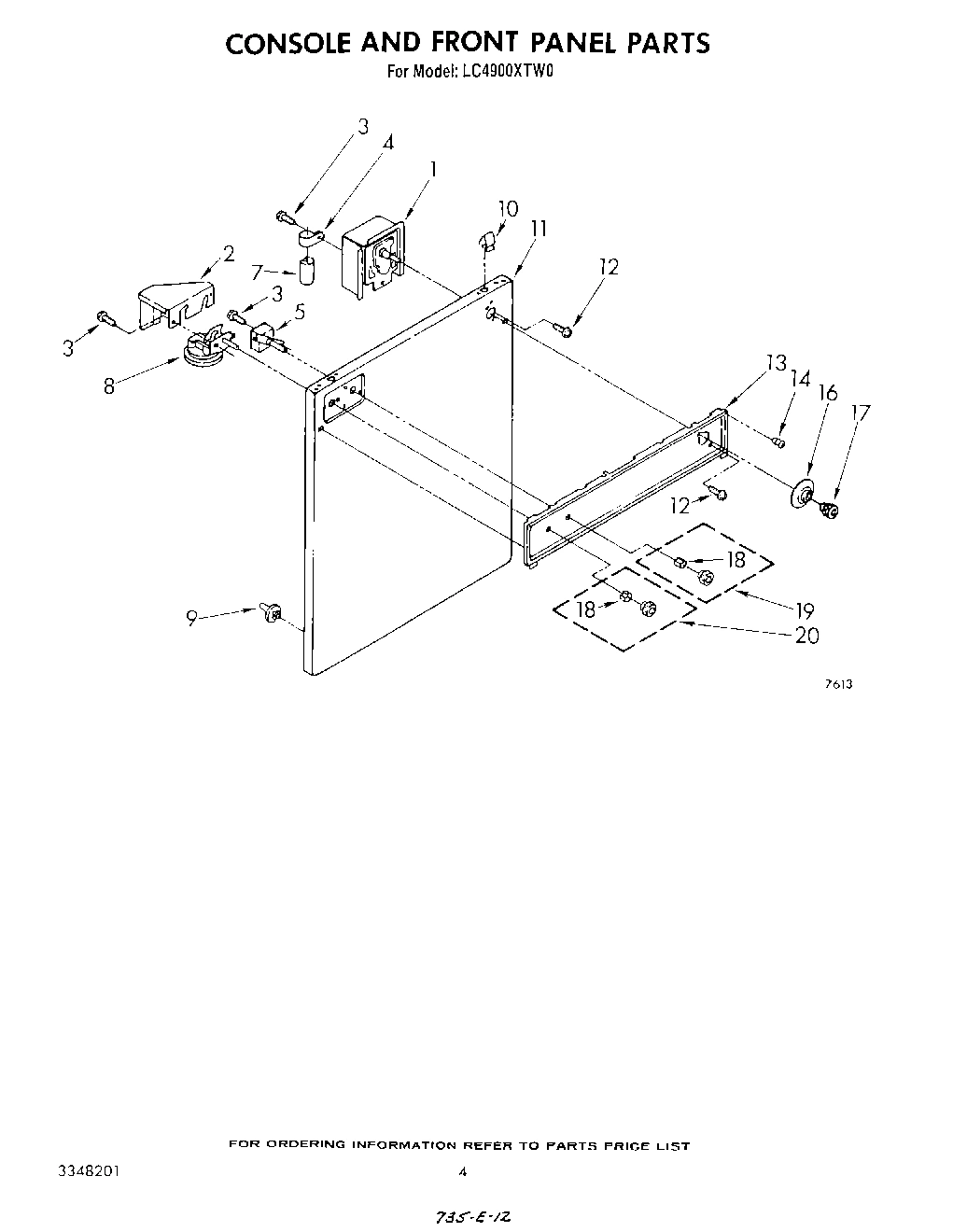

Model Whirlpool LC4900XTN0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinu WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3347014 WPL LIT3347014 Contact Us For Availability

WPL LIT3348134 WPL LIT3348134 Contact Us For Availability

WPL LIT3348201 WPL LIT3348201 Contact Us For Availability

WPL LIT3349154 WPL LIT3349154 Contact Us For Availability

WPL LIT385238 WPL LIT385238 Contact Us For Availability

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

1

353424 Whirlpool Connector Backorder WPL 353424 $10.76

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

1

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

1

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

1

Timer, 60 Hz. (Serviced As A Complete Assembl WPL 3347793 Contact Us For Availability

1

Handle, Lid (White) WPL 379889 Contact Us For Availability

1

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

1

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

1

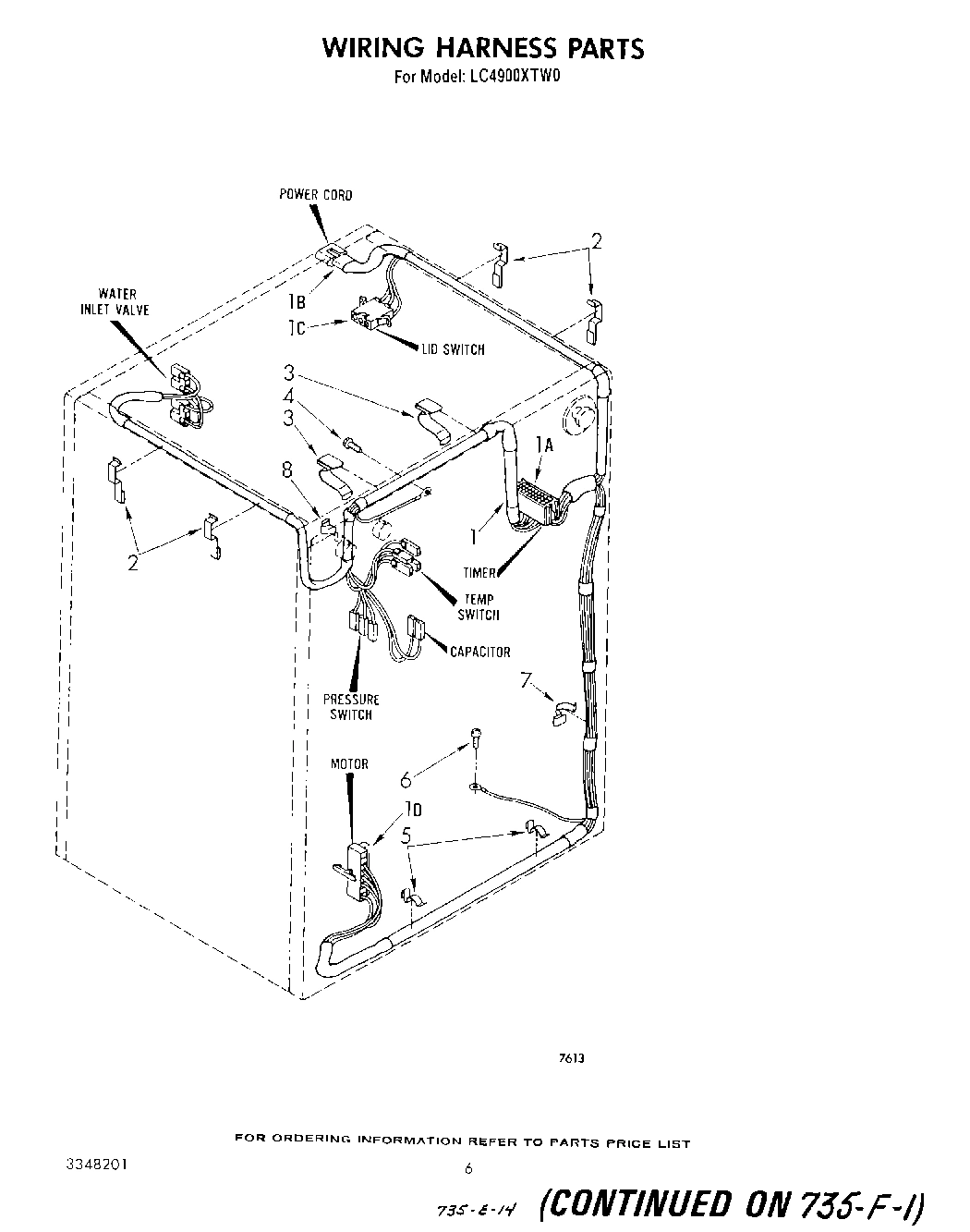

Harness, Cabinet Wiring (Includes Illus. 1A, WPL 387711 Contact Us For Availability

1

Plug, Terminal (3 Way) (Connects To Lid Switc WPL 62888 Contact Us For Availability

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $16.43

2

Clip, Harness (4) WPL 64227 Contact Us For Availability

2

Bracket, Hose Storage WPL 356499 Contact Us For Availability

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $94.05

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

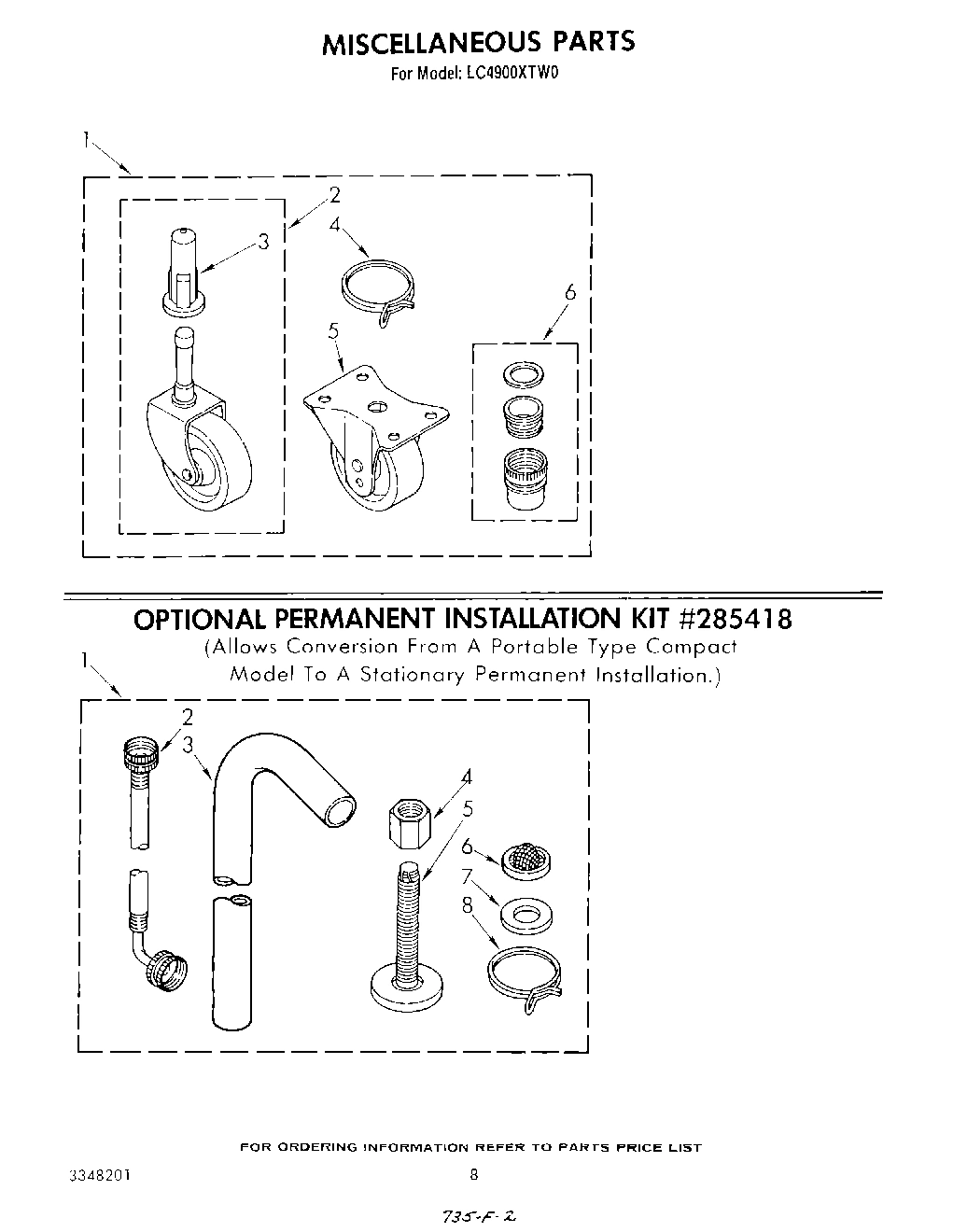

Bushing, Caster (2) WPL 300450 Contact Us For Availability

3

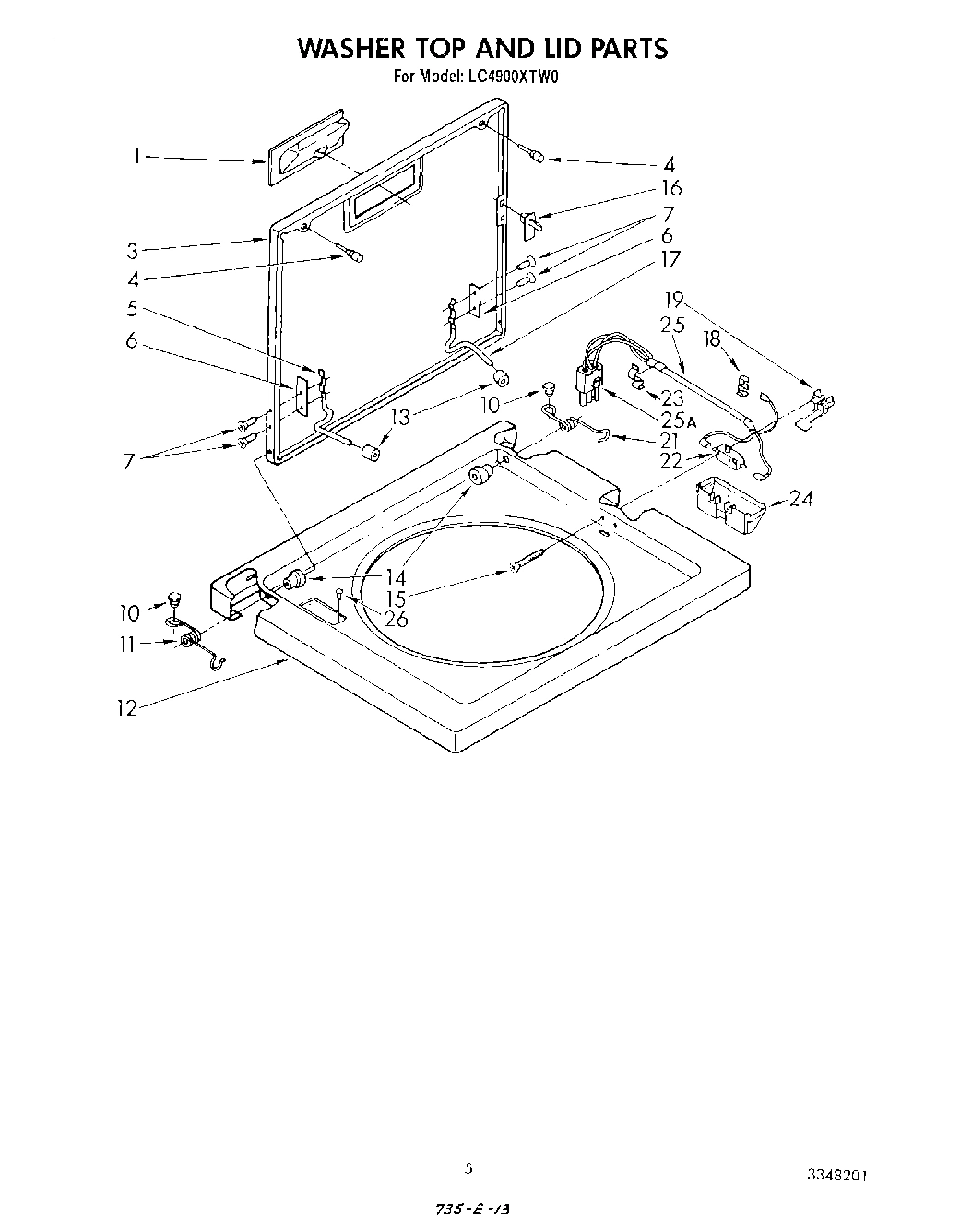

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Platinum) WPL 3348020 Contact Us For Availability

3

Lid (Toast) WPL 3348021 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

3

Clip, Harness (2) WPL 387668 Contact Us For Availability

3

Cord, Power (Includes Illus. 3A) WPL 63847 Contact Us For Availability

3

Plug, Wire WPL 691707 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $3.55

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

4

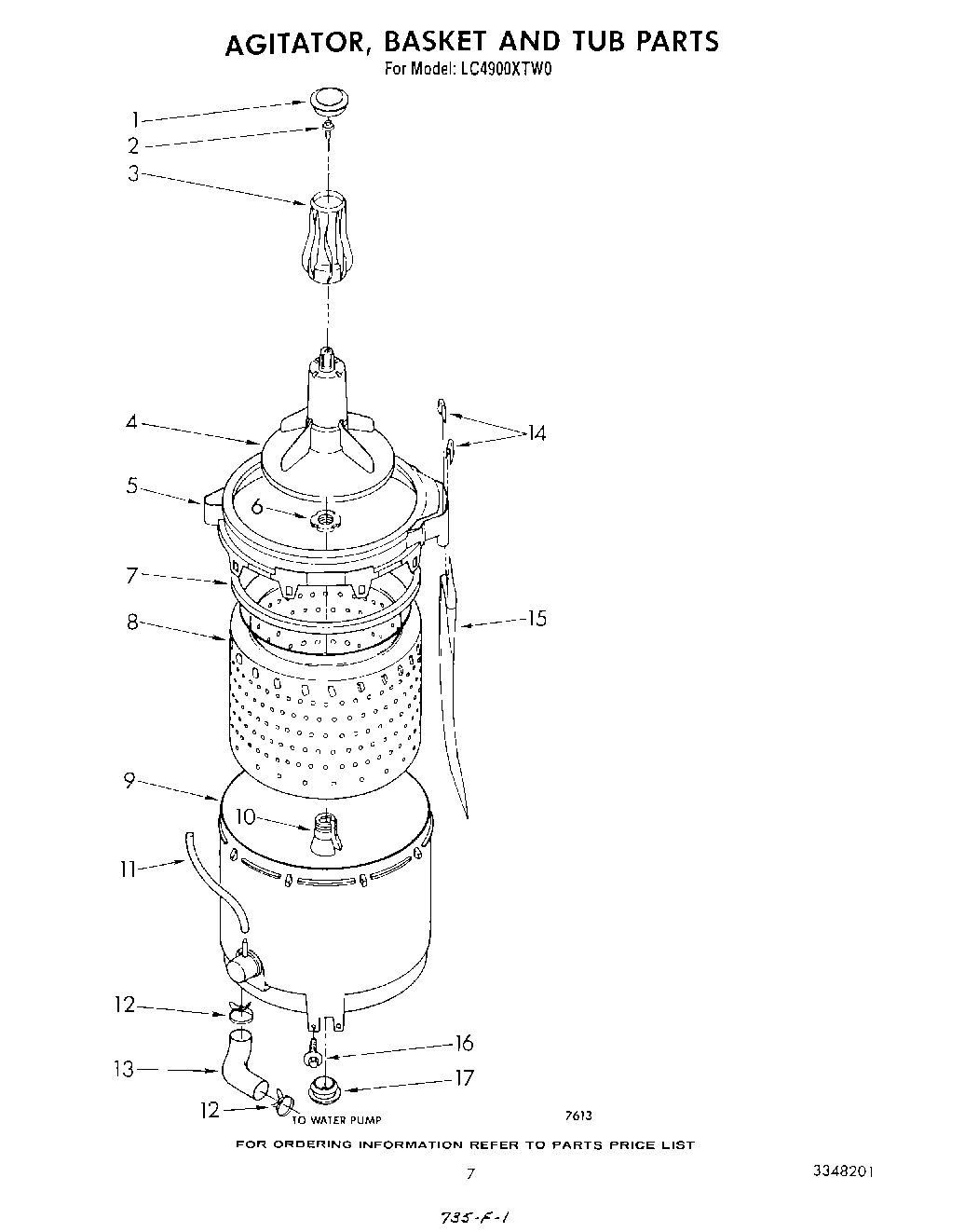

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $72.06

4

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

4

Screw, 8-18 x 5/16 WPL 3347107 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $30.89

5

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

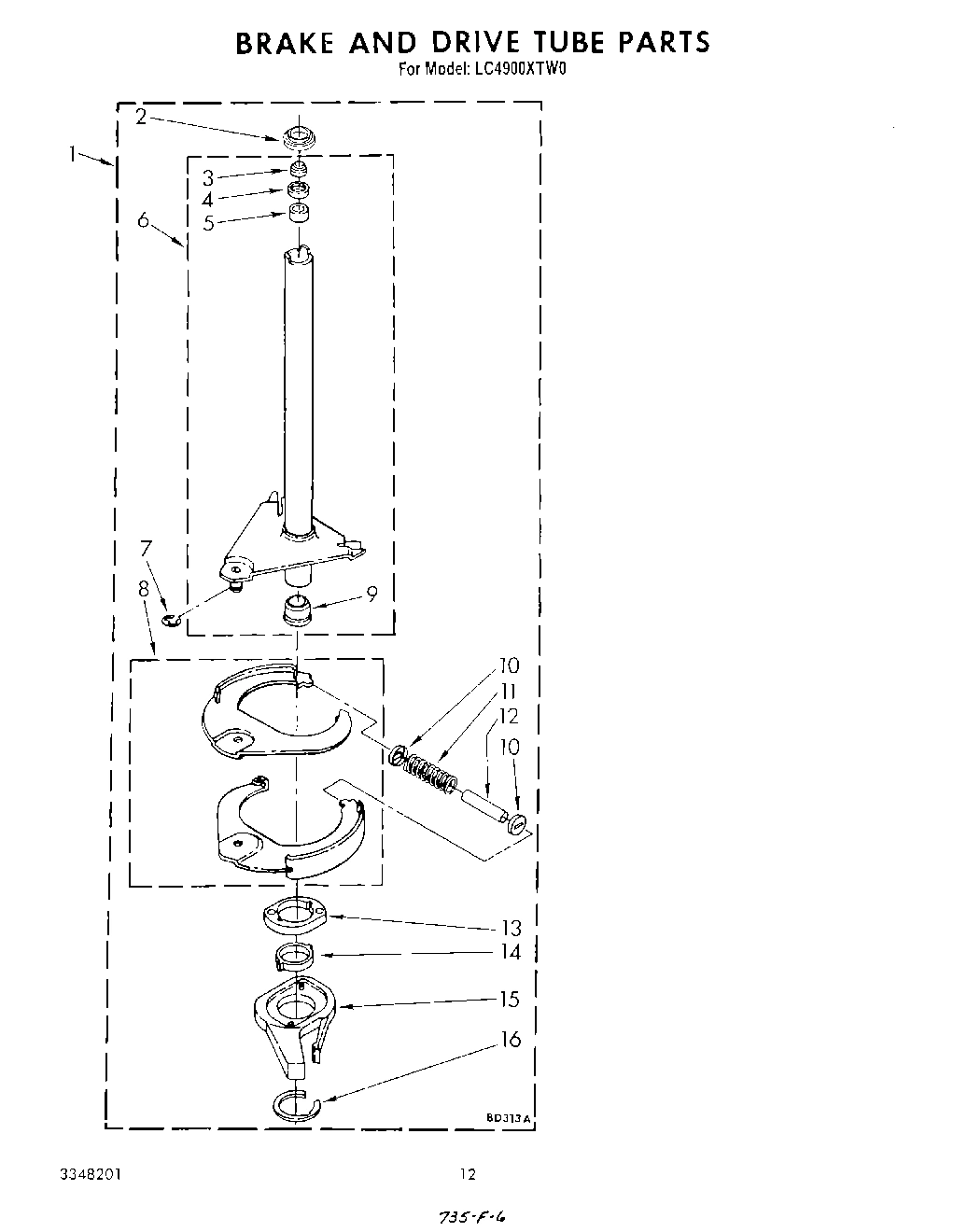

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.52

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

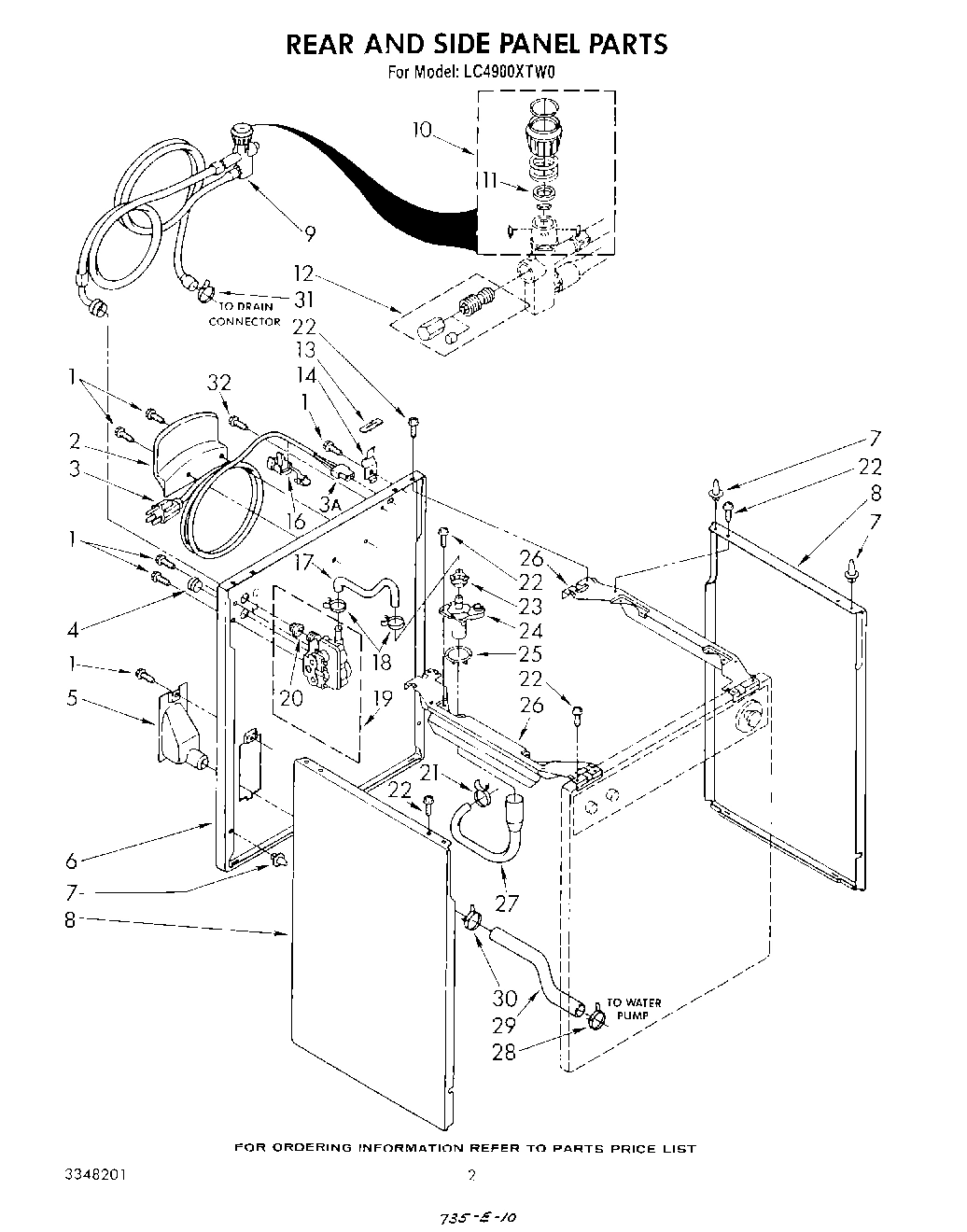

Panel, Rear (White Model) WPL 63615 Contact Us For Availability

6

Panel, Rear (Almond Model) WPL 63616 Contact Us For Availability

6

Panel, Rear (Toast) WPL 63617 Contact Us For Availability

6

Panel, Rear (Platinum) WPL 63618 Contact Us For Availability

6

Panel, Rear (Golden Harvest) WPL 63619 Contact Us For Availability

7

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

7

Locator, Top (6) WPL 98669 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $3.33

8

Clip, Harness WPL 64162 Contact Us For Availability

8

Panel, Side (2) (White Model) WPL 3350063 Contact Us For Availability

8

Panel, Side (2) (Almond Model) WPL 3350064 Contact Us For Availability

8

Panel, Side (2) (Toast) WPL 3350065 Contact Us For Availability

8

Panel, Side (2) (Platinum) WPL 3350066 Contact Us For Availability

8

Panel, Side (2) (Golden Harvest) WPL 3350067 Contact Us For Availability

9

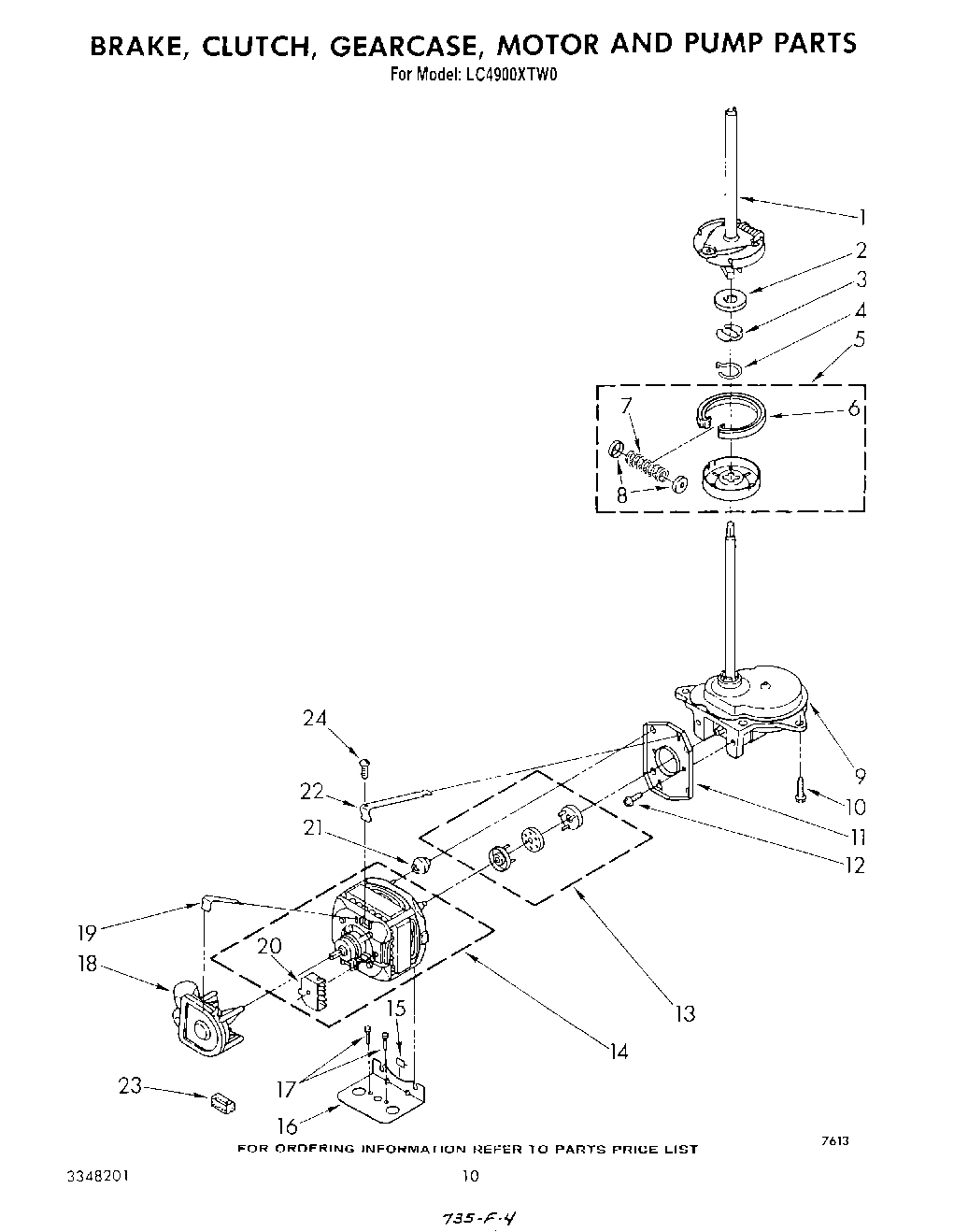

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

9

WPW10187809 Whirlpool Washer Filter and Drain Backorder WPL WPW10187809 $115.65

9

Tub WPL 63782 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP285170 Whirlpool Collar In Stock WPL WP285170 $30.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

Plug, Button (2) WPL 54690 Contact Us For Availability

Screw, 5/16-24 x 3/16 (3) (Gearcase To Tub Su WPL 62735 Contact Us For Availability

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

Seal WPL 711696 Contact Us For Availability

Spring, Lid (L.H.) (Includes Illus. 10) WPL 384463 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WP384693 Whirlpool Top Backorder WPL WP384693 $156.84

Top (Almond Model) WPL 384210 Contact Us For Availability

Top (Golden Harvest) WPL 384213 Contact Us For Availability

Top (Toast) WPL 386544 Contact Us For Availability

Top (Platinum) WPL 386545 Contact Us For Availability

Valve, Pressure Relief WPL 285171 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

Cam, Brake Release (Alt.) WPL 3348228 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $146.58

Hinge, Rear Panel (2) WPL 356606 Contact Us For Availability

356398 Whirlpool Tube Backorder WPL 356398 $30.25

63636 Whirlpool Bracket Backorder WPL 63636 $28.07

Screw & Washer, Lid Switch Shield (2) WPL 354764 Contact Us For Availability

Clip, Motor Shield WPL 3349322 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

384459 Whirlpool Hinge Backorder WPL 384459 $30.89

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

Hose, Water Inlet WPL 386932 Contact Us For Availability

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Actuator, Lid Switch WPL 357347 Contact Us For Availability

20

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.58

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384462 Contact Us For Availability

Clamp, Hose WPL 272855 Contact Us For Availability

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $32.52

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

23

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $30.25

23

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

24

W11573574 Whirlpool Screw In Stock WPL W11573574 $10.41

24

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.44

24

WP359231 Whirlpool Shield In Stock WPL WP359231 $4.52

25

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

25

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

25

Harness, Lid Switch WPL 3350429 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

Rivet, Serial Nameplate (2) WPL 354239 Contact Us For Availability

26

Brace, Tie (2) WPL 3350061 Contact Us For Availability

27

Hose, Siphon Break WPL 386933 Contact Us For Availability

28

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

29

Hose, Pump Drain WPL 386930 Contact Us For Availability

30

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

32

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33
