Model Whirlpool LA5700XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261880 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT378856 WPL LIT378856 Contact Us For Availability

WPL LIT383979 WPL LIT383979 Contact Us For Availability

WPL LIT385238 WPL LIT385238 Contact Us For Availability

WPL LIT386202 WPL LIT386202 Contact Us For Availability

WPL LIT386899 WPL LIT386899 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT688721 WPL LIT688721 Contact Us For Availability

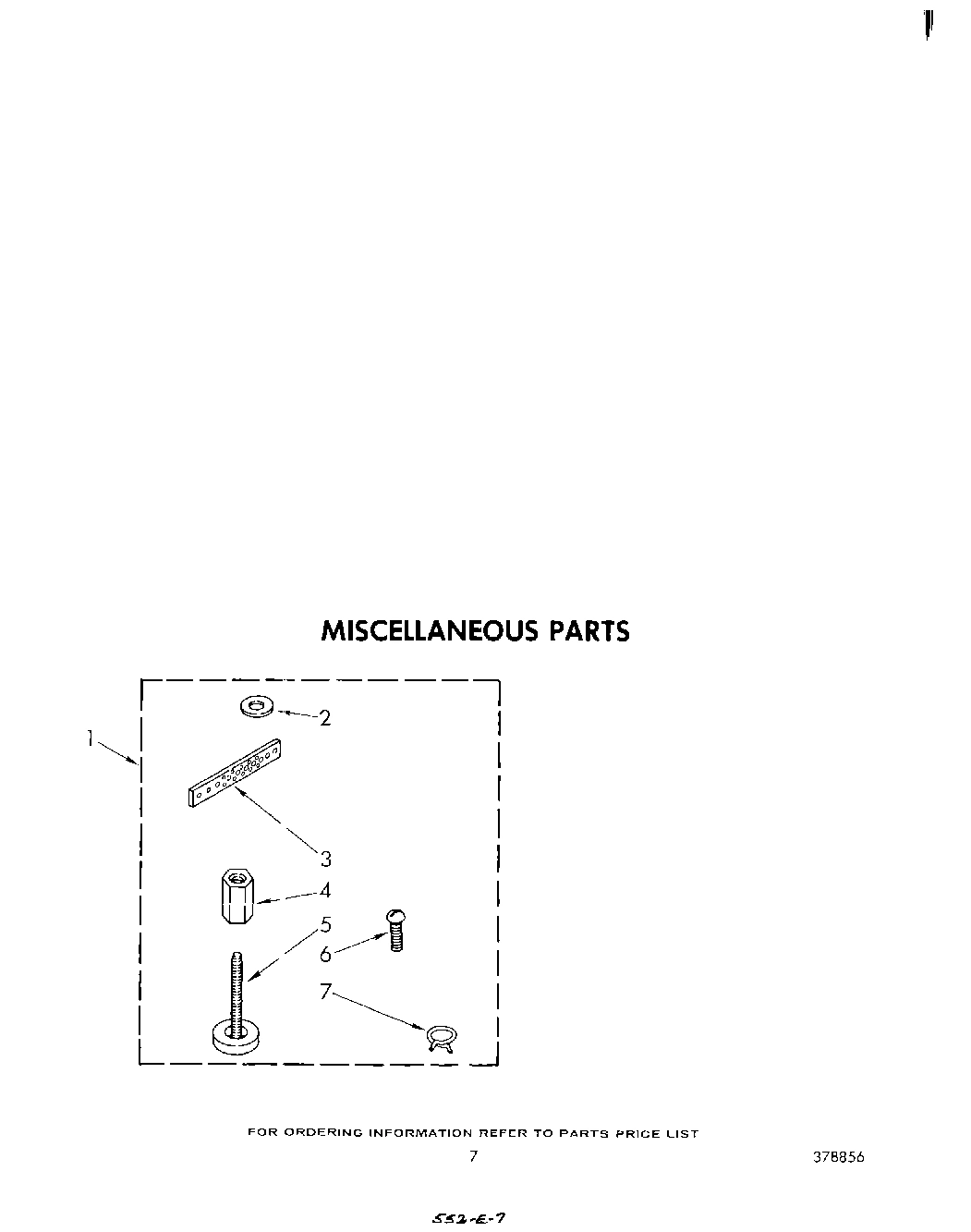

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $3.33

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

1

Gearcase (Complete) WPL 385899 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Top (White) WPL 63431 Contact Us For Availability

2

Top (Almond) WPL 63432 Contact Us For Availability

2

Top (Toast) WPL 63433 Contact Us For Availability

2

Top (Platinum) WPL 63434 Contact Us For Availability

2

Top (Golden Harvest) WPL 63435 Contact Us For Availability

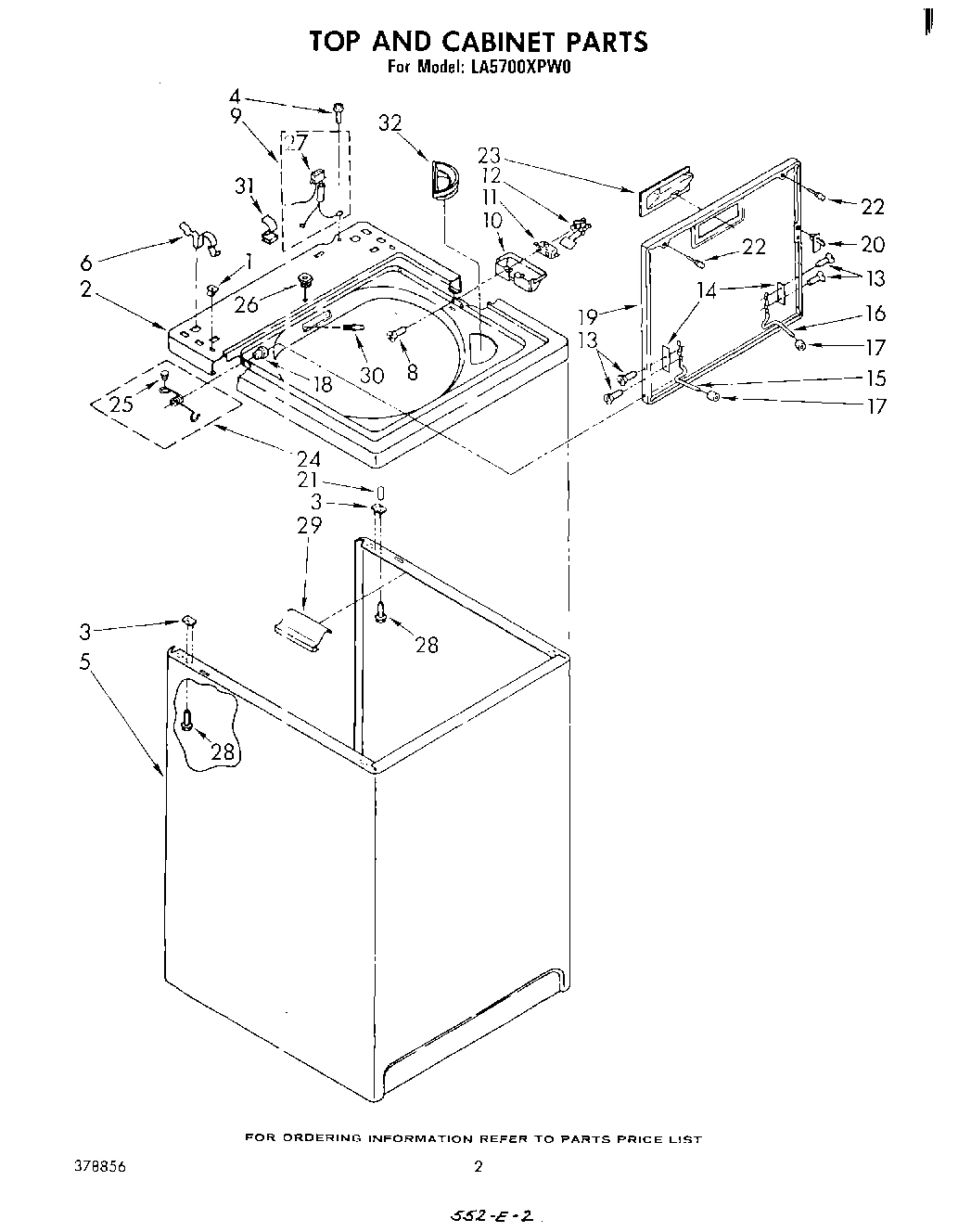

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

3

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $108.05

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

Strap, Ground WPL 22965 Contact Us For Availability

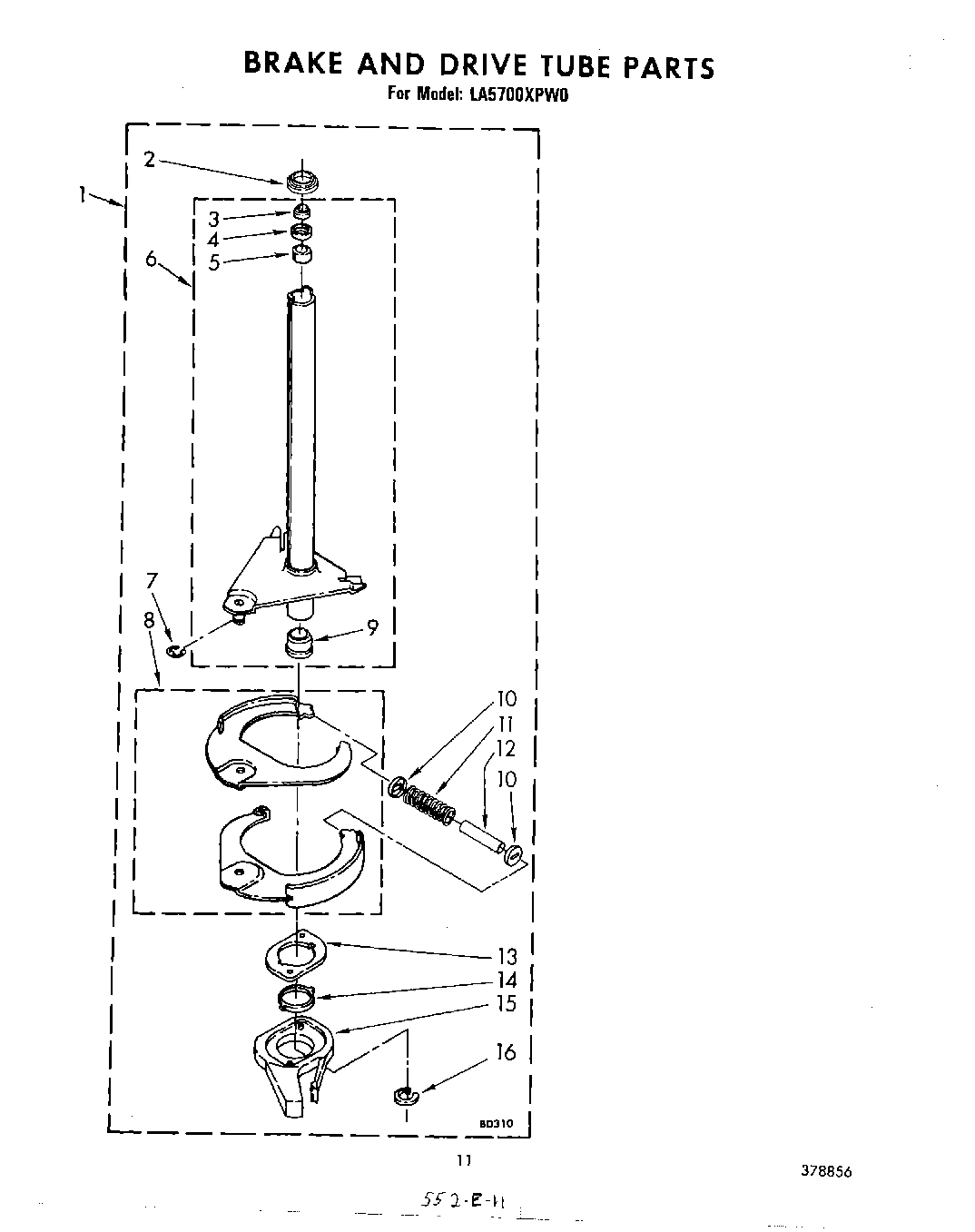

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

4

Support & Brake, Tub WPL 63815 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $133.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

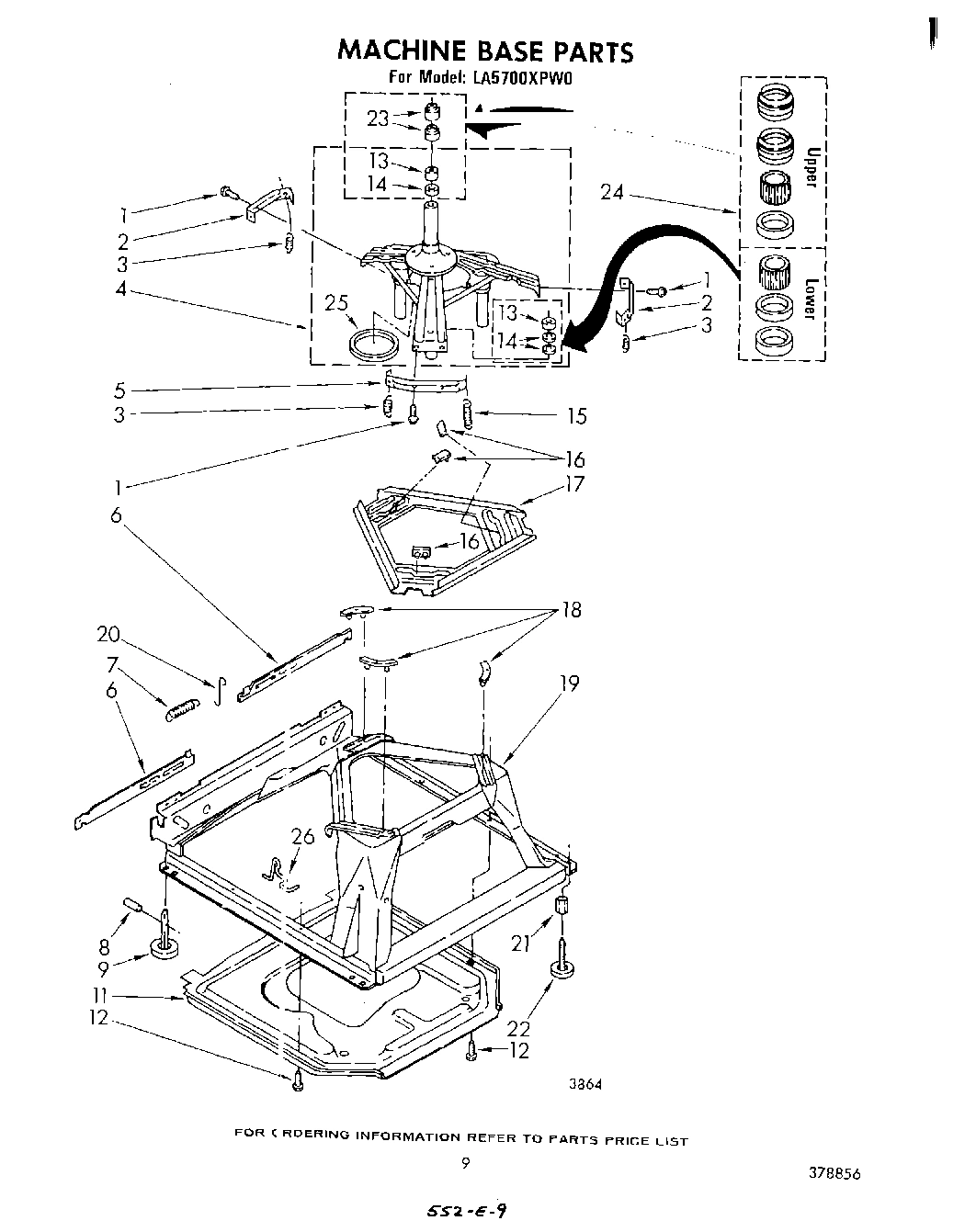

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

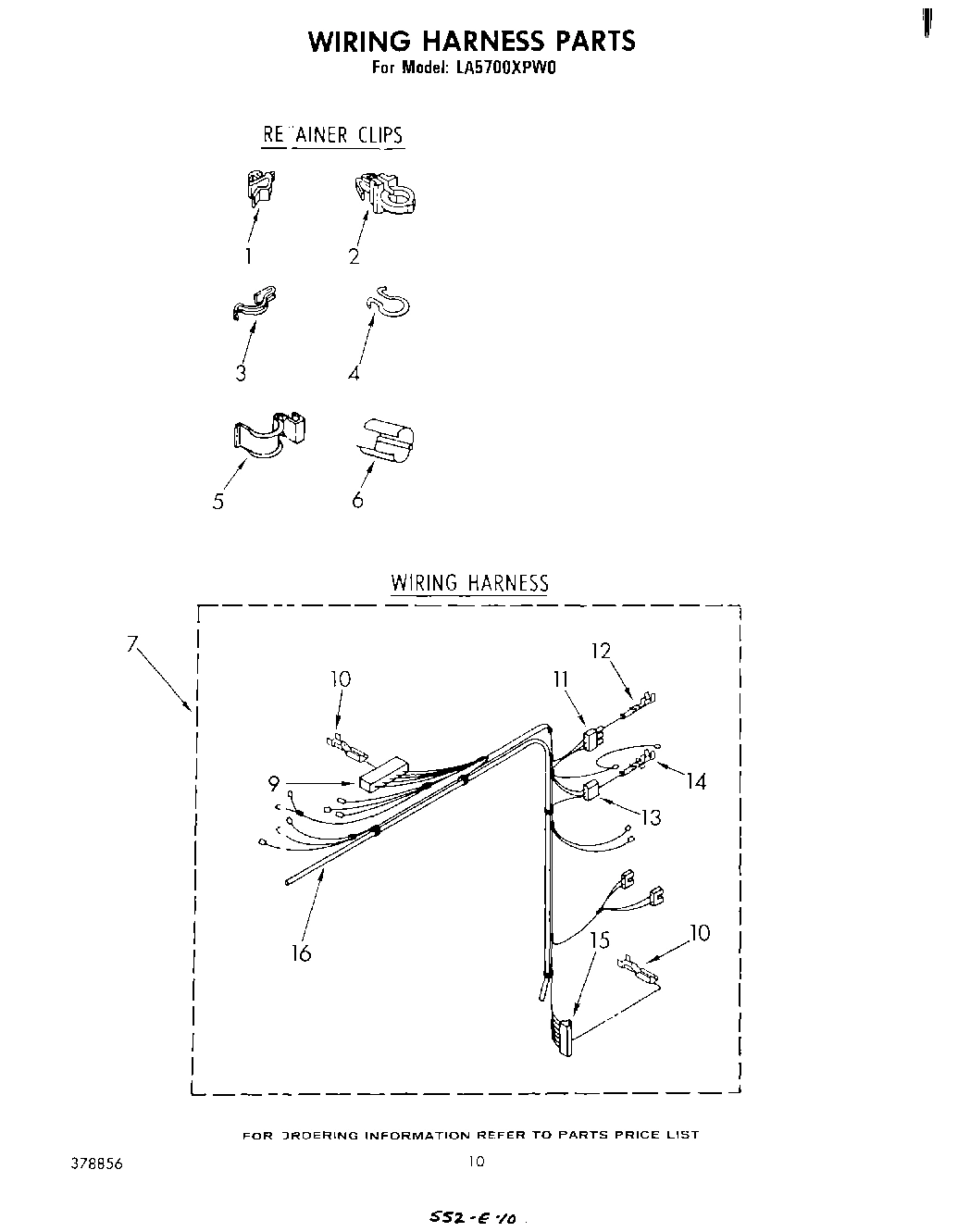

Wiring Harness & Pressure Switch Hose WPL 64105 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $79.60

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose Backorder WPL WP96743 $25.33

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.70

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $4.52

Terminal, Female WPL 352088 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Spring, Agitator WPL 62676 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.52

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $30.74

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.78

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.58

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

18

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

Lid (White) WPL 387286 Contact Us For Availability

Lid (Almond) WPL 387287 Contact Us For Availability

Lid (Toast) WPL 387288 Contact Us For Availability

Lid (Platinum) WPL 387289 Contact Us For Availability

Lid (Golden Harvest) WPL 387290 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 63481 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

Handle, Lid (Toast) WPL 379890 Contact Us For Availability

Handle, Lid (Platinum) WPL 379891 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

24

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $83.95

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

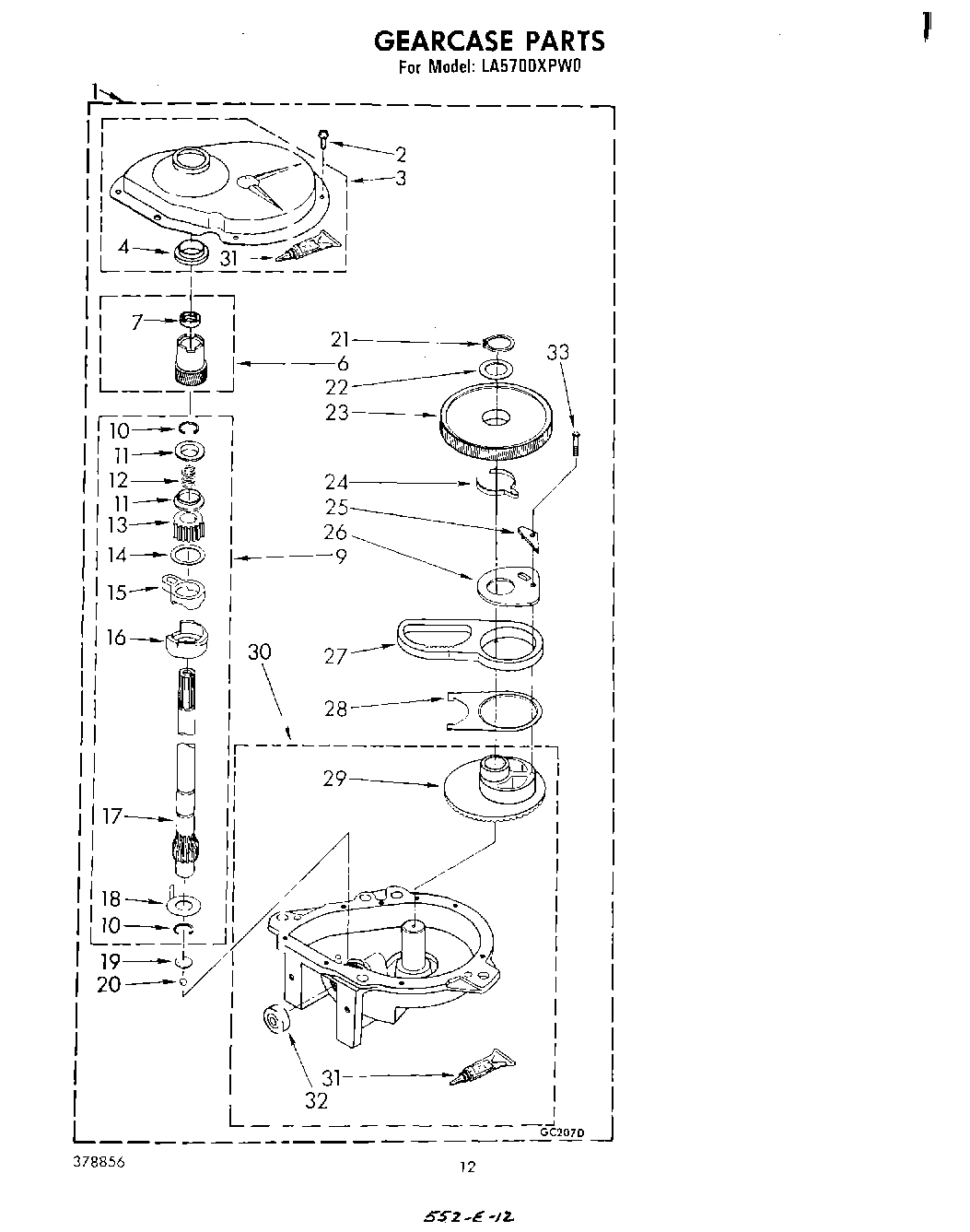

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

29

Gear, Main Drive WPL 62528 Contact Us For Availability

29

Support Protector WPL 63392 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Spin Pinion Assembly, Gearcase (Also Includes WPL 63167 Contact Us For Availability

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

39

Panel, Console WPL 63681 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 386570 Contact Us For Availability

45

Dial, Timer WPL 64138 Contact Us For Availability

47

Knob, Water Temperature WPL 386630 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

53

Rack, Literature WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
