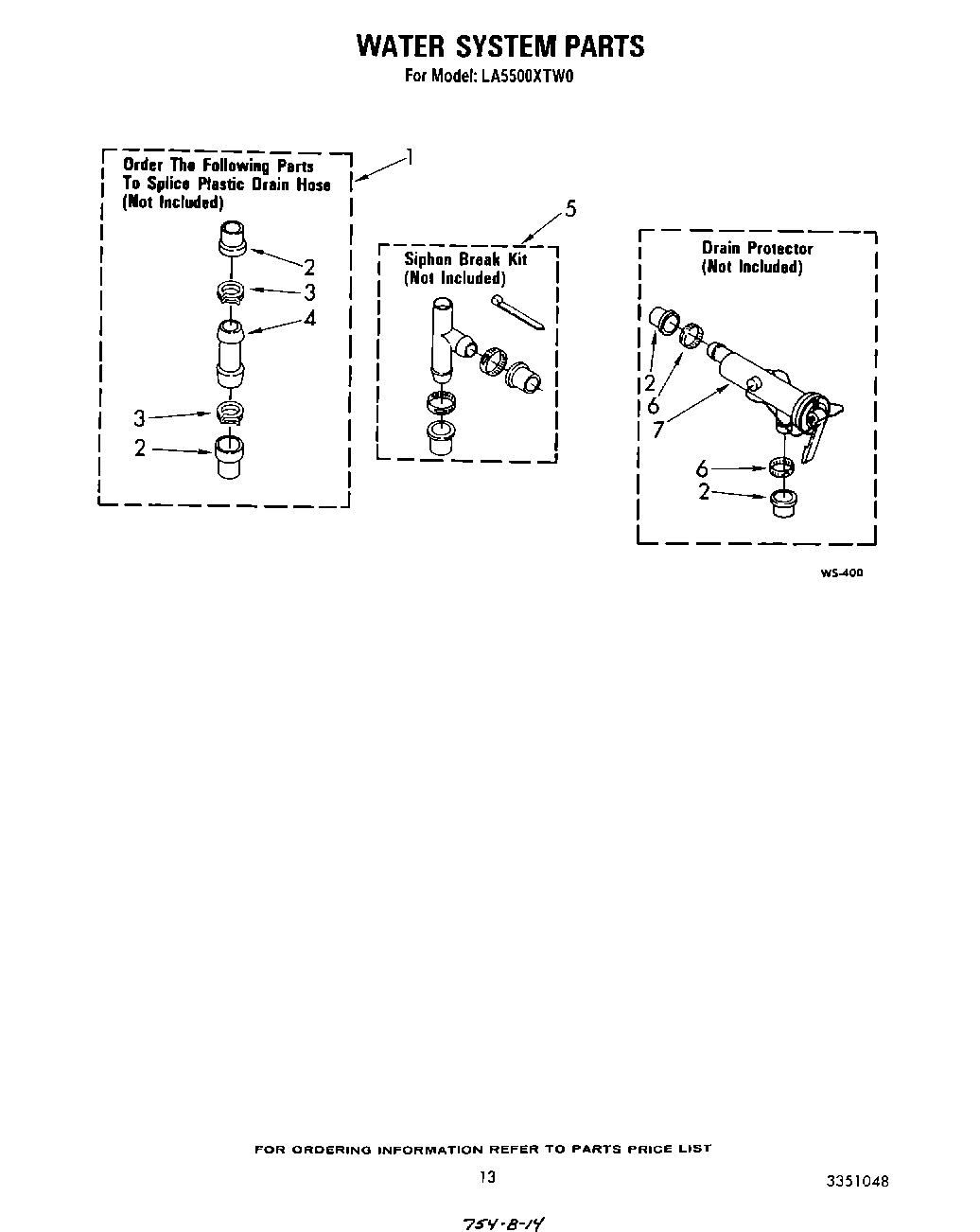

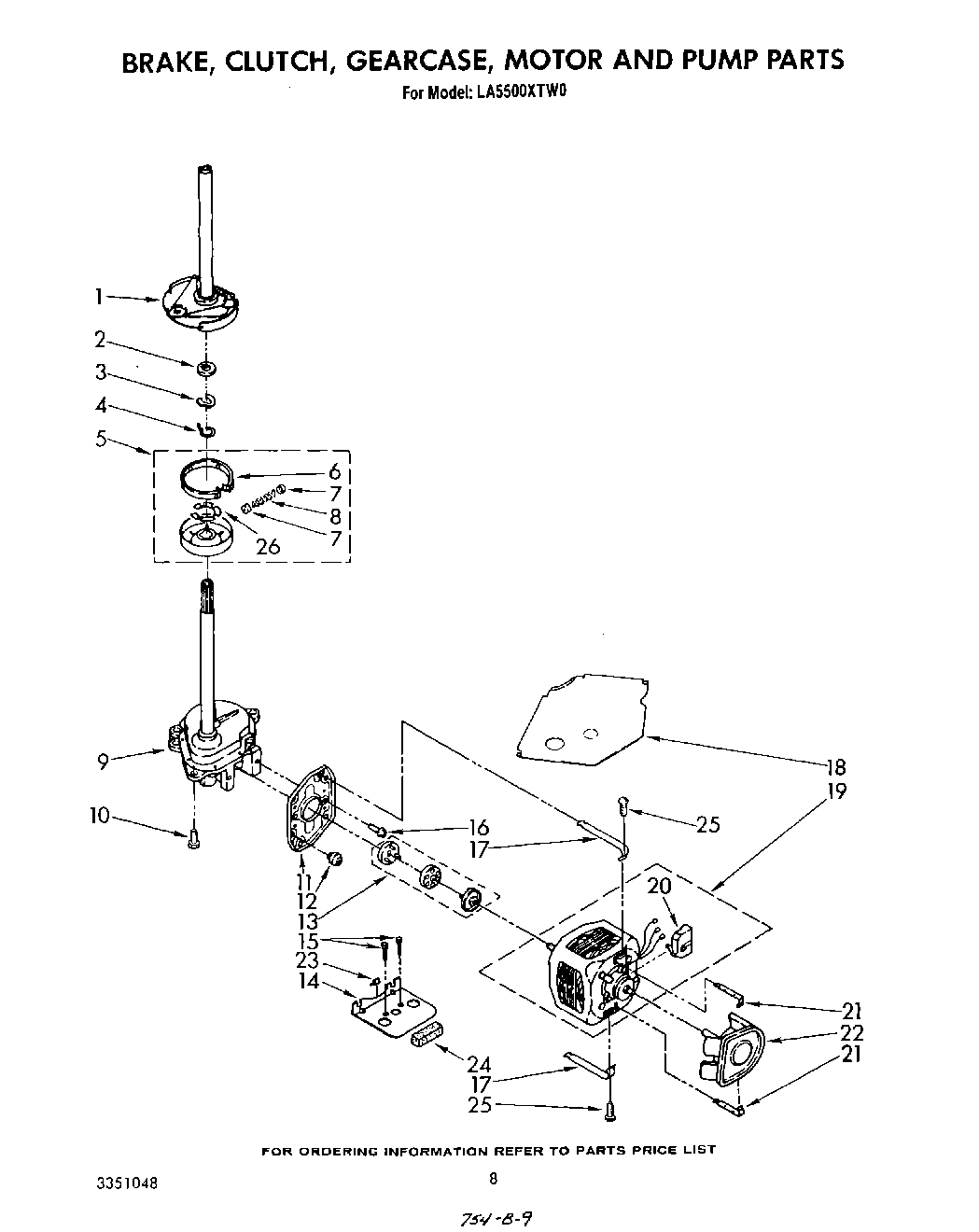

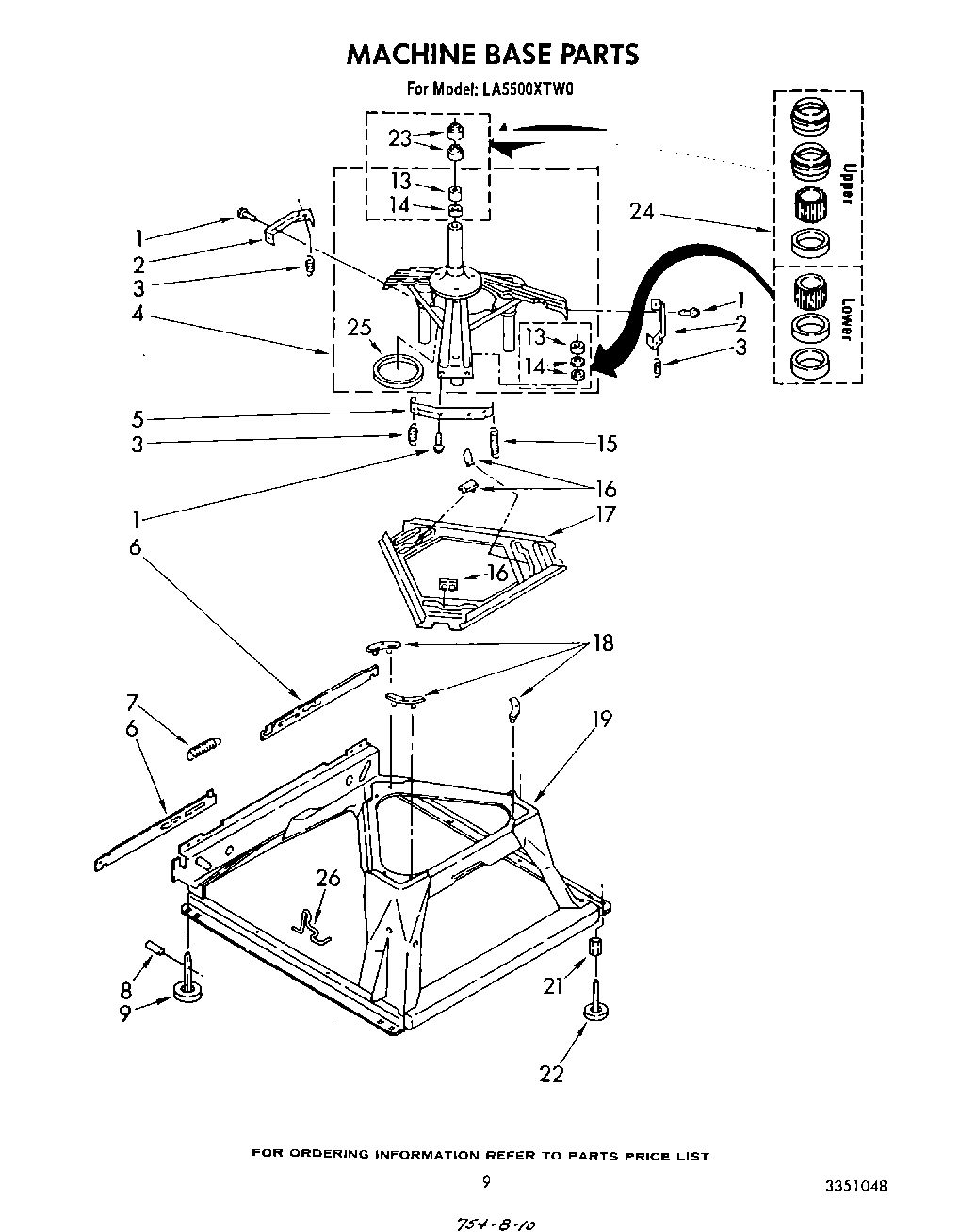

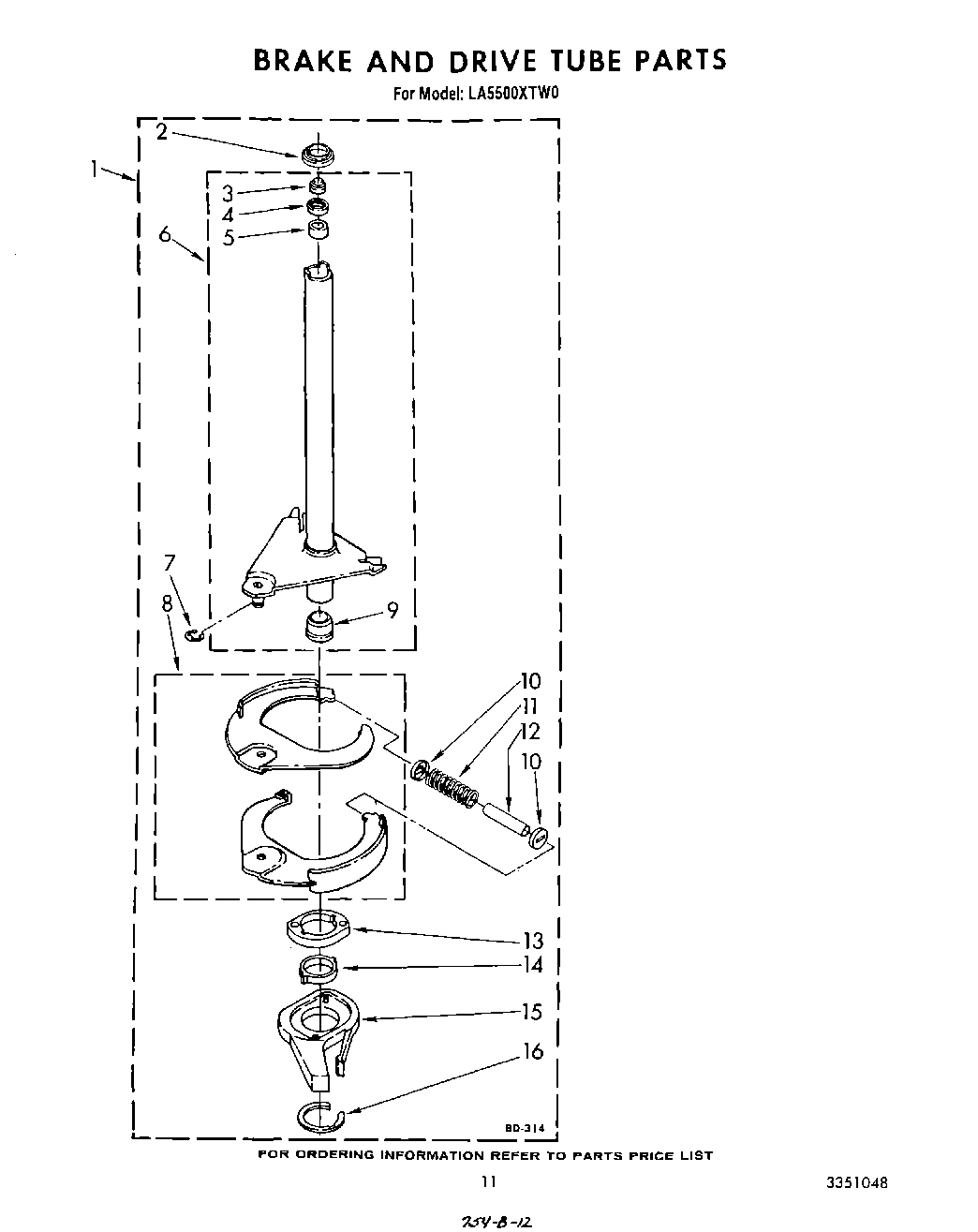

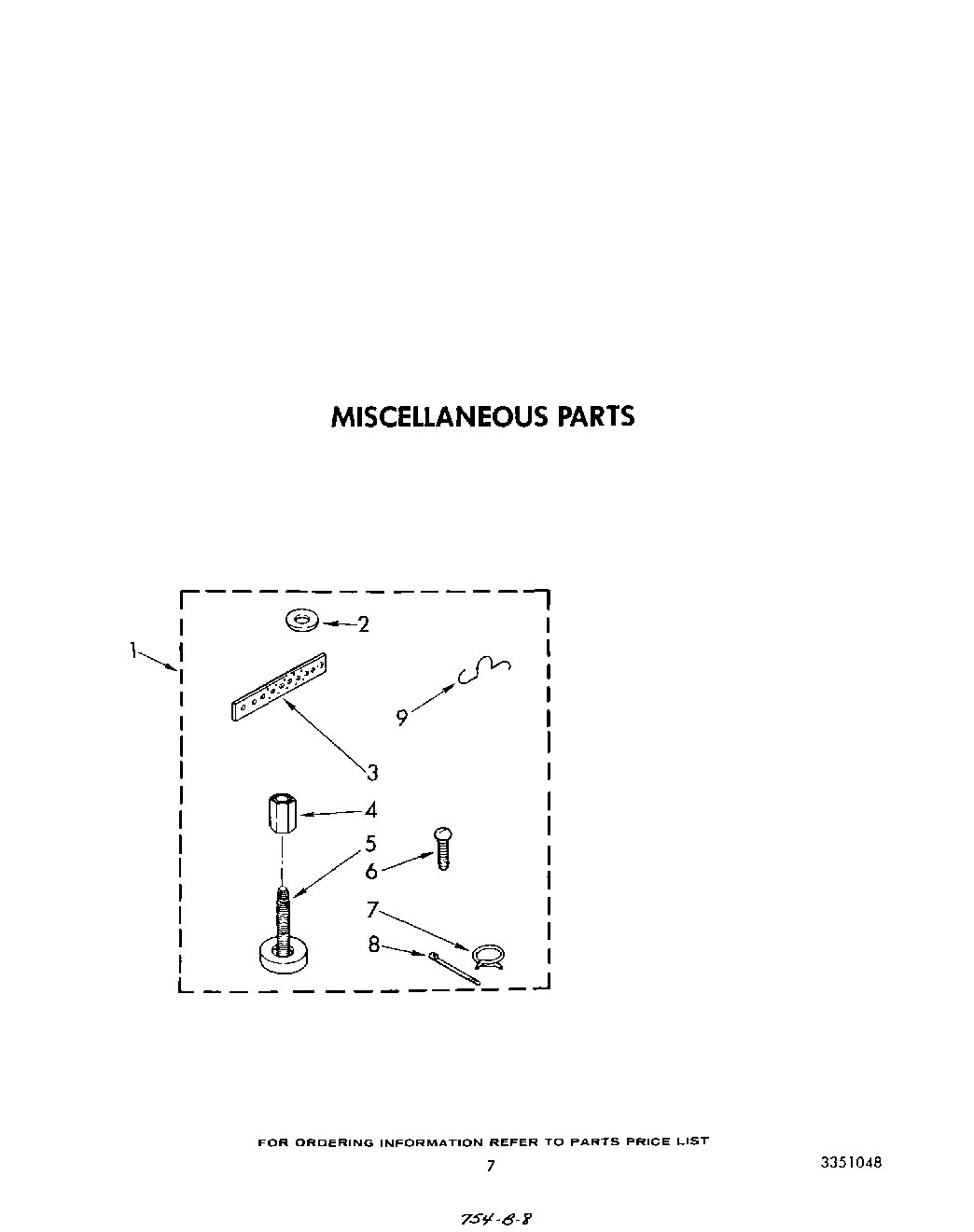

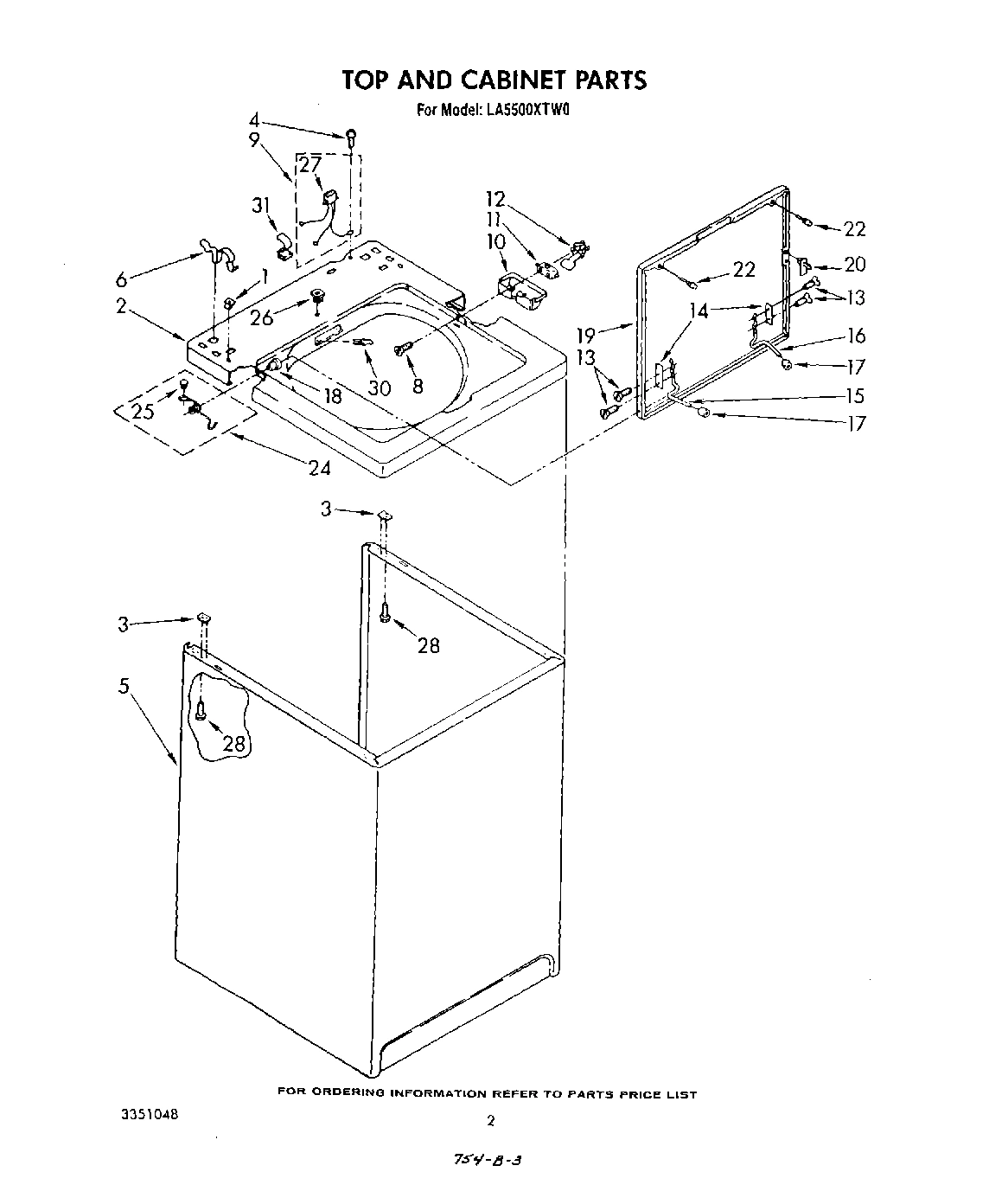

Model Whirlpool LA5500XTF0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 387980 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $77.78

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $67.11

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Tub Ring WPL 387966 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

7

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $71.69

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Terminal, Female WPL 352088 Contact Us For Availability

Lock, Filter WPL 62942 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Basket & Balance Ring WPL 387713 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Tub WPL 63125 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Seal, Agitator WPL 357574 Contact Us For Availability

Lid (White) WPL 388450 Contact Us For Availability

Lid (Almond) WPL 388451 Contact Us For Availability

Lid (Platinum) WPL 388452 Contact Us For Availability

Lid (Toast) WPL 388453 Contact Us For Availability

Lid (Golden Harvest) WPL 388454 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 389149 Contact Us For Availability

20

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

23

Clip WPL 3349322 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $28.80

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

Spring & Button, Lid WPL 3349948 Contact Us For Availability

25

W11573574 Whirlpool Screw In Stock WPL W11573574 $9.59

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP3355454 Whirlpool Clip Assembly Backorder WPL WP3355454 $3.70

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

plug, terminal (3-way) WPL 6888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

golden harvest (uncut) WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85
