Model Whirlpool LA5460XMW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

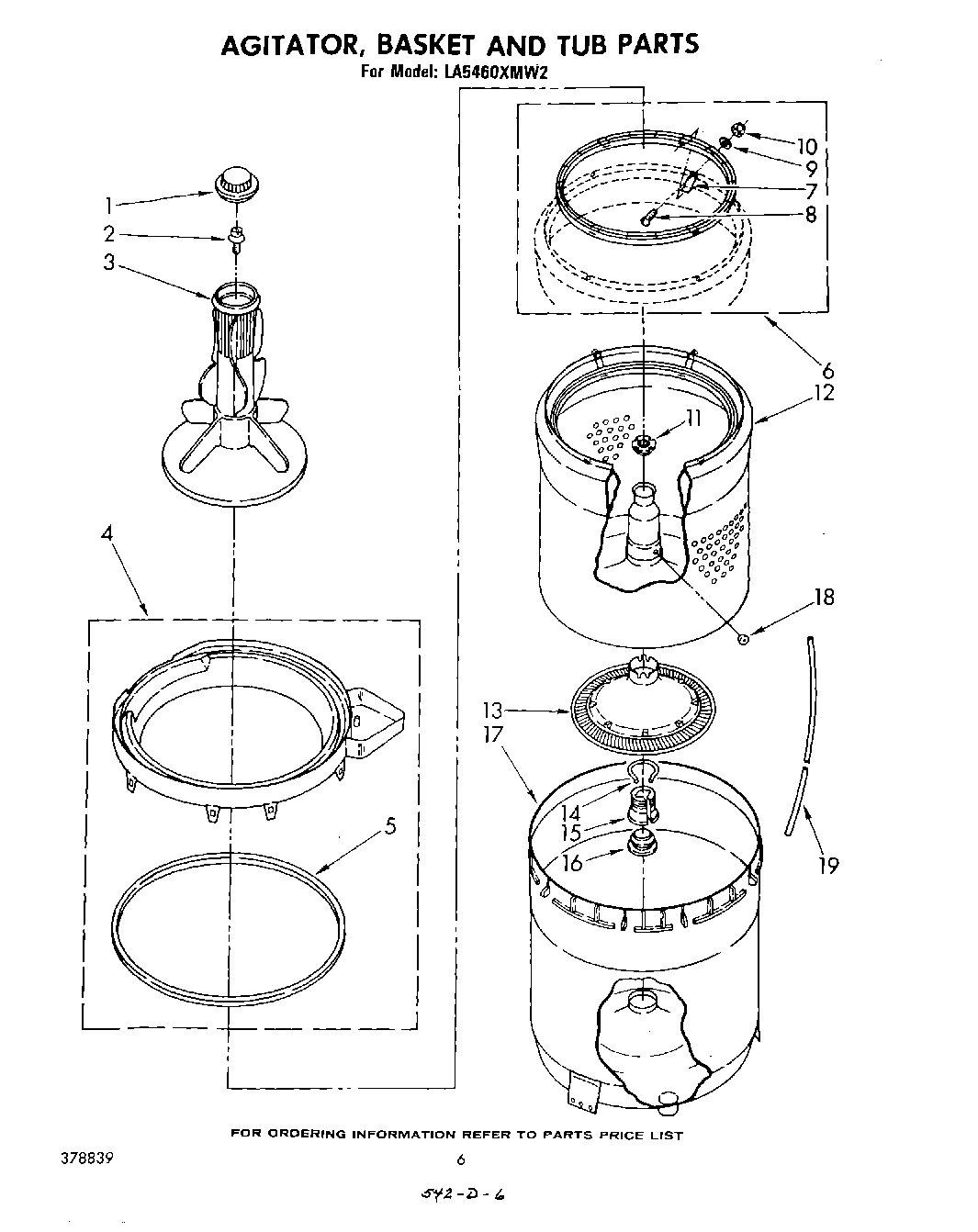

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

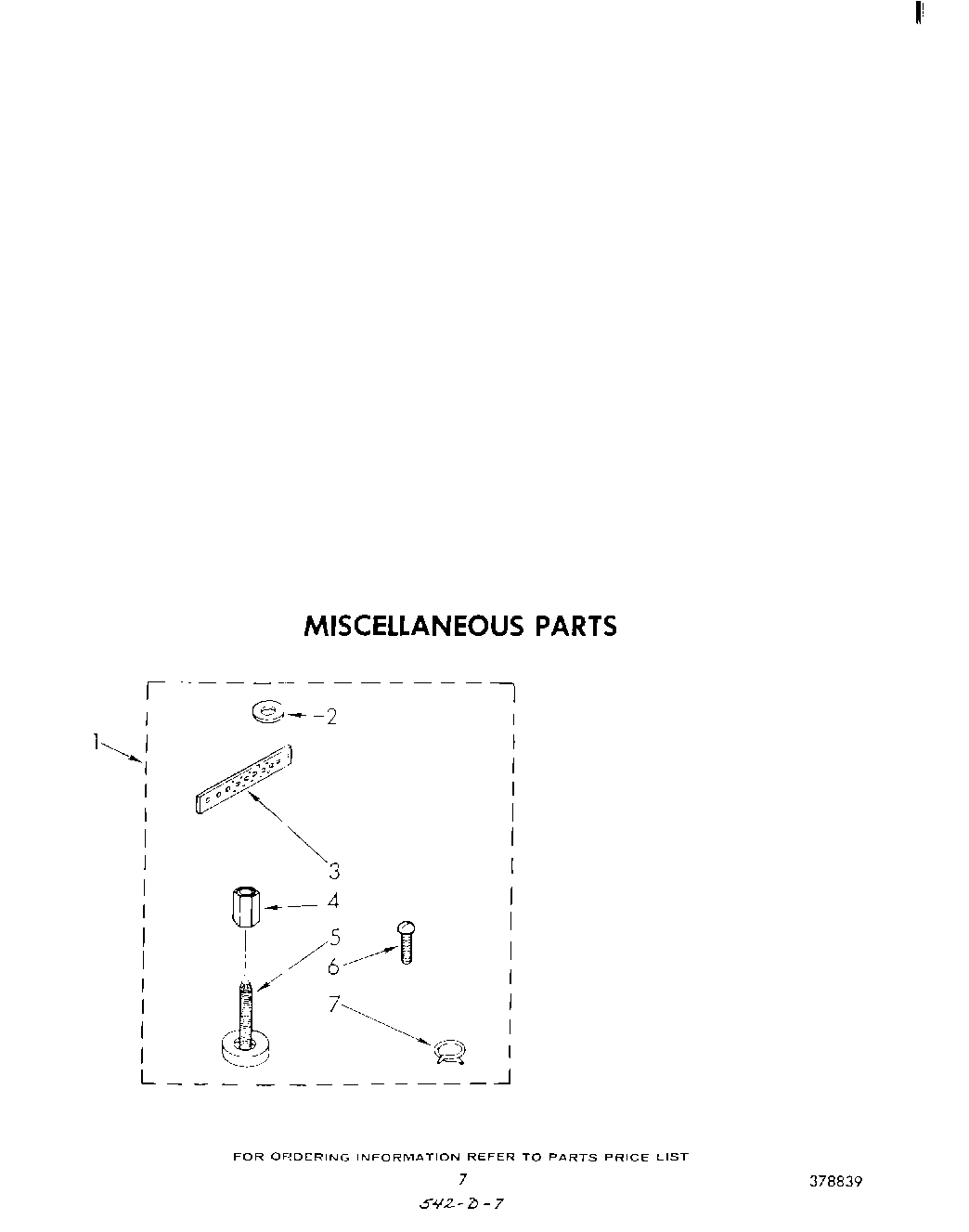

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Spring (3) WPL 62740 Contact Us For Availability

4

Tub Ring & Gasket WPL 63223 Contact Us For Availability

4

Support & Brake, Tub WPL 63239 Contact Us For Availability

5

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 62606 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

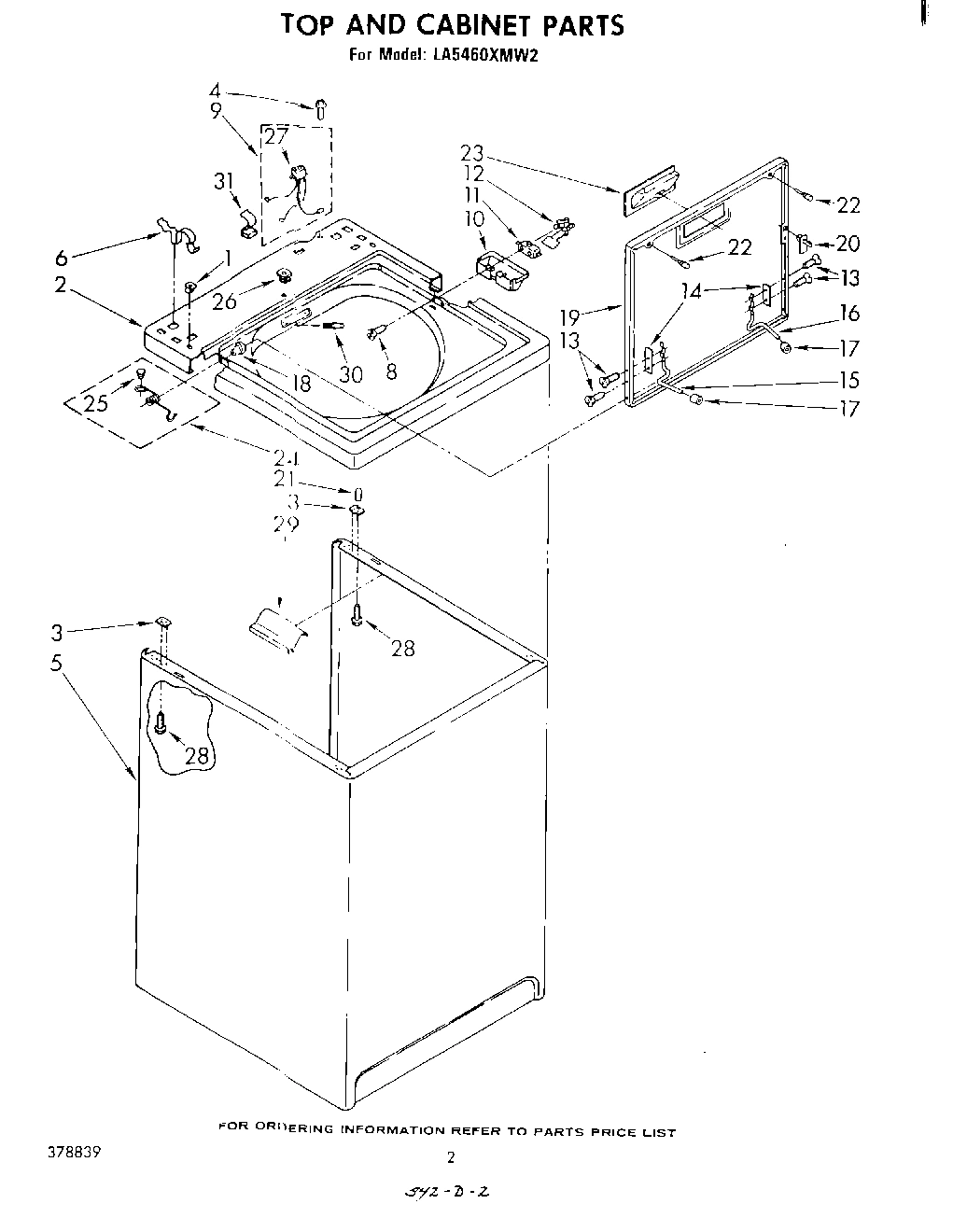

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 63179 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

8

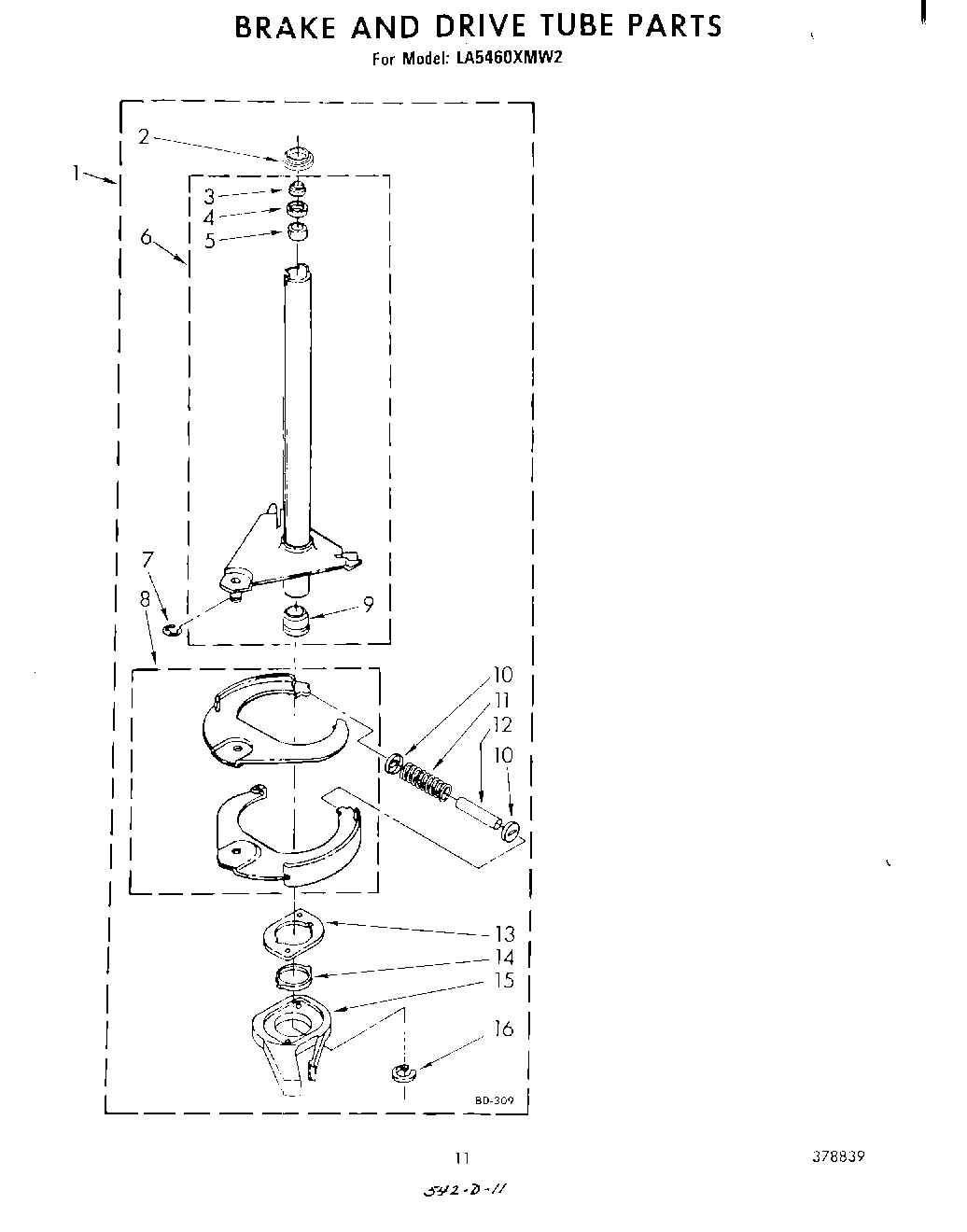

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Terminal, Female WPL 352088 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 63887 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

Locknut (6) WPL 285348 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Switch, Water Level WPL 63903 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63043 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bracket, Control WPL 359758 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

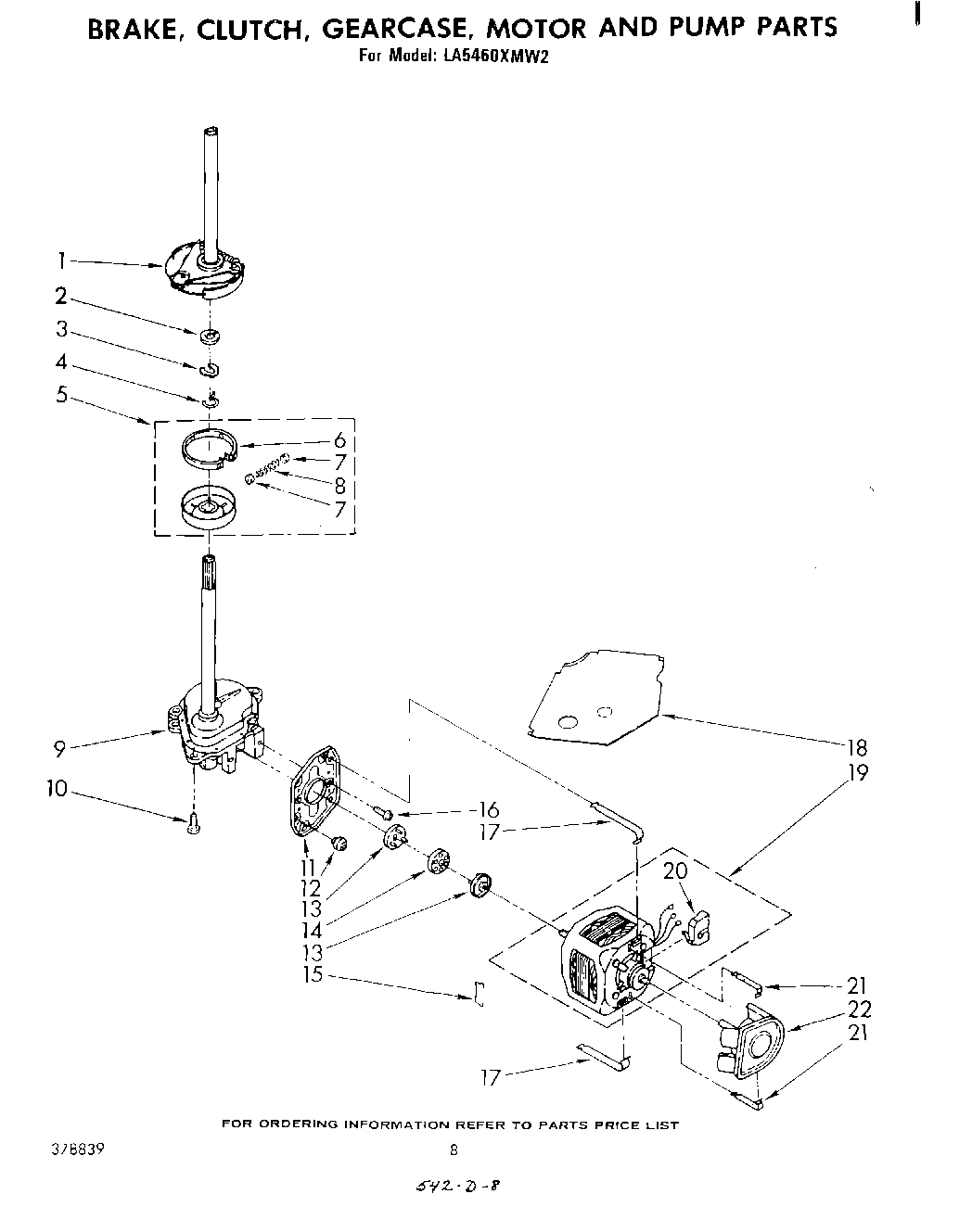

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Tub WPL 63125 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Stopper (2) WPL 21265 Contact Us For Availability

19

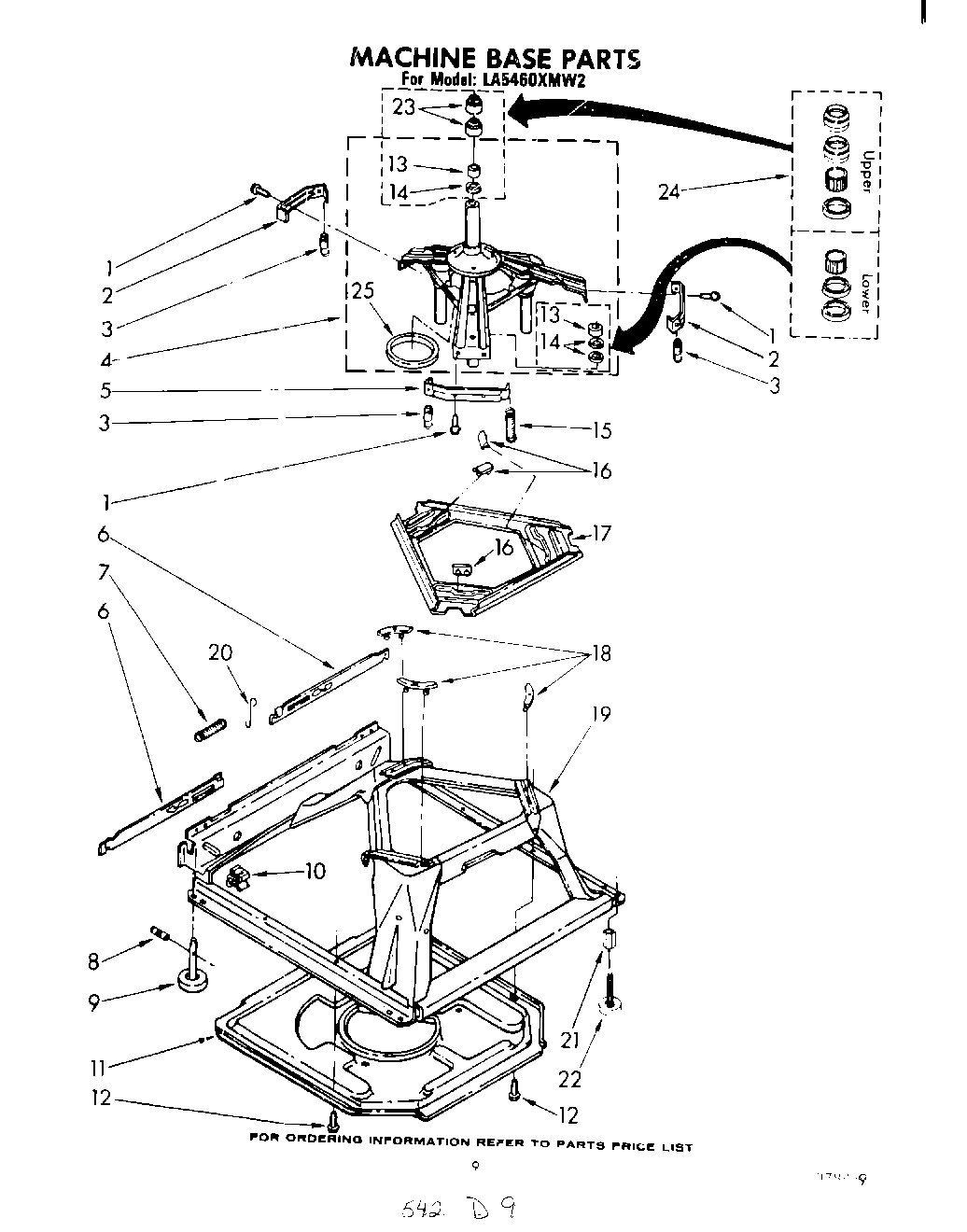

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Plug, Button WPL 54690 Contact Us For Availability

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $33.23

29

Support Protector WPL 63392 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

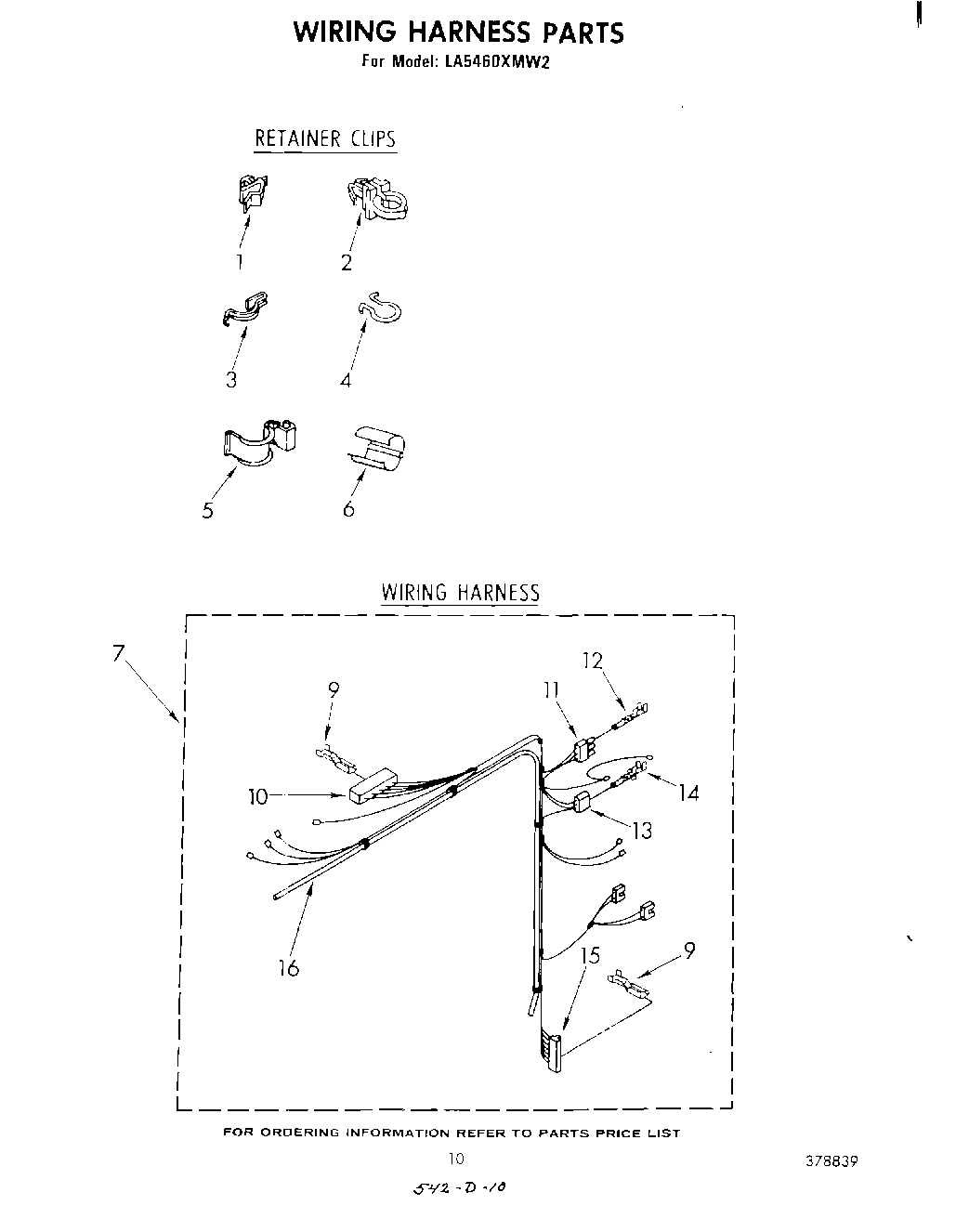

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 378839 WPL 378839 Contact Us For Availability

WPL 383976 WPL 383976 Contact Us For Availability

WPL 385041 WPL 385041 Contact Us For Availability

WPL 385238 WPL 385238 Contact Us For Availability

WPL 386186 WPL 386186 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

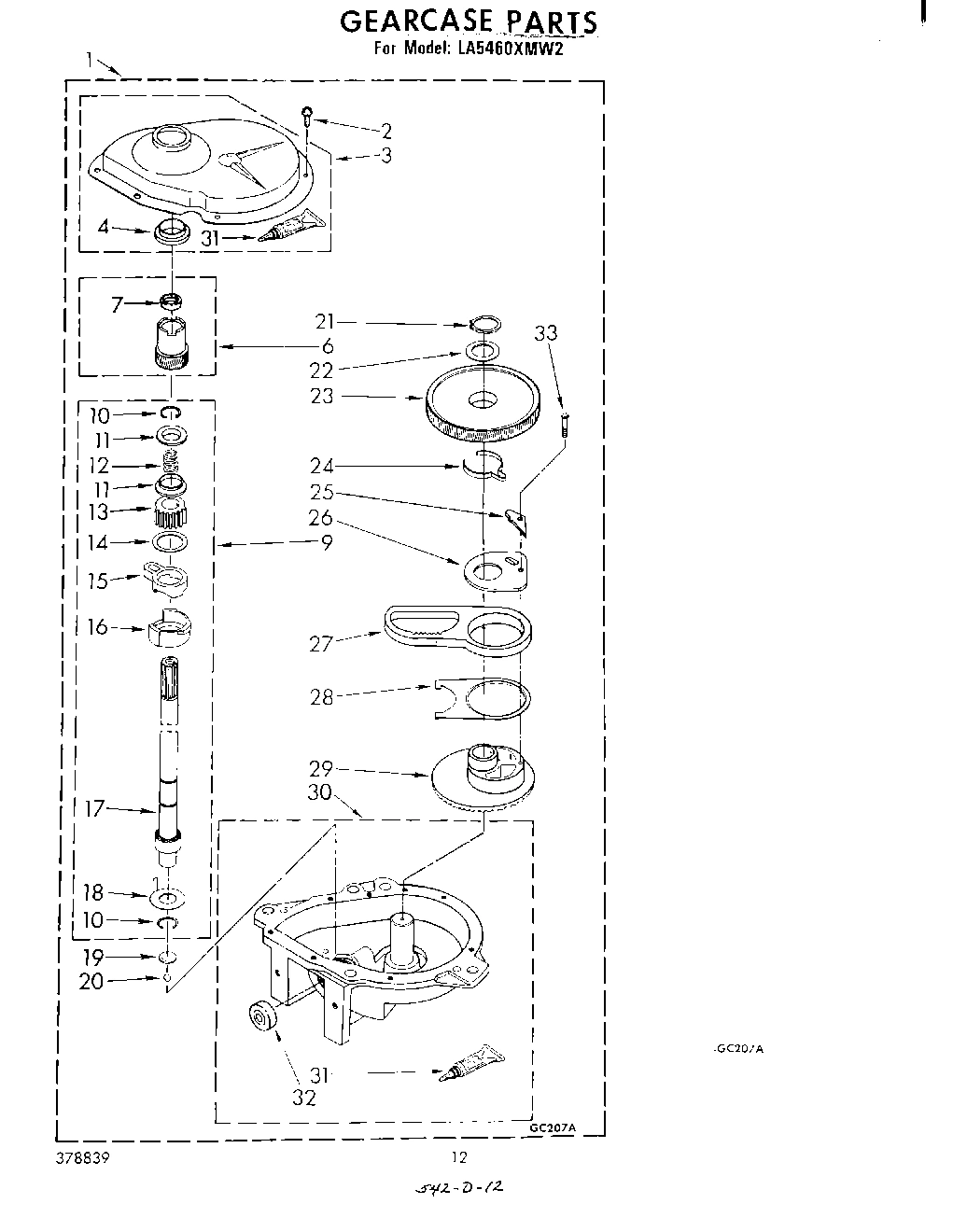

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

35

Switch, Water Temperature WPL 660746 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

39

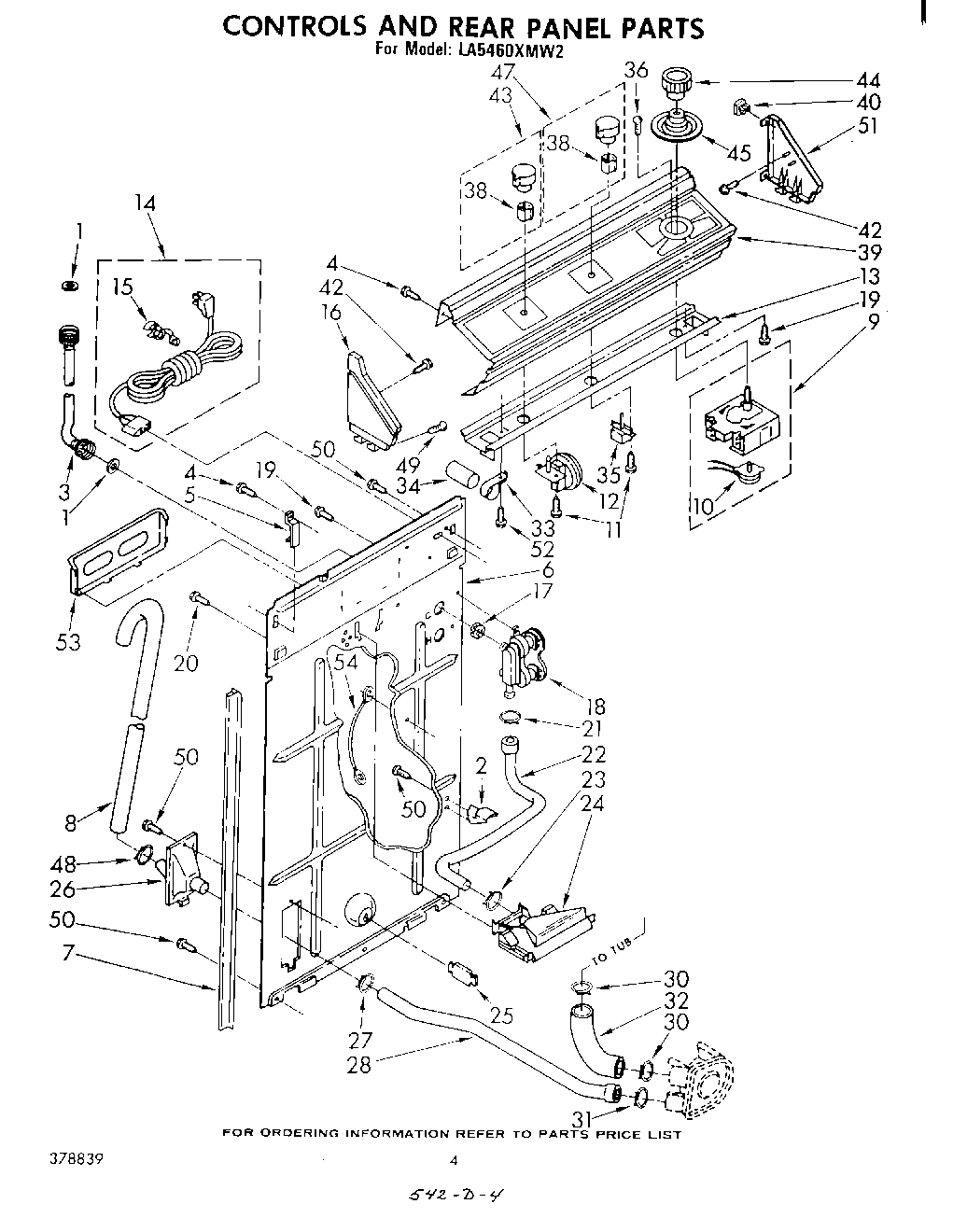

Panel, Console WPL 382673 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

43

Knob, Water Level WPL 690297 Contact Us For Availability

44

Knob, Timer WPL 359206 Contact Us For Availability

45

Dial, Timer WPL 359254 Contact Us For Availability

47

Knob, Water Temperature WPL 690300 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 358225 Contact Us For Availability

51

WPL 375309 WPL 375309 Contact Us For Availability

51

WPL 375315 WPL 375315 Contact Us For Availability

51

WPL 377283 WPL 377283 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
