Model Whirlpool LA5460XMW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

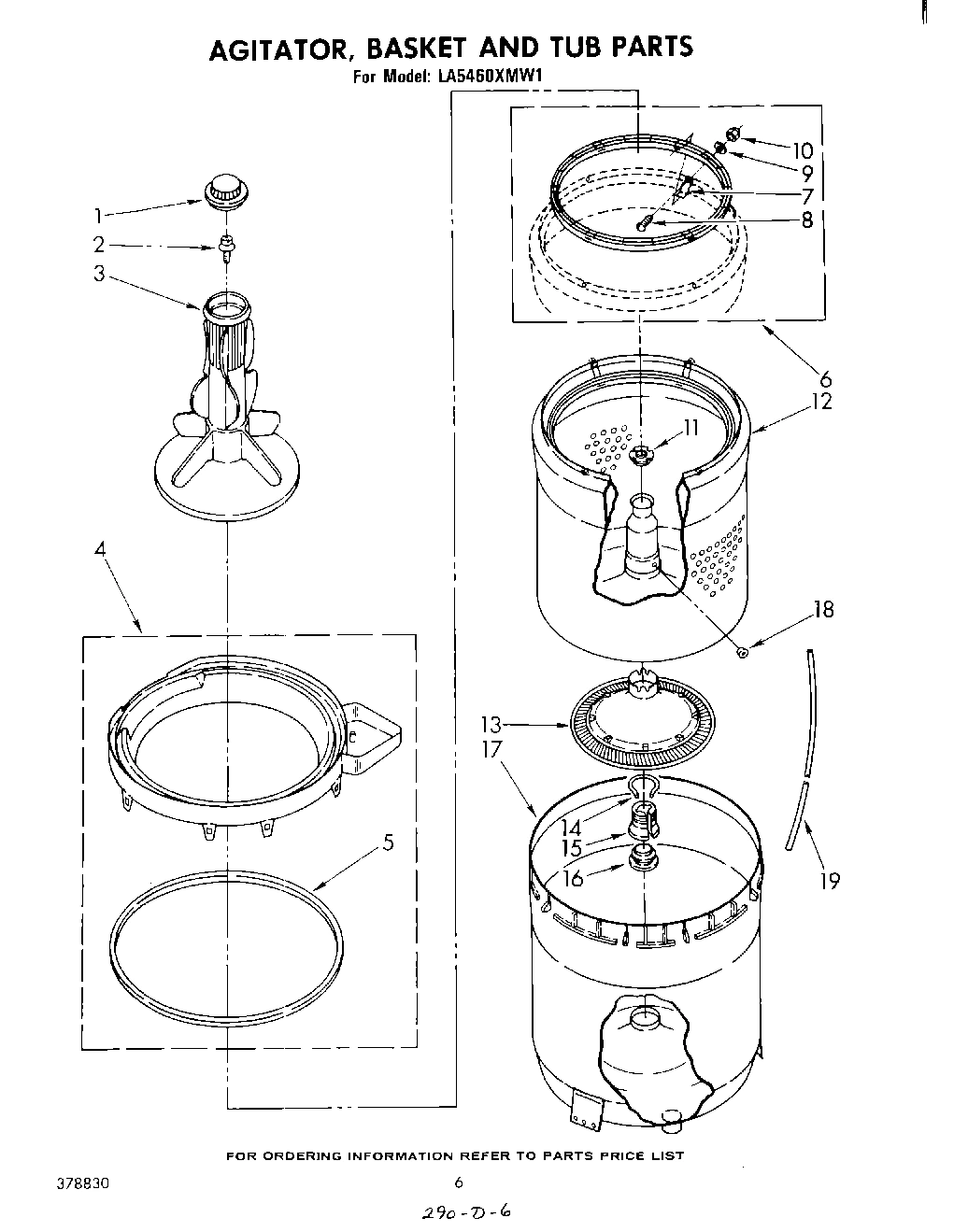

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.88

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

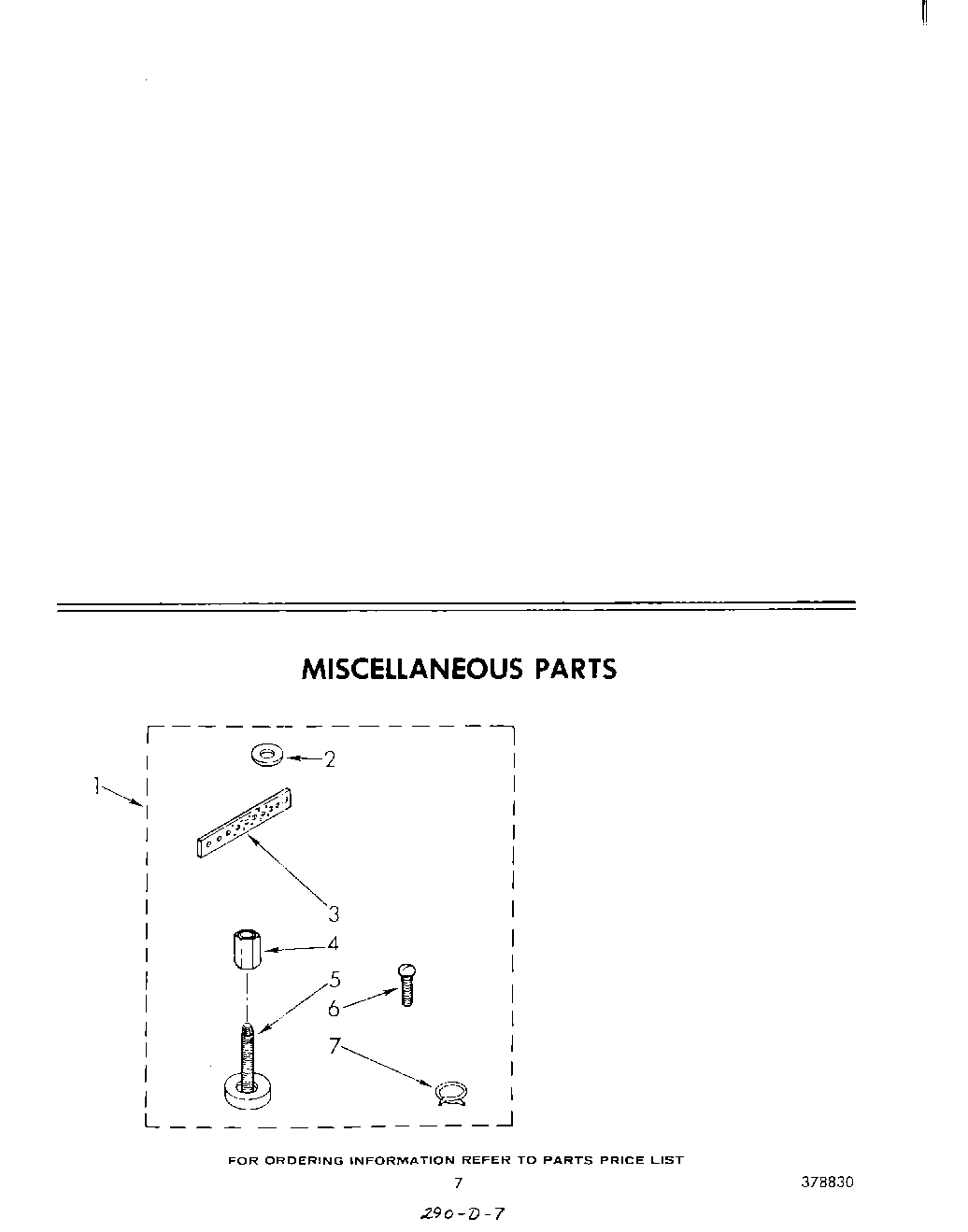

Miscellaneous Parts Bag WPL 384249 Contact Us For Availability

1

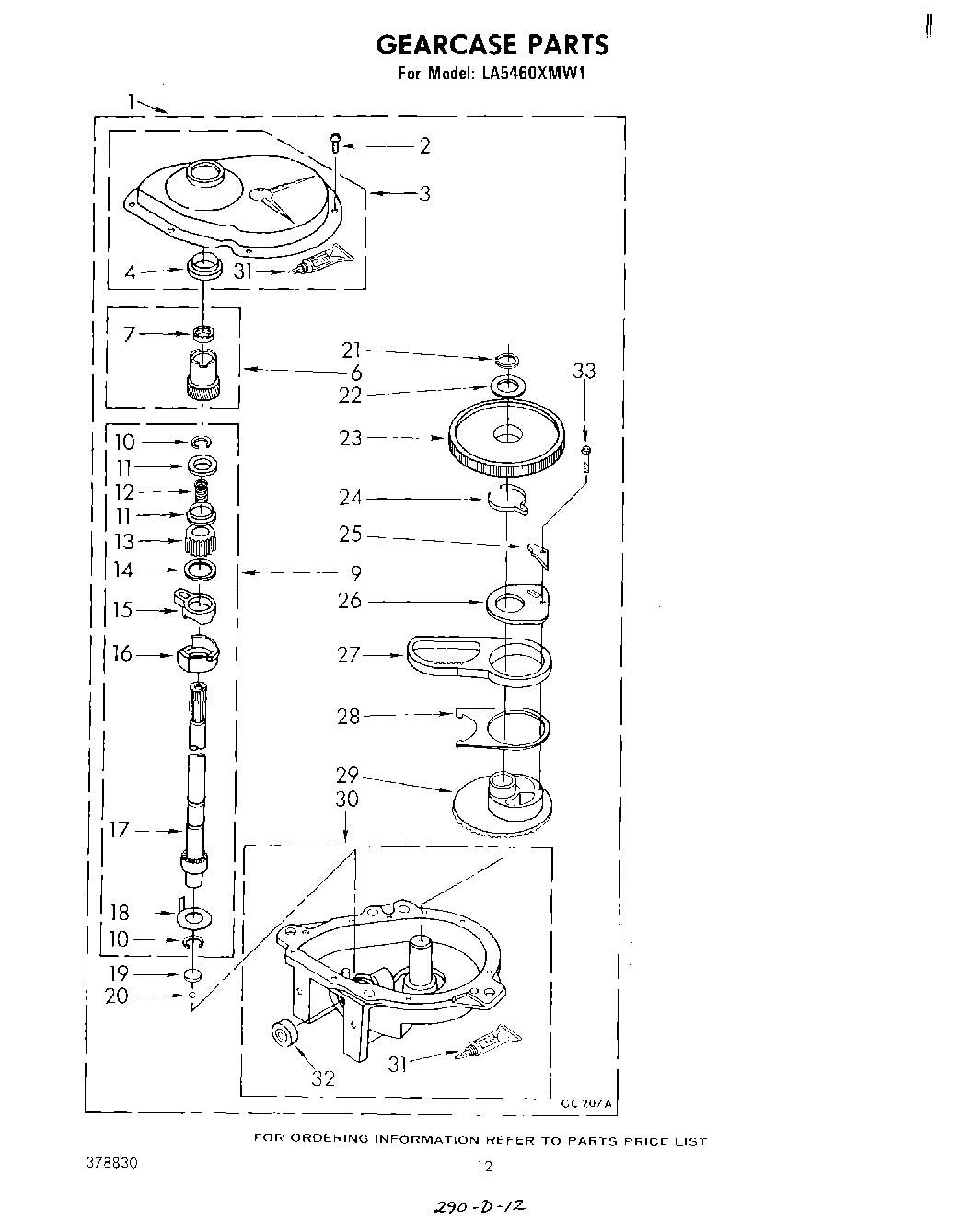

Gearcase (Complete) WPL 385899 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

Top (White) WPL 63091 Contact Us For Availability

2

Top (Almond) WPL 63092 Contact Us For Availability

2

Top (Golden Harvest) WPL 63095 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $107.25

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Spring (3) WPL 62740 Contact Us For Availability

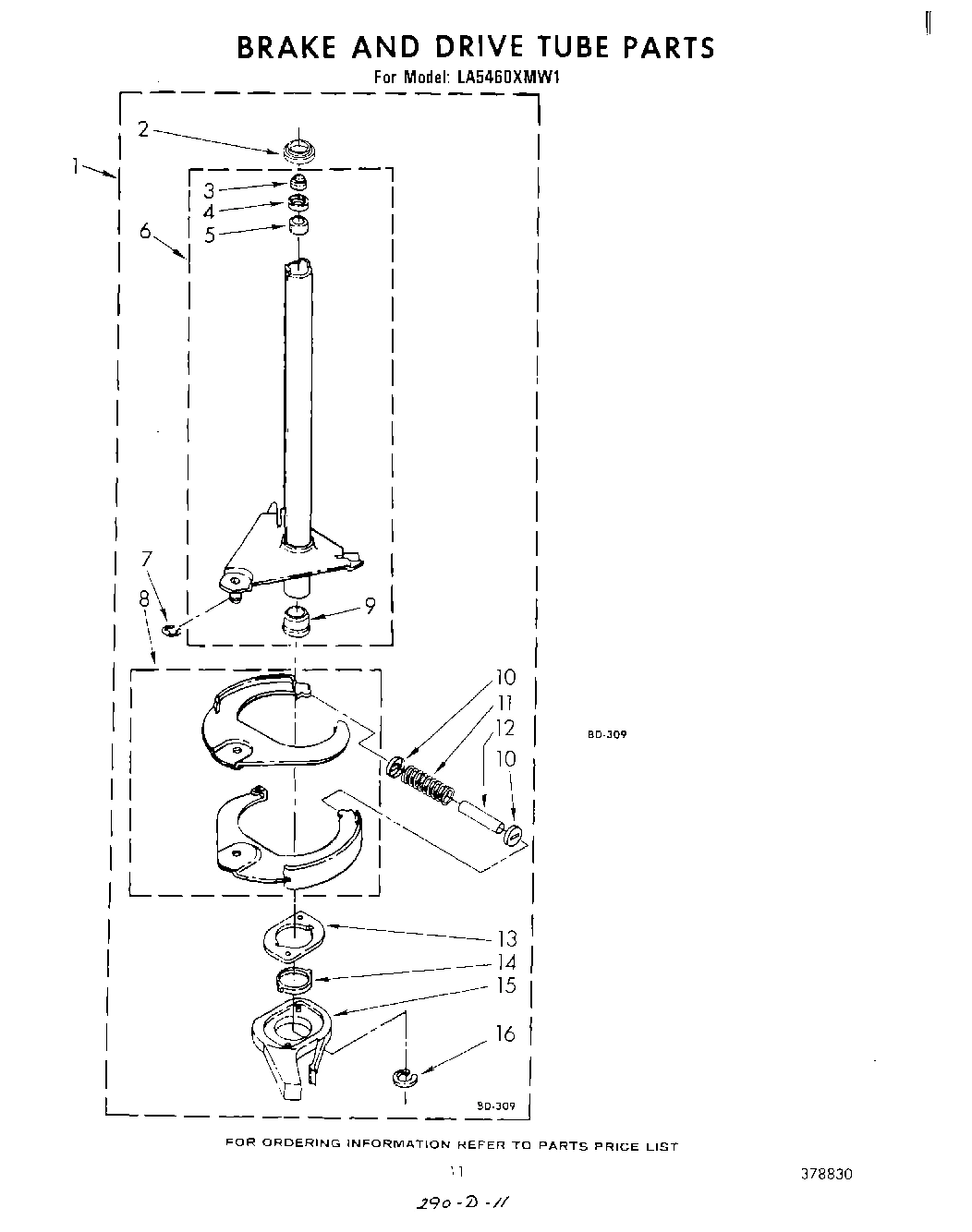

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Tub Ring & Gasket WPL 63223 Contact Us For Availability

4

Support & Brake, Tub WPL 63239 Contact Us For Availability

5

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $30.25

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Cabinet (Almond) WPL 63129 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63132 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 62606 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $0.00

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

8

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

Terminal, Female WPL 352088 Contact Us For Availability

9

Harness, Lid Switch WPL 63352 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Locknut (6) WPL 285348 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63043 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $9.92

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $108.46

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

Tub WPL 63125 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

Stopper (2) WPL 21265 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

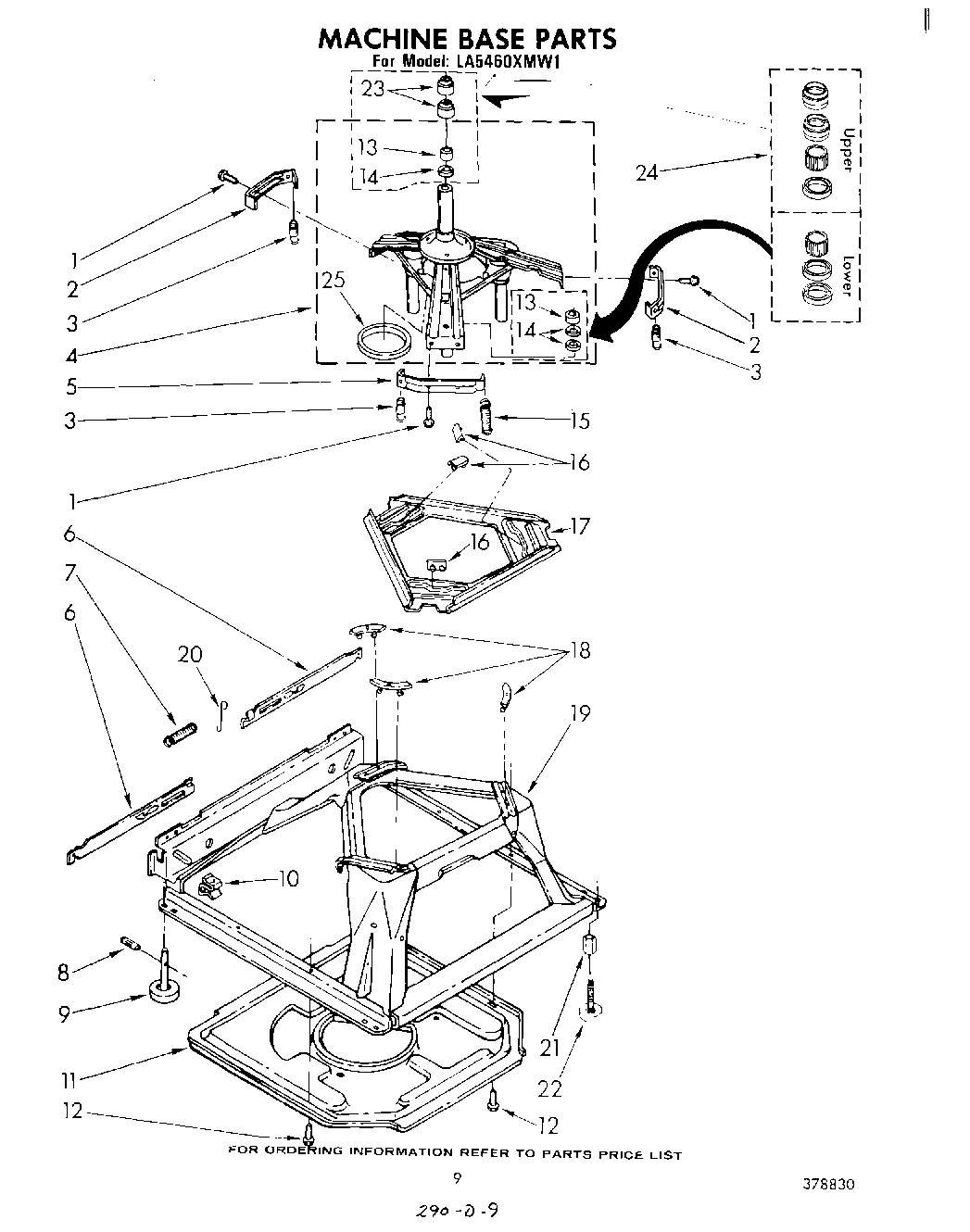

285459 Whirlpool Washer Base Backorder WPL 285459 $202.38

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

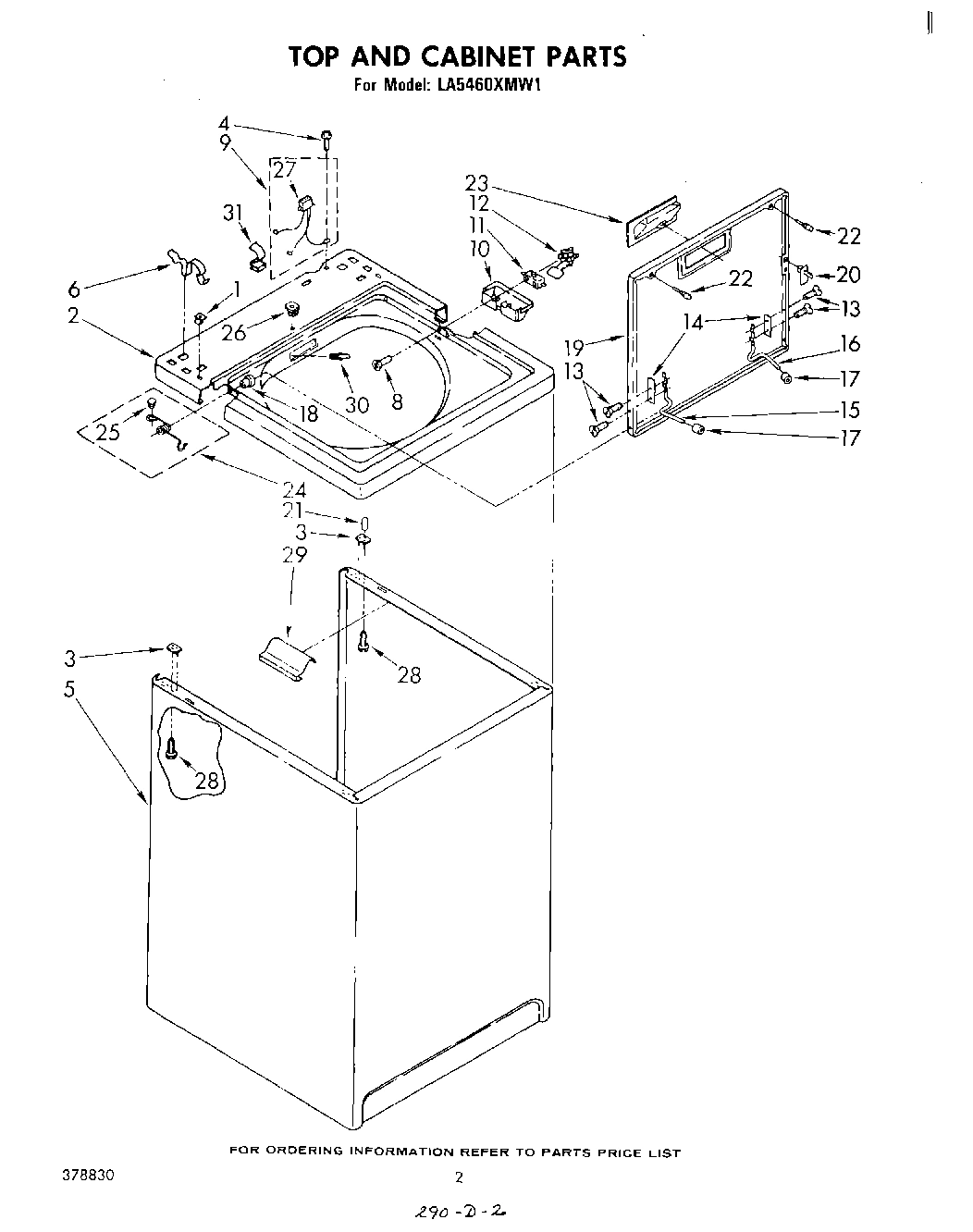

Lid (White) WPL 63058 Contact Us For Availability

Lid (Almond) WPL 63059 Contact Us For Availability

Lid (Golden Harvest) WPL 63062 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

21

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Handle, Lid (White) WPL 379884 Contact Us For Availability

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

24

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $83.95

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $185.93

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

29

Support Protector WPL 63392 Contact Us For Availability

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

30

Spin Pinion Assembly, Gearcase WPL 63167 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly Backorder WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest WPL 261891 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 378830 WPL 378830 Contact Us For Availability

WPL 383976 WPL 383976 Contact Us For Availability

WPL 385041 WPL 385041 Contact Us For Availability

WPL 385238 WPL 385238 Contact Us For Availability

WPL 386186 WPL 386186 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

33

357030 Whirlpool Clamp Backorder WPL 357030 $15.96

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

35

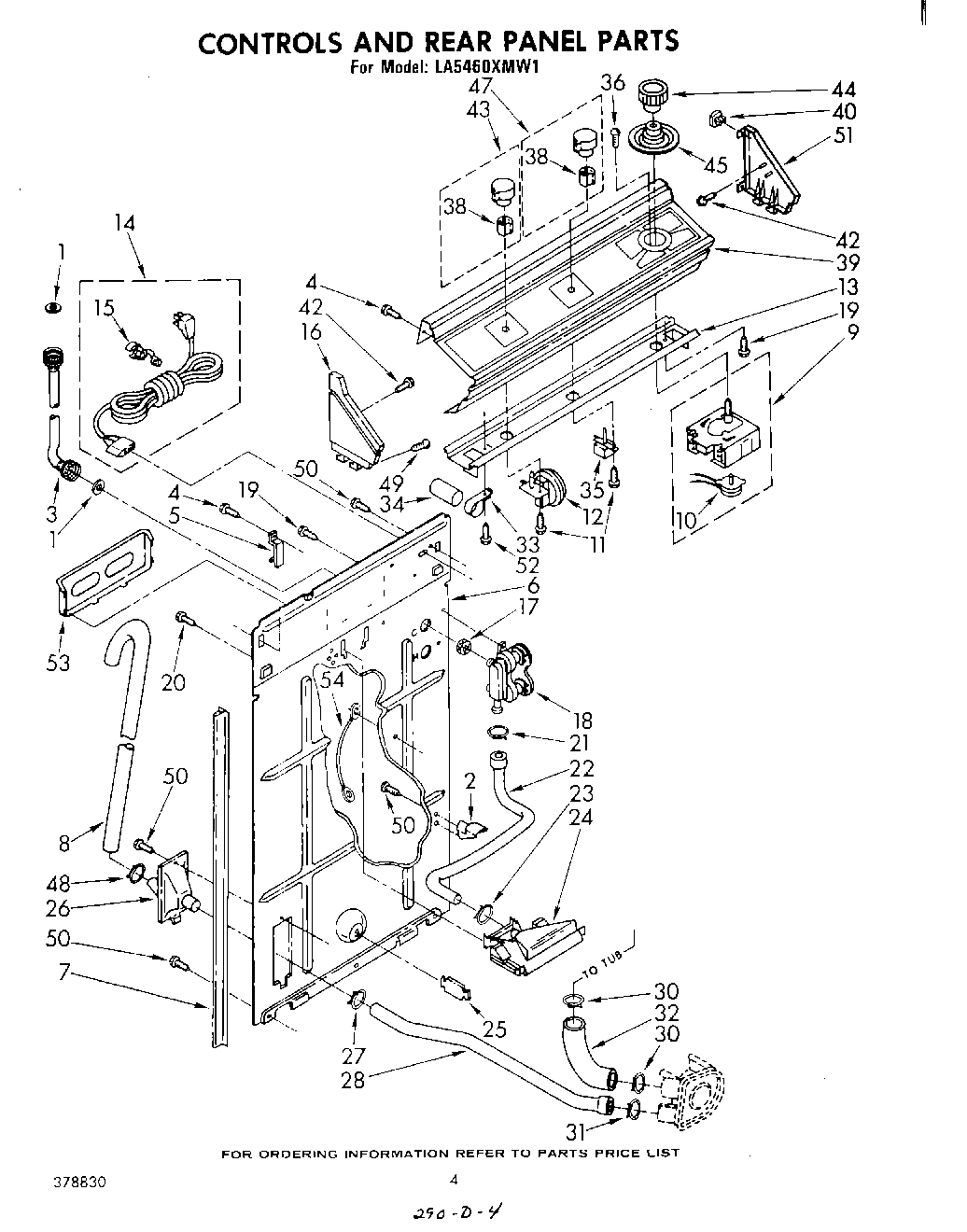

Switch, Water Temperature WPL 660746 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

45

Dial, Timer WPL 359254 Contact Us For Availability

47

Knob, Water Temperature WPL 690300 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to WPL 358225 Contact Us For Availability

51

WPL 375309 WPL 375309 Contact Us For Availability

51

WPL 375315 WPL 375315 Contact Us For Availability

51

WPL 377283 WPL 377283 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability
