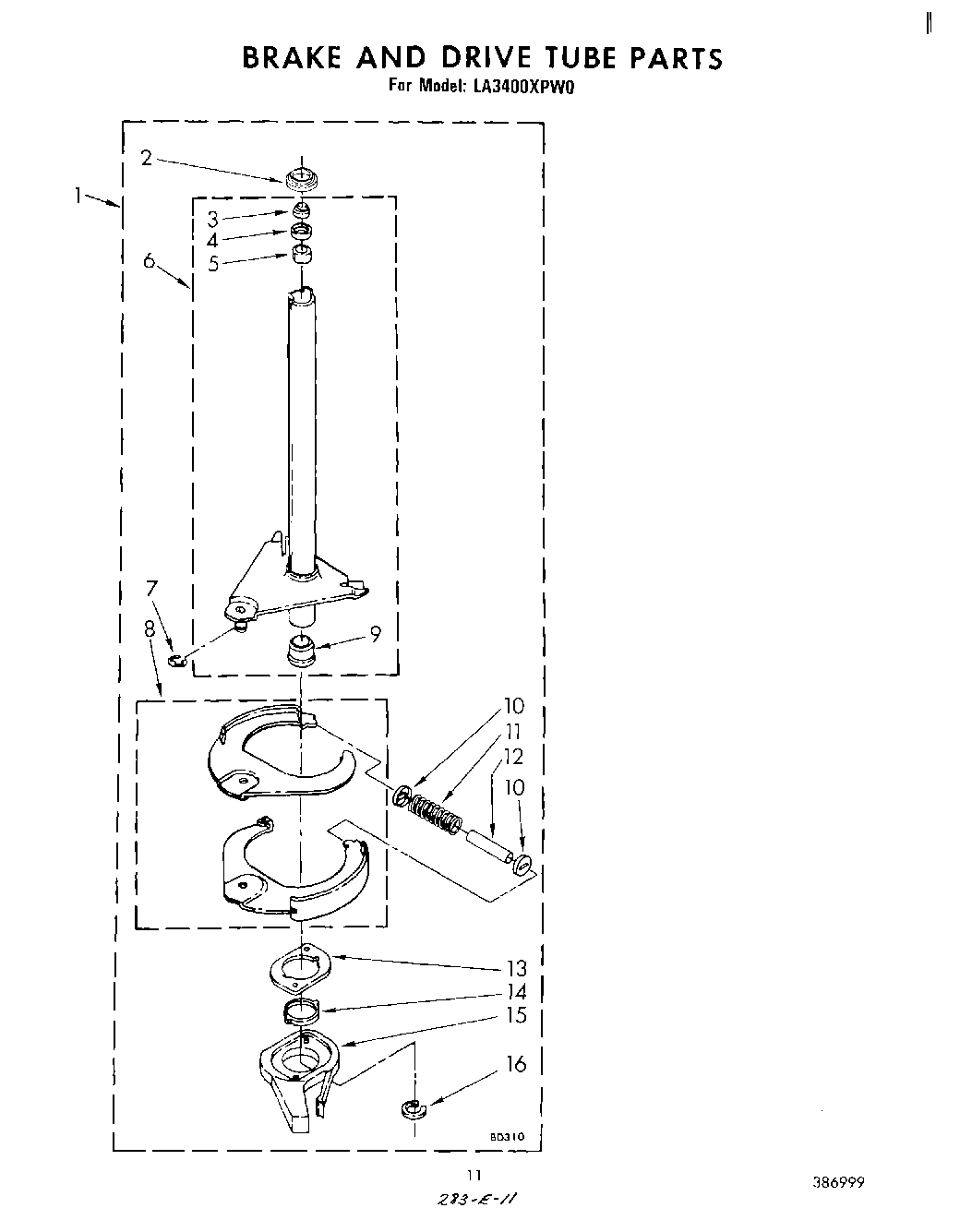

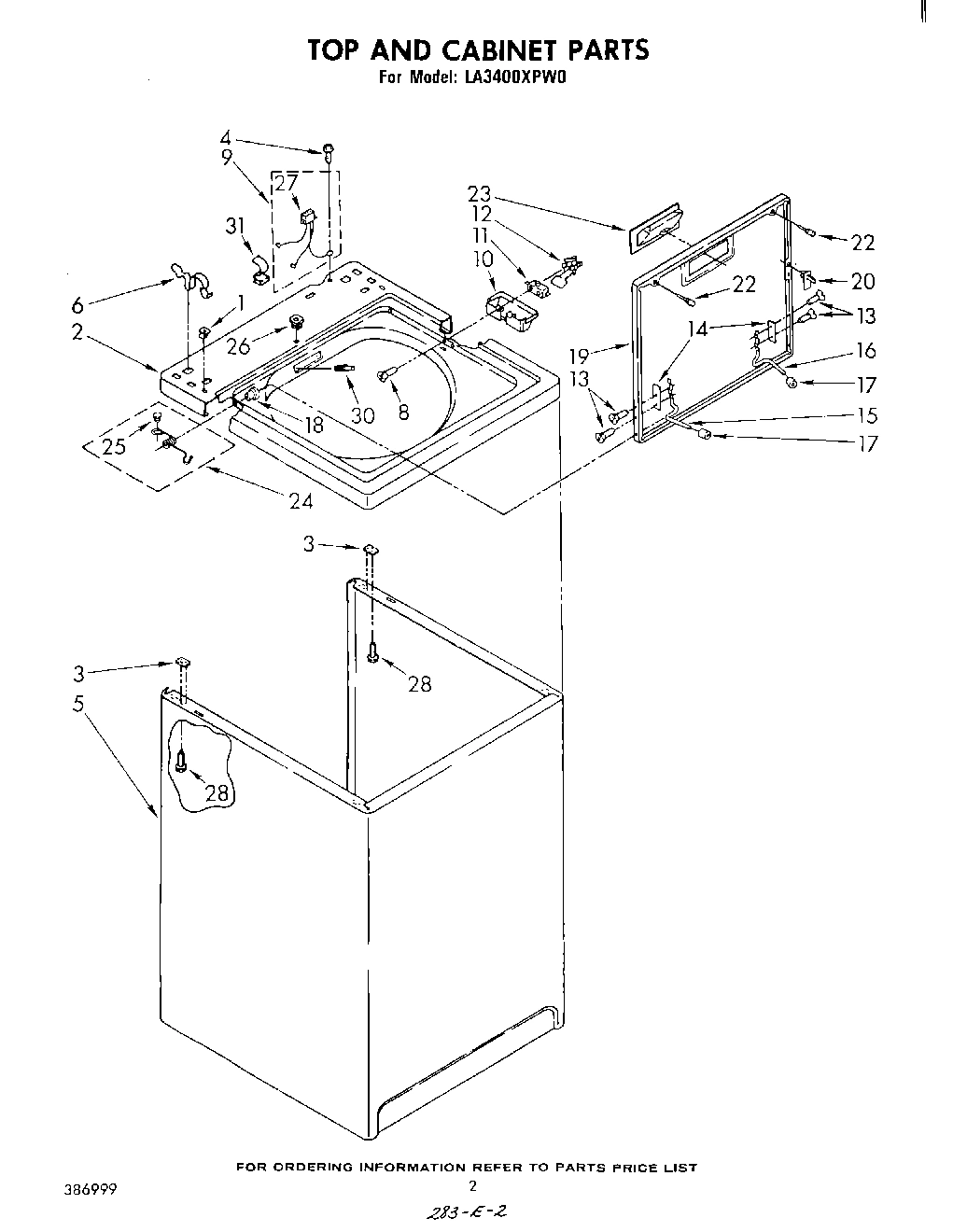

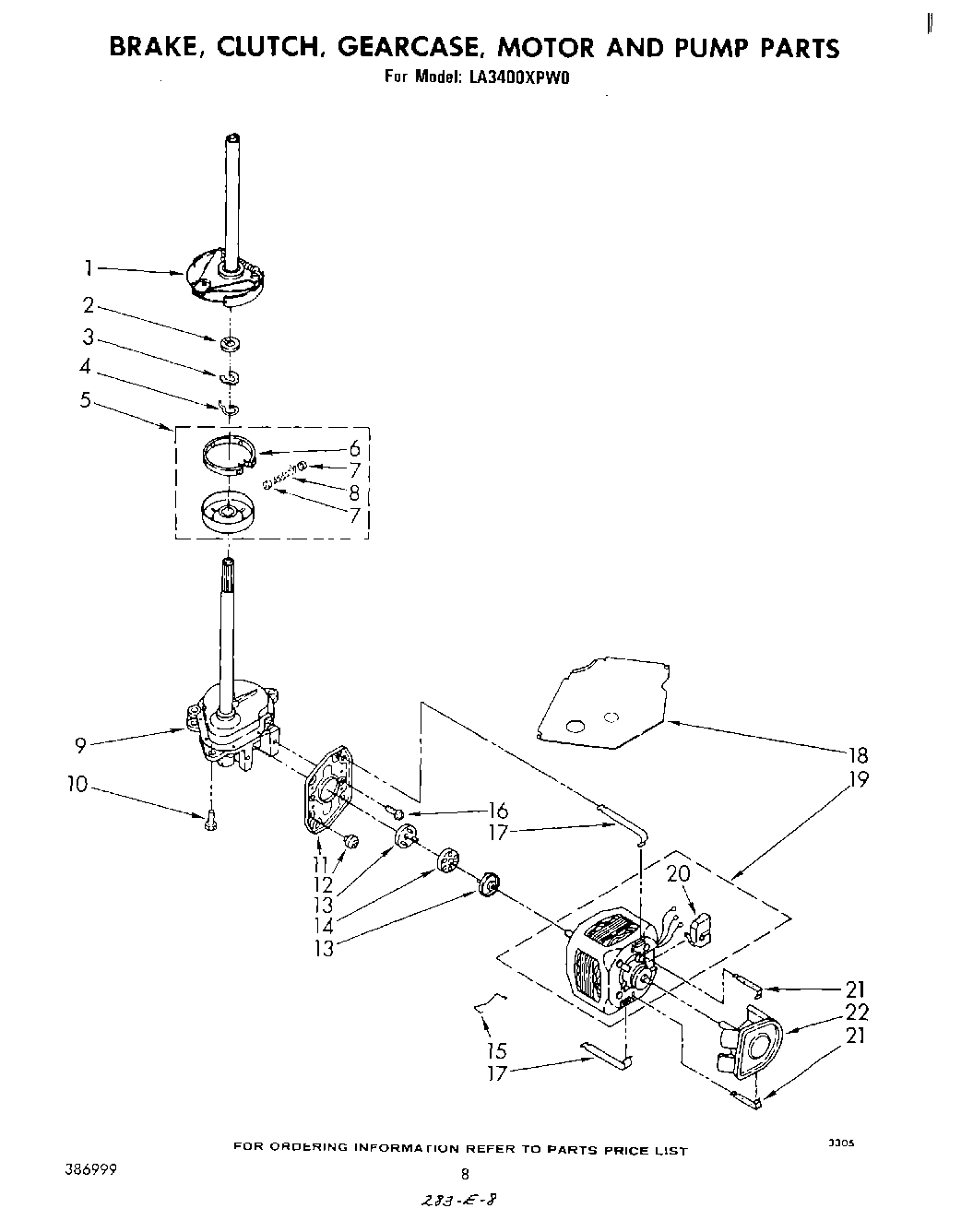

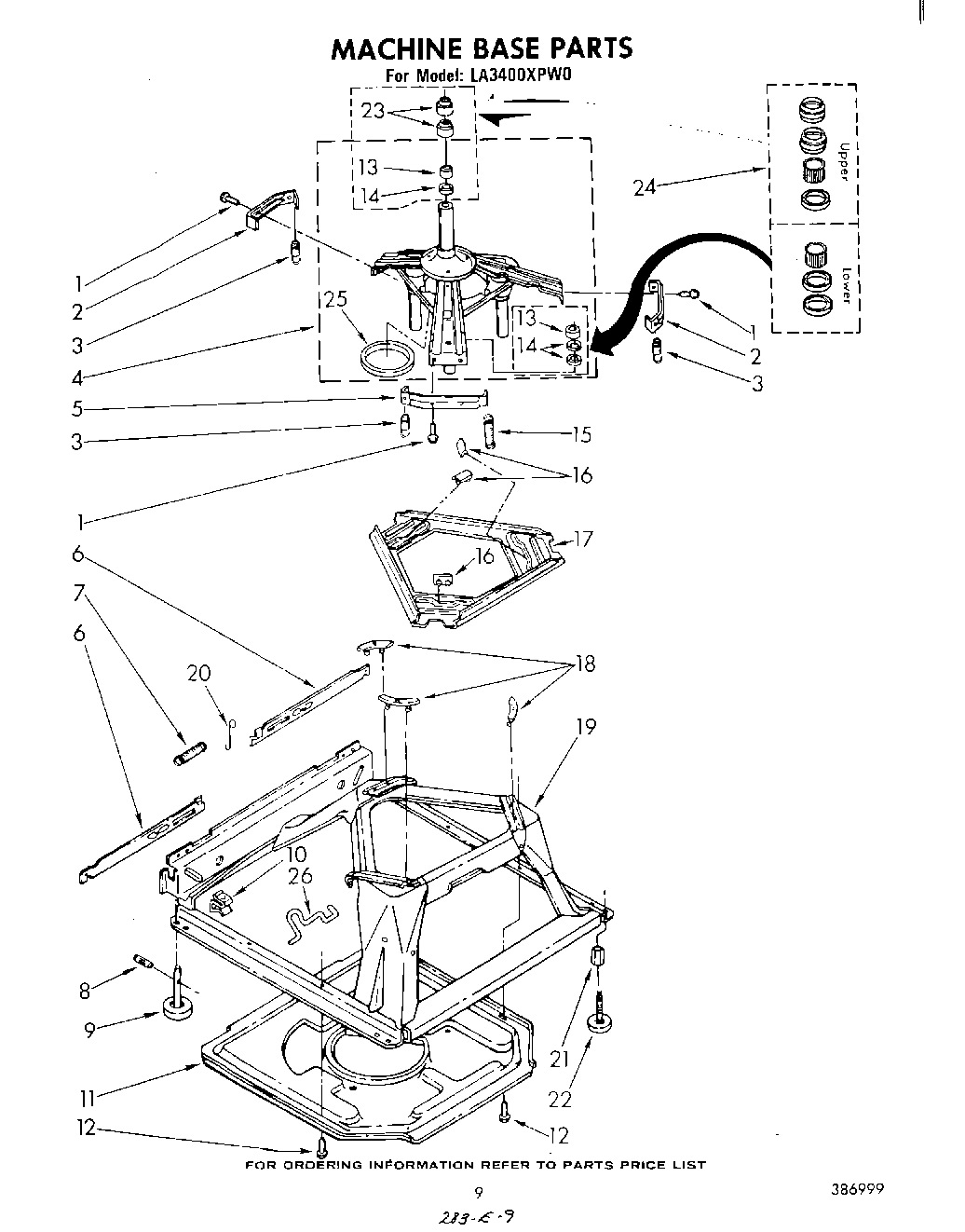

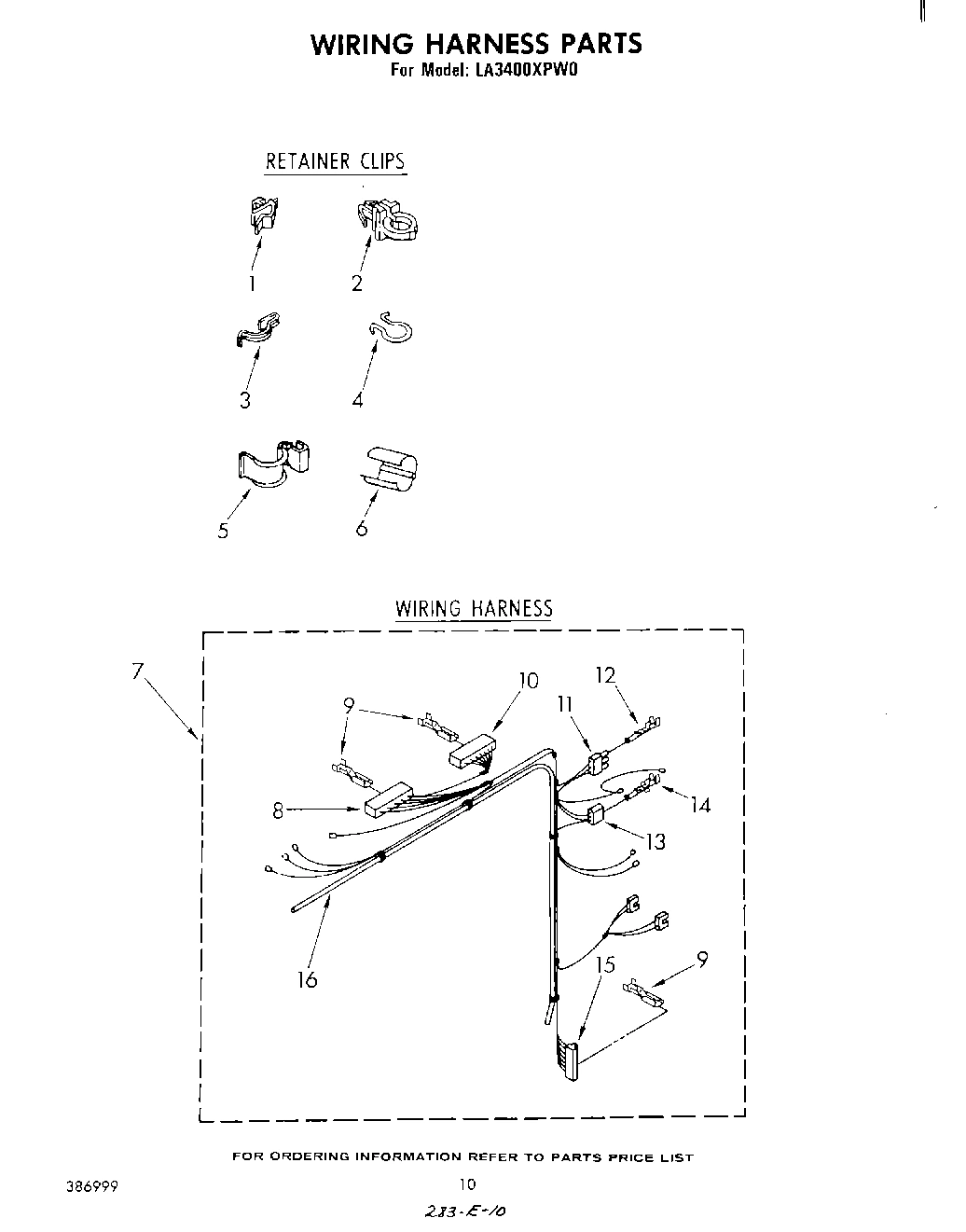

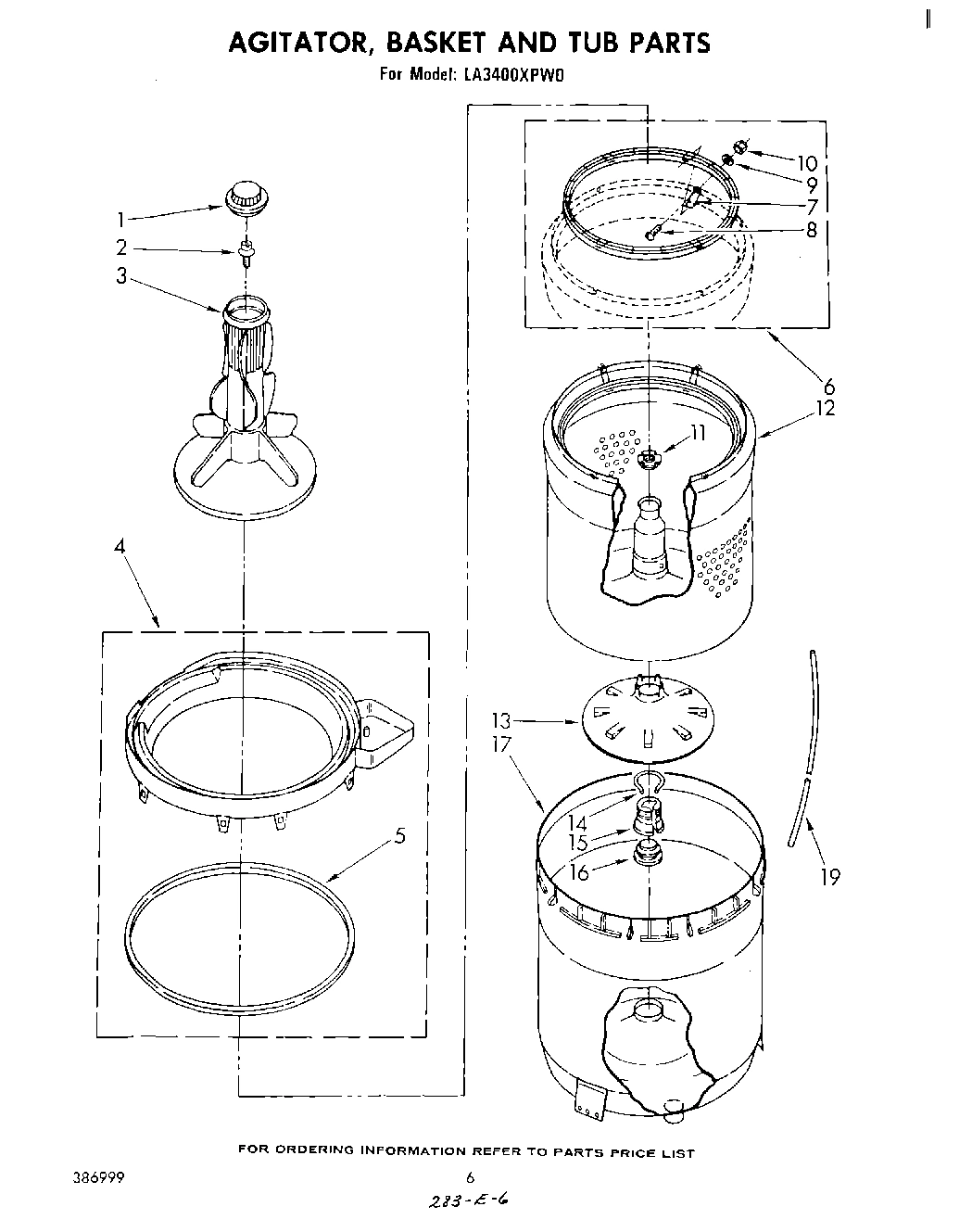

Model Whirlpool LA3400XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 62749 Contact Us For Availability

2

Top (White) WPL 63989 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $103.86

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

4

Tub Ring & Gasket WPL 63223 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Wiring Harness & Pressure Switch Hose WPL 64110 Contact Us For Availability

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $23.59

8

Block, Disconnect (Timer) (White) WPL 352090 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Spring, Clutch WPL 381046 Contact Us For Availability

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

Terminal, Female WPL 352088 Contact Us For Availability

9

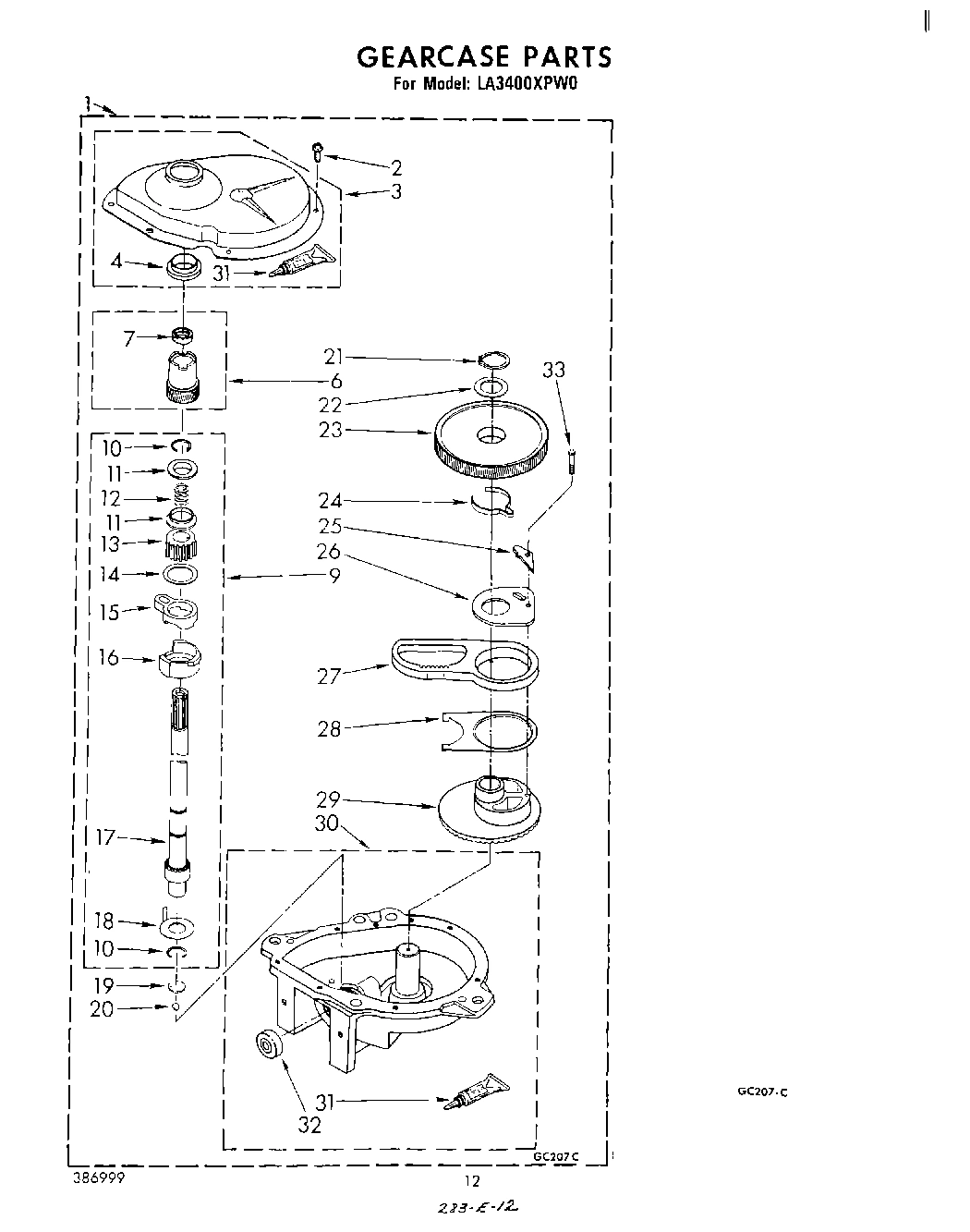

Gearcase (Complete) (Refer To Page 12 For Fur WPL 385899 Contact Us For Availability

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

Locknut (6) WPL 285348 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $3.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Spring, Agitator WPL 62676 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63780 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Plate, Restrictor WPL 63546 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Lock, Filter WPL 62942 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

Clip, Motor Disconnect Block WPL 386838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Tub WPL 63125 Contact Us For Availability

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

18

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Lid (White) WPL 387074 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

23

Handle, Lid (White) WPL 379889 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

24

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Plug, Button (2) WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $79.95

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Spin Pinion Assembly, Gearcase (Includes Illu WPL 63167 Contact Us For Availability

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL 383979 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

Label, Energy Guide WPL 386208 Contact Us For Availability

Guide, Use and Care WPL 386905 Contact Us For Availability

List, Repair Parts WPL 386999 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

33

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $2.38

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70
