Model Whirlpool KUDK01TKBL0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

1

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $16.47

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $12.81

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

1

8193918 Whirlpool Accumulator In Stock WPL 8193918 $96.74

1

8193944 Whirlpool Dishwasher Rack Assembly Backorder WPL 8193944 $214.88

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $84.74

1

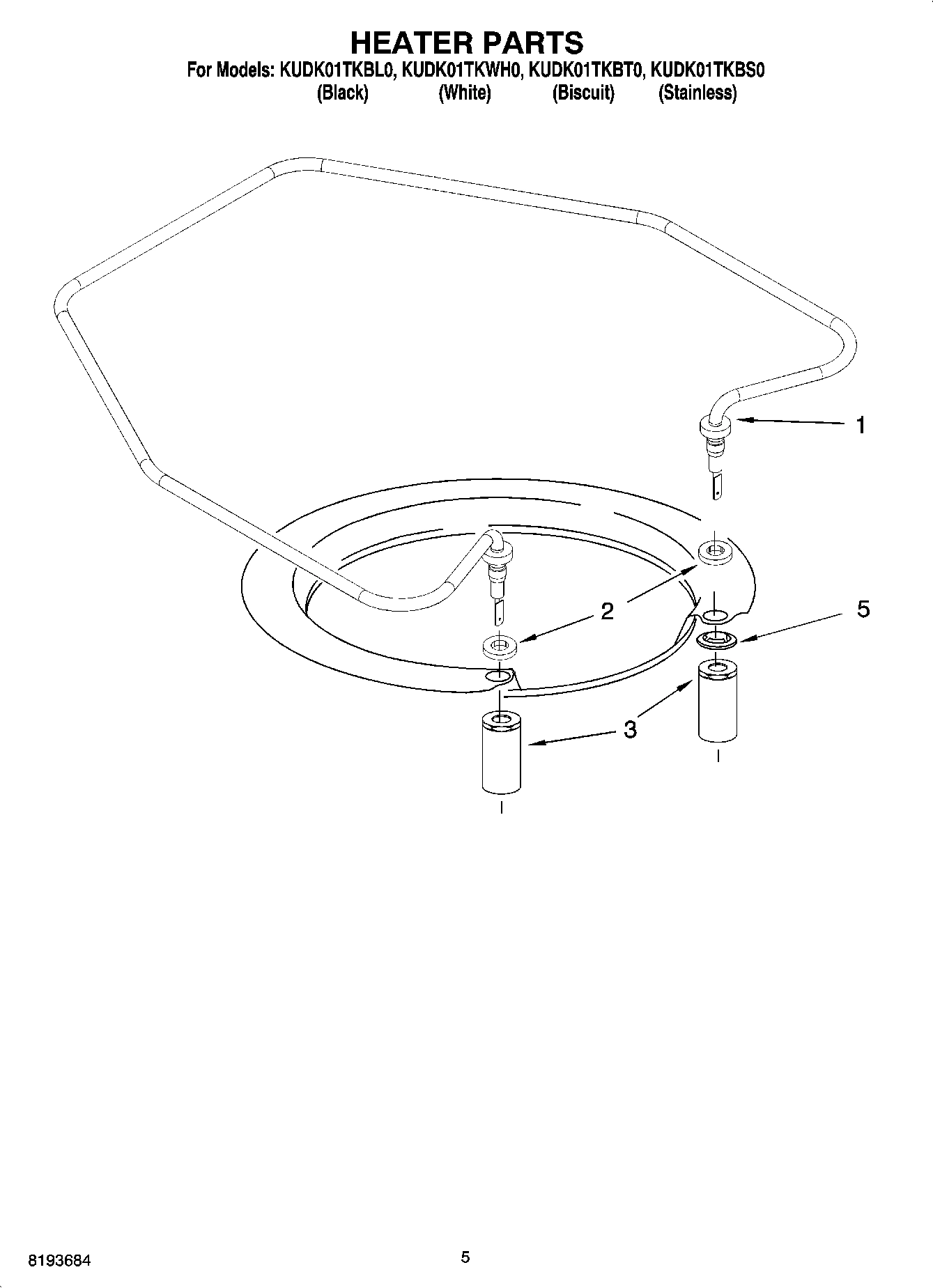

Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8269942 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8269943 Contact Us For Availability

1

Console Asm. includes Active Overlay & Insert WPL 8269944 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8268360 Contact Us For Availability

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

2

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

WP8268522 Whirlpool Dishwasher Retainer Backorder WPL WP8268522 $3.70

2

WP8269242 Whirlpool Dishwasher Fill Hose Backorder WPL WP8269242 $34.18

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $2.51

3

8193768 Whirlpool Dishwasher Spinner In Stock WPL 8193768 $10.50

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $31.42

3

WP8565925 Whirlpool Slide Rail Stop In Stock WPL WP8565925 $3.55

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

Screw WPL 3400069 Contact Us For Availability

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $2.51

4

WP8268743 Whirlpool Dishwasher Upper Dishrack In Stock WPL WP8268743 $13.56

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.09

4

Fastener, Push-In WPL 3400920 Contact Us For Availability

4

Gasket WPL 8269241 Contact Us For Availability

4

Sump WPL 8268382 Contact Us For Availability

5

WP8268321 Whirlpool Dishwasher Mount In Stock WPL WP8268321 $36.00

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8524472 Whirlpool Dishwasher Door Latch Act In Stock WPL WP8524472 $34.33

5

Speed Nut WPL 3400931 Contact Us For Availability

5

Handle, Dishrack WPL 8269714 Contact Us For Availability

6

8193762 Whirlpool Fuse Kit In Stock WPL 8193762 $33.60

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

6

Manifold WPL 8268355 Contact Us For Availability

7

8268745 Whirlpool Dishwasher Retainer Backorder WPL 8268745 $36.75

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $39.56

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $30.25

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

10

8193882 Whirlpool Dishwasher Primary Latch Bo In Stock WPL 8193882 $40.83

10

WP8535086 Whirlpool Dishwasher Spray Arm Backorder WPL WP8535086 $42.71

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $30.27

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

Control, Electronic WPL 8528172 Contact Us For Availability

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.39

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $14.75

Wiring Harness Main WPL 8269191 Contact Us For Availability

13

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

13

Seal, Sump WPL 8268395 Contact Us For Availability

14

W10782773 Whirlpool Dishwasher Pump and Motor In Stock WPL W10782773 $165.66

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

WPW10300599 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10300599 $31.92

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $30.25

16

Nut WPL 3400921 Contact Us For Availability

17

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $4.76

17

Pump, Drain WPL 8268411 Contact Us For Availability

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.77

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

19

WP8270019 Whirlpool Dishwasher Dishrack Wheel In Stock WPL WP8270019 $4.72

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

21

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

22

WPW10757217 Whirlpool Circulation Pump and Mo Backorder WPL WPW10757217 $159.69

23

8193951A Whirlpool Impeller Assembly Backorder WPL 8193951A $87.26

25

Thermister WPL 8269208 Contact Us For Availability

26

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $72.33

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

27

Shield, Capacitor WPL 8269512 Contact Us For Availability

28

Shield, Drain Pump WPL 8269449 Contact Us For Availability

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

34

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

35

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70
