Model Whirlpool KSUP27QDWH05 – Common Parts & Diagrams

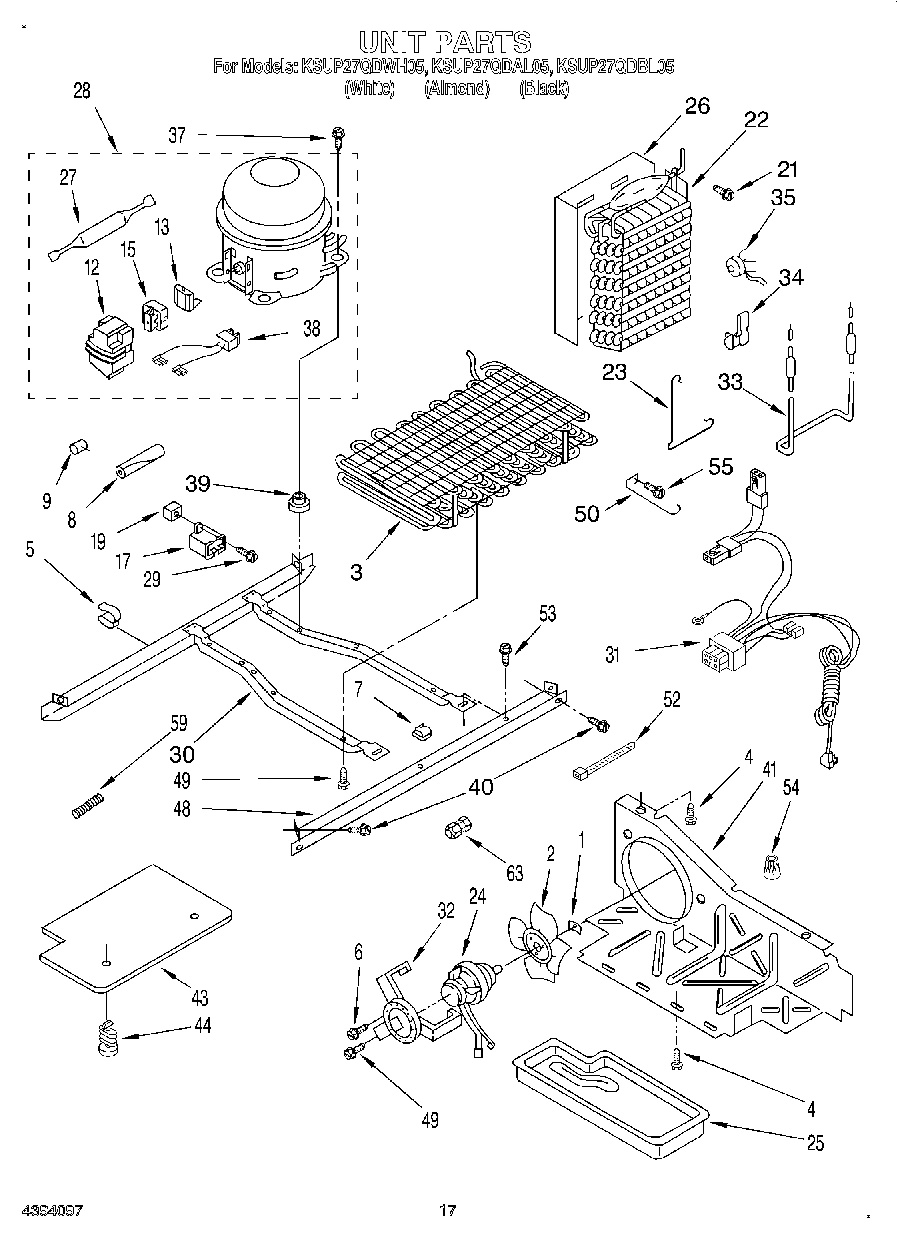

11 - UNIT

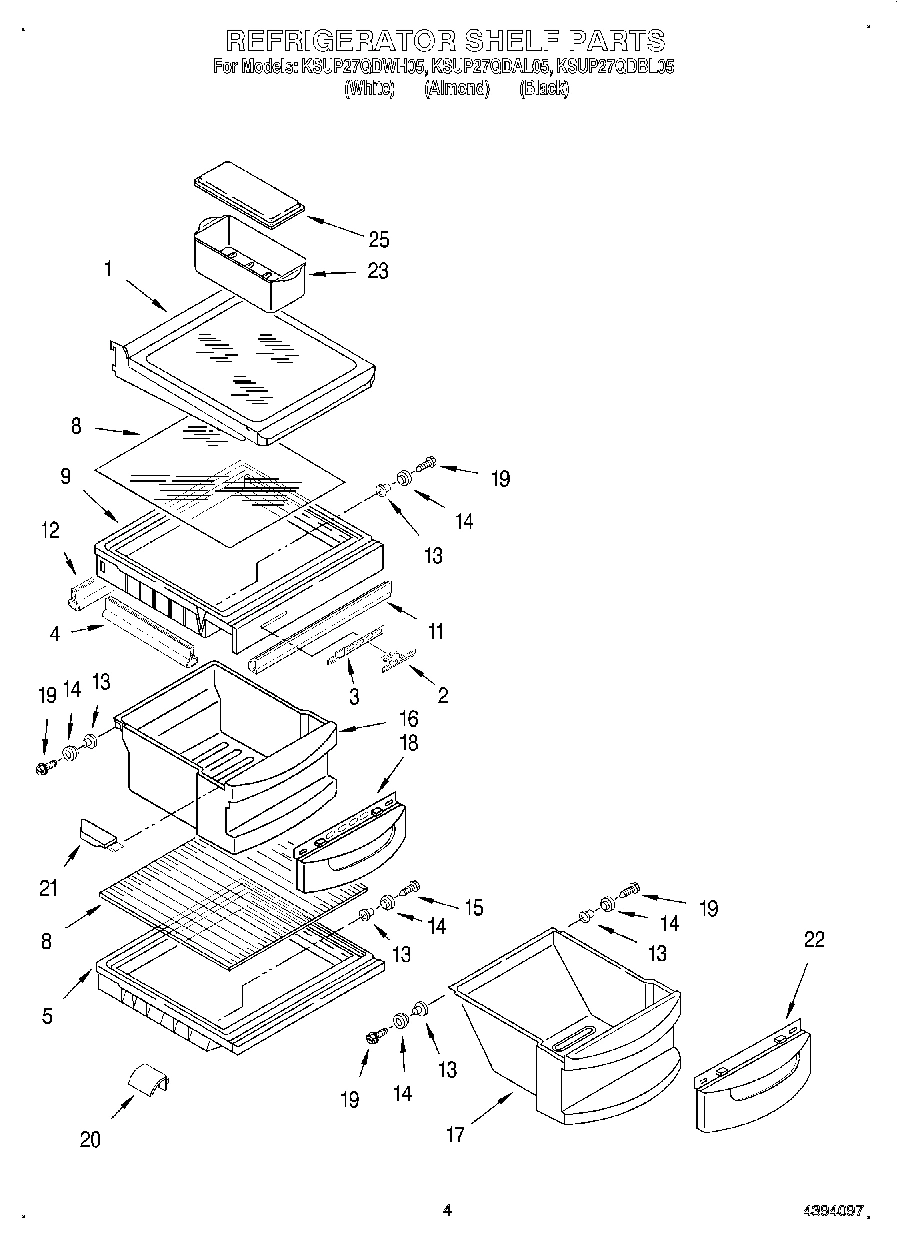

03 - REFRIGERATOR SHELF
04 - FREEZER LINER
01 - CABINET
08 - DISPENSER FRONT
10 - CONTROL
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
12 - ICEMAKER, LIT/OPTIONAL
09 - AIR FLOW
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSUP27QDWH05
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176077 WPL LIT2176077 Contact Us For Availability
WPL LIT2180081 WPL LIT2180081 Contact Us For Availability
WPL LIT2189603 WPL LIT2189603 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2181738 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189702 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2189703 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194020 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108060A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2189688 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2189689 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Black) WPL 2194018 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
6
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
End Cap, Handle WPL 2173826 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Retainer, Insert WPL 2173824 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Chute, Ice WPL 2156145 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
15
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
16
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
16
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
16
Trim Kit WPL 4318336 Contact Us For Availability
16
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
16
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
16
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175514 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Window (2) WPL 2175513 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174314 Contact Us For Availability
39
Insert, Cover (Black) WPL 2174315 Contact Us For Availability
39
Insert, Cover (White) WPL 2174316 Contact Us For Availability
40
Co WPL 2174292 Contact Us For Availability
40
WPL 2174293 WPL 2174293 Contact Us For Availability
40
WPL 2174294 WPL 2174294 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
