Model Whirlpool KSSS36QJB00 BUILT IN REFRIGERATOR – Common Parts & Diagrams

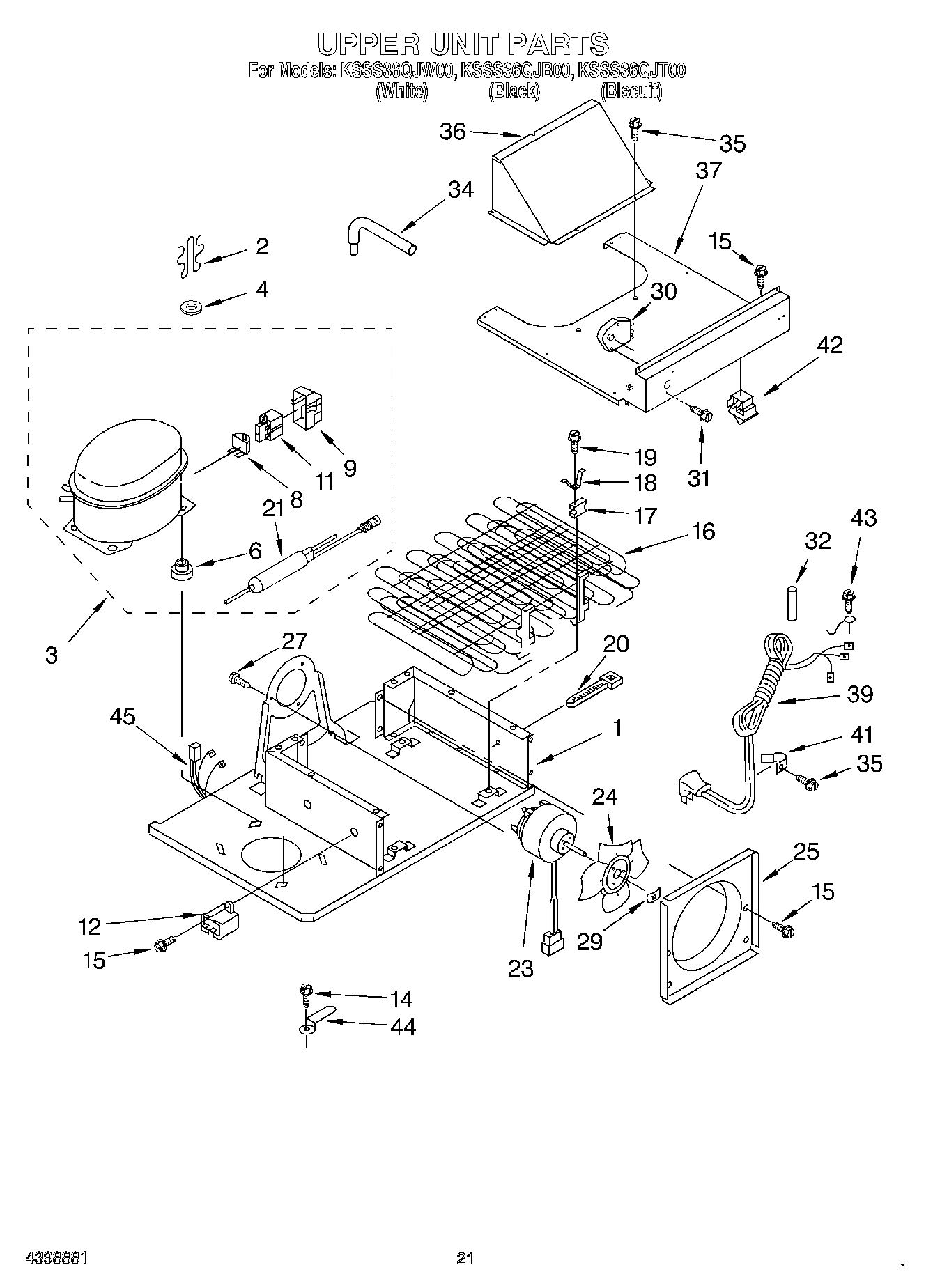

14 - UPPER UNIT

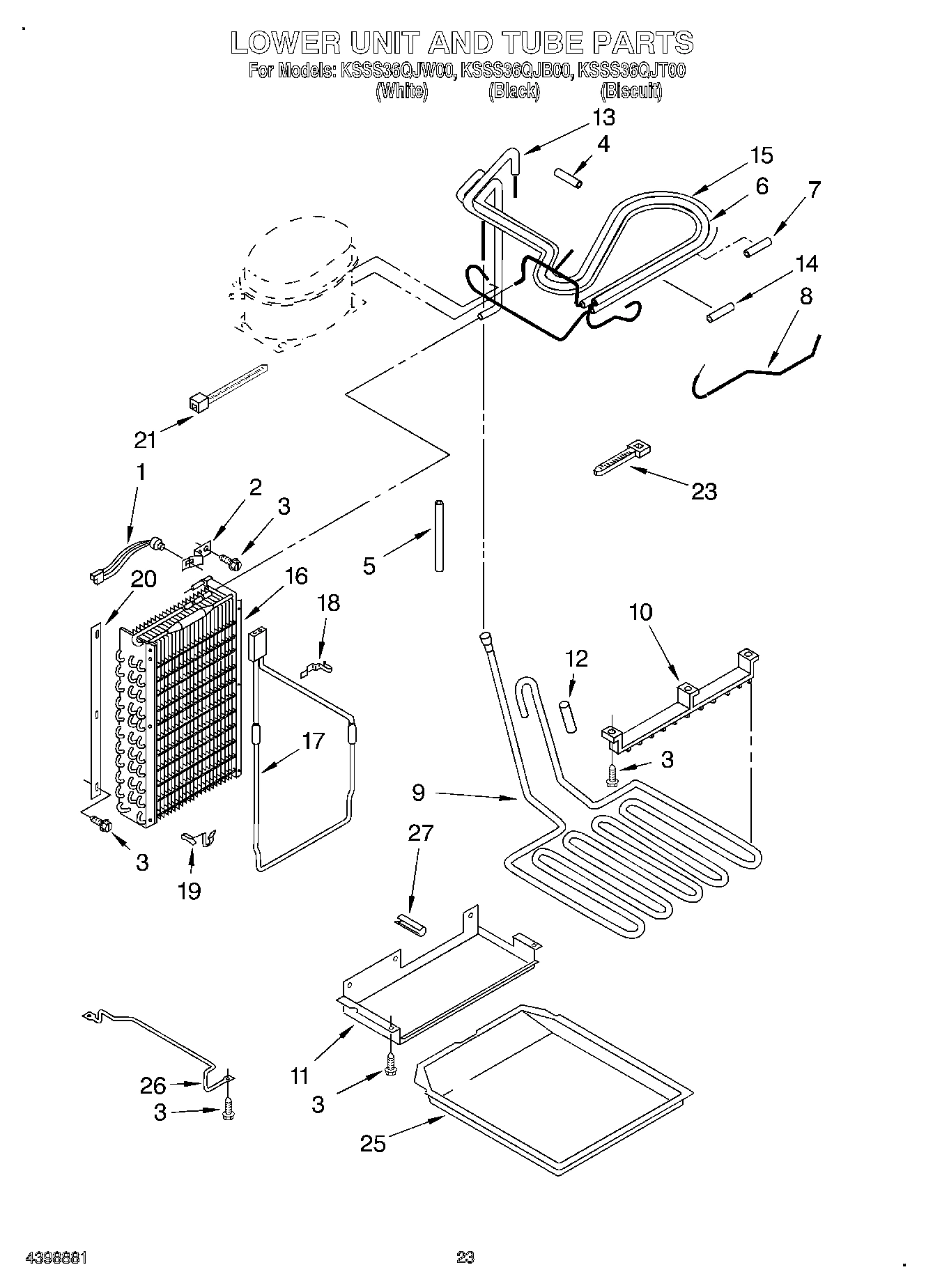

15 - LOWER UNIT AND TUBE
04 - REFRIGERATOR LINER
06 - FREEZER CONTROL PANEL
01 - CABINET, LITERATURE
03 - FREEZER LINER
11 - REFRIGERATOR DOOR
12 - FREEZER DOOR
13 - DISPENSER FRONT
16 - AIR FLOW AND RESERVOIR
05 - REFRIGERATOR CONTROL PANEL
07 - REFRIGERATOR SHELF
02 - CABINET TRIM
09 - TOP GRILLE AND UNIT COVER
08 - FREEZER SHELF
10 - MOTOR AND ICE CONTAINER
17 - ICE MAKER
Common parts from model Whirlpool KSSS36QJB00 BUILT IN REFRIGERATOR
Complete Ice Container Assembly WPL 2006541 Contact Us For Availability
Complete Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability
1
Defrost Bi-Metal WPL 2006755 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106748A Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 2003870 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bla WPL 2202546B Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bis WPL 2202546T Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Whi WPL 2202546W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI106750A Contact Us For Availability
1
Control Panel WPL 2209225 Contact Us For Availability
1
Frame, Shelf WPL 2174402 Contact Us For Availability
1
Cabinet, Trim (White) WPL 2006790 Contact Us For Availability
1
Cabinet, Trim (Biscuit) WPL 2006792 Contact Us For Availability
1
Cabinet, Trim (Black) WPL 2006793 Contact Us For Availability
1
Top Grille Assembly (White) WPL 2003716 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2005901 Contact Us For Availability
1
Top Grille Assembly (Biscuit) WPL 2006395 Contact Us For Availability
1
Solid Shelf WPL 2003142 Contact Us For Availability
1
Bracket, Motor WPL 2003939 Contact Us For Availability
2
Bracket, Light WPL 2005567 Contact Us For Availability
2
Cup, Clearance WPL 2002732 Contact Us For Availability
2
Inlay, Control Panel WPL 2209001 Contact Us For Availability
2
Glass, Shelf WPL 2003375 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Cover, Unit WPL 2005549 Contact Us For Availability
2
Front, Ice Compartment WPL 2188381 Contact Us For Availability
3
Circuit Board WPL 2208995 Contact Us For Availability
3
Lens WPL 1113650 Contact Us For Availability
3
Reflector, Shelf WPL 1113546 Contact Us For Availability
3
Shelf, Fixed (1) WPL 1113564 Contact Us For Availability
3
Shelf, Deep (2) WPL 1113636 Contact Us For Availability
3
Soleniod Assembly WPL 2003979 Contact Us For Availability
3
Tube, Filter Inlet WPL 2203198 Contact Us For Availability
4
Retaining Ring, Door-Closure WPL 2004881 Contact Us For Availability
4
Bracket (Double) WPL 548263 Contact Us For Availability
4
Control Knob WPL 2003842 Contact Us For Availability
4
Gasket, Glass (2) WPL 1113790 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2209073 Contact Us For Availability
4
Grille, Bracket WPL 2002484 Contact Us For Availability
4
Basket WPL 2208192 Contact Us For Availability
5
Bracket (Single) WPL 938224 Contact Us For Availability
5
Retainer, Knob WPL 2003841 Contact Us For Availability
5
Trim, Basket WPL 2003112 Contact Us For Availability
5
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
6
Condenser Inlet Tube WPL 2002999 Contact Us For Availability
6
Stop, Roller WPL 1113169 Contact Us For Availability
6
Support Clip, Icemaker (2) WPL 538533 Contact Us For Availability
6
Hinge, Bottom WPL 2004524 Contact Us For Availability
6
Grommet WPL 548268 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
6
Decortive Panel Assembly (White) WPL 2003725 Contact Us For Availability
6
Decortive Panel Assembly (Black) WPL 2005904 Contact Us For Availability
6
Decortive Panel Assembly (Biscuit) WPL 2006398 Contact Us For Availability
6
Slide, Basket (Left Side) WPL 2208197 Contact Us For Availability
6
Slide, Basket (Right Side) WPL 2208198 Contact Us For Availability
6
Tube, Filter Outlet WPL 2209430 Contact Us For Availability
7
Seal, Side Trim WPL 2005925 Contact Us For Availability
7
Grommet, Screw (2) WPL 2000193 Contact Us For Availability
7
Seal, Control Panel WPL 1113133 Contact Us For Availability
7
Frame, Assembly Meat Pan WPL 2006523 Contact Us For Availability
7
Guard, Compressor Wiring WPL 2005534 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2004006 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Hinge, Top WPL 2005329 Contact Us For Availability
8
Gasket Retainer, Top & Bottom WPL 1112539 Contact Us For Availability
8
Deflector, Air Duct WPL 2003924 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2006440 Contact Us For Availability
9
Spacer-Door, Top WPL 2004520 Contact Us For Availability
9
Hole Plug (3) WPL 2000153 Contact Us For Availability
9
Cover, Crisper WPL 1113893 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
10
Shield, Control Panel WPL 2209172 Contact Us For Availability
10
Glass, Crisper WPL 2003378 Contact Us For Availability
10
Trim, Grille Bottom (White) WPL 2003614 Contact Us For Availability
10
Trim, Grille Bottom (Biscuit) WPL 2005734 Contact Us For Availability
10
Trim, Grille Bottom (Black) WPL 2005830 Contact Us For Availability
10
Valve, Solenoid WPL 2006766 Contact Us For Availability
11
Socket, Light WPL 2005042 Contact Us For Availability
11
Handle, Door (White) WPL 2005953 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2005955 Contact Us For Availability
11
Handle, Door (Black) WPL 2005956 Contact Us For Availability
11
Socket, Light WPL 2005043 Contact Us For Availability
11
Meat Pan, Connector WPL 2000742 Contact Us For Availability
11
Trim, Grille Top (White) WPL 2003620 Contact Us For Availability
11
Trim, Grille Top (Biscuit) WPL 2005735 Contact Us For Availability
11
Trim, Grille Top (Black) WPL 2005827 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability
12
Washer WPL 2001230 Contact Us For Availability
12
Ice Door Mechanism WPL 2206423 Contact Us For Availability
12
Channel, Wiring WPL 2001145 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Trim, Grille Right Side (White) WPL 2003602 Contact Us For Availability
12
Trim, Grille Right Side (Biscuit) WPL 2005732 Contact Us For Availability
12
Trim, Grille Right Side (Black) WPL 2005821 Contact Us For Availability
12
Cover, Motor WPL 1113128 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Spacer, Control Panel (3) WPL 1112591 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability
13
Door, Ice WPL 2180205 Contact Us For Availability
13
Fastner WPL 1112871 Contact Us For Availability
13
Trim, Grille Left Side (White) WPL 2003608 Contact Us For Availability
13
Trim, Grille Left Side (Biscuit) WPL 2005733 Contact Us For Availability
13
Trim, Grille Left Side (Black) WPL 2005824 Contact Us For Availability
13
Water Valve, Harness WPL 2209072 Contact Us For Availability
14
Door Gasket, Magnetic WPL 2188317 Contact Us For Availability
14
Scroll, Fan WPL 2000783 Contact Us For Availability
14
Wire, Light WPL 2006223 Contact Us For Availability
14
Crisper Pan (2) WPL 2006544 Contact Us For Availability
14
Ice Container WPL 2208906 Contact Us For Availability
15
Deflector, Air Duct WPL 2003927 Contact Us For Availability
15
Channel, Wiring WPL 2001141 Contact Us For Availability
16
Trim (Top) (White) WPL 2005013 Contact Us For Availability
16
Trim (Top) (Biscuit) WPL 2005740 Contact Us For Availability
16
Trim, Top (Black) WPL 2005839 Contact Us For Availability
16
Handle, Door (White) WPL 2005943 Contact Us For Availability
16
Handle, Door (Biscuit) WPL 2005945 Contact Us For Availability
16
Handle, Door (Black) WPL 2005946 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Clip, Wiring (2) WPL 1115375 Contact Us For Availability
17
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
17
Lens, Indicator Light WPL 2200096 Contact Us For Availability
17
Stud, Shelf (20) WPL 2004068 Contact Us For Availability
17
Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability
17
Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability
17
Assembly, Air Duct (Also Order Items 8 & 15) WPL 2208900 Contact Us For Availability
18
Screw WPL 487559 Contact Us For Availability
18
Door, Spacer WPL 2004549 Contact Us For Availability
18
Trim (Side) (White) WPL 2005968 Contact Us For Availability
18
Trim (Side) (Biscuit) WPL 2005970 Contact Us For Availability
18
Trim, Side (Black) WPL 2005971 Contact Us For Availability
18
Switch Assembly (Also Order Item No.49) WPL 2202551 Contact Us For Availability
18
Retainer, Lens WPL 2200097 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim (Bottom) (White) WPL 2003666 Contact Us For Availability
19
Trim (Bottom) (Biscuit) WPL 2005743 Contact Us For Availability
19
Trim (Bottom) (Black) WPL 2005880 Contact Us For Availability
19
Circuit Board, Filter Indicator WPL 2203384 Contact Us For Availability
20
Screw (White) WPL 2001208 Contact Us For Availability
20
Screw (Biscuit) WPL 3400877 Contact Us For Availability
20
Screw (Black) WPL 3400878 Contact Us For Availability
20
Panel, Interior Door WPL 1113952 Contact Us For Availability
20
Meat Pan WPL 2006529 Contact Us For Availability
21
Ladder, Shelf (2) WPL 1113951 Contact Us For Availability
21
Trim (Top) (White) WPL 2005022 Contact Us For Availability
21
Trim (Top) (Biscuit) WPL 2005746 Contact Us For Availability
21
Trim (Top) (Black) WPL 2005885 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Retainer, Shelf Ladder (2) WPL 1112530 Contact Us For Availability
22
Gasket, Air Baffle WPL 1112869 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Back Up Plate (8) WPL 1112514 Contact Us For Availability
23
Trim (Bottom) (White) WPL 2004669 Contact Us For Availability
23
Trim (Bottom) (Biscuit) WPL 2005747 Contact Us For Availability
23
Trim (Bottom) (Black) WPL 2005888 Contact Us For Availability
23
Cover, Air Outlet WPL 2003576 Contact Us For Availability
23
Retainer, Glass WPL 2002181 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Spring, Door Closure WPL 2004567 Contact Us For Availability
24
Trim (Side) (White) WPL 2005963 Contact Us For Availability
24
Trim (Side) (Biscuit) WPL 2005965 Contact Us For Availability
24
Trim (Side) (Black) WPL 2005966 Contact Us For Availability
24
Delay Mechanism WPL 2205686 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Bin, Utility WPL 1112720 Contact Us For Availability
25
Cover, Evaporator WPL 2005035 Contact Us For Availability
25
Crisper Spacer, Right Side (2) WPL 2003411 Contact Us For Availability
26
Door, Utility Bin WPL 2003463 Contact Us For Availability
26
Panel, Interior Door WPL 2209027 Contact Us For Availability
26
Connector, Meat Pan Duct WPL 2000797 Contact Us For Availability
27
Insulation, Switch WPL 625834 Contact Us For Availability
27
Fastener (3) WPL 1113227 Contact Us For Availability
27
Door Shelf WPL 1112745 Contact Us For Availability
27
Conveyor WPL 2160602 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
28
Tray, Butter WPL 2165792 Contact Us For Availability
28
Shelf Bin WPL 2209163 Contact Us For Availability
28
Baffle, Evaporator WPL 1112840 Contact Us For Availability
28
Crisper Spacer, Left Side (2) WPL 2003410 Contact Us For Availability
29
Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability
29
Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability
29
Diffuser, Air Duct WPL 1112851 Contact Us For Availability
30
Shelf, Gallon Door WPL 2188331 Contact Us For Availability
31
Screw WPL 488280 Contact Us For Availability
32
Skirt, Grille- Bottom (Biscuit) WPL 2209024T Contact Us For Availability
32
SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability
32
Control Arm WPL 2002728 Contact Us For Availability
33
Linkage, Door Closure WPL 2004516 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2209425B Contact Us For Availability
34
Grille Base, Fron WPL 2209425T Contact Us For Availability
34
WPL 2209425W WPL 2209425W Contact Us For Availability
34
Ice Chute WPL 2208909 Contact Us For Availability
36
WPL 2004512 WPL 2004512 Contact Us For Availability
36
Roller WPL 2188212 Contact Us For Availability
36
Fitting, Water Tube WPL 2185988 Contact Us For Availability
37
WPL 2209203 WPL 2209203 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
40
WPL 2004565 WPL 2004565 Contact Us For Availability
42
Evaporator, Cover Rail (Right Side) WPL 2000685 Contact Us For Availability
42
Evaporator, Cover Rail (Left Side) WPL 2000686 Contact Us For Availability
43
Eyelet, Roller WPL 2174478 Contact Us For Availability
44
Front Cover, Ice Container WPL 2002722 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Trim, Front (2) (White) WPL 2208917 Contact Us For Availability
45
Trim, Front (2) (Biscuit) WPL 2208923 Contact Us For Availability
45
Trim, Front (2) (Black) WPL 2208926 Contact Us For Availability
45
Gasket (2) Evaporator Cover WPL 2001337 Contact Us For Availability
46
Gasket (2) WPL 2001079 Contact Us For Availability
47
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
47
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
47
Gasket WPL 2001080 Contact Us For Availability
48
Gasket WPL 2001081 Contact Us For Availability
49
Overlay, Cover (White) WPL 2202573 Contact Us For Availability
49
Overlay, Cover (Black) WPL 2202576 Contact Us For Availability
49
Overlay, Cover (Biscuit) WPL 2202579 Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570B Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570T Contact Us For Availability
55
Front Cover Assembly (Includes Items 18, 36, WPL 2202570W Contact Us For Availability
100
Front Panel Kit (White) WPL 4378650 Contact Us For Availability
100
Front Panel Kit (Black) WPL 4378653 Contact Us For Availability
100
Front Panel Kit (Almond) WPL 4378656 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 4378659 Contact Us For Availability
100
Front Panel Kit (Biscuit) WPL 4392886 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
