Model Whirlpool KSSP36QMS03 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams

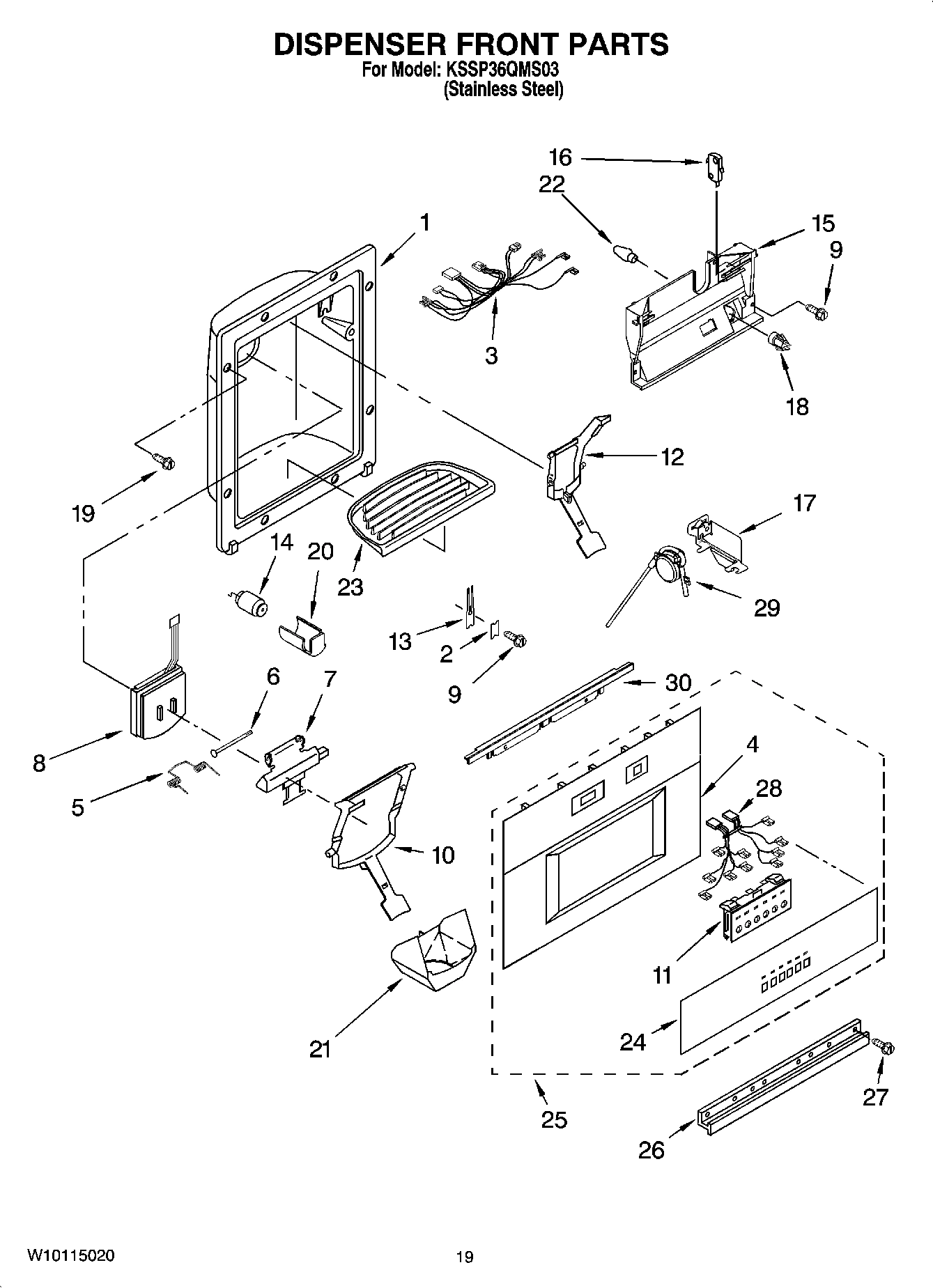

12 - DISPENSER AND FRONT PARTS

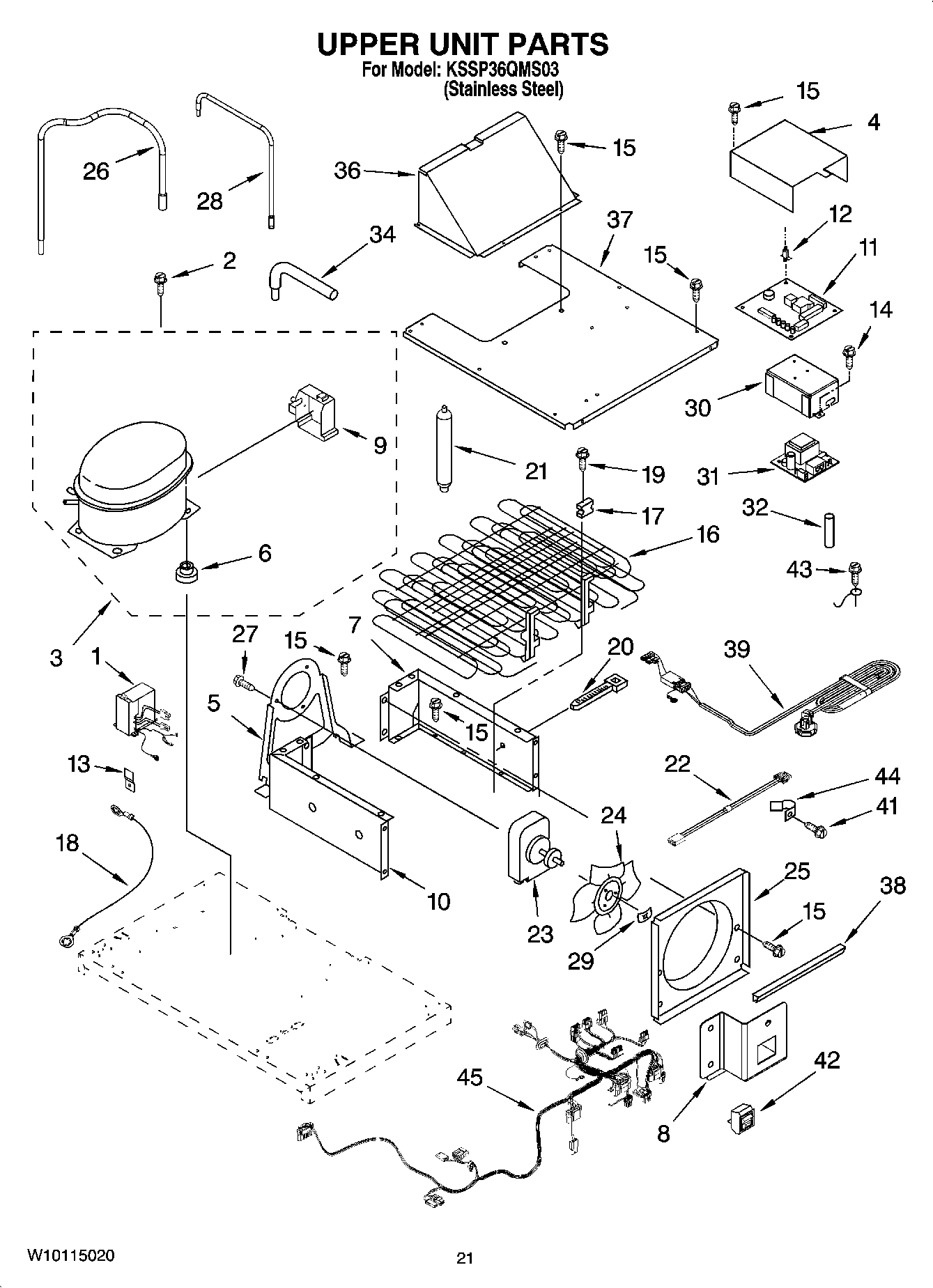

13 - UPPER UNIT PARTS

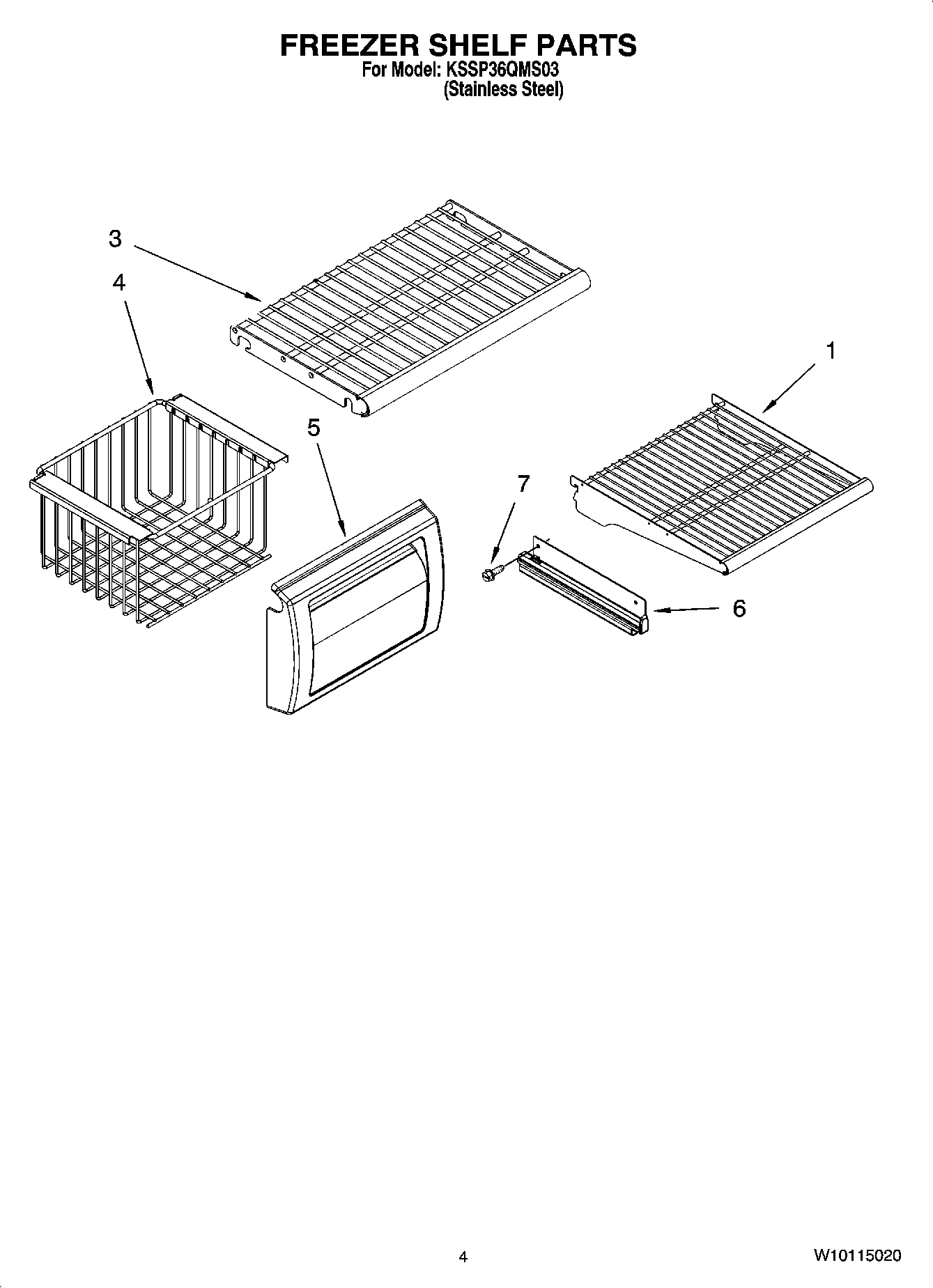

03 - FREEZER SHELF PARTS

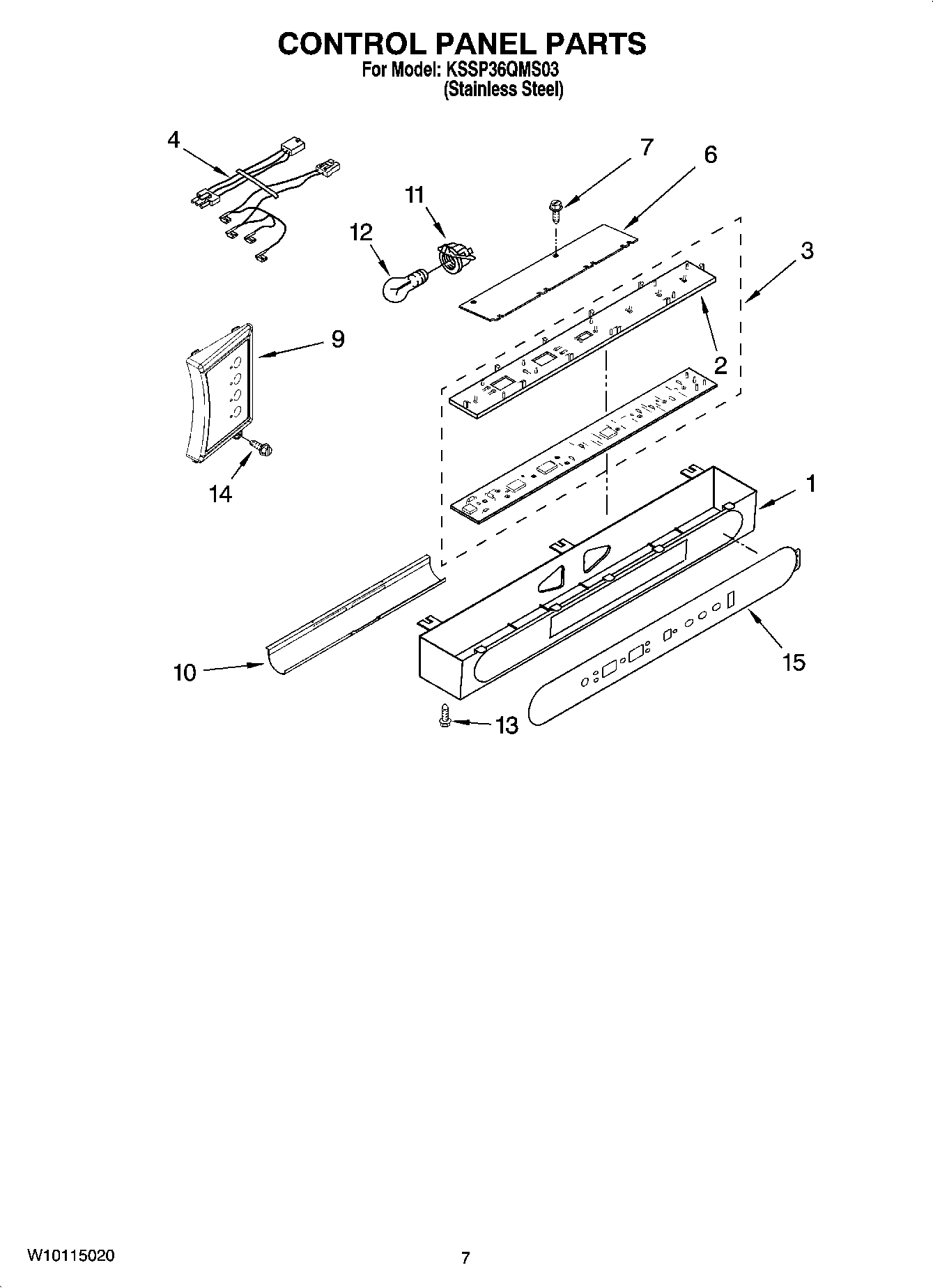

05 - CONTROL PANEL PARTS

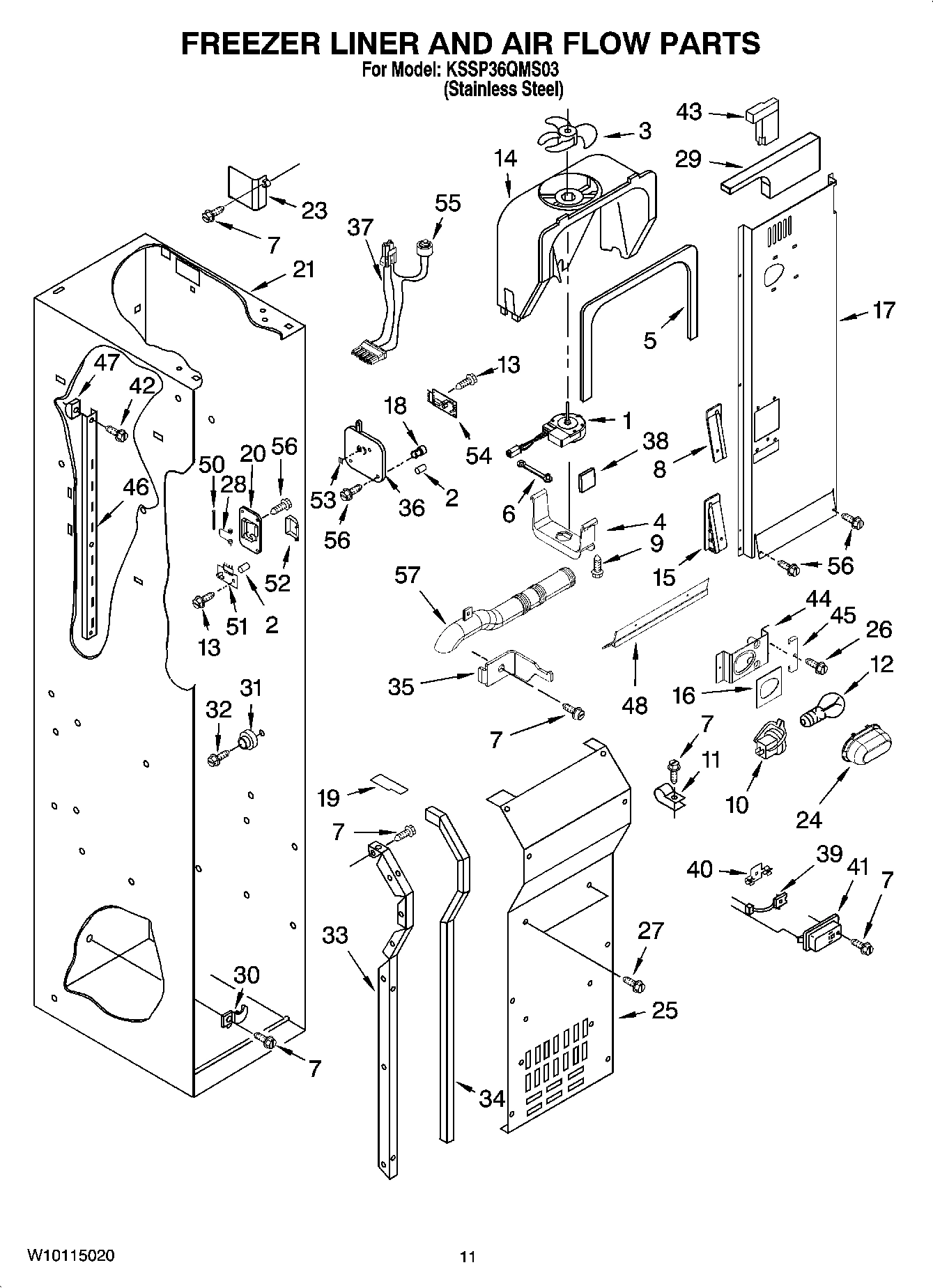

08 - FREEZER LINER AND AIR FLOW PARTS

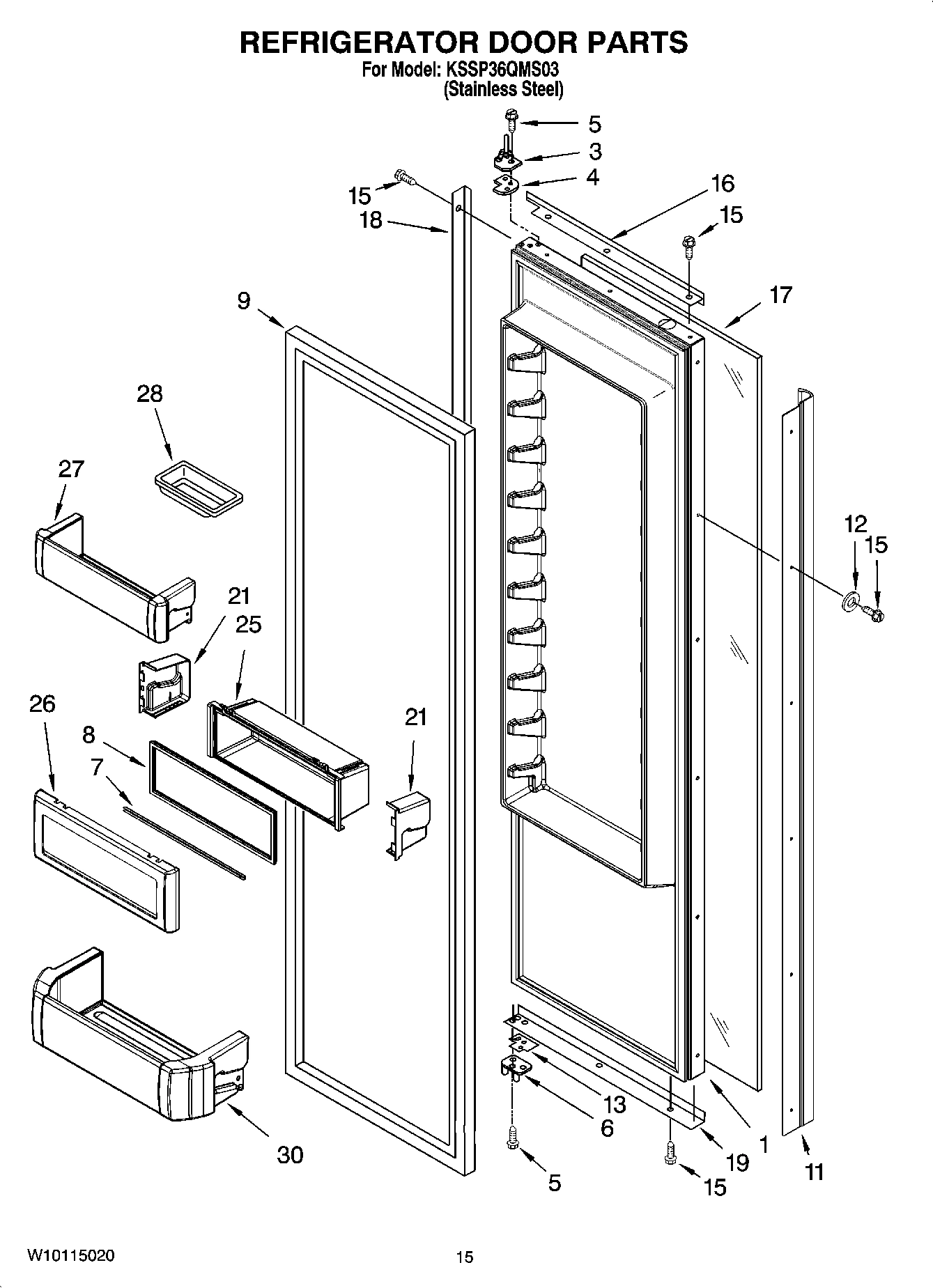

10 - REFRIGERATOR DOOR PARTS

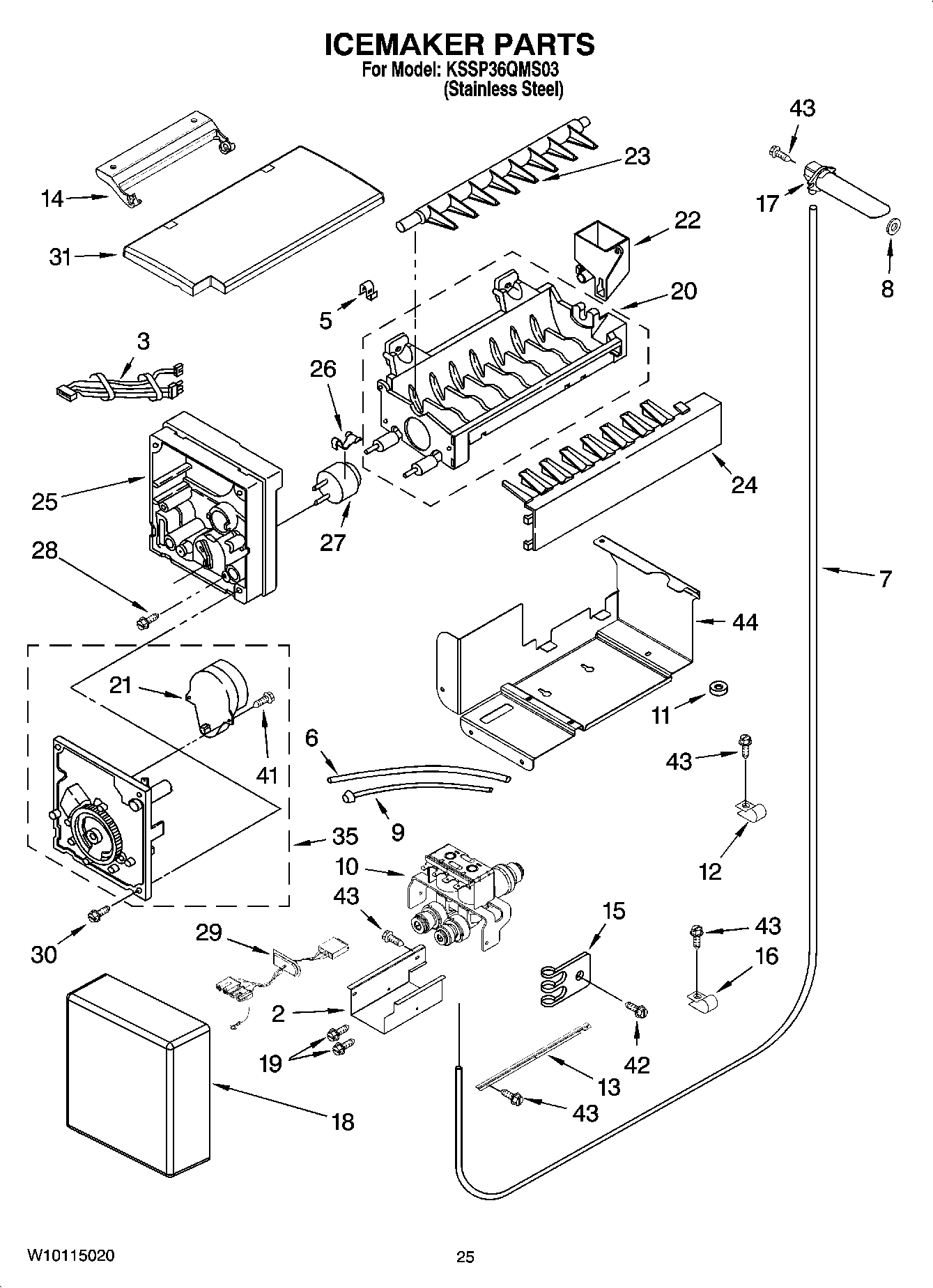

15 - ICEMAKER PARTS

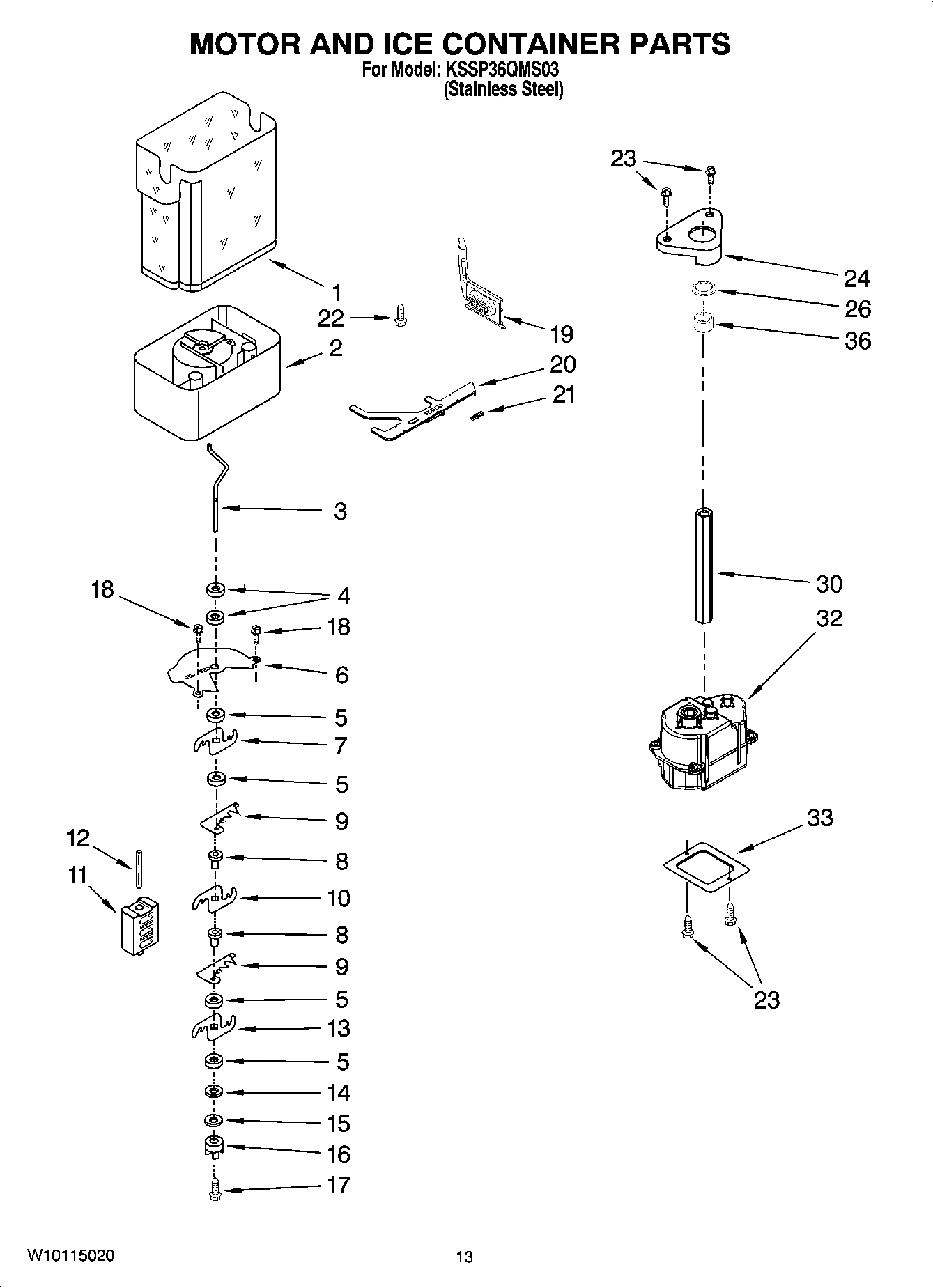

09 - MOTOR AND ICE CONTAINER PARTS

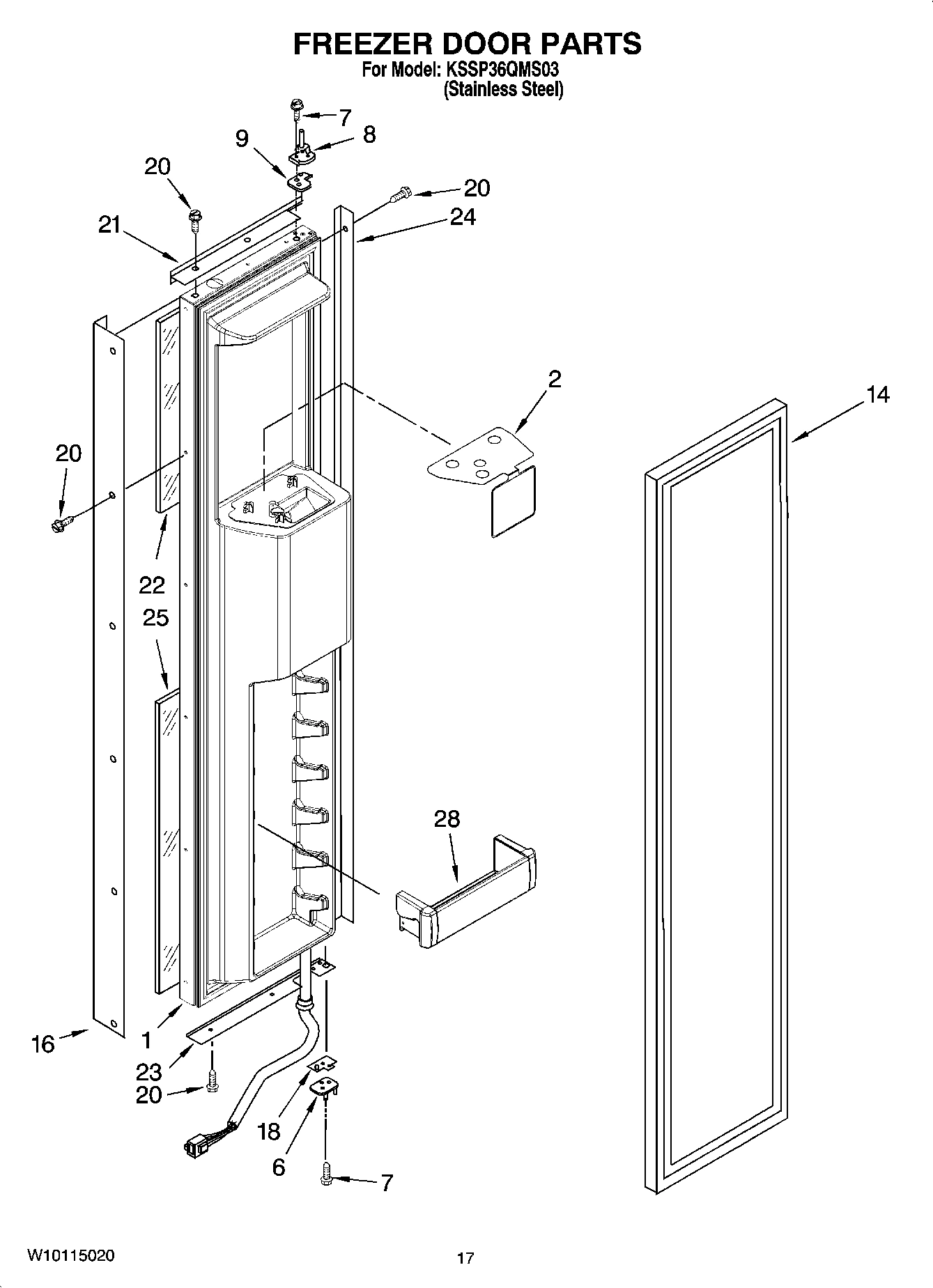

11 - FREEZER DOOR PARTS

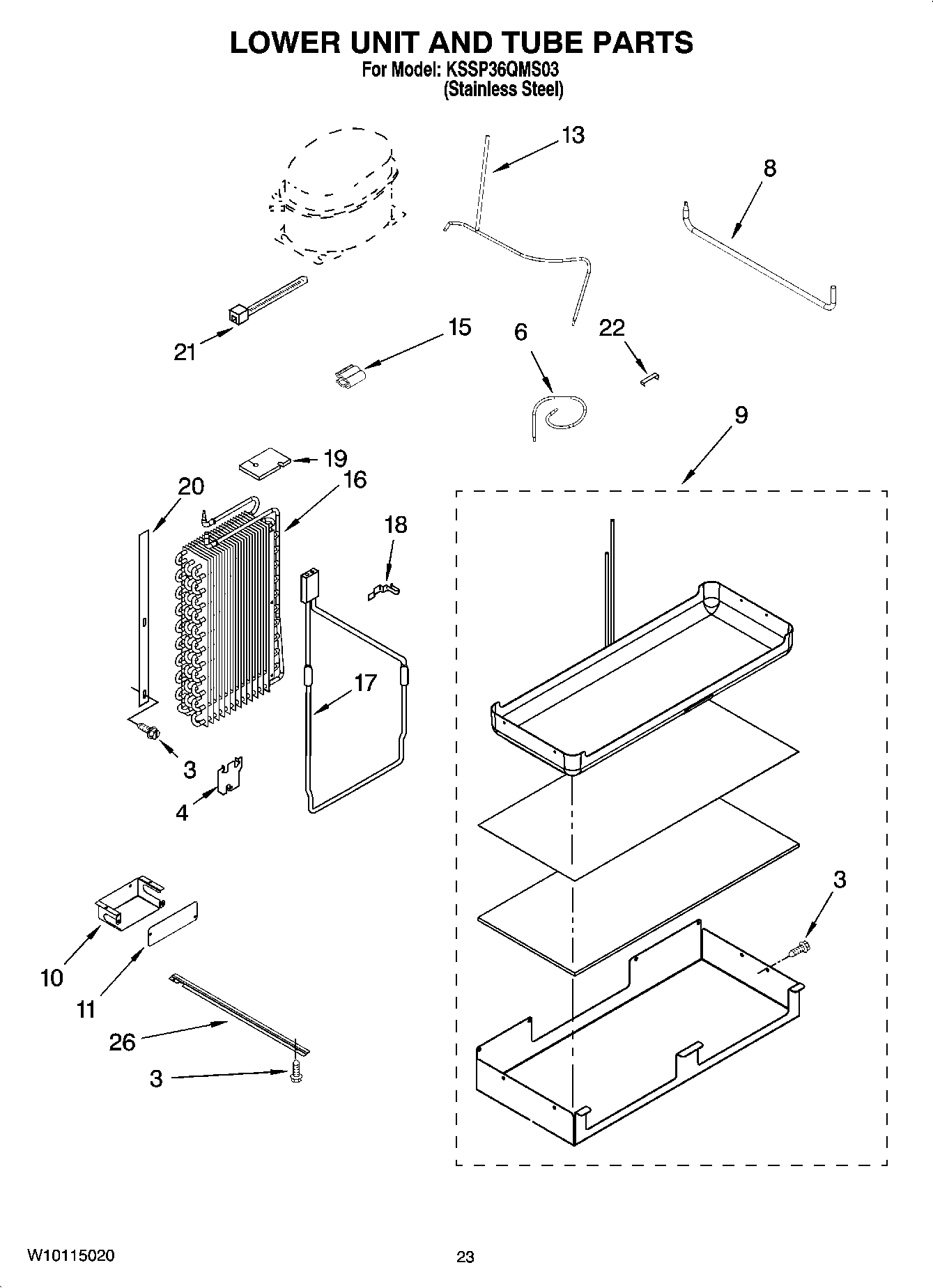

14 - LOWER UNIT AND TUBE PARTS

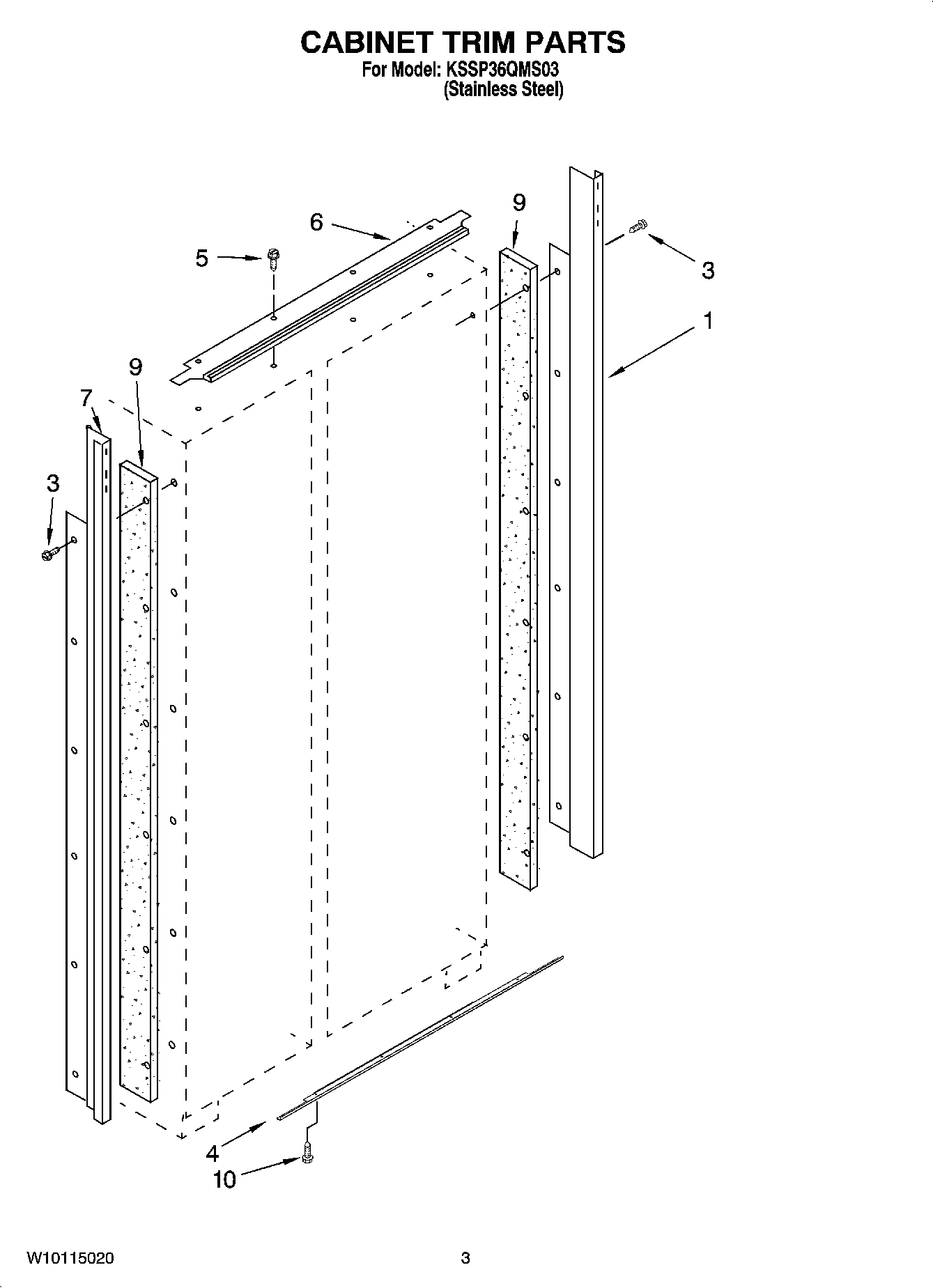

02 - CABINET TRIM PARTS

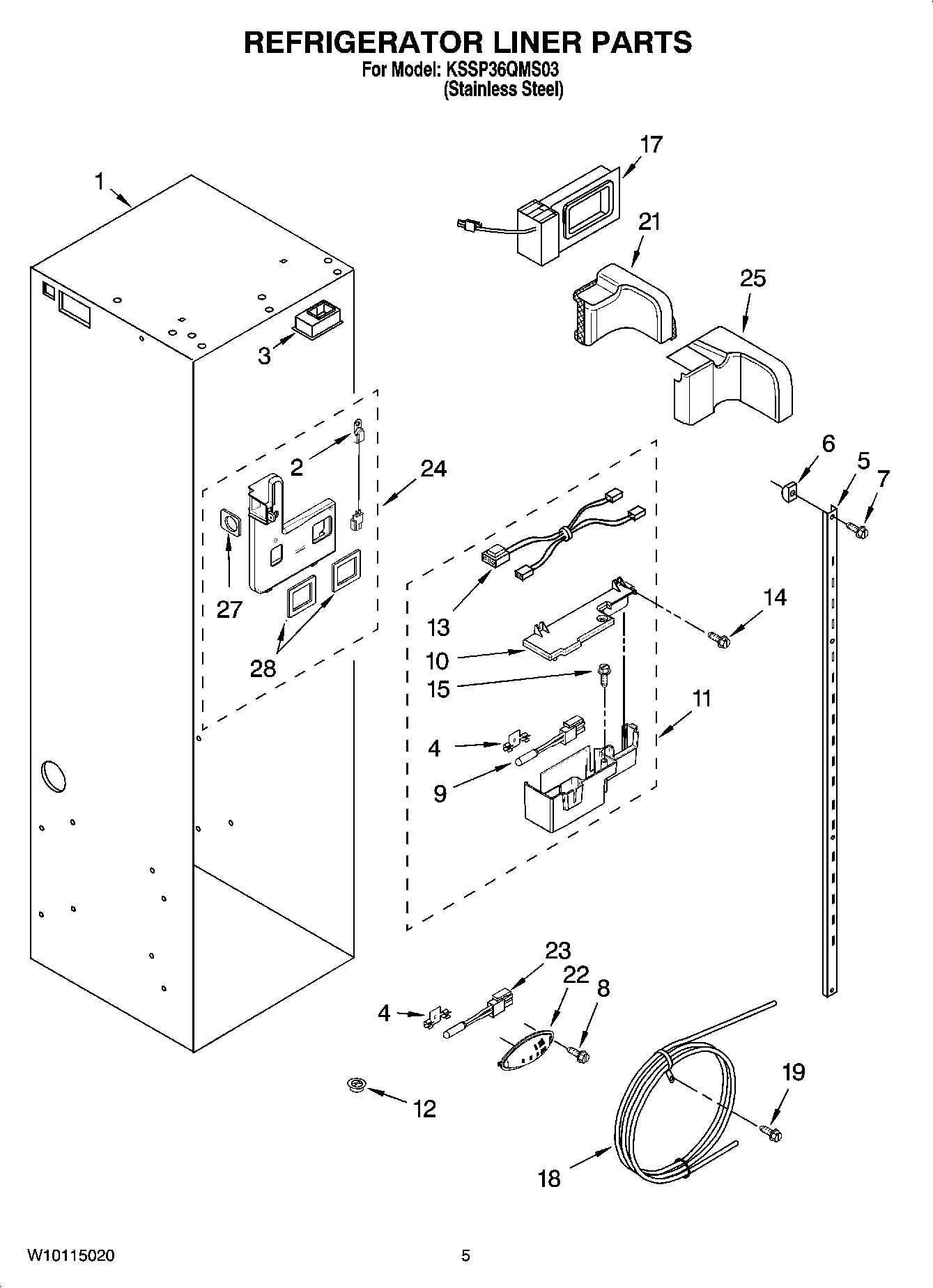

04 - REFRIGERATOR LINER PARTS

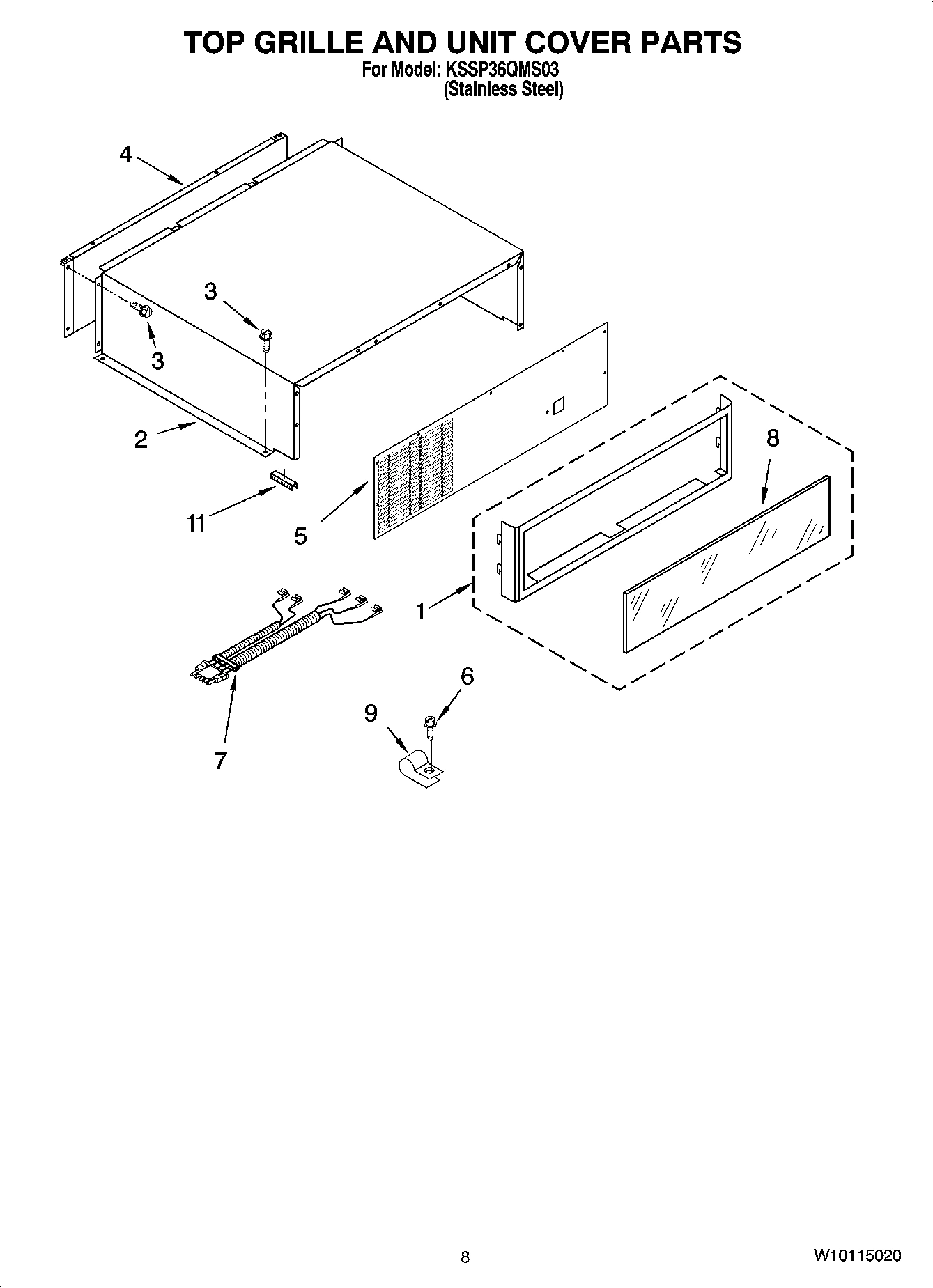

06 - TOP GRILLE AND UNIT COVER PARTS

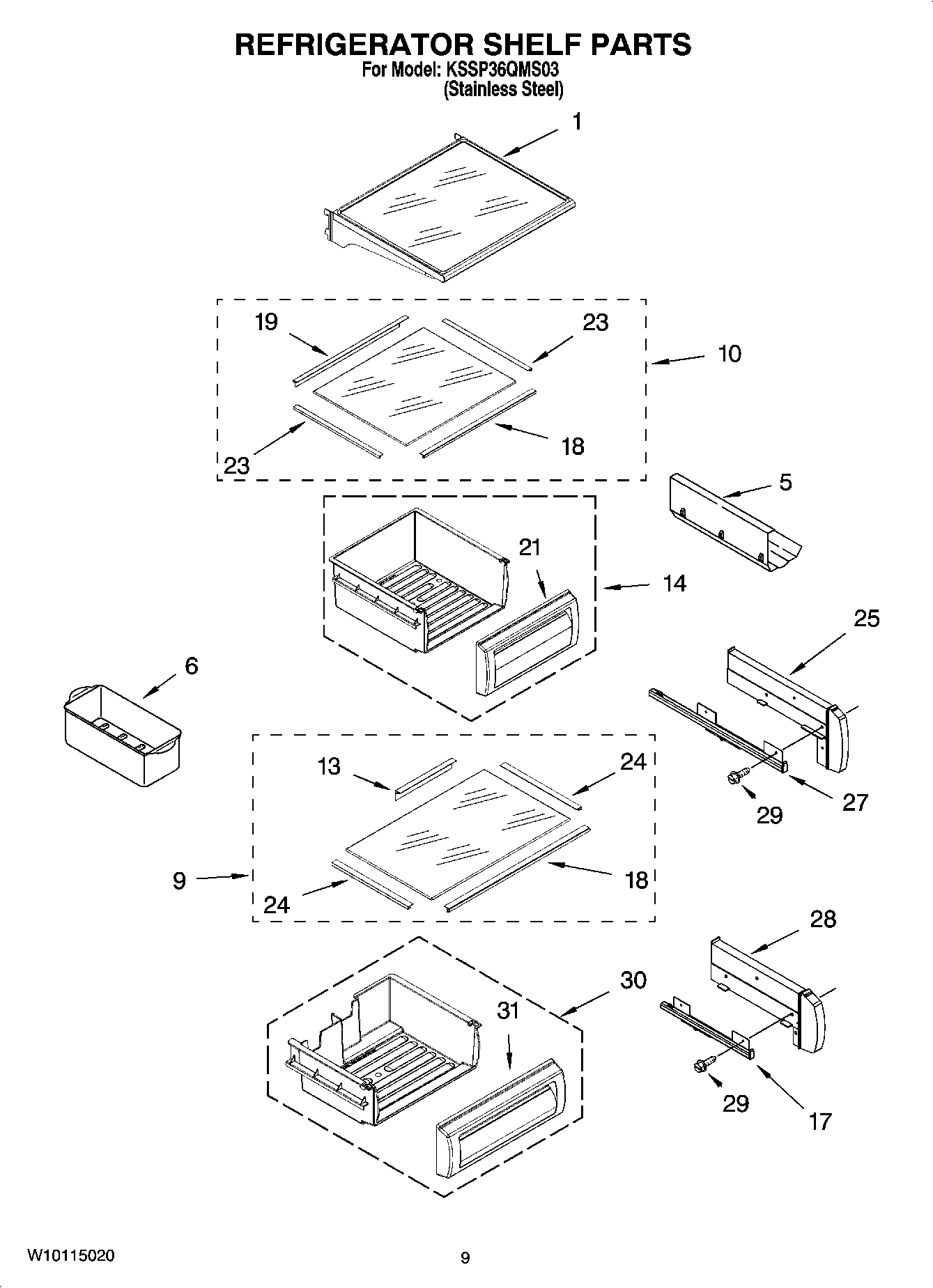

07 - REFRIGERATOR SHELF PARTS

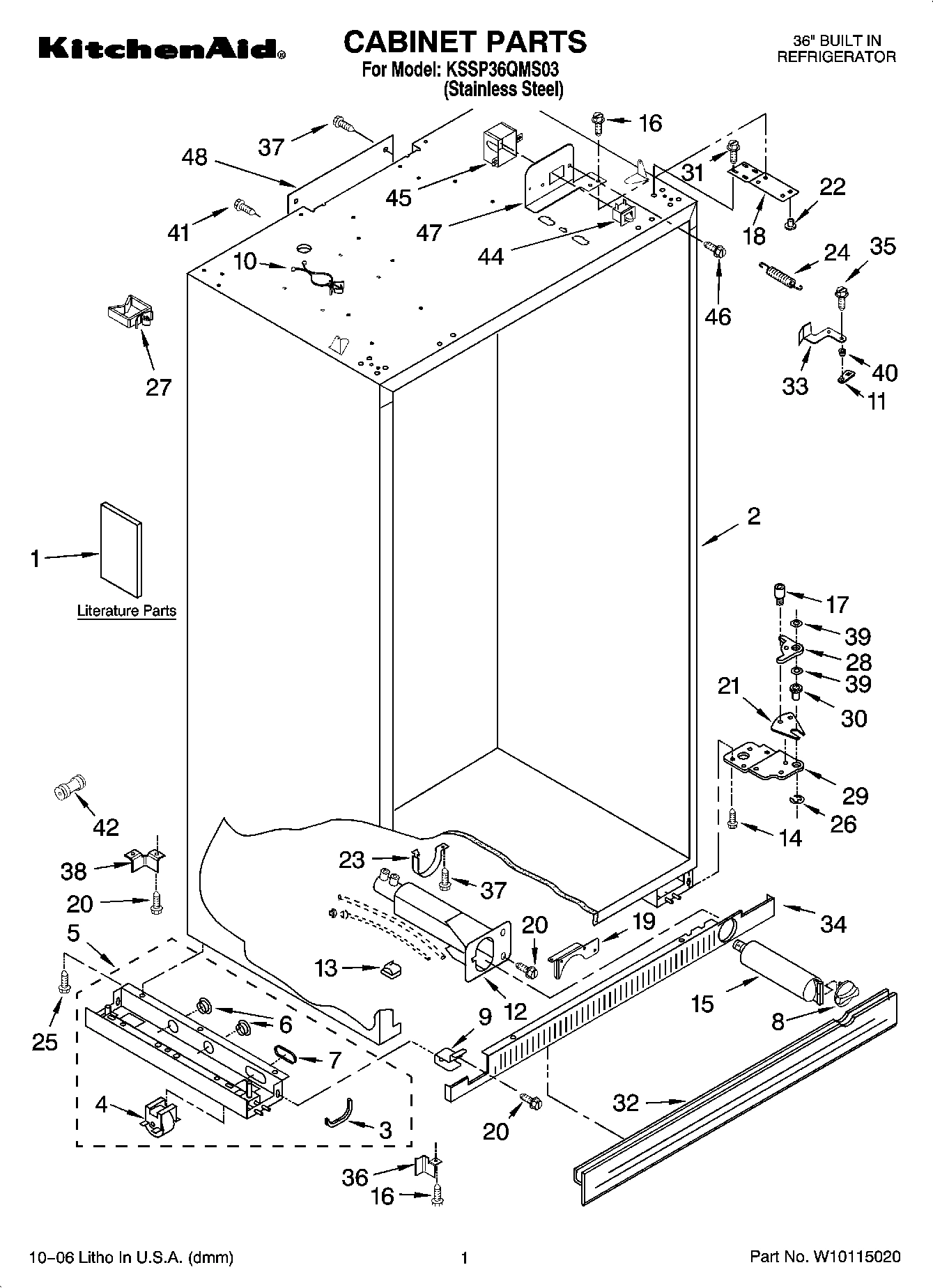

01 - CABINET PARTS
Common parts from model Whirlpool KSSP36QMS03 36`` BUILT IN REFRIGERATOR
1
Cabinet Trim, Right Side (Stainless Steel) WPL 2222552S Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI106192A Contact Us For Availability
1
Top Grille Assembly (Stainless Steel) WPL 2257401S Contact Us For Availability
1
Shelf Assembly WPL 2222591 Contact Us For Availability
1
Main Control Service Sheet WPL 2302865 Contact Us For Availability
1
Icemaker and Ingredient Care Center Service S WPL 2306424 Contact Us For Availability
1
Energy Label WPL 2307357 Contact Us For Availability
1
Installation Instructions WPL 2309069 Contact Us For Availability
1
Use & Care Guide WPL 2320531 Contact Us For Availability
1
Service & Wiring Sheet WPL 2320627 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Cabinet, (Not A Serviceable Part) WPL ARI106191A Contact Us For Availability
3
Grommet, Crossover Tube WPL 2005004 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
5
Cover-Unit, Front WPL 2320678 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Tube, Filter Inlet WPL 2320654 Contact Us For Availability
6
Cabinet, Trim Top WPL 2313991 Contact Us For Availability
6
Egg Bin WPL 2221071 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2320658 Contact Us For Availability
7
Cabinet Trim, Left Side (Stainless Steel) WPL 2222553S Contact Us For Availability
7
WIRE ASSEMBLY RC/FC LIGHT SWITCH WPL 2310194 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Panel, Decorative Insert (Stainless Steel) WPL 2220944 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability
9
Mounting Stud, Grill WPL 2006442 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307651 Contact Us For Availability
10
Cover, Wiring WPL 2316683 Contact Us For Availability
10
Crisper Cover Assembly WPL 2302834 Contact Us For Availability
10
Clamp, Tube WPL 2320650 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Cover, Box WPL 2316684 Contact Us For Availability
12
Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
13
Trim, Glass Rear WPL 2257581 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Screw WPL 488357 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
17
Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
18
Trim (Side) (Stainless Steel) WPL 2005969 Contact Us For Availability
18
RESERVOIR WPL 2320660 Contact Us For Availability
18
Trim, Glass Front (Not Serviceable) WPL ARI106193A Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Screw WPL 488280 Contact Us For Availability
19
Trim, Glass Rear WPL 2256253 Contact Us For Availability
19
Bracket, Mtg (Water Filter) WPL 2307582 Contact Us For Availability
20
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
23
TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability
23
Clamp, Filter Housing WPL 2209090 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Trim (Side) (Stainless Steel) WPL 2005964 Contact Us For Availability
25
Front Cover Assembly (Includes Items 4,11,24 WPL 2309379B Contact Us For Availability
27
Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability
27
Wire clip (5) WPL 2320677 Contact Us For Availability
28
Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability
29
Valve, Anti-Drip WPL 2320669 Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
34
Grille Bottom, Front (Black) WPL 2209425B Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2310217 Contact Us For Availability
× ![]()
