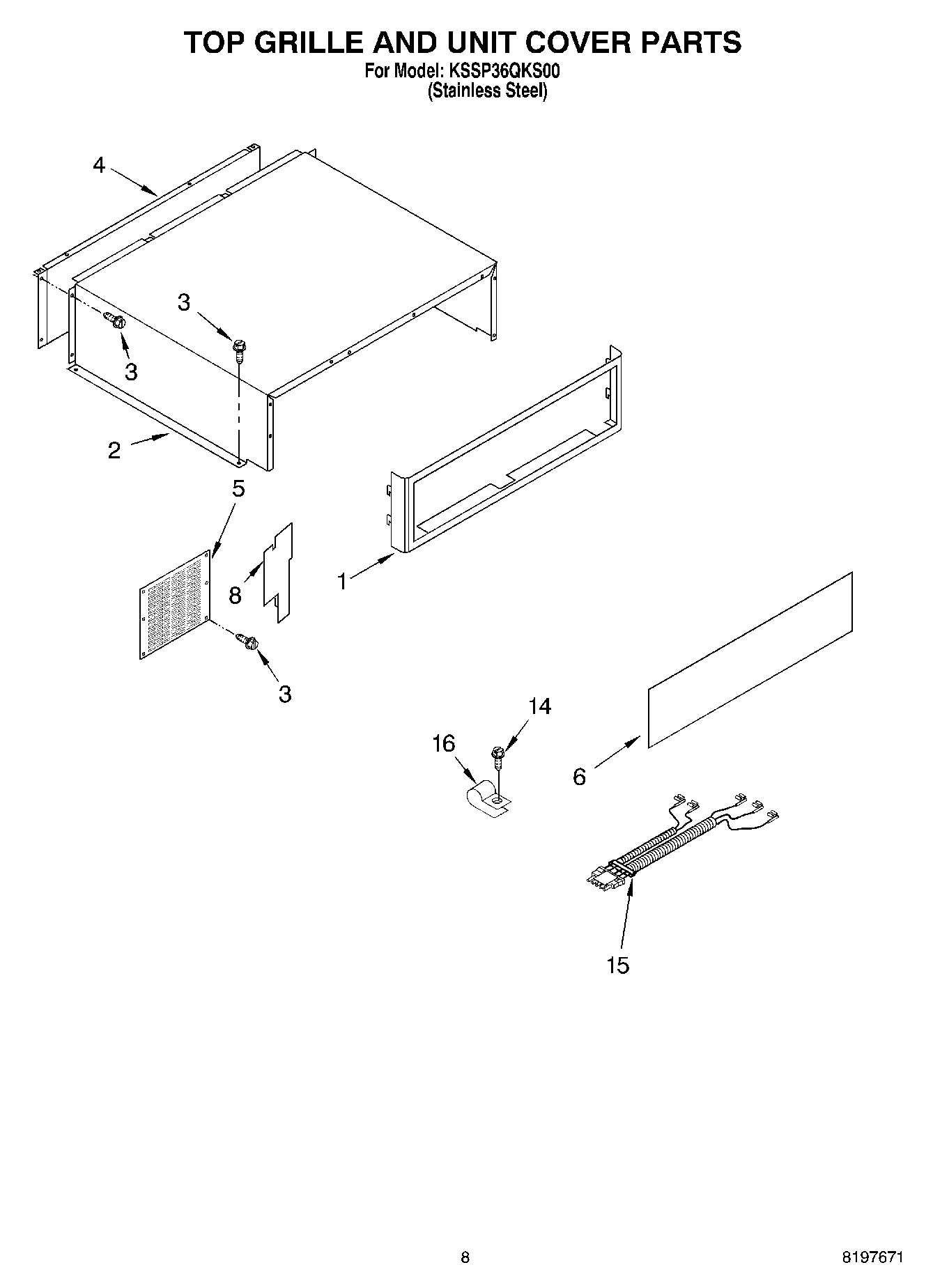

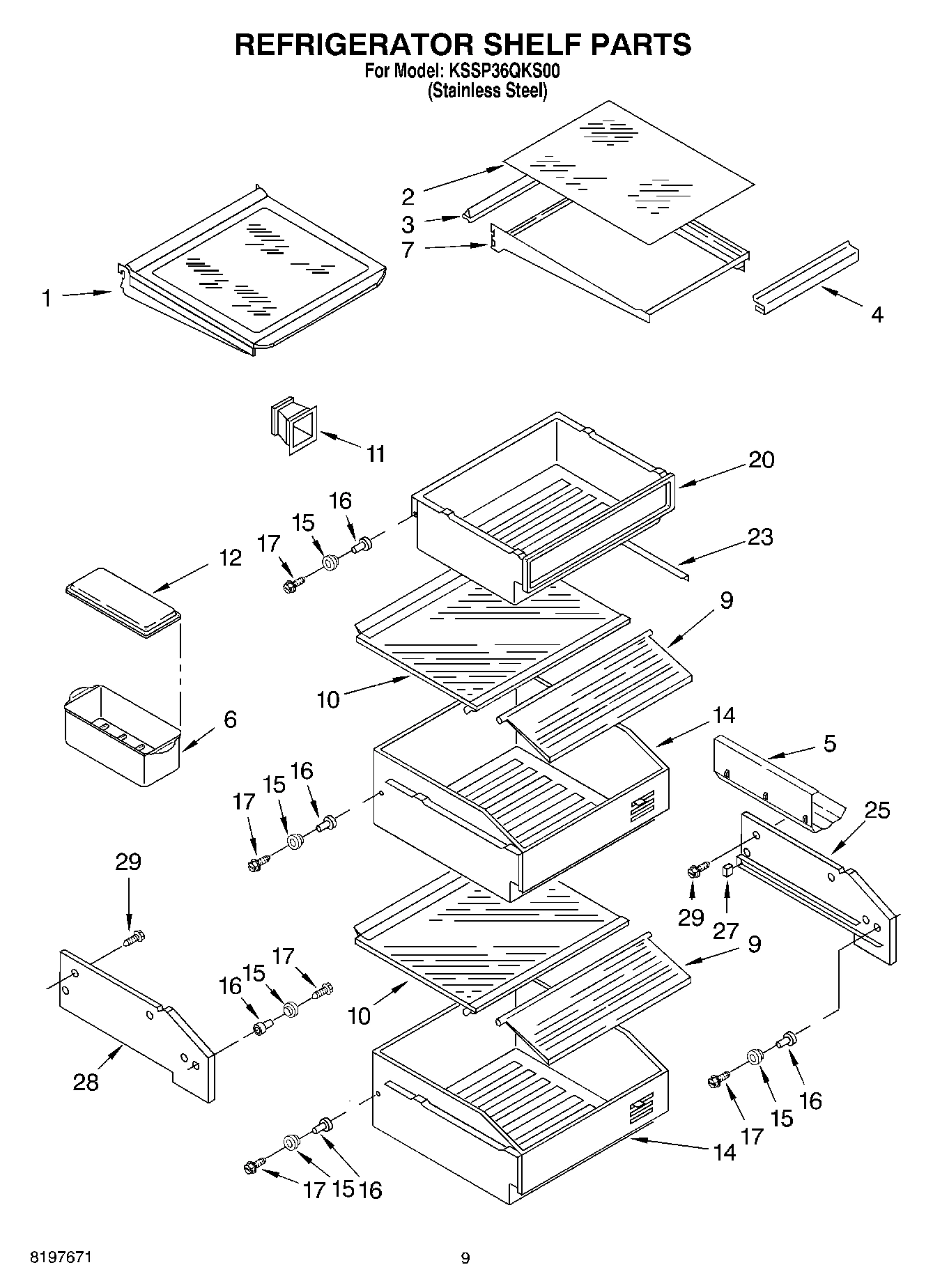

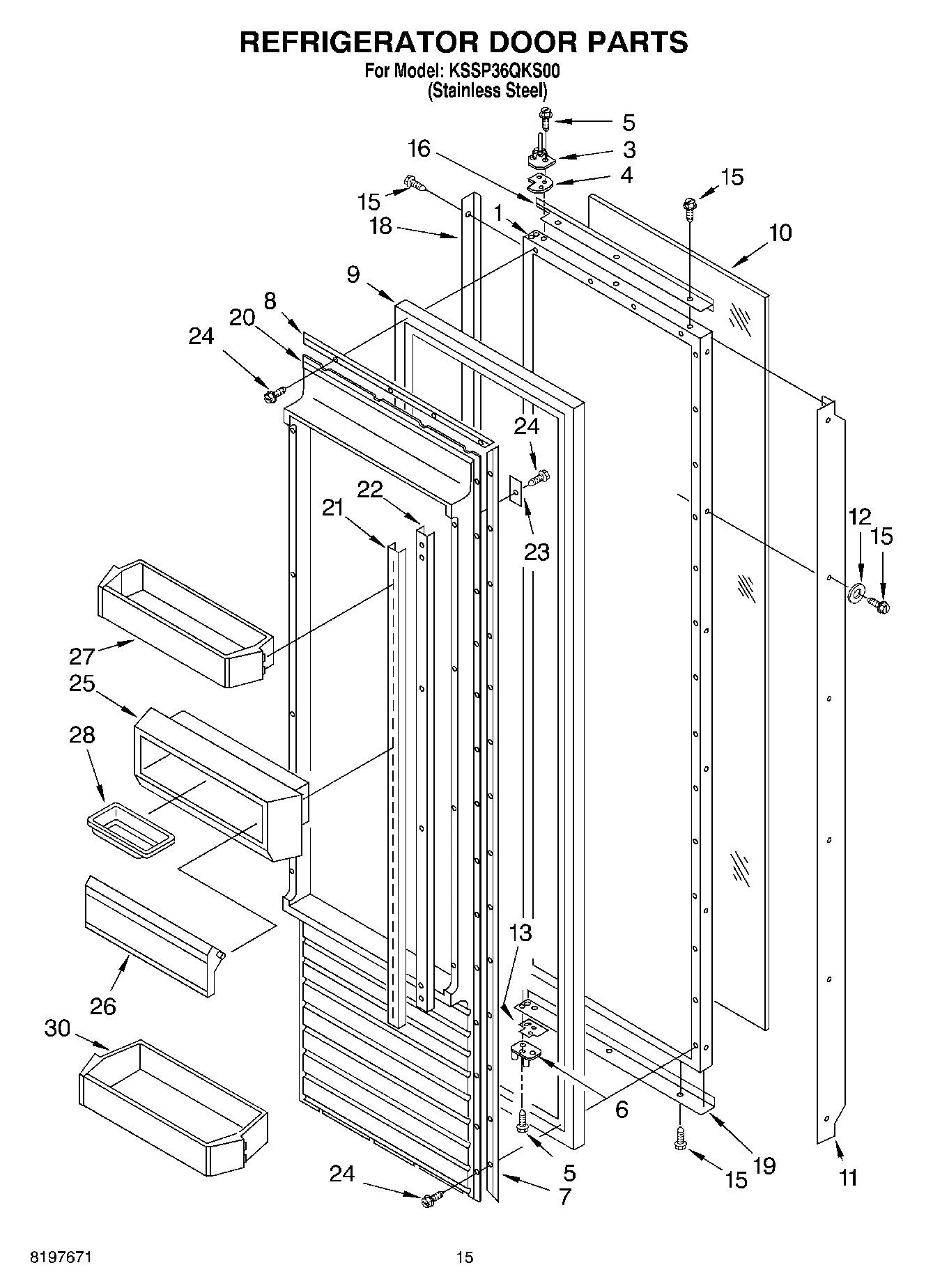

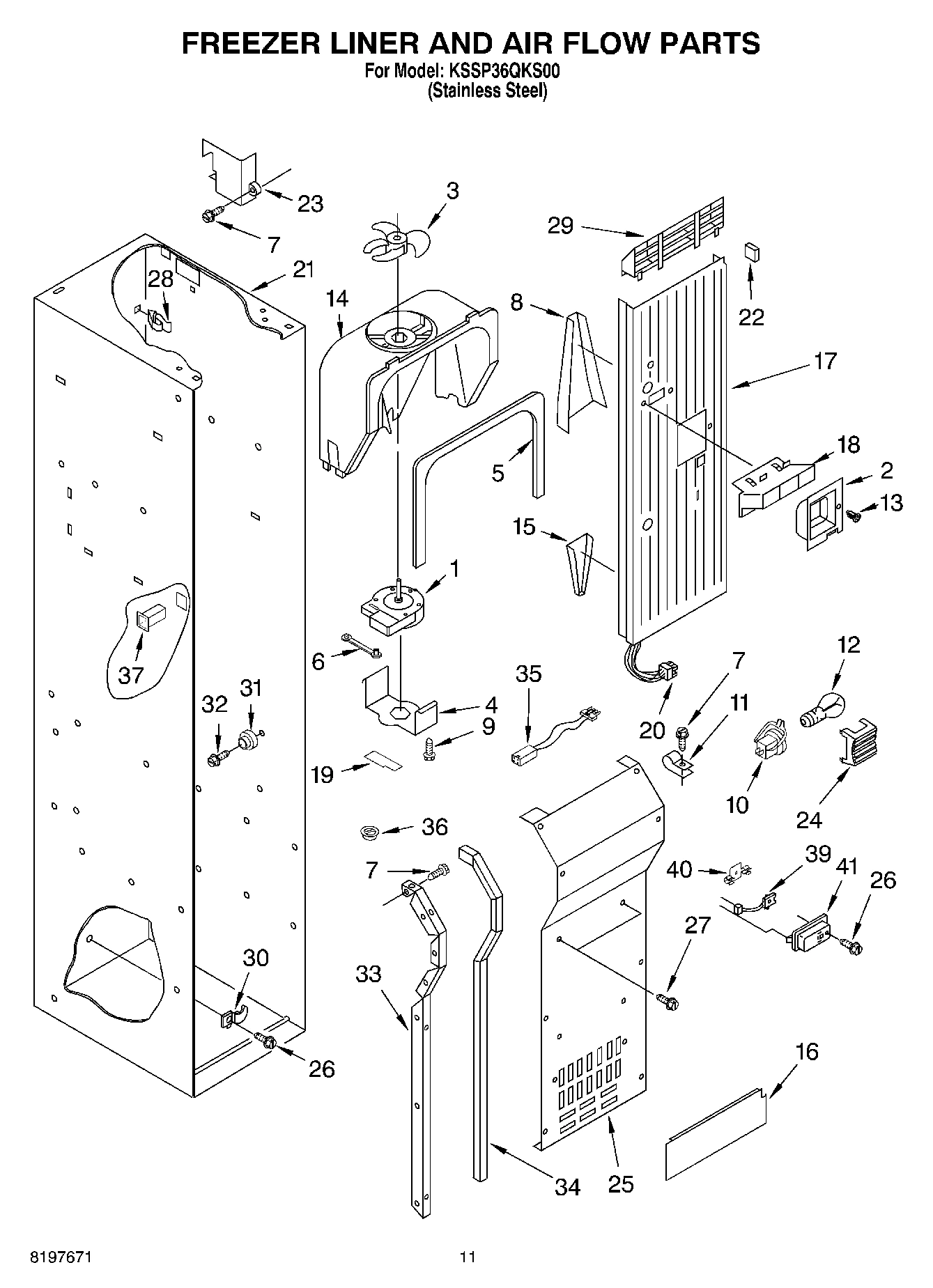

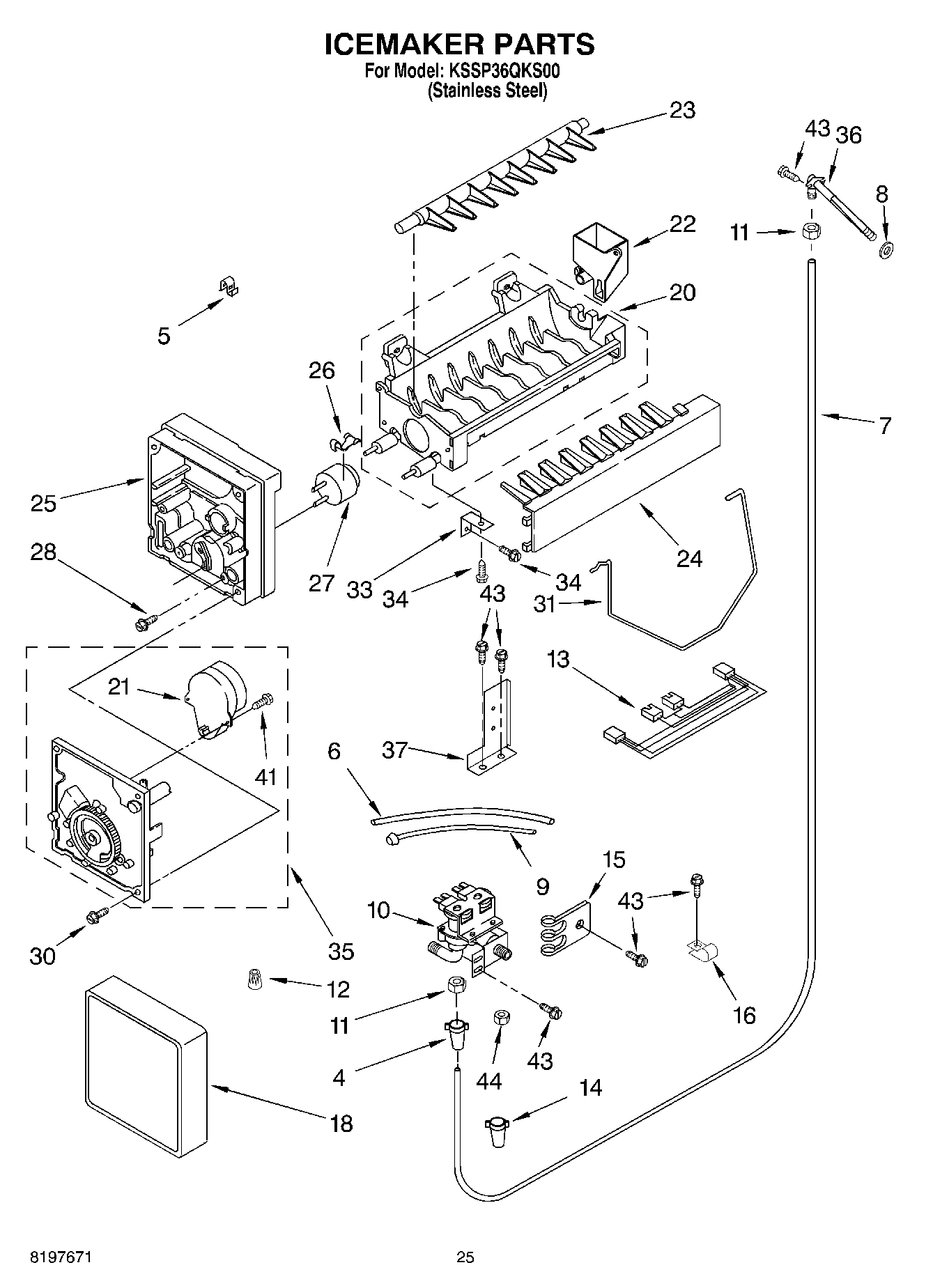

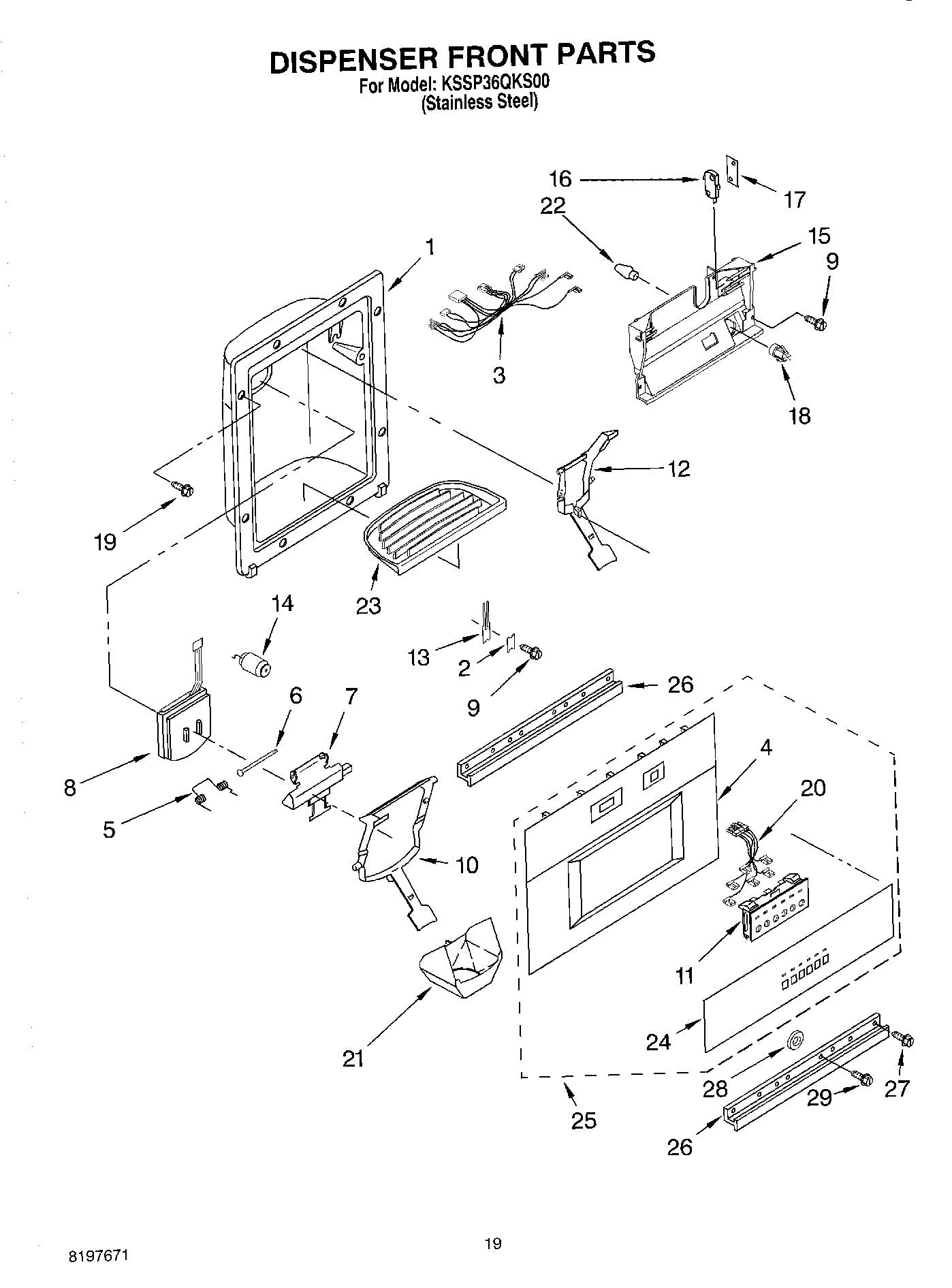

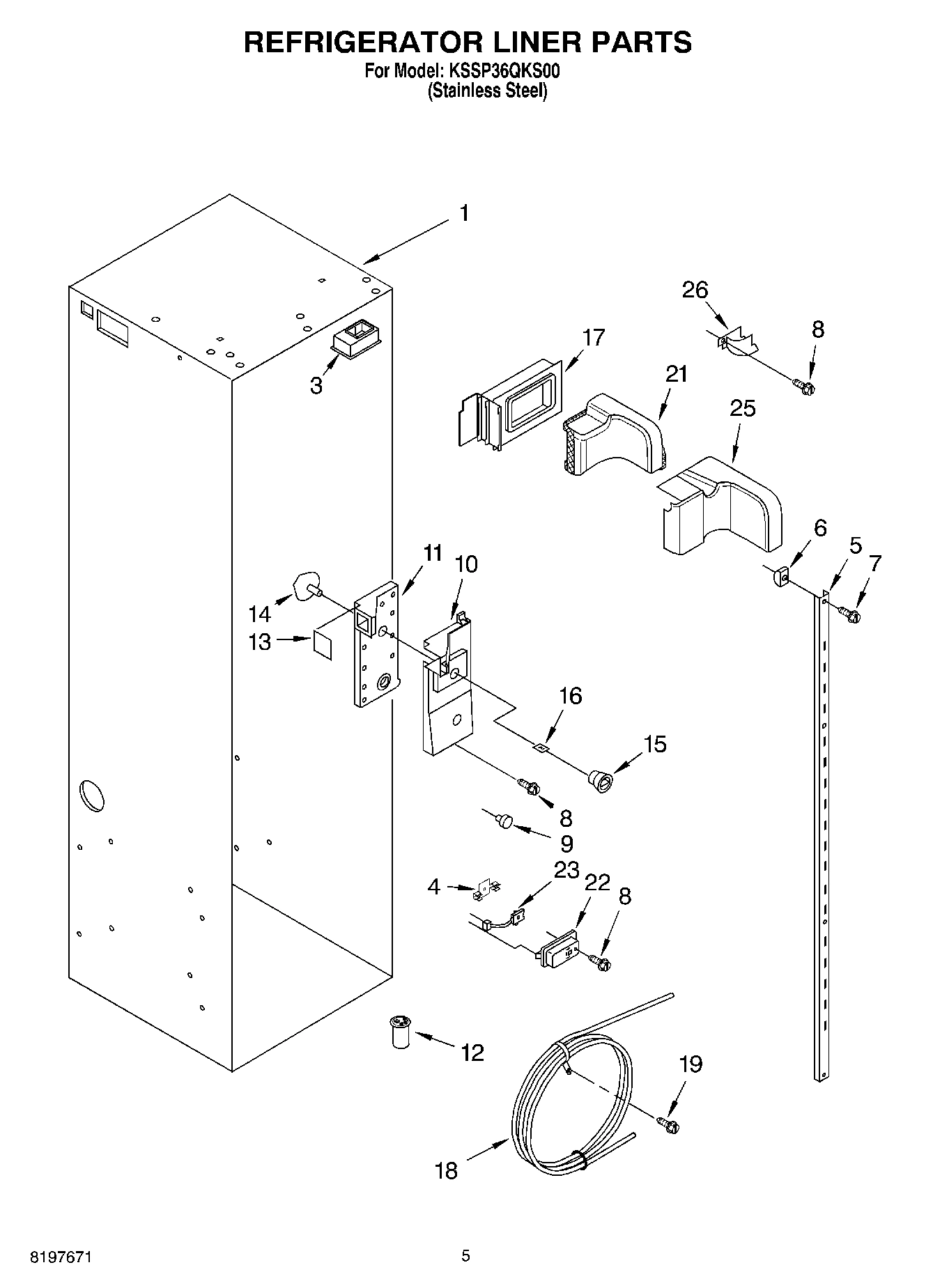

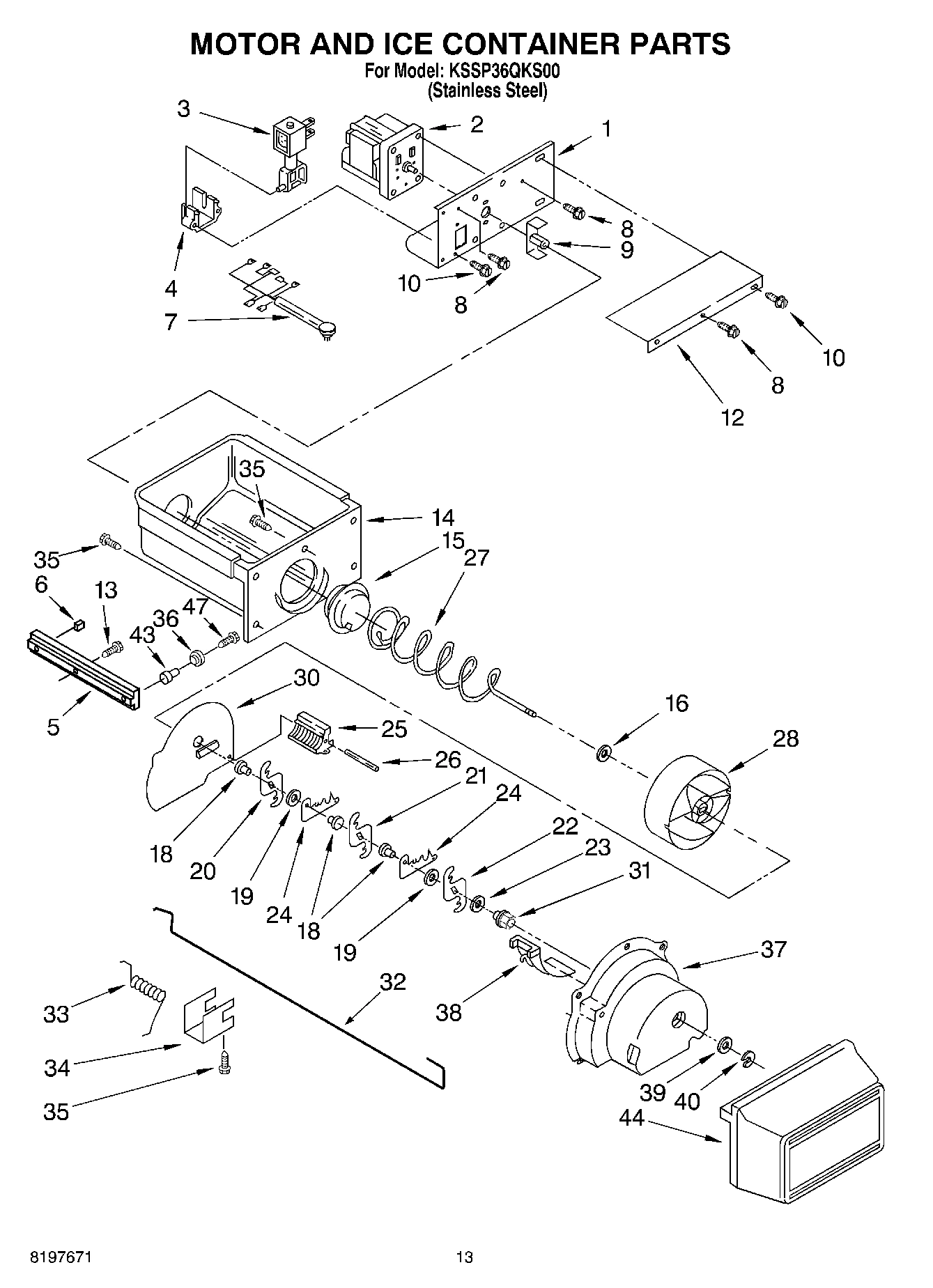

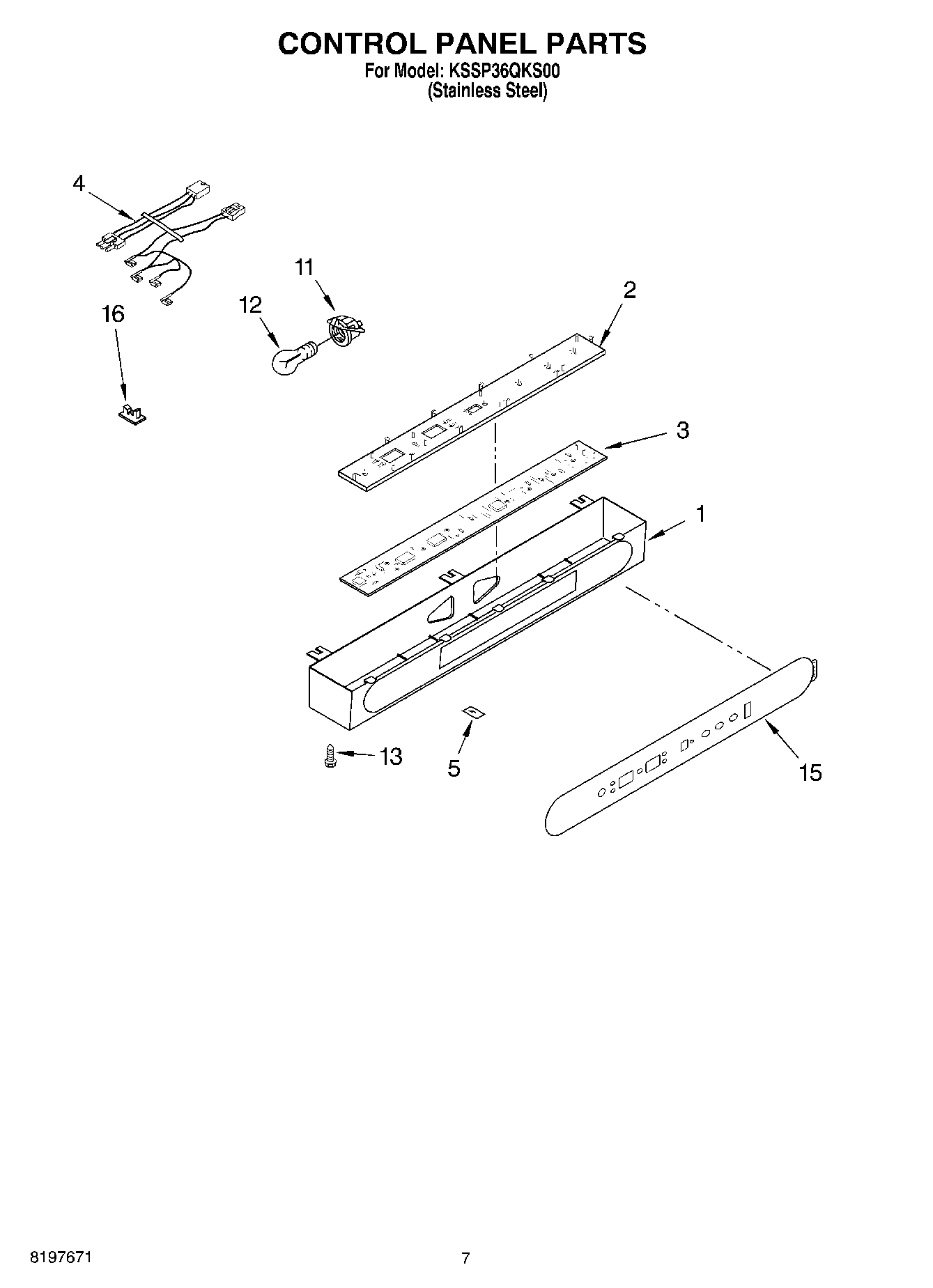

Model Whirlpool KSSP36QKS00 BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

1

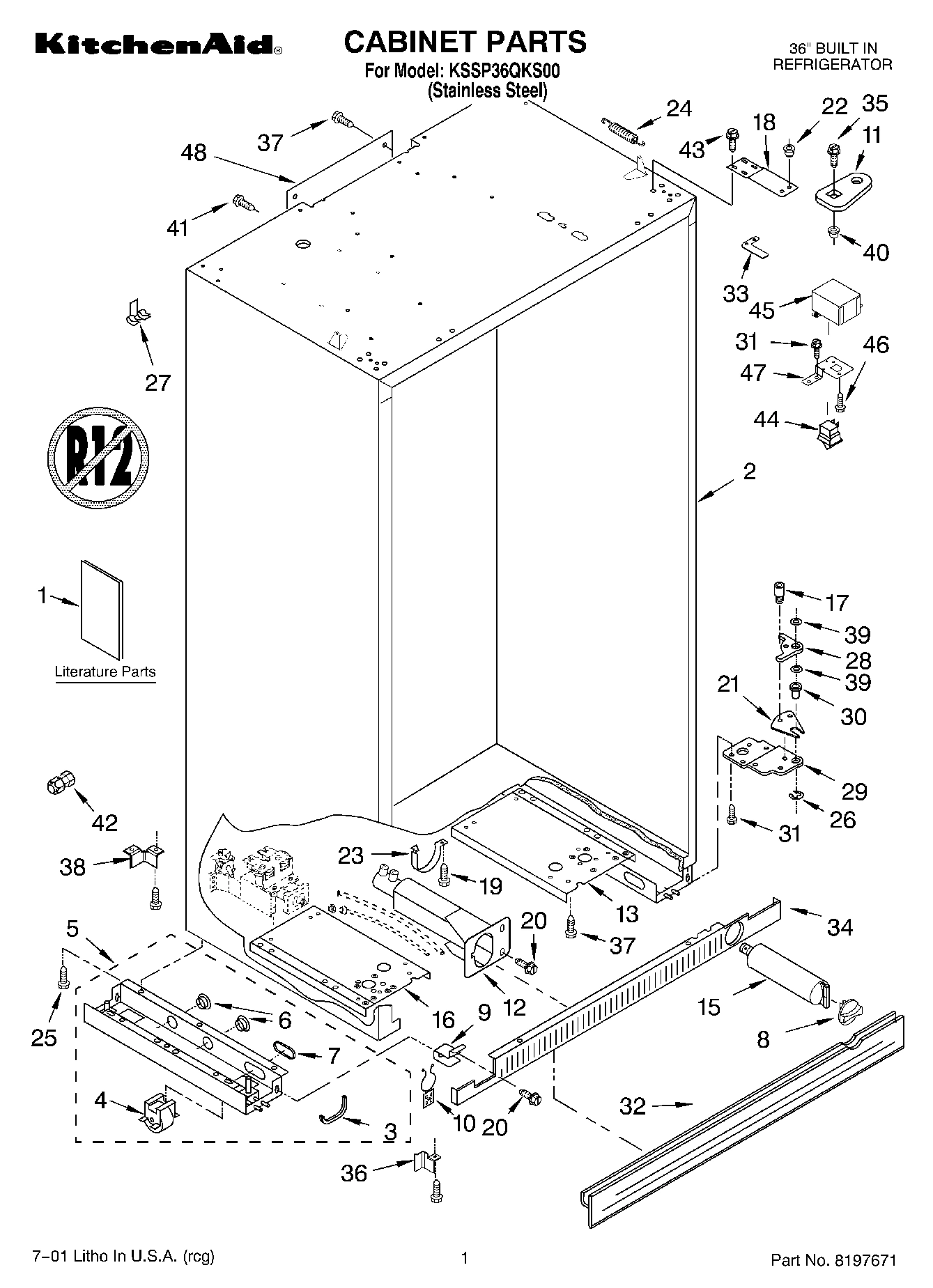

Literature Parts (Use & Care Guide) WPL LIT2215850 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2221021 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2221082 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI106127A Contact Us For Availability

1

Bracket, Motor WPL 2003939 Contact Us For Availability

1

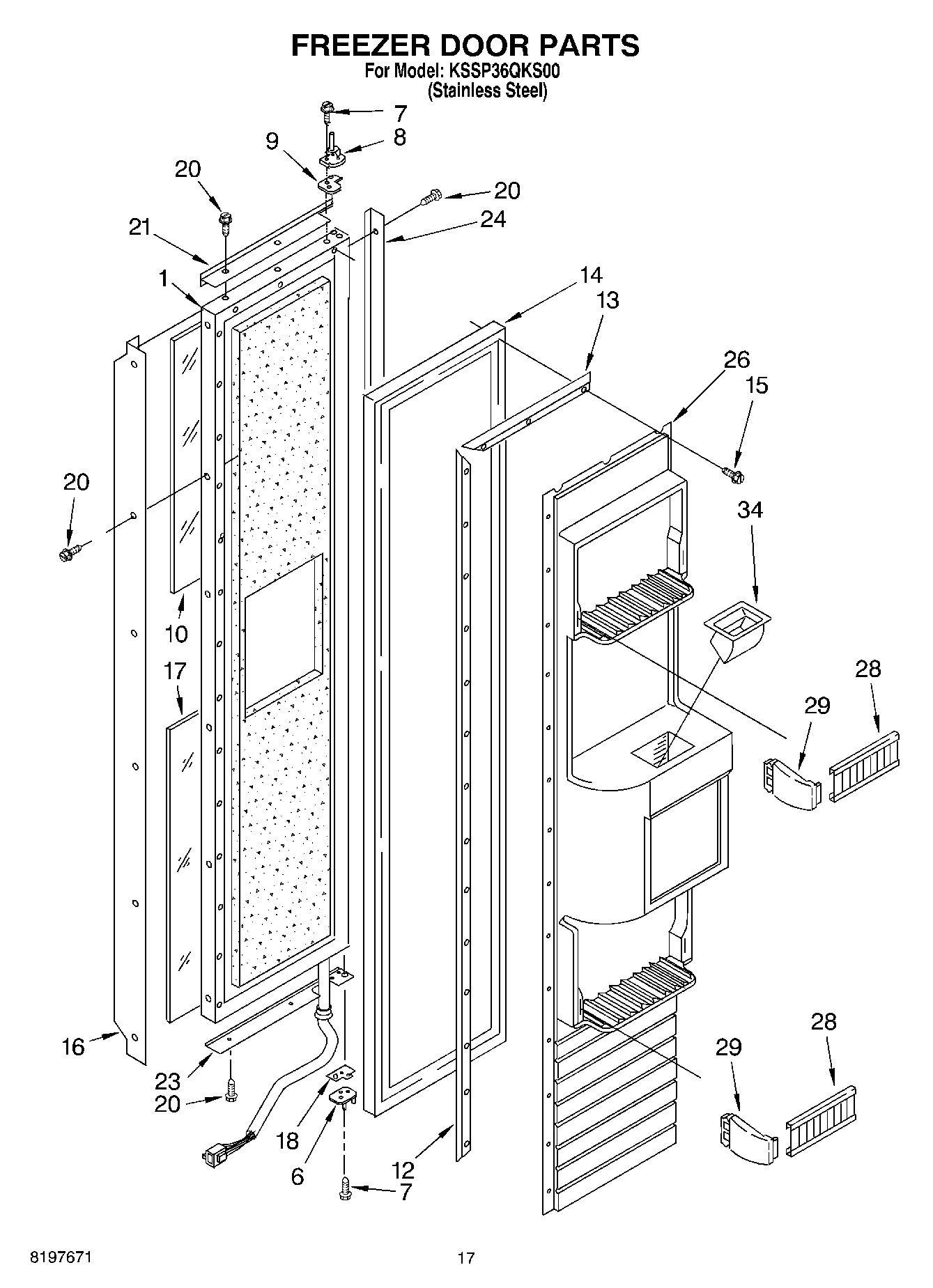

Freezer Door Panel (Includes Insulation and D WPL 2215657B Contact Us For Availability

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

Cabinet (Not A Serviceable Part) WPL ARI106126A Contact Us For Availability

2

Cup, Clearance WPL 2002732 Contact Us For Availability

2

Wire Harness WPL 2209119 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Grommet, Tube Crossover WPL 2005004 Contact Us For Availability

3

Soleniod Assembly WPL 2003979 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $15.79

4

Bracket WPL 2215508 Contact Us For Availability

5

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Ladder, Shelf (2) WPL 2208975 Contact Us For Availability

5

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

5

Side Support WPL 2209067 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $49.98

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

Stop, Roller WPL 1113169 Contact Us For Availability

6

Grommet, Wiring WPL 2005006 Contact Us For Availability

6

Hinge, Bottom WPL 2220810 Contact Us For Availability

6

Tube, Filter Inlet WPL 2214613 Contact Us For Availability

6

Suction Tube WPL 2209035 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Grommet, Flexible WPL 2005007 Contact Us For Availability

7

Screw WPL 488357 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2209120 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Hinge, Top WPL 2220922 Contact Us For Availability

8

Deflector, Air Duct WPL 2003924 Contact Us For Availability

8

Tube, Connect (Drier) WPL 2209454 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Heater, Drain Pan WPL 2209451 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Mounting Stud, Grill WPL 2006442 Contact Us For Availability

9

Hole Plug WPL 1112257 Contact Us For Availability

9

Spacer-Door, Top WPL 2004520 Contact Us For Availability

9

Tube, Filter Outlet WPL 2209430 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

Clip, Wire WPL 2005237 Contact Us For Availability

Meat Pan, Air Duct Cover WPL 2220888 Contact Us For Availability

Panel, Decorative Upper WPL 2209355 Contact Us For Availability

Valve, Solenoid WPL 2006766 Contact Us For Availability

Hanger, Heater WPL 2209450 Contact Us For Availability

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Cam, Door Closer WPL 2005783 Contact Us For Availability

Meat Pan, Air Duct WPL 2000337 Contact Us For Availability

Shield, Drain Pan WPL 2005908 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

Release Valve WPL 2220993 Contact Us For Availability

Cover, Motor WPL 1113128 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1112533 Contact Us For Availability

Connector Wire WPL 227991 Contact Us For Availability

Sleeve WPL 2002448 Contact Us For Availability

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Support, Bottom (Right Side) WPL 2006806 Contact Us For Availability

Seal, Air Duct WPL 2001326 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1112538 Contact Us For Availability

Fastner WPL 1112871 Contact Us For Availability

Water Valve, Harness WPL 2209072 Contact Us For Availability

Tube, Discharge WPL 2209036 Contact Us For Availability

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

Damper Control, Meat Pan WPL 1112218 Contact Us For Availability

Ice Container WPL 2208906 Contact Us For Availability

Door Gasket, Magnetic WPL 2188495 Contact Us For Availability

Insert, Tube WPL 1129177 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Control Knob, Meat Pan WPL 2003811 Contact Us For Availability

Deflector, Air Duct WPL 2003927 Contact Us For Availability

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $31.71

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2306092 Whirlpool Refrigerator Evaporator In Stock WPL WP2306092 $174.42

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

Support, Bottom (Left Side) WPL 2006807 Contact Us For Availability

Retainer, Knob WPL 2003841 Contact Us For Availability

Handle, Door WPL 2005944 Contact Us For Availability

Clamp, Tube WPL 488937 Contact Us For Availability

WP2005378 Whirlpool Refrigerator Screw Backorder WPL WP2005378 $4.58

Insulation, Switch WPL 625834 Contact Us For Availability

Air Baffle Assembly WPL 2208904 Contact Us For Availability

Panel, Decorative Lower WPL 2209352 Contact Us For Availability

Assembly, Air Duct WPL 2209331 Contact Us For Availability

Heater, Defrost WPL 2006749 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Trim (Side) WPL 2005969 Contact Us For Availability

Door, Spacer WPL 2004549 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

8201798 Whirlpool Refrigerator Fan Block Backorder WPL 8201798 $79.73

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Screw WPL 487522 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Harness, Wire WPL 2209318 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Diffuser Assembly WPL 2208997 Contact Us For Availability

Trim (Top) WPL 2005025 Contact Us For Availability

Liner (Not A Serviceable Part) WPL ARI106128A Contact Us For Availability

W10169509 Whirlpool Refrigerator Clip Backorder WPL W10169509 $28.80

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2002903 Contact Us For Availability

Gasket, Air Baffle WPL 1112869 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $165.56

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Cover, Air Outlet WPL 2215718 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

Clamp, Filter Housing WPL 2209090 Contact Us For Availability

Trim (Bottom) WPL 2209420S Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Blade, Fan WPL 2190685 Contact Us For Availability

Trim (Side) WPL 2005964 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Light Shield (2) WPL 2198589 Contact Us For Availability

Grommet, Water Tube WPL 2209444 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP2001264 Whirlpool Refrigerator Drip Pan In Stock WPL WP2001264 $88.94

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Crisper Spacer, Right Side (2) WPL 2006515 Contact Us For Availability

Orifice, Fan WPL 2003169 Contact Us For Availability

Cover, Evaporator WPL 2208990 Contact Us For Availability

2003577 Whirlpool Refrigerator Guard Backorder WPL 2003577 $8.31

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

Panel, Interior Door WPL 2209027 Contact Us For Availability

Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability

Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Fastener (3) WPL 1113227 Contact Us For Availability

Conveyor WPL 2160602 Contact Us For Availability

Cement Alumilastic) WPL 542639 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

Crisper Spacer, Left Side (2) WPL 2006516 Contact Us For Availability

Gap, Cover Assembly (Bottom) WPL 2006342 Contact Us For Availability

Shelf Bin WPL 2209163 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Trim, End Cap (Right Side) WPL 2209134 Contact Us For Availability

Trim, Endcap (Left Side) WPL 2208954 Contact Us For Availability

Diffuser, Air Duct WPL 1112851 Contact Us For Availability

1112260 Whirlpool EV Support Backorder WPL 1112260 $4.58

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

Sleeve, Condenser WPL 2000645 Contact Us For Availability

Control Arm WPL 2002728 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

Arm, Extension WPL 8201584 Contact Us For Availability

Evaporator, Cover Rail (Left Side) WPL 2208979 Contact Us For Availability

Evaporator, Cover Rail (Right Side) WPL 2208980 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Grille Bottom, Front WPL 2209425B Contact Us For Availability

Ice Chute WPL 2208909 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

Screw WPL 2005921 Contact Us For Availability

35

Wire, Jumper WPL 2221077 Contact Us For Availability

2006556 Whirlpool Refrigerator Bracket Backorder WPL 2006556 $12.50

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

Cover, Fan WPL 2209495 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Fitting, Water Tube WPL 2185988 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

Cover, Condenser WPL 2215628 Contact Us For Availability

Tube, Meat Pan WPL 2209220 Contact Us For Availability

Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

Service Cord WPL 2003381 Contact Us For Availability

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

40

Clip, Thermistor WPL 2209204 Contact Us For Availability

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $8.53

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

43

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

43

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $8.82

43

Eyelet, Roller WPL 2174478 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

Clip, Cord Plug WPL 653035 Contact Us For Availability

Front Cover, Ice Container WPL 2002722 Contact Us For Availability

Compresion Nut WPL 1129179 Contact Us For Availability

2215938 Whirlpool Refrigerator Switch Cover Backorder WPL 2215938 $28.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2215944 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

46

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

47

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

47

WPL 2215923 WPL 2215923 Contact Us For Availability

47

WPL 2215937 WPL 2215937 Contact Us For Availability

48

WPL 2209449 WPL 2209449 Contact Us For Availability

99

Complete Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

Complete Ice Container Assembly WPL 2006541 Contact Us For Availability

Front Panel Kit (White) WPL 2220866 Contact Us For Availability

Front Panel Kit (Black) WPL 2220869 Contact Us For Availability

Front Panel Kit (Biscuit) WPL 2220870 Contact Us For Availability

Front Panel Kit (Stainless Steel) WPL 2220875 Contact Us For Availability
