Model Whirlpool KSSO36QMB02 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams
12 - DISPENSER AND FRONT PARTS
13 - UPPER UNIT PARTS
02 - CABINET TRIM PARTS

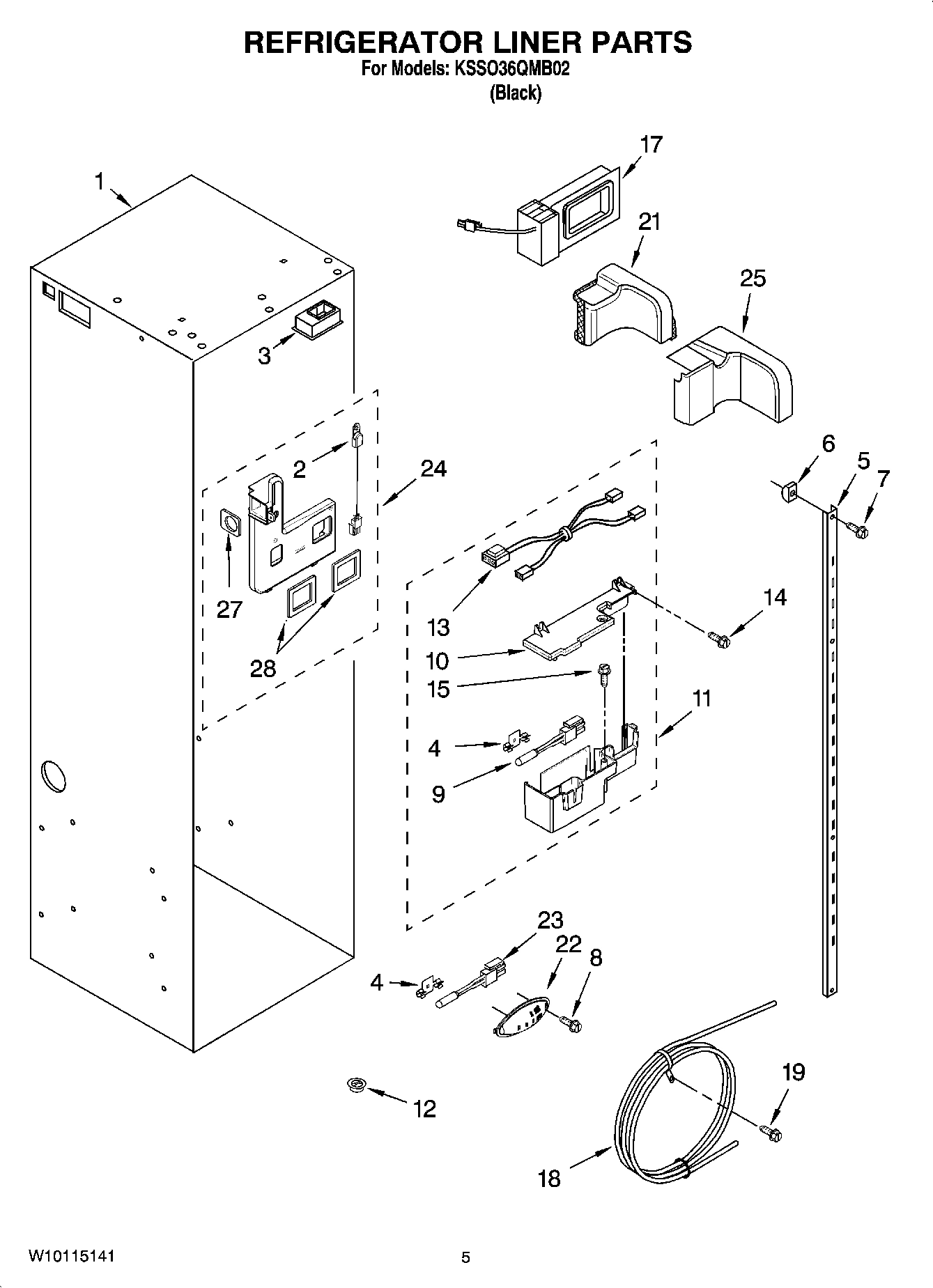

04 - REFRIGERATOR LINER PARTS

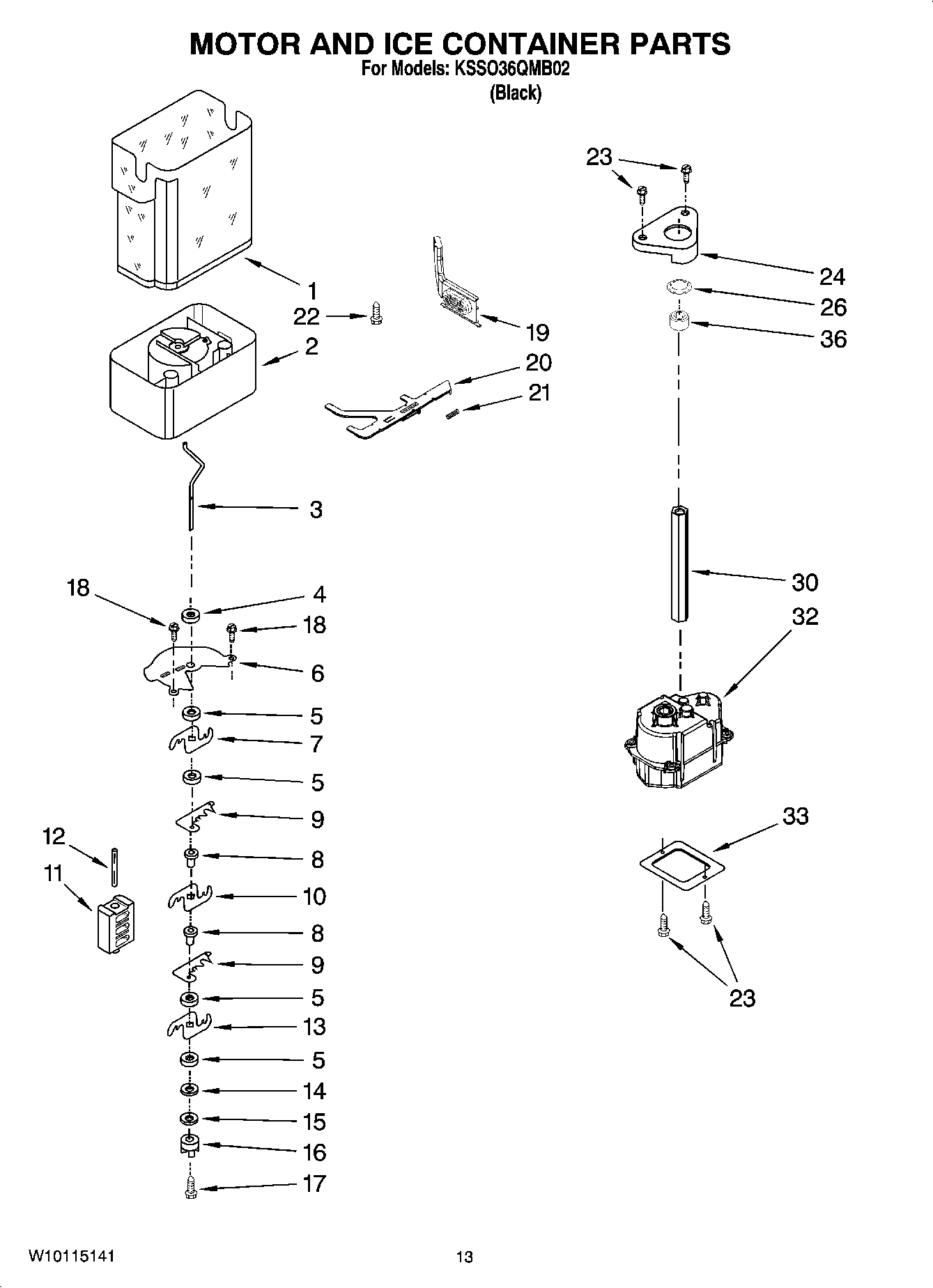

09 - MOTOR AND ICE CONTAINER PARTS

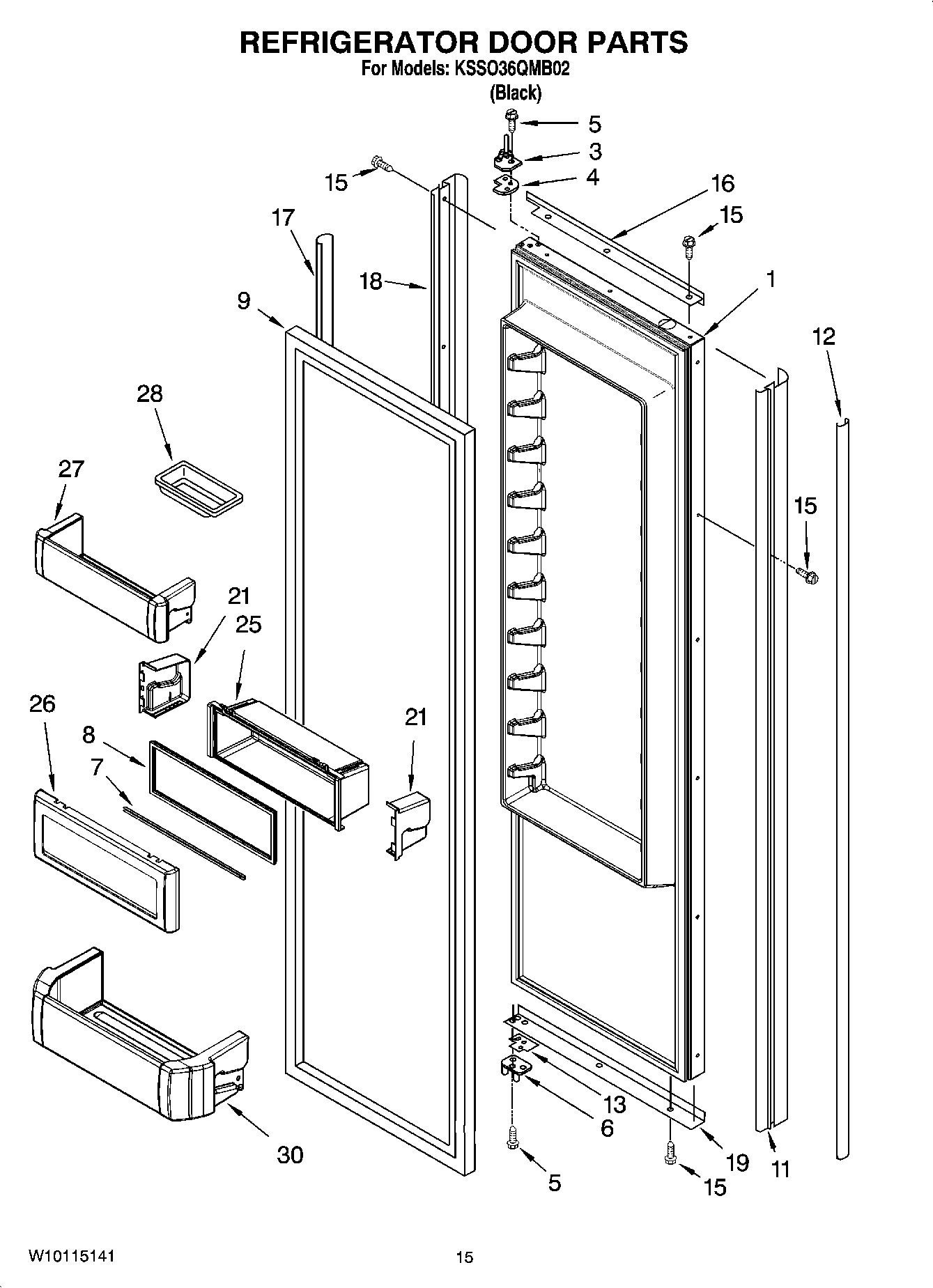

10 - REFRIGERATOR DOOR PARTS

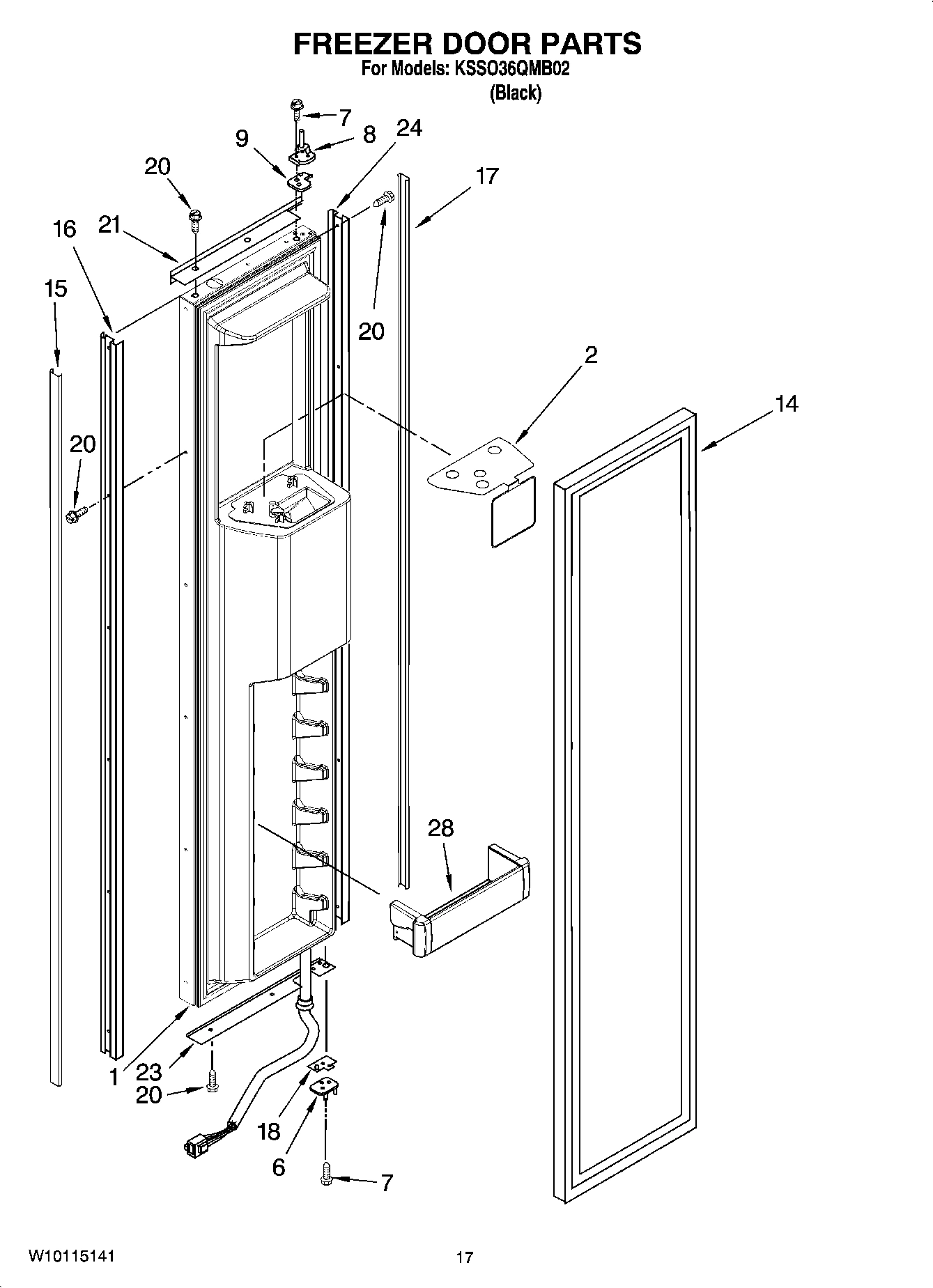

11 - FREEZER DOOR PARTS

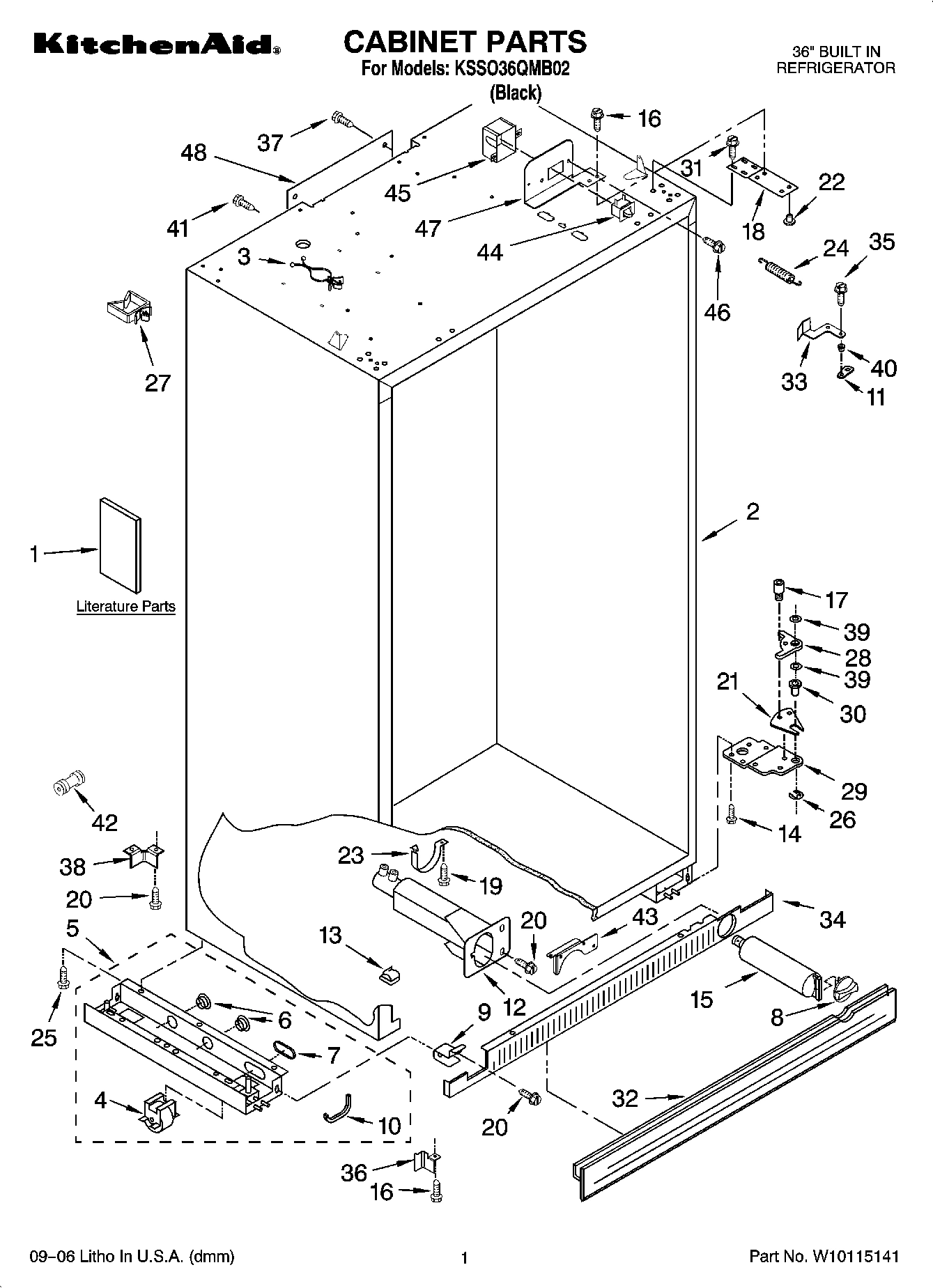

01 - CABINET PARTS
03 - FREEZER SHELF PARTS

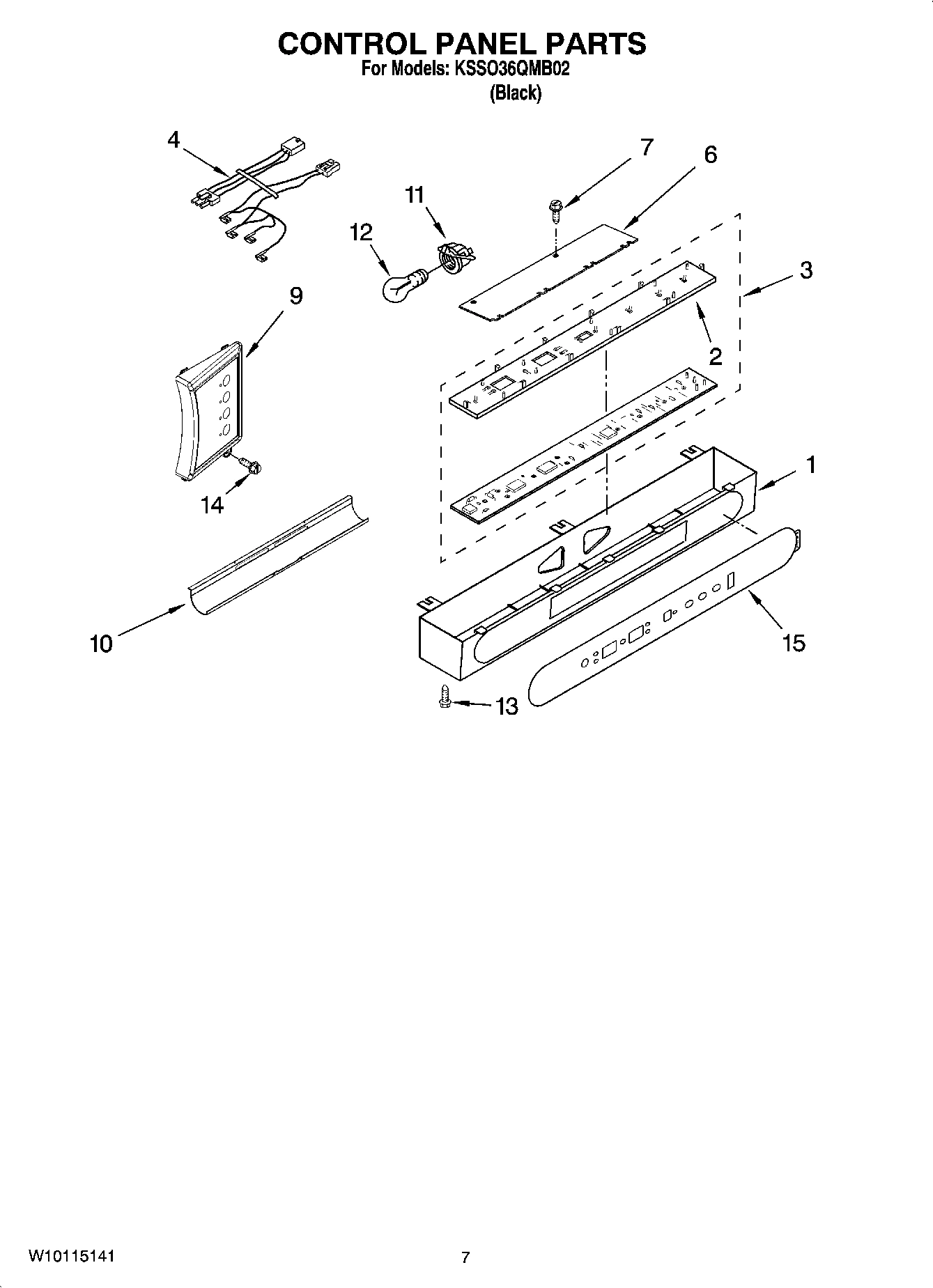

05 - CONTROL PANEL PARTS

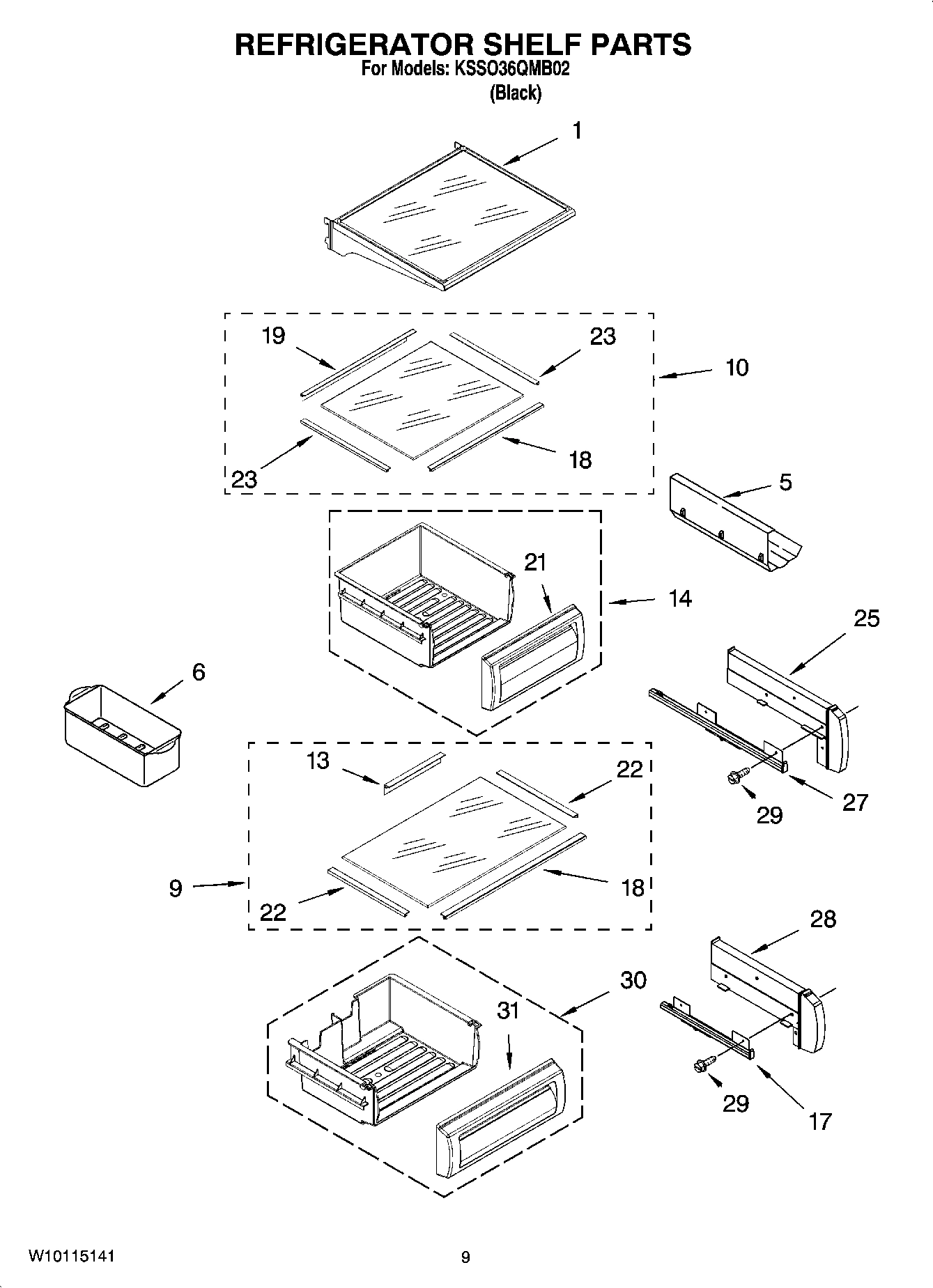

07 - REFRIGERATOR SHELF PARTS

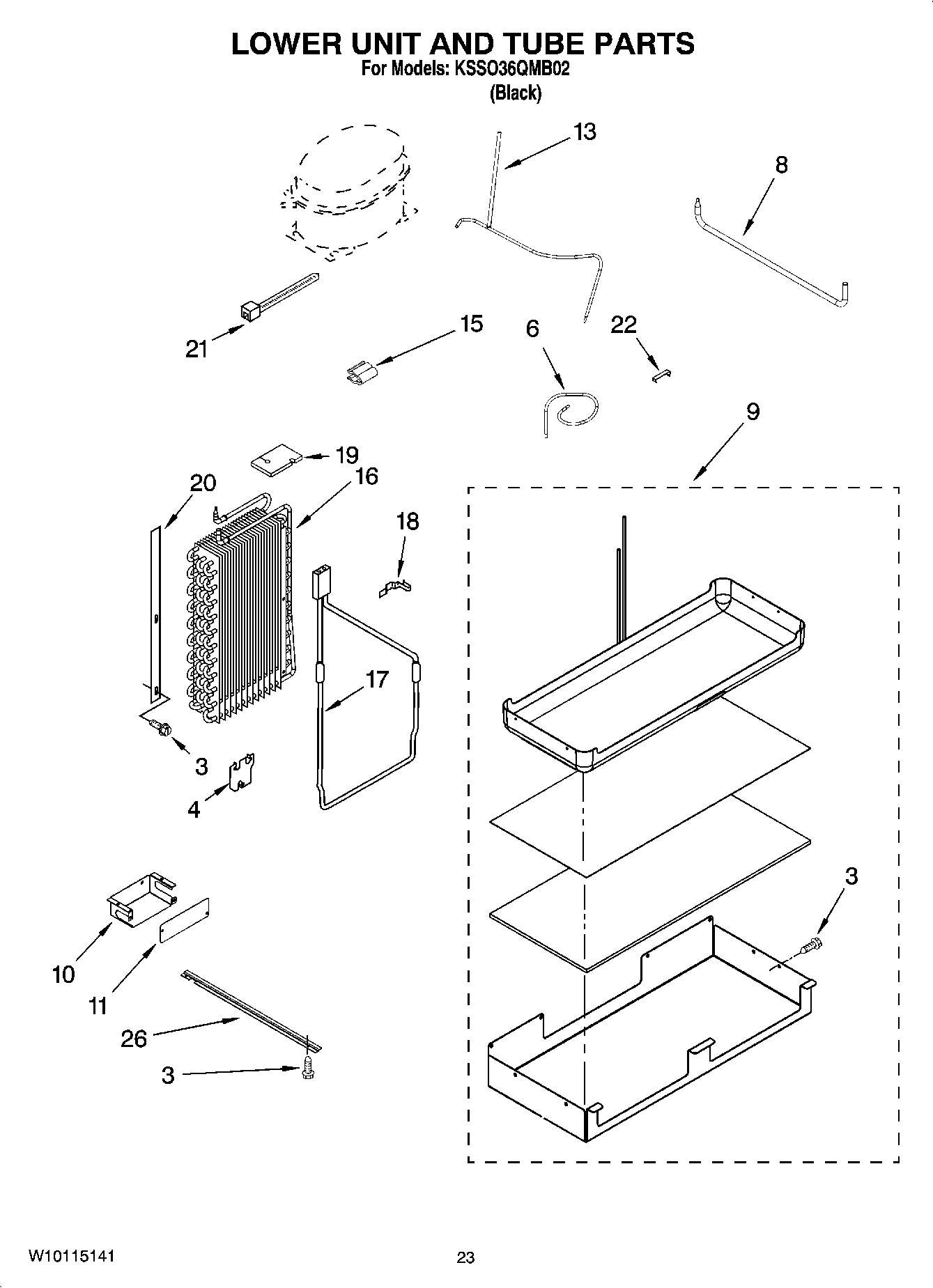

14 - LOWER UNIT AND TUBE PARTS

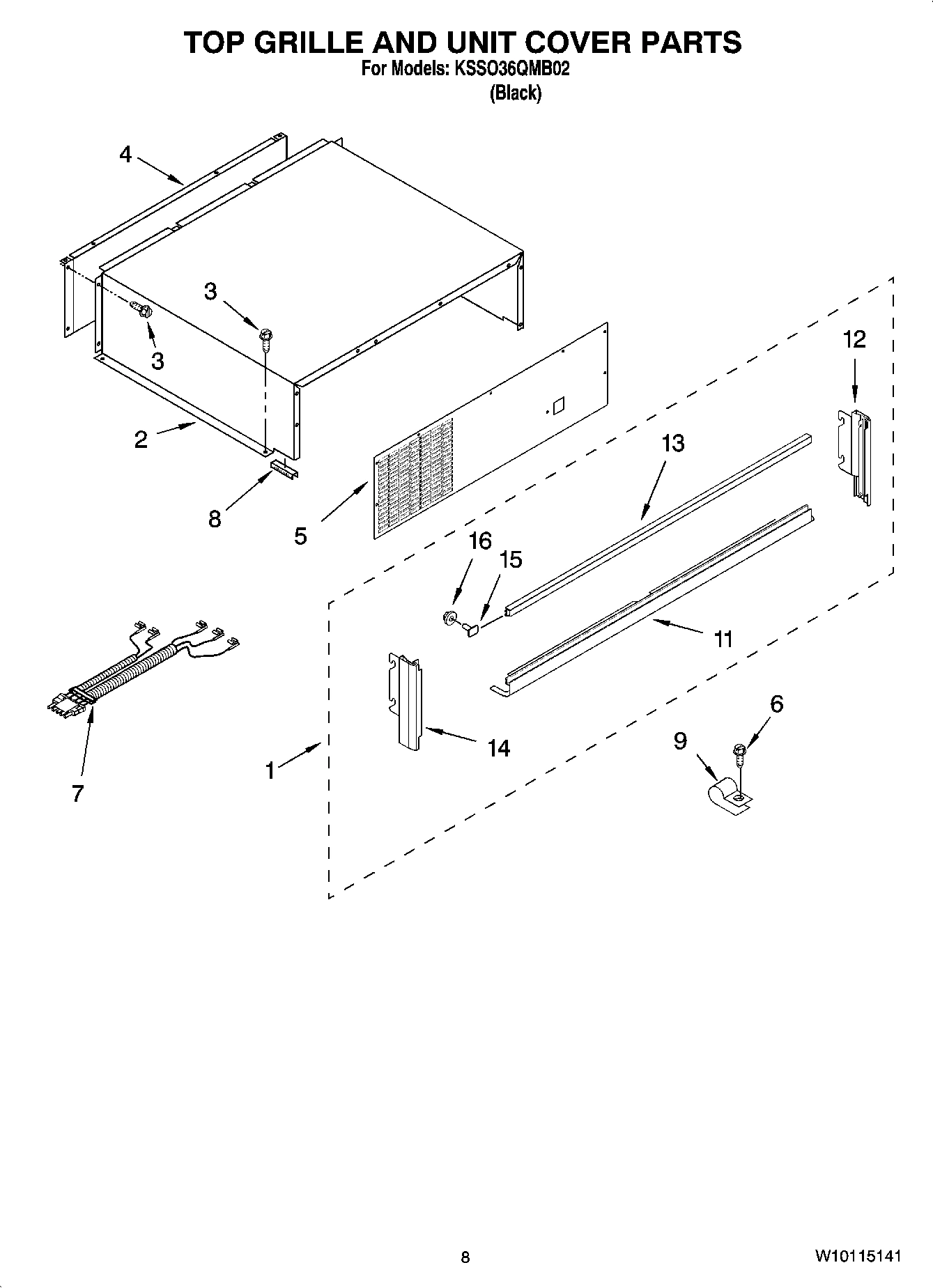

06 - TOP GRILLE AND UNIT COVER PARTS

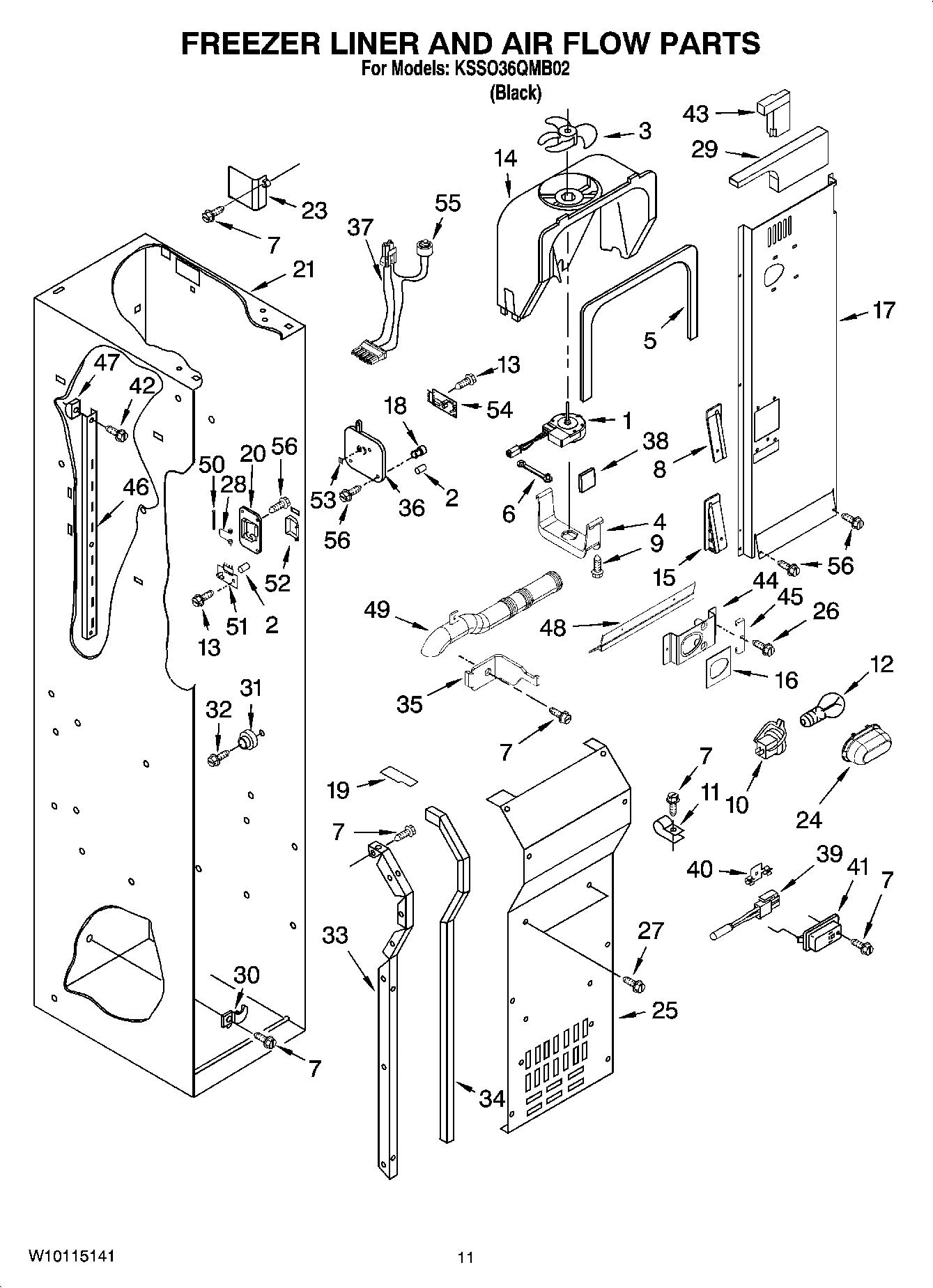

08 - FREEZER LINER AND AIR FLOW PARTS

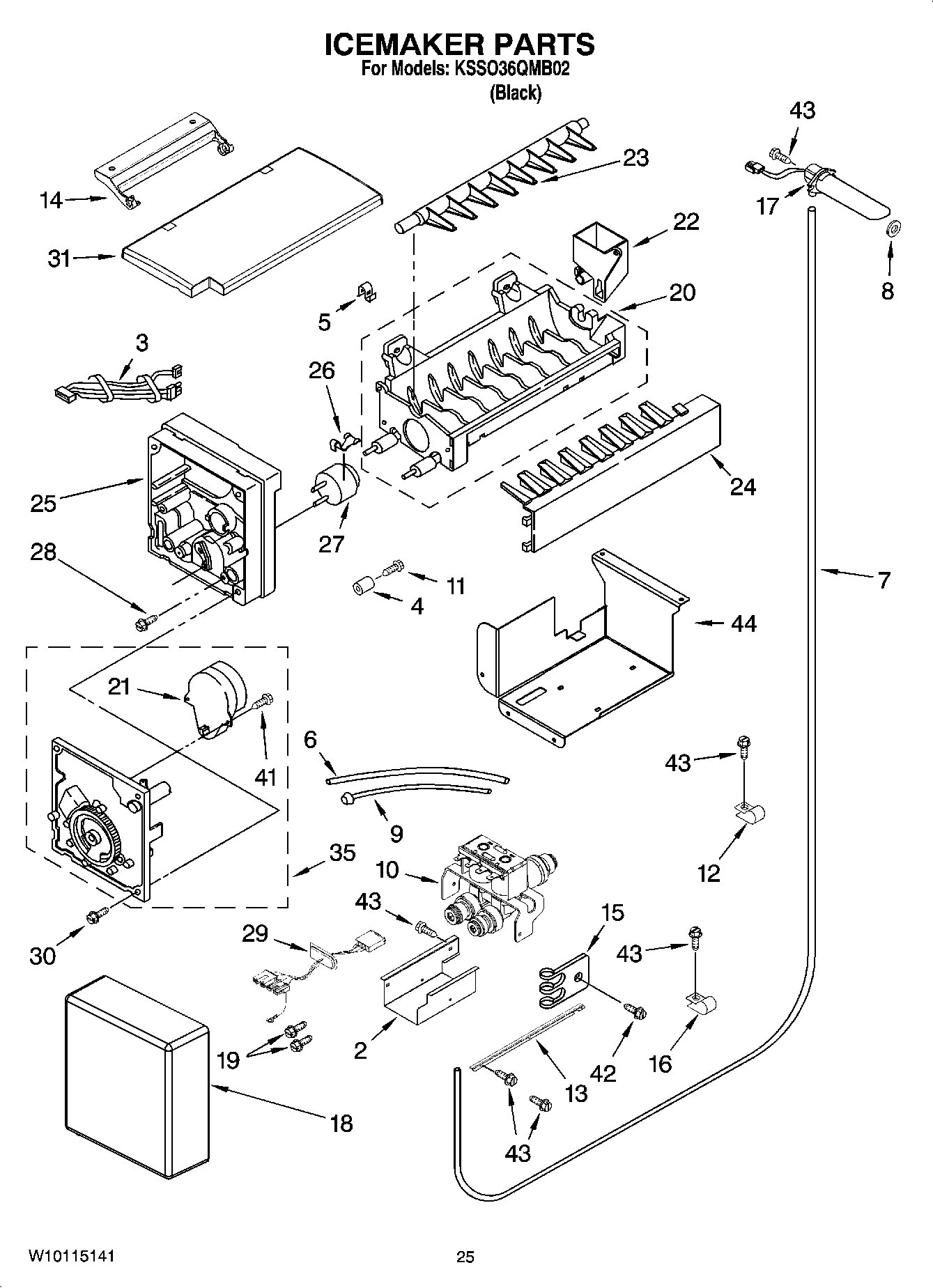

15 - ICEMAKER PARTS
Common parts from model Whirlpool KSSO36QMB02 36`` BUILT IN REFRIGERATOR
1
Top Grille Assembly (Black) WPL 2259422B Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Tube, P.C. Board WPL 2198665 Contact Us For Availability
2
Shield, Valve WPL 2320598 Contact Us For Availability
4
Clip, Thermistor WPL 2209204 Contact Us For Availability
4
Washer, Auger WPL 2258220 Contact Us For Availability
4
Bracket WPL 2215508 Contact Us For Availability
5
Cover-Unit, Front WPL 2320678 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Tube, Filter Inlet WPL 2320654 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2320658 Contact Us For Availability
7
WIRE ASSEMBLY RC/FC LIGHT SWITCH WPL 2310194 Contact Us For Availability
8
Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability
8
Seal Gasket WPL 2302758 Contact Us For Availability
9
Spacer-Door, Top WPL 2256381 Contact Us For Availability
9
Blade, Fixed WPL 2257020 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307651 Contact Us For Availability
10
Crisper Cover Assembly WPL 2302834 Contact Us For Availability
10
Cover, Wiring WPL 2316683 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Cover, Box WPL 2316684 Contact Us For Availability
11
Trim-Grille, Bottom (Black) WPL 2259434B Contact Us For Availability
12
Release Valve WPL 2171846 Contact Us For Availability
12
Lever, Water Dispenser (Black) WPL 2259395B Contact Us For Availability
12
Trim-Grille, Right Side (Black) WPL 2259420B Contact Us For Availability
13
Trim, Glass Rear WPL 2257581 Contact Us For Availability
13
Tube, Discharge WPL 2259352 Contact Us For Availability
13
Trim-Grille, Top (Black) WPL 2259440B Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Trim-Grille, Left Side (Black) WPL 2259421B Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Seal-Light, Socket WPL 2302777 Contact Us For Availability
17
Bracket, Anti-Drip Valve WPL 2259209 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Air Duct WPL 2306045 Contact Us For Availability
18
Door, Spacer WPL 2257637 Contact Us For Availability
18
Trim, Glass Front (Not Serviceable) WPL ARI105756A Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Trim, Glass Rear WPL 2256253 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI105757A Contact Us For Availability
21
Motor (Not Serviceable, Order Item 35) WPL ARI105765A Contact Us For Availability
22
Bushing WPL 2300082 Contact Us For Availability
22
TRIM, GLASS SIDE MEAT PAN WPL 2256250 Contact Us For Availability
23
TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
25
Front Cover Assembly (Includes Items 4, 11, 2 WPL 2309379B Contact Us For Availability
25
Cover, Evaporator WPL 2314042 Contact Us For Availability
29
Valve, Anti-Drip WPL 2320669 Contact Us For Availability
29
Wire Assembly, (Water Valve) WPL 2310183 Contact Us For Availability
31
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
35
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2317088 Contact Us For Availability
41
Cover, Thermistor WPL 1116793 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2310217 Contact Us For Availability
45
Spacer, Light Bracket WPL 2259446 Contact Us For Availability
47
Support, Screw WPL 2259397 Contact Us For Availability
48
Support, Air Duct WPL 2302849 Contact Us For Availability
49
Tube, Vent WPL 2302933 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220867 Contact Us For Availability
100
Ice Container Assembly WPL 2320560 Contact Us For Availability
100
Static Cleaner, Black Panel WPL 978849 Contact Us For Availability
100
Following Parts Not Illustrated WPL ARI105766A Contact Us For Availability
100
(Optional Parts Only) WPL ARI105767A Contact Us For Availability
× ![]()
