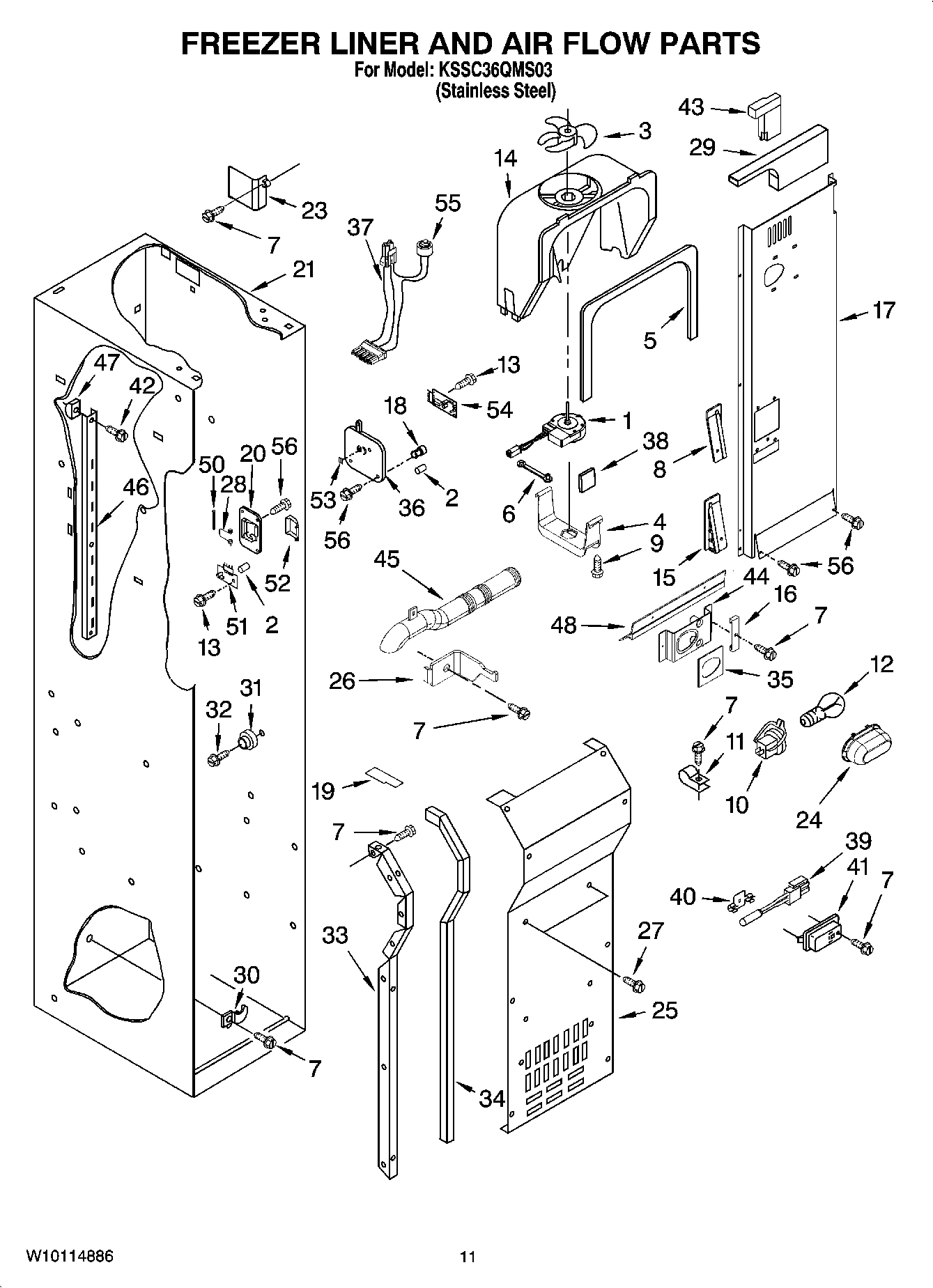

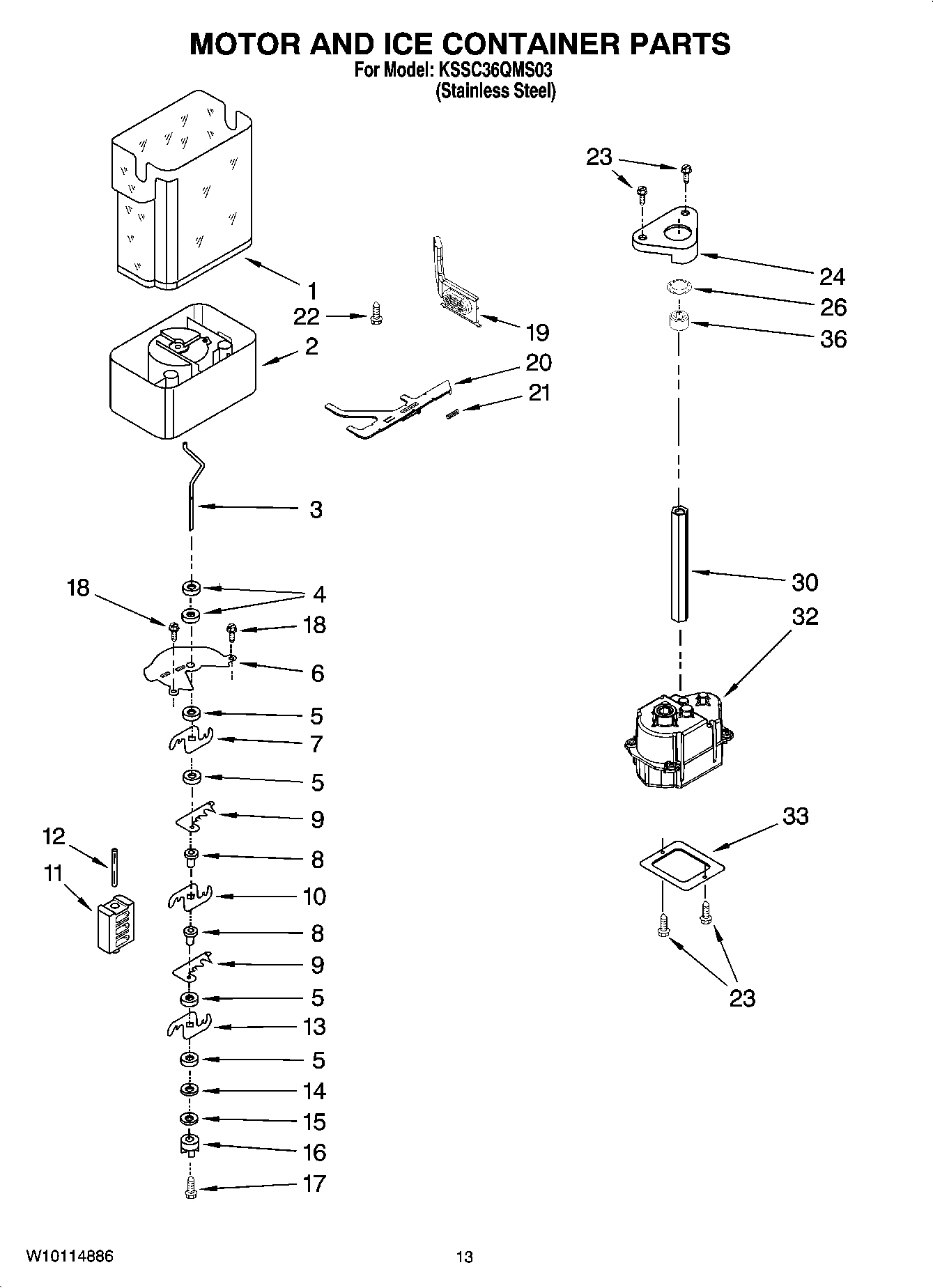

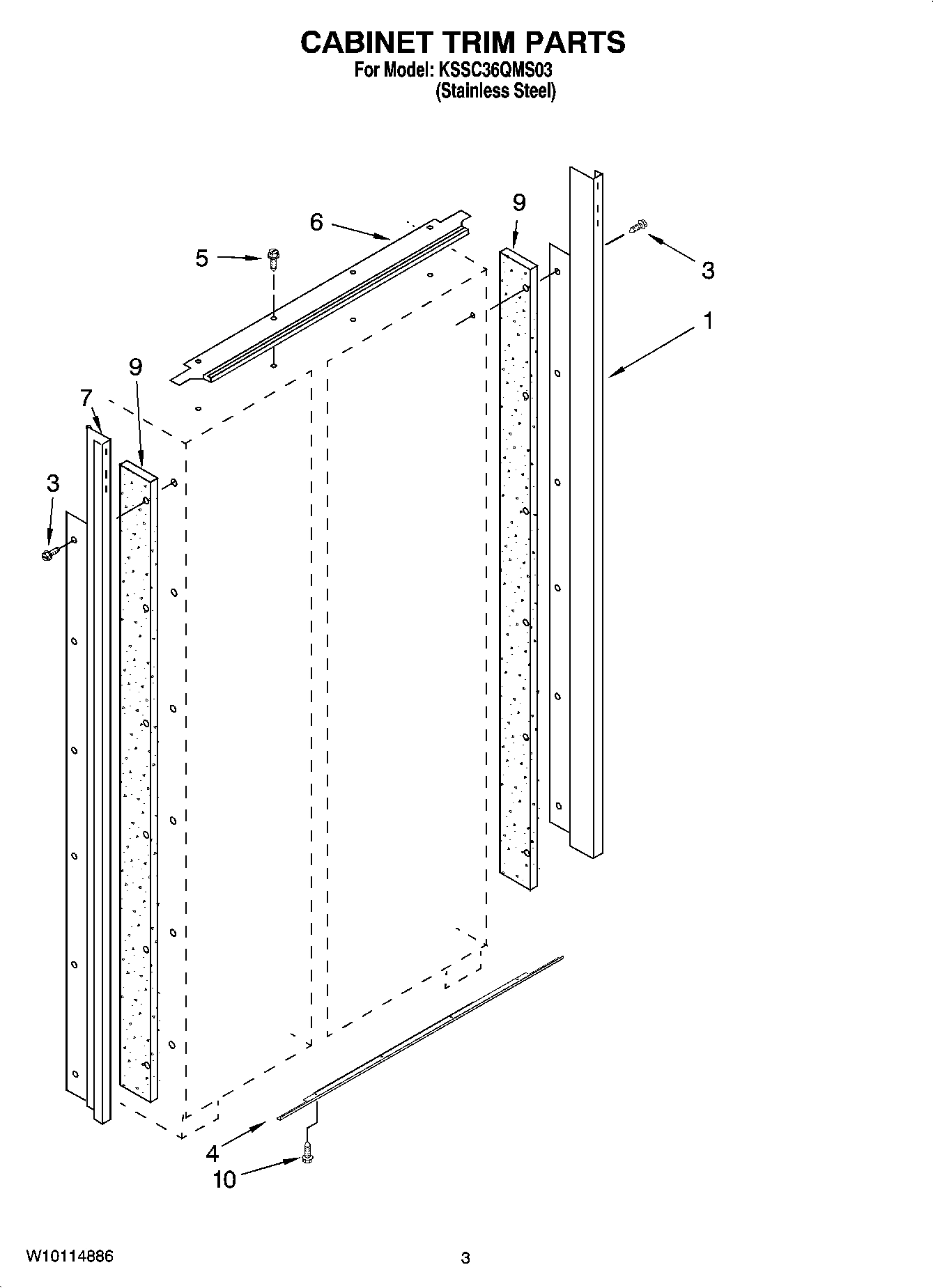

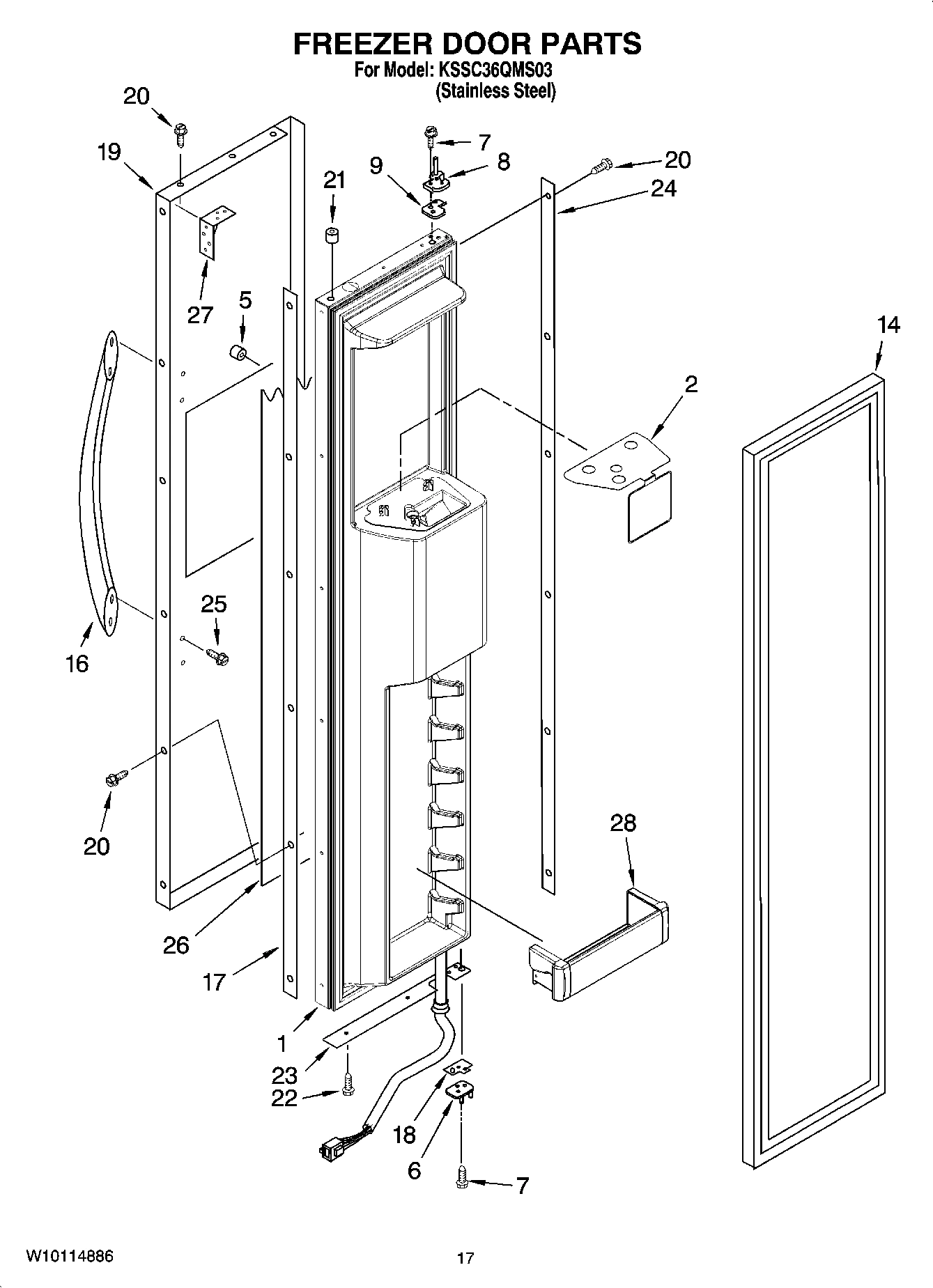

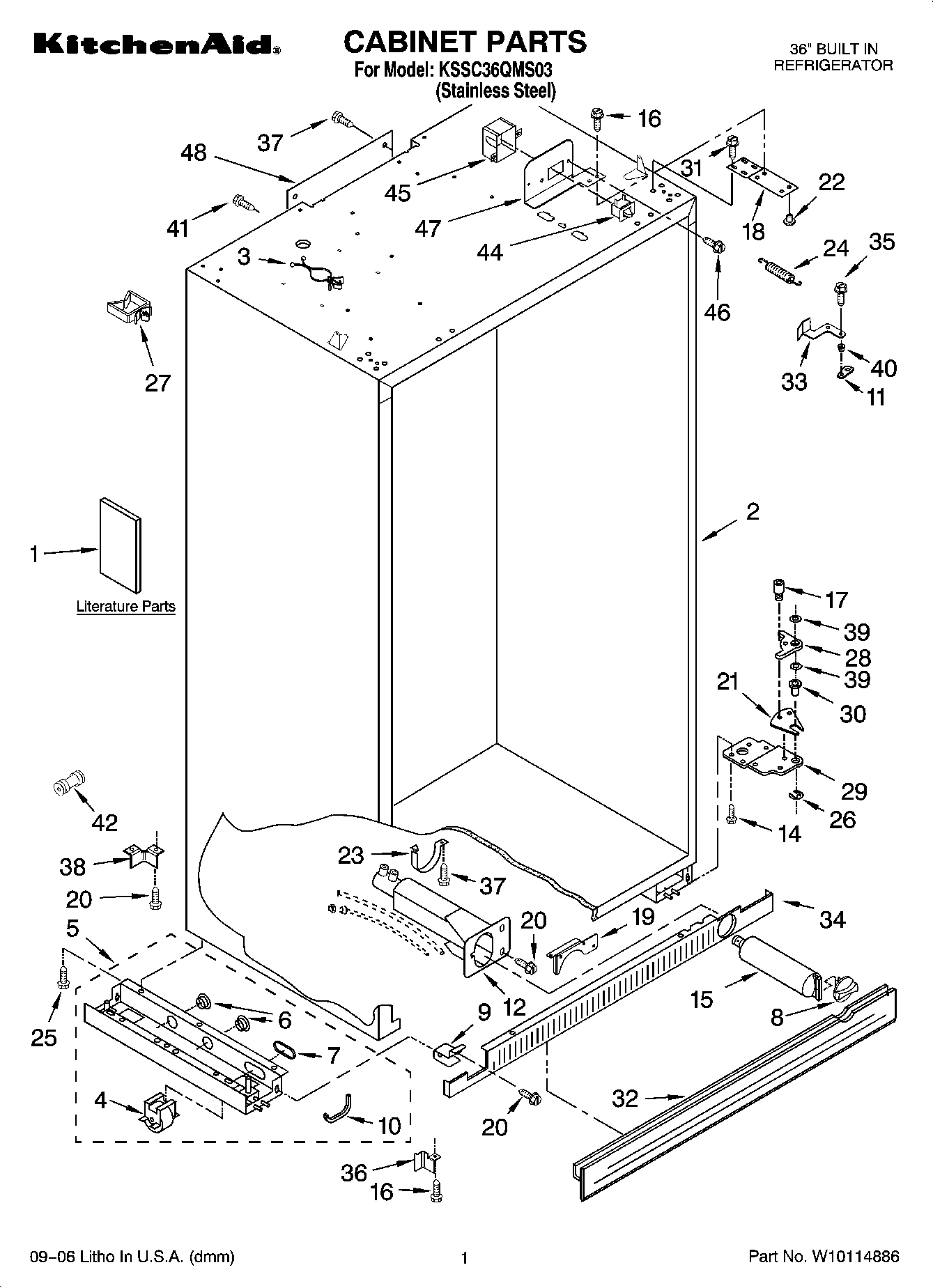

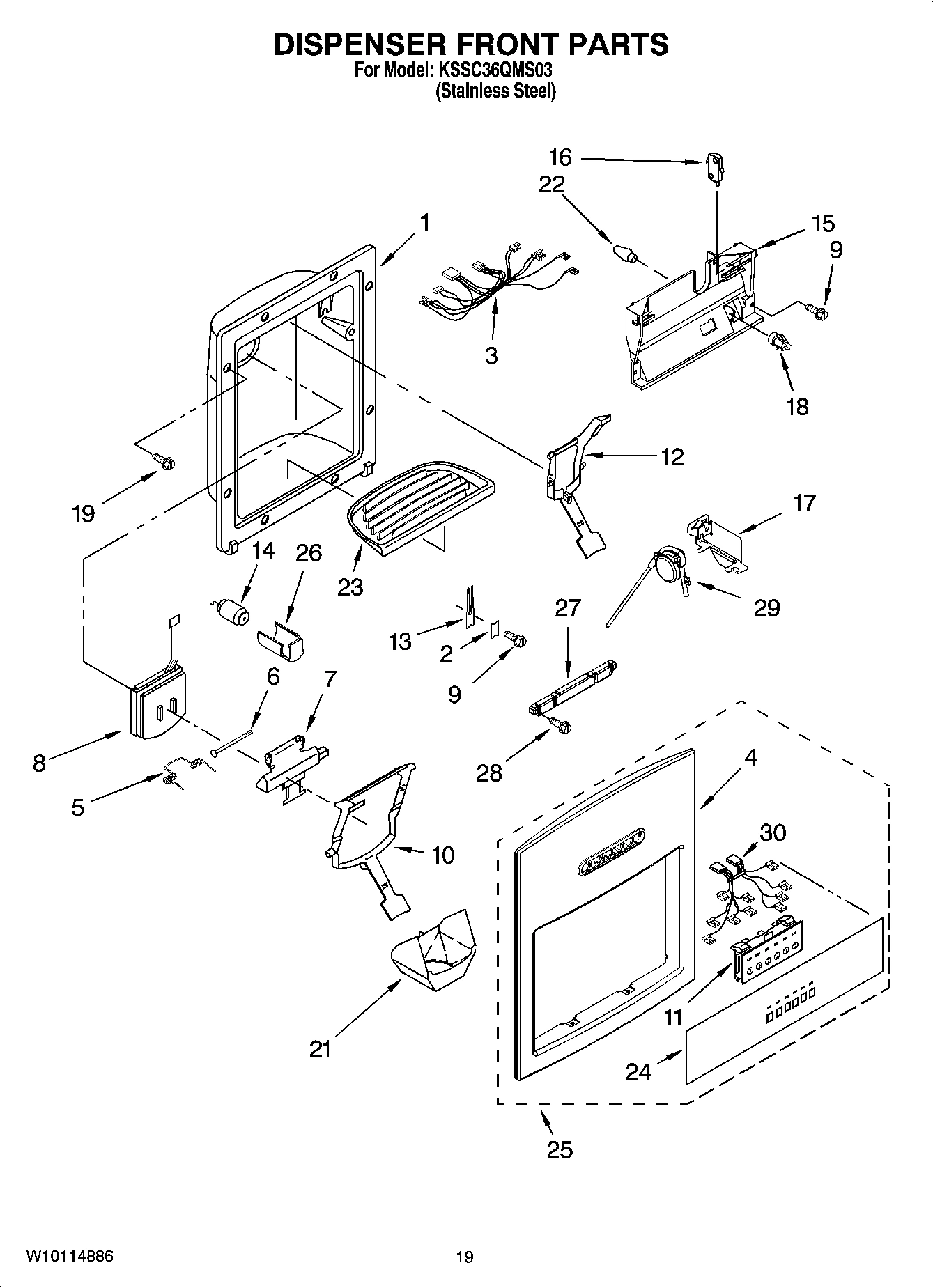

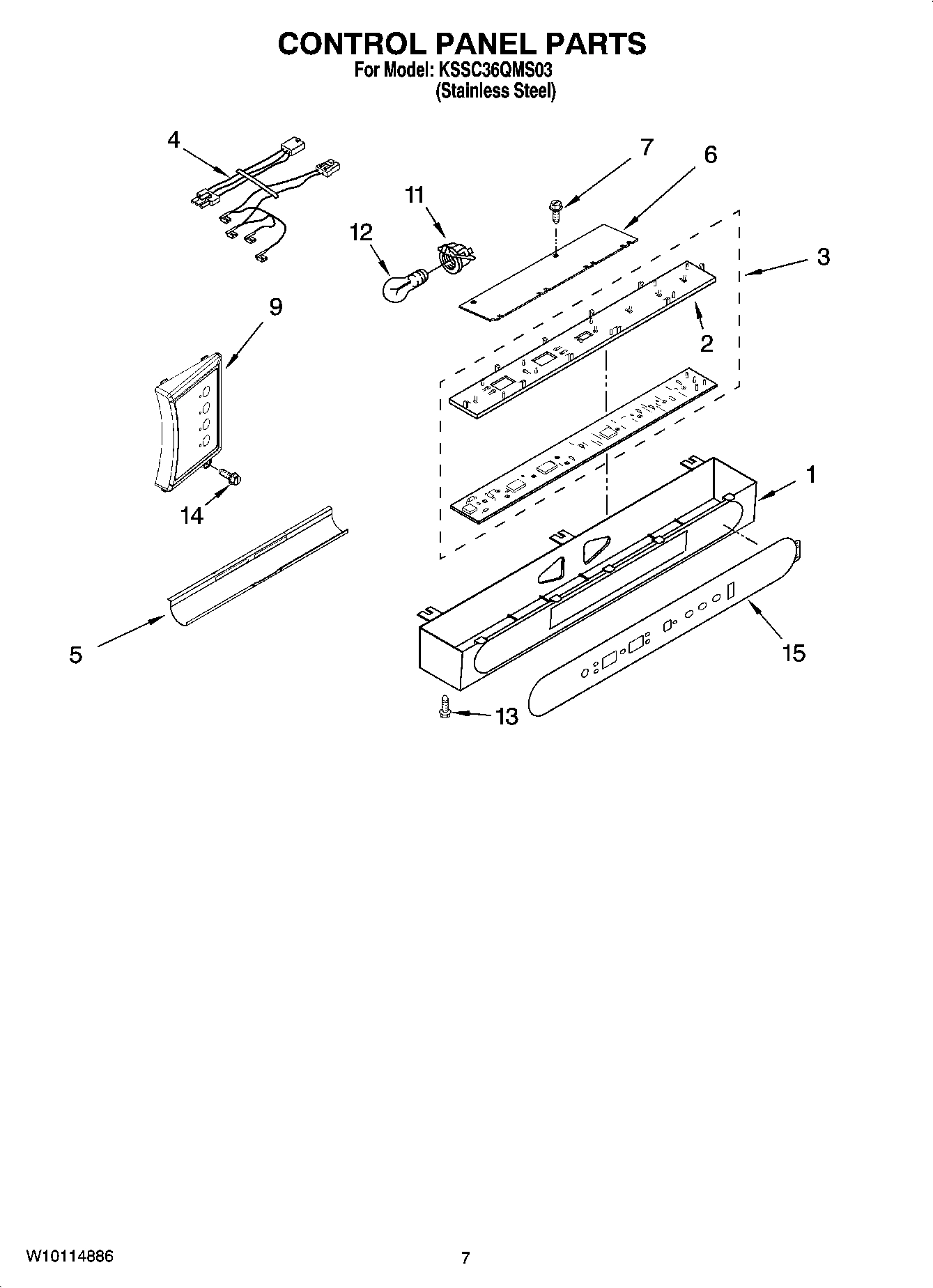

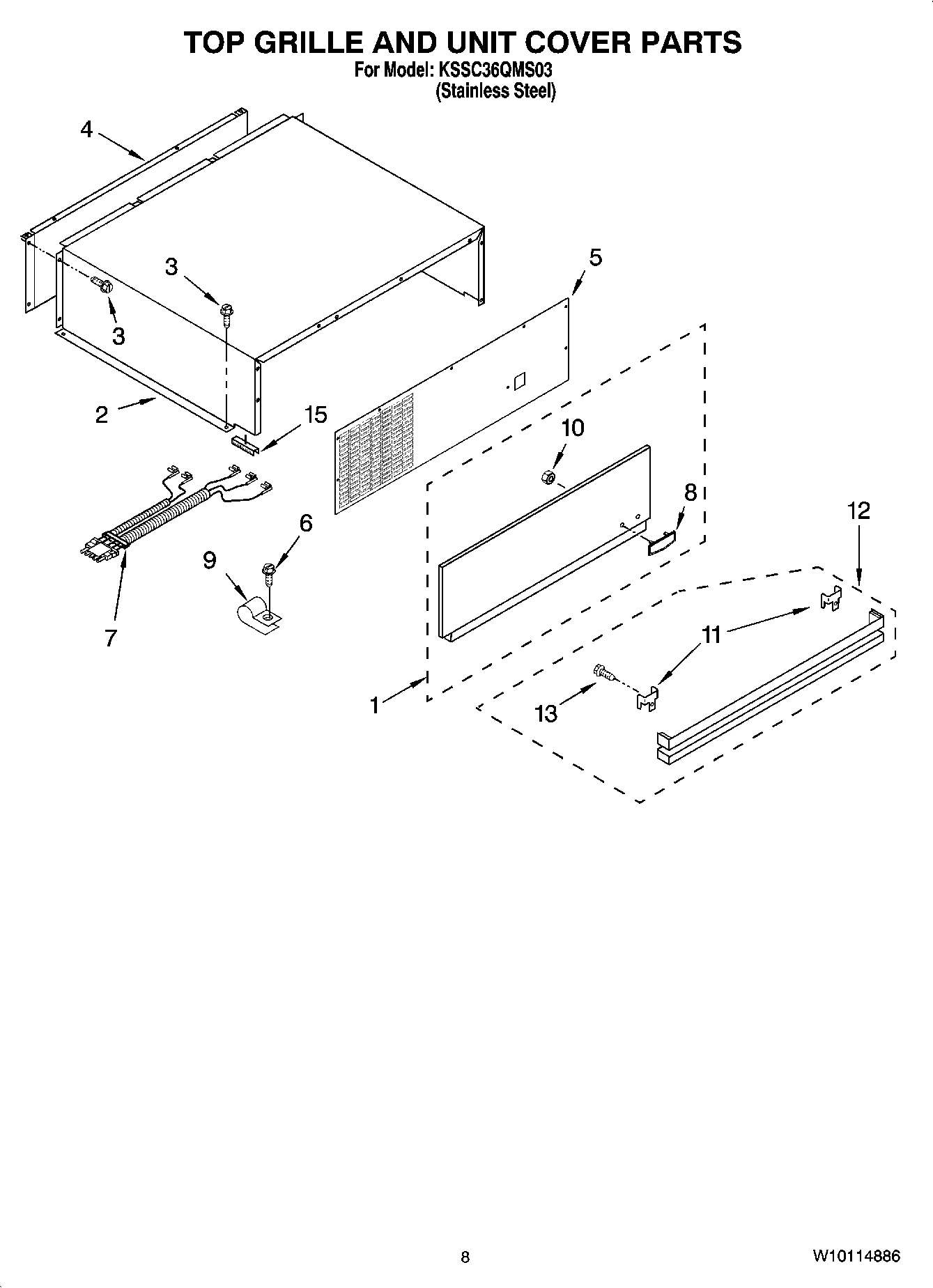

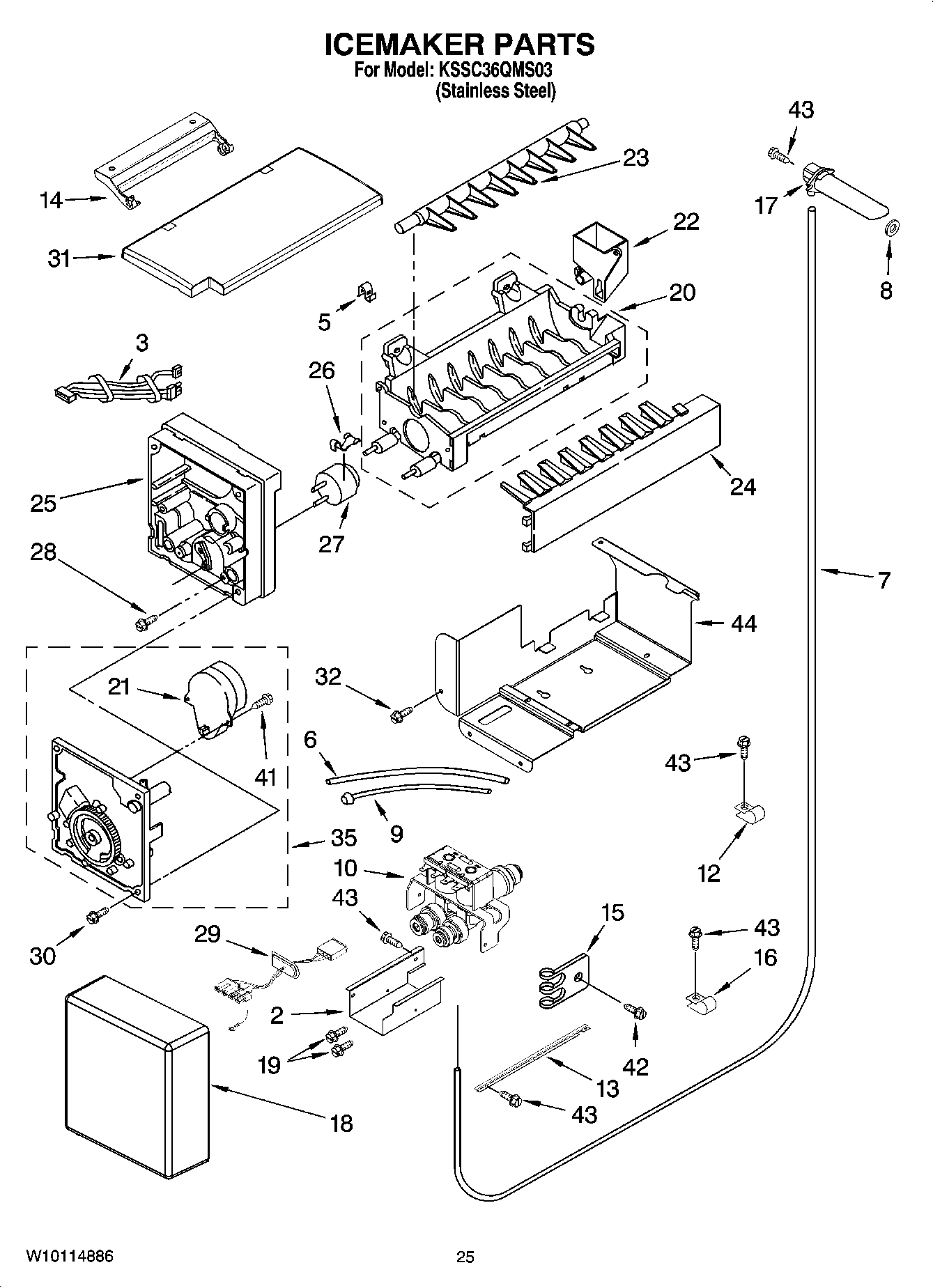

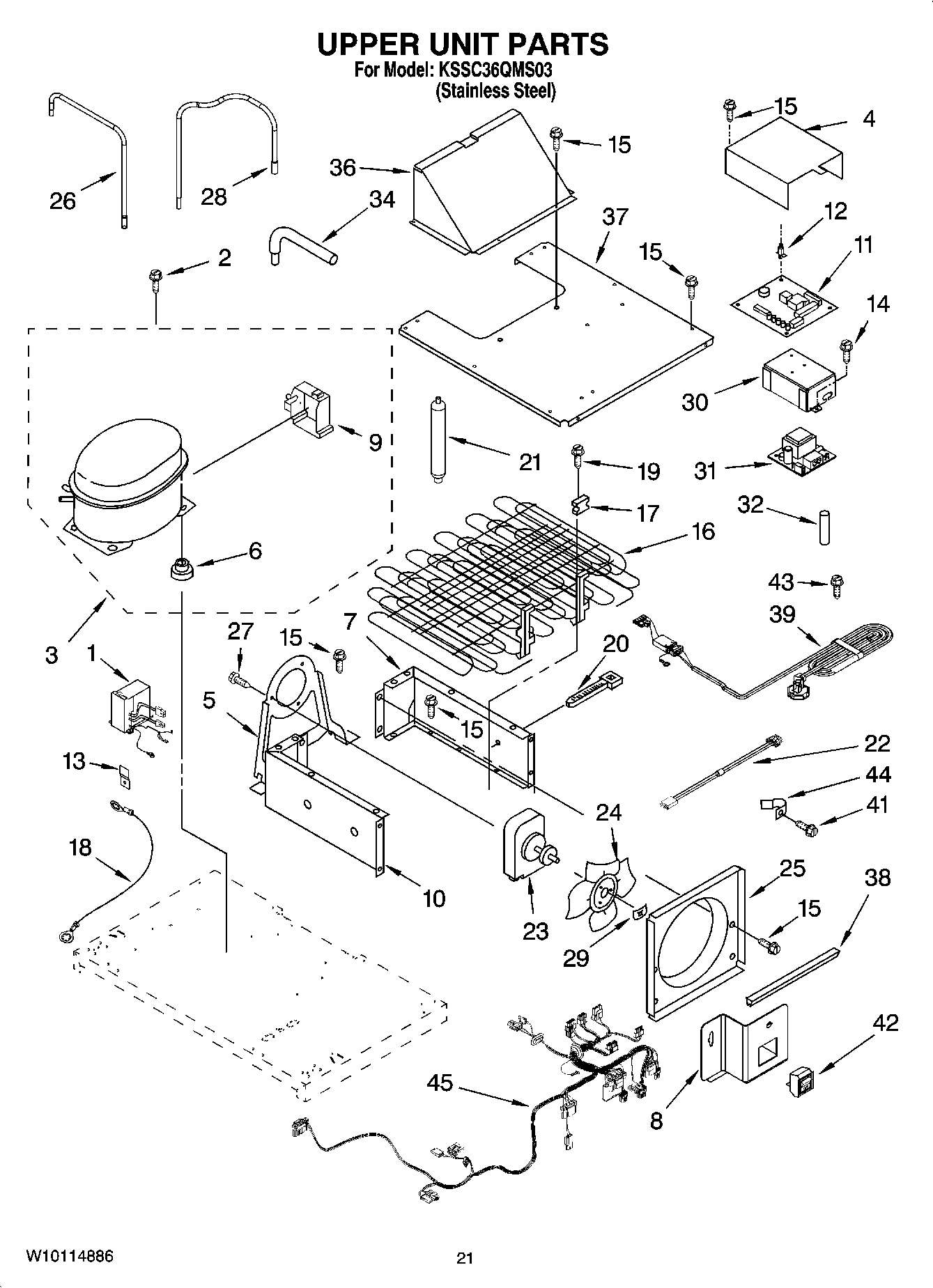

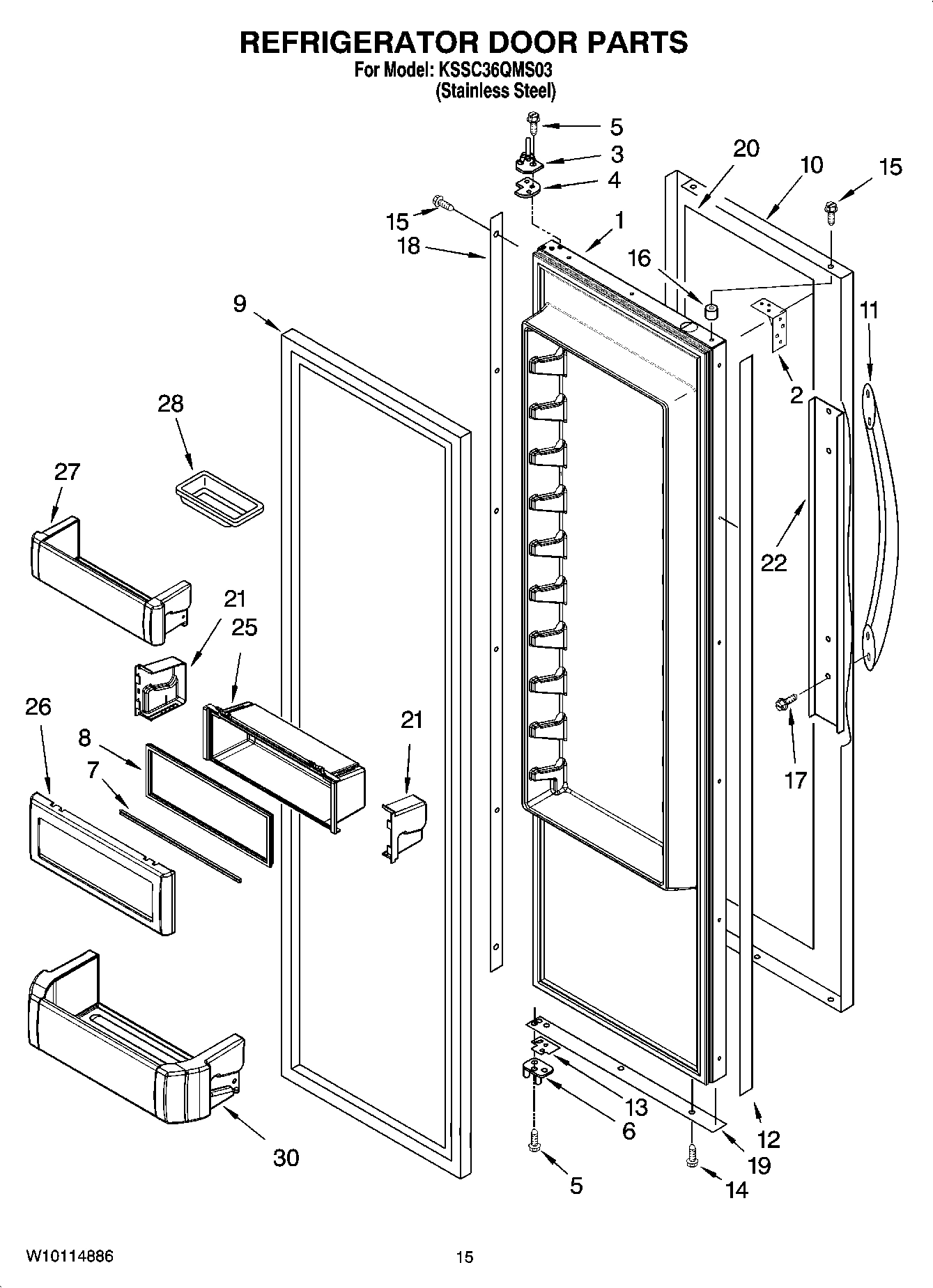

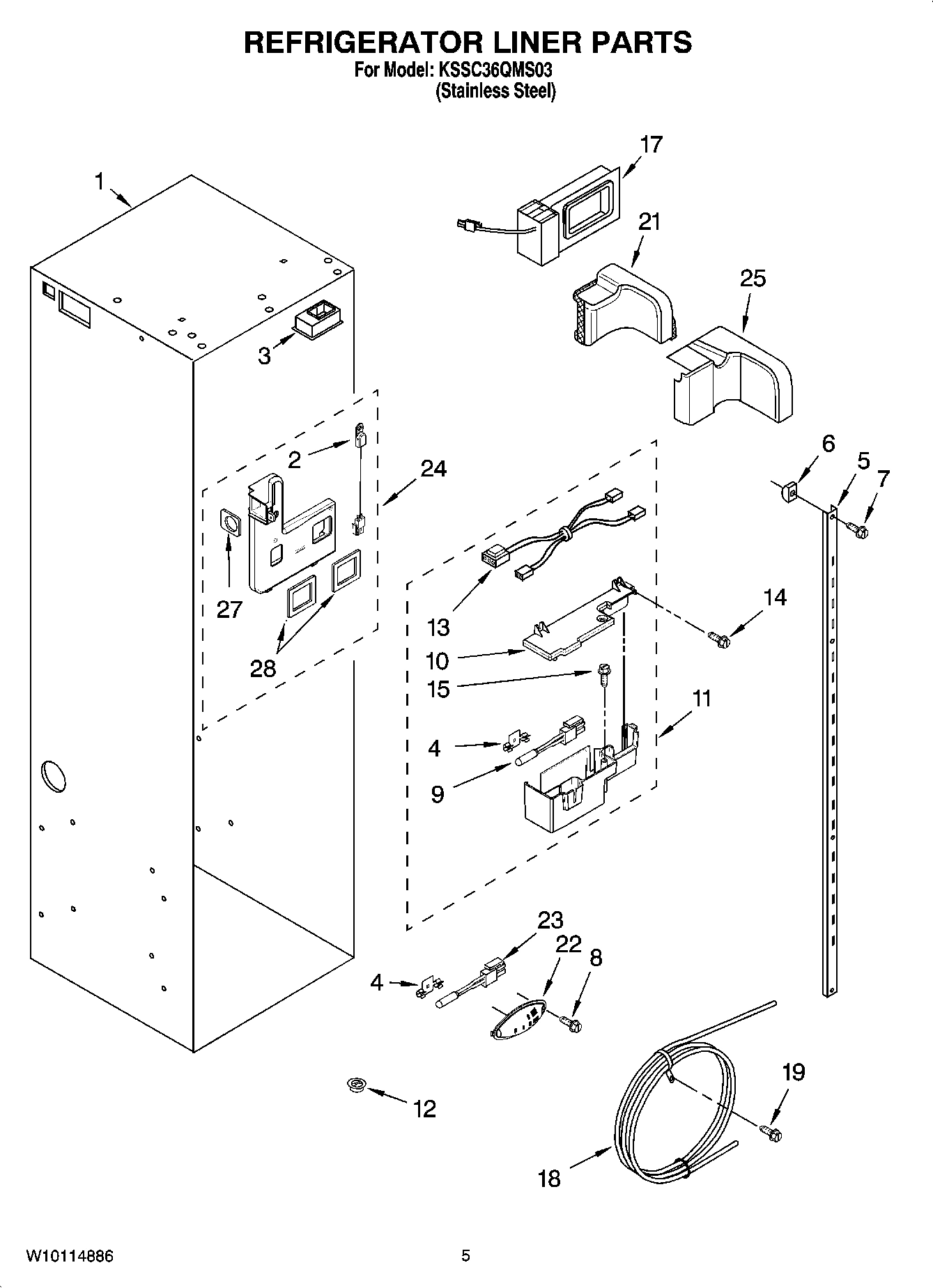

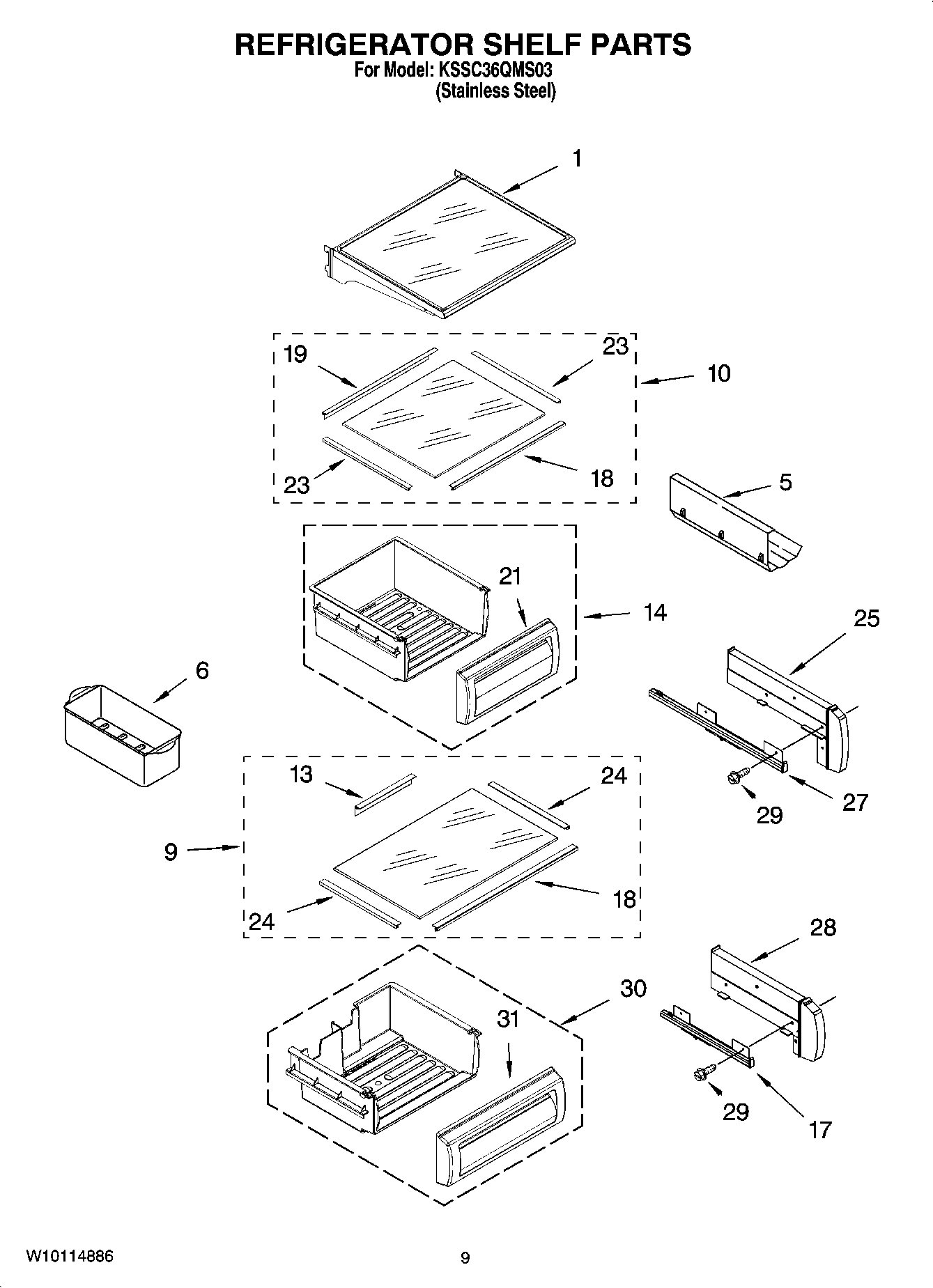

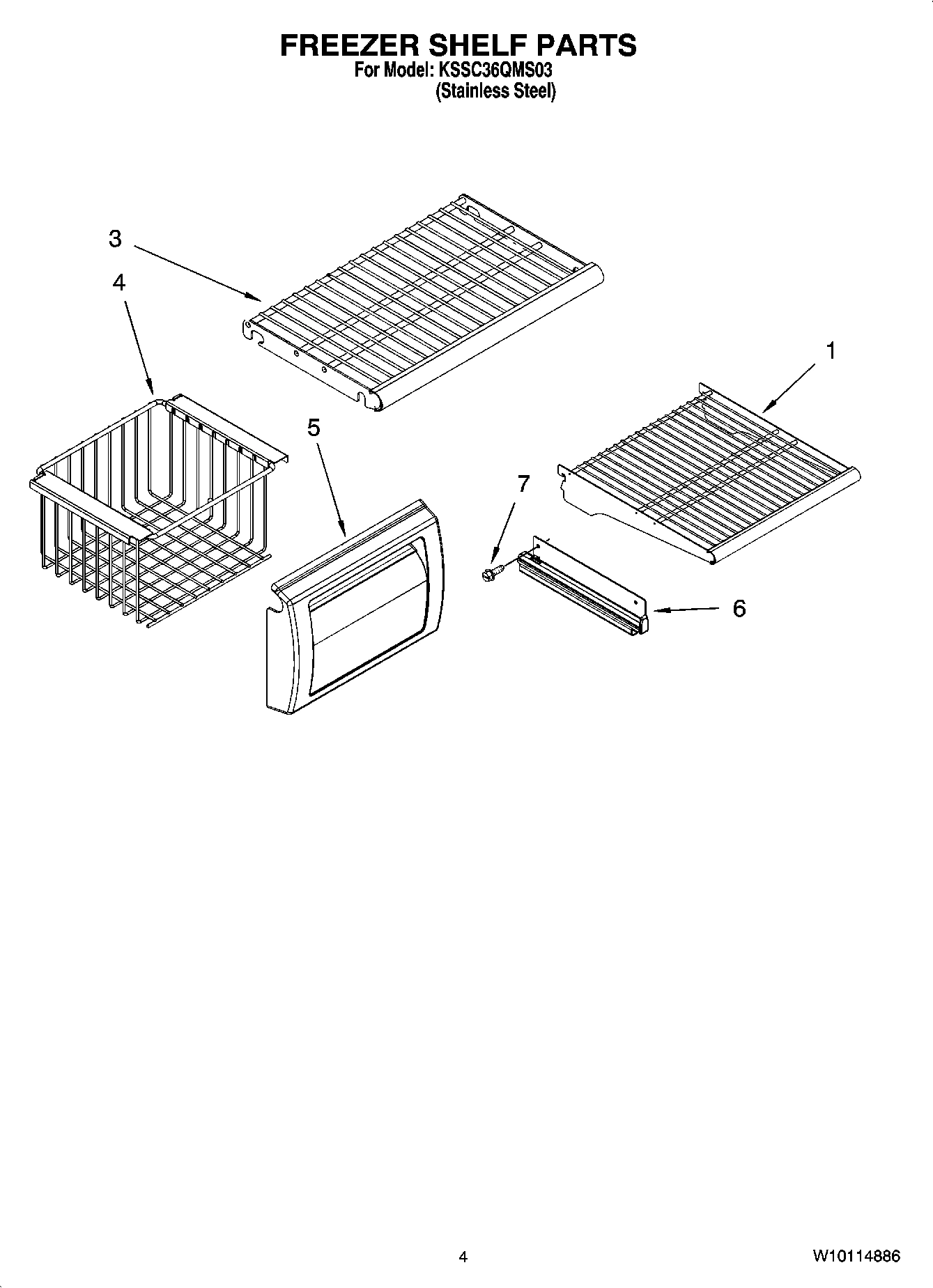

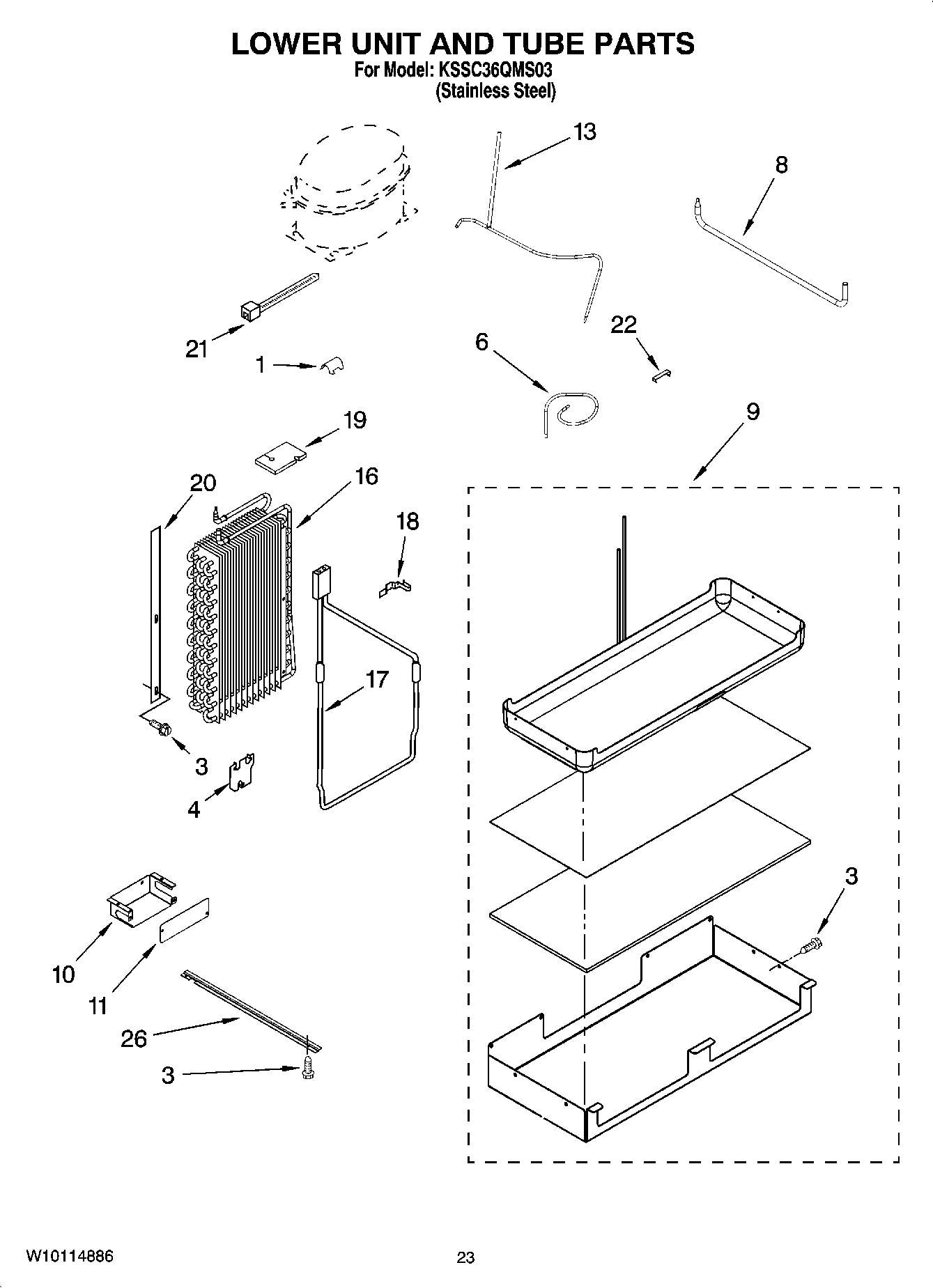

Model Whirlpool KSSC36QMS03 36`` BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

LW10193489 Whirlpool Refrigerator Black Foam Backorder WPL LW10193489 $1,048.26

1

Ice Bin WPL 2222960 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI105298A Contact Us For Availability

1

Freezer Door Panel (Includes Item 14) (Black) WPL 2320570B Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI105300A Contact Us For Availability

2

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2

WP2306010 Whirlpool Refrigerator Thermistor In Stock WPL WP2306010 $30.16

2

Crusher Bin WPL 2222959 Contact Us For Availability

2

Safety Barrier WPL 2304896 Contact Us For Availability

3

2208970 Whirlpool Refrigerator Air Duct Backorder WPL 2208970 $51.19

3

2310192 Whirlpool Refrigerator Wire Harness Backorder WPL 2310192 $64.58

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $79.82

3

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

3

Wire Assembly WPL 2310199 Contact Us For Availability

4

2259081 Whirlpool Refrigerator Basket Backorder WPL 2259081 $139.50

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Cover, Dispenser (Not Available- Order Item 2 WPL ARI105301A Contact Us For Availability

5

Backorder WPL 2179404 $8.47

5

2252354 Whirlpool Spacer Assembly Backorder WPL 2252354 $8.66

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2259077 Whirlpool Ladder Assembly Backorder WPL WP2259077 $26.75

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

6

2259317 Whirlpool Refrigerator Slide Backorder WPL 2259317 $106.19

6

2302878 Whirlpool Refrigerator Door Hinge Backorder WPL 2302878 $34.92

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

W11752085 Whirlpool Door Hinge In Stock WPL W11752085 $22.36

6

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

WP2259318 Whirlpool Refrigerator Slide Backorder WPL WP2259318 $144.34

6

Suction Tube WPL 2259303 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Tube, Filter Inlet WPL 2320654 Contact Us For Availability

6

Egg Bin WPL 2221071 Contact Us For Availability

7

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

7

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $31.71

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

7

Water Inlet Tube Assembly WPL 2320658 Contact Us For Availability

7

Ice Door Mechanism WPL 2304355 Contact Us For Availability

8

2259464 Whirlpool Refrigerator Wedge Backorder WPL 2259464 $33.31

8

W11724512 Whirlpool Door Hinge In Stock WPL W11724512 $111.87

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

8

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

8

WP2222981 Whirlpool Refrigerator Gasket Backorder WPL WP2222981 $88.67

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

8

Tube, Connect (Drier/Restrictor) WPL 2259304 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

9

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

9

W11533506 Whirlpool Refrigerator Water Tube Backorder WPL W11533506 $11.29

9

WP2266901 Whirlpool Door Gasket In Stock WPL WP2266901 $249.67

9

WP2302937 Whirlpool Refrigerator Thermistor In Stock WPL WP2302937 $28.64

9

WP2306086 Whirlpool Refrigerator Electronic C Backorder WPL WP2306086 $195.04

9

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

9

Spacer-Door, Top WPL 2256381 Contact Us For Availability

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Meat Pan Cover Assembly WPL 2302841 Contact Us For Availability

2302986 Whirlpool Refrigerator Cover Backorder WPL 2302986 $33.96

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability

Valve, Solenoid WPL 2307651 Contact Us For Availability

Crisper Cover Assembly WPL 2302834 Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2306155 Contact Us For Availability

WPW10169528 Whirlpool Refrigerator Diffuser Backorder WPL WPW10169528 $142.28

Cam, Door Closer WPL 2005783 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Handle, Door (Stainless Steel) WPL 2005290 Contact Us For Availability

Switch Assembly (Not Available Order Item 25) WPL ARI105302A Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10856124 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10856124 $111.61

WP2209022 Whirlpool Refrigerator Housing In Stock WPL WP2209022 $91.73

2310205 Whirlpool Wire Jumper Backorder WPL 2310205 $40.30

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

Trim, Glass Rear WPL 2257581 Contact Us For Availability

W10407623 Whirlpool Refrigerator Crisper Pan Backorder WPL W10407623 $95.73

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

W11624976 Whirlpool Refrigerator FIP Gasket Backorder WPL W11624976 $156.02

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Screw WPL 3400525 Contact Us For Availability

Screw WPL 488357 Contact Us For Availability

Delay Mechanism WPL 2205686 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

OVERLAY WPL 2257518 Contact Us For Availability

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2306092 Whirlpool Refrigerator Evaporator In Stock WPL WP2306092 $174.42

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

CONDENSER WPL 2259307 Contact Us For Availability

2259209 Whirlpool Refrigerator Bracket Backorder WPL 2259209 $35.78

2302954 Whirlpool Refrigerator Slide Backorder WPL 2302954 $127.84

2302955 Whirlpool Refrigerator Slide Backorder WPL 2302955 $127.84

SCREW Backorder WPL W11769878 $7.72

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $177.39

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Spacer, Door-Skin (Handle Side) WPL 2309060 Contact Us For Availability

Heater, Defrost WPL 2306387 Contact Us For Availability

1113048 Whirlpool Refrigerator Clamp Backorder WPL 1113048 $4.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $62.10

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Door, Spacer WPL 2257637 Contact Us For Availability

Trim, Glass Front WPL 2302831 Contact Us For Availability

RESERVOIR WPL 2320660 Contact Us For Availability

SPACER, DOOR-SKIN HINGE SIDE) WPL 2005030 Contact Us For Availability

2209066 Whirlpool Refrigerator Fan Block Backorder WPL 2209066 $28.80

WP2252265 Whirlpool Refrigerator Ice Bin Butt In Stock WPL WP2252265 $14.37

WP2257333 Whirlpool Spacer Backorder WPL WP2257333 $51.62

Screw WPL 487522 Contact Us For Availability

Trim, Glass Rear WPL 2256253 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Skin, Door (Stainless Steel) WPL 2306162 Contact Us For Availability

Screw WPL 3400091 Contact Us For Availability

WP2215650 Whirlpool Refrigerator Cover Backorder WPL WP2215650 $83.22

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Gasket, Evaporator WPL 2220832 Contact Us For Availability

Latch, Bin WPL 2252206 Contact Us For Availability

Filler, Door WPL 2005323 Contact Us For Availability

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $10.23

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP2256247 Whirlpool Front Pan Backorder WPL WP2256247 $50.82

WP2309222 Whirlpool Refrigerator Diffuser Backorder WPL WP2309222 $29.43

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Bushing WPL 2300082 Contact Us For Availability

PLATE, DOOR HANDLE WPL 2306398 Contact Us For Availability

2259025 Whirlpool Refrigerator Air Cover Backorder WPL 2259025 $33.67

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2302944B Whirlpool Drip Tray Grille In Stock WPL WP2302944B $35.90

TRIM, GLASS SIDE CRISPER PAN WPL 2252255 Contact Us For Availability

SPACER, DOOR SKIN BOTTOM WPL 2257384 Contact Us For Availability

2256250 Whirlpool Refrigerator Shelf Trim Backorder WPL 2256250 $29.55

W10475010 Whirlpool Refrigerator Spacer Backorder WPL W10475010 $123.25

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $30.85

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

Blade, Fan WPL 2190685 Contact Us For Availability

Overlay, Cover (Not Available- Order Item 25) WPL ARI105303A Contact Us For Availability

2256222 Whirlpool Refrigerator Track Backorder WPL 2256222 $30.65

2256223 Whirlpool Refrigerator Track Backorder WPL 2256223 $28.99

2309087 Whirlpool Refrigerator Cover Backorder WPL 2309087 $10.65

WP308544 Whirlpool Screw Backorder WPL WP308544 $2.51

WPW10323035 Whirlpool Refrigerator Cantilever Backorder WPL WPW10323035 $44.03

Front Cover Assembly (Includes Items 4,11,24 WPL 2316787B Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WPW10131132 Whirlpool Refrigerator Door Compr Backorder WPL WPW10131132 $40.92

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Filler, Door WPL 2252390 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $118.28

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $87.50

W10323598 Whirlpool Refrigerator Cantilever B Backorder WPL W10323598 $55.04

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability

Seal, Air Duct (Round Hole) WPL 2259412 Contact Us For Availability

Spacer, Dispenser WPL 2306077 Contact Us For Availability

2256243 Whirlpool Refrigerator Track Backorder WPL 2256243 $27.71

2256244 Whirlpool Refrigerator Track Backorder WPL 2256244 $38.41

2259398 Whirlpool Refrigerator Seal Backorder WPL 2259398 $7.69

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10323601 Whirlpool Refrigerator Cantilever B Backorder WPL W10323601 $47.80

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Butter Tray WPL 2165792 Contact Us For Availability

W10527053 Whirlpool Refrigerator Door Hinge Backorder WPL W10527053 $70.12

WP2006780 Whirlpool Refrigerator Door Hinge Backorder WPL WP2006780 $102.66

WP3400886 Whirlpool Refrigerator Screw Backorder WPL WP3400886 $3.70

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

Valve, Anti-Drip WPL 2320669 Contact Us For Availability

W10323746 Whirlpool Refrigerator Cantilever B Backorder WPL W10323746 $54.08

W10407626 Whirlpool Refrigerator Meat Pan Backorder WPL W10407626 $73.90

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2302876 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2302876 $27.05

Harness, Switch Jumper Assembly WPL 2309372 Contact Us For Availability

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2256365 Whirlpool Refrigerator Front Pan Backorder WPL WP2256365 $60.69

WP2259350 Whirlpool Refrigerator Electronic C In Stock WPL WP2259350 $70.57

32

W10822635 Whirlpool Refrigerator Ice Maker Di In Stock WPL W10822635 $147.15

32

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $67.86

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

33

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $35.81

33

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $30.43

33

COVER WPL 2222862 Contact Us For Availability

34

2220904 Whirlpool Refrigerator Gasket Backorder WPL 2220904 $8.31

34

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

35

Screw WPL 2005921 Contact Us For Availability

36

2006616 Whirlpool Refrigerator Bracket Backorder WPL 2006616 $28.80

36

2259493 Whirlpool Refrigerator Cover Backorder WPL 2259493 $28.80

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

38

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $28.80

39

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $4.59

39

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

39

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $51.17

40

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $22.56

41

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

41

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

42

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $30.80

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

44

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wiring Harness, Unit Compartment WPL 2310217 Contact Us For Availability

50

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

52

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

56

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56
