Model Whirlpool KSSC36QMS01 36`` BUILT IN REFRIGERATOR – Common Parts & Diagrams
02 - CABINET TRIM PARTS

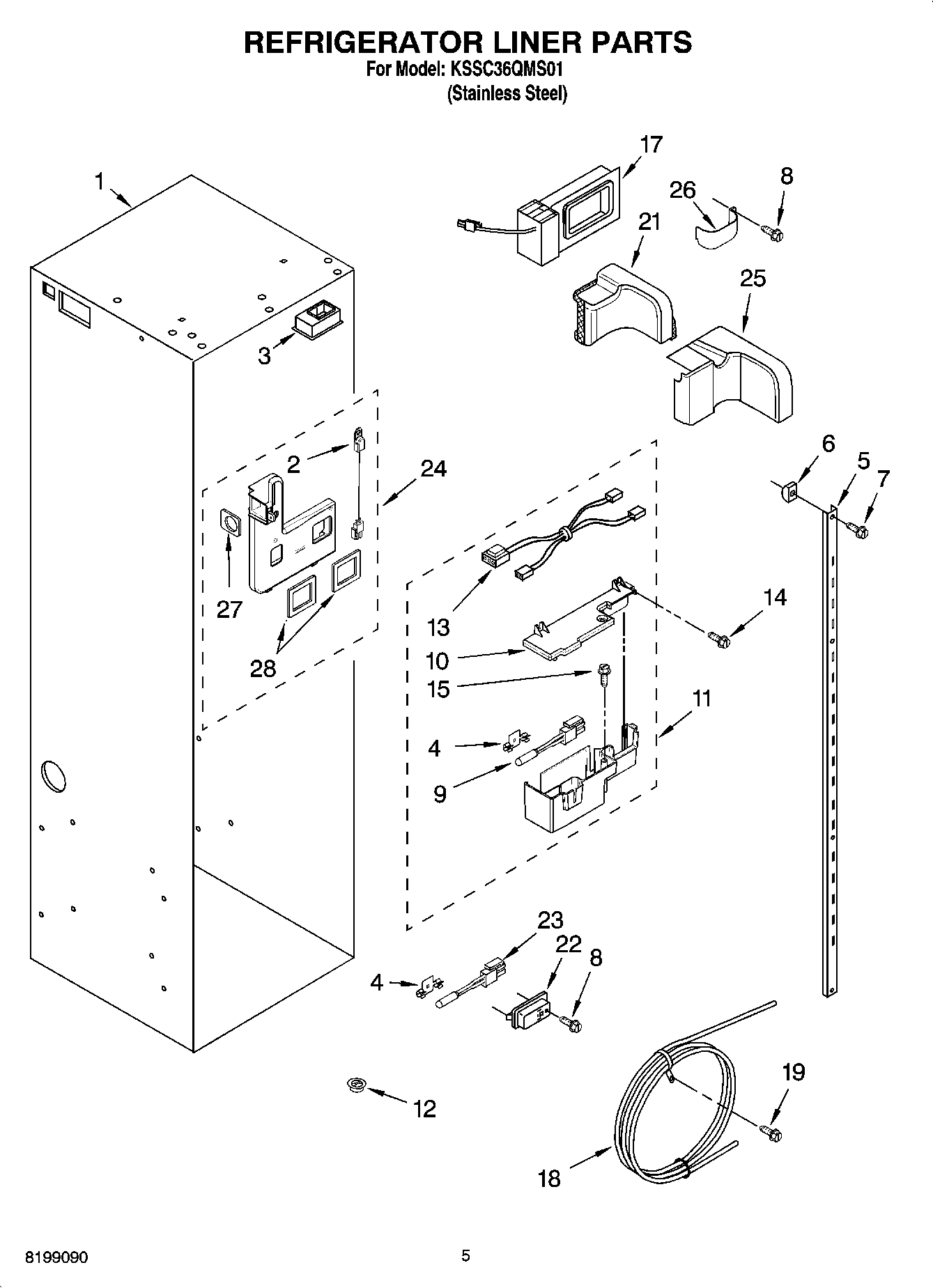

04 - REFRIGERATOR LINER PARTS
10 - REFRIGERATOR DOOR PARTS
11 - FREEZER DOOR PARTS
01 - CABINET PARTS
07 - REFRIGERATOR SHELF PARTS
14 - LOWER UNIT AND TUBE PARTS
12 - DISPENSER AND FRONT PARTS
13 - UPPER UNIT PARTS
03 - FREEZER SHELF PARTS
05 - CONTROL PANEL PARTS
09 - MOTOR AND ICE CONTAINER PARTS
06 - TOP GRILLE AND UNIT COVER PARTS
08 - FREEZER LINER AND AIR FLOW PARTS
15 - ICEMAKER PARTS
Common parts from model Whirlpool KSSC36QMS01 36`` BUILT IN REFRIGERATOR
1
Ice Bin WPL 2222960 Contact Us For Availability
1
Panel, Decorative Assembly (Stainless Steel) WPL 2257410S Contact Us For Availability
1
Fan Motor WPL 2259385 Contact Us For Availability
2
BRACE, DOOR CORNER WPL 2258951 Contact Us For Availability
2
Crusher Bin WPL 2222959 Contact Us For Availability
2
Cover, Unit WPL 2259320 Contact Us For Availability
2
Tube, P.C. Board WPL 2198665 Contact Us For Availability
2
Cover-Bottom, Electrical WPL 2300104 Contact Us For Availability
3
Circuit Board, Housing Control WPL 2266951 Contact Us For Availability
3
Wire Assembly, Icemaker WPL 2187622 Contact Us For Availability
4
Spacer-Door, Top WPL 2256381 Contact Us For Availability
4
Control Box Wire Harness WPL 2187424 Contact Us For Availability
4
Blade, Stirring WPL 2198603 Contact Us For Availability
5
Shield, Light WPL 2302727 Contact Us For Availability
5
Cover, Unit Front WPL 2302974 Contact Us For Availability
6
Suction Tube WPL 2259303 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
7
Wire Assembly RC/FC Light Switch WPL 2187429 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2252393 Contact Us For Availability
8
Badge, Kitchen Aid WPL 2005292 Contact Us For Availability
8
Seal Gasket WPL 2302758 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
10
Lever, Ice Dispenser (Black) WPL 2259396B Contact Us For Availability
10
Valve, Solenoid WPL 2307811 Contact Us For Availability
11
Cam, Door Closer WPL 2005783 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Trim, Glass Rear Side WPL 2257611 Contact Us For Availability
11
Bracket, Louver WPL 2254759 Contact Us For Availability
12
Spacer, Door-Skin (Handle Side) WPL 2309060 Contact Us For Availability
12
Louver, Grille (Stainless Steel) WPL 2254760S Contact Us For Availability
13
Door Spacer, Bottom WPL 2257637 Contact Us For Availability
14
Screw WPL 3400525 Contact Us For Availability
14
Enclosure, Connector WPL 2221297 Contact Us For Availability
15
OVERLAY WPL 2257518 Contact Us For Availability
16
CONDENSER WPL 2259307 Contact Us For Availability
16
Clamp, Tube WPL 488937 Contact Us For Availability
16
Spacer, Light Bracket WPL 2259446 Contact Us For Availability
17
Heater, Defrost WPL 2306387 Contact Us For Availability
17
Air Duct WPL 2306045 Contact Us For Availability
18
Cover WPL 2257538 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
20
Gasket, Evaporator WPL 2220832 Contact Us For Availability
20
Latch, Bin WPL 2252206 Contact Us For Availability
21
Liner (Not A Serviceable Part) WPL ARI105271A Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Pad, Air Duct WPL 2306055 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Light Shield WPL 2259367 Contact Us For Availability
25
Cover, Evaporator WPL 2306048 Contact Us For Availability
26
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
26
Bracket, Vent Tube WPL 2302925 Contact Us For Availability
29
Deflector, Air Duct WPL 2306037 Contact Us For Availability
33
COVER WPL 2222862 Contact Us For Availability
33
Evaporator, Cover Rail (Left Side) WPL 2221107 Contact Us For Availability
35
Screw WPL 2005921 Contact Us For Availability
35
Seal-Light, Socket WPL 2302777 Contact Us For Availability
37
Harness, Evap Fan (Includes Item 55) WPL 2187673 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2306081 Contact Us For Availability
40
Clip, Thermistor WPL 2209204 Contact Us For Availability
43
Gasket, Air Duct WPL 2306051 Contact Us For Availability
44
Bracket, Light WPL 2257571 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Tube, Vent WPL 2302933 Contact Us For Availability
47
Support, Screw WPL 2259397 Contact Us For Availability
48
Support, Air Duct WPL 2302849 Contact Us For Availability
100
Ice Container Assembly WPL 2222958 Contact Us For Availability
100
Cleaner (Stainless Steel) WPL 2261590 Contact Us For Availability
100
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI105280A Contact Us For Availability
100
(Optional Parts Only) WPL ARI105281A Contact Us For Availability
× ![]()
