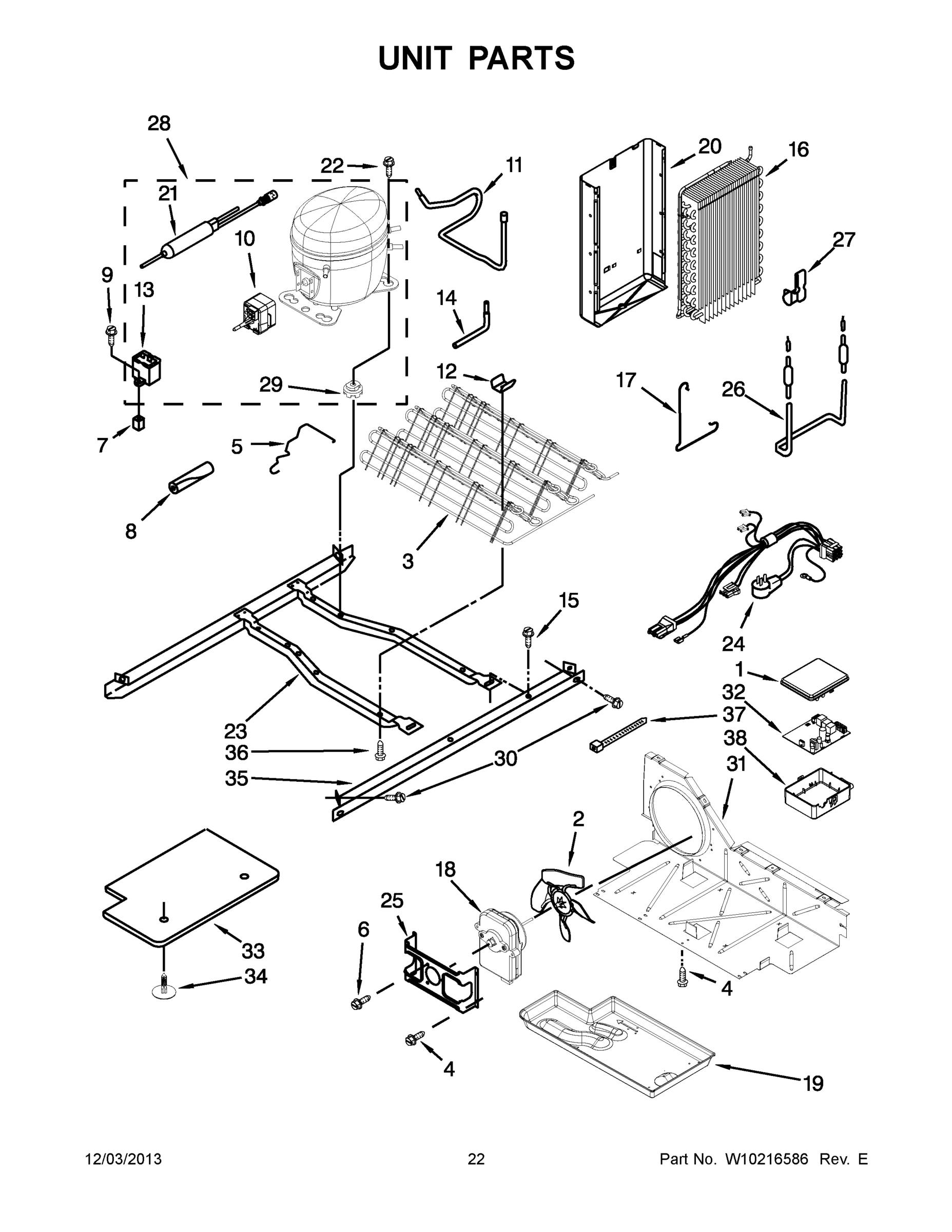

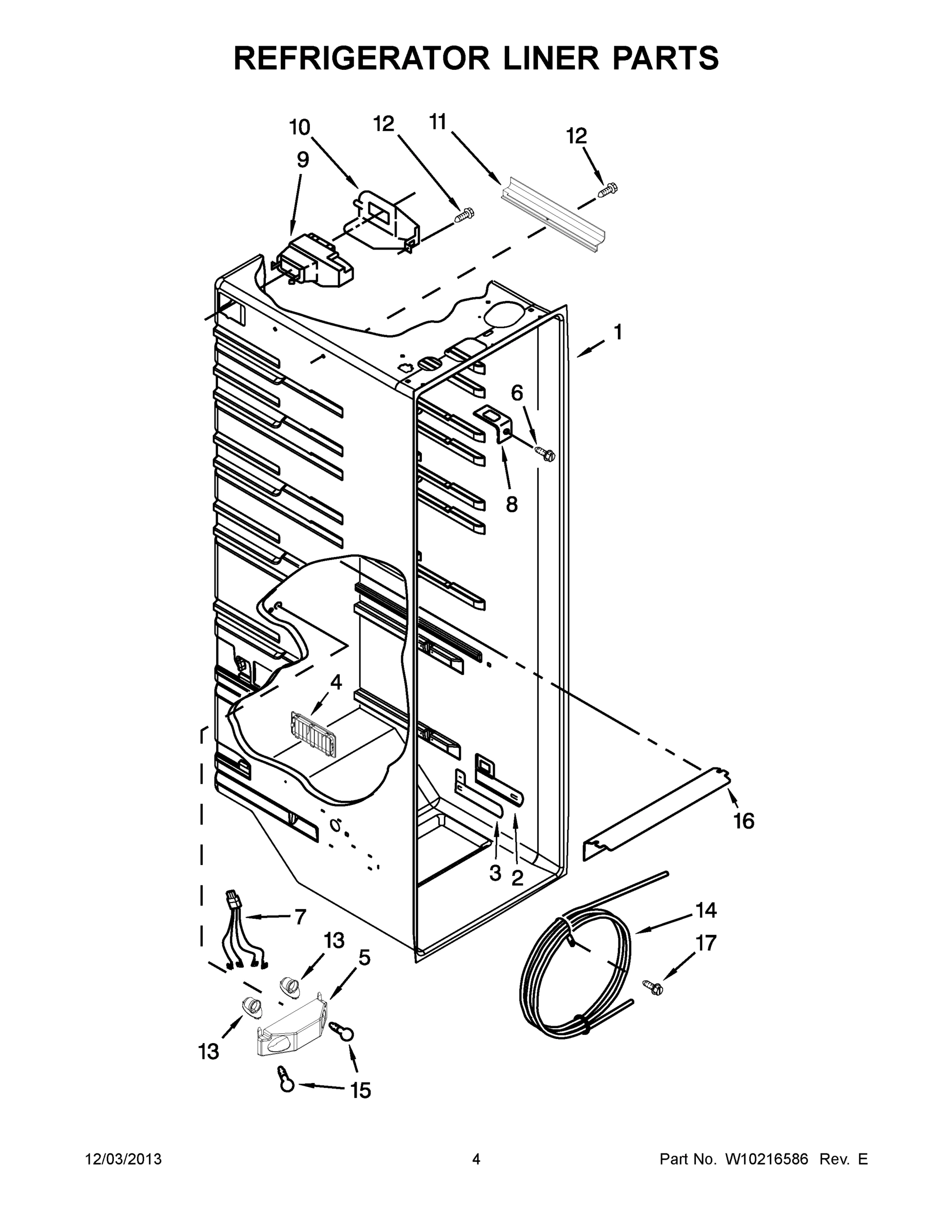

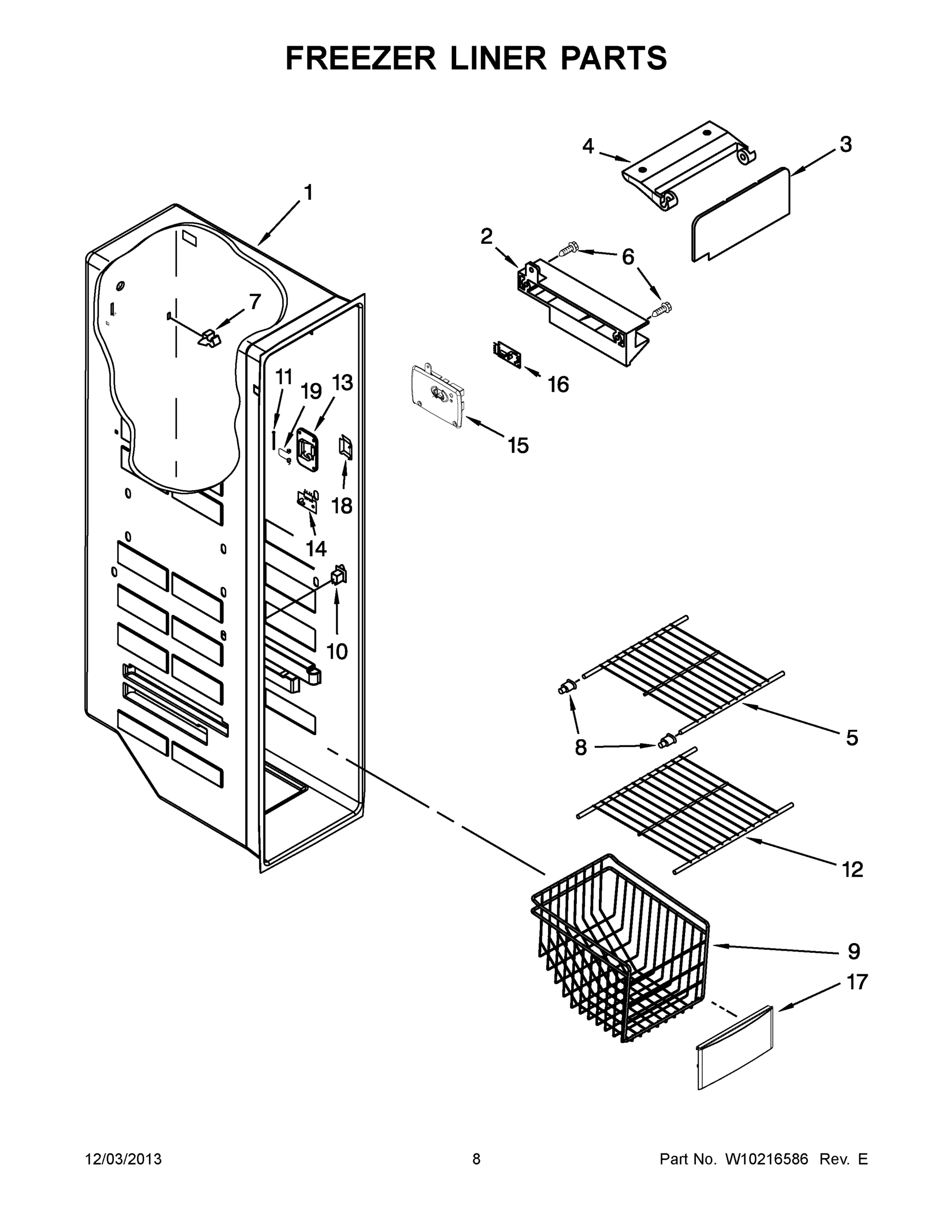

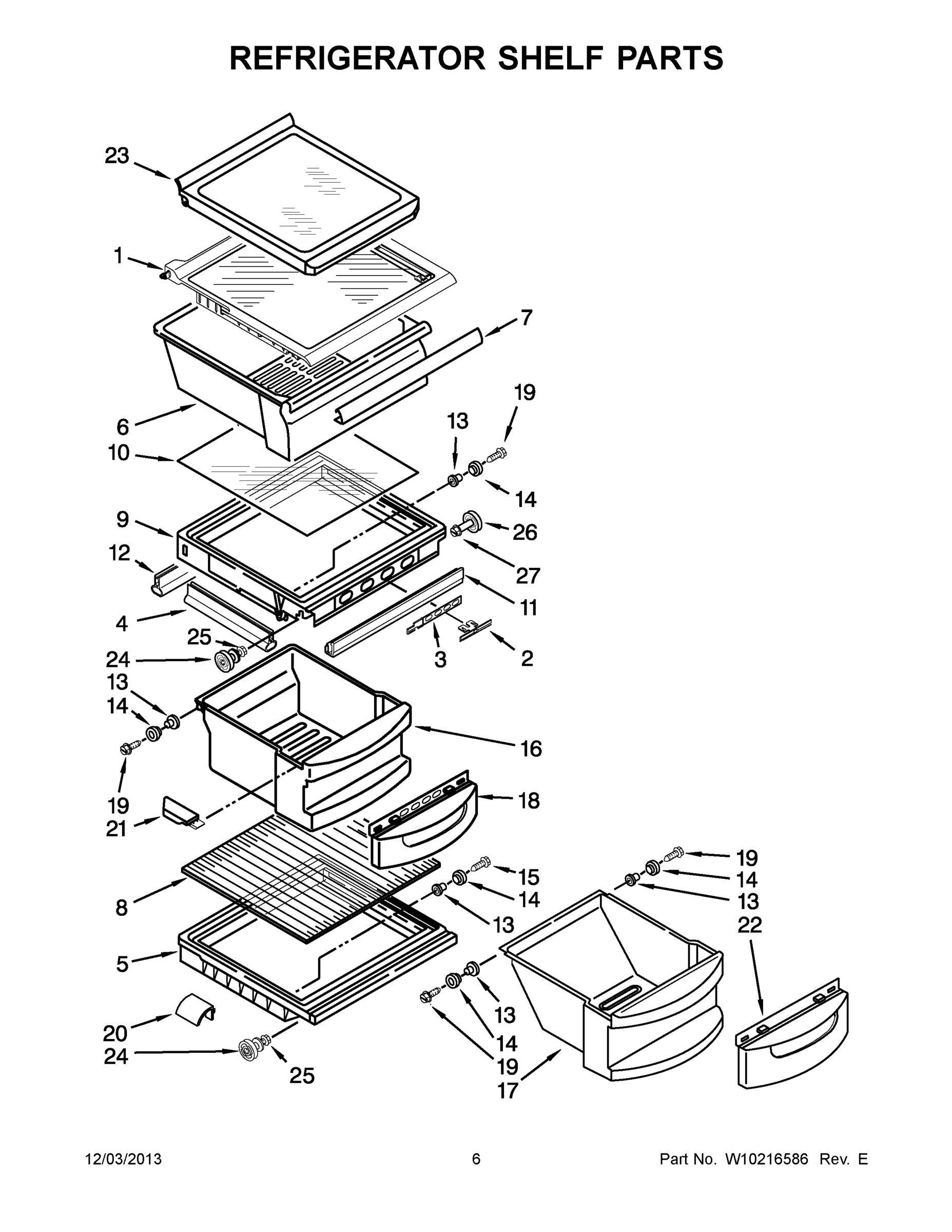

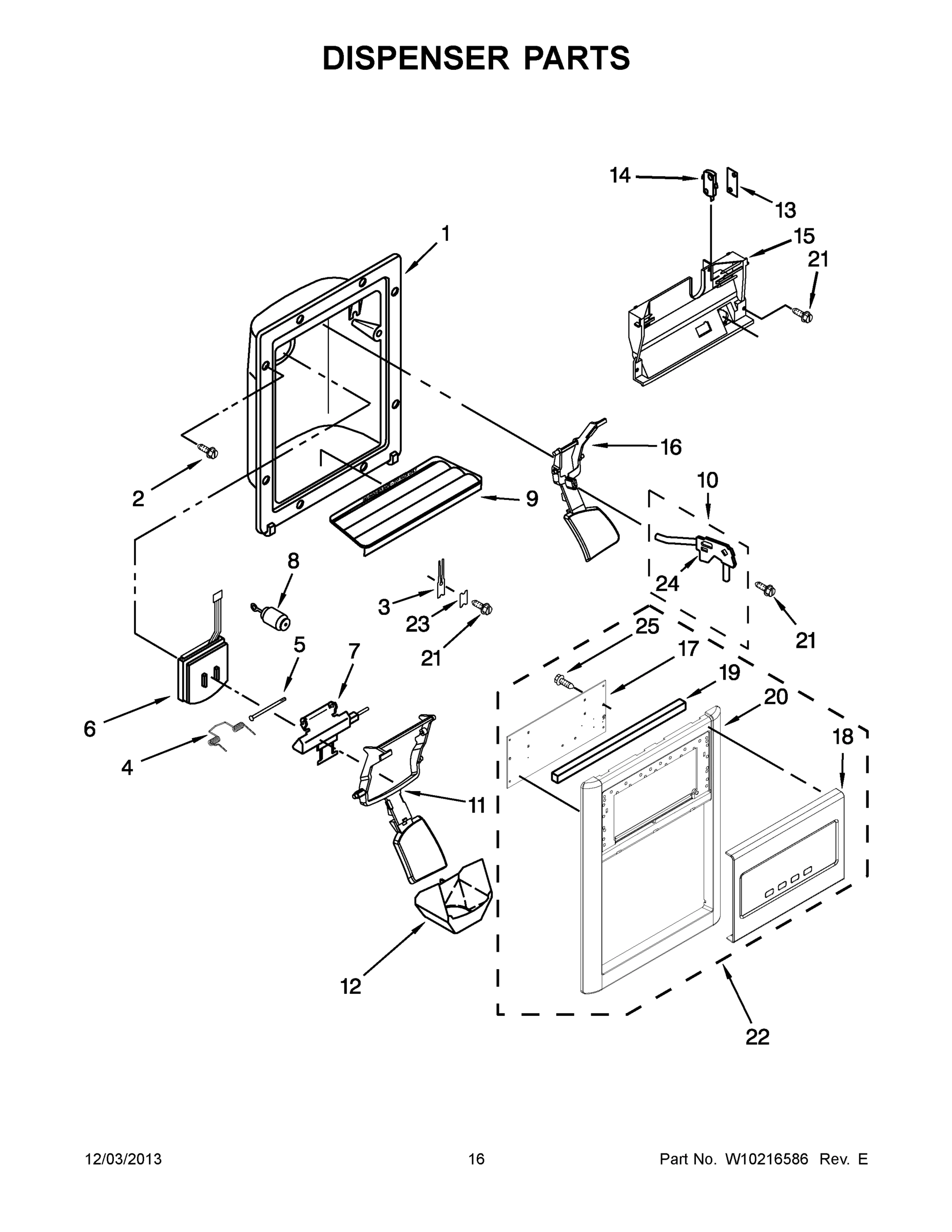

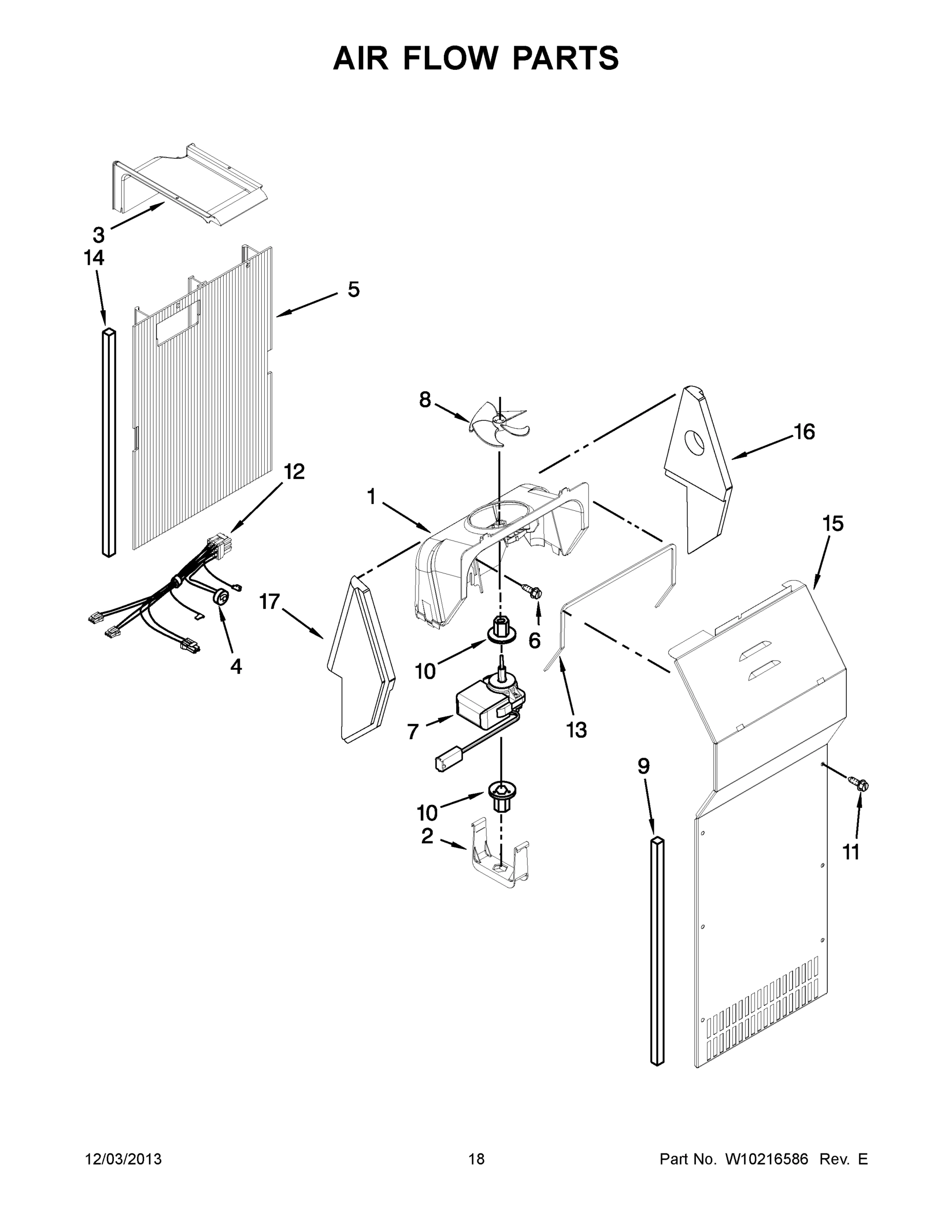

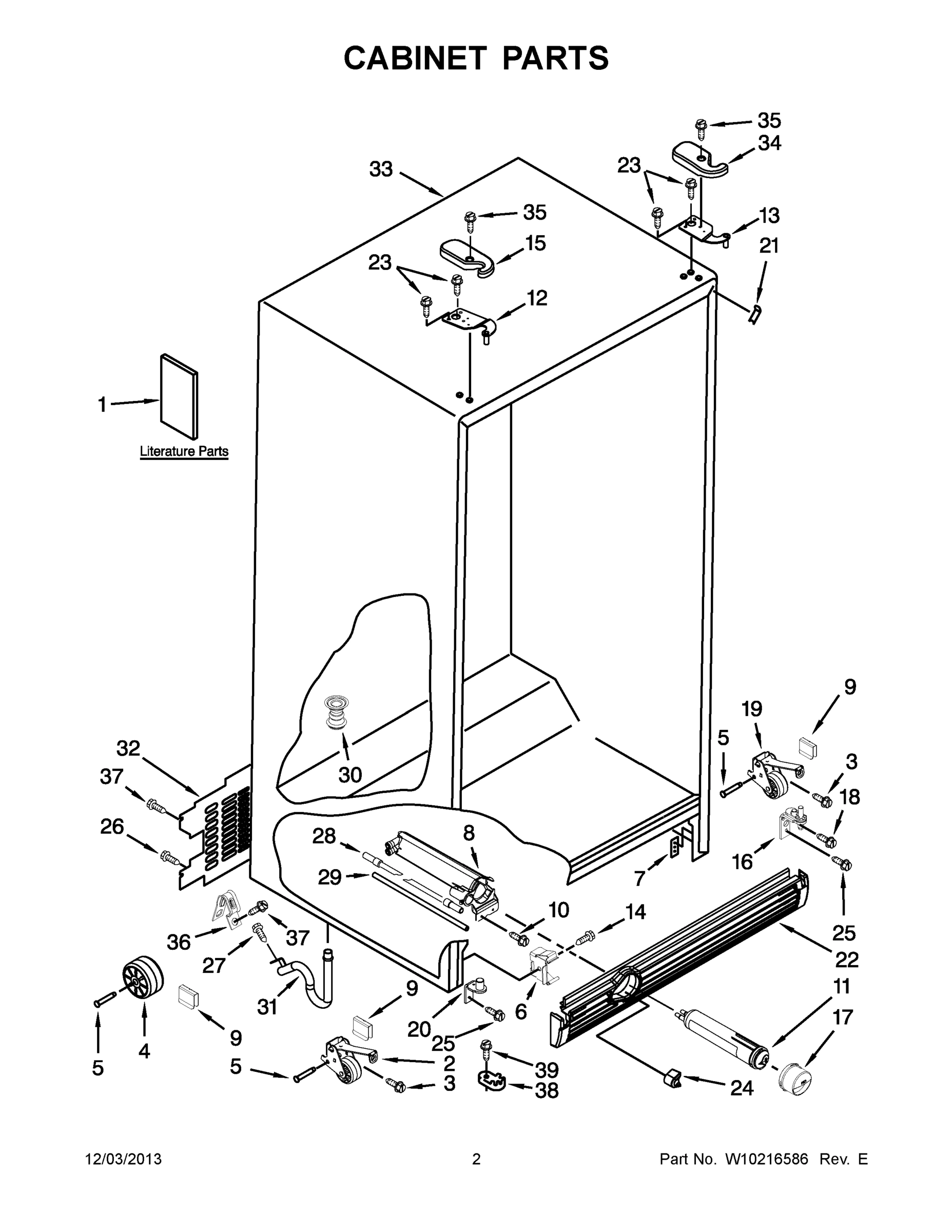

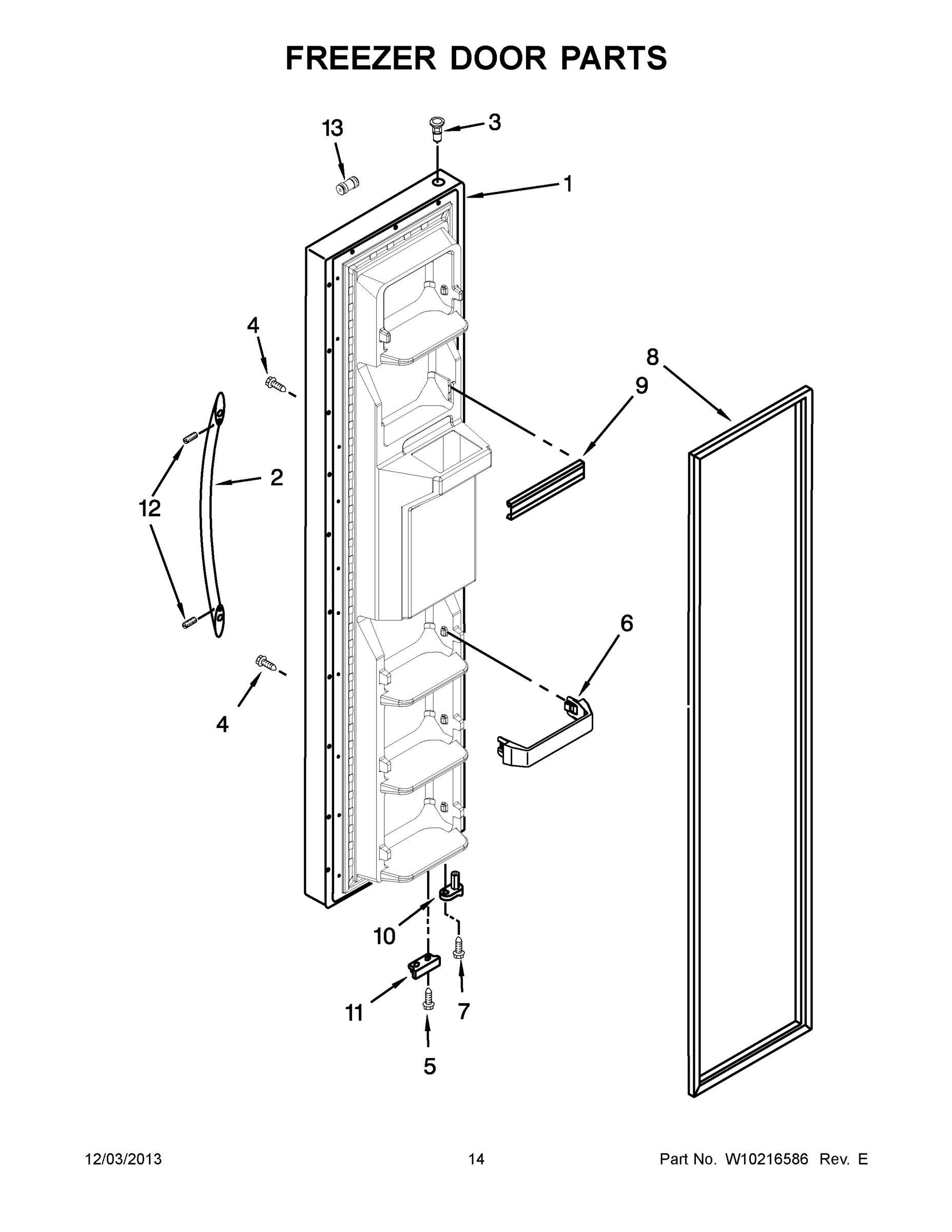

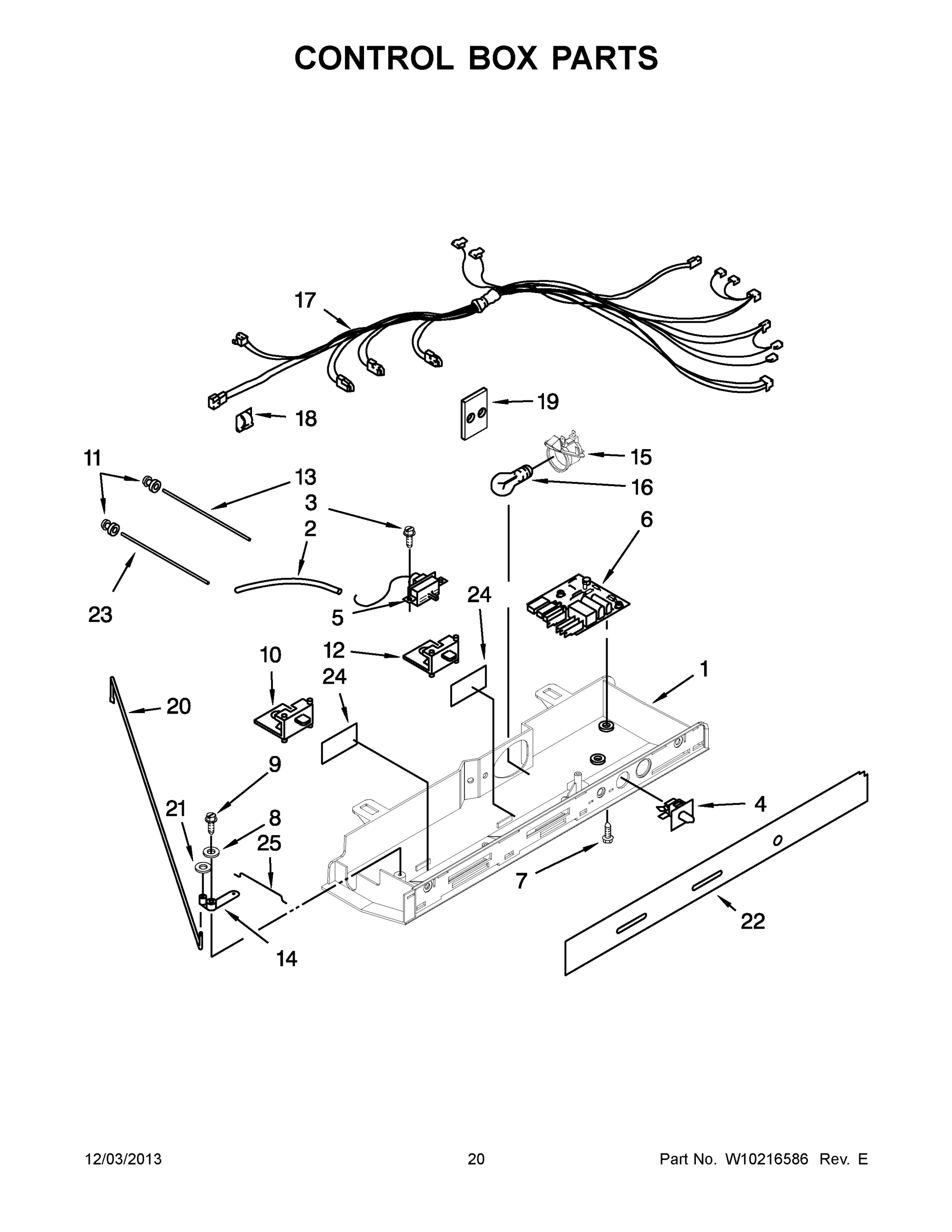

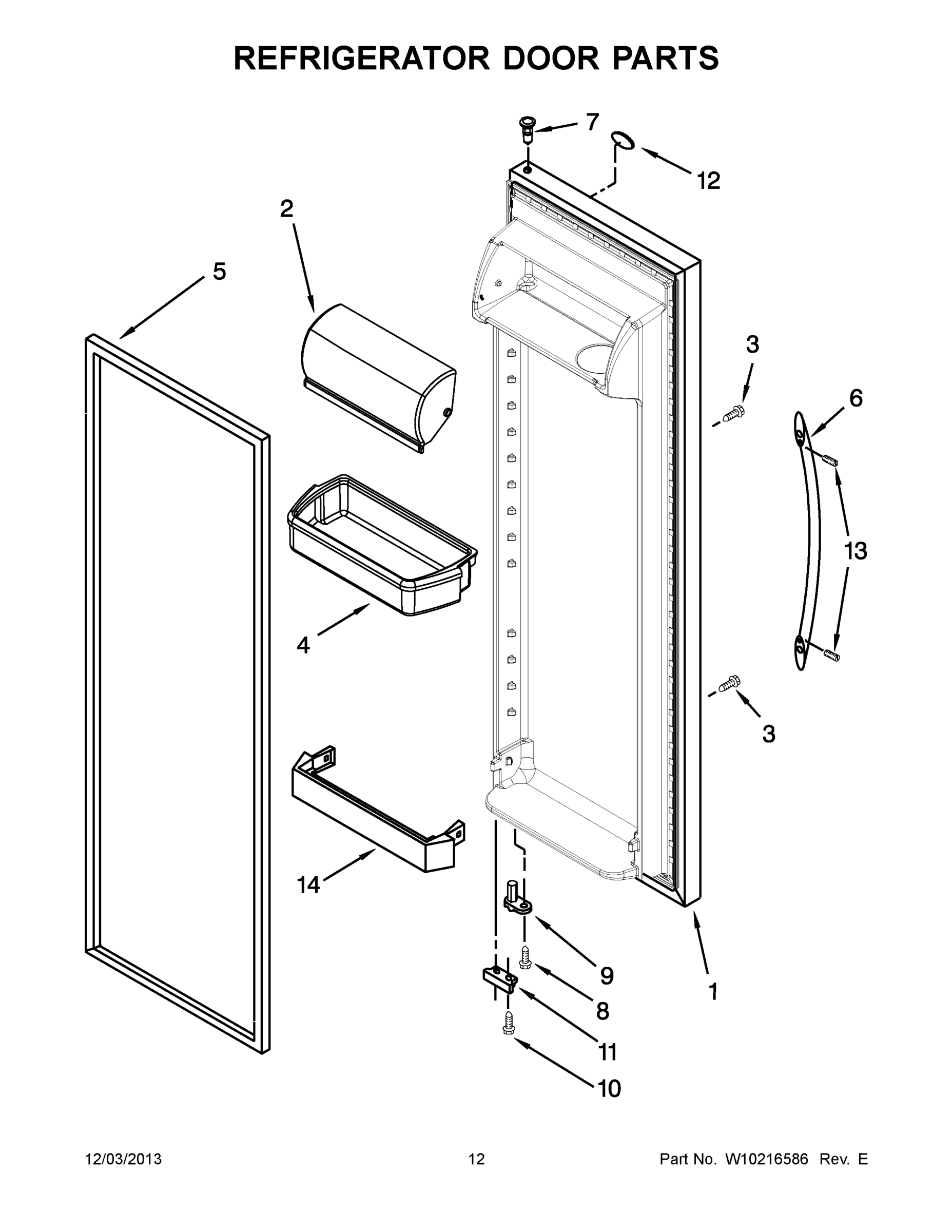

Model Whirlpool KSRV22FVWH00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.17

1

BIN, CRUSHER WPL 2317246 Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

2317274 Whirlpool Refrigerator Bin Latch Backorder WPL 2317274 $33.01

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $30.25

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $9.24

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $29.99

2

SLIDE, ICEMAKER MOUNTING (RIGHT HAND) WPL 2212321 Contact Us For Availability

2

HANDLE (INCLUDES ITEM No.4) (STAINLESS) WPL 2319727S Contact Us For Availability

2

HANDLE (INCLUDES ITEM No.4) (BLACK) WPL 2319727B Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $40.10

3

W10803534 Whirlpool Screw In Stock WPL W10803534 $5.01

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

3

WPW10140630 Whirlpool Refrigerator Fitting Backorder WPL WPW10140630 $44.49

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

4

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $27.32

4

Louver WPL 2257741 Contact Us For Availability

5

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $171.59

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WPW10318953 Whirlpool Wire Shelf Backorder WPL WPW10318953 $47.54

5

DUCT, FREEZER AIR WPL 2312009 Contact Us For Availability

5

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

6

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

6

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

7

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $138.30

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

8

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

8

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.50

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

Enclosure, Motor WPL 2322488 Contact Us For Availability

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WP2312034 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2312034 $88.24

9

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

9

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $44.36

9

COVER, CRISPER WPL W10160317 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

2323534 Whirlpool Refrigerator Bracket Backorder WPL 2323534 $59.21

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $28.82

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

BRACKET, DOOR STOP (ZINC) WPL W10219811 Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10219812 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W10277480 Whirlpool Wire Harness Backorder WPL W10277480 $68.29

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

WPW10318960 Whirlpool Wire Shelf In Stock WPL WPW10318960 $52.28

ASSEMBLY, TOP HINGE (FREEZER) WPL W10287685 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

SPACER, SWITCH HARNESS WPL 625834 Contact Us For Availability

FIBER, LIGHT OPTIC WPL 2179920 Contact Us For Availability

ASSEMBLY, TOP HINGE (REFRIGERATOR) WPL W10287684 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $228.34

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

Cover, Receiver WPL W10173569 Contact Us For Availability

COVER, EVAPORATOR WPL 2212347 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

PAN, CRISPER WPL W10142714 Contact Us For Availability

ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) WPL W10400807 Contact Us For Availability

COVER, LIGHT LENS WPL 2209769 Contact Us For Availability

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $121.88

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

CONTROL, ELECTRONIC WPL 2321704 Contact Us For Availability

PAN, MEAT WPL W10149981 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

TRIM, FREEZER BASKET WPL 2305582 Contact Us For Availability

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

18

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

18

WINDOW, CRISPER PAN WPL 2174076 Contact Us For Availability

19

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

19

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

19

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $38.05

20

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $54.79

20

ASSEMBLY, BOTTOM HINGE (FREEZER) WPL W10251418 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $3.70

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.52

CAP, CRISPER PAN (RIGHT HAND) WPL 2223286 Contact Us For Availability

22

Grille (White) WPL W10184869 Contact Us For Availability

22

Grille (Black) WPL W10184880 Contact Us For Availability

23

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

24

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

24

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

24

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

25

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

25

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

25

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

27

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

27

Screw WPL W10191952 Contact Us For Availability

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

31

BAFFLE, AIR WPL W10332806 Contact Us For Availability

32

CONTROL, ELECTRONIC WPL W10259855 Contact Us For Availability

34

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

38

WPL 2223751 WPL 2223751 Contact Us For Availability

39

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90

100

CONTAINER, ICE (COMPLETE) WPL W10204457 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2OZ.BRUSH TOUCH-UP KIT GRA WPL 80051 Contact Us For Availability

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
