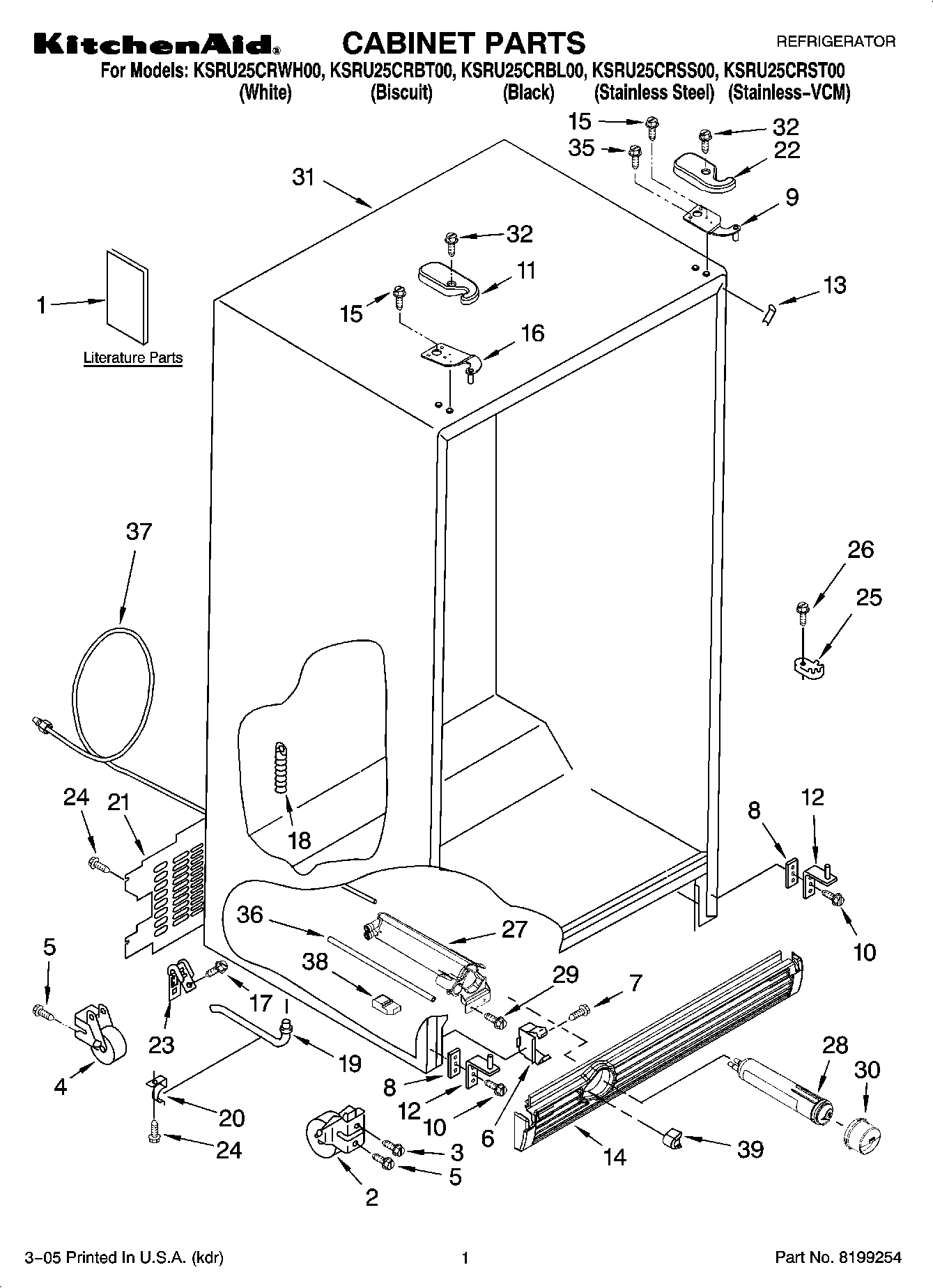

Model Whirlpool KSRU25CRBT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

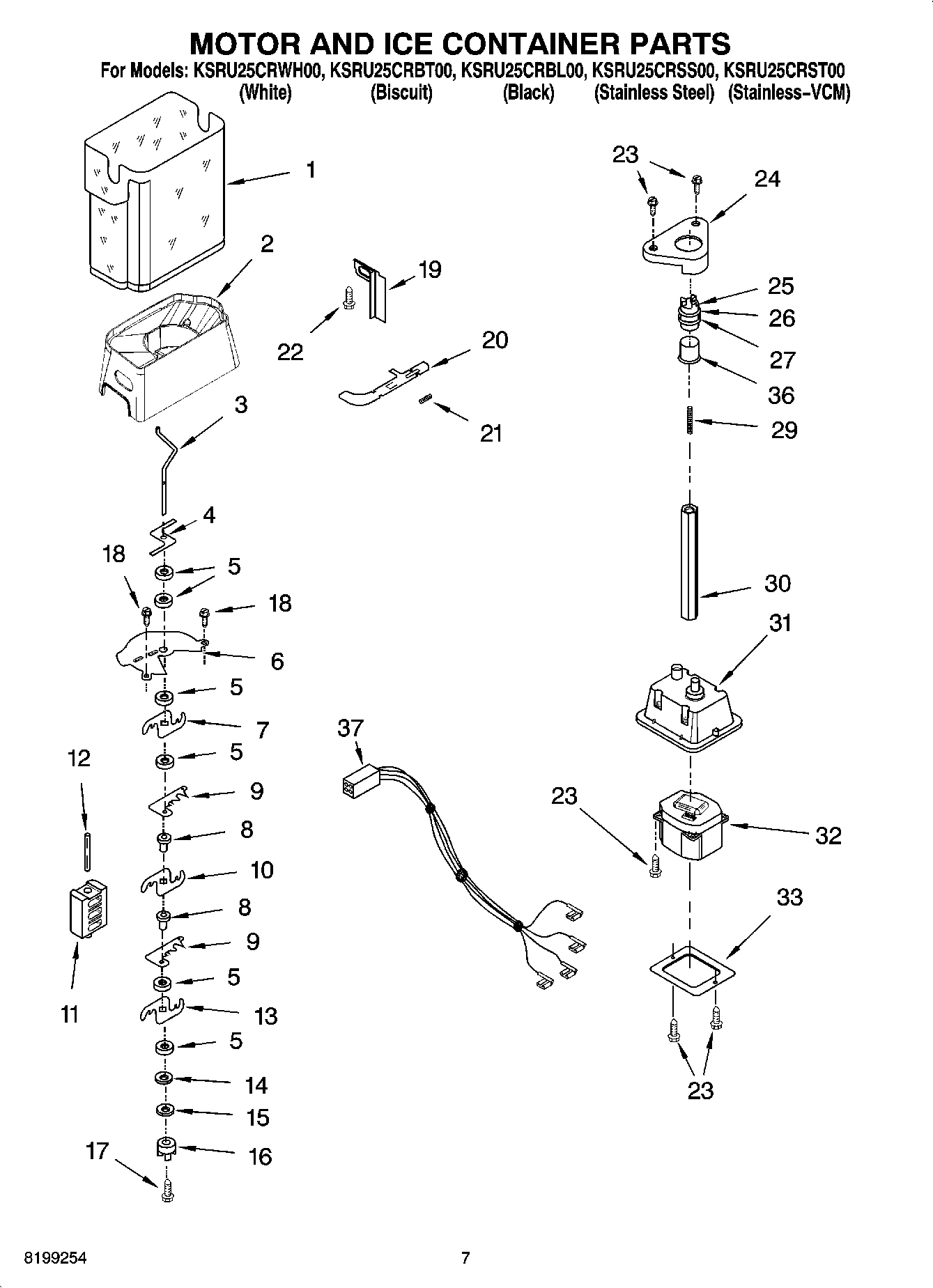

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

Shelf Assembly, Cantilever (2) WPL 2195975 Contact Us For Availability

1

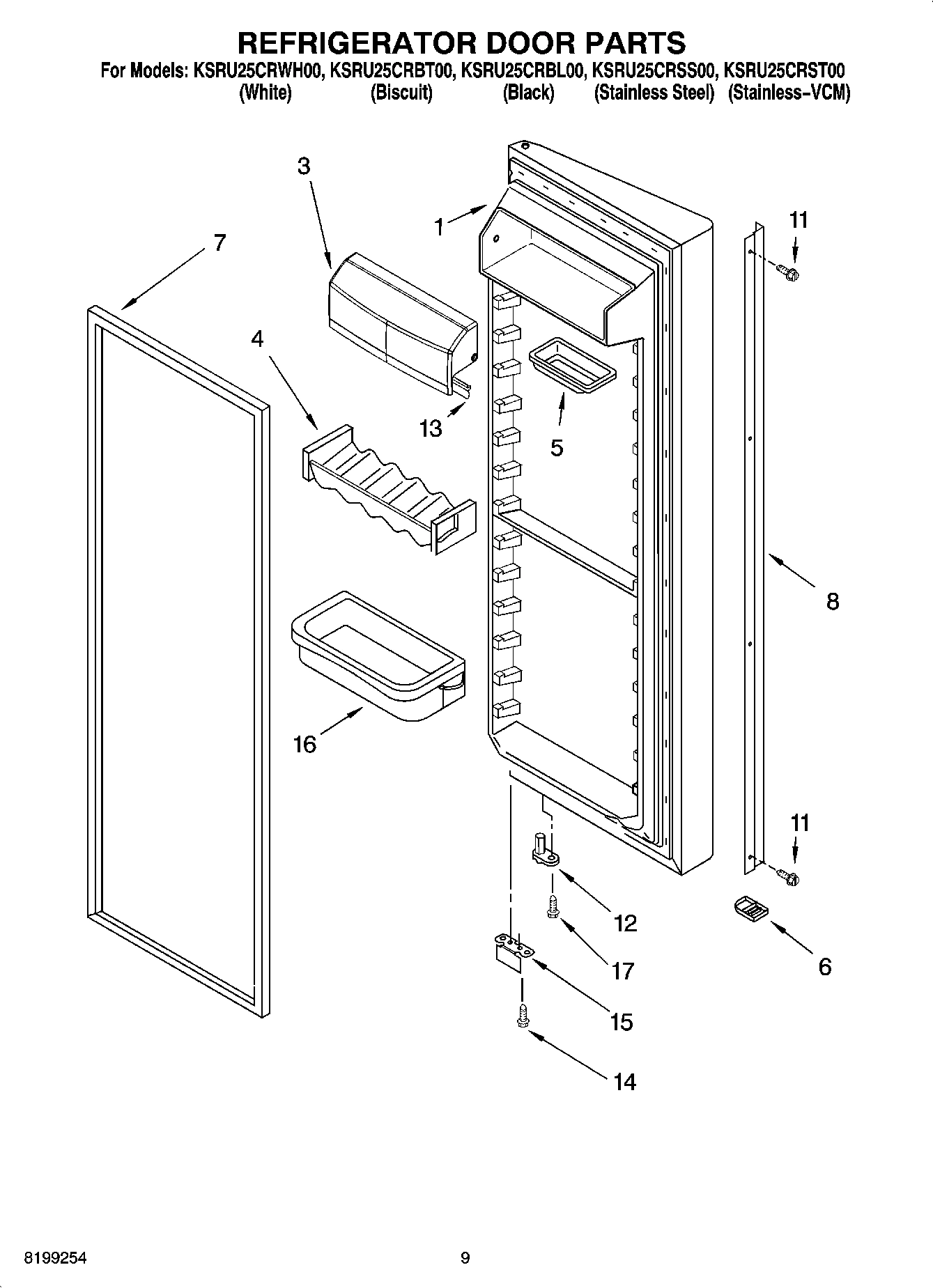

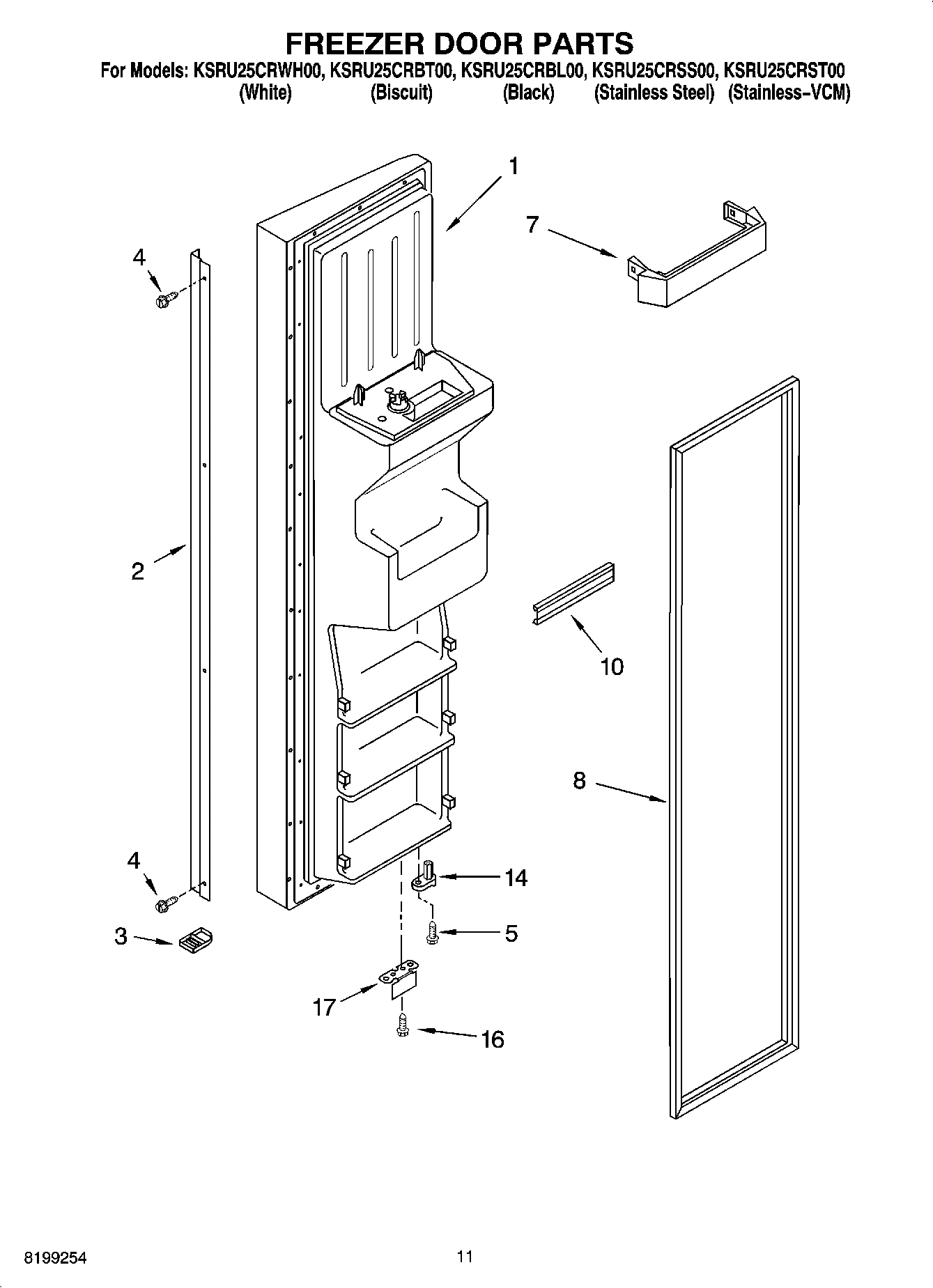

Refrigerator Door (Includes 7) (Black) WPL 2207183B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless-VCM WPL 2207183L Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2207183S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2207183T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2207183W Contact Us For Availability

1

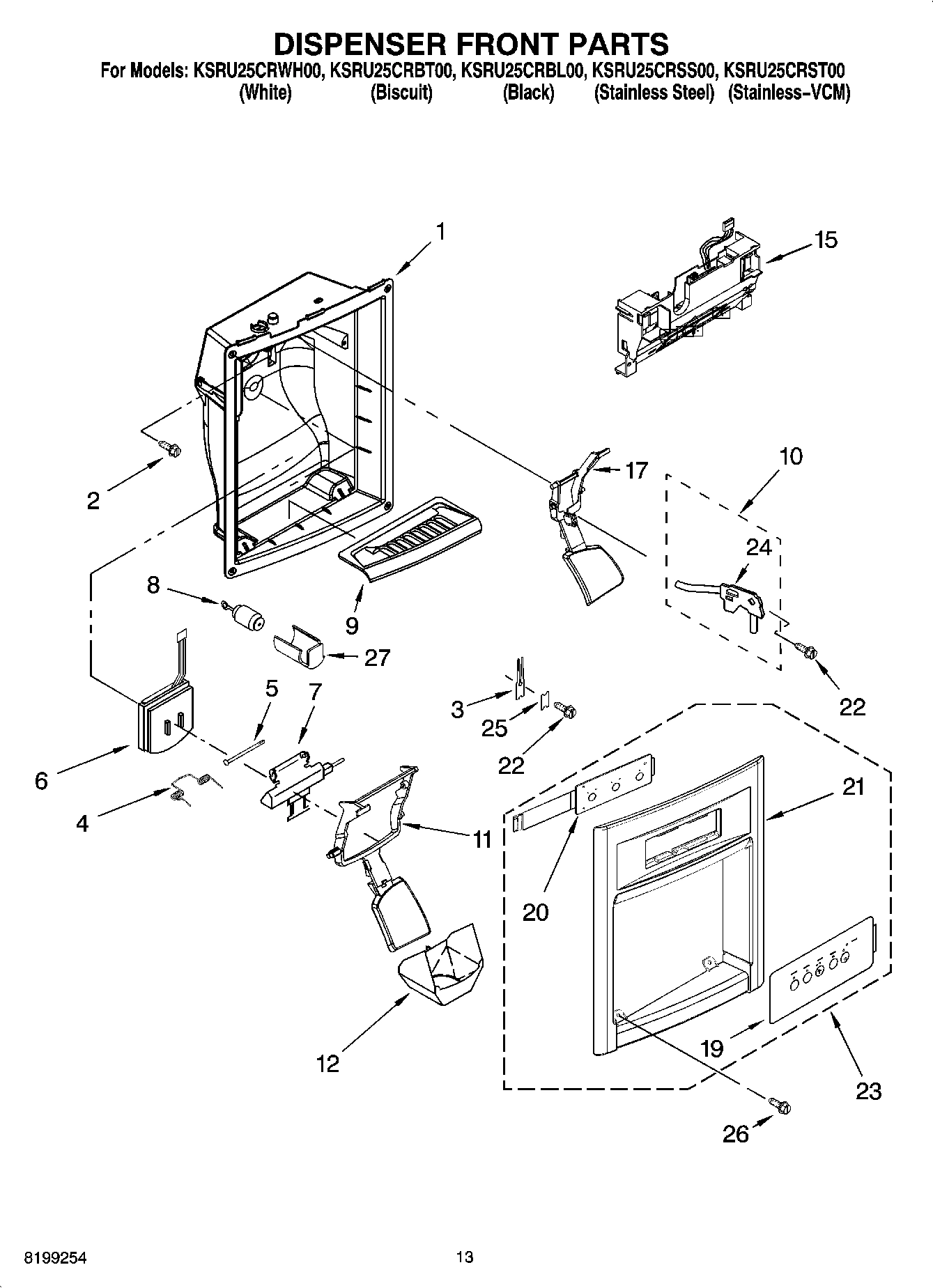

Housing, Dispenser (Not Serviced) WPL ARI104087A Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Crusher Bin WPL 2255580 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger In Stock WPL WP2198574 $75.59

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Door, Compartment (Includes 13) WPL 2301486 Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2257021 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

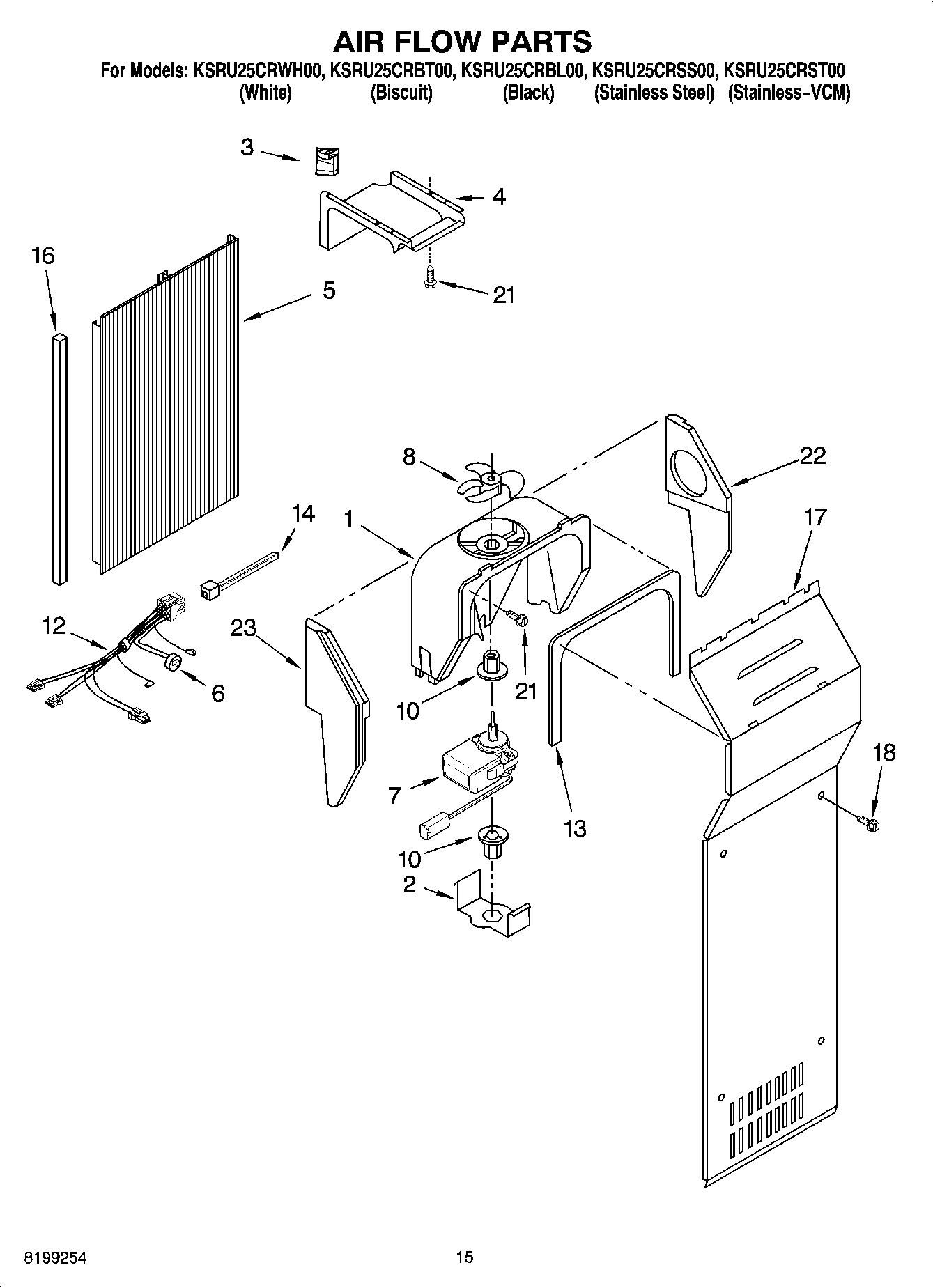

Air Duct, Upper WPL 2212377 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

Butter, Dish WPL 2165792 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

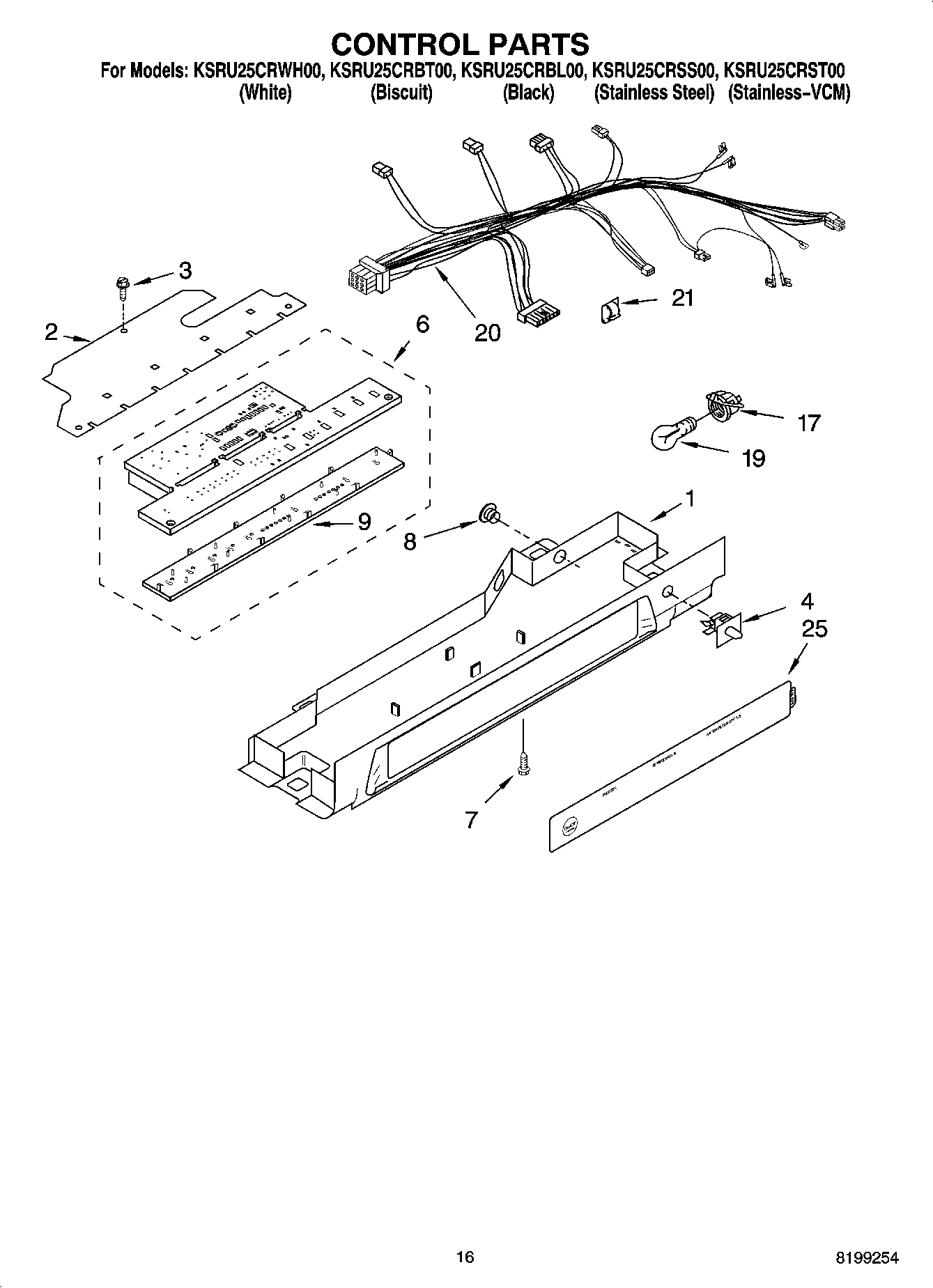

Control Board Asm (Includes 25) WPL 2313157 Contact Us For Availability

6

Snack Pan (Includes 30, 31, 32, 33, & 34) WPL 2301120 Contact Us For Availability

6

Trim, Door-Bottom (Black) WPL 2207111B Contact Us For Availability

6

Trim, Door-Bottom (Biscuit) WPL 2207111T Contact Us For Availability

6

Trim, Door-Bottom (White) WPL 2207111W Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Handle (Black) WPL 2220238B Contact Us For Availability

8

Handle (Stainless Steel) WPL 2220238S Contact Us For Availability

8

Handle (Biscuit) WPL 2220238T Contact Us For Availability

8

Handle (White) WPL 2220238W Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $40.83

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301484 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Glass, Cover WPL 2255143 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Screw (Black) WPL 3400899 Contact Us For Availability

Screw (Stainless Steel) WPL 3400897 Contact Us For Availability

Screw (White) WPL 3400898 Contact Us For Availability

Screw (Biscuit) WPL 8281135 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

GASKET (REAR) WPL 2223362 Contact Us For Availability

Harness, Fan Evaporator (Includes 6) WPL 2187825 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

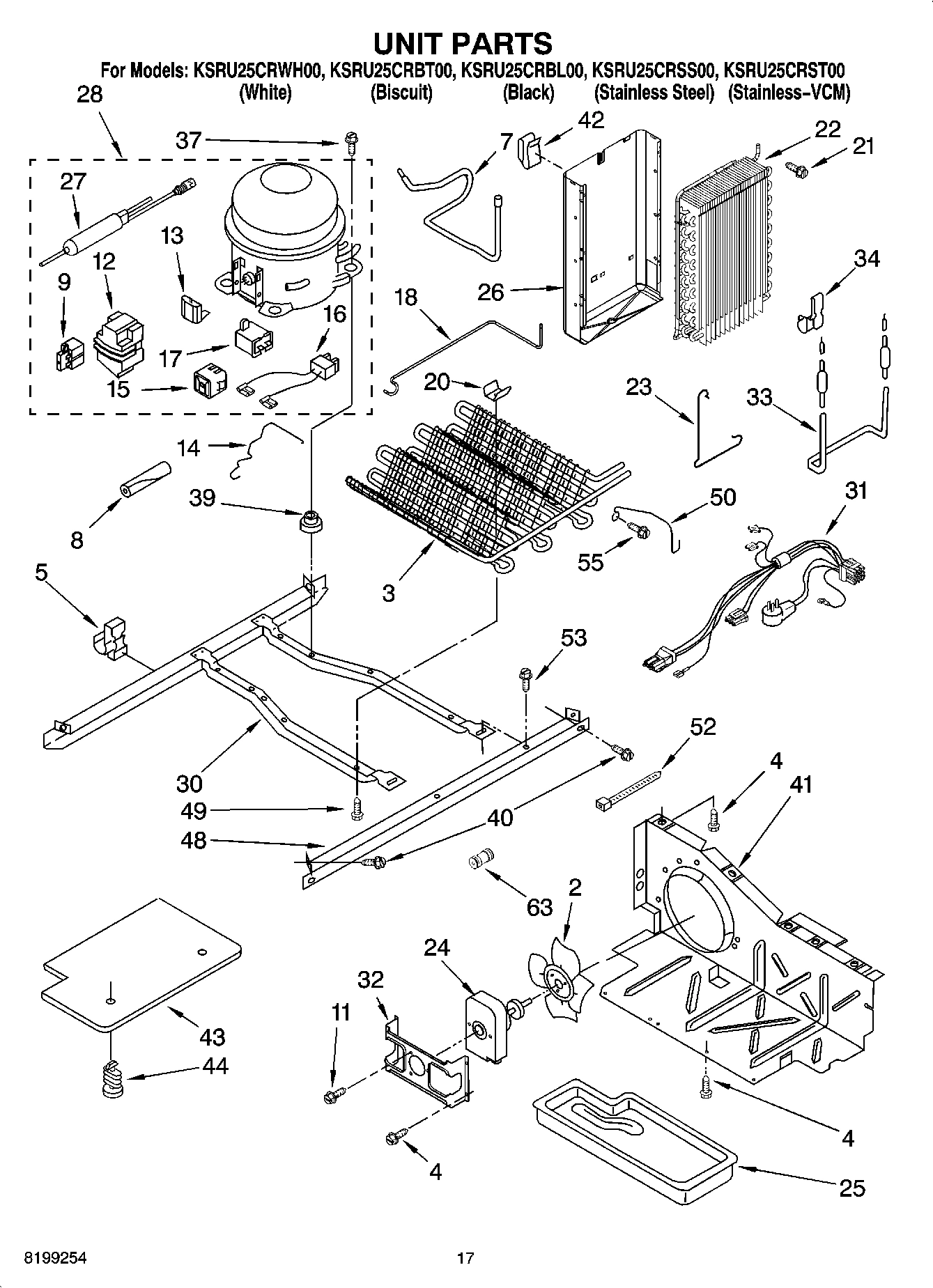

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Grille (Biscuit) WPL 2260500T Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

Bracket, Control WPL 2252163 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

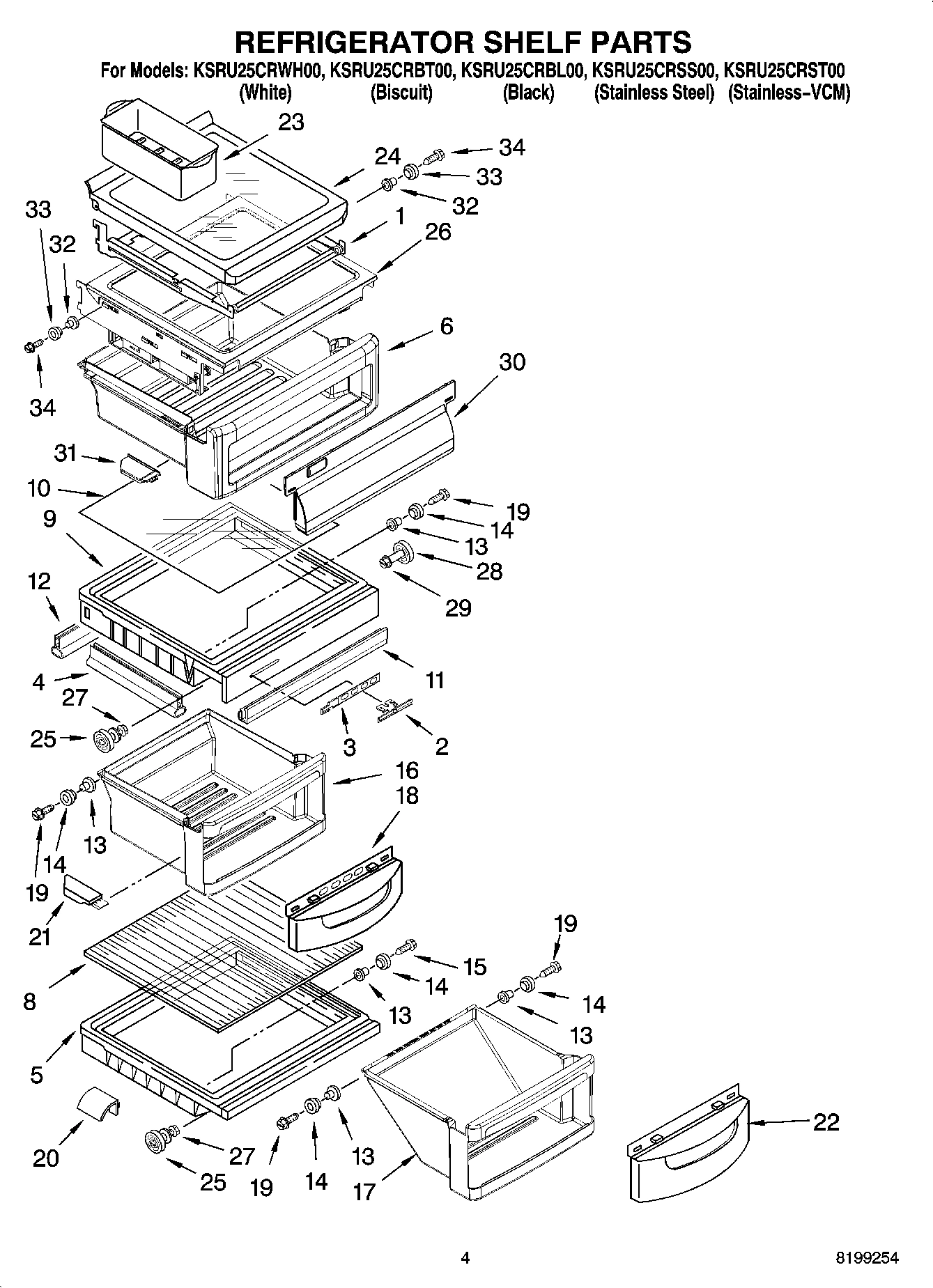

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Shelf Bin (4) WPL 2205821 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

Overlay, Front Cover (Not Available, Order 23 WPL ARI104088A Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Latch, Bin WPL 2212371 Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI104089A Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI104090A Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2252085B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2252085T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2252085W Contact Us For Availability

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Holder WPL 2212369 Contact Us For Availability

Shelf & Roller Assembly WPL 2216102 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Shelf, Snack Pan WPL 2301034 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Window, Snack Pan WPL 2301006 Contact Us For Availability

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI104084A Contact Us For Availability

Cap, Snack Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Snack Pan (Left Side) WPL 2301017 Contact Us For Availability

Enclosure, Motor WPL 2256154 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Eyelet, Roller WPL 2301153 Contact Us For Availability

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

33

Roller WPL 2301152 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Screw WPL 8533983 Contact Us For Availability

35

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Block, Housing Support WPL 2260519 Contact Us For Availability

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

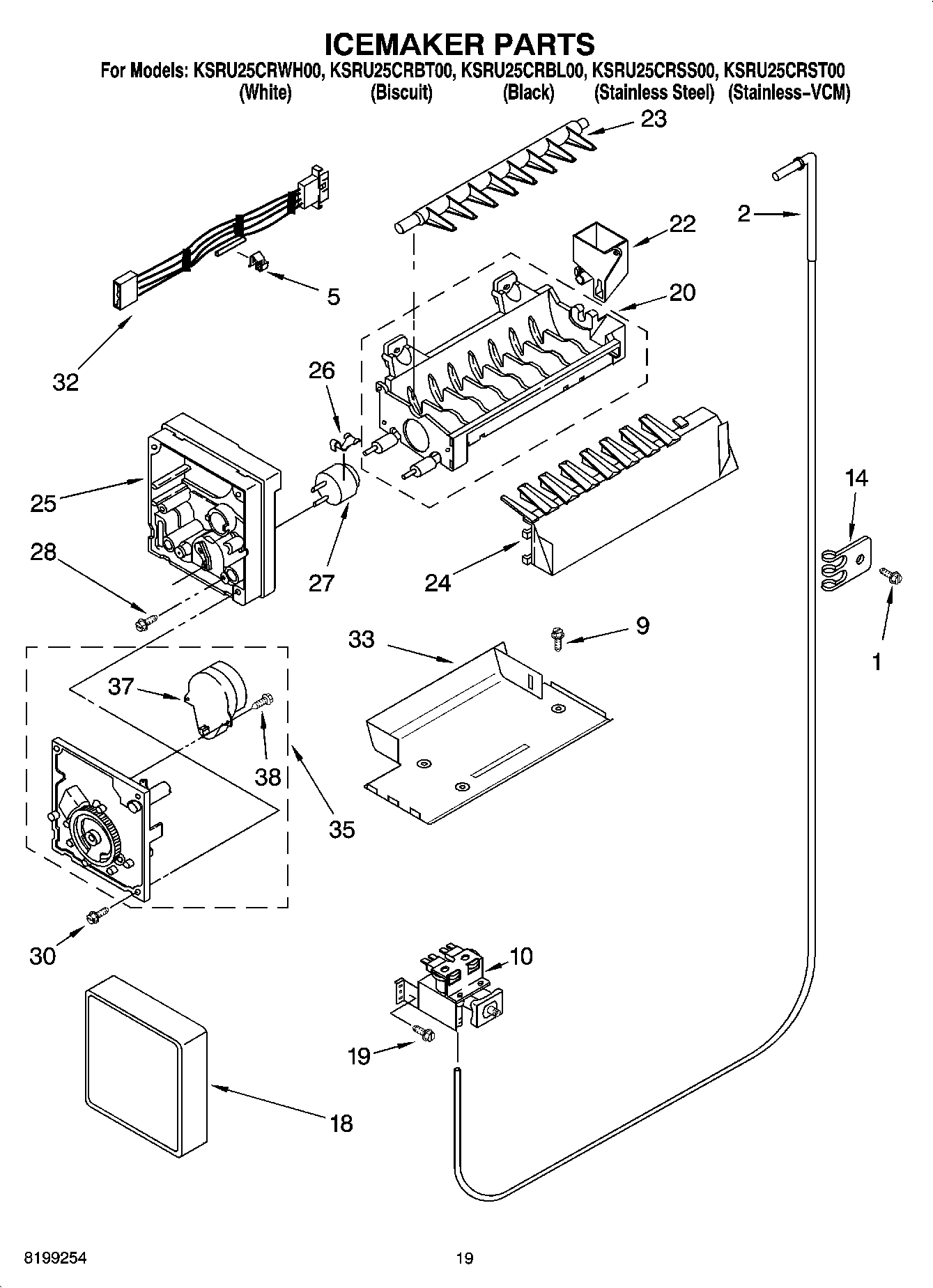

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79
