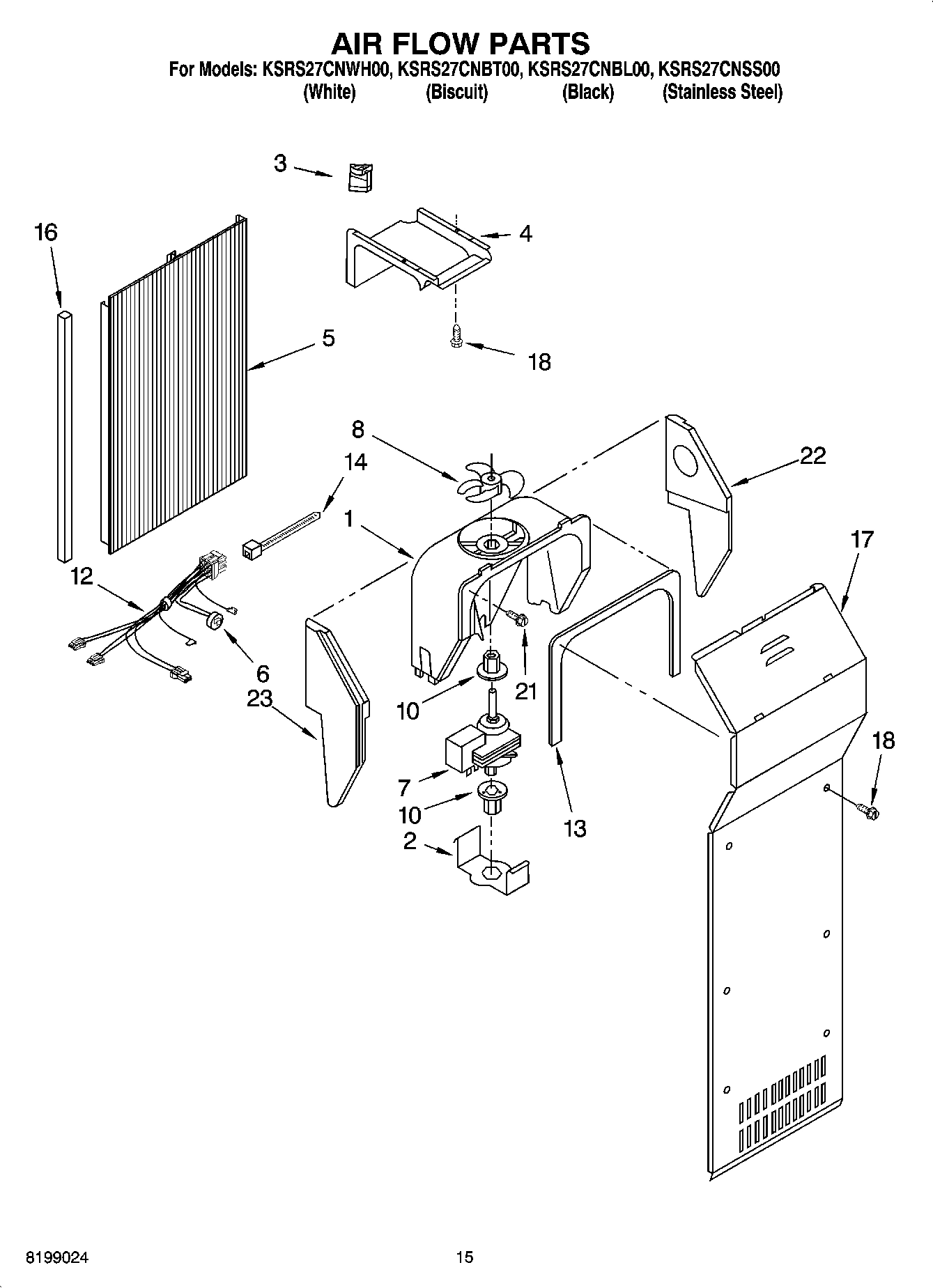

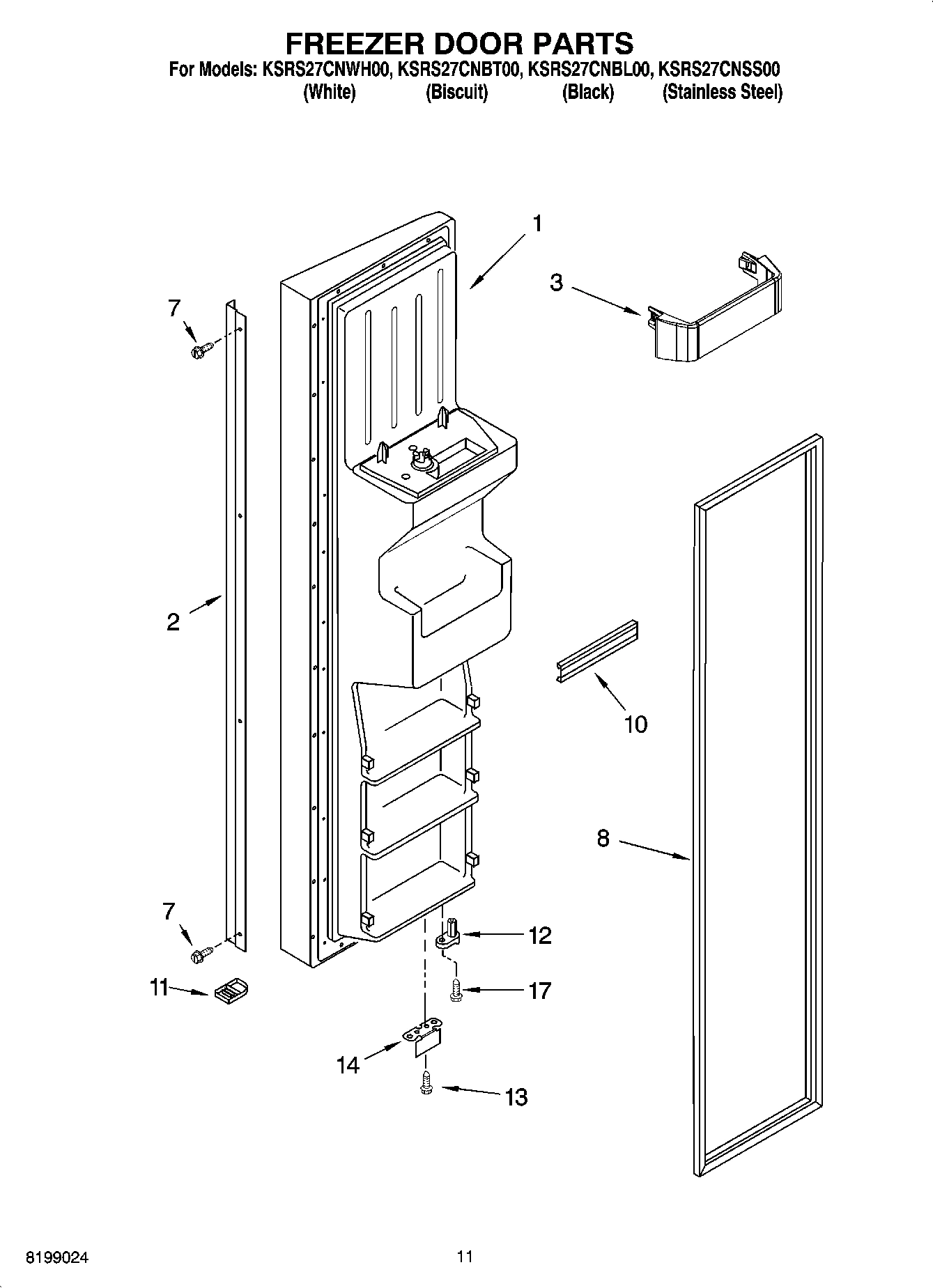

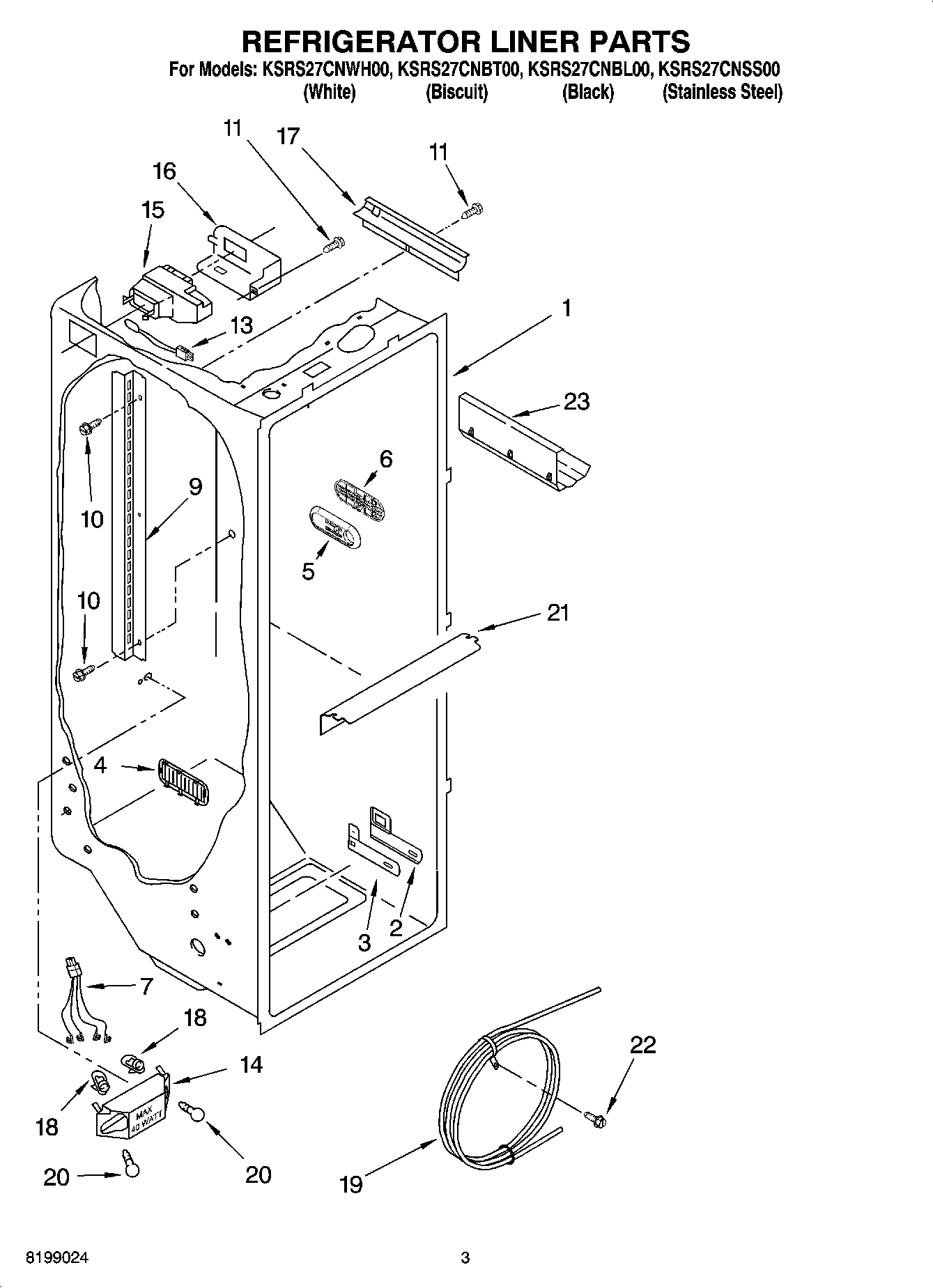

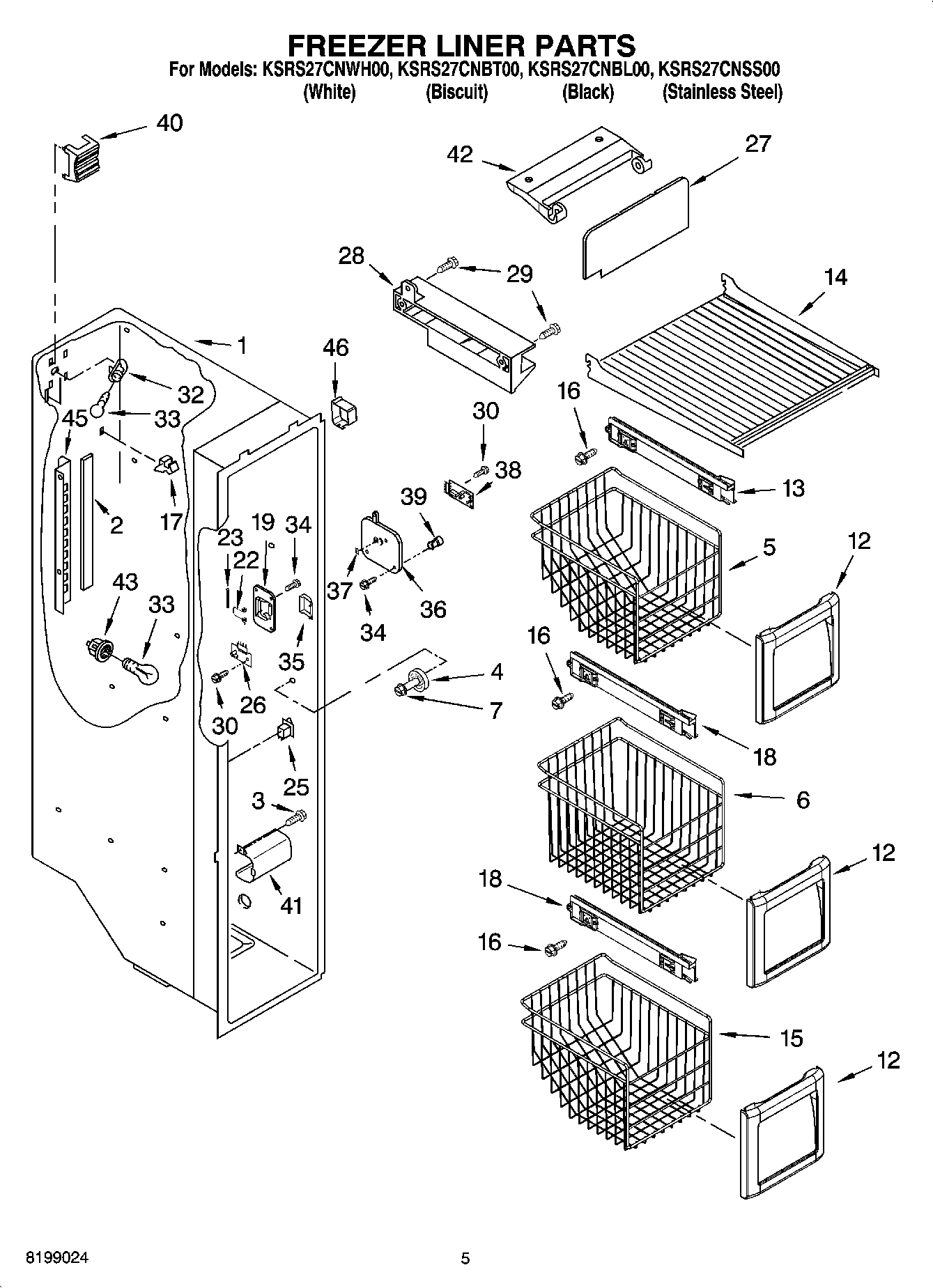

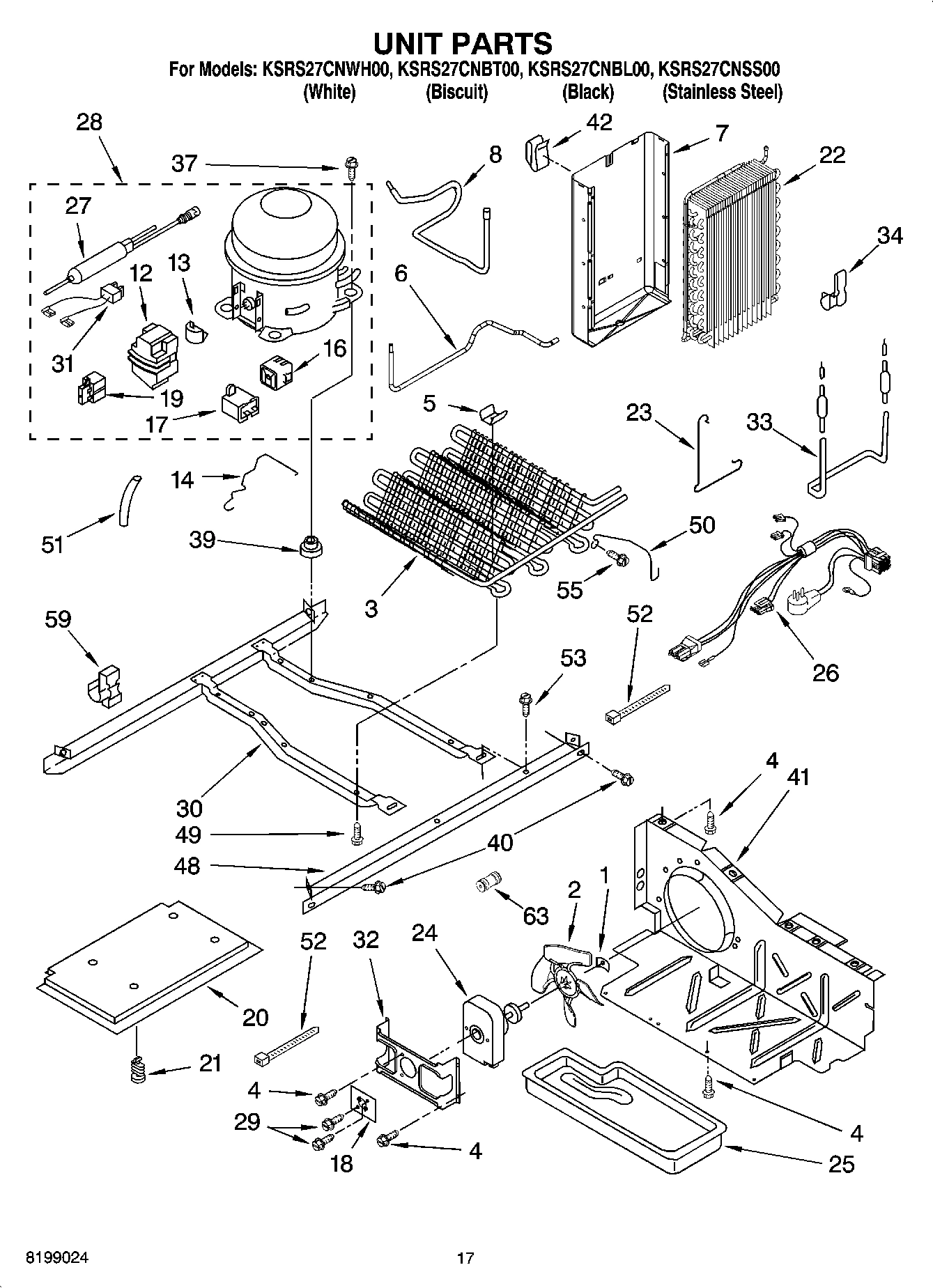

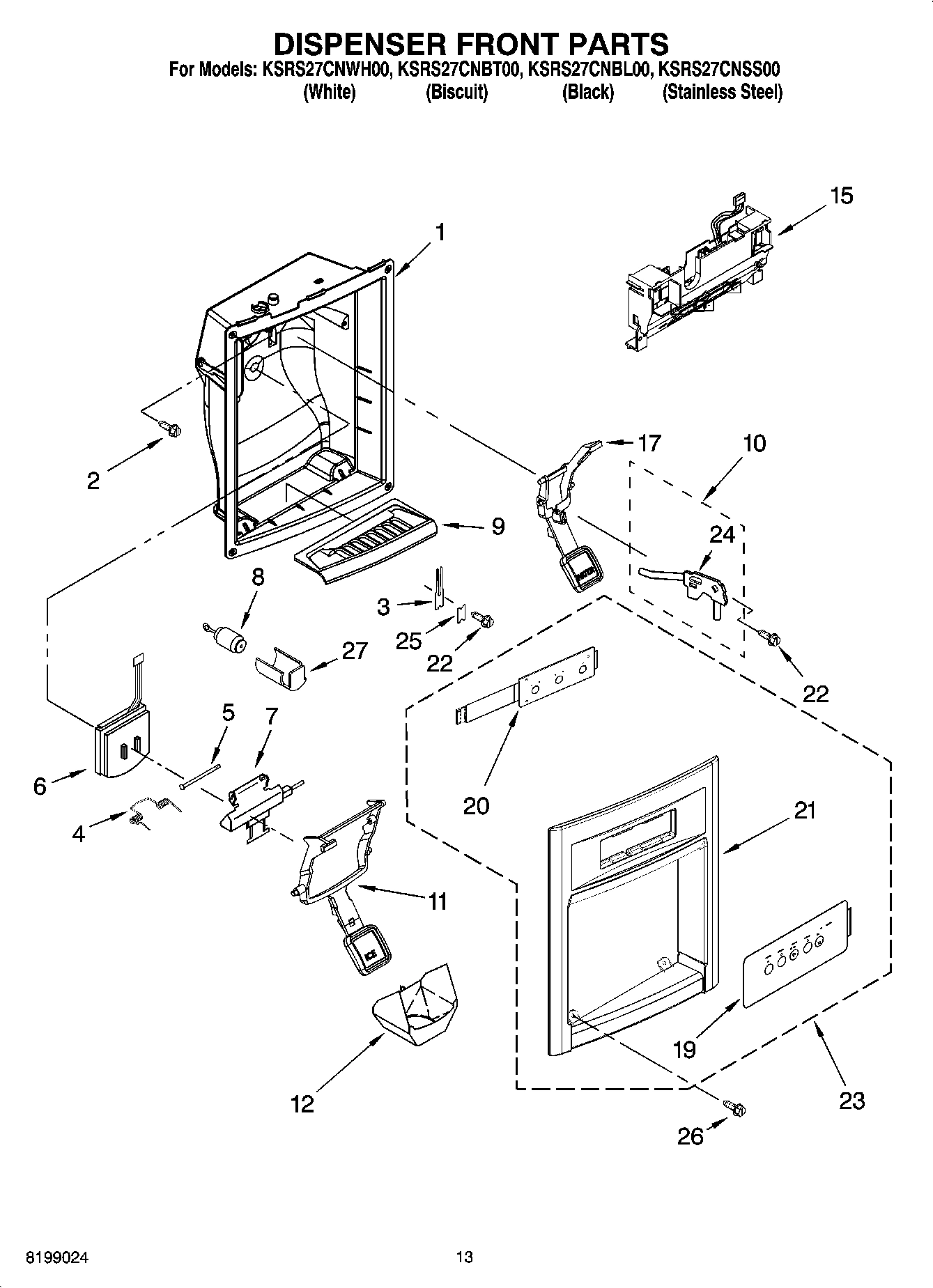

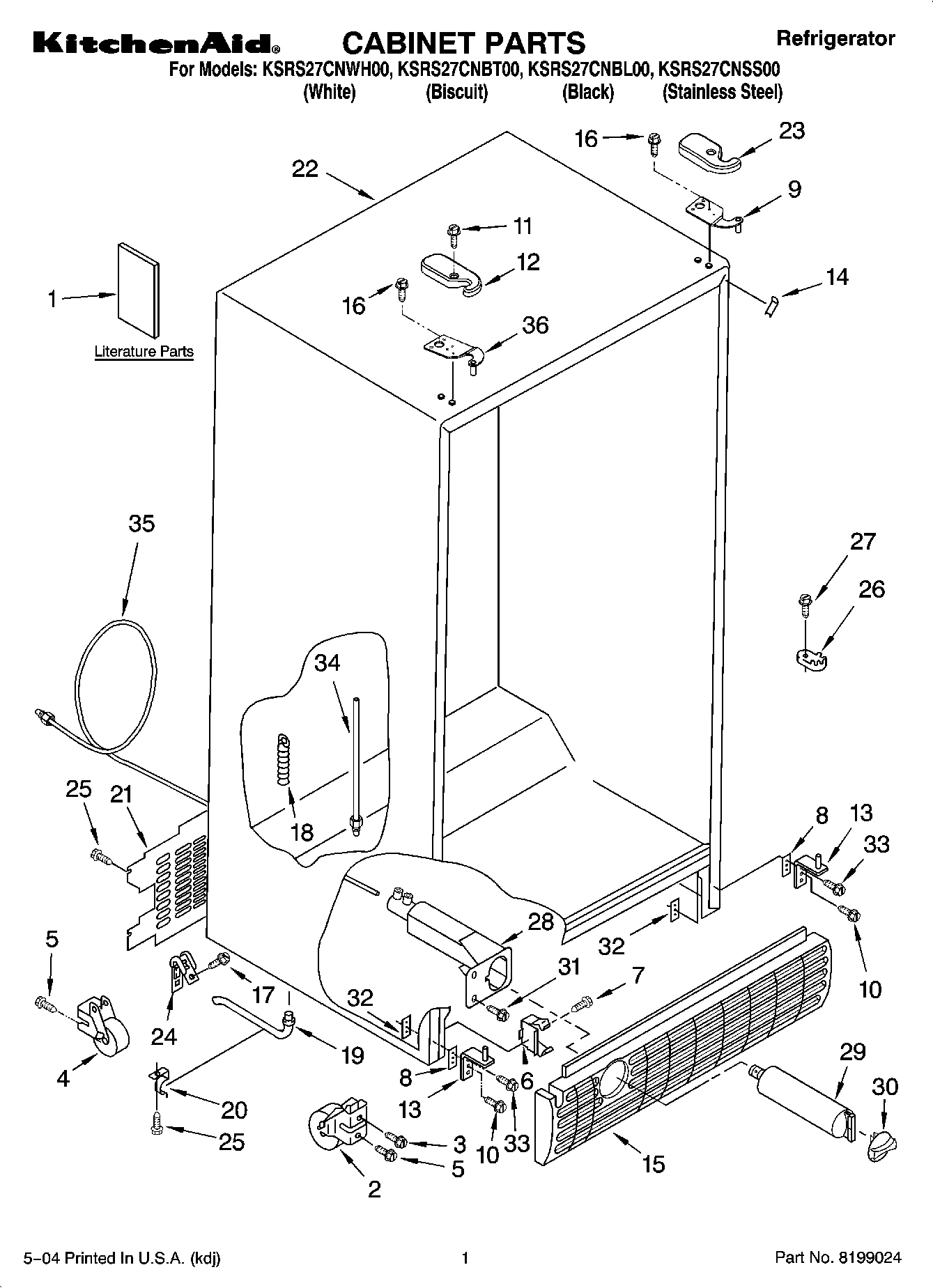

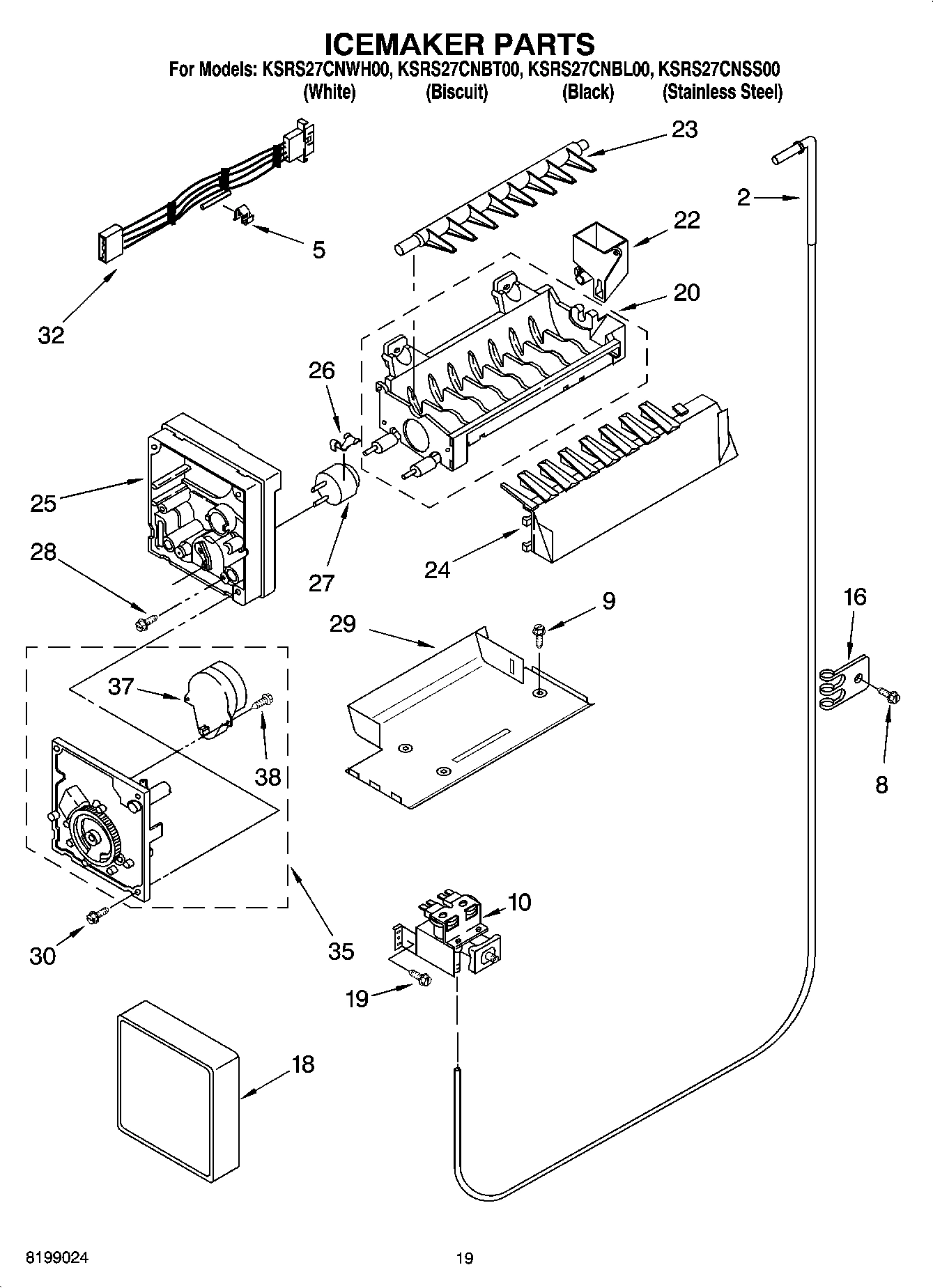

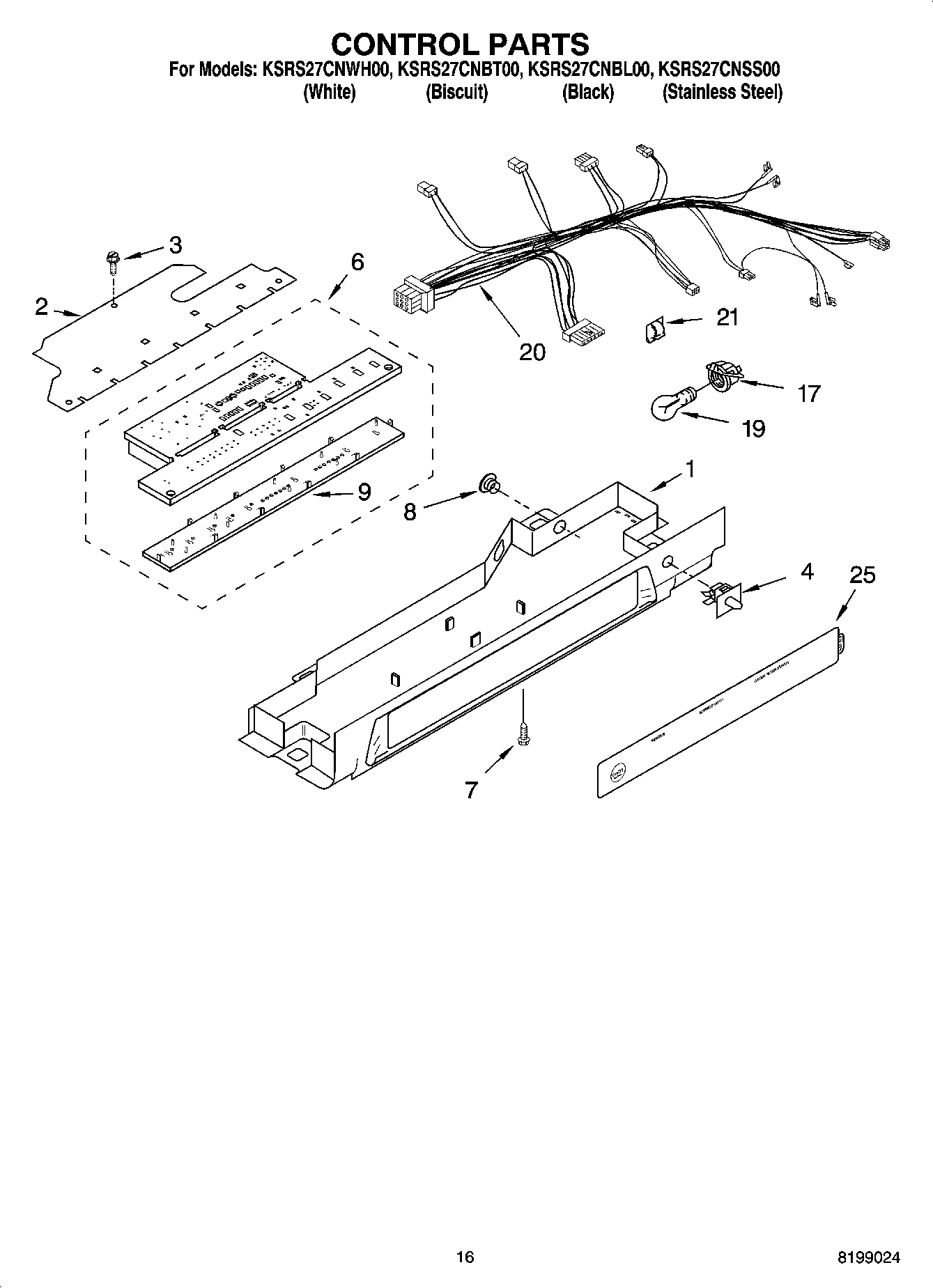

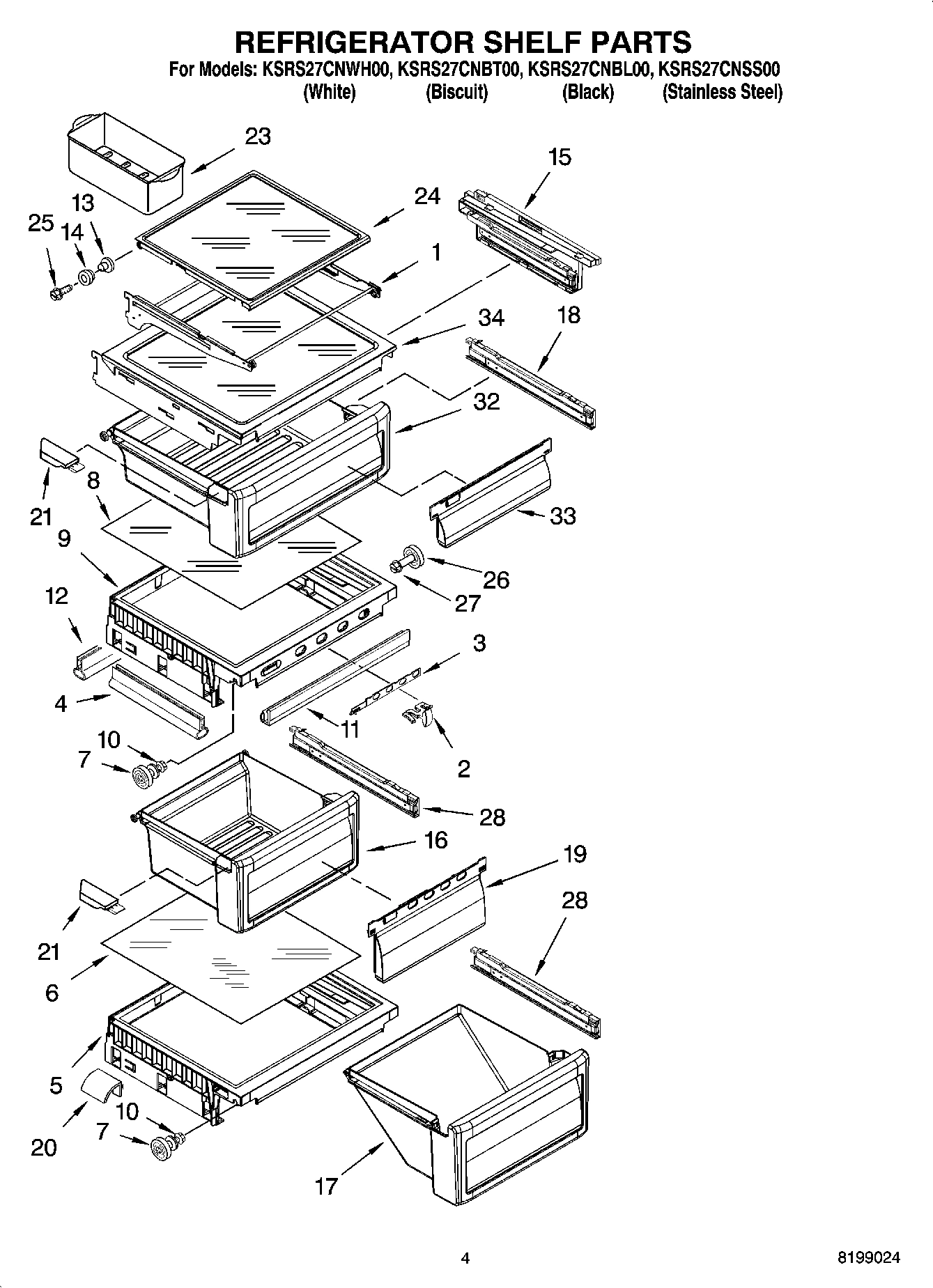

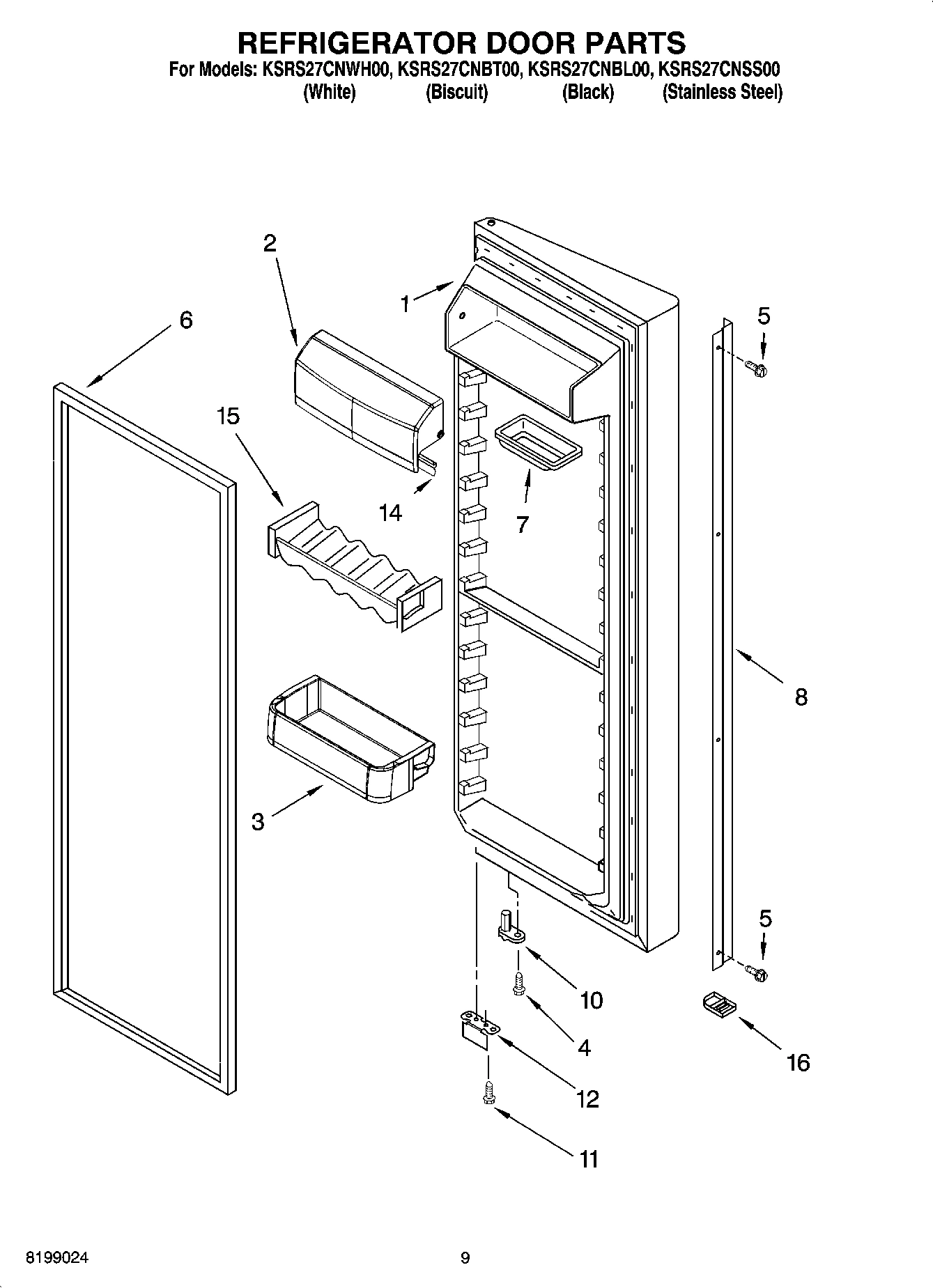

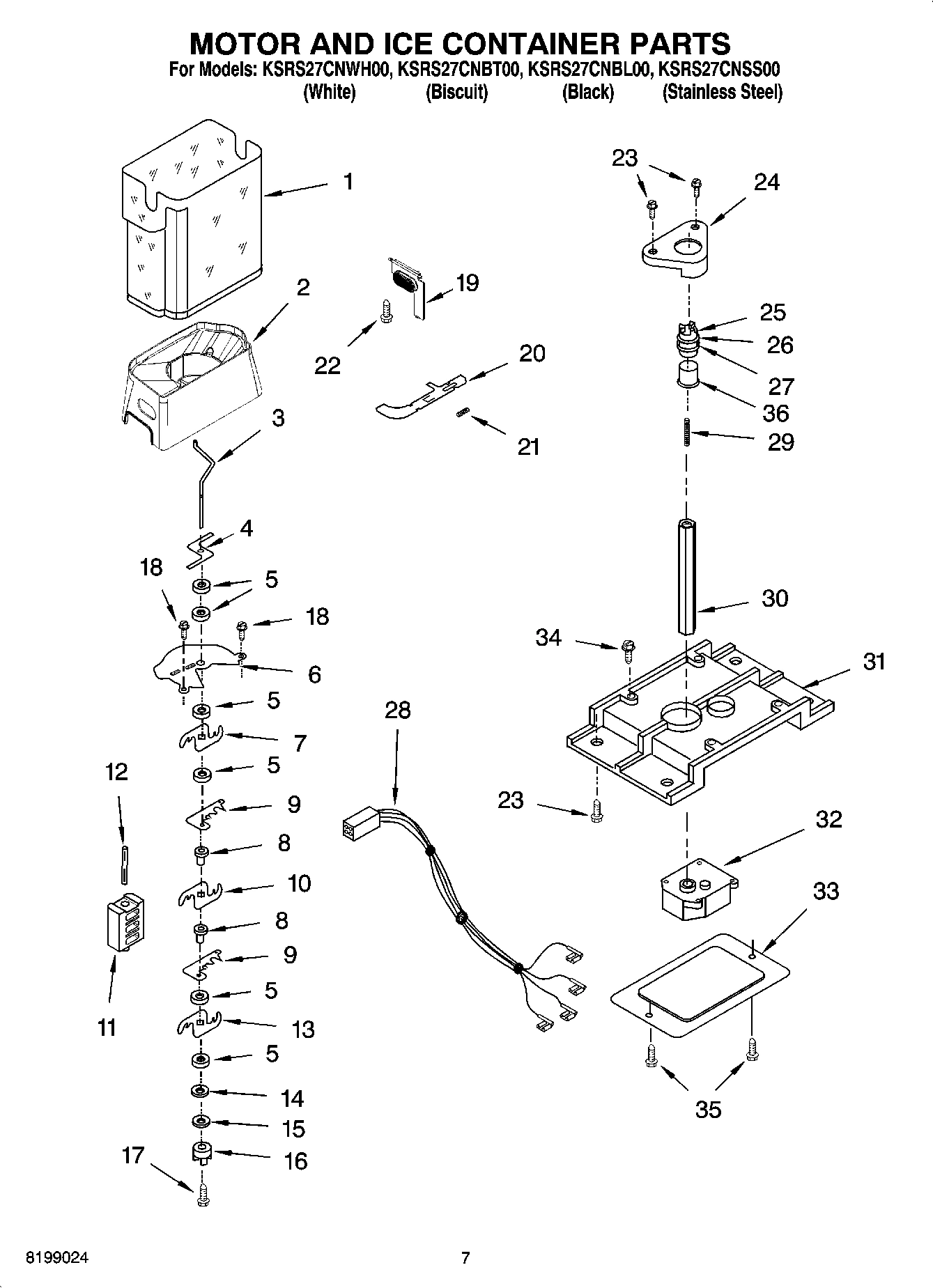

Model Whirlpool KSRS27CNBT00 Refrigerator – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301221B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301221SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301221T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2301221W Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI103169A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI103168A Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Black) WPL 2220238B Contact Us For Availability

2

Handle (Stainless) WPL 2220238S Contact Us For Availability

2

Handle (Biscuit) WPL 2220238T Contact Us For Availability

2

Handle (White) WPL 2220238W Contact Us For Availability

2

Gasket WPL 2198697 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Trivet (4) WPL 2223559 Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2257021 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

Basket, Top (Includes 12) WPL 2301143 Contact Us For Availability

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Glass, Meat Pan Cover WPL 2301028 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Basket, Deep (Includes 12) WPL 2301144 Contact Us For Availability

7

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

7

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

Screw WPL 3400898 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2256150 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $42.88

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12 & 28 WPL 2301567 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Endcap, Bottom (Black) WPL 2207110B Contact Us For Availability

Endcap, Bottom (Biscuit) WPL 2207110T Contact Us For Availability

Endcap, Bottom (White) WPL 2207110W Contact Us For Availability

Lever, Ice Dispenser (Black (Black Pad)) WPL 2259396SB Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Biscuit Pad)) WPL 2259396T Contact Us For Availability

Lever, Ice Dispenser (White (Cody Grey Pad)) WPL 2259396W Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Front, Assembly Basket WPL 2301134 Contact Us For Availability

Harness, Fan Evaporator (Includes 6) WPL 2187824 Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

Glide Assy, Basket Top (Right Side) WPL 2301540 Contact Us For Availability

Glide Assy, Basket Top (Left Side) WPL 2301541 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Door Stop WPL 2206910 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Bracket, Control WPL 2252163 Contact Us For Availability

Basket, Sloped (Includes 12) WPL 2301145 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $67.04

Screw (12) WPL 8533982 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Cover, Evaporator WPL 2206314 Contact Us For Availability

Lever, Water Dispenser (Black (Black Pad)) WPL 2259395SB Contact Us For Availability

Lever, Water Dispenser (Biscuit (Biscuit Pad) WPL 2259395T Contact Us For Availability

Lever, Water Dispenser (White (Cody Grey Pad) WPL 2259395W Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Glide Assy, Basket Middle/Bottom (Right Side) WPL 2301542 Contact Us For Availability

Glide Assy, Basket Middle/Bottom (Left Side) WPL 2301543 Contact Us For Availability

Insert, Bracket WPL 2216997 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Window, Crisper Pan WPL 2301001 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI103170A Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

20

LED Display with Auto Night Light (Not Availa WPL ARI103171A Contact Us For Availability

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Front Cover, Housing (Not Available Order 23 WPL ARI103172A Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252085B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252085T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252085W Contact Us For Availability

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

24

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

24

Holder WPL 2212369 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Glide Asm, Pan (Right Side) WPL 2301548 Contact Us For Availability

29

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2252129 Whirlpool Refrigerator Motor Backorder WPL WP2252129 $151.07

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Window, Snack Pan WPL 2301006 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Shelf, Snack Pan (Includes 15) WPL 2301566 Contact Us For Availability

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

F WPL ARI103174A Contact Us For Availability

WPL ARI103175A WPL ARI103175A Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
