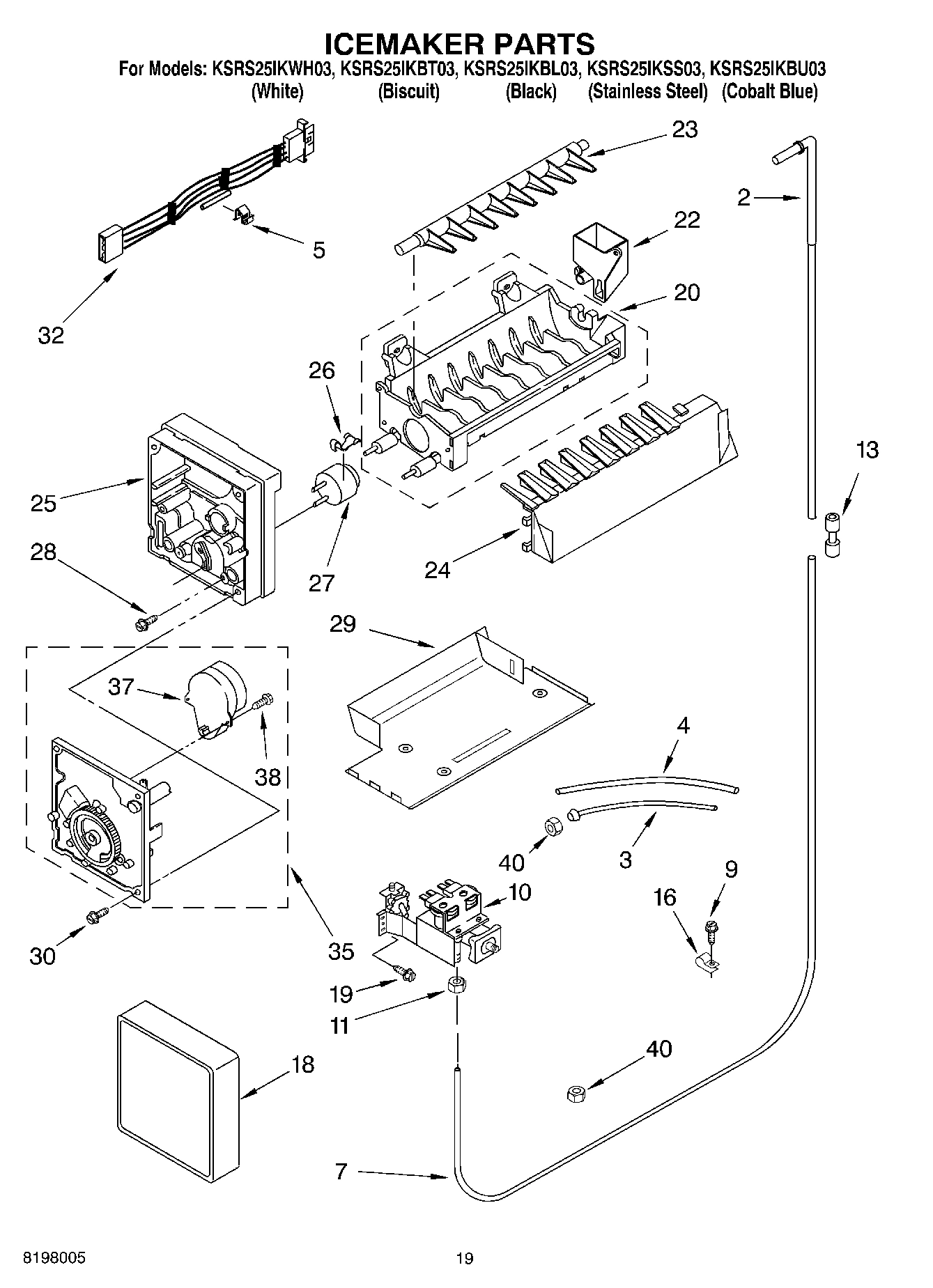

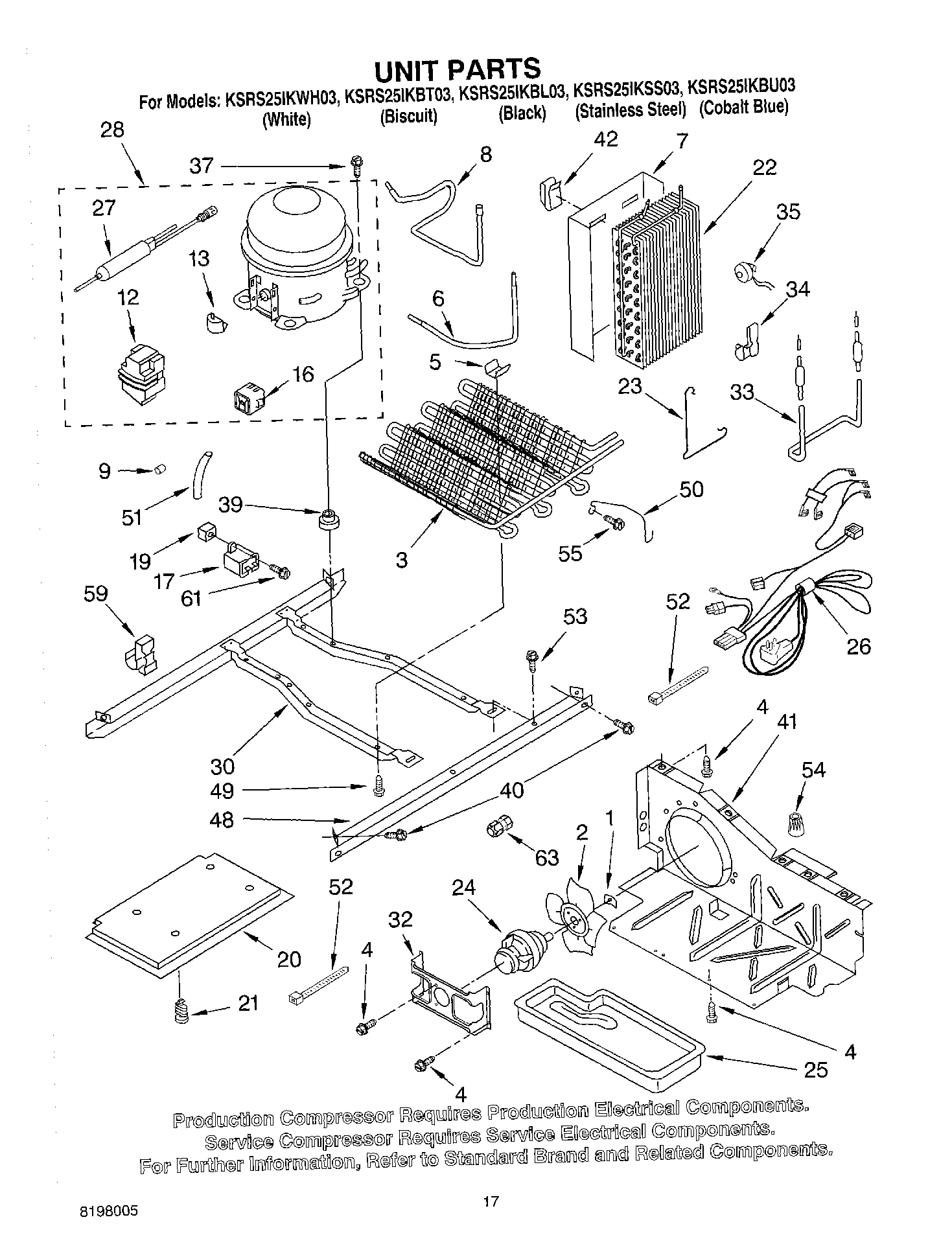

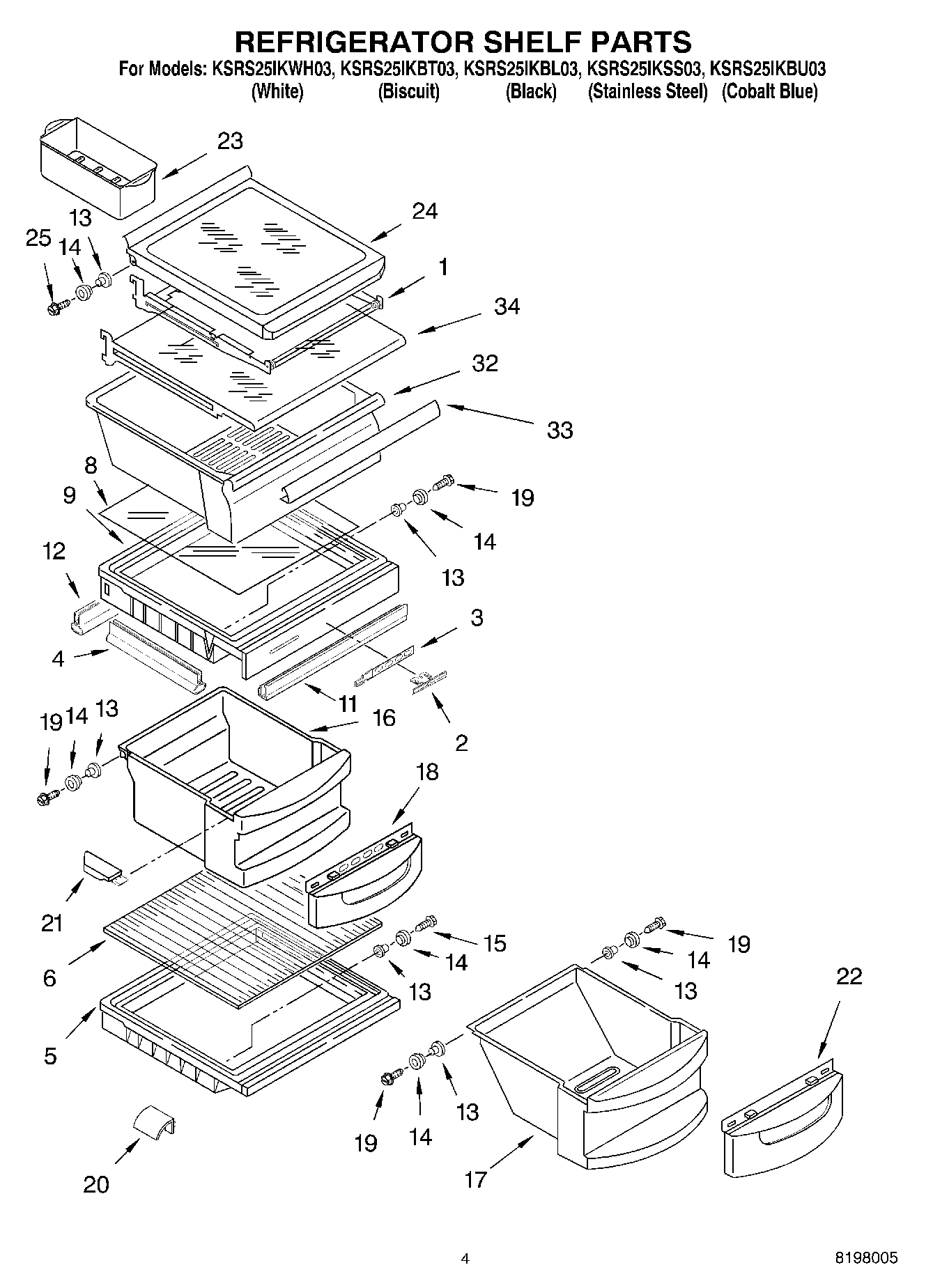

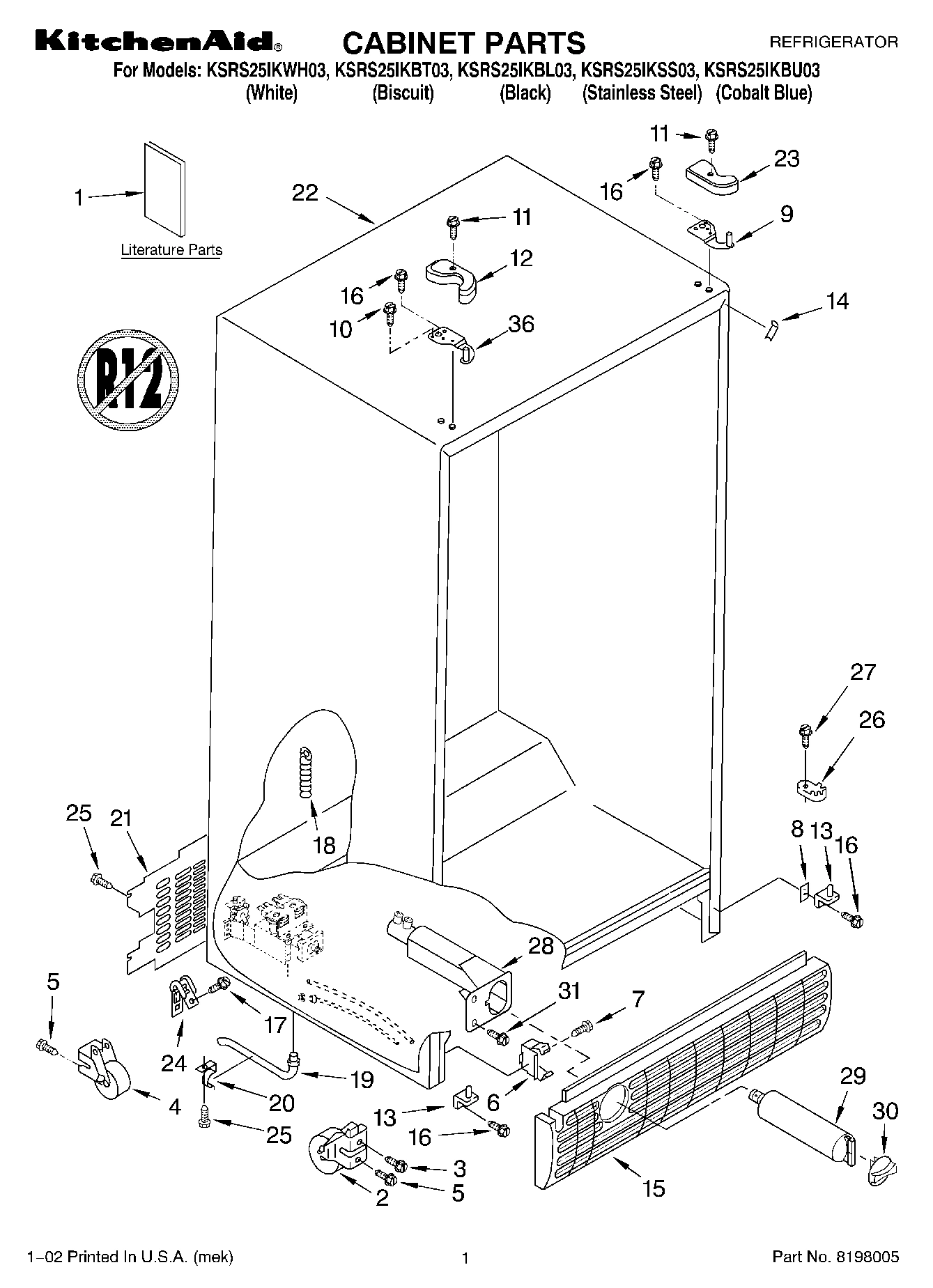

Model Whirlpool KSRS25IKBU03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

Caution: The spray paint is n WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI102003A WPL ARI102003A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door (Includes 8 And Dispenser Front WPL 2216062BU Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2216062S Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2216062T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2216062W Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI102008A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI102007A Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI102004A Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2220107 Contact Us For Availability

1

LITERATURE PARTS (Owner`s Manual) WPL LIT2220276 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2220322 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Literature Parts (Icemaker) WPL LIT787316 Contact Us For Availability

1

Literature Parts (Refrigerator) WPL LIT787808 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Handle (Black) WPL 2207112B Contact Us For Availability

2

Handle (Cobalt Blue) WPL 2207112BU Contact Us For Availability

2

Handle (Stainless) WPL 2207112S Contact Us For Availability

2

Handle (Biscuit) WPL 2207112T Contact Us For Availability

2

Handle (White) WPL 2207112W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Shelf Bin (3) WPL 2171070 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket WPL 2198697 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2161491 Whirlpool Crisper Drawer Cover Backorder WPL WP2161491 $78.23

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Dispenser Harness WPL 2206178 Contact Us For Availability

5

Basket, Top WPL 2205834 Contact Us For Availability

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Basket, Tall WPL 2205833 Contact Us For Availability

7

Screw (Black) WPL 3400899 Contact Us For Availability

7

Screw (Chrome) WPL 3400897 Contact Us For Availability

7

Screw (White) WPL 3400898 Contact Us For Availability

7

Screw (Biscuit) WPL 8281135 Contact Us For Availability

7

Screw (Cobalt Blue) WPL 8281178 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $40.83

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (Cobalt Blue) WPL 2207109BU Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

10

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

Lever, Ice Dispenser (Cobalt Blue) WPL 2207151 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2205826K Whirlpool Refrigerator Front Baske Backorder WPL WP2205826K $42.31

Hinge Cover (Cobalt Blue) WPL 2203407BU Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Filler, Wrapper (Cobalt Blue) WPL 2205991 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Basket, Sloped WPL 2205832 Contact Us For Availability

Grille (Cobalt Blue) WPL 2186881BU Contact Us For Availability

Grille (Biscuit) WPL 2186881T Contact Us For Availability

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Lever, Water Dispenser (Cobalt Blue) WPL 2207149 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

Window, Crisper WPL 2174076 Contact Us For Availability

Switch Assembly (Not Available, Order 23) WPL ARI102009A Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI102010A Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available, Order 23 WPL ARI102011A Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Cabinet (Not A Serviceable Part) WPL ARI102005A Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Endcap (Black) WPL 2207110B Contact Us For Availability

Endcap (Satin Chrome) WPL 2207110CH Contact Us For Availability

Endcap (Biscuit) WPL 2207110T Contact Us For Availability

Endcap (White) WPL 2207110W Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability

Hinge Cover (Cobalt Blue) WPL 2203408BU Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

Holder WPL 2212369 Contact Us For Availability

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Harness, Unit WPL 2187398 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

Cap, Water Filter (Cobalt Blue) WPL 2186884BU Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

Tube, P.C. Board WPL 2198665 Contact Us For Availability

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $219.63

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI102012A Contact Us For Availability

REFRIGERANT CH WPL ARI102013A Contact Us For Availability
