Model Whirlpool KSRS25FDWH00 REFRIGERATOR – Common Parts & Diagrams

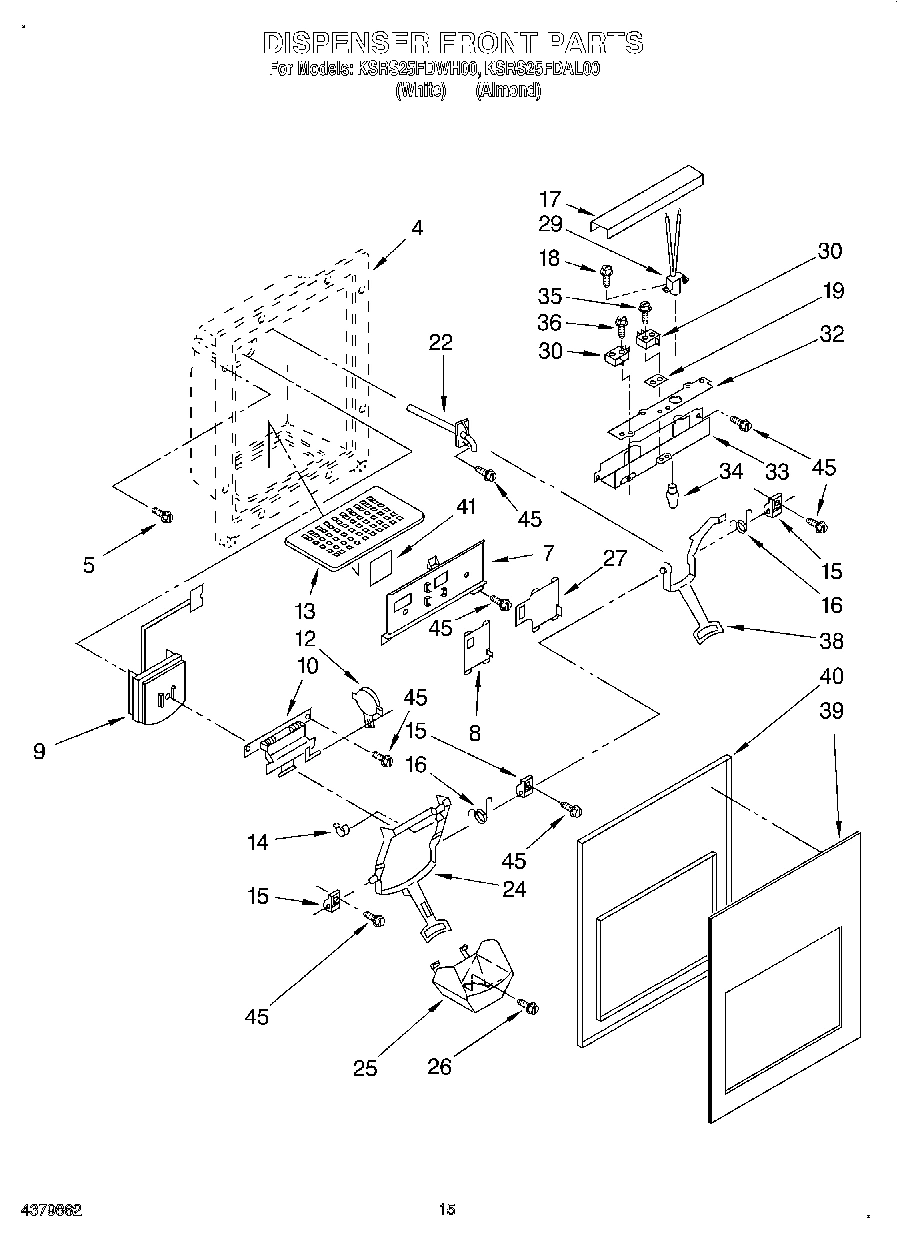

09 - DISPENSER FRONT

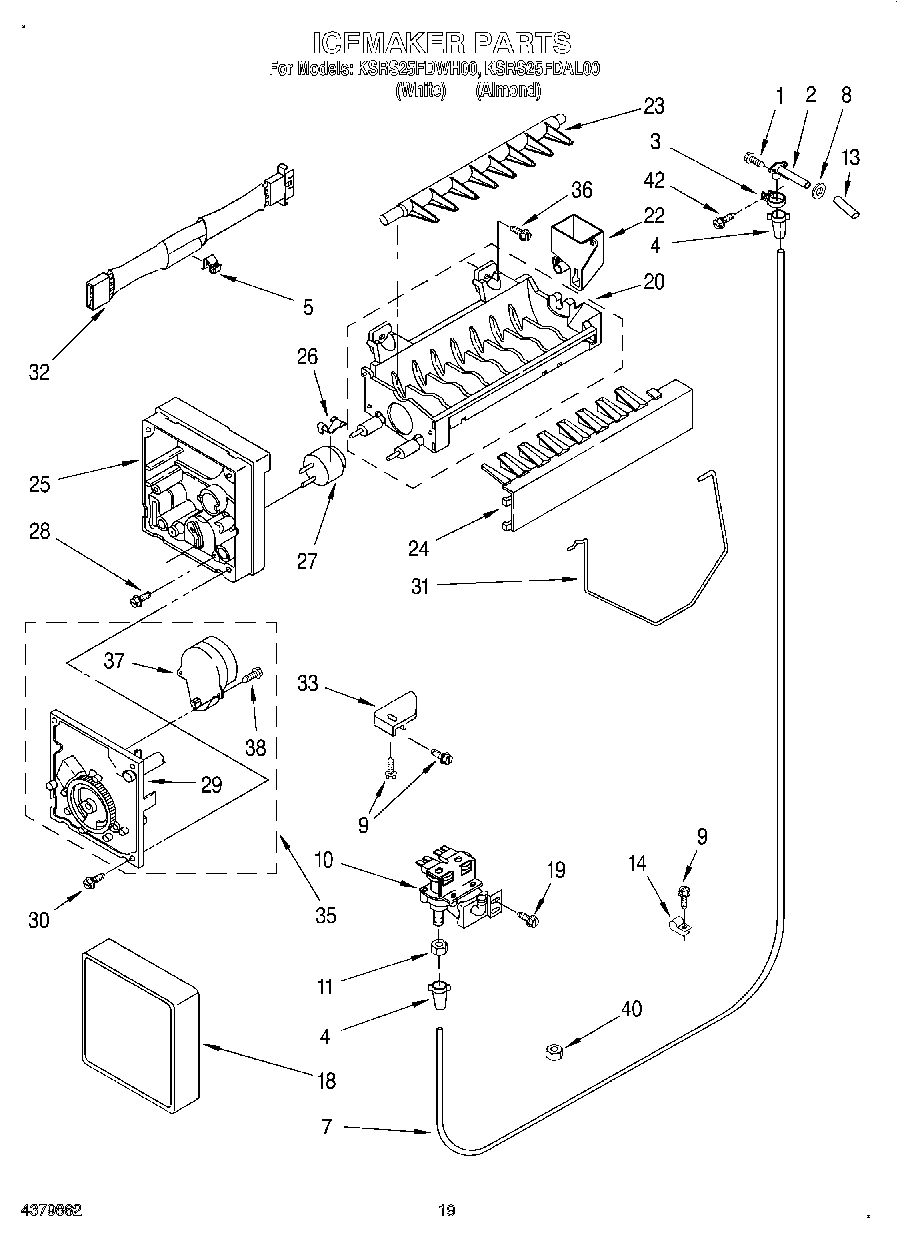

11 - ICEMAKER

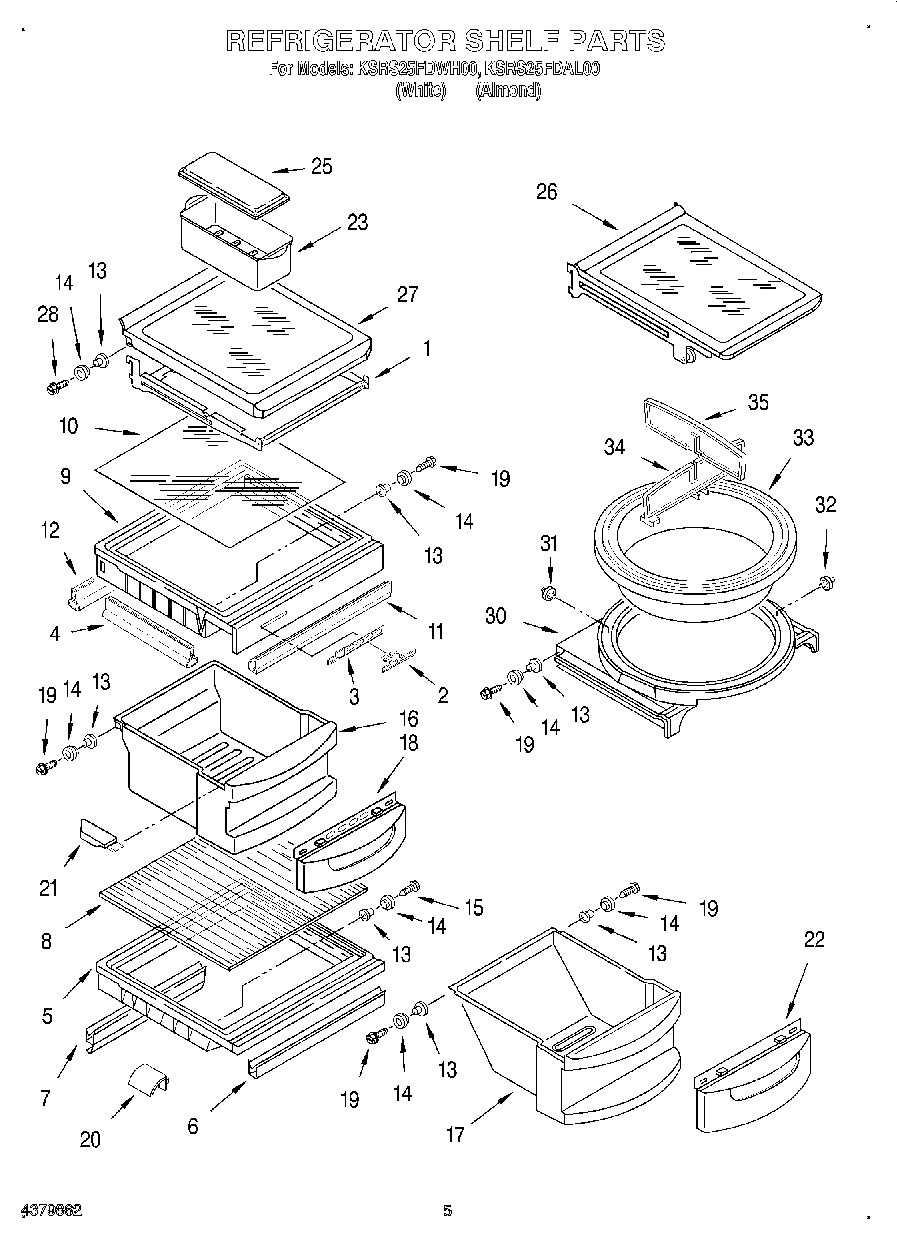

04 - REFRIGERATOR SHELF

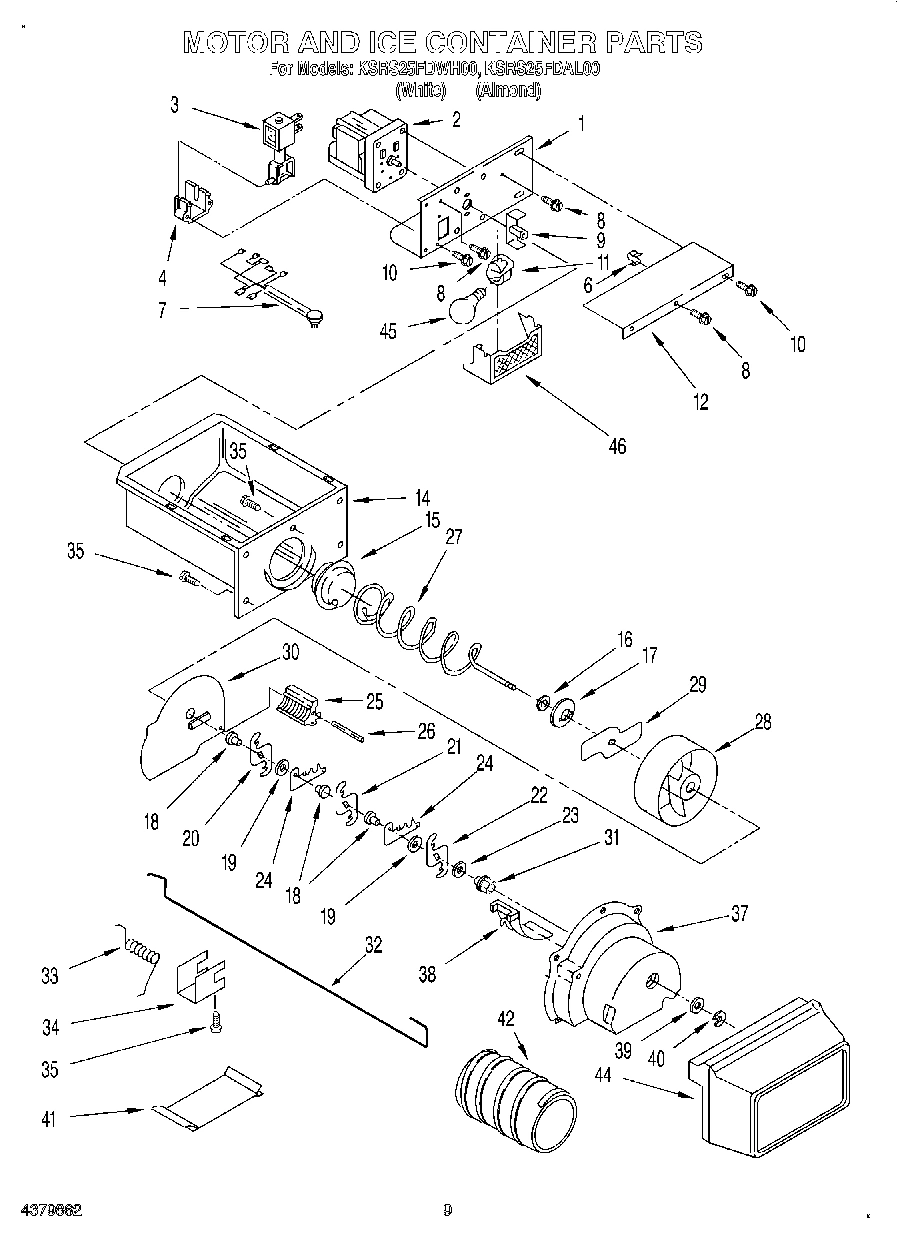

06 - MOTOR AND ICE CONTAINER

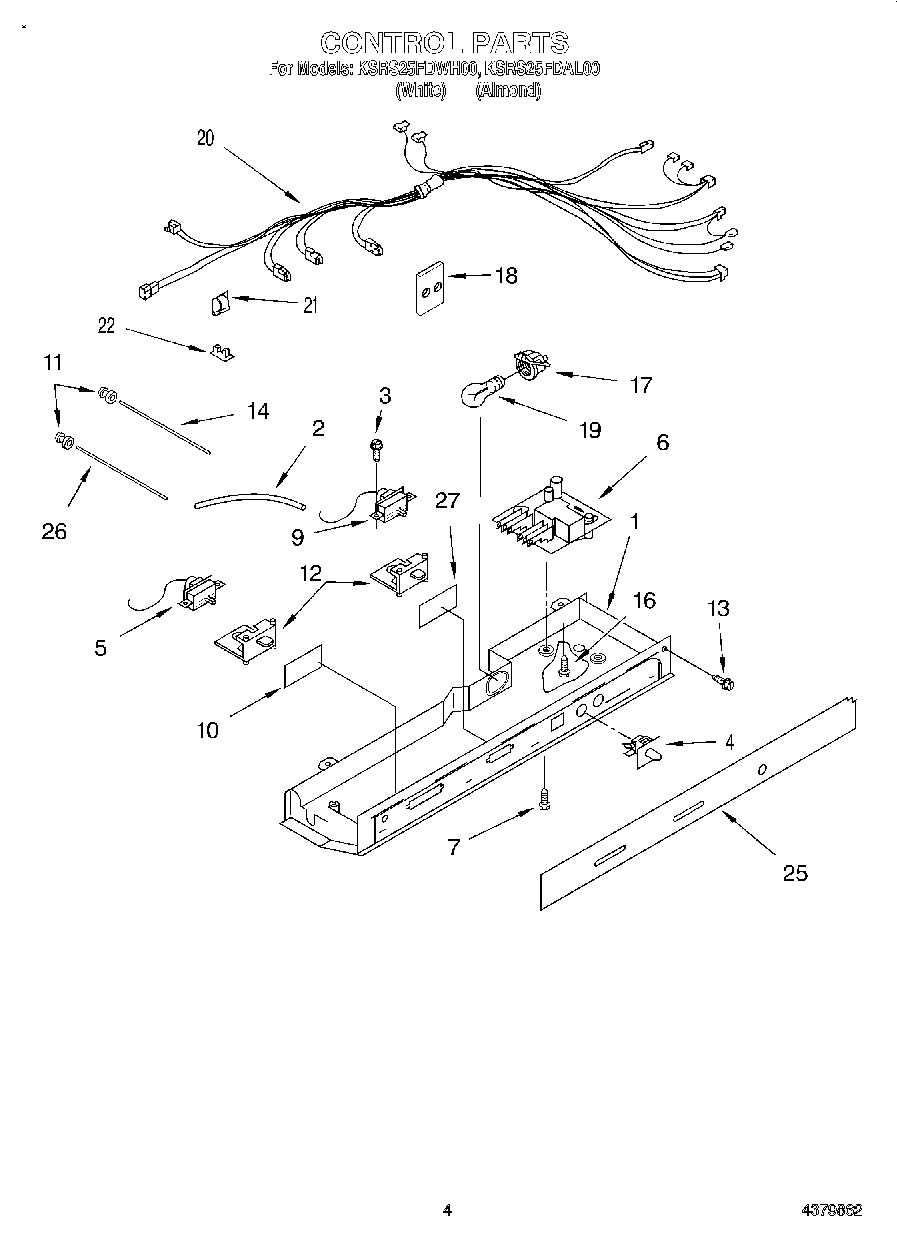

03 - CONTROL
10 - UNIT
12 - AIR FLOW, LIT/OPTIONAL

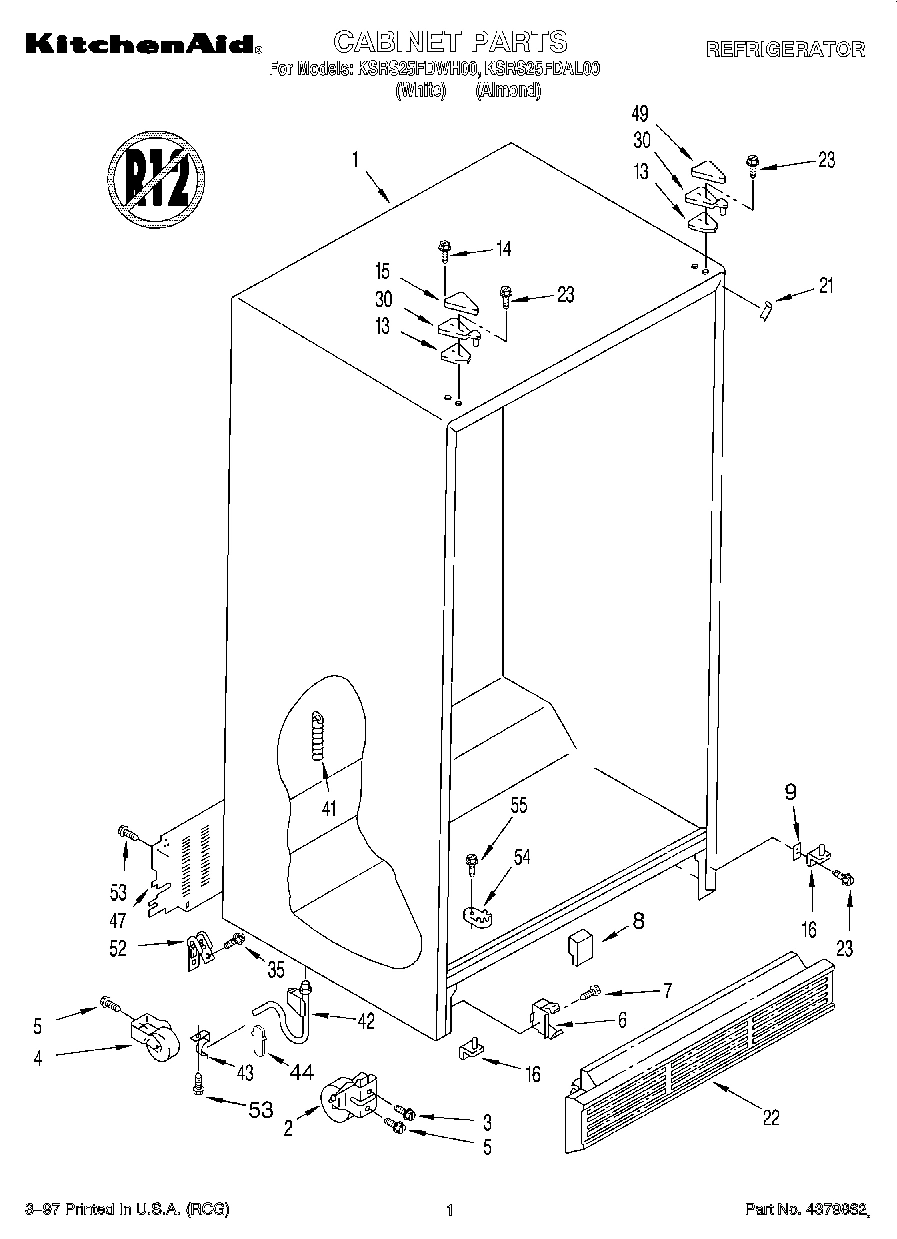

01 - CABINET

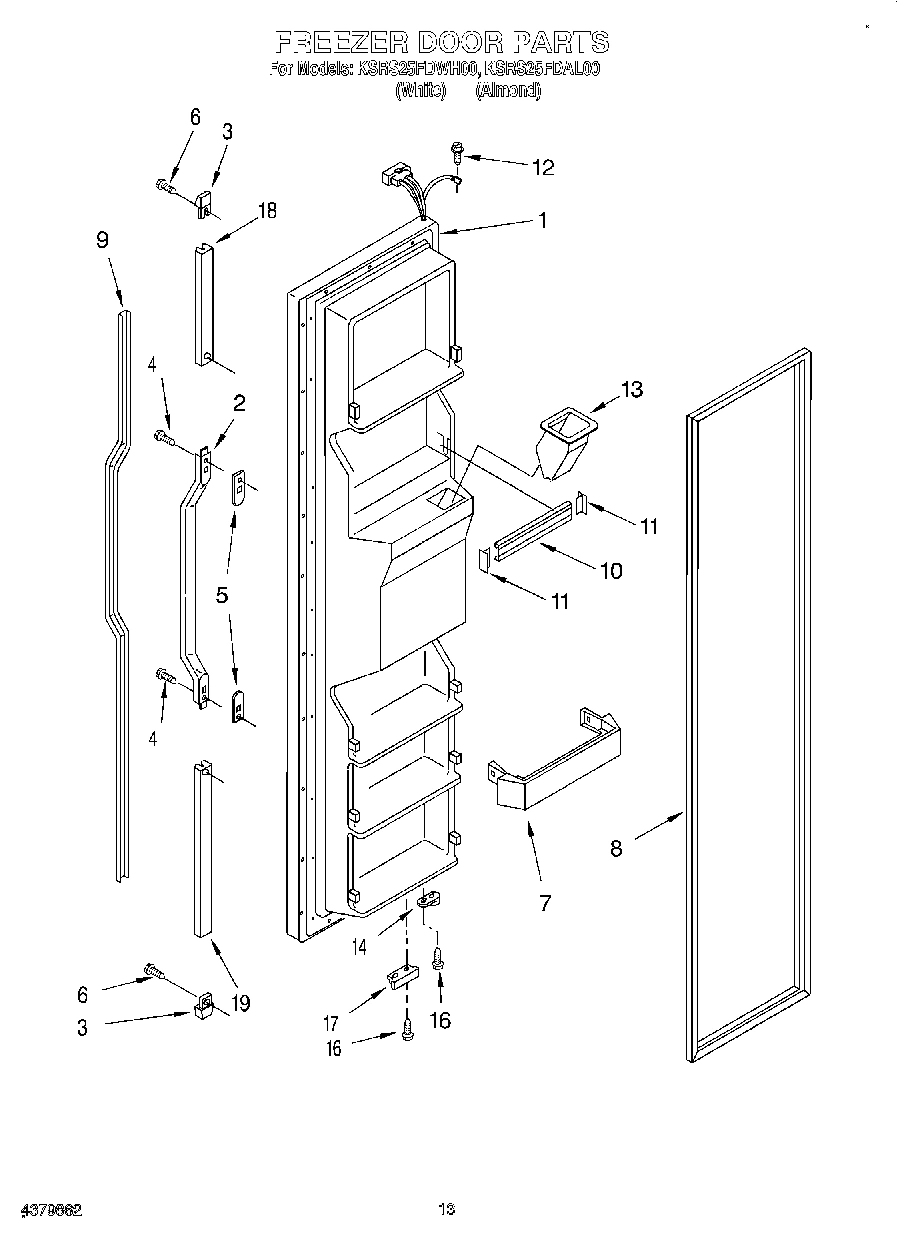

08 - FREEZER DOOR
05 - FREEZER LINER
07 - REFRIGERATOR DOOR

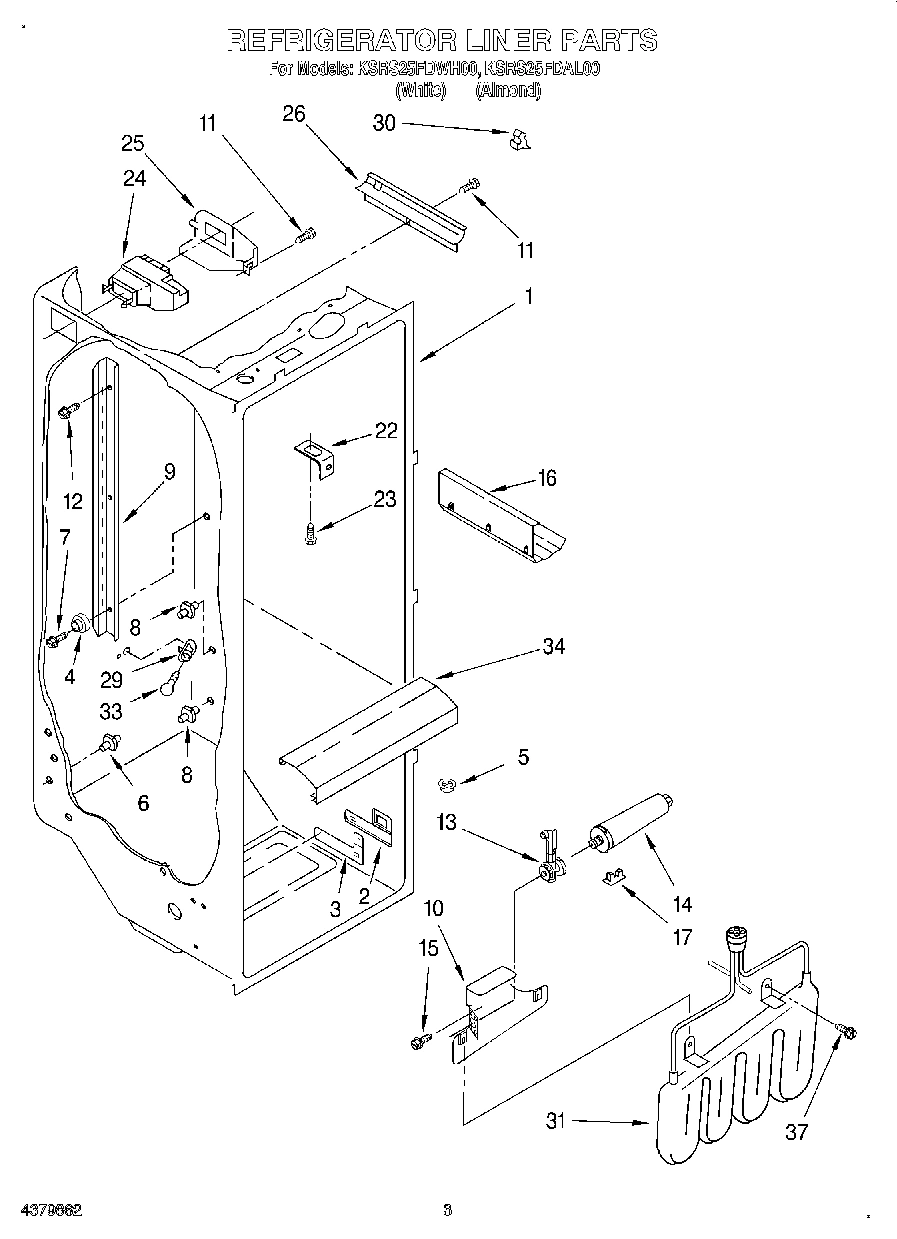

02 - REFRIGERATOR LINER
Common parts from model Whirlpool KSRS25FDWH00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161473 WPL LIT2161473 Contact Us For Availability
WPL LIT2180075 WPL LIT2180075 Contact Us For Availability
WPL LIT2182729 WPL LIT2182729 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI101560A Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2177181 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2177223 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101562A Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2177192 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2177193 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI101561A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Load, Lock (4) WPL 2171283 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Insert, Handle (White) WPL 1117948 Contact Us For Availability
6
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
End Cap, Handle WPL 1107341 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171996 Contact Us For Availability
10
Handle Assembly WPL 1107215 Contact Us For Availability
10
Bracket WPL 2168740 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Spacer, Handle WPL 1107651 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Head Assembly, Filter WPL 2168939 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Filter WPL 2168701 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Relay (See Overload) WPL ARI101564A Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bracket, Door Stop WPL 2155332 Contact Us For Availability
15
Screw WPL 489437 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Retainer, Insert WPL 1107243 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
19
Acrylic Panel Kit (Black) WPL 4210348 Contact Us For Availability
19
Acrylic Panel Kit (Almond) WPL 4211147 Contact Us For Availability
19
Acrylic Panel Kit (White) WPL 4211148 Contact Us For Availability
19
Trim Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Handle Inserts (Woodgrain) WPL 4318340 Contact Us For Availability
19
Handle Inserts (Black Grille Kit) WPL 4318417 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Upper WPL 2181763 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
Enamel, Almond WPL 978883 Contact Us For Availability
23
Basket, Middle WPL 2181765 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Lower WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2181709 Contact Us For Availability
31
Reservoir WPL 2168798 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488678 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
