Model Whirlpool KSRS25CKSS03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

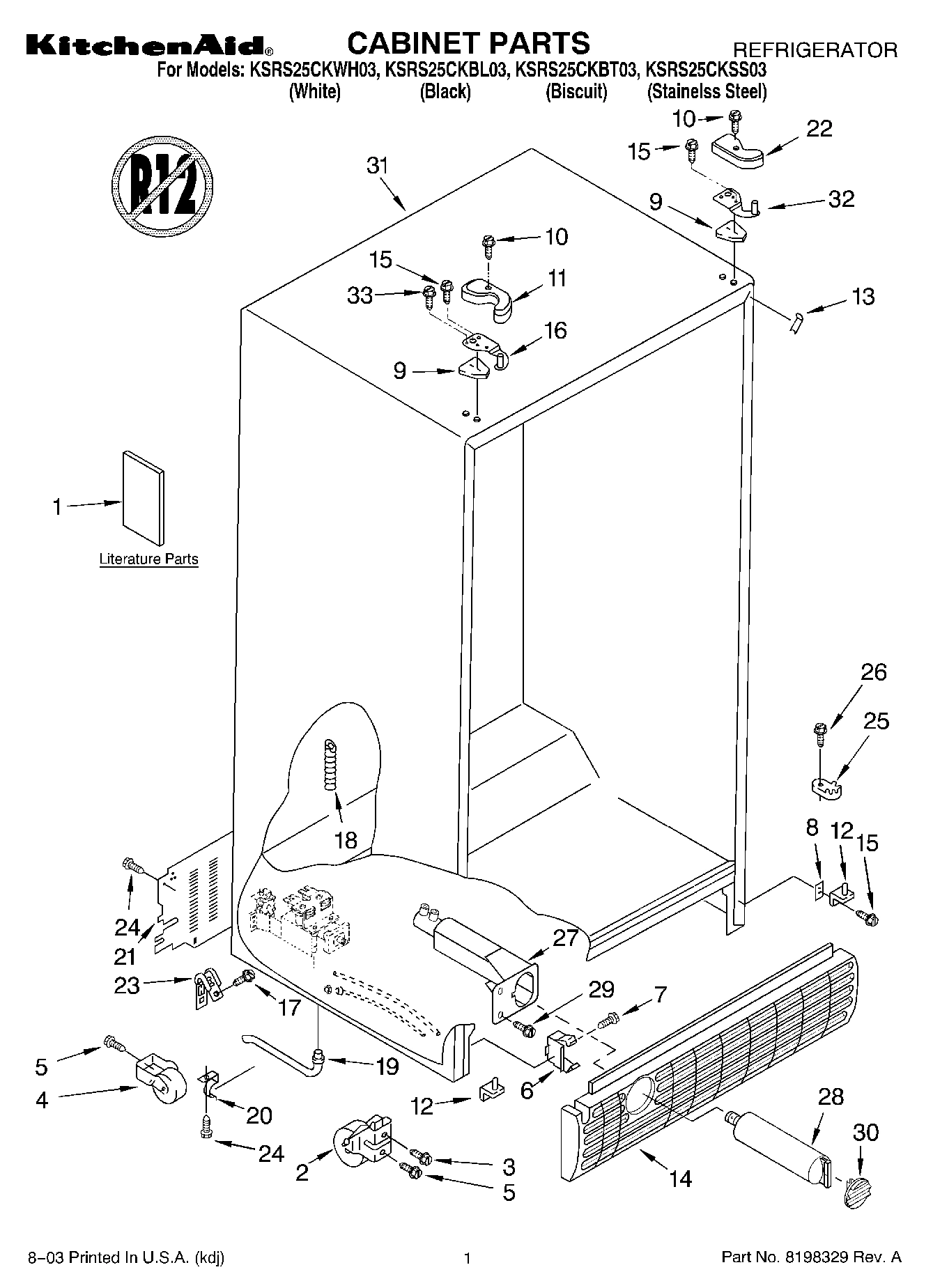

LITERATURE PARTS WPL ARI101181A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

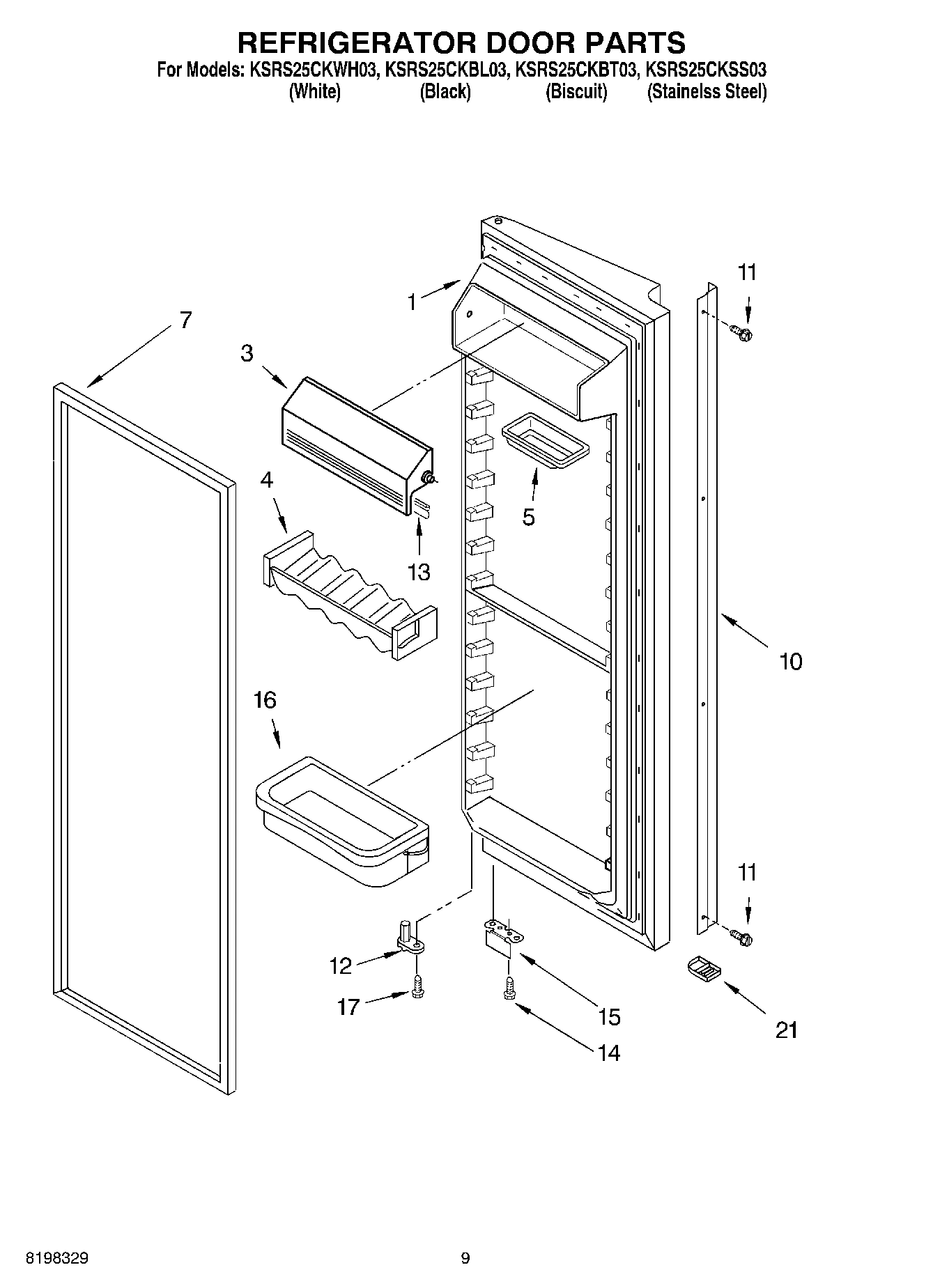

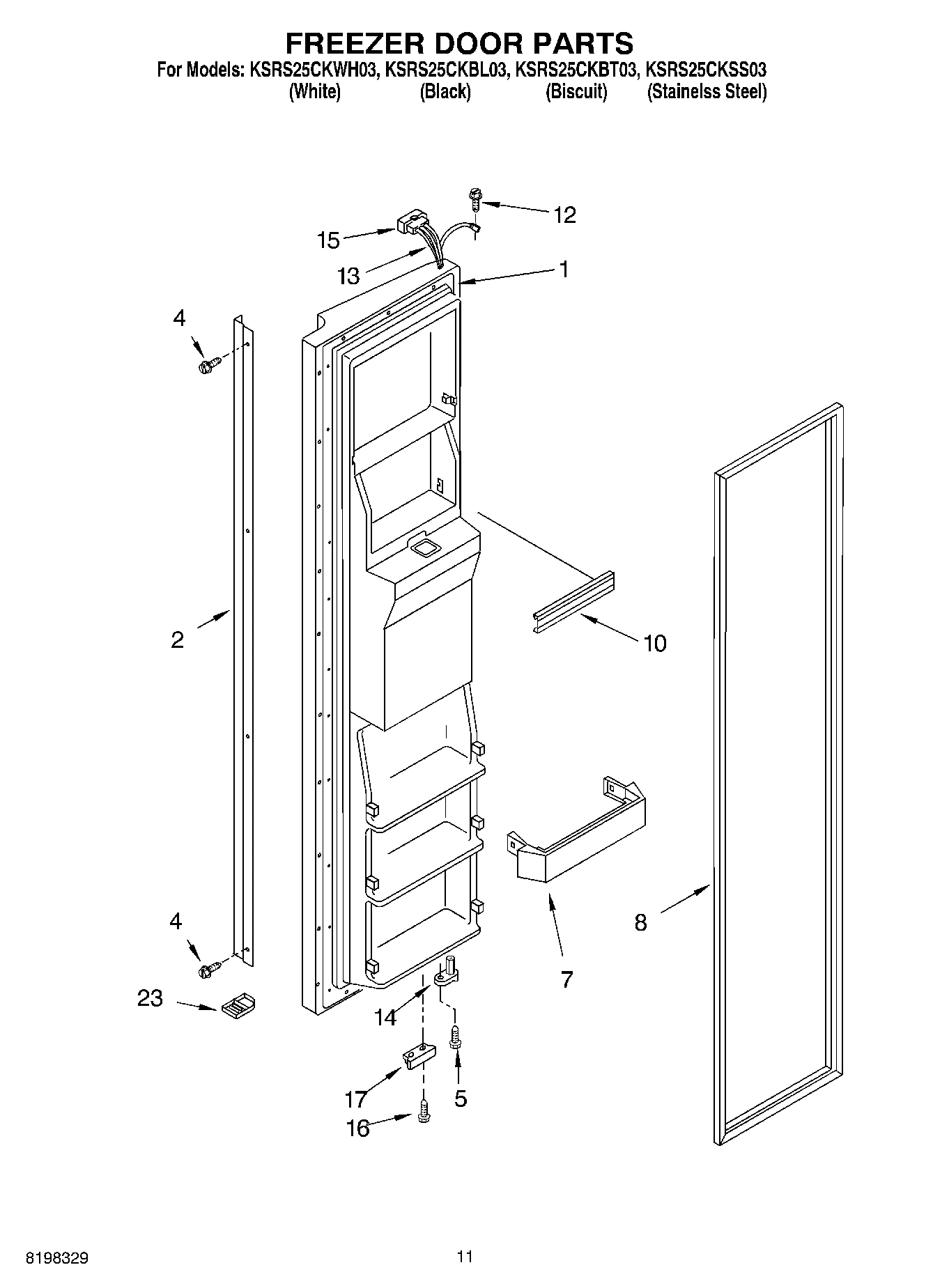

Refrigerator Door (Includes 7) (Black) WPL 2207183B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2207183S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2207183T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2207183W Contact Us For Availability

1

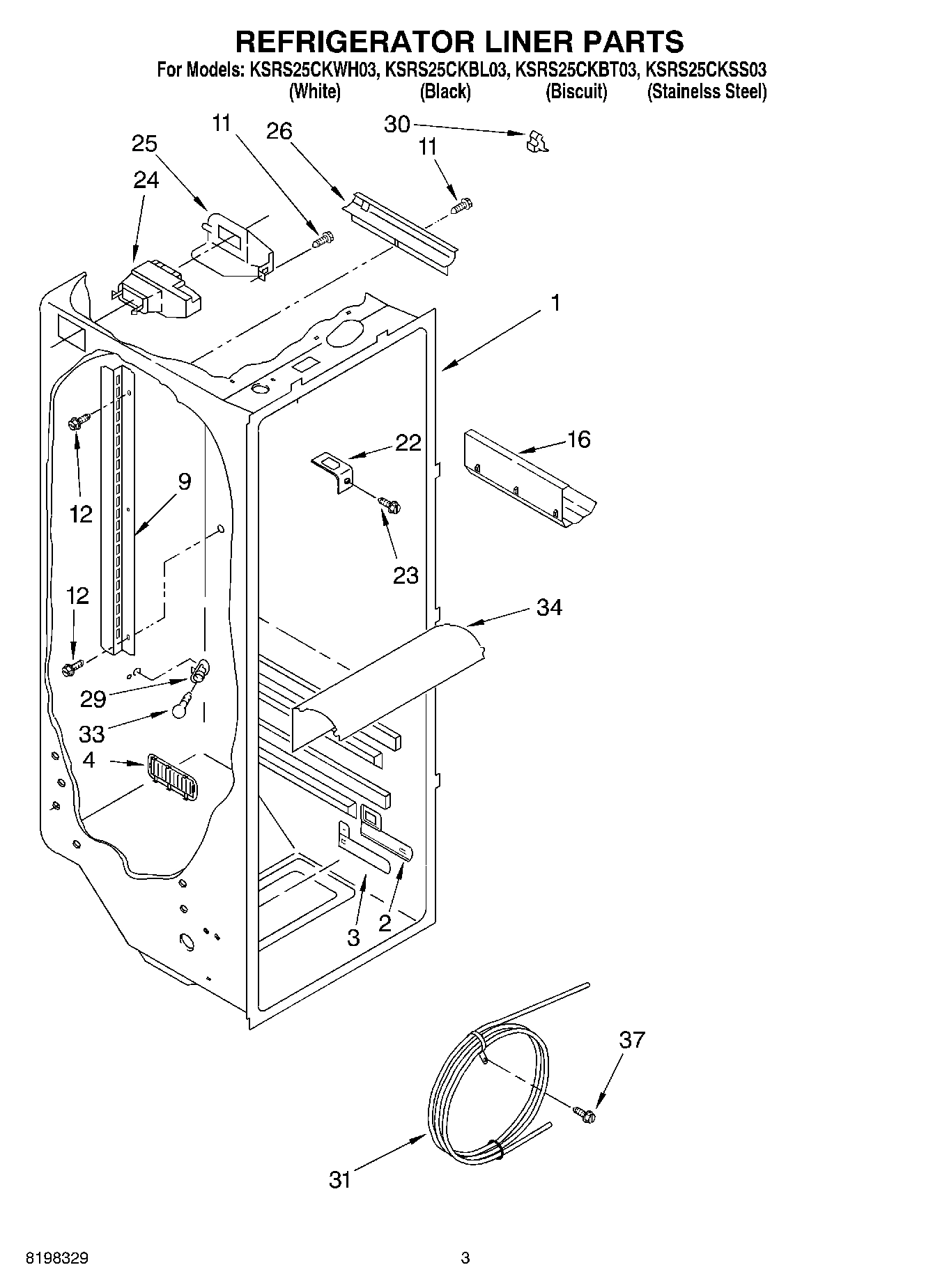

Liner (Not A Seviceable Part) WPL ARI101184A Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2220280 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254906 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255382 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Shelf, Top Compartment WPL 2174493 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

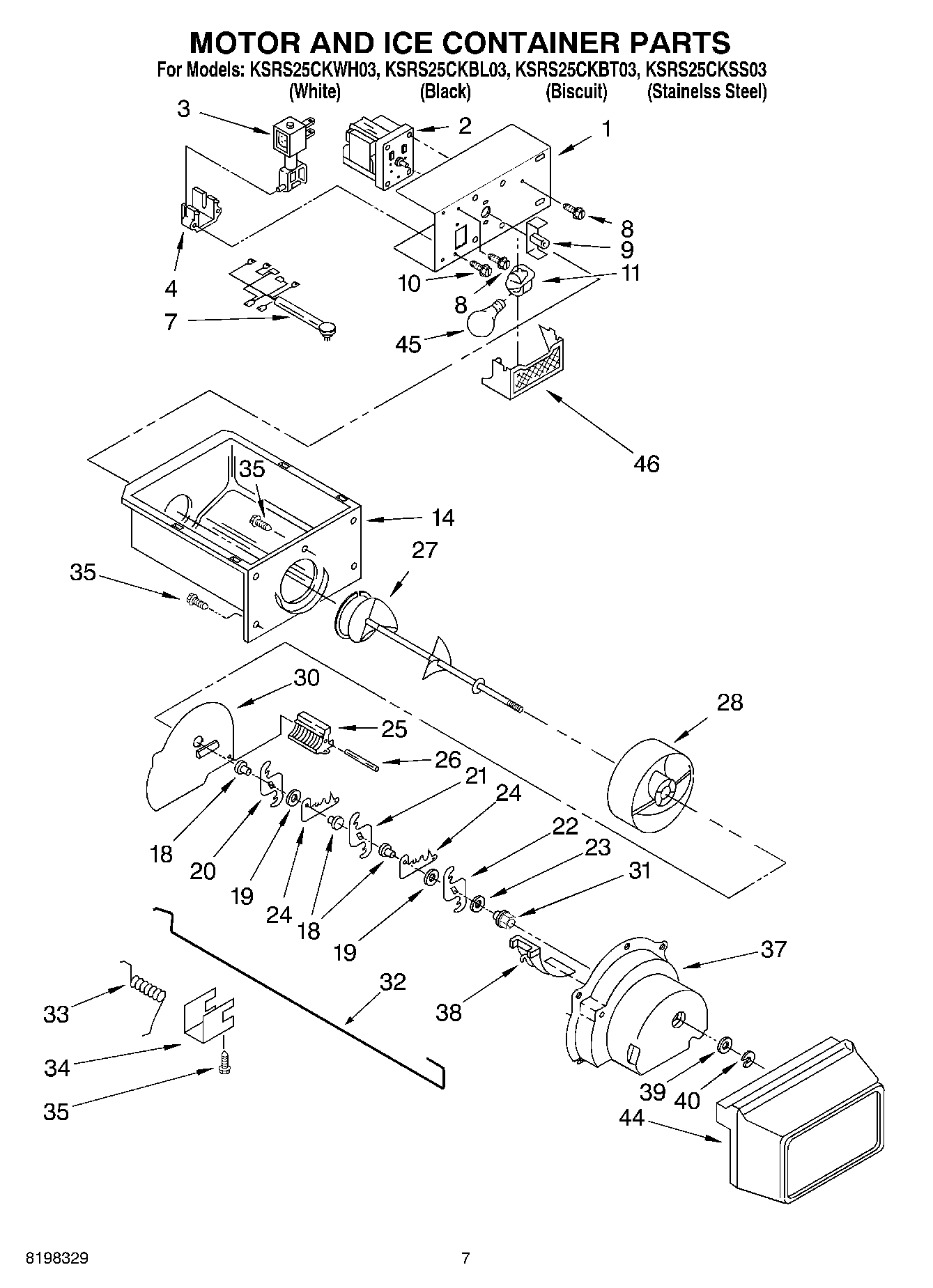

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Butter, Dish WPL 2165792 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $40.83

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Handle (Black) WPL 2207112B Contact Us For Availability

Handle (Stainless Steel) WPL 2207112S Contact Us For Availability

Handle (Biscuit) WPL 2207112T Contact Us For Availability

Handle (White) WPL 2207112W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Screw (Black) WPL 3400899 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

Screw (Stainless Steel) WPL 3400897 Contact Us For Availability

Screw (White) WPL 3400898 Contact Us For Availability

Screw (Biscuit) WPL 8281135 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2186881T Contact Us For Availability

8201786 Whirlpool Relay and Overload Start Ki In Stock WPL 8201786 $38.92

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Shelf Bin (4) WPL 2205821 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

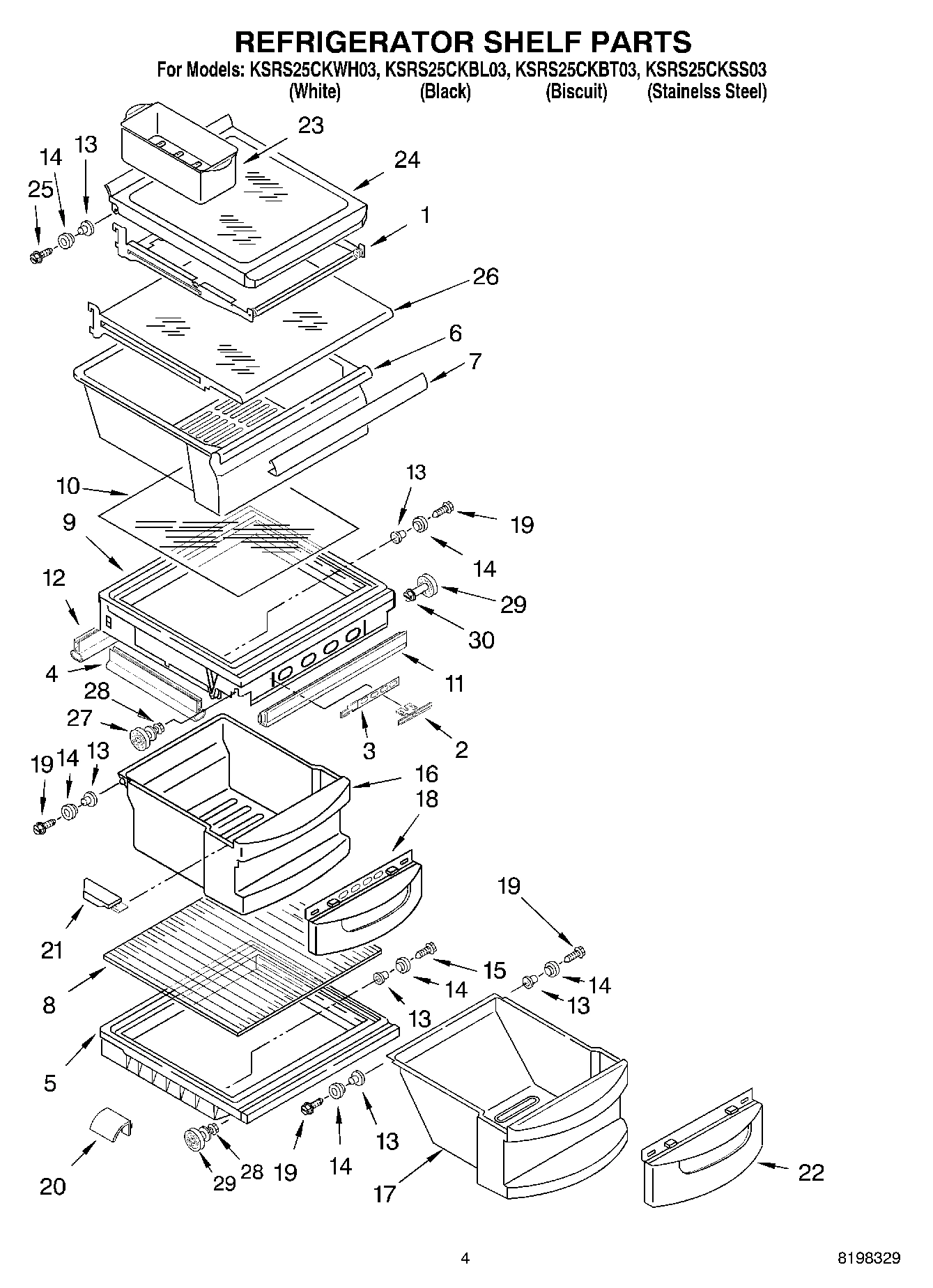

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Window, Crisper WPL 2174076 Contact Us For Availability

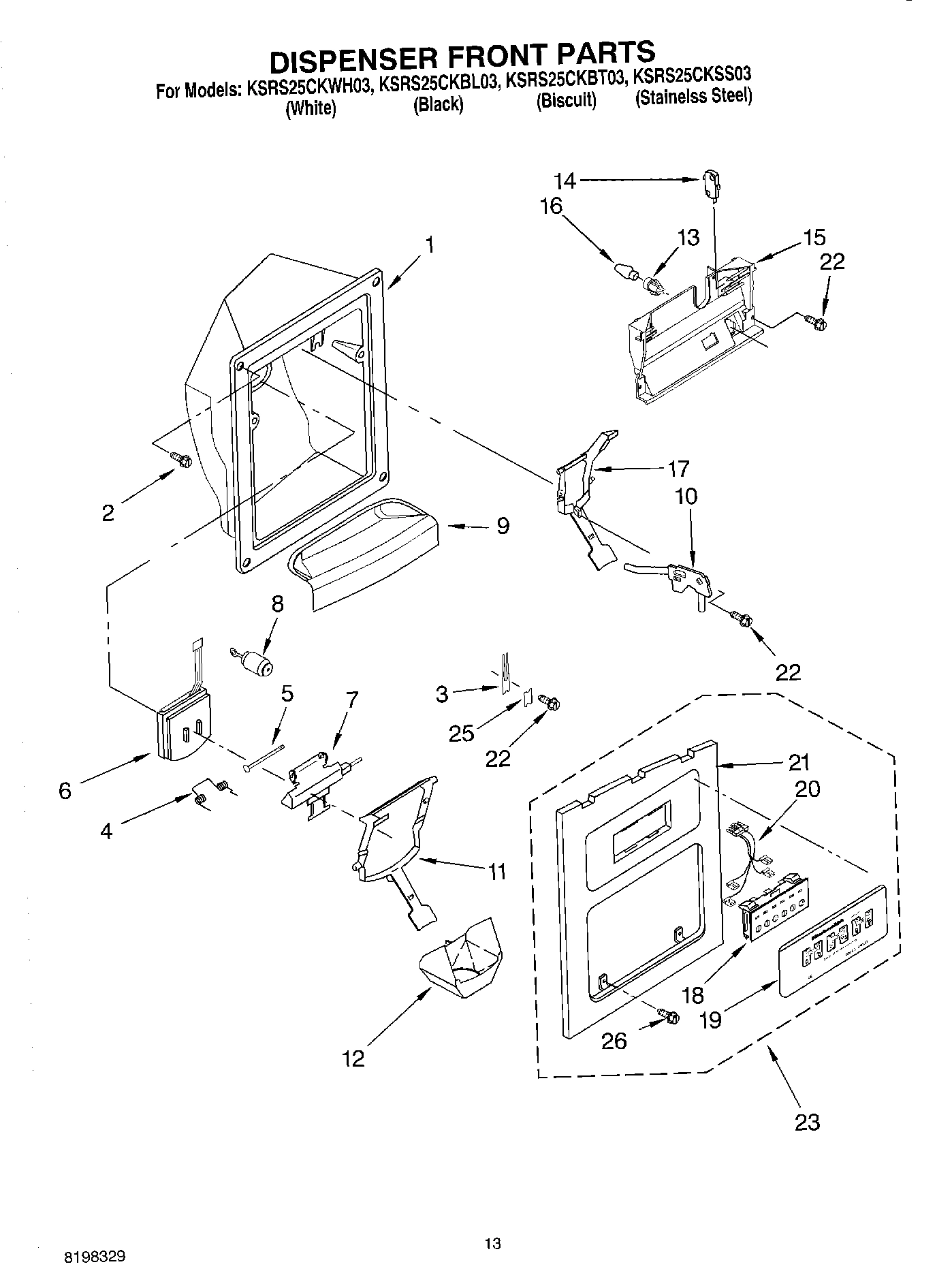

Switch Assembly (Not Available Order 23) WPL ARI101186A Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Overlay, Front Cover (Not Available, Order 23 WPL ARI101187A Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI101188A Contact Us For Availability

Endcap, Handle (Black) WPL 2207111B Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2207111T Contact Us For Availability

Endcap, Handle (White) WPL 2207111W Contact Us For Availability

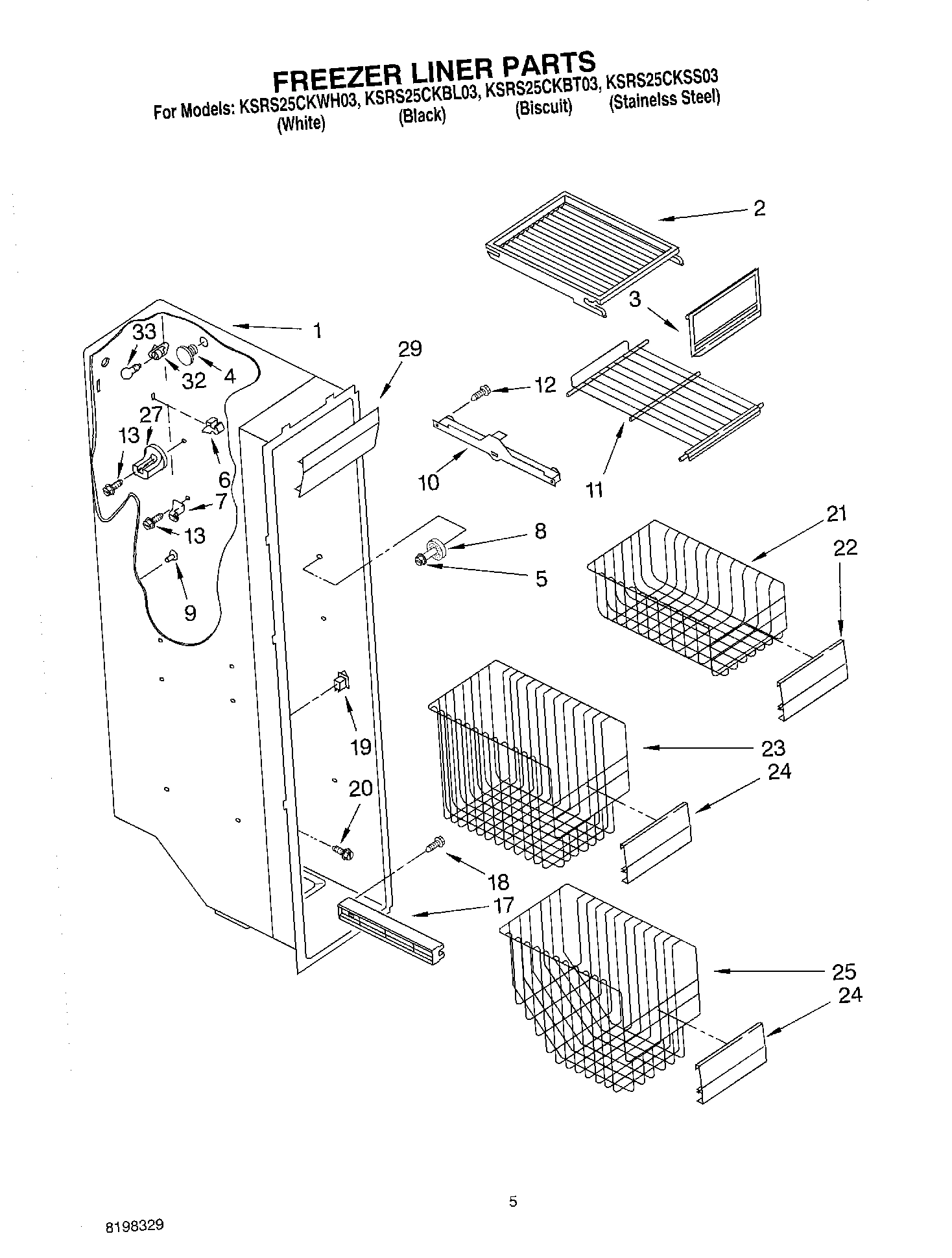

Basket, Shallow WPL 2181763 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Front, Basket WPL 2171767 Contact Us For Availability

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186W Contact Us For Availability

Basket, Square WPL 2181765 Contact Us For Availability

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $28.49

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $131.83

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Basket, Sloped WPL 2181764 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Stud, Rear WPL 2196207 Contact Us For Availability

28

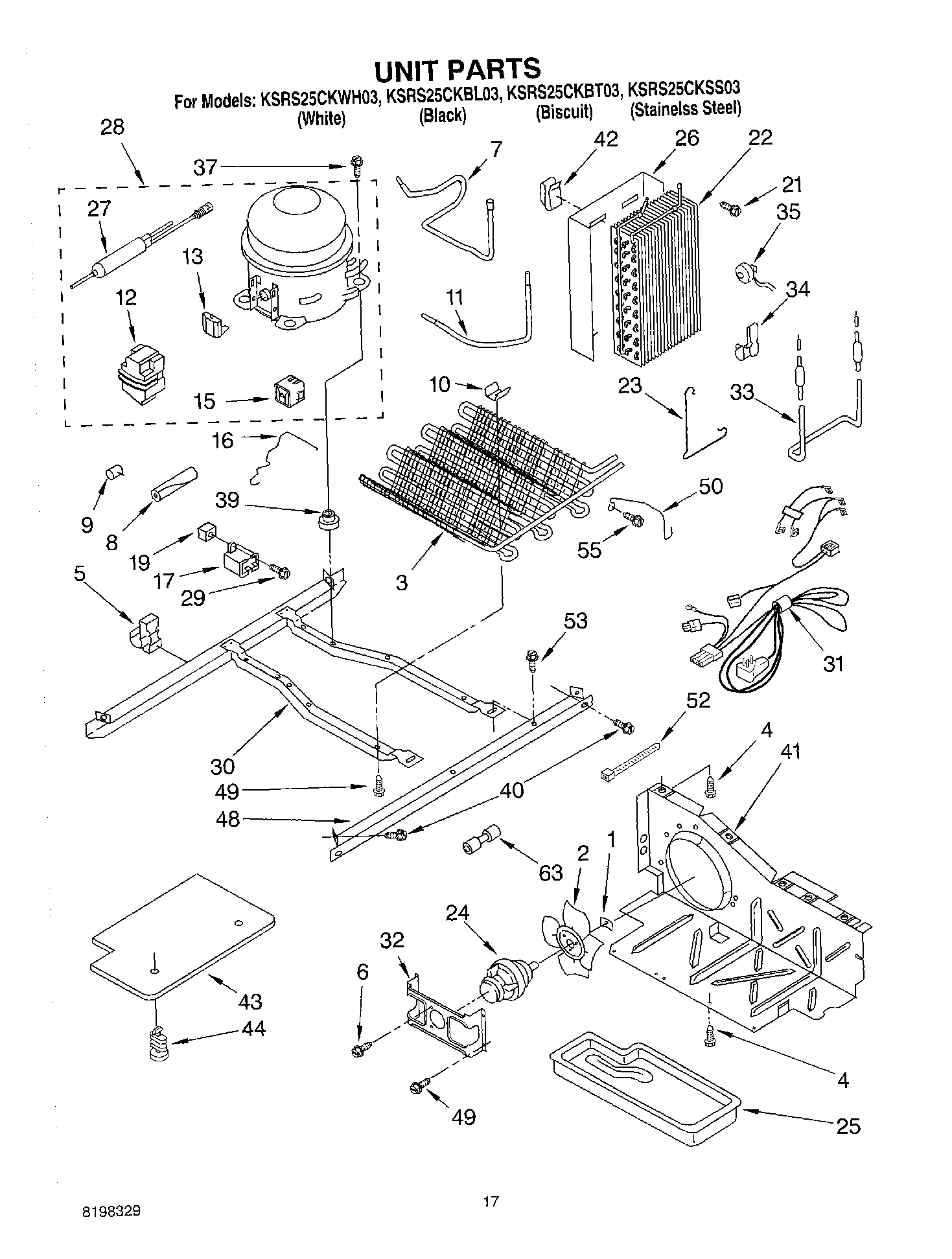

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Unit, Harness WPL 2187510 Contact Us For Availability

31

Cabinet (Not A Serviceable Part) WPL ARI101182A Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI101189A Contact Us For Availability

and Optional Parts Not Included WPL ARI101190A Contact Us For Availability

REFRIGERANT WPL ARI101191A Contact Us For Availability

NI

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
