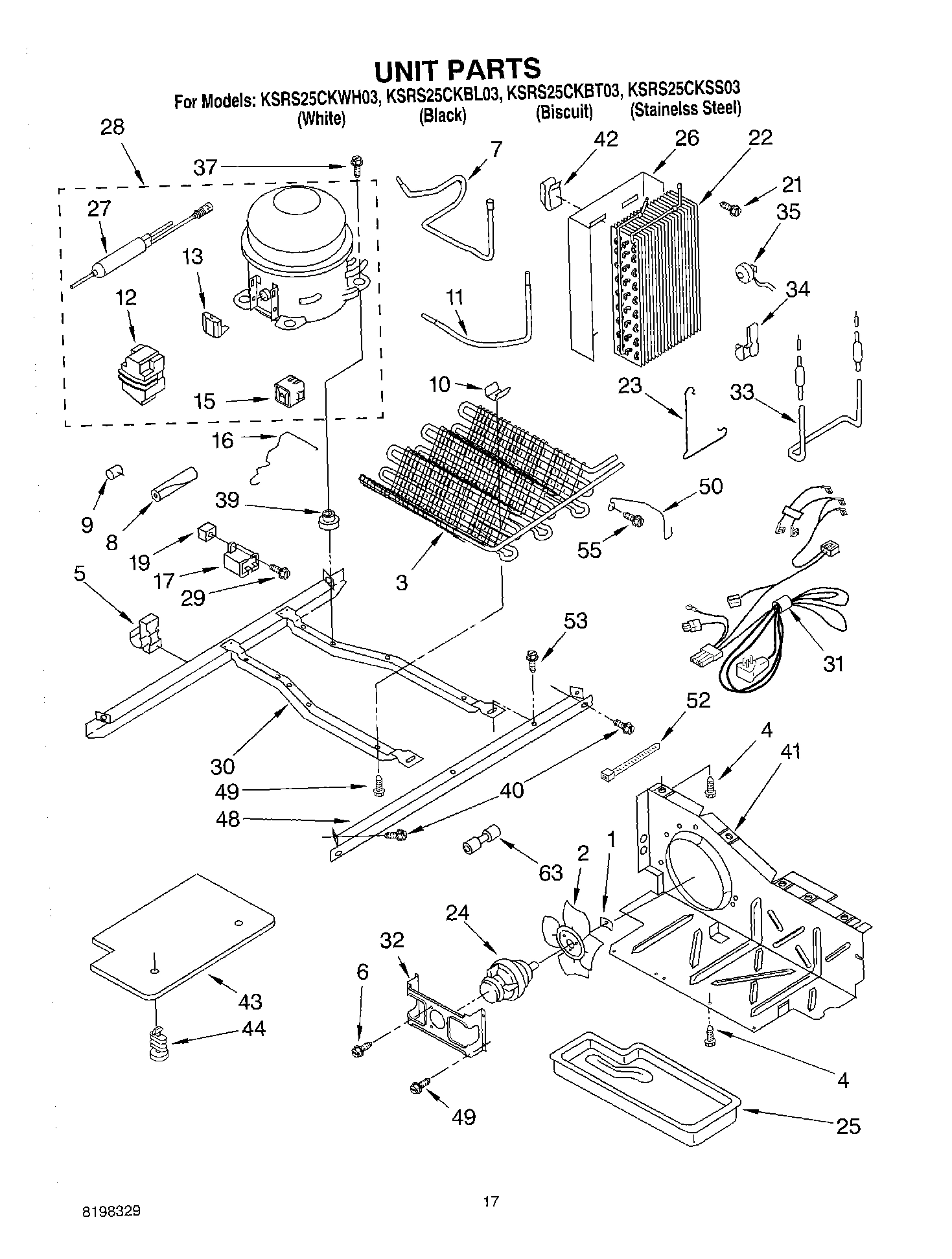

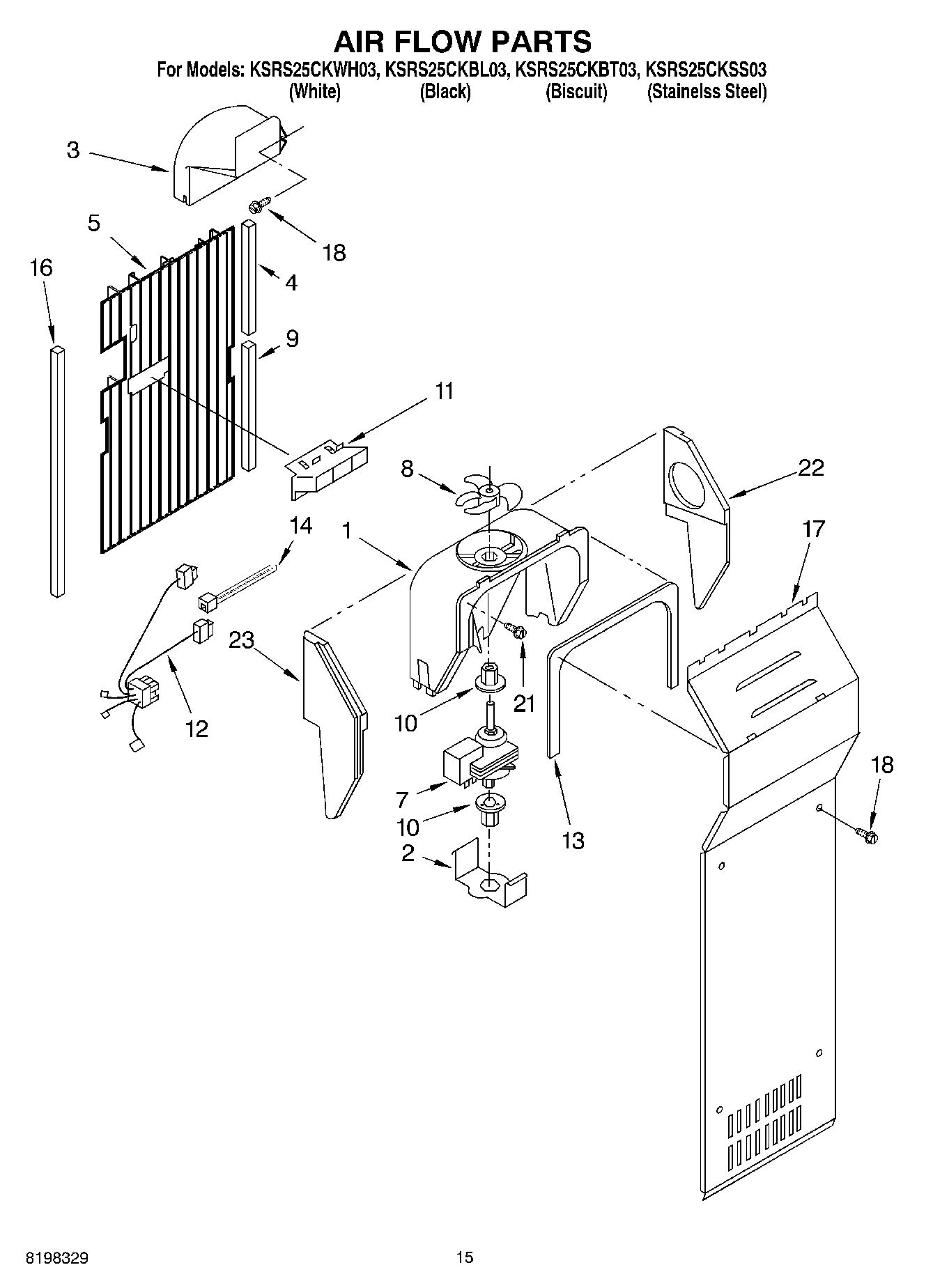

Model Whirlpool KSRS25CKBL03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

LITERATURE PARTS WPL ARI101125A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2216588 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2220280 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254906 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255382 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI101129A Contact Us For Availability

1

Bracket, Motor WPL 2183726 Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2207189B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2207189S Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2207189T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2207189W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI101127A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Handle (Black) WPL 2207112B Contact Us For Availability

2

Handle (Stainless Steel) WPL 2207112S Contact Us For Availability

2

Handle (Biscuit) WPL 2207112T Contact Us For Availability

2

Handle (White) WPL 2207112W Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Screw (Stainless Steel) WPL 3400897 Contact Us For Availability

4

Screw (White) WPL 3400898 Contact Us For Availability

4

Screw (Biscuit) WPL 8281135 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

WP2182770 Whirlpool Refrigerator Thermostat Backorder WPL WP2182770 $115.91

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $40.83

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206273 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Screw (Black) WPL 3400899 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Wire Harness WPL 2200400 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2186881T Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Backorder WPL 2179404 $8.47

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Bracket, Door Stop WPL 2200082 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Window, Crisper WPL 2174076 Contact Us For Availability

Switch Assembly (Not Available Order 23) WPL ARI101130A Contact Us For Availability

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

Overlay, Front Cover (Not Available, Order 23 WPL ARI101131A Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Control Box Harness WPL 2187560 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI101132A Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

CLIP, WIRING WPL 1115375 Contact Us For Availability

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207186W Contact Us For Availability

Endcap, Handle (Black) WPL 2207110B Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2207110T Contact Us For Availability

Endcap, Handle (White) WPL 2207110W Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

24

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Screw WPL 489439 Contact Us For Availability

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $97.41

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

Stud, Rear WPL 2196207 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

28

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

31

Cabinet (Not A Serviceable Part) WPL ARI101126A Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

NI

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
