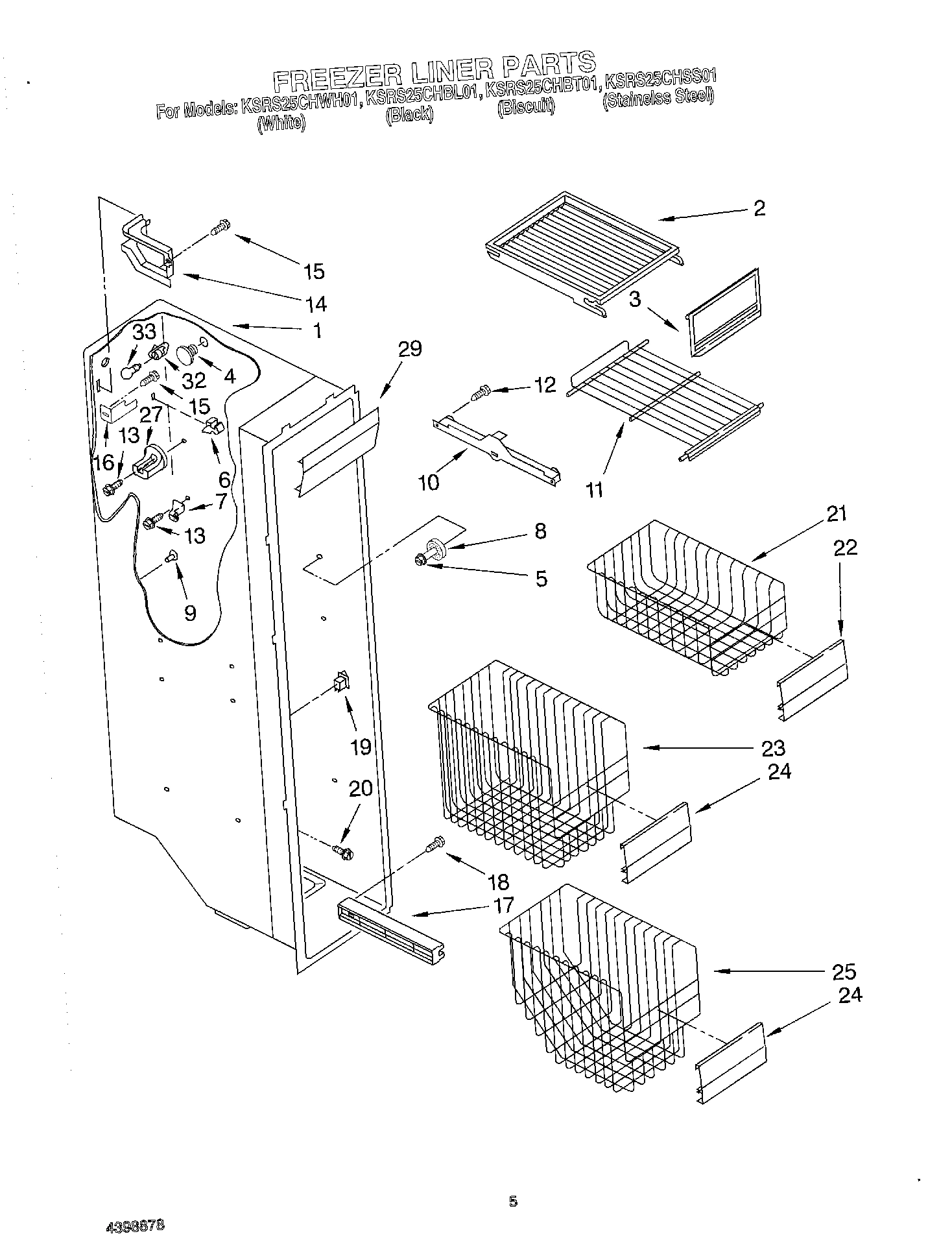

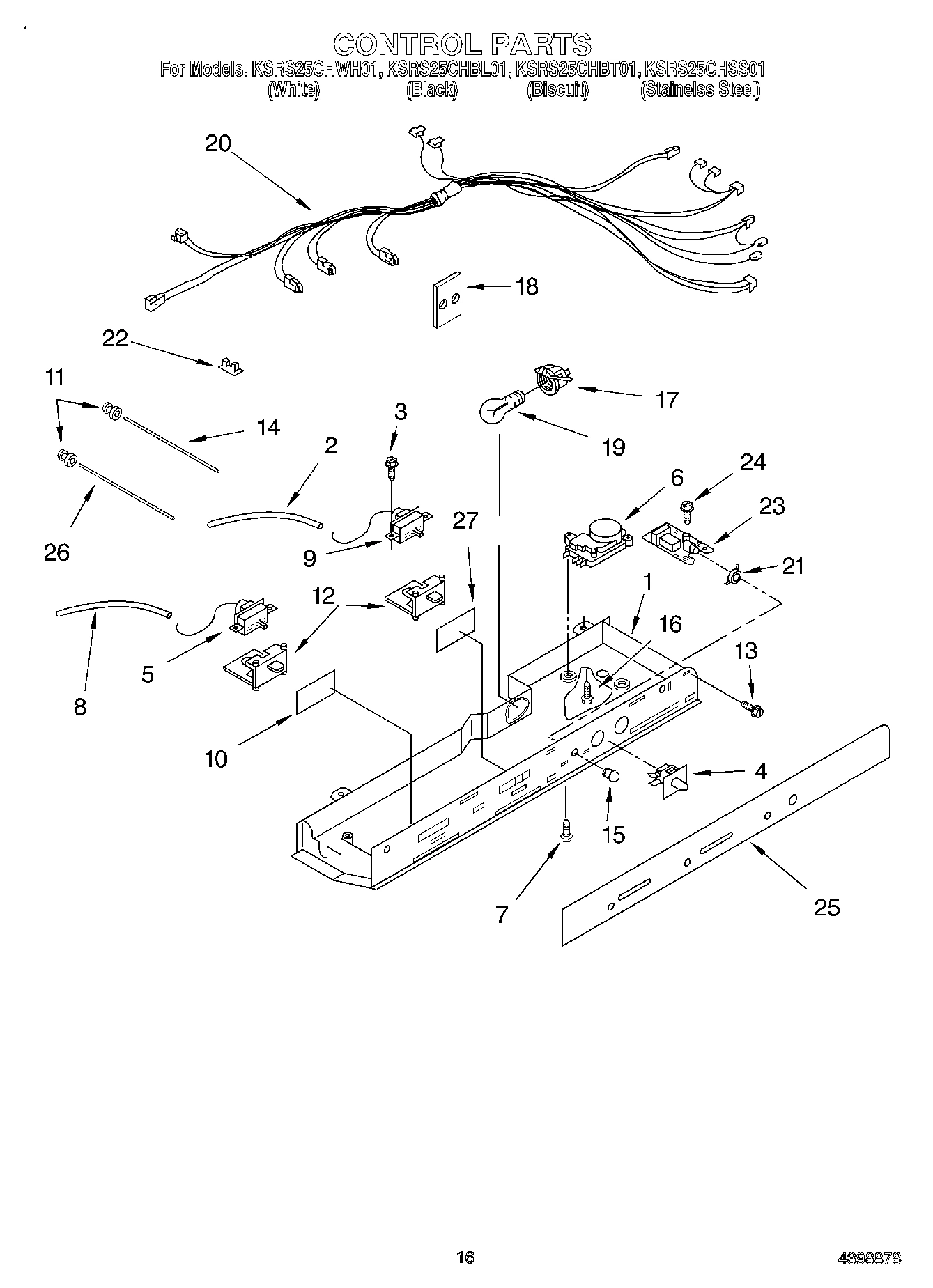

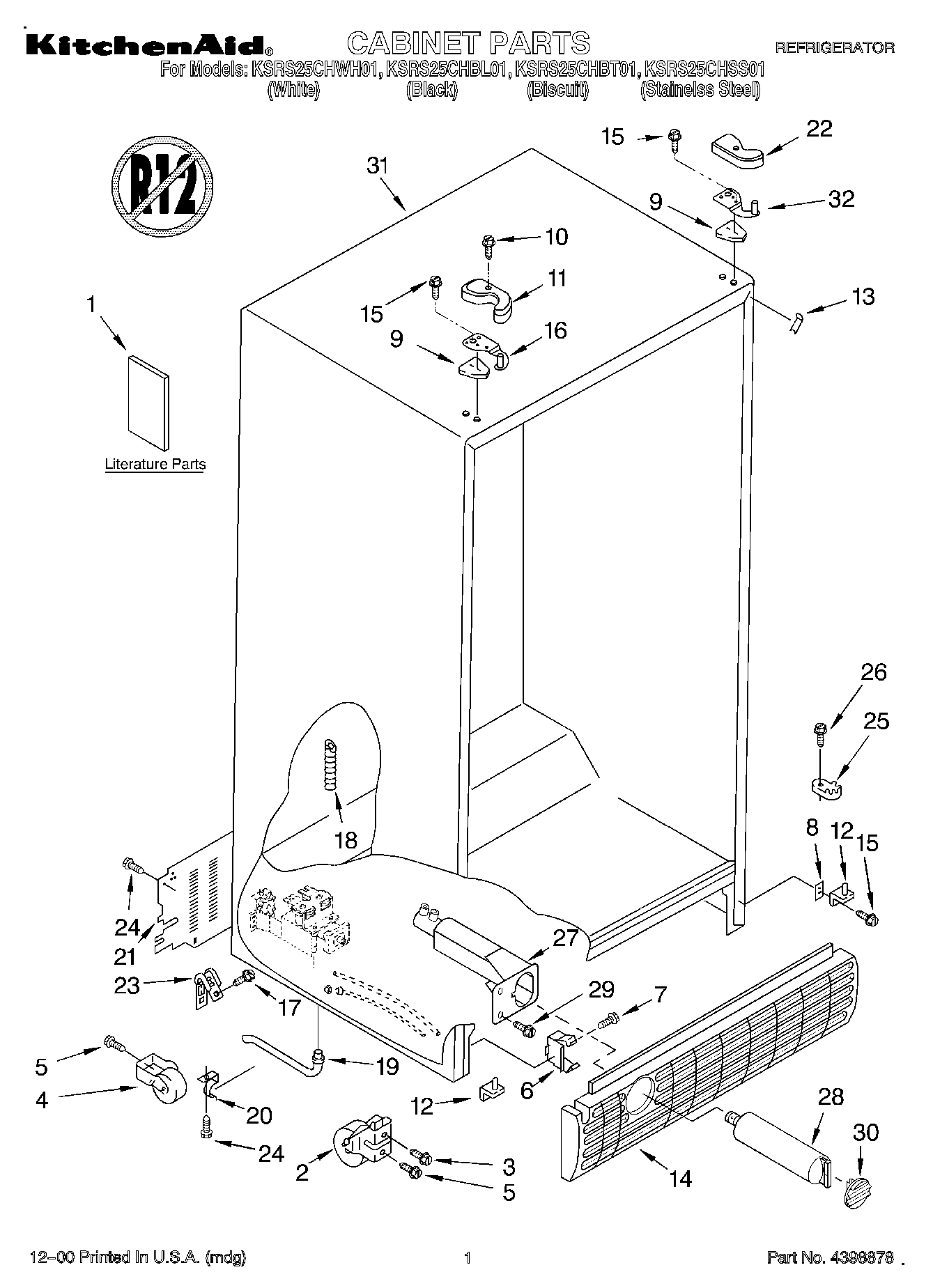

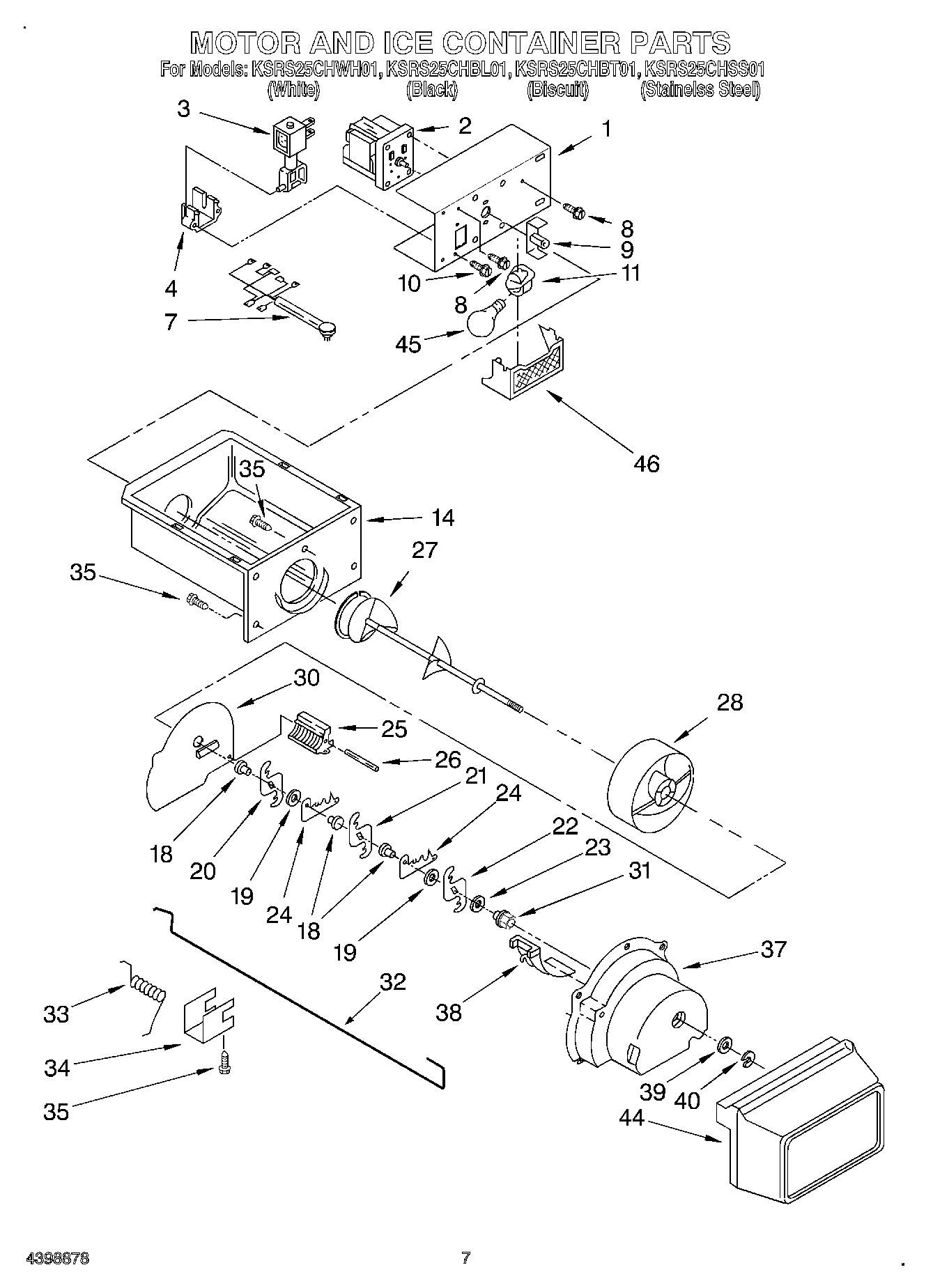

Model Whirlpool KSRS25CHWH01 REFRIGERATOR – Common Parts & Diagrams

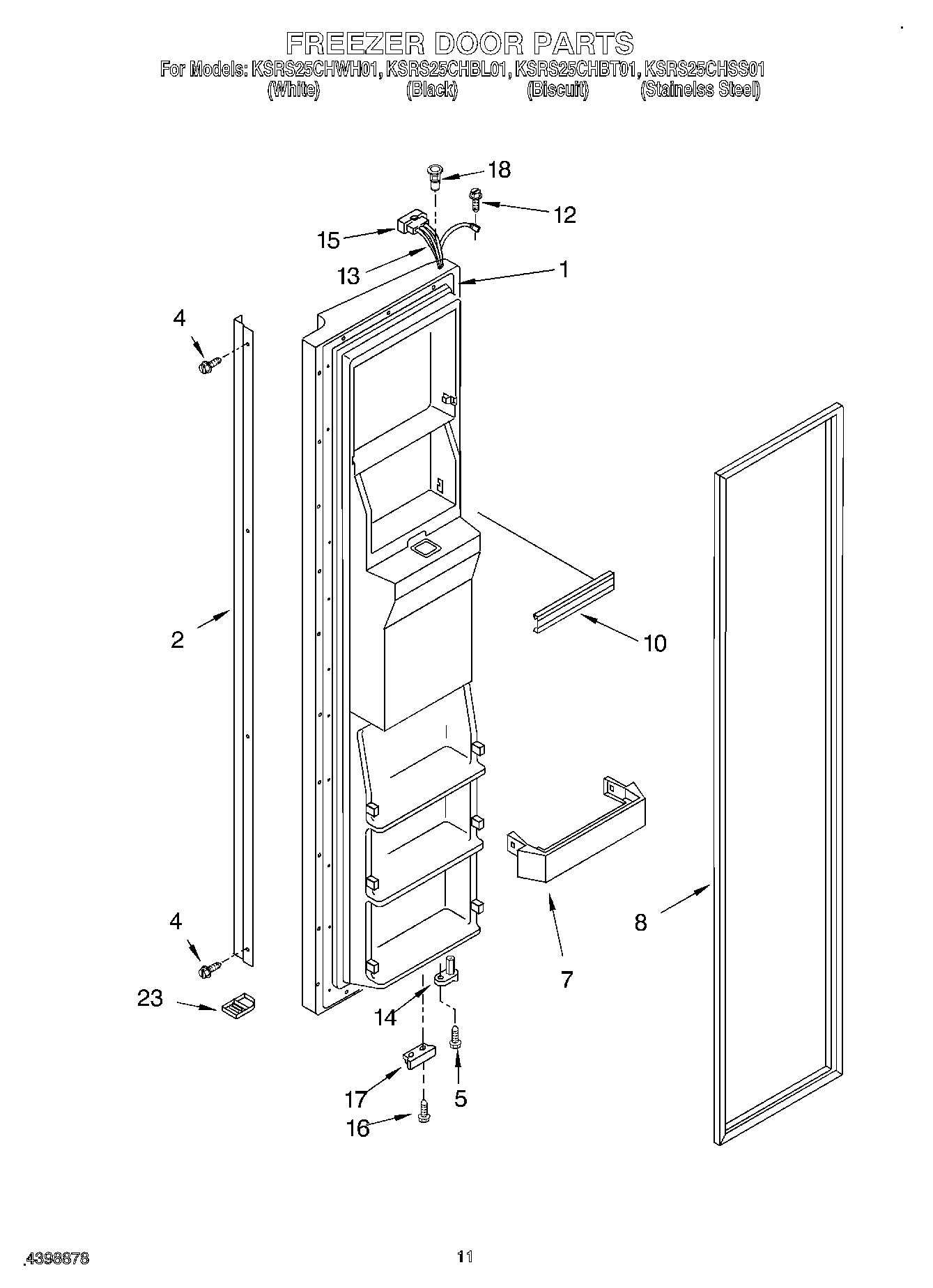

1

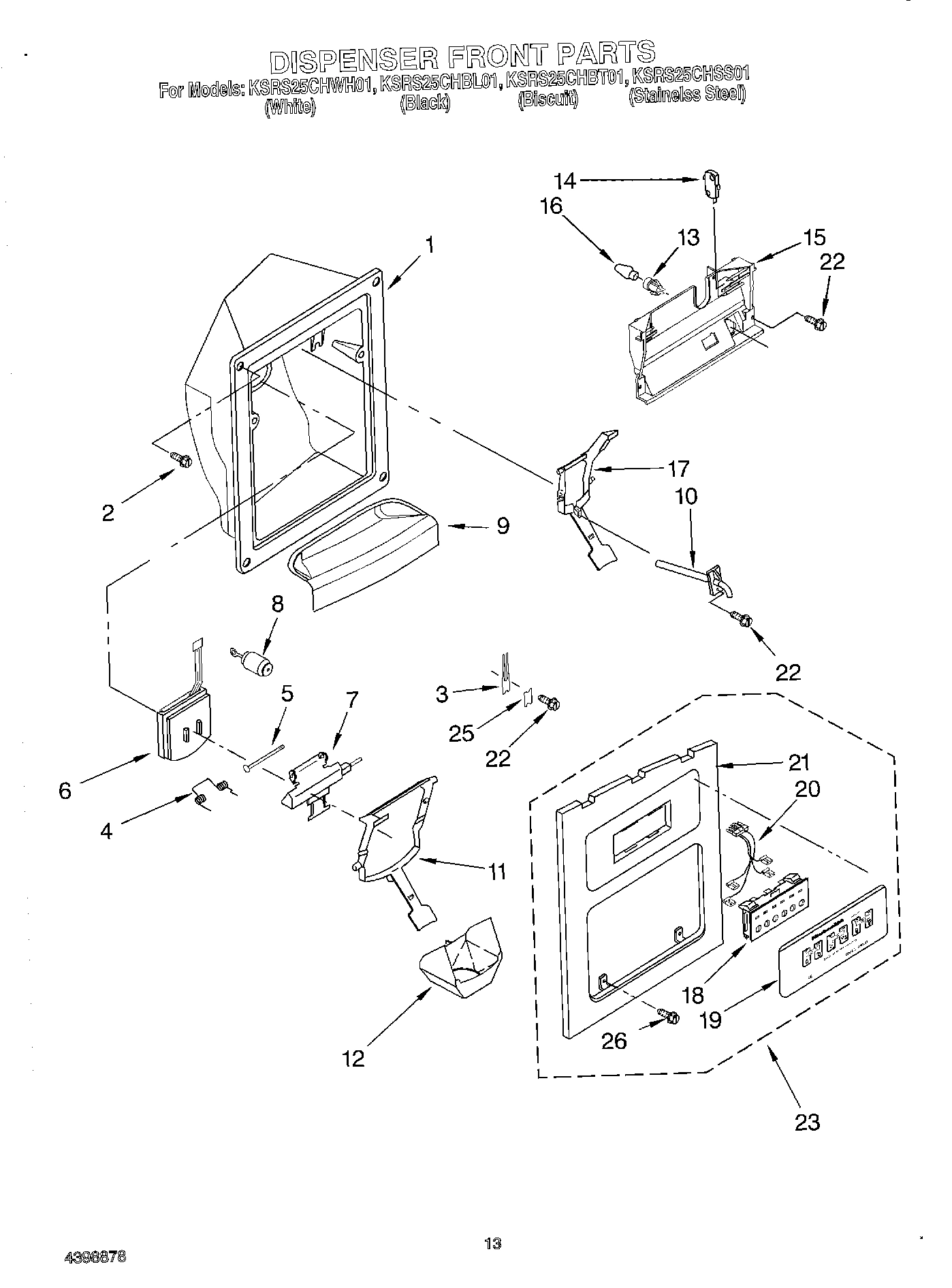

Freezer Door (Includes No.8 And Dispenser Fro
Freezer Door (Includes No.8 And Dispenser Fro WPL 2207189B Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8 And Dispenser Fro
Freezer Door (Includes No.8 And Dispenser Fro WPL 2207189S Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8 And Dispenser Fro
Freezer Door (Includes No.8 And Dispenser Fro WPL 2207189T Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8 And Dispenser Fro
Freezer Door (Includes No.8 And Dispenser Fro WPL 2207189W Contact Us For Availability
View on Model

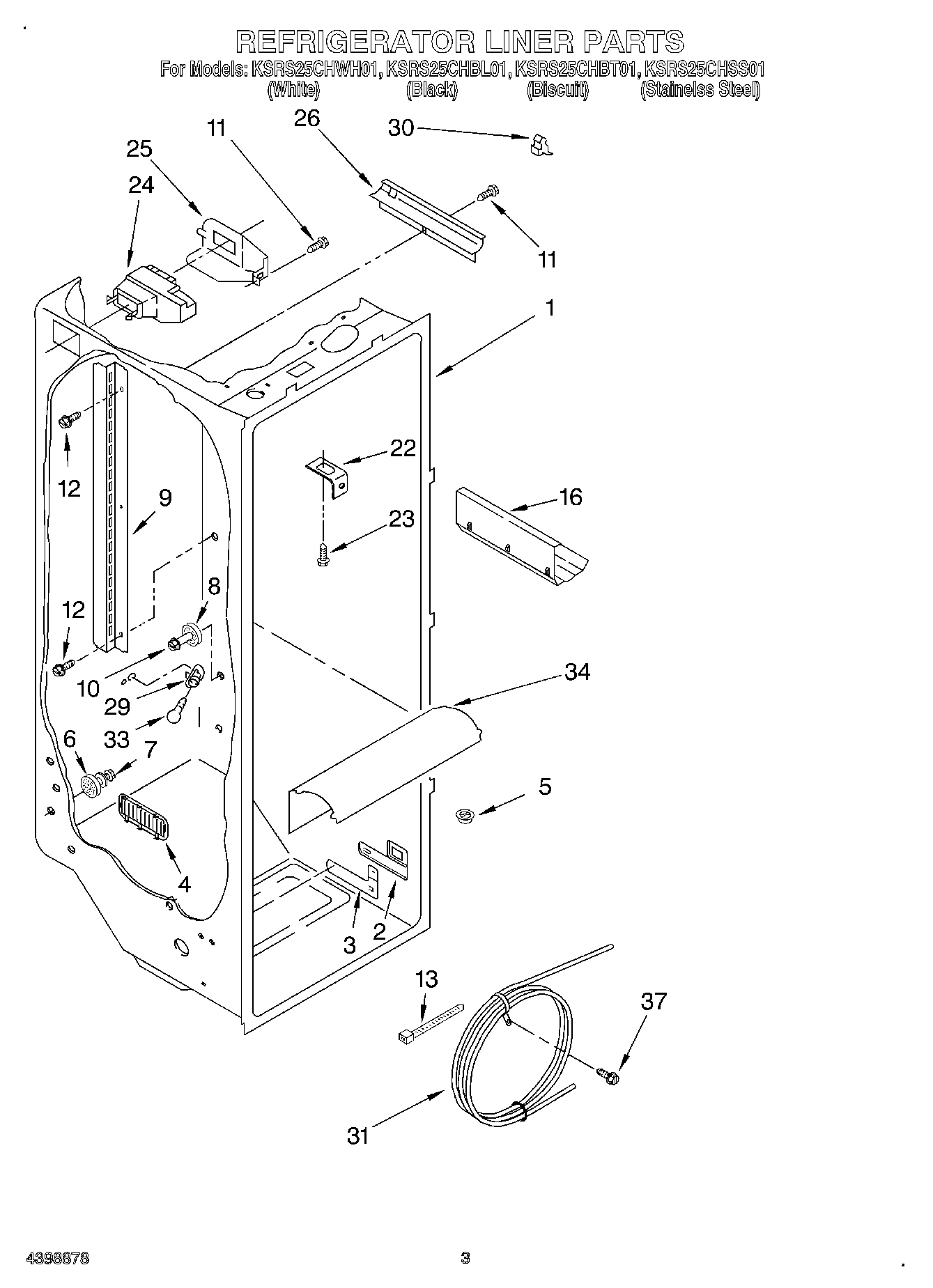

1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI101109A Contact Us For Availability
View on Model
1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI101110A Contact Us For Availability
View on Model

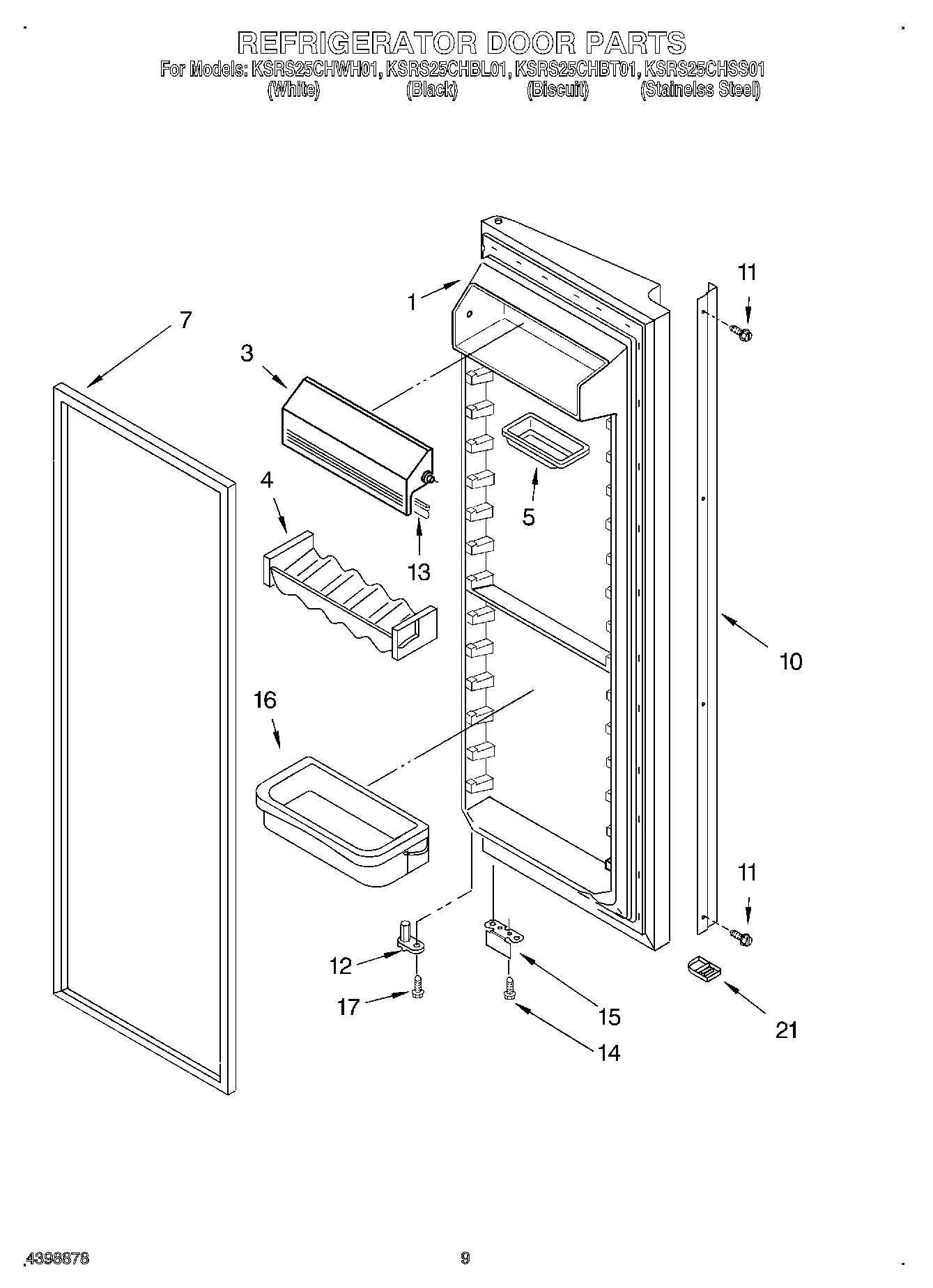

1
Refrigerator Door (Includes No.7) (Black)
Refrigerator Door (Includes No.7) (Black) WPL 2207183B Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.7) (Stainless
Refrigerator Door (Includes No.7) (Stainless WPL 2207183S Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.7) (Biscuit)
Refrigerator Door (Includes No.7) (Biscuit) WPL 2207183T Contact Us For Availability
View on Model
1
Refrigerator Door (Includes No.7) (White)
Refrigerator Door (Includes No.7) (White) WPL 2207183W Contact Us For Availability
View on Model
2
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
2
Shelf, Top Compartment
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
View on Model
3
Air Scoop
Air Scoop WPL 2161231 Contact Us For Availability
View on Model
4
Louver
Louver WPL 2182147 Contact Us For Availability
View on Model
4
Beverage Holder
Beverage Holder WPL 2193409 Contact Us For Availability
View on Model

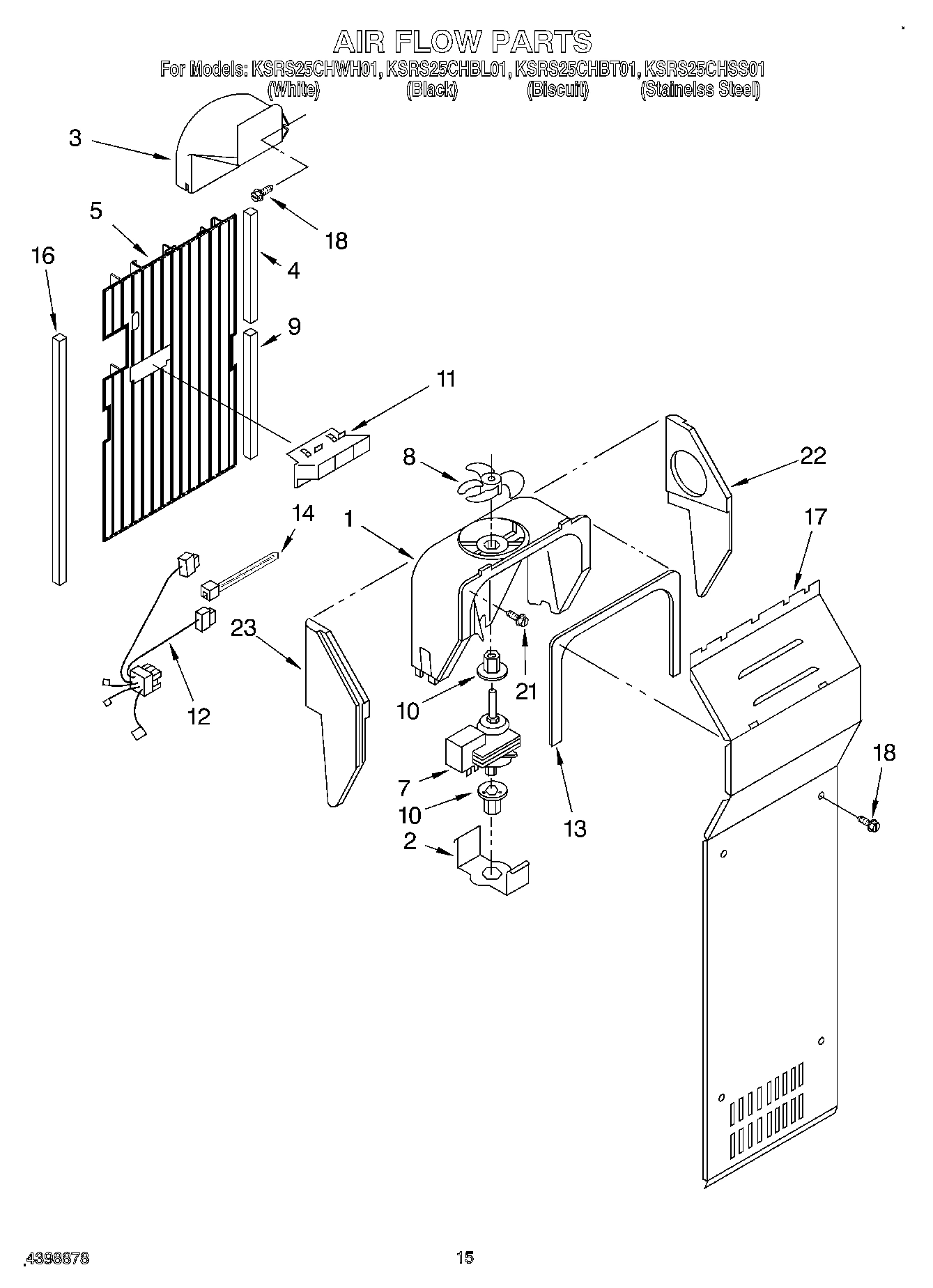

5
Air Duct Freezer
Air Duct Freezer WPL 2203593 Contact Us For Availability
View on Model
5
Tray, Butter
Tray, Butter WPL 2165792 Contact Us For Availability
View on Model
7
Shelf Bin (4)
Shelf Bin (4) WPL 2171070 Contact Us For Availability
View on Model
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13,
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
View on Model
9
Grommet (2)
Grommet (2) WPL 2176134 Contact Us For Availability
View on Model
9
Ladder, Shelf (2)
Ladder, Shelf (2) WPL 2206273 Contact Us For Availability
View on Model
10
Handle (Black)
Handle (Black) WPL 2207112B Contact Us For Availability
View on Model
10
Handle (Stainless Steel)
Handle (Stainless Steel) WPL 2207112S Contact Us For Availability
View on Model
10
Handle (Biscuit)
Handle (Biscuit) WPL 2207112T Contact Us For Availability
View on Model
10
Handle (White)
Handle (White) WPL 2207112W Contact Us For Availability
View on Model
11
Lever, Ice Dispenser (White (White Shadow Pad
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
View on Model
11
Screw
Screw WPL 3400898 Contact Us For Availability
View on Model
13
Eyelet, Roller
Eyelet, Roller WPL 2174478 Contact Us For Availability
View on Model
13
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
View on Model
13
Wire Harness
Wire Harness WPL 2200400 Contact Us For Availability
View on Model
13
Wire Harness (Stainless Model)
Wire Harness (Stainless Model) WPL 2207101 Contact Us For Availability
View on Model
13
Gasket
Gasket WPL 2159124 Contact Us For Availability
View on Model
14
Light Bar (RC)
Light Bar (RC) WPL 2179920 Contact Us For Availability
View on Model
14
Cover, Wiring
Cover, Wiring WPL 2155572 Contact Us For Availability
View on Model
15
COVER, LIGHT LENS
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
View on Model
15
Bracket, Door Stop
Bracket, Door Stop WPL 2200082 Contact Us For Availability
View on Model
16
Bracket, Fill Tube
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
View on Model
16
Shelf Bin (4)
Shelf Bin (4) WPL 2205821 Contact Us For Availability
View on Model
17
Cover, Evaporator
Cover, Evaporator WPL 2203841 Contact Us For Availability
View on Model
17
Shelf Track (Left Side (3))
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
View on Model
17
Shelf Track (Right Side (3))
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
View on Model
18
Window, Crisper
Window, Crisper WPL 2174076 Contact Us For Availability
View on Model
21
Basket, Shallow
Basket, Shallow WPL 2181763 Contact Us For Availability
View on Model
21
Endcap, Handle (Black)
Endcap, Handle (Black) WPL 2207111B Contact Us For Availability
View on Model
21
Endcap, Handle (Biscuit)
Endcap, Handle (Biscuit) WPL 2207111T Contact Us For Availability
View on Model
21
Endcap, Handle (White)
Endcap, Handle (White) WPL 2207111W Contact Us For Availability
View on Model
22
Front, Basket
Front, Basket WPL 2171767 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
23
Endcap, Handle (Black)
Endcap, Handle (Black) WPL 2207110B Contact Us For Availability
View on Model
23
Endcap, Handle (Biscuit)
Endcap, Handle (Biscuit) WPL 2207110T Contact Us For Availability
View on Model
23
Endcap, Handle (White)
Endcap, Handle (White) WPL 2207110W Contact Us For Availability
View on Model
23
Basket, Square
Basket, Square WPL 2181765 Contact Us For Availability
View on Model
25
Basket, Sloped
Basket, Sloped WPL 2181764 Contact Us For Availability
View on Model
27
Stud, Rear
Stud, Rear WPL 2196207 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 2206269 Contact Us For Availability
View on Model
37
Screw
Screw WPL 488280 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
100
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
100
WPL  799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
100
WPL  799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
100
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
