Model Whirlpool KSRP25QDAL02 REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

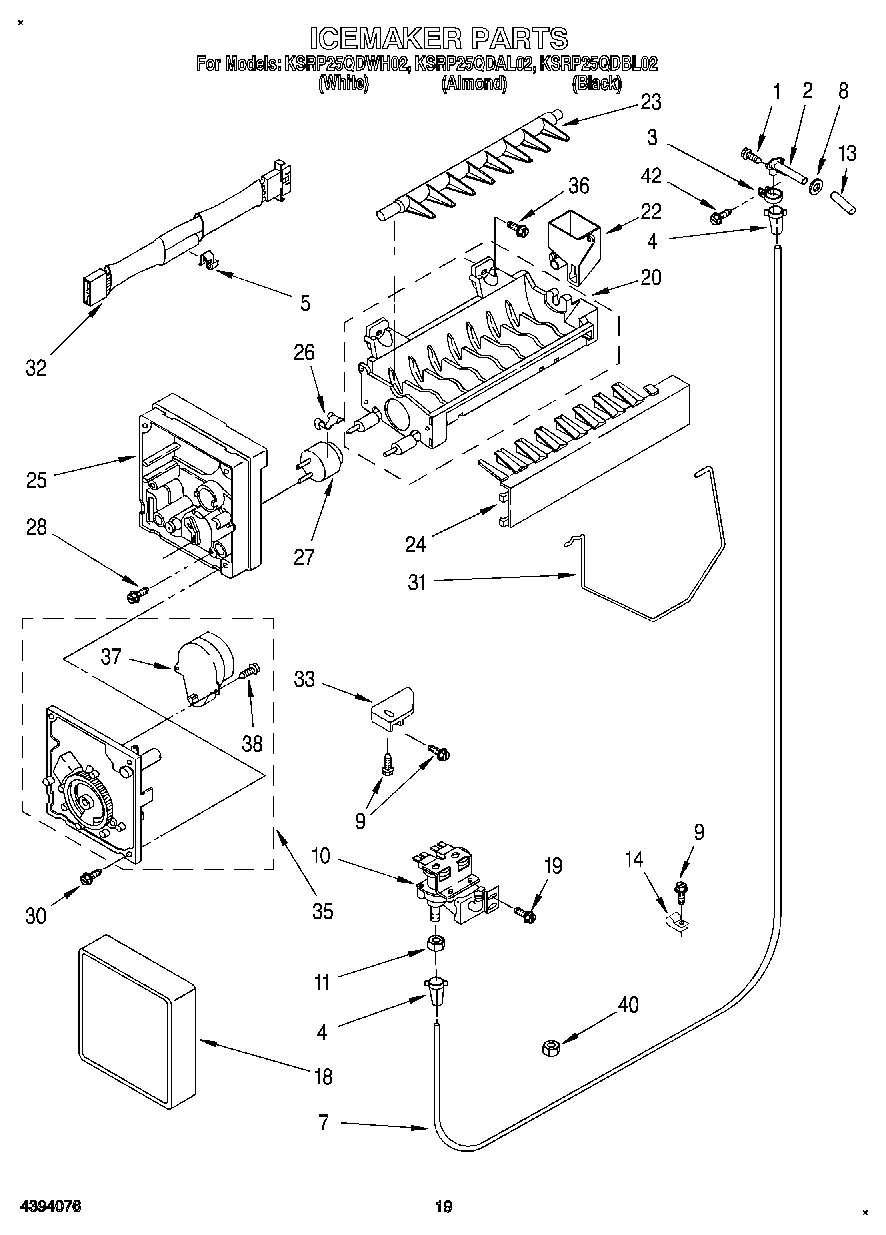

12 - ICEMAKER, LIT/OPTIONAL

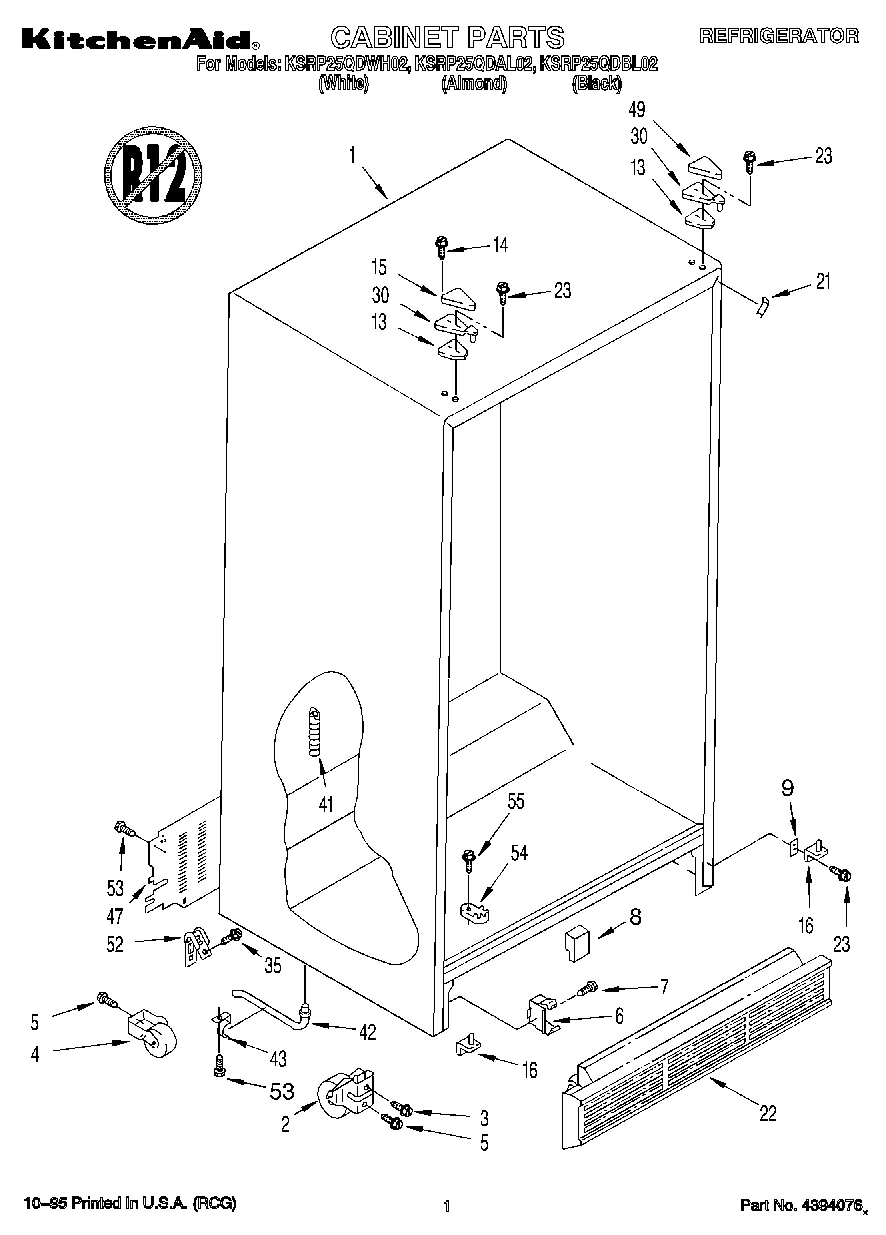

01 - CABINET

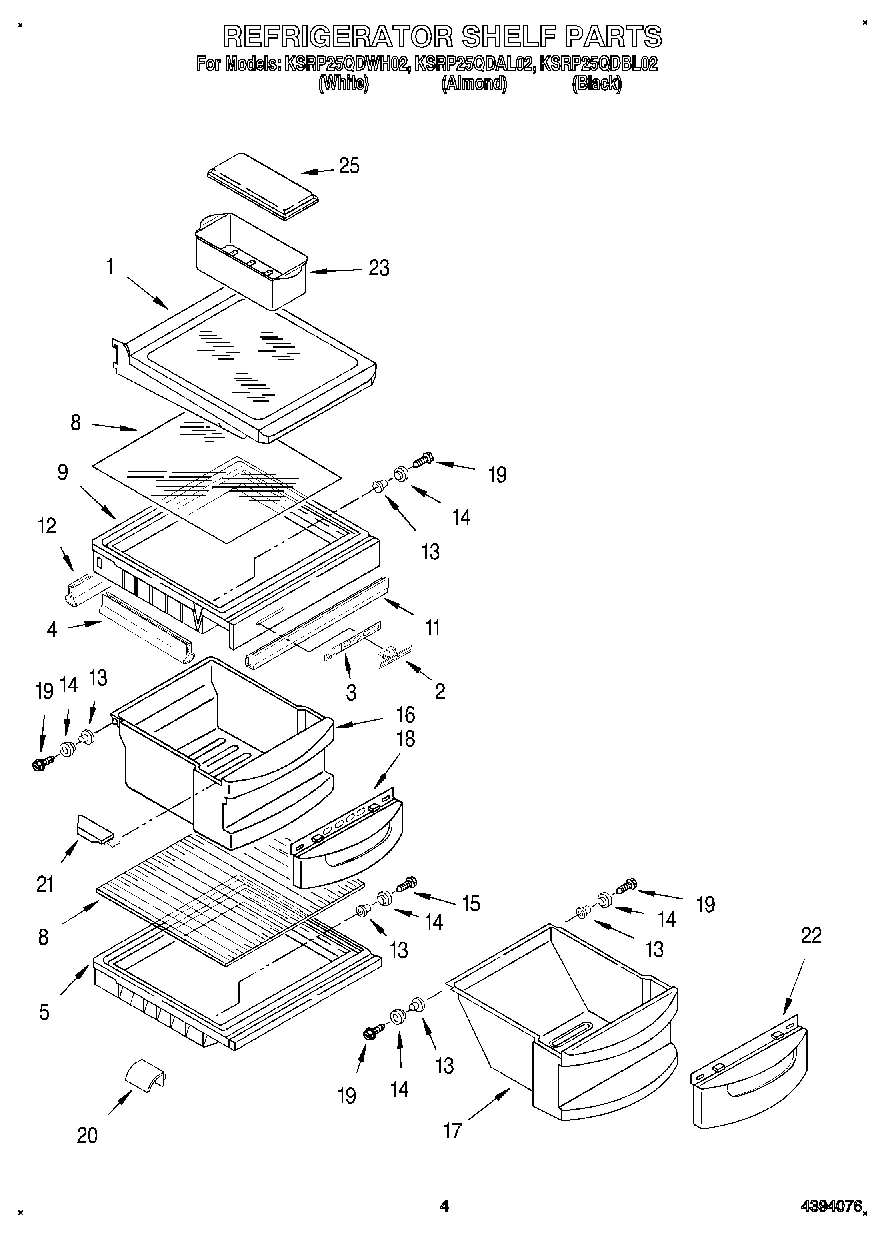

03 - REFRIGERATOR SHELF

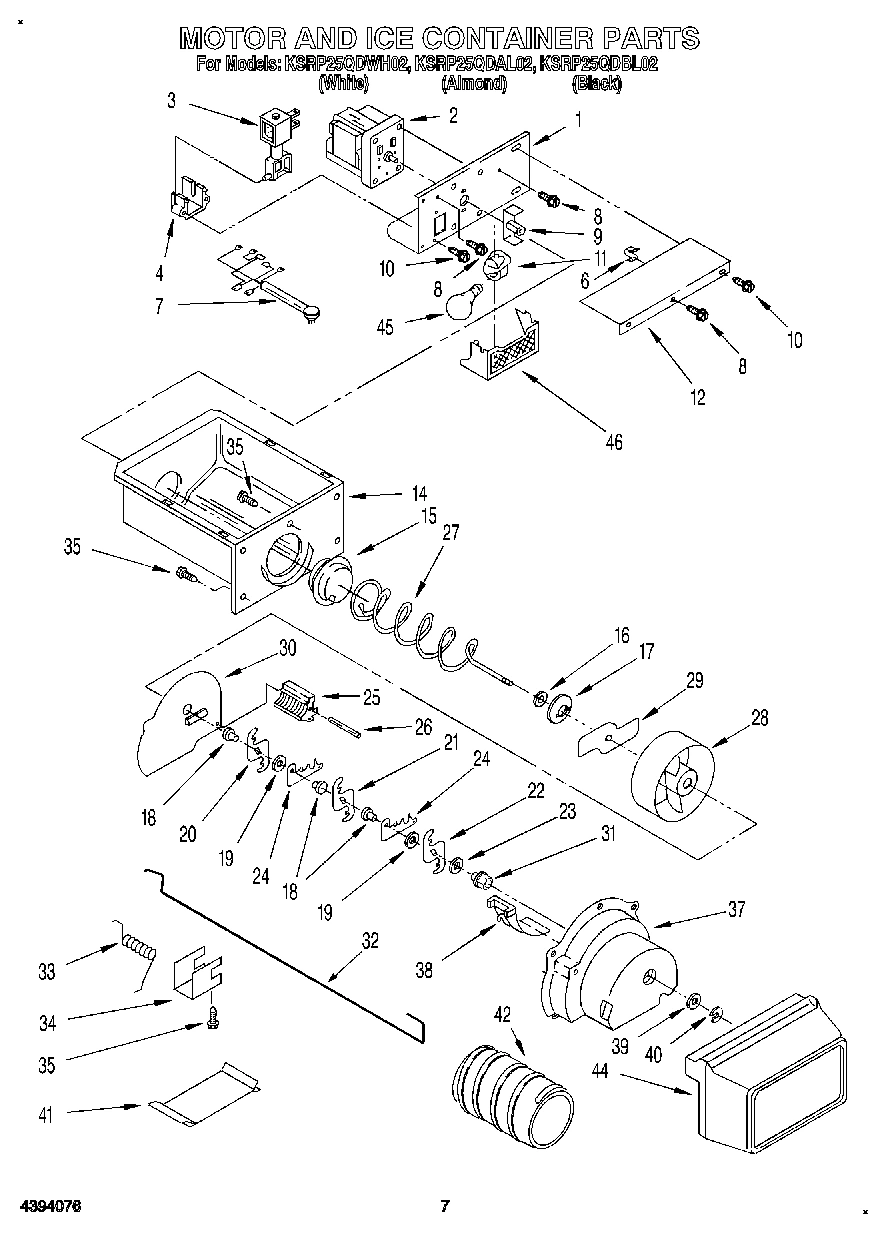

05 - MOTOR AND ICE CONTAINER

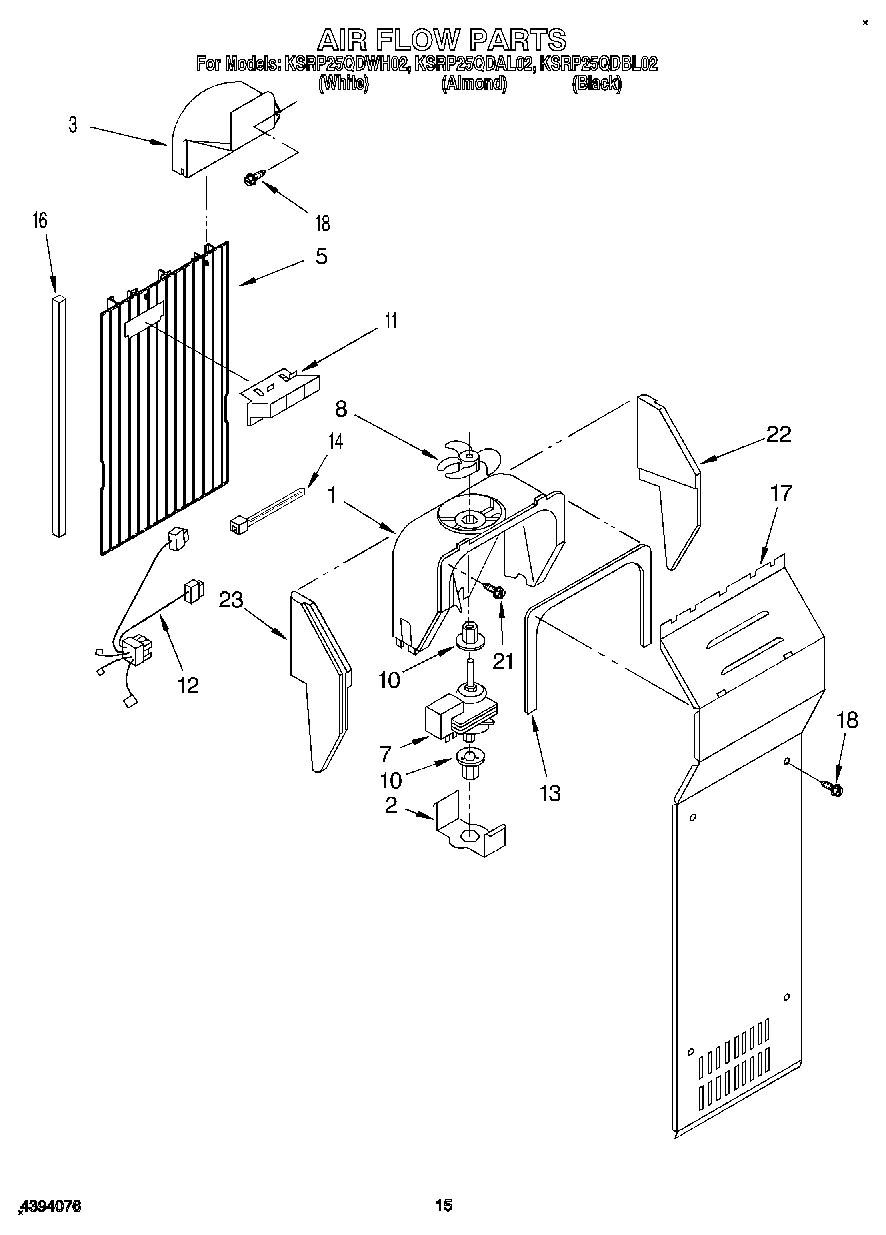

09 - AIR FLOW

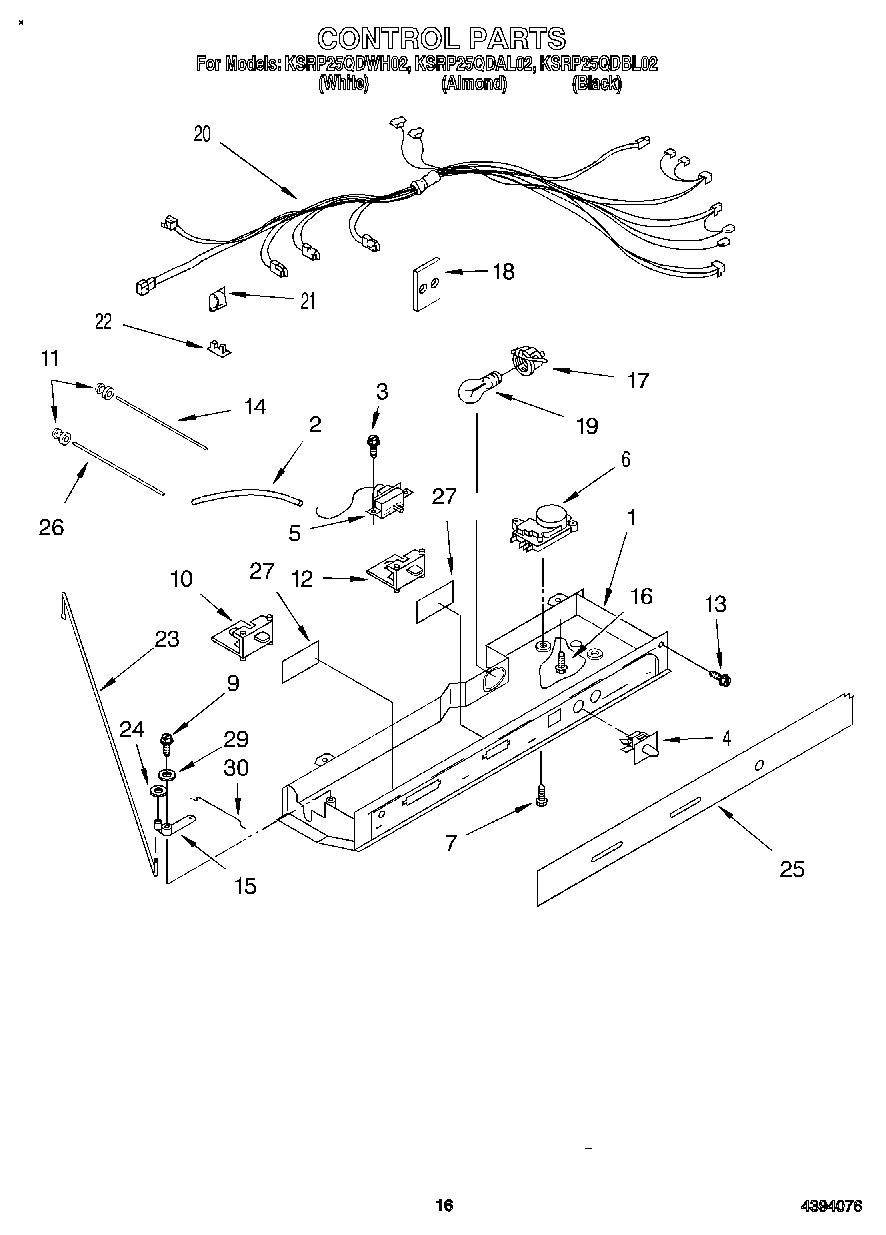

10 - CONTROL

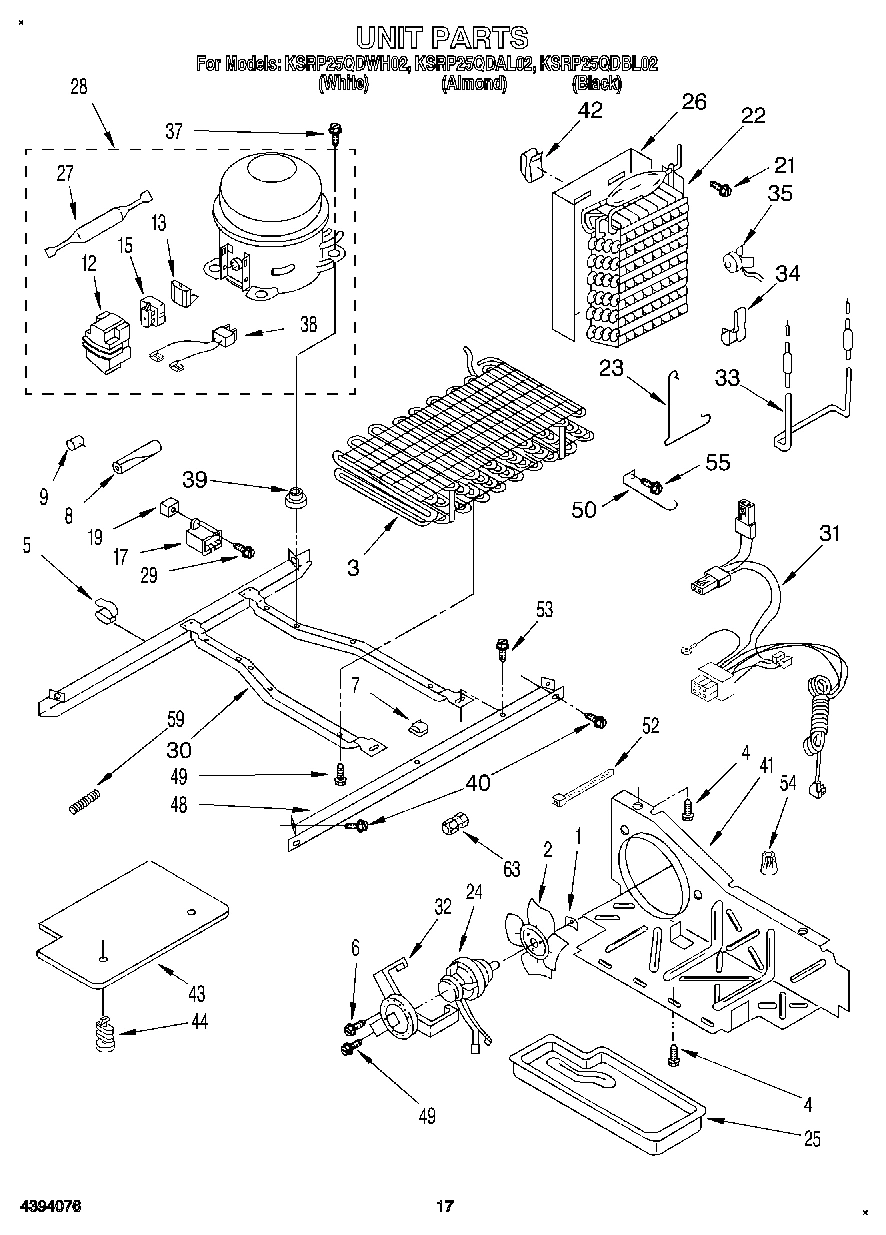

11 - UNIT

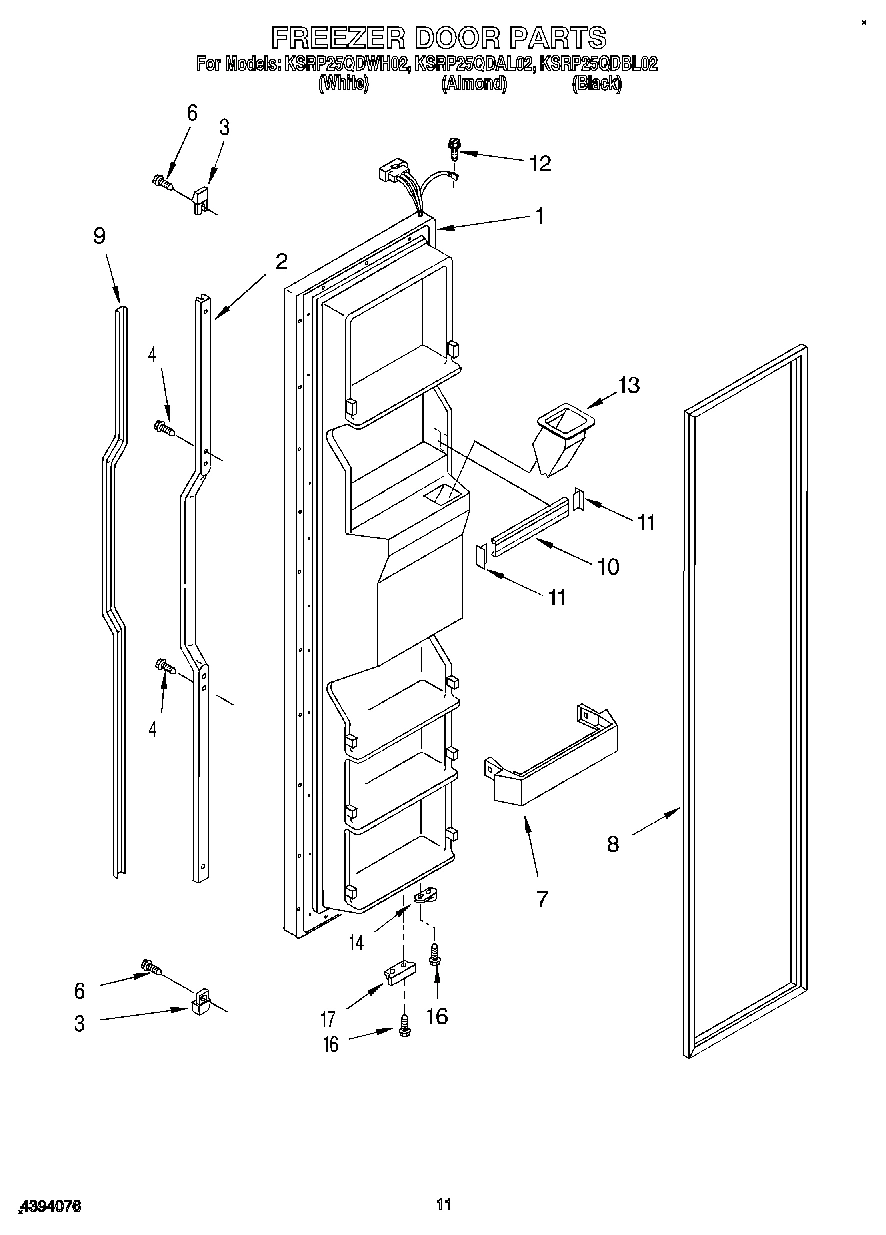

07 - FREEZER DOOR

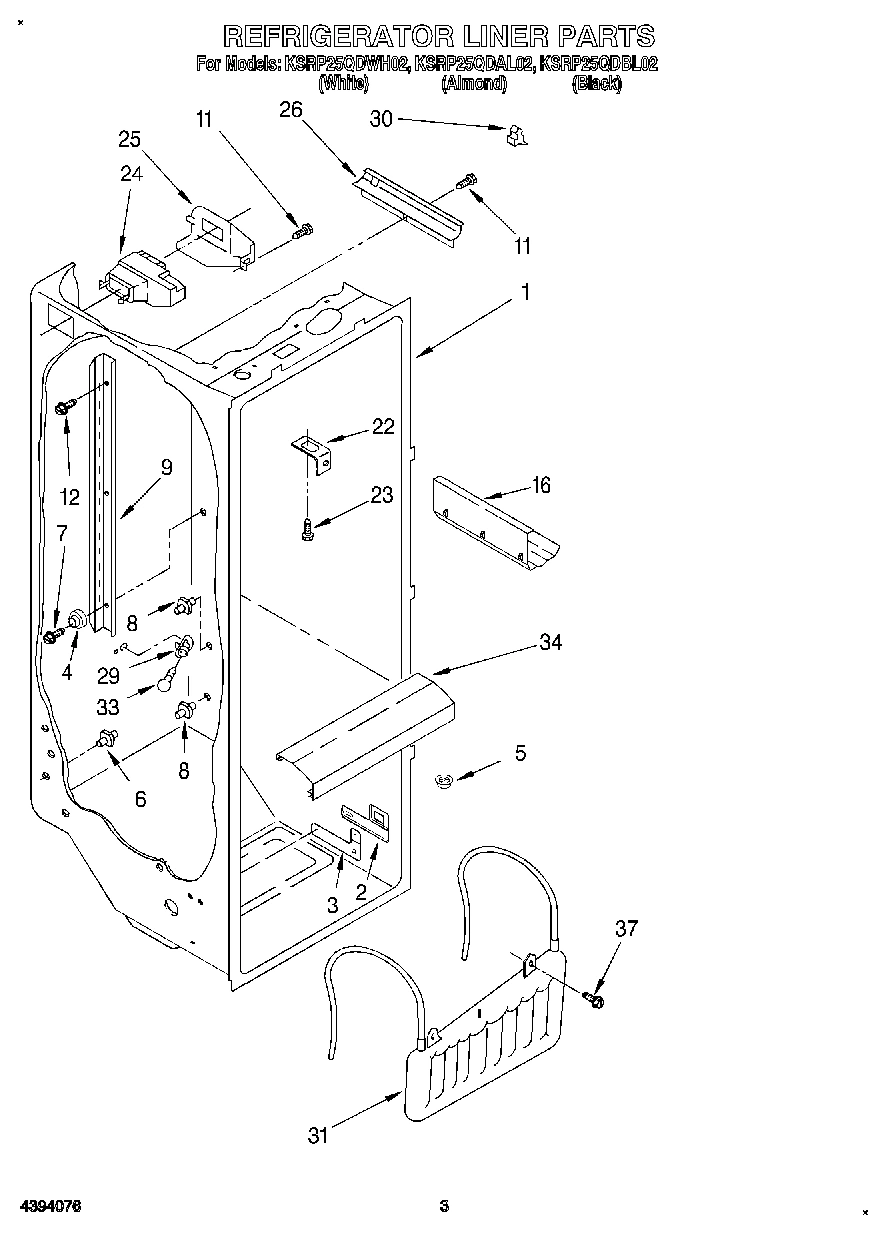

02 - REFRIGERATOR LINER

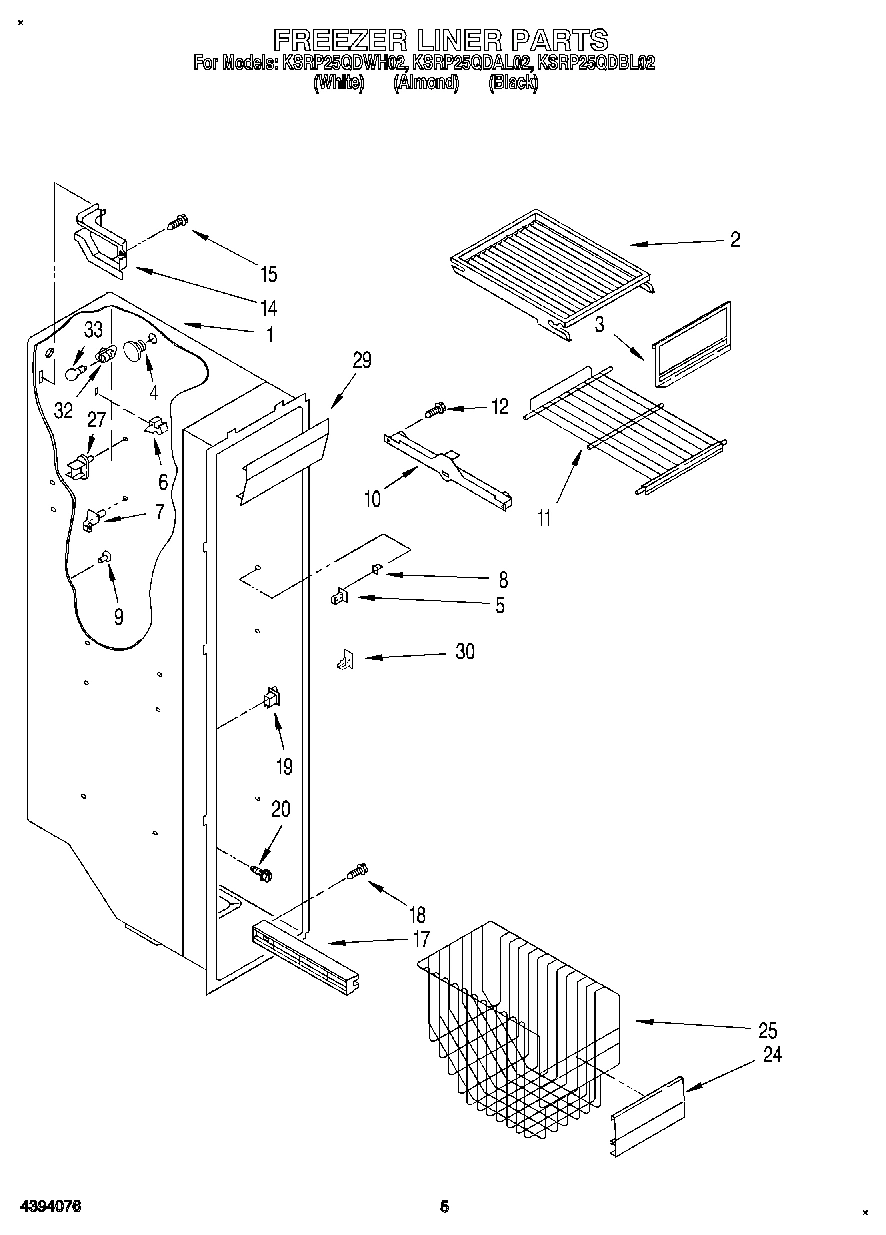

04 - FREEZER LINER
Common parts from model Whirlpool KSRP25QDAL02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2181737 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174033 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194004 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194005 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194006 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100658A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI100659A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Retainer, Insert WPL 2173824 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
End Cap (2) WPL 2173826 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Thermostat WPL 2175515 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Insert, Handle (Black) WPL 2173829 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Relay (See Overload) WPL ARI100661A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Capacitor (Service Compresor Only) WPL 2169137 Contact Us For Availability
17
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175514 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Lower WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Window (2) WPL 2175513 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness WPL 2181709 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
