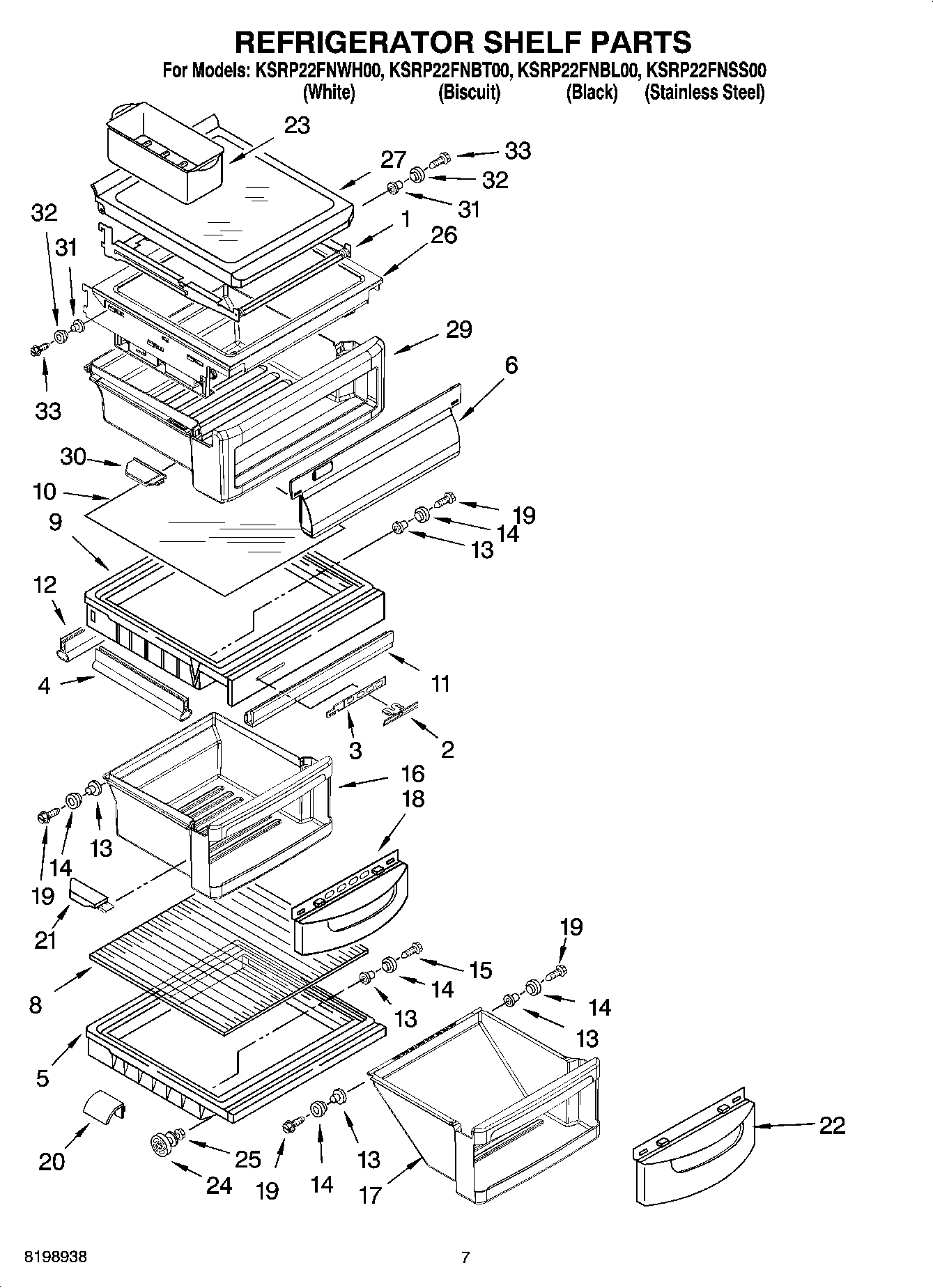

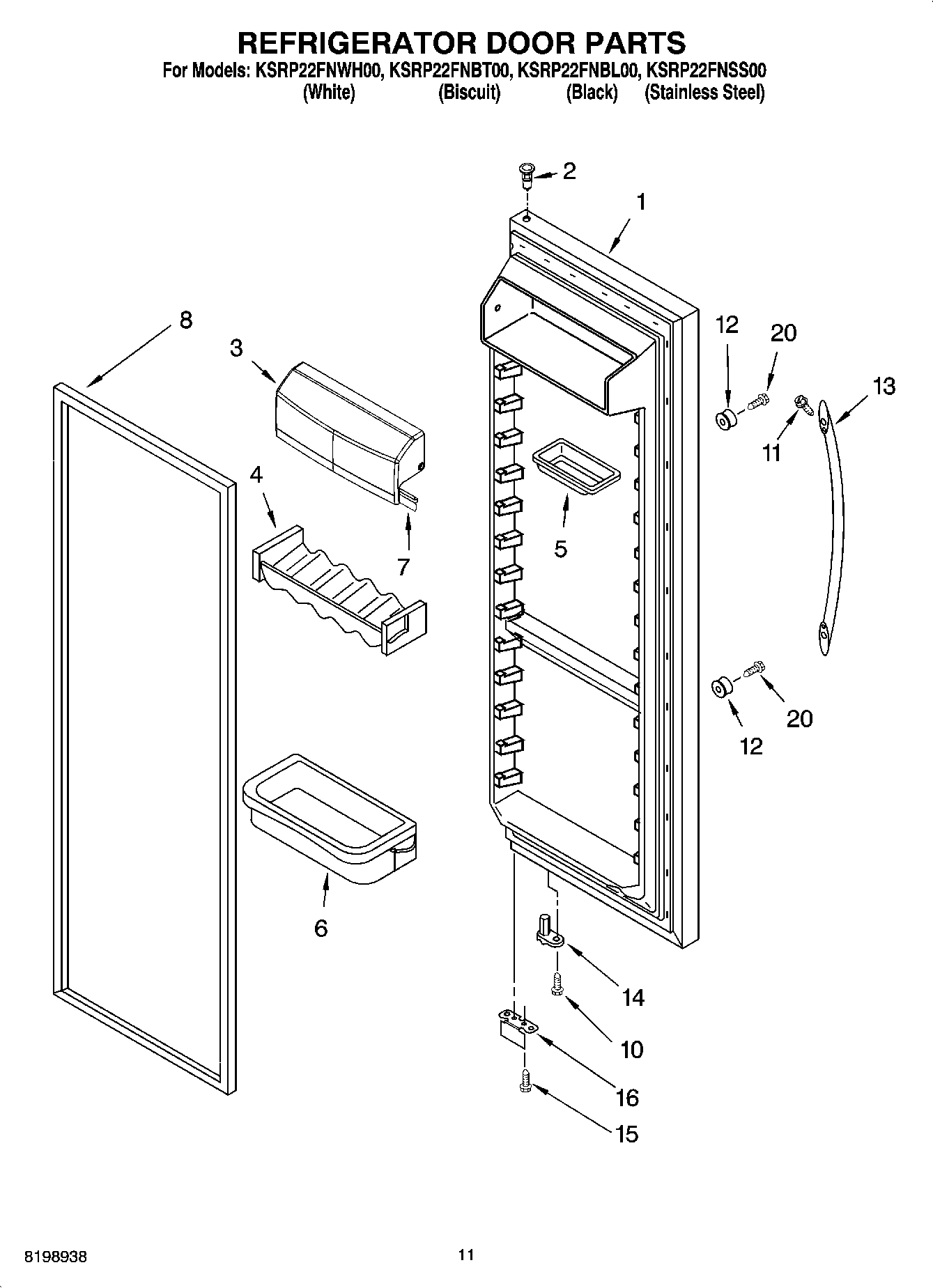

Model Whirlpool KSRP22FNBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Use & Care Guide WPL 2305802 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI99507A6 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI99508A8 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301196B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301196SB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301196T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301196W Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Handle (Black) WPL 2255512B Contact Us For Availability

2

Handle (Stainless Steel) WPL 2255512S Contact Us For Availability

2

Handle (Biscuit) WPL 2255512T Contact Us For Availability

2

Handle (White) WPL 2255512W Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Gasket WPL 2216957 Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Screw WPL 8533976 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Window, Snack Pan WPL 2301006 Contact Us For Availability

6

Trivet, Shelf (4) WPL 2171071 Contact Us For Availability

7

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $63.66

7

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $64.89

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

Thimble, Top (For White, Biscuit, and Black M WPL 2301049 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf, Slide Out Upper WPL 2211743 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $103.24

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Basket, Tall (Includes 12) WPL 2301497 Contact Us For Availability

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Basket Front WPL 2305582 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $9.11

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Shelf WPL 2212343 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Basket, Sloped (Includes 12) WPL 2301498 Contact Us For Availability

Bracket, Control WPL 2252162 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $55.37

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Window, Crisper WPL 2174076 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI99509A2 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $93.41

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI99510A4 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI99511A5 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252081W Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $38.45

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Overlay, Control Box WPL 2255617 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Cover, Icemaker WPL 2255591 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

Cabinet (Not A Serviceable Part) WPL ARI99505A7 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $47.16

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

33

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover, Receiver WPL 2255561 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

37

Slide, Ice Maker Shut Off WPL 2301340 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $28.80

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

45

Ladder (Left Side) WPL 2212315 Contact Us For Availability

45

Ladder (Right Side) WPL 2212316 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90
