Model Whirlpool KSRK22ILWH03 REFRIGERATOR – Common Parts & Diagrams

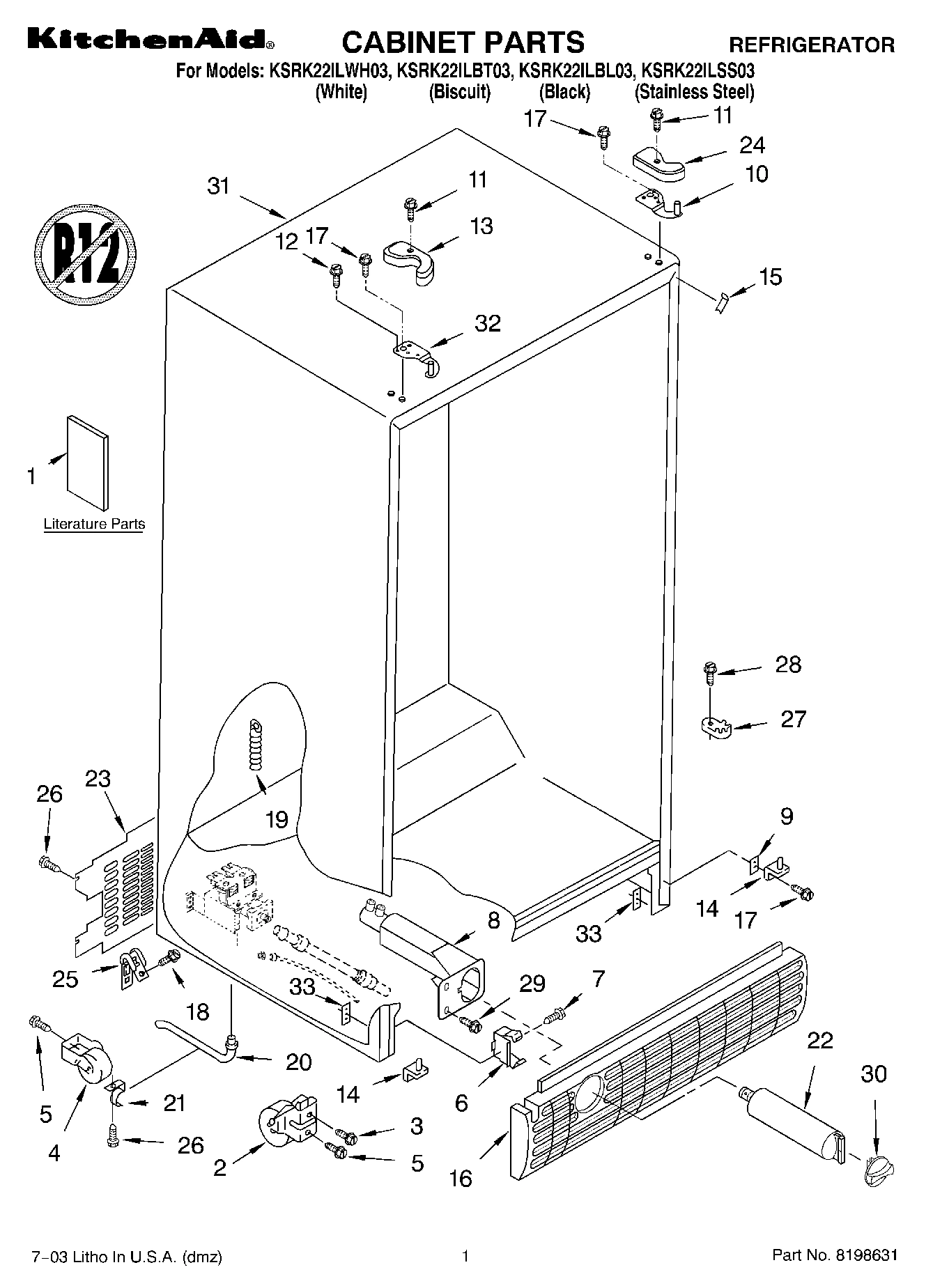

01 - CABINET PARTS
03 - AIR FLOW PARTS

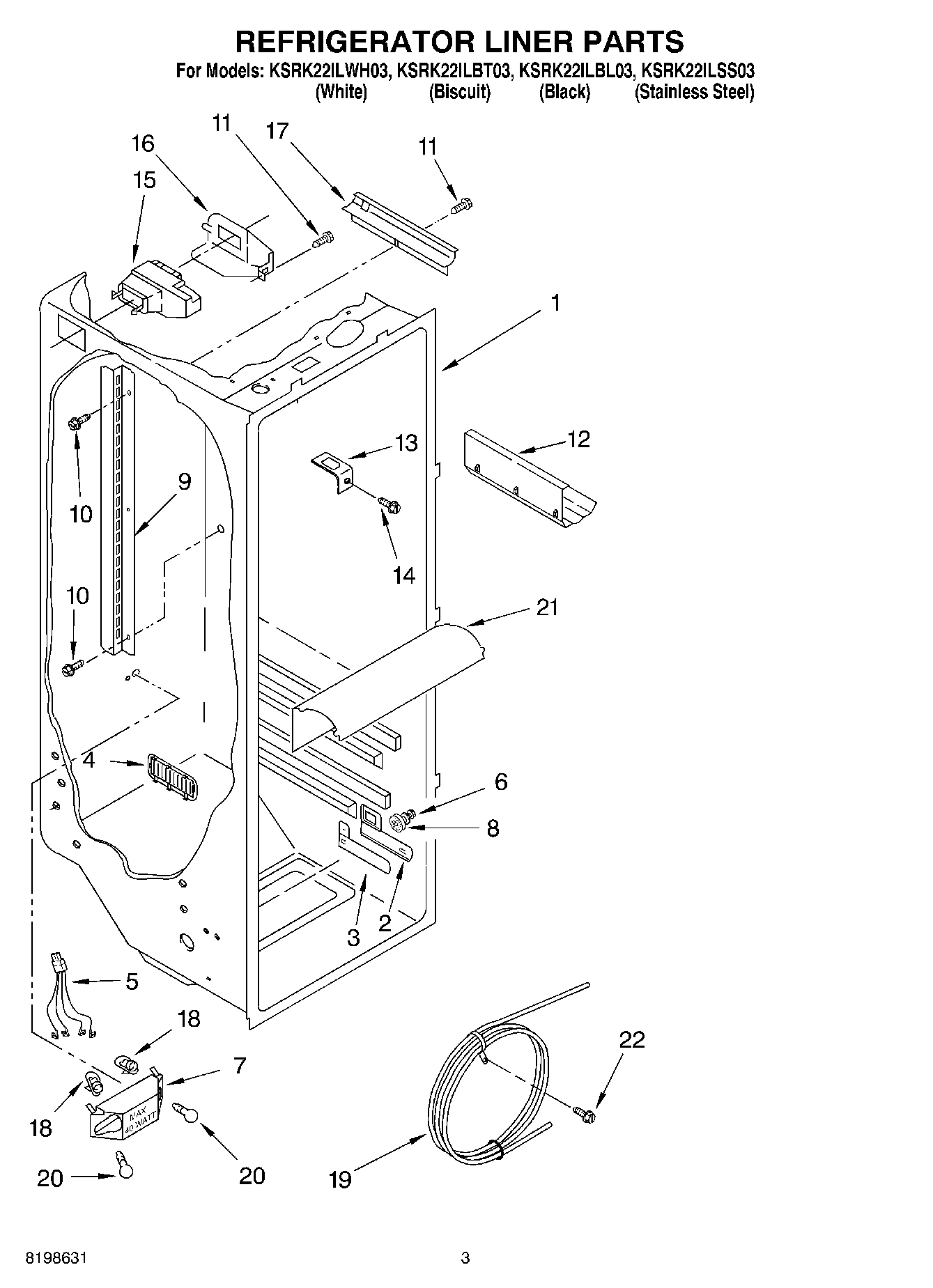

02 - REFRIGERATOR LINER PARTS

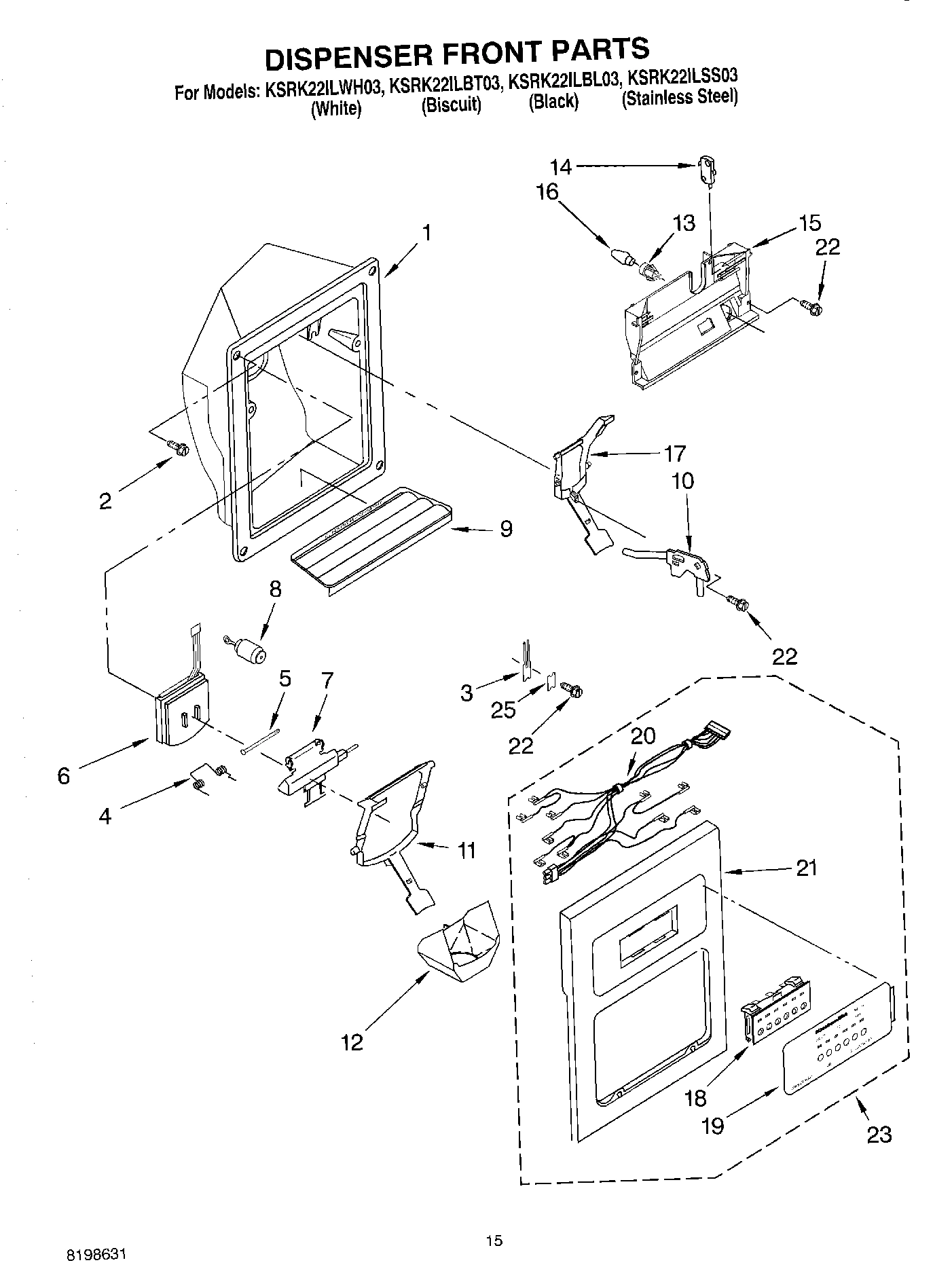

09 - DISPENSER FRONT PARTS

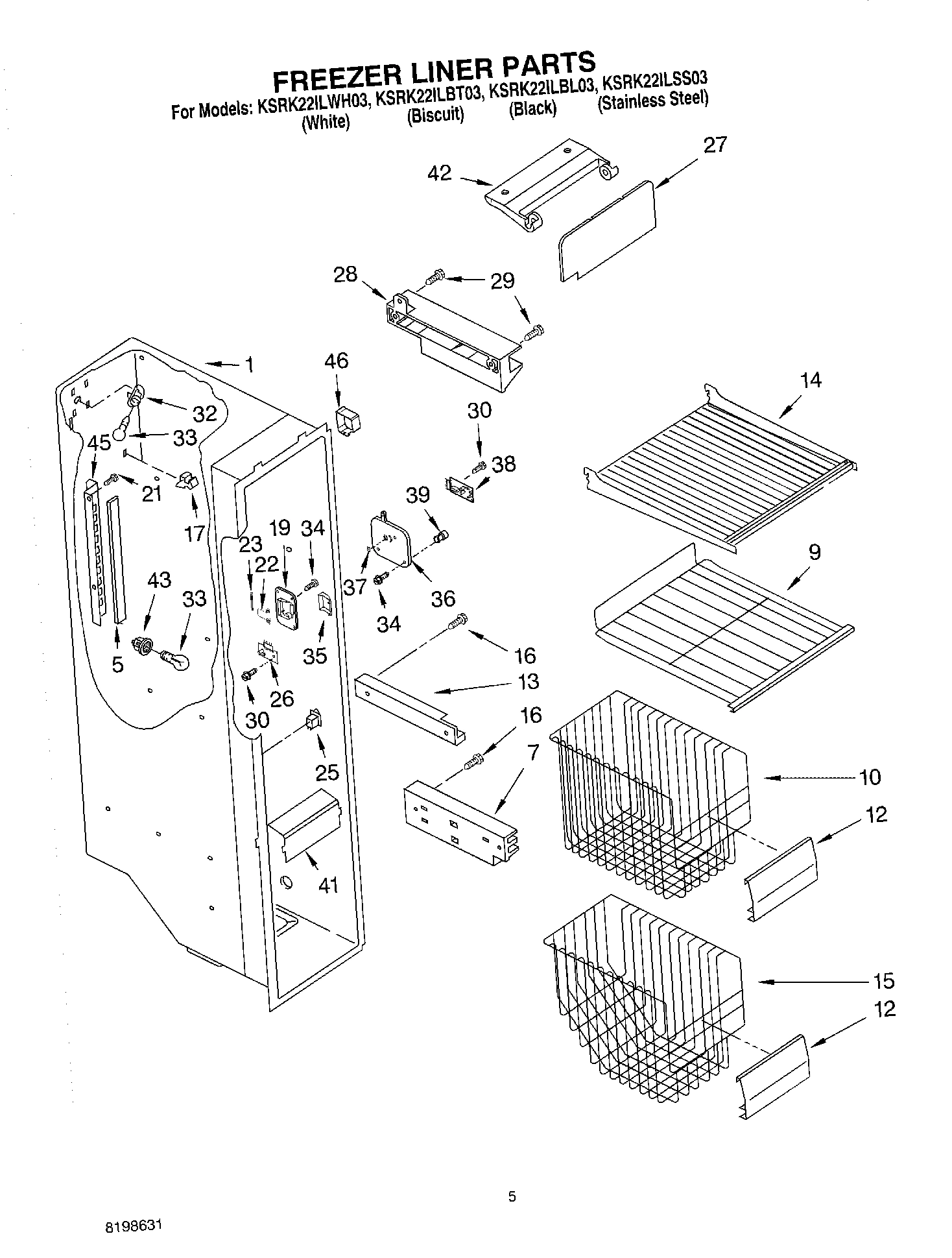

04 - FREEZER LINER PARTS
06 - MOTOR AND ICE CONTAINER PARTS

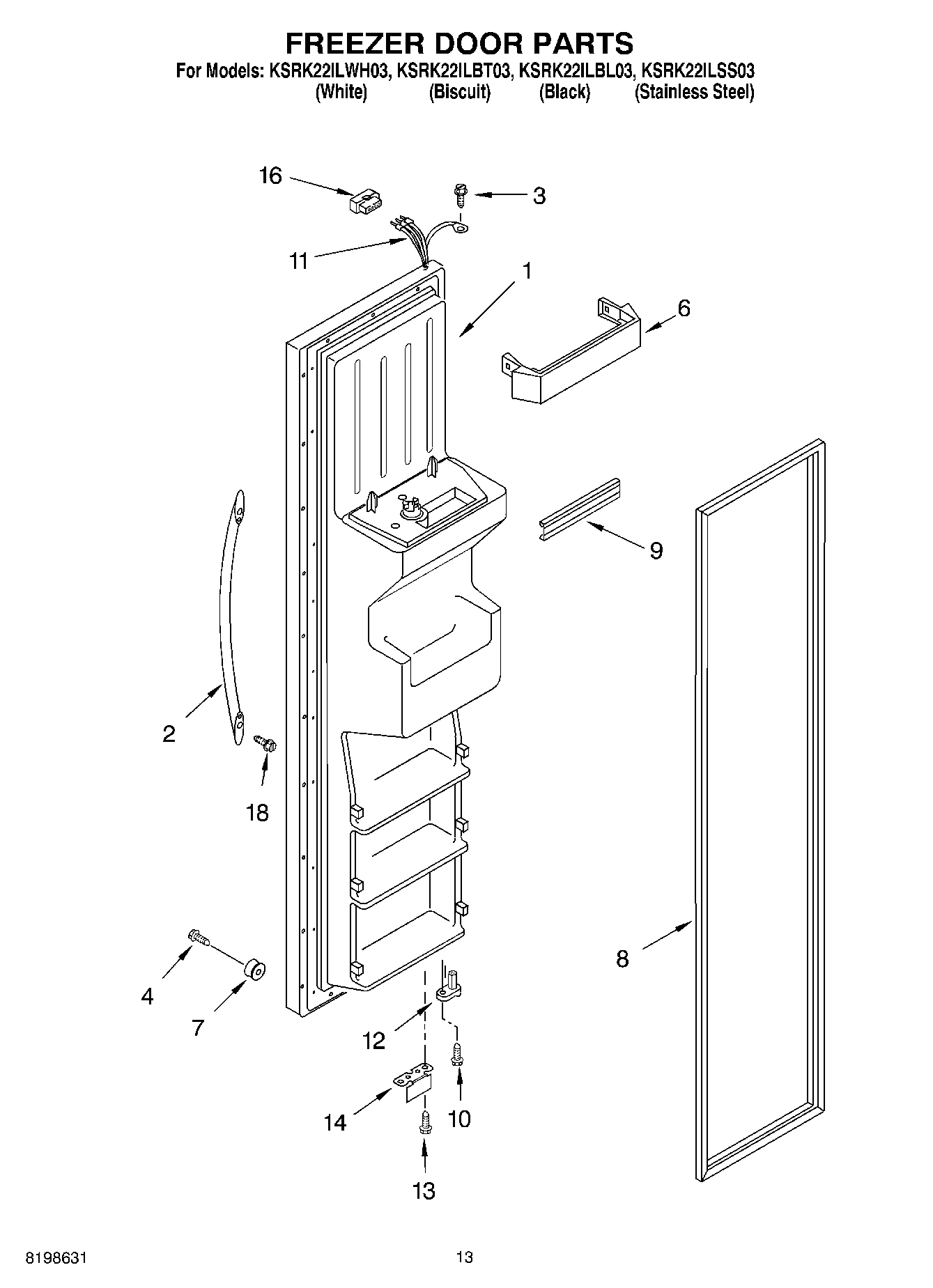

08 - FREEZER DOOR PARTS

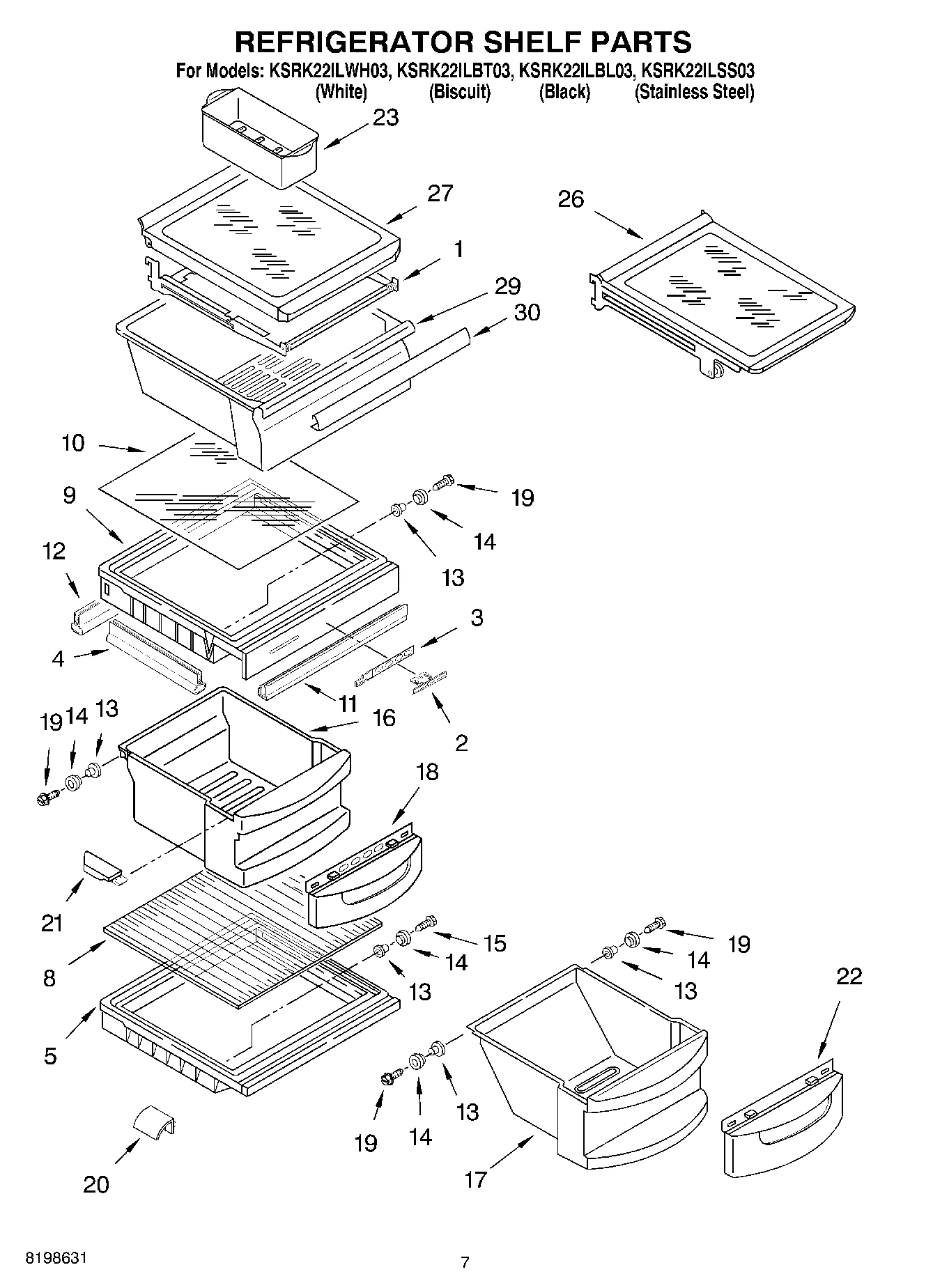

05 - REFRIGERATOR SHELF PARTS

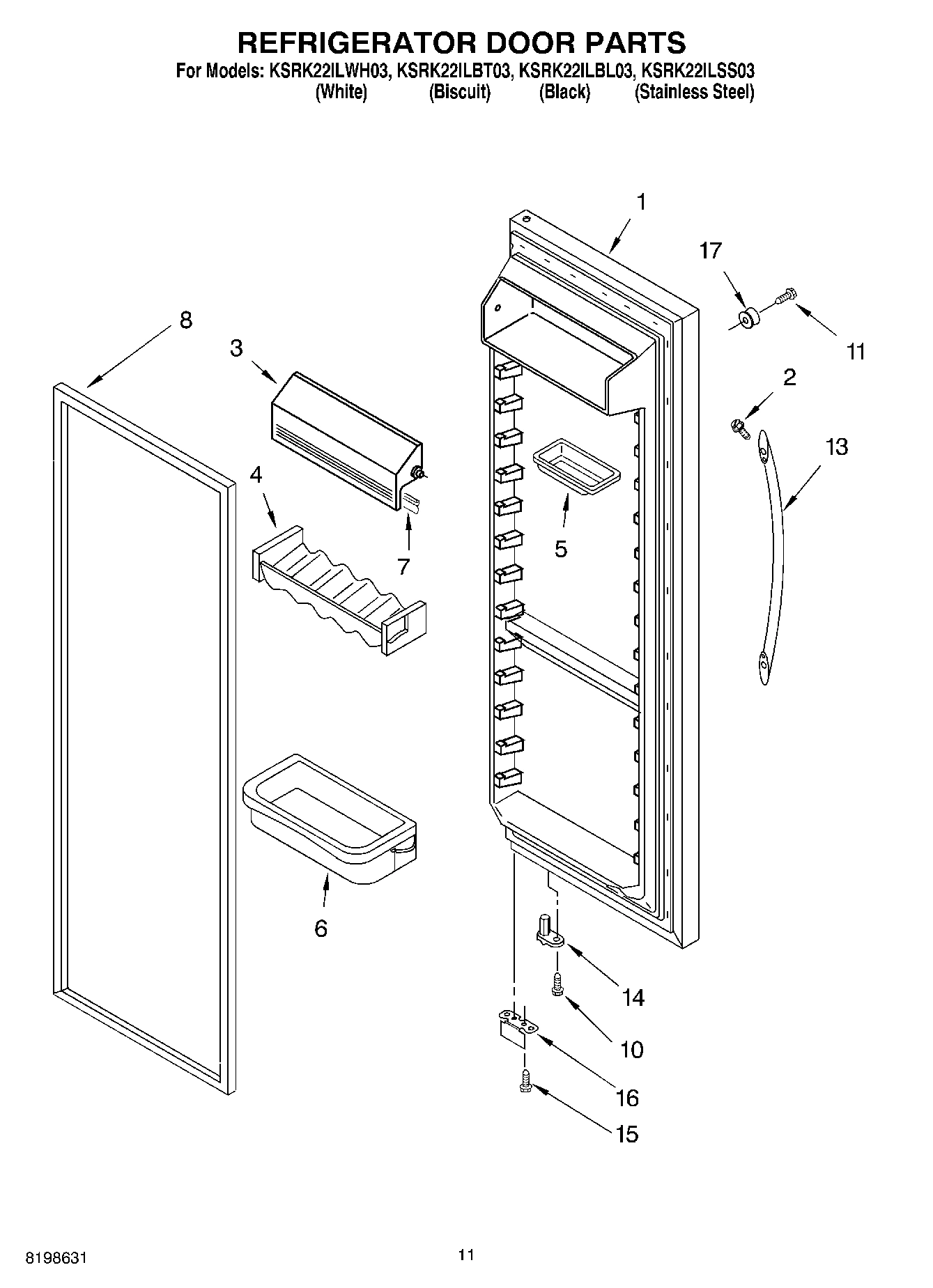

07 - REFRIGERATOR DOOR PARTS

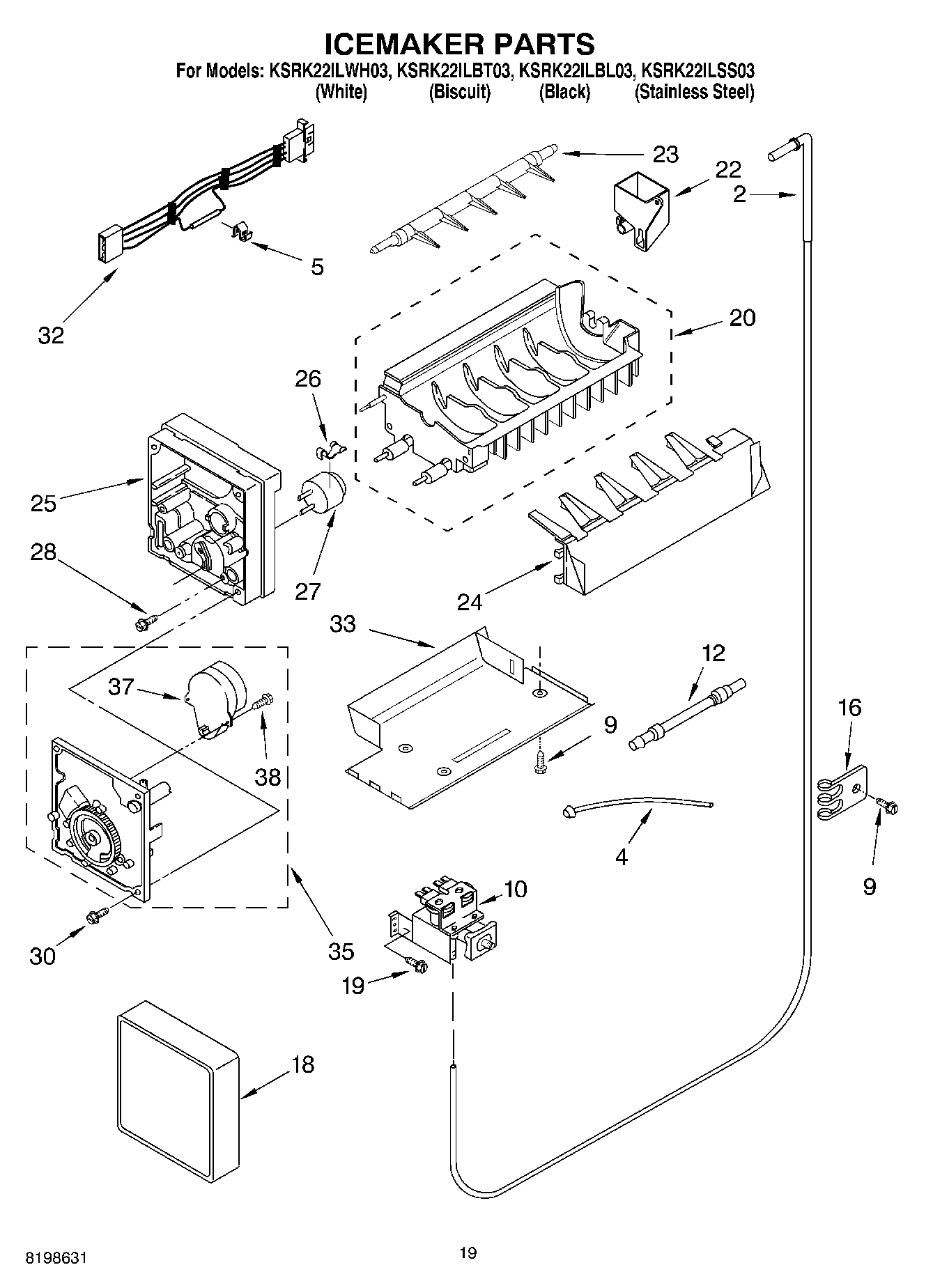

11 - ICEMAKER PARTS

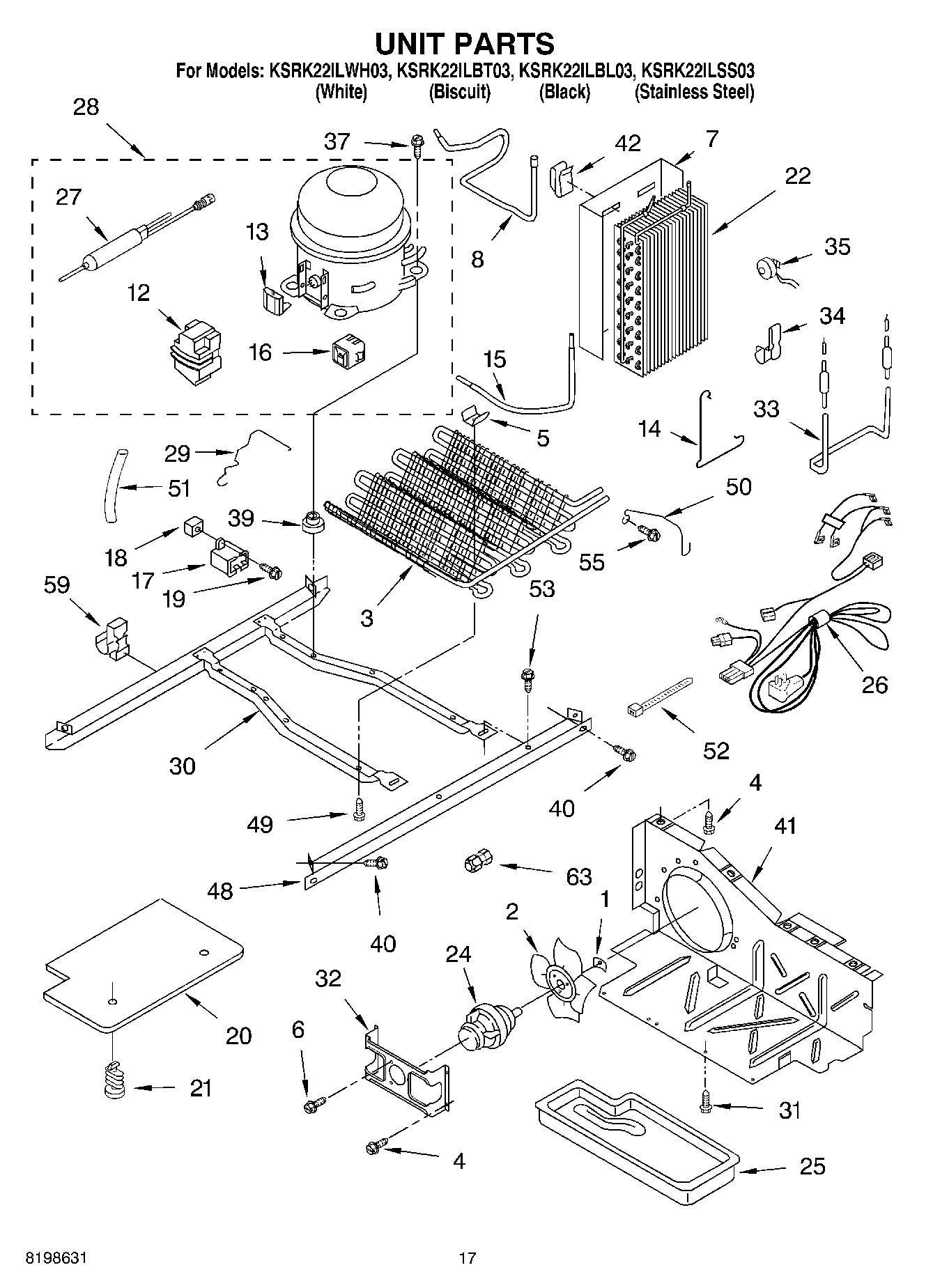

10 - UNIT PARTS

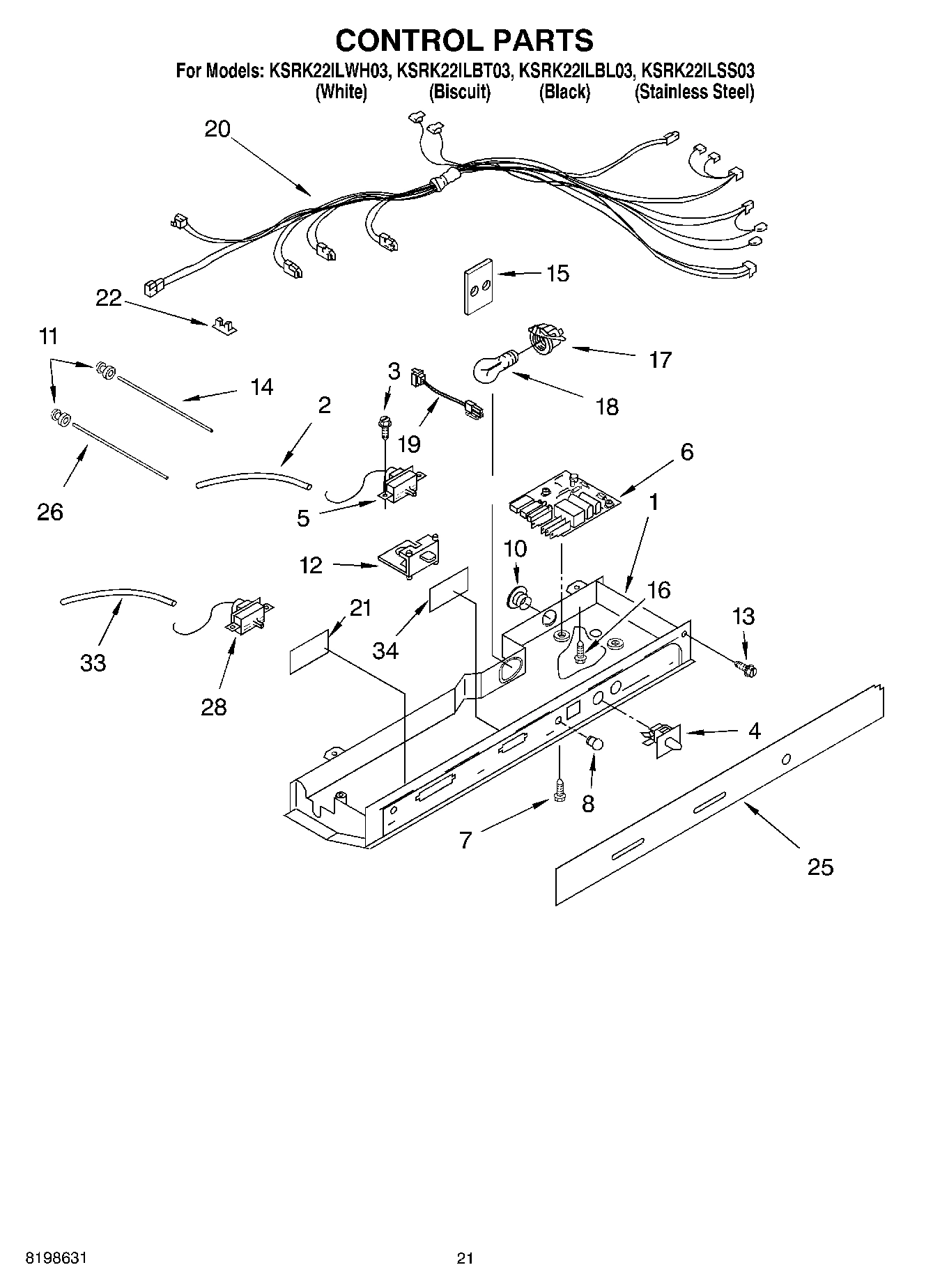

12 - CONTROL PARTS, PARTS NOT ILLUSTRATED
Common parts from model Whirlpool KSRK22ILWH03 REFRIGERATOR
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
WPL 876029 WPL 876029 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
Bag, Insulation (36-5/8`` x 46``) WPL 606755 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
Ice Container Assembly WPL 2212303 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
WPL 799340 WPL 799340 Contact Us For Availability
WPL 799833 WPL 799833 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI98456A5 WPL ARI98456A5 Contact Us For Availability
WPL ARI98457A6 WPL ARI98457A6 Contact Us For Availability
WPL ARI98458A2 WPL ARI98458A2 Contact Us For Availability
WPL ARI98459A9 WPL ARI98459A9 Contact Us For Availability
WPL ARI98460A4 WPL ARI98460A4 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2207348S Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2255406B Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2255406T Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2255406W Contact Us For Availability
1
FRAME ASSEMBLY, SLIDE OUT WPL 2195975 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Black) WPL 2219829B Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Stainles WPL 2219829S Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Biscuit) WPL 2219829T Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2219829W Contact Us For Availability
1
Control Box WPL 2216588 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Screw WPL 98654 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Slide, Humidity WPL 2174252 Contact Us For Availability
3
Door, Compartment WPL 2218122 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
4
BLade, Stirring WPL 2212382 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Dish, Butter WPL 2165792 Contact Us For Availability
6
Cover, Crusher WPL 2255461 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171071 Contact Us For Availability
6
Shelf Bin (3) WPL 2171063 Contact Us For Availability
7
Gasket WPL 2159124 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2256149 Contact Us For Availability
8
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
8
Glass, Cover WPL 2255144 Contact Us For Availability
8
TUBE, SUCTION WPL 2205764 Contact Us For Availability
9
Blade, Fixed WPL 2198601 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2256153 Contact Us For Availability
10
Glass, Cover WPL 2255143 Contact Us For Availability
10
Hole Plug WPL 940014 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Wire Harness WPL 2207213 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Slide, Thermostat WPL 2161466 Contact Us For Availability
12
Roll Pin WPL 489229 Contact Us For Availability
12
GASKET (REAR) WPL 2223362 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Hinge Cover (Biscuit) WPL 2203407T Contact Us For Availability
13
Handle (Includes 2) (Black) WPL 2188635B Contact Us For Availability
13
Handle (Includes 2) (Stainless Steel) WPL 2188635S Contact Us For Availability
13
Handle (Includes 2) (Biscuit) WPL 2188635T Contact Us For Availability
13
Handle (Includes 2) (White) WPL 2188635W Contact Us For Availability
14
Light, Bar WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2188212 Contact Us For Availability
15
Heat Shield WPL 2172931 Contact Us For Availability
15
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
15
Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability
16
Crisper Pan (Includes 13, 14, 18, 19, & 21) WPL 2223358 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability
17
Cover, Conduit WPL 2150331 Contact Us For Availability
17
Stud, Handle WPL 2203690 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Latch, Bin WPL 2212308 Contact Us For Availability
20
Deflector WPL 2176095 Contact Us For Availability
20
Harness, Control Box WPL 2216587 Contact Us For Availability
21
Clip WPL 489396 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2223285 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability
21
Window WPL 2172941 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Escutcheon, Control Box WPL 2219879 Contact Us For Availability
26
Shelf Assembly WPL 2206346 Contact Us For Availability
26
Harness, Wire WPL 2187510 Contact Us For Availability
26
Light Bar WPL 2179921 Contact Us For Availability
27
Shelf, Slide-Out Assembly WPL 2216102 Contact Us For Availability
28
Slide, Ice Maker WPL 2212321 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
29
Clip, Retaining WPL 2223314 Contact Us For Availability
31
Enclosure, Motor WPL 2256154 Contact Us For Availability
33
Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability
33
Cover WPL 2212305 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Window WPL 2172940 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149718 Contact Us For Availability
50
Guard, Fan WPL 2186496 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI98453A7 Contact Us For Availability
63
and Optional Parts Not Included WPL ARI98454A4 Contact Us For Availability
63
REFRIGER WPL ARI98455A4 Contact Us For Availability
× ![]()
