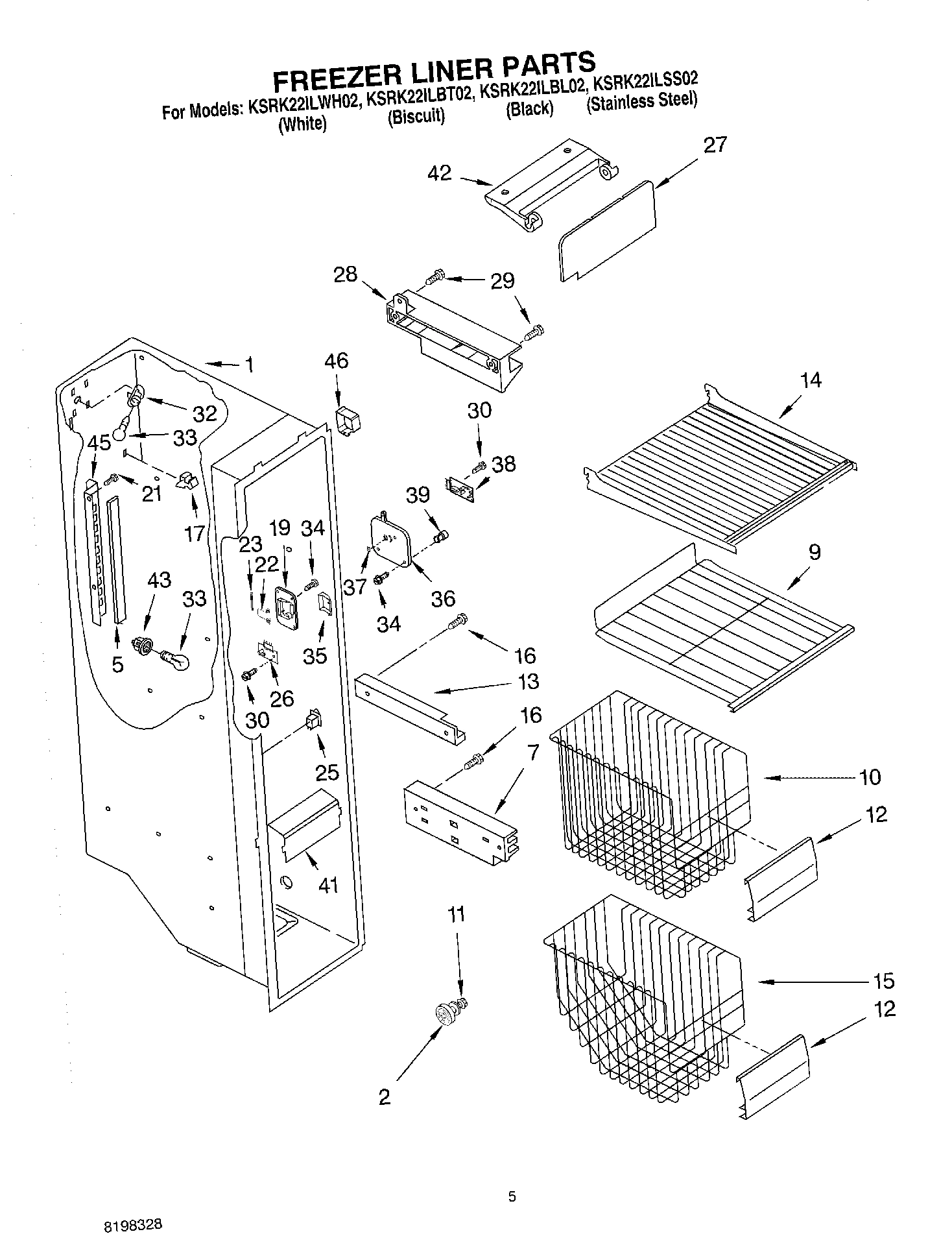

Model Whirlpool KSRK22ILWH02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2220537 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254906 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255383 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI98440A8 Contact Us For Availability

1

FRAME ASSEMBLY, SLIDE OUT WPL 2195975 Contact Us For Availability

1

Control Box WPL 2216588 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Air Scoop WPL 2198595 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

6

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2223356 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Glass, Cover WPL 2255143 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

Backorder WPL 2179404 $8.47

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

GASKET (REAR) WPL 2223362 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Eyelet, Roller WPL 2174478 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $174.78

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $55.37

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Crisper Pan (Includes 13, 14, 18, 19, & 21) WPL 2223358 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Harness, Control Box WPL 2187560 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Escutcheon, Control Box WPL 2219879 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

Shelf Assembly WPL 2206346 Contact Us For Availability

26

Light Bar WPL 2179921 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Cement Alumilastic) WPL 542369 Contact Us For Availability

Shelf, Slide-Out Assembly WPL 2216102 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2182770 Whirlpool Refrigerator Thermostat Backorder WPL WP2182770 $115.91

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

Cabinet (Not A Serviceable Part) WPL ARI98439A4 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $91.59

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $47.16

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Container Assembly WPL 2212303 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
