Model Whirlpool KSRG27FKWH04 REFRIGERATOR – Common Parts & Diagrams

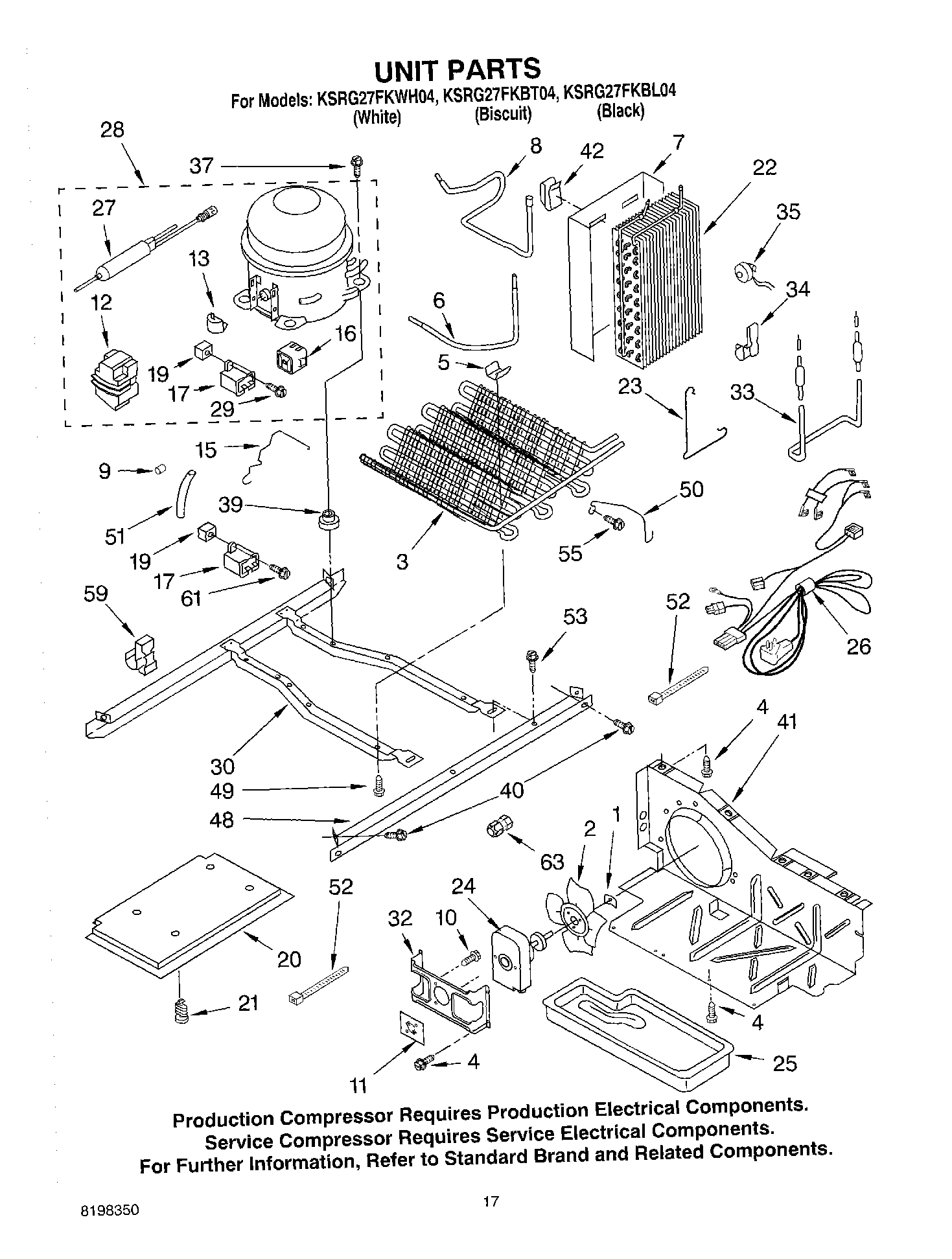

11 - UNIT

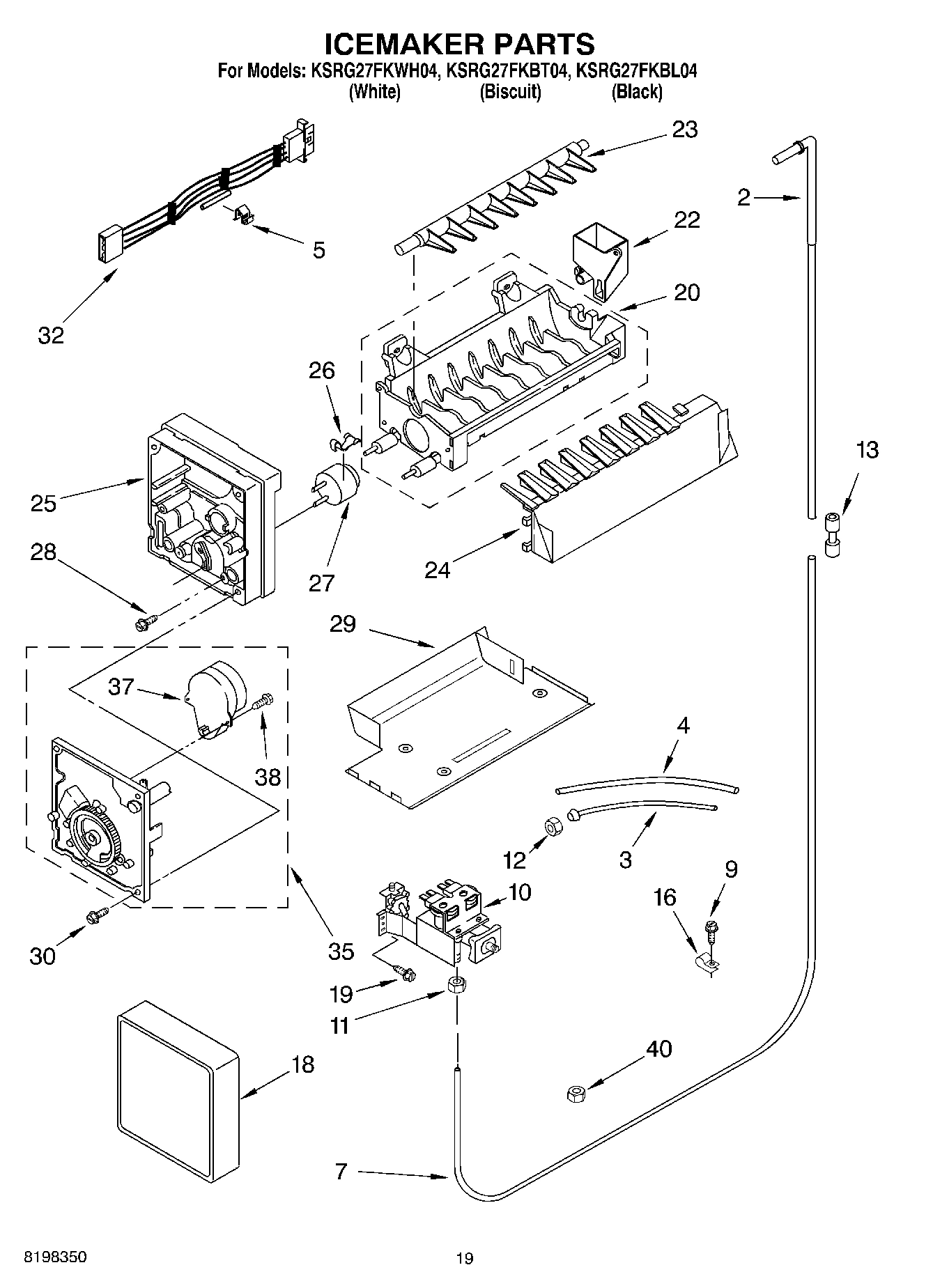

12 - ICEMAKER
06 - REFRIGERATOR DOOR
10 - CONTROL
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
02 - REFRIGERATOR LINER
04 - FREEZER LINER
01 - CABINET, LITERATURE
08 - DISPENSER FRONT
07 - FREEZER DOOR
09 - AIR FLOW
Common parts from model Whirlpool KSRG27FKWH04 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI97721A2 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT2220283 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability
1
Literature Parts (Owner`s Manual) WPL LIT2254906 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255385 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI97722A4 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570B Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570T Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2216570W Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Insert (White) WPL 2173825 Contact Us For Availability
2
Handle, Insert (Black) WPL 2173829 Contact Us For Availability
2
Handle, Insert (Biscuit) WPL 2186863T Contact Us For Availability
3
Shelf Bin (4) WPL 2171062 Contact Us For Availability
3
Shelf Bin (3) WPL 2171070 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
4
Air Duct, Upper WPL 2212377 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
6
Cover, Crusher WPL 2255460 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
6
Glass, Cover WPL 2255144 Contact Us For Availability
6
Basket, Tall WPL 2181765 Contact Us For Availability
7
Track, Basket-Dual (Right Side) WPL 2216106 Contact Us For Availability
7
Track, Basket-Dual (Left Side) WPL 2216107 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
10
Flapper, Drain Extension WPL 2172957 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Retainer, Insert (Black) WPL 2194777B Contact Us For Availability
11
Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability
11
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shelf Track (Left Side) WPL 2181759 Contact Us For Availability
13
Shelf Track (Right Side) WPL 2181760 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Shelf WPL 2205837 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Bracket, Door Stop WPL 2206630 Contact Us For Availability
15
Basket, Sloped WPL 2181764 Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI97723A4 Contact Us For Availability
19
Extension Tube WPL 2172932 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI97724A6 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability
21
Light Lens WPL 2209769 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI97725A1 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI97719A9 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220092W Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220092B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220092T Contact Us For Availability
23
End Cap (Black) WPL 2194778B Contact Us For Availability
23
End Cap (Biscuit) WPL 2194778T Contact Us For Availability
23
End Cap (White) WPL 2194778W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
36
Cover, Receiver WPL 2198588 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Light Shield WPL 2198589 Contact Us For Availability
41
Light Lens WPL 2212340 Contact Us For Availability
45
Ladder (Left Side) WPL 2198609 Contact Us For Availability
45
Ladder (Right Side) WPL 2198610 Contact Us For Availability
46
Shield, Wiring WPL 2219878 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
