Model Whirlpool KSRC25DBWH00 – Common Parts & Diagrams

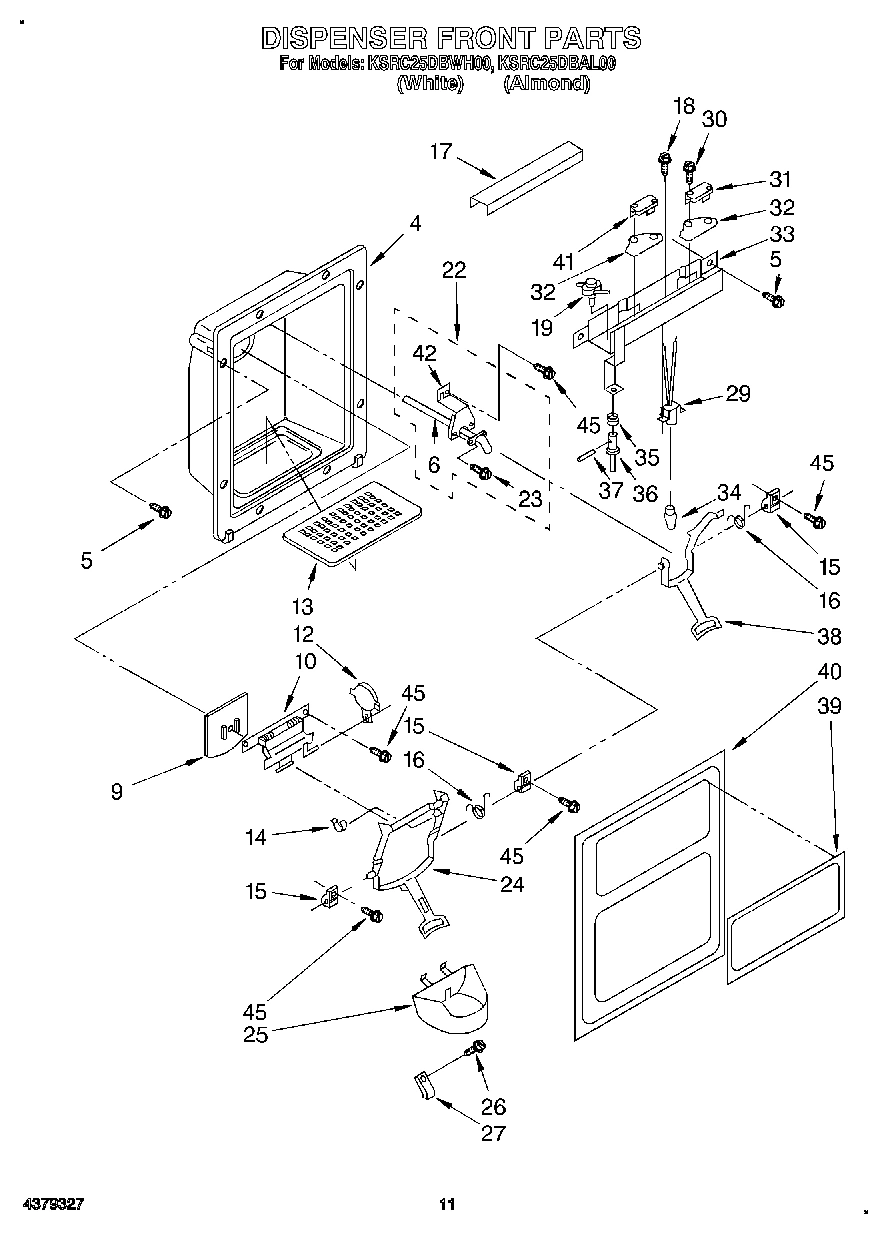

08 - DISPENSER FRONT
09 - UNIT

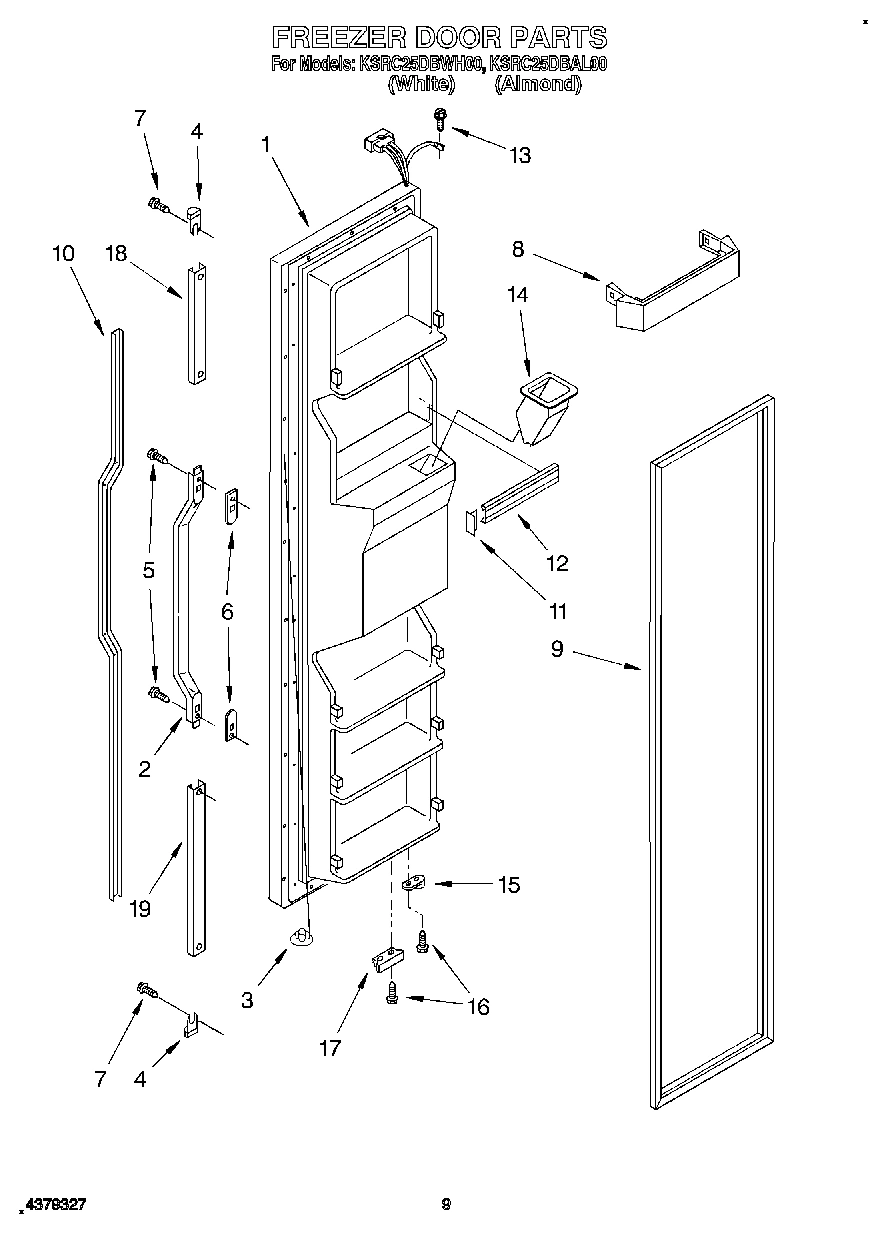

07 - FREEZER DOOR

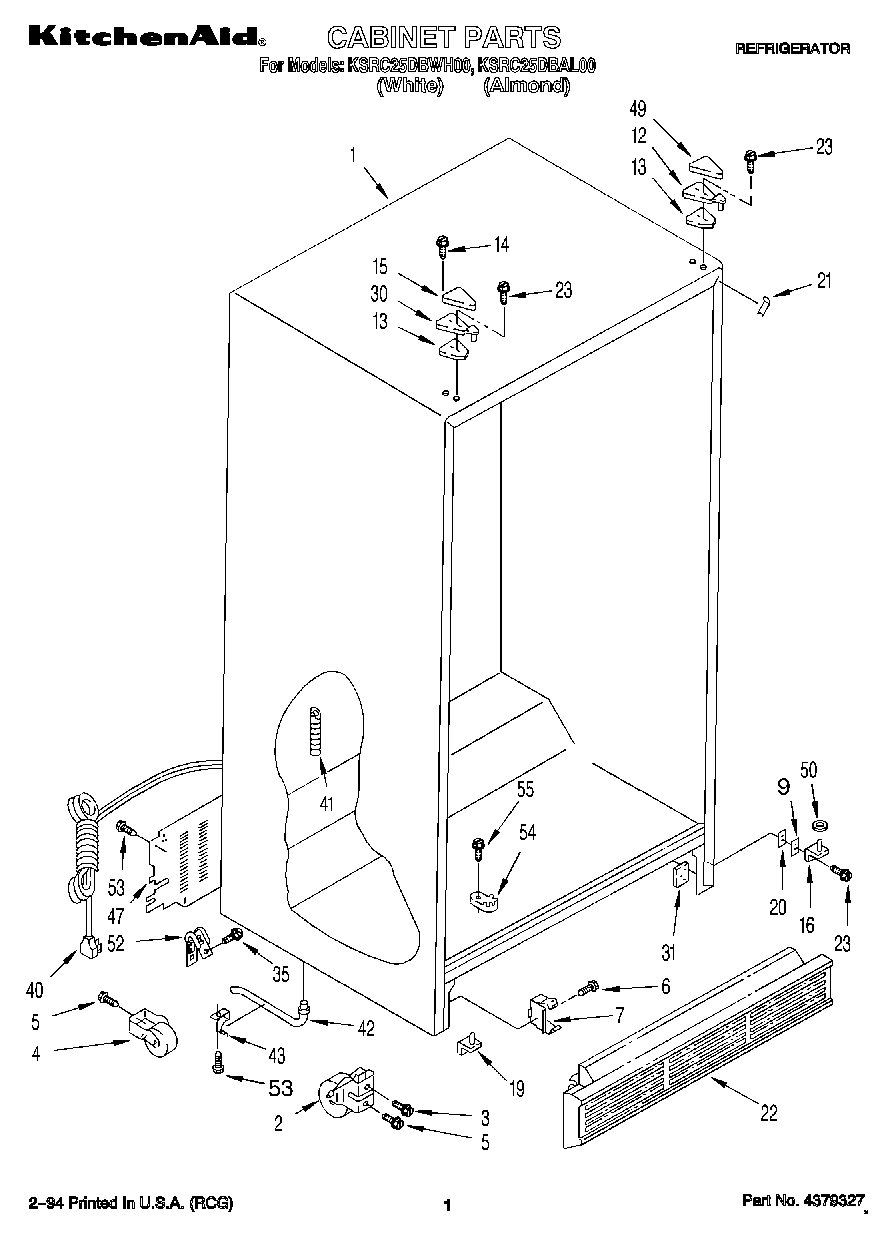

01 - CABINET

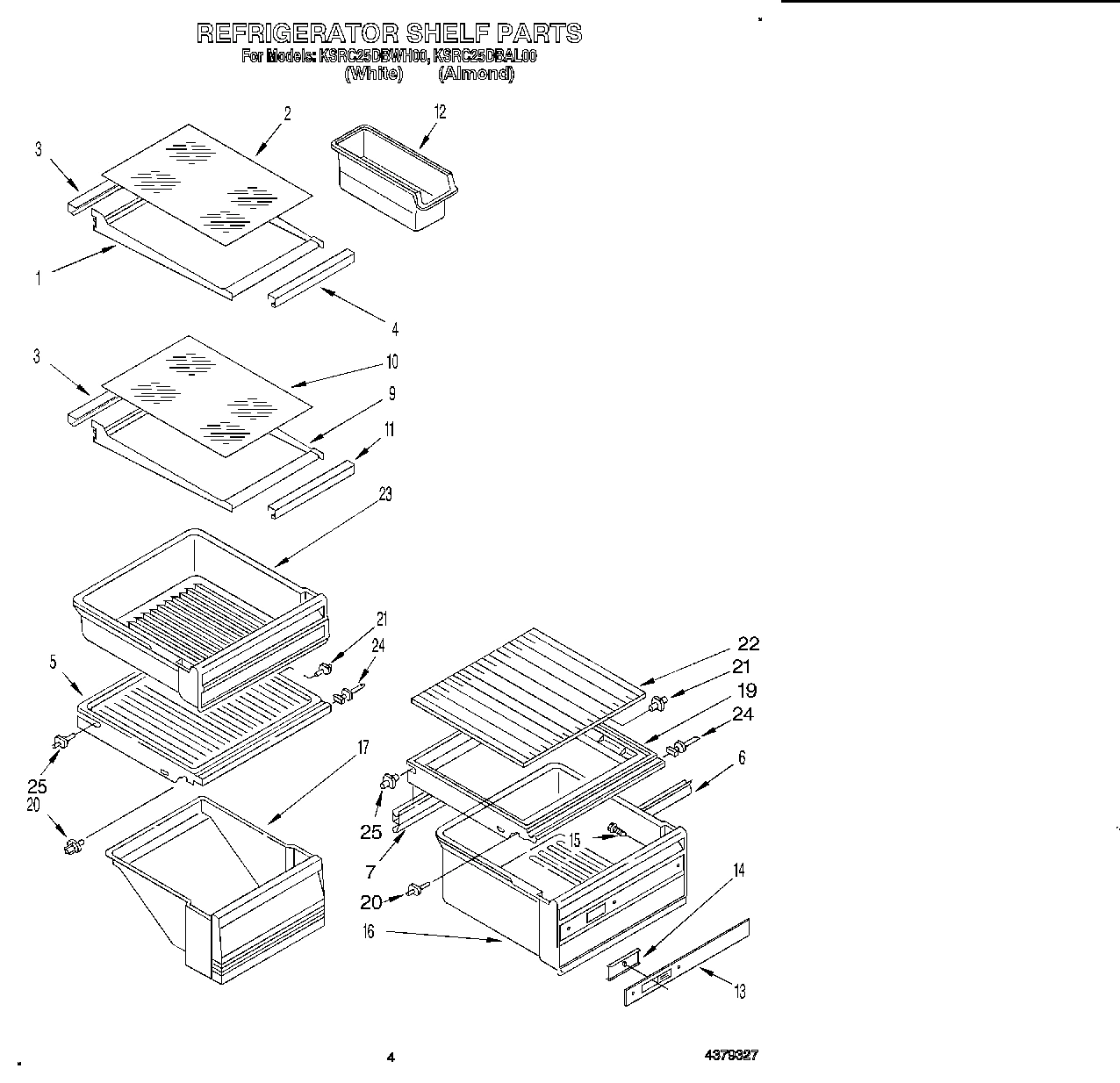

03 - REFRIGERATOR SHELF

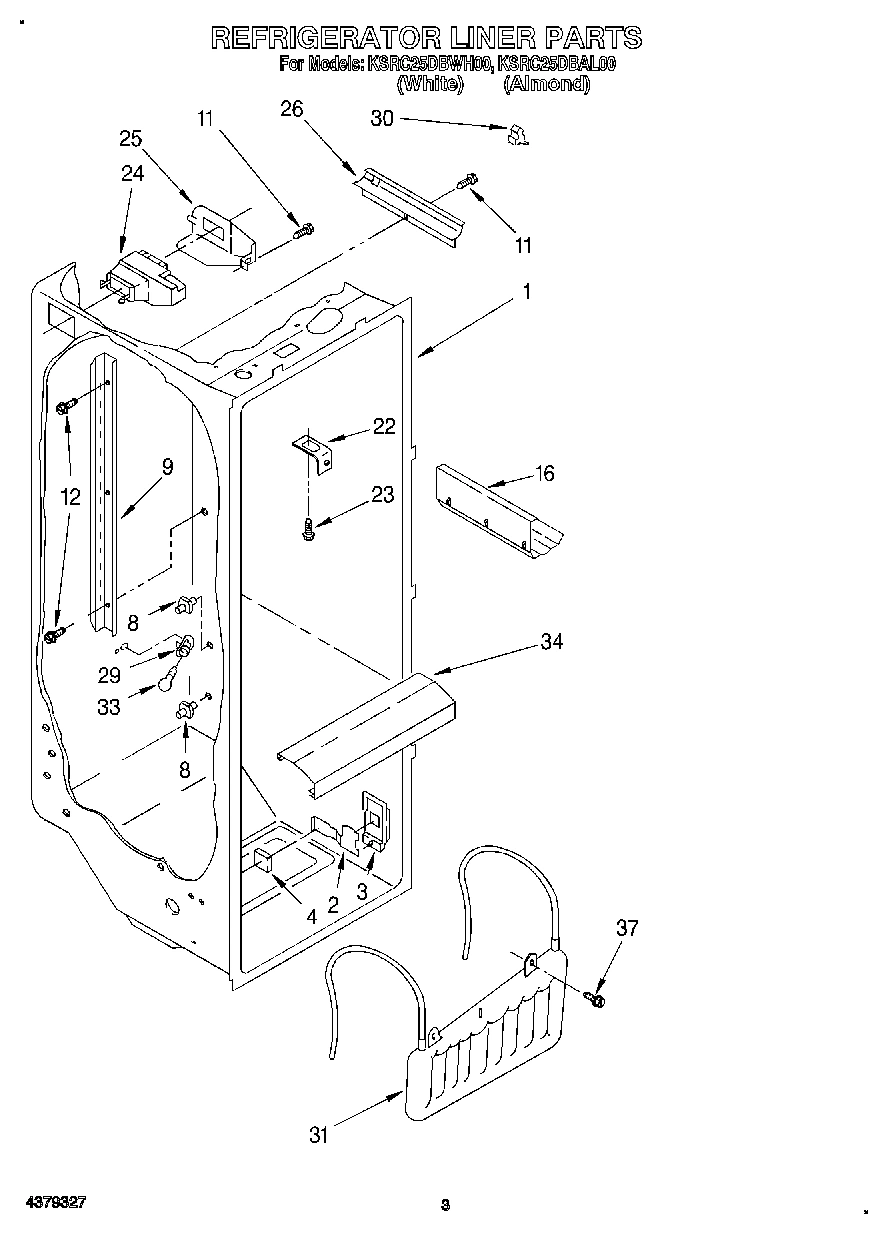

02 - REFRIGERATOR LINER
10 - ICEMAKER

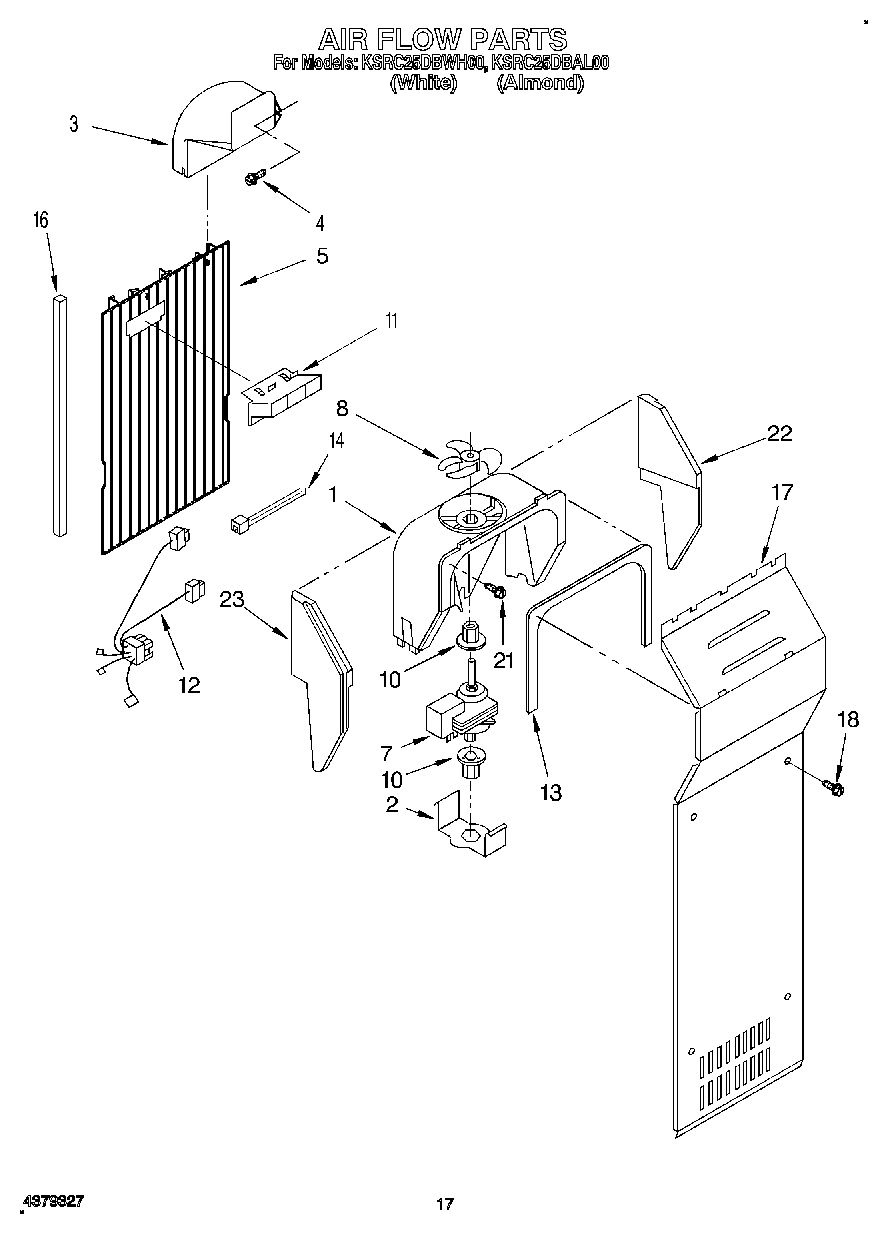

11 - AIR FLOW

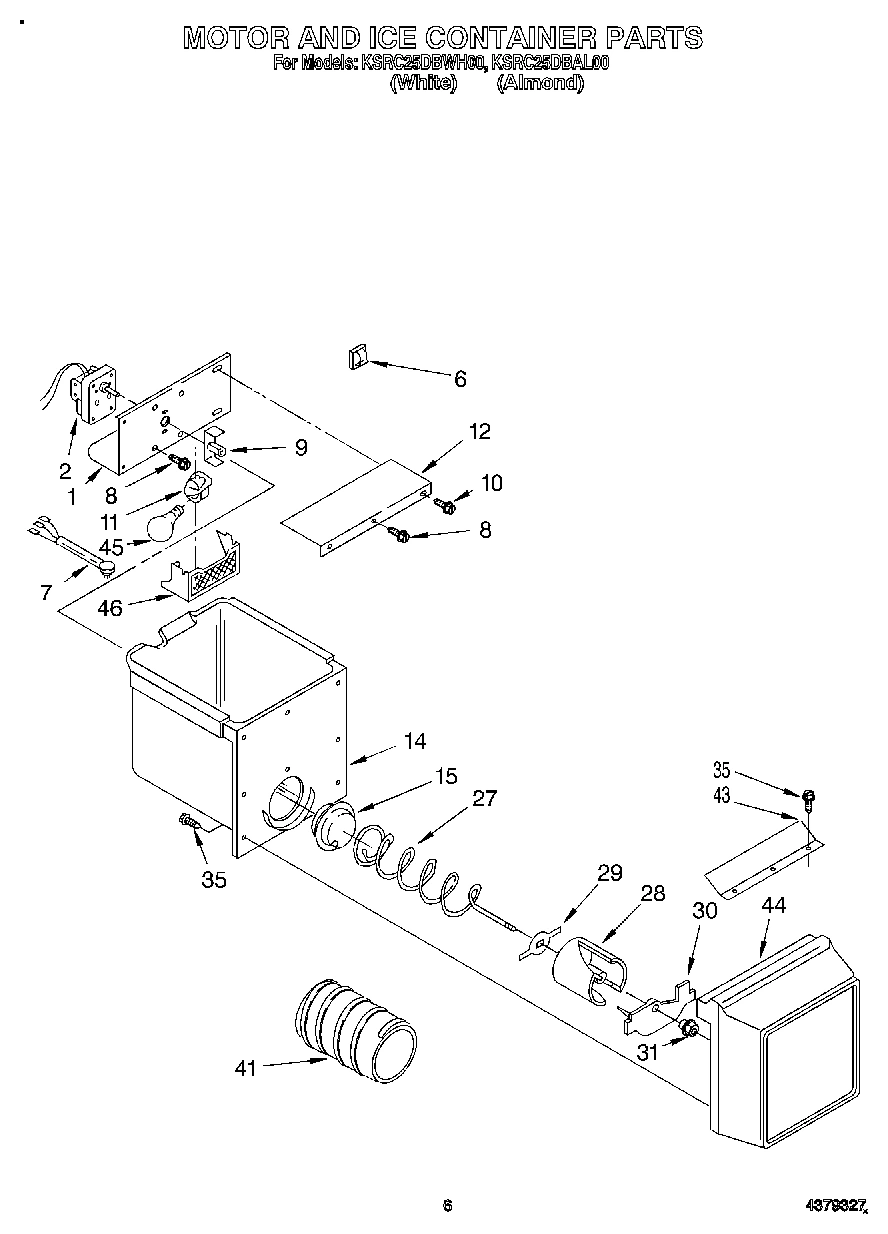

05 - MOTOR AND ICE CONTAINER

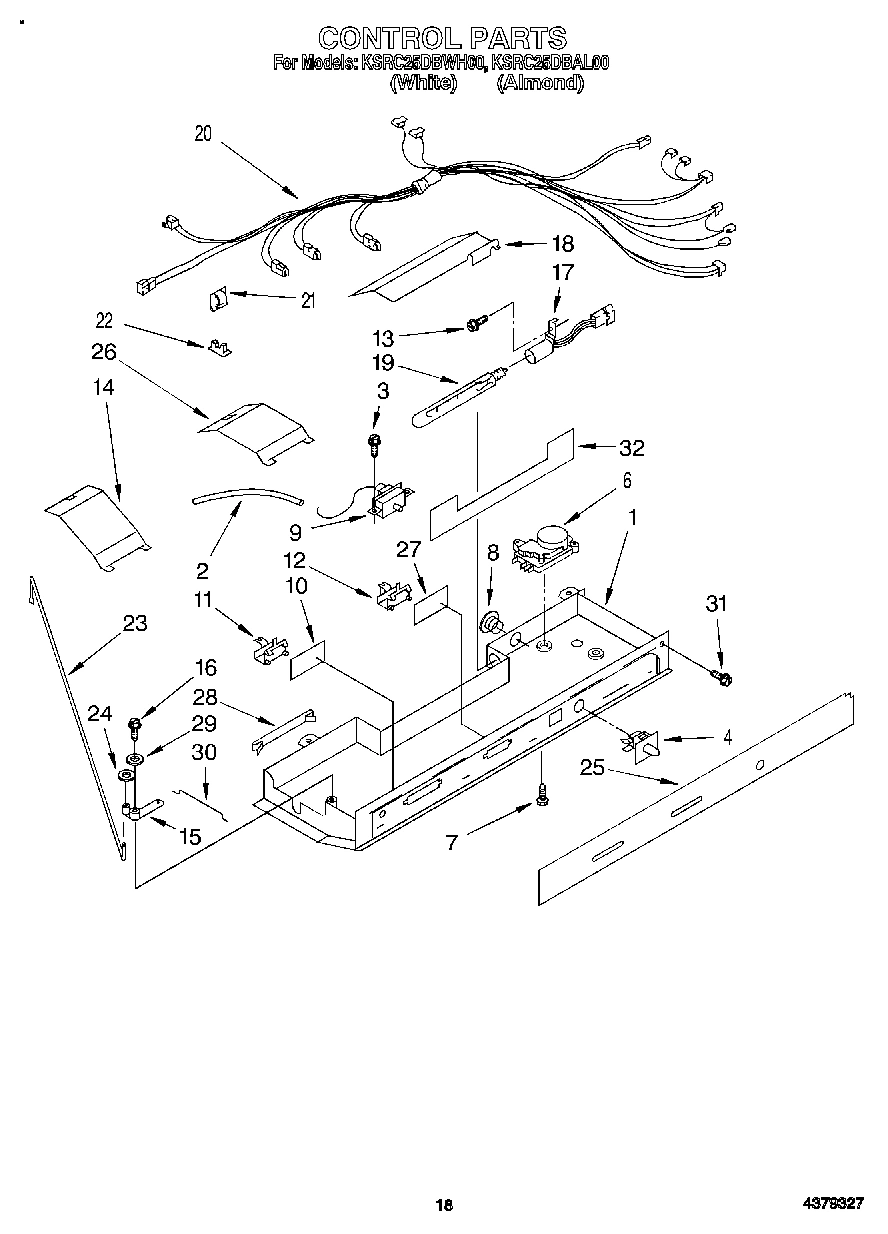

12 - CONTROL, LIT/OPTIONAL

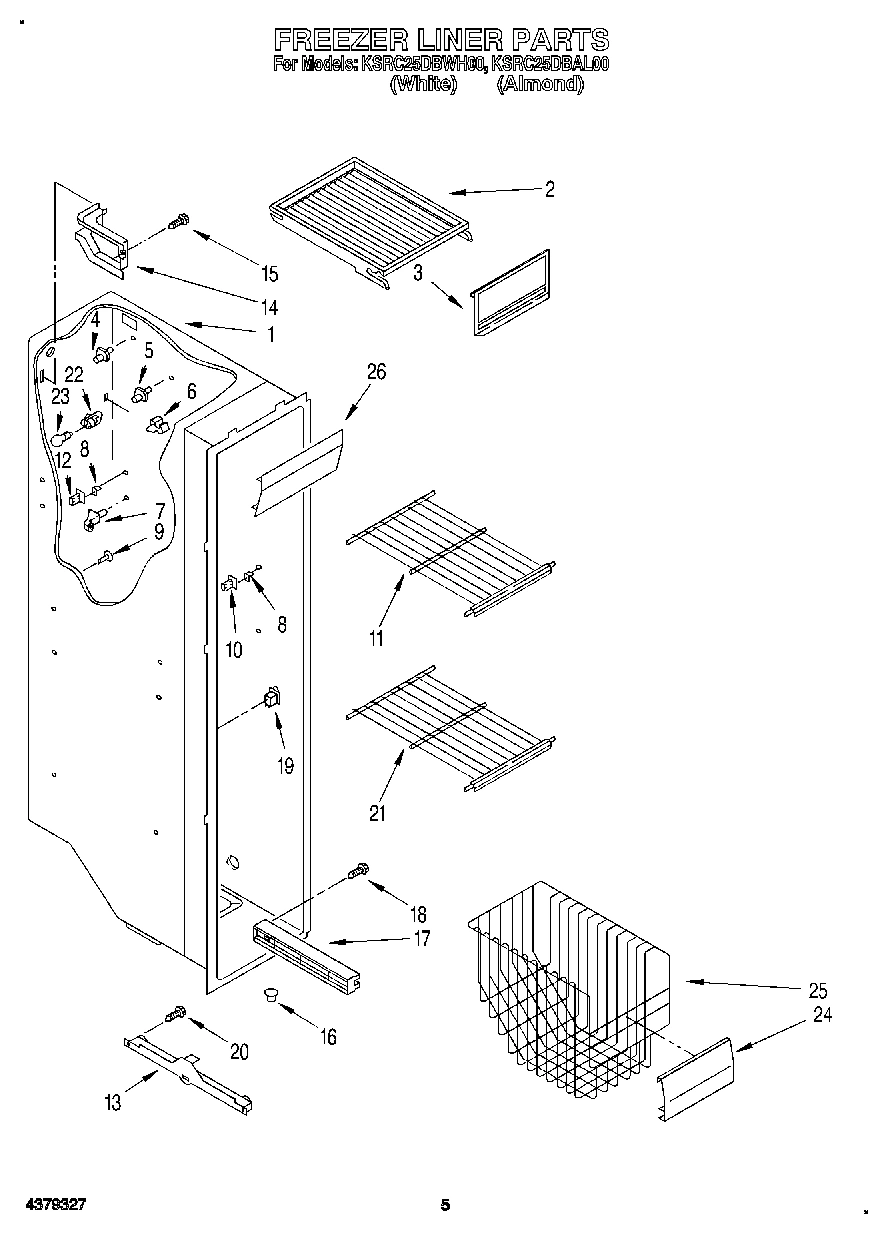

04 - FREEZER LINER

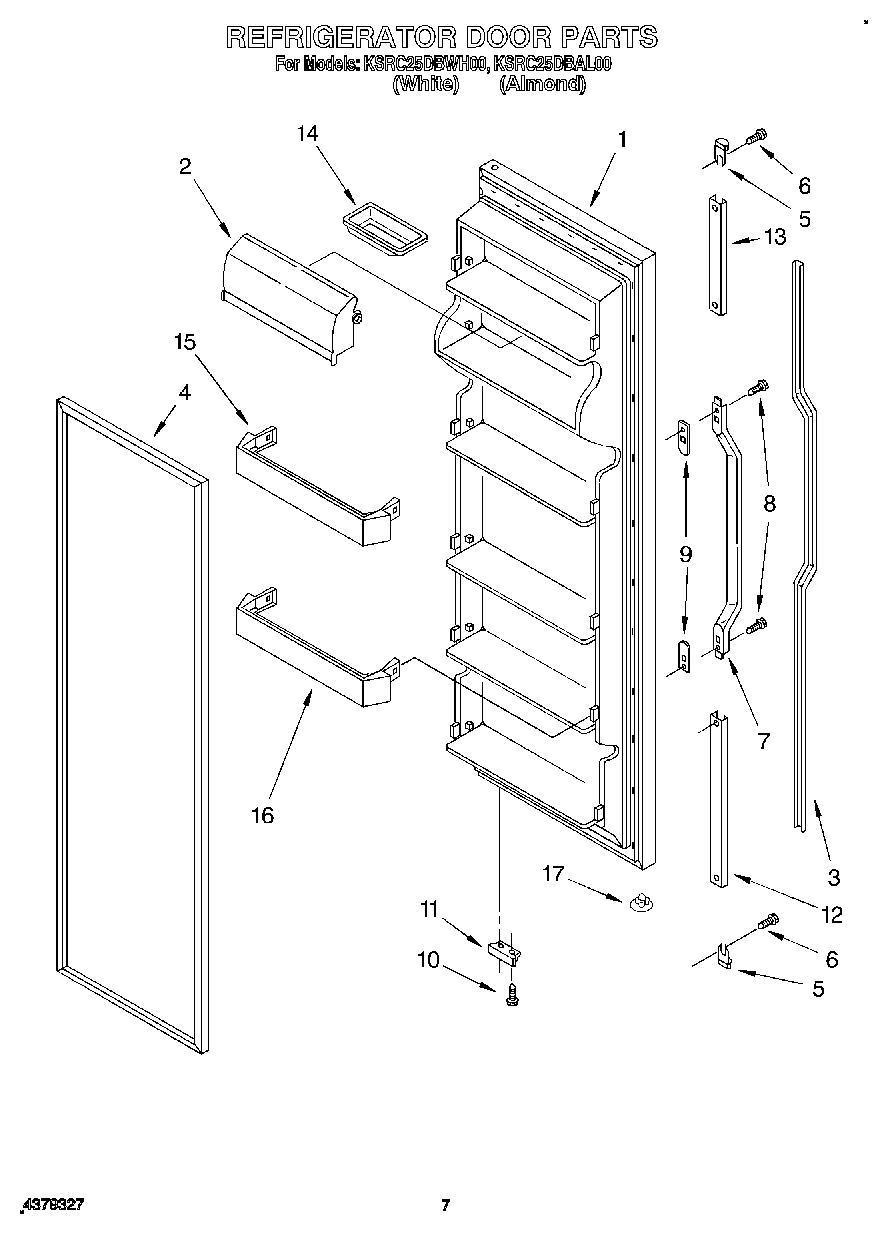

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRC25DBWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161430 WPL LIT2161430 Contact Us For Availability
WPL LIT2161432 WPL LIT2161432 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes No.9 And Dispenser Fro WPL 2157782 Contact Us For Availability
1
Freezer Door (Includes No.9 And Dispenser Fro WPL 2157783 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95262A5 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95263A4 Contact Us For Availability
1
Bracket, Motor WPL 1115337 Contact Us For Availability
1
Control Box WPL 2169149 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95264A7 Contact Us For Availability
1
Refrigerator Door (Includes No.4) (White) WPL 2157778 Contact Us For Availability
1
Refrigerator Door (Includes No.4) (Almond) WPL 2157779 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Motor, Dispenser WPL 2155262 Contact Us For Availability
2
Shelf, Top WPL 1125824 Contact Us For Availability
2
Door, Compartment WPL 2159136 Contact Us For Availability
3
Insert, Handle (White) WPL 1117948 Contact Us For Availability
3
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
End Cap, Handle WPL 1107341 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Shelf Stud (4) WPL 1115386 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
6
Gasket, Cover (Front) WPL 1115291 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Handle Assembly WPL 1107215 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1121385 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
8
Shelf Bin (4) WPL 2156016 Contact Us For Availability
8
Support, Stud (8) (Right Side) WPL 946355 Contact Us For Availability
9
Spacer, Handle WPL 1107651 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 1126272 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
10
Glass, Shelf WPL 1126279 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Stud, Front (3) WPL 946356 Contact Us For Availability
11
Bracket, Door Stop WPL 2155332 Contact Us For Availability
11
Gasket (Front) WPL 1126281 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
12
Trim, Door Shelf WPL 2157603 Contact Us For Availability
12
Retainer, Insert (Bottom) WPL 1117952 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Stud, Rear (3) WPL 1106982 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Retainer, Insert WPL 1107243 Contact Us For Availability
13
Front, Crisper WPL 2168759 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Chute, Ice WPL 2156146 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Slide, Humidity WPL 1125853 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Butter, Tray WPL 1125936 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Screw (3) WPL 489268 Contact Us For Availability
15
Shelf Bin (2) WPL 2156014 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Pan, Crisper WPL 2168851 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Shelf Bin (3) WPL 2156015 Contact Us For Availability
17
Hole Plug WPL 2151653 Contact Us For Availability
17
Meat Pan WPL 2168884 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability
17
Almond Handle Inserts WPL 4211147 Contact Us For Availability
17
White WPL 4211148 Contact Us For Availability
17
Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability
17
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
17
Woodgrain WPL 4318340 Contact Us For Availability
17
Black Grille Kit WPL 4318417 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Shelf (2) WPL 1125609 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Glass, Crisper WPL 1126293 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Bin, Utility WPL 2168885 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
25
Shelf Stud WPL 1115290 No Longer Available
25
Escutcheon, Control Box WPL 2155705 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Light Lens WPL 1115389 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Conveyor WPL 1115214 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
30
Floating Baffle WPL 1115362 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Nut, Bearing WPL 946195 Contact Us For Availability
32
WPL 876029 WPL 876029 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 WPL 799344 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126296 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
