Model Whirlpool KSRB27QGSS01 – Common Parts & Diagrams
08 - DISPENSER FRONT
10 - CONTROL
04 - FREEZER LINER

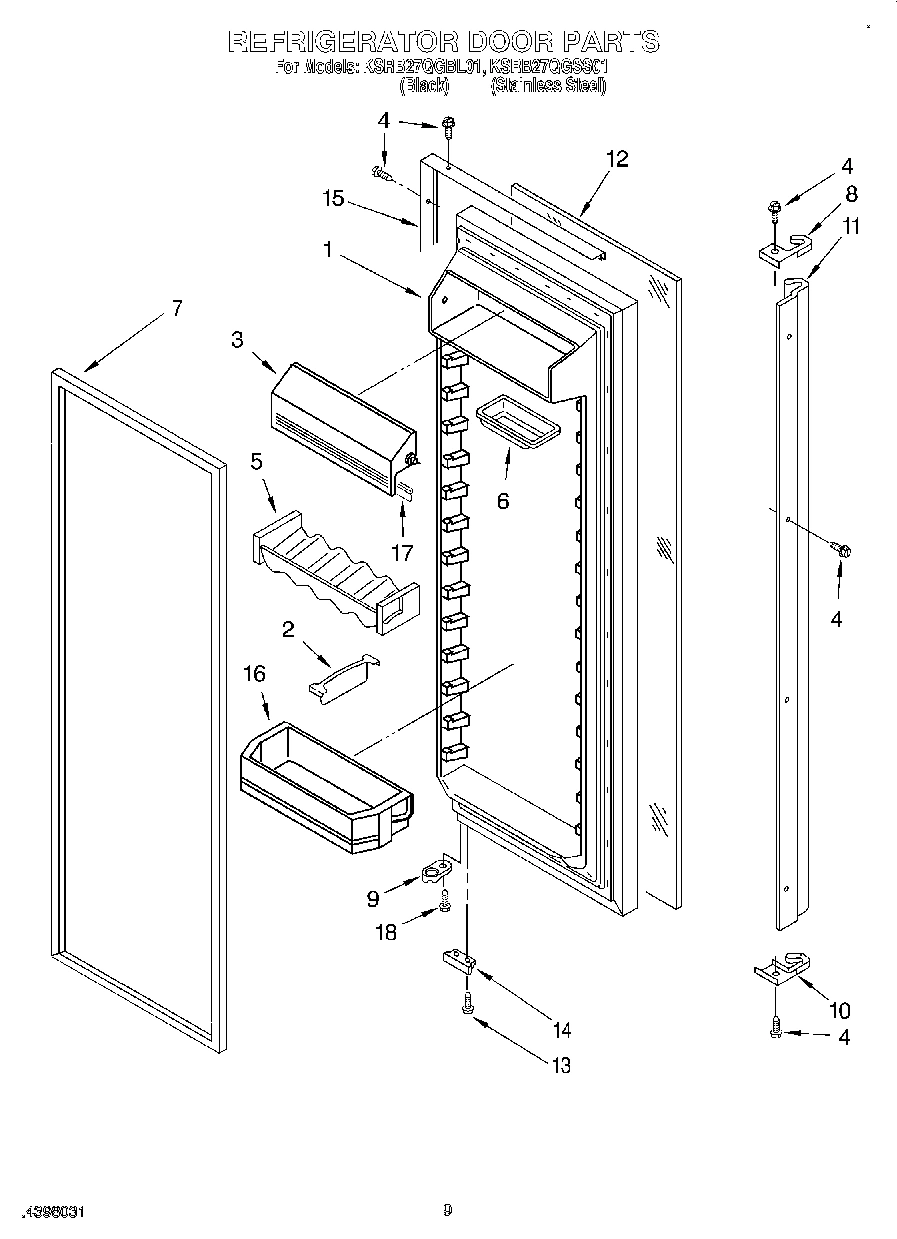

06 - REFRIGERATOR DOOR

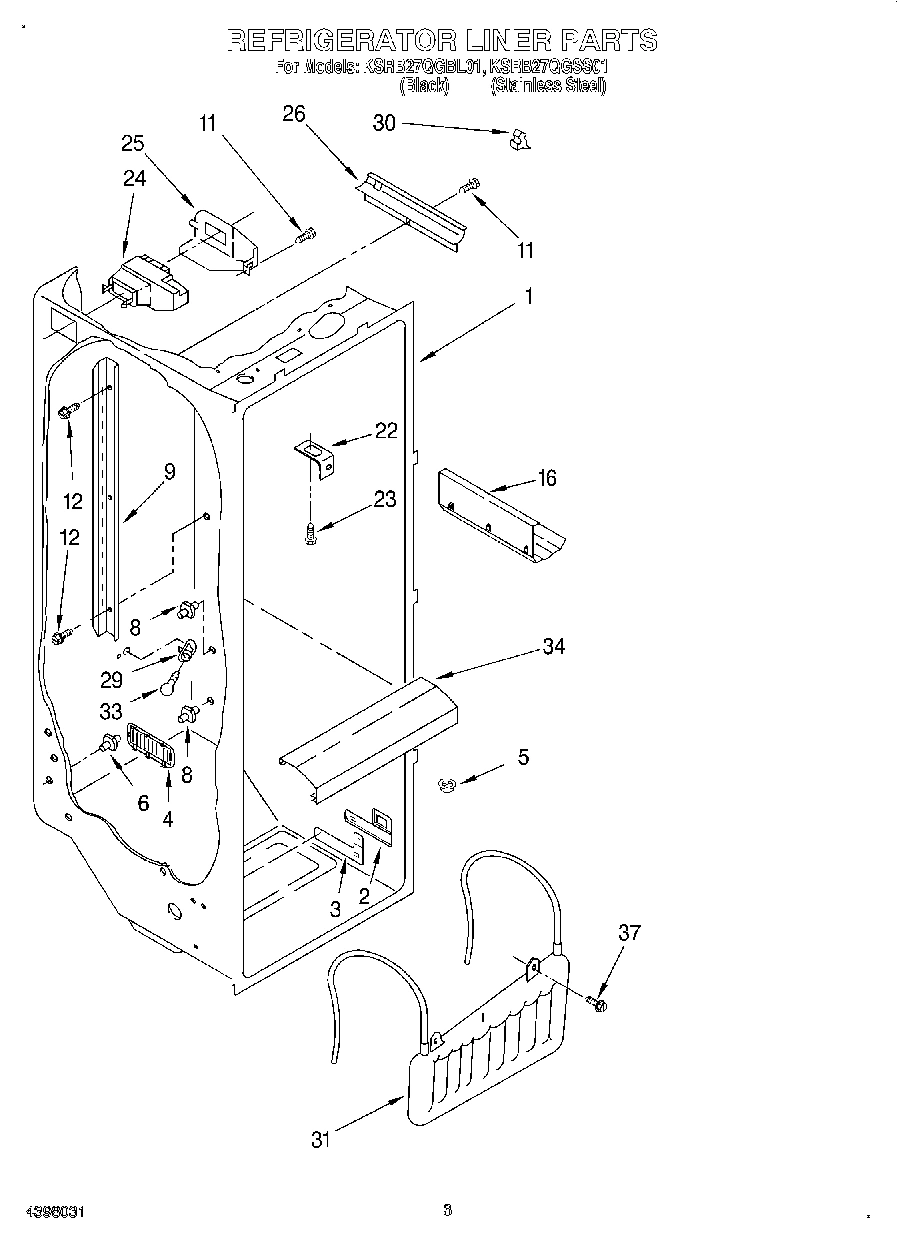

02 - REFRIGERATOR LINER
09 - AIR FLOW
05 - MOTOR AND ICE CONTAINER

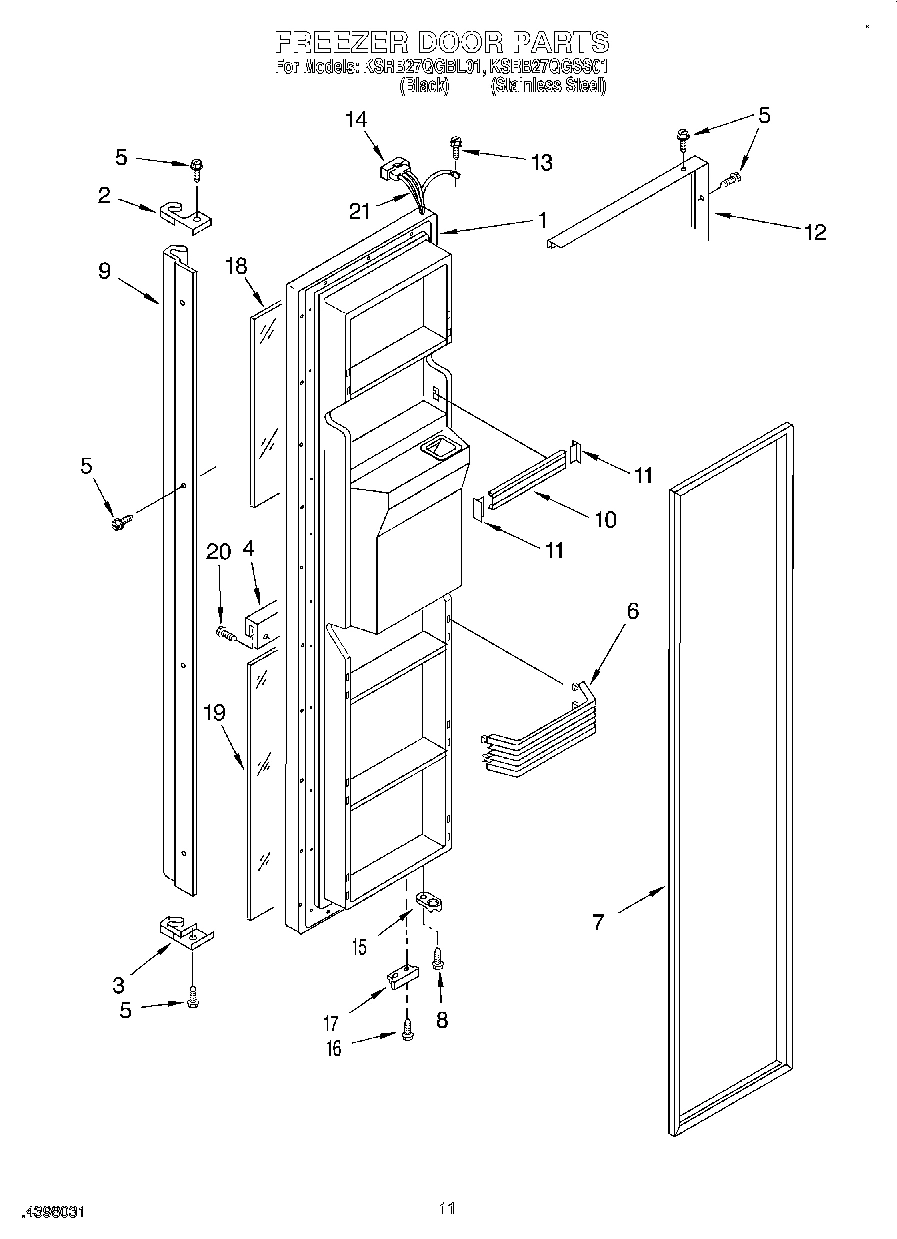

07 - FREEZER DOOR
12 - ICEMAKER, LIT/OPTIONAL

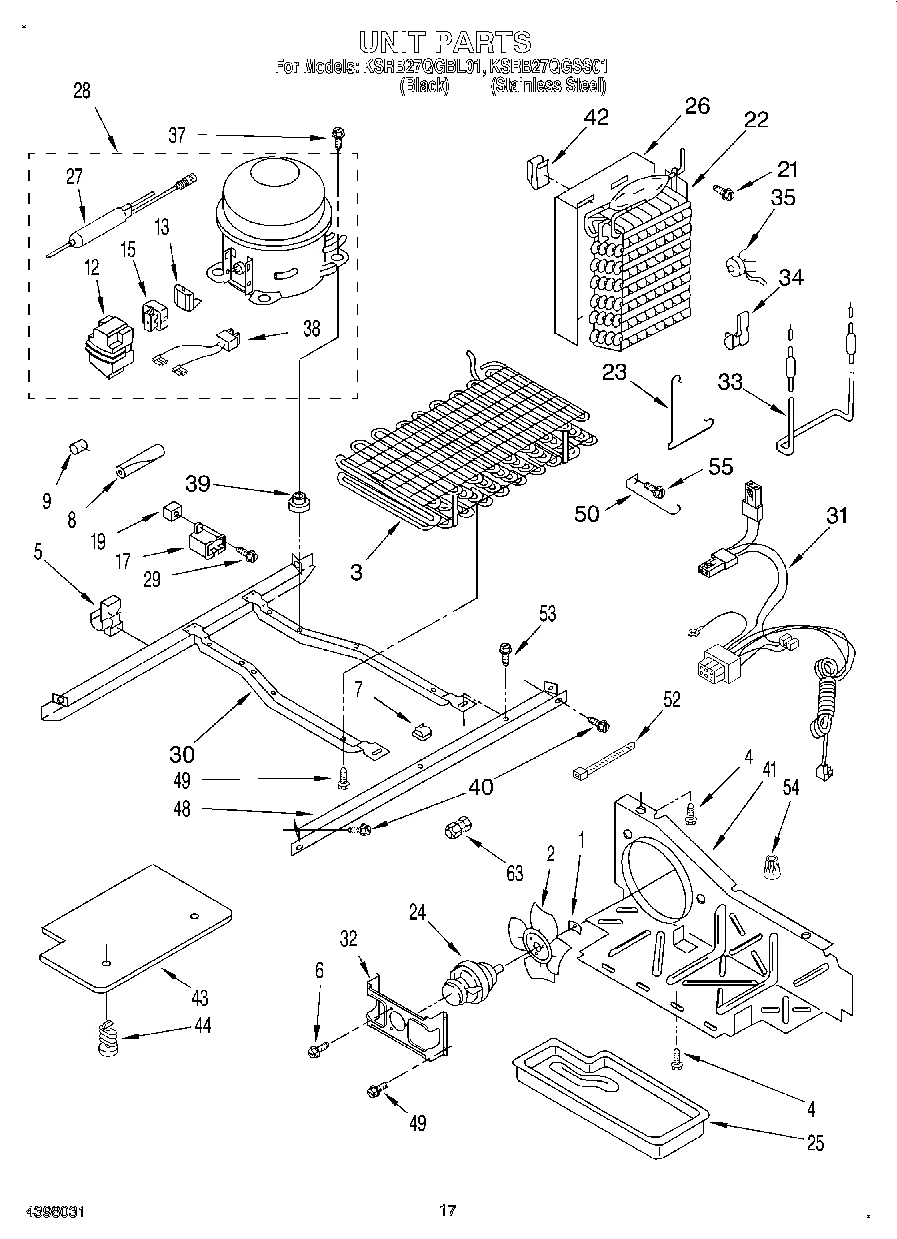

11 - UNIT

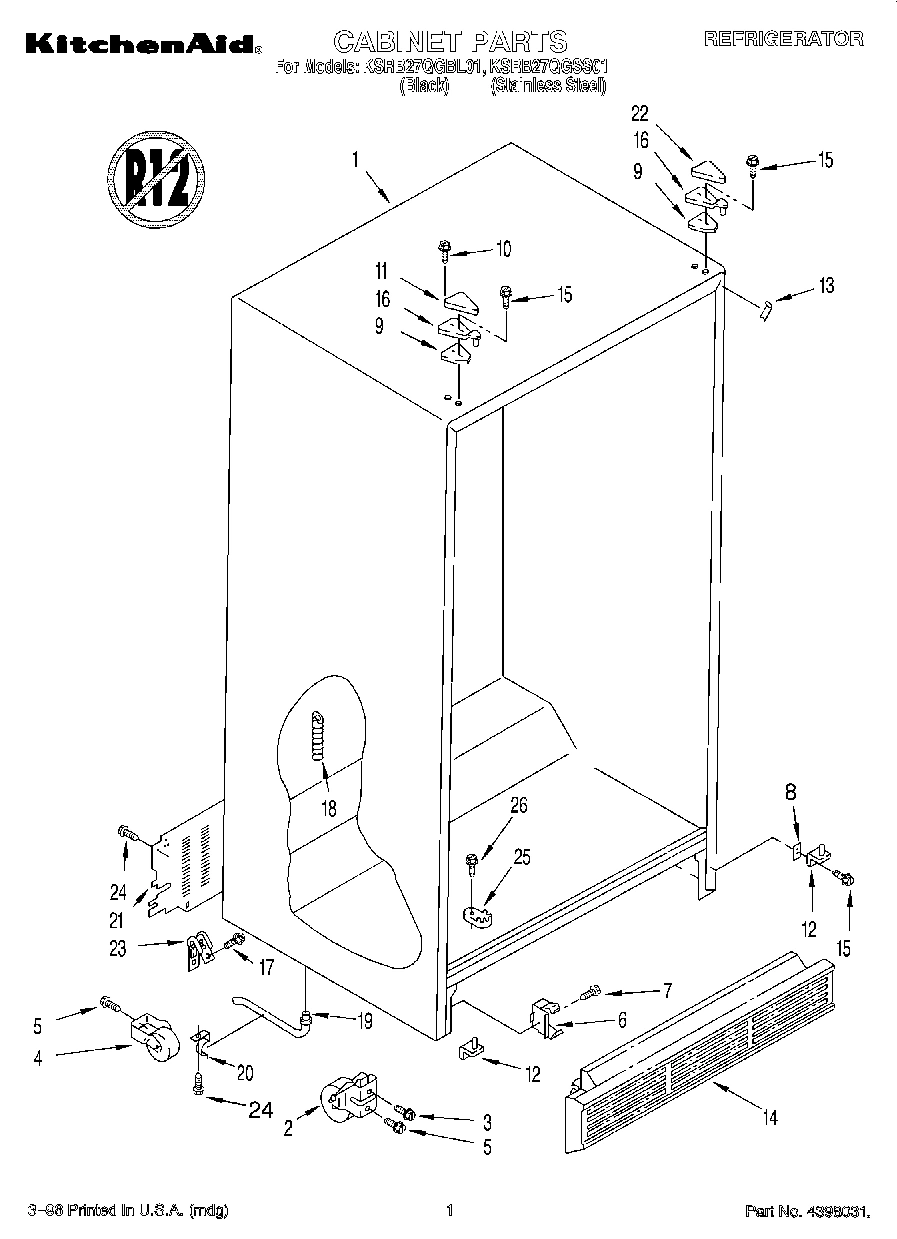

01 - CABINET

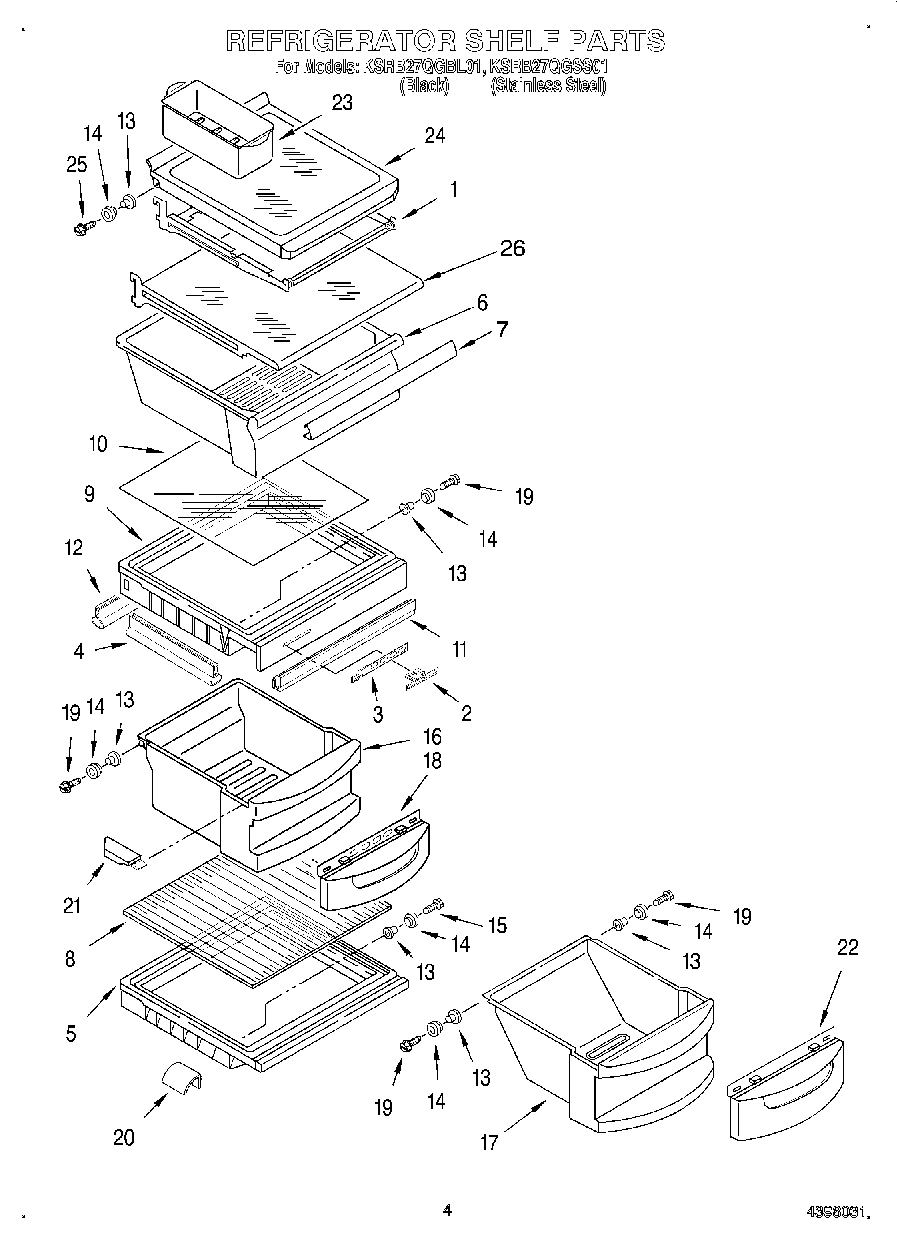

03 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSRB27QGSS01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186464 WPL LIT2186464 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2186928 WPL LIT2186928 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95150A1 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Trim, Dispenser WPL 2194945 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Screw WPL 489481 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Handle WPL 2194948 Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
11
Hinge Cover WPL 2171947 Contact Us For Availability
12
Trim, Door WPL 2194952 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper WPL 1127272 Contact Us For Availability
14
Grille WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Bracket, Door Stop WPL 2155331 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Panel Upper, Black Glass WPL 1126016 Contact Us For Availability
18
Panel, Upper (Stainless Steel) WPL 2194929 Contact Us For Availability
19
Panel Lower Black Glass WPL 1126017 Contact Us For Availability
19
Panel, Lower (Stainless Steel) WPL 2194930 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Screw WPL 489374 Contact Us For Availability
21
Wire Harness WPL 2180229 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Shim Kit, Black Glass Panel WPL 2182010 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
