Model Whirlpool KSRB27QDBL00 – Common Parts & Diagrams

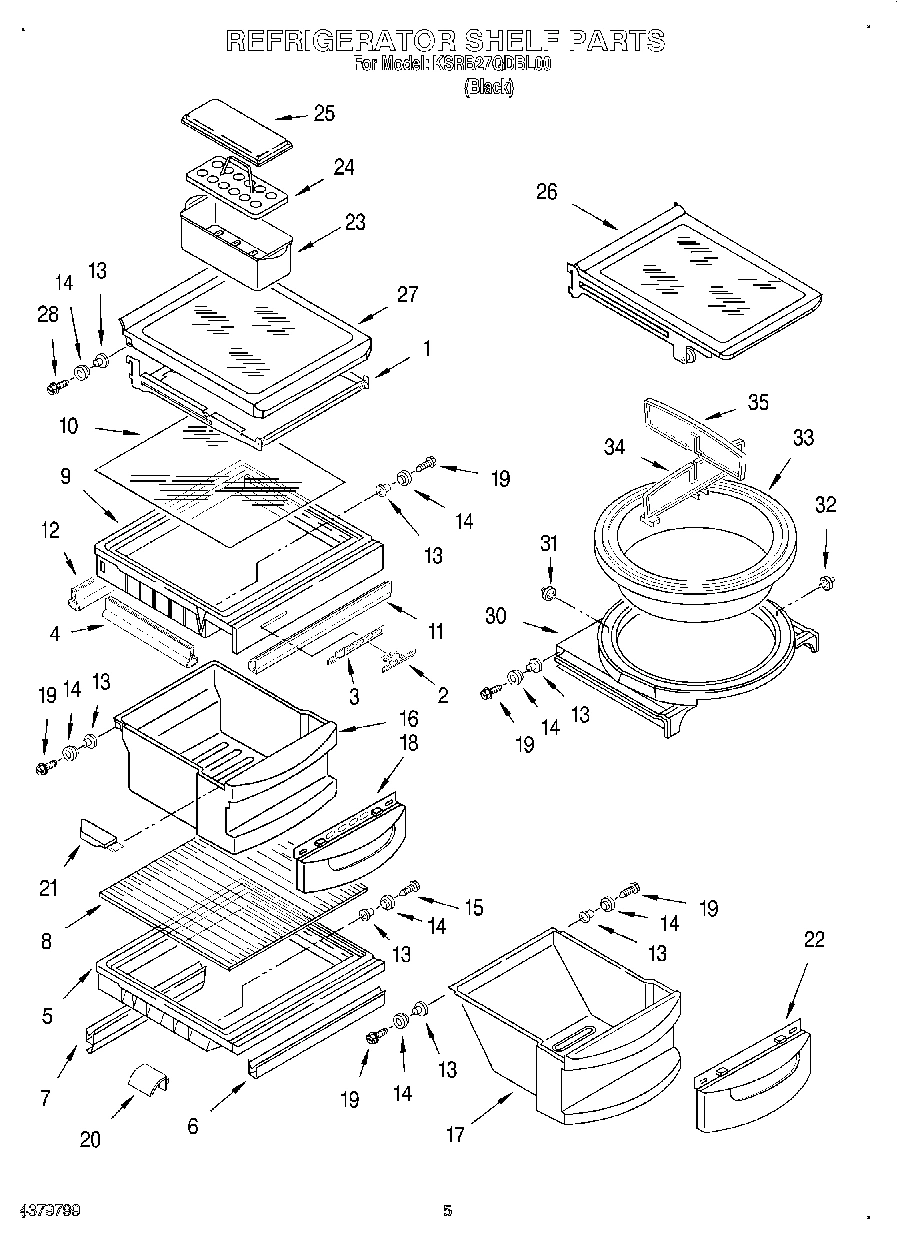

04 - REFRIGERATOR SHELF

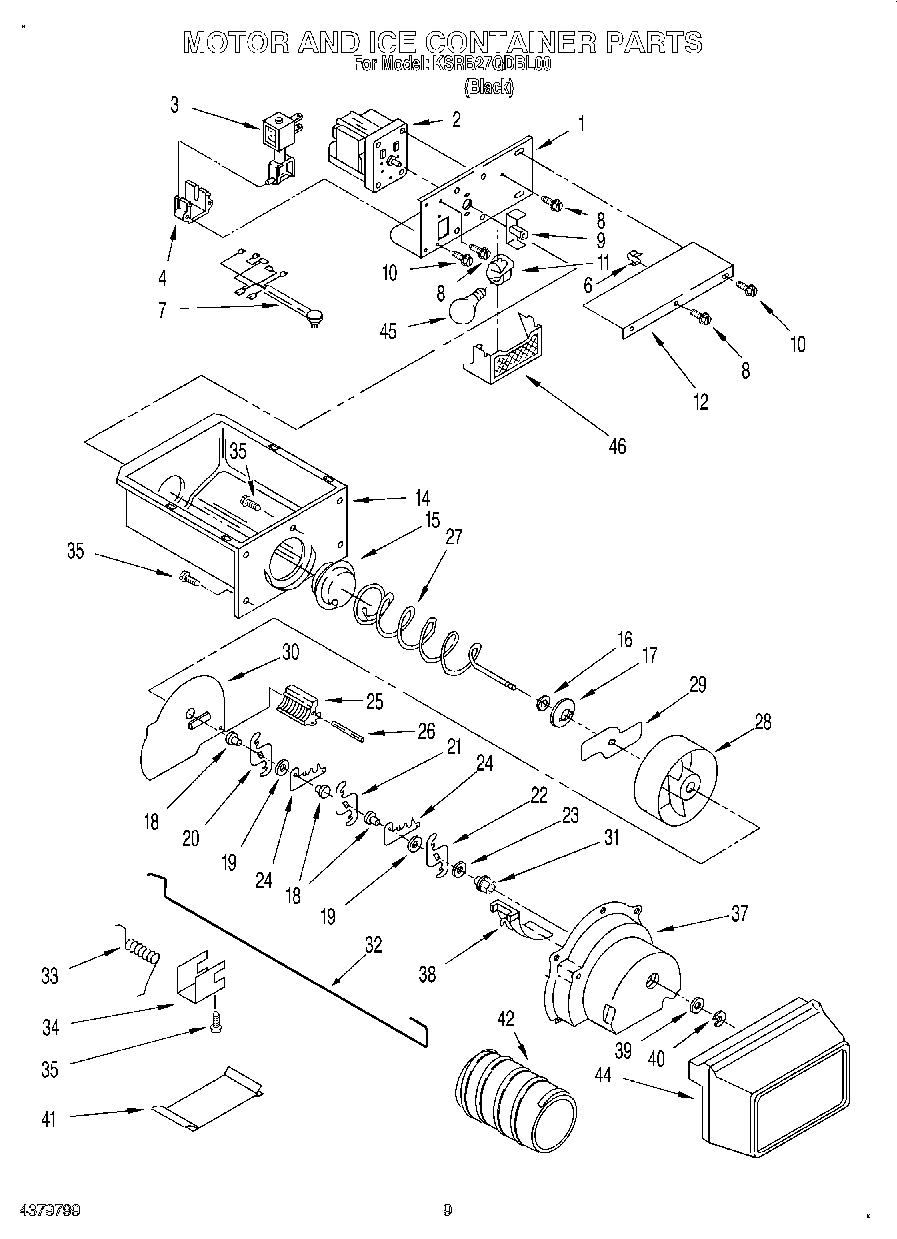

06 - MOTOR AND ICE CONTAINER

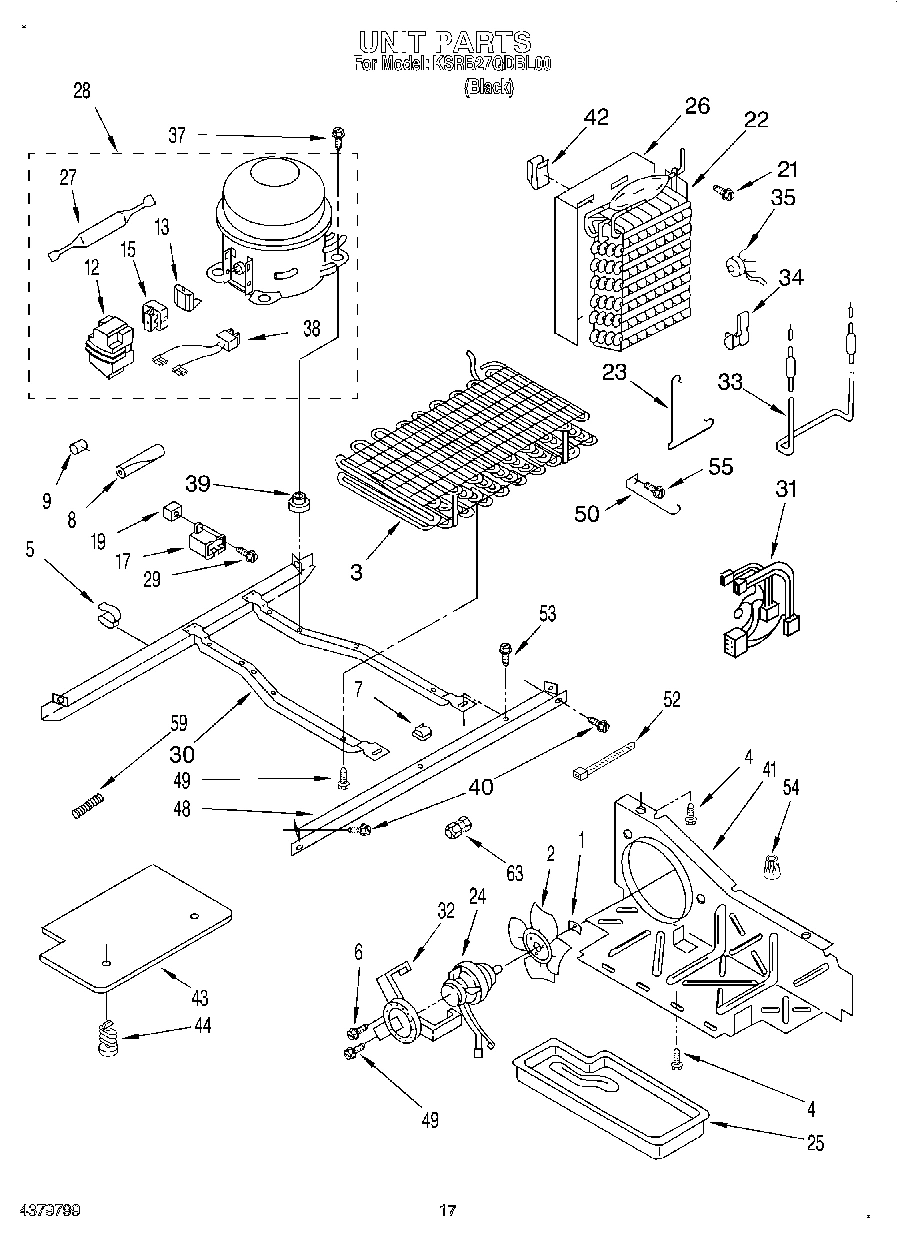

10 - UNIT
11 - ICEMAKER
05 - FREEZER LINER
12 - AIRFLOW, LIT/OPTIONAL

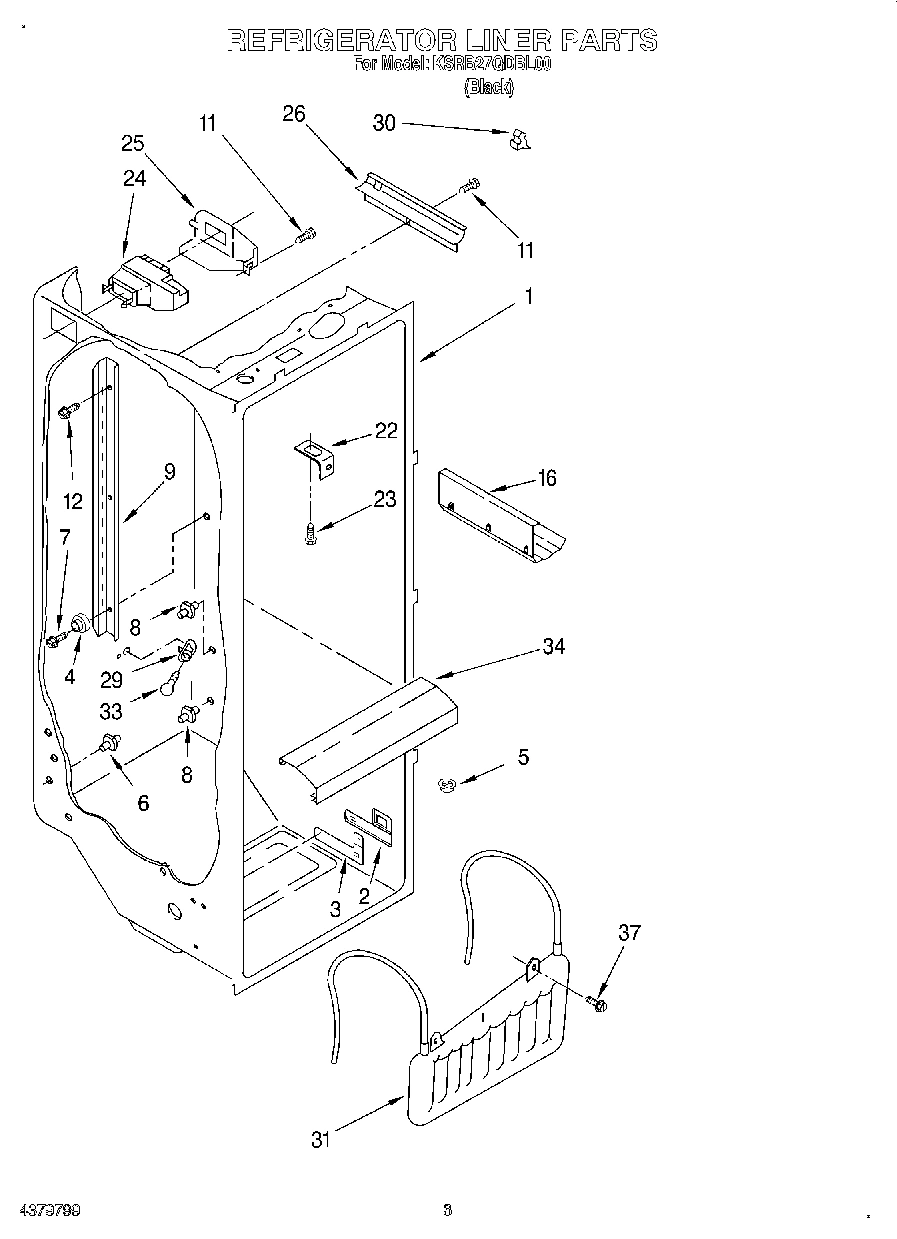

02 - REFRIGERATOR LINER

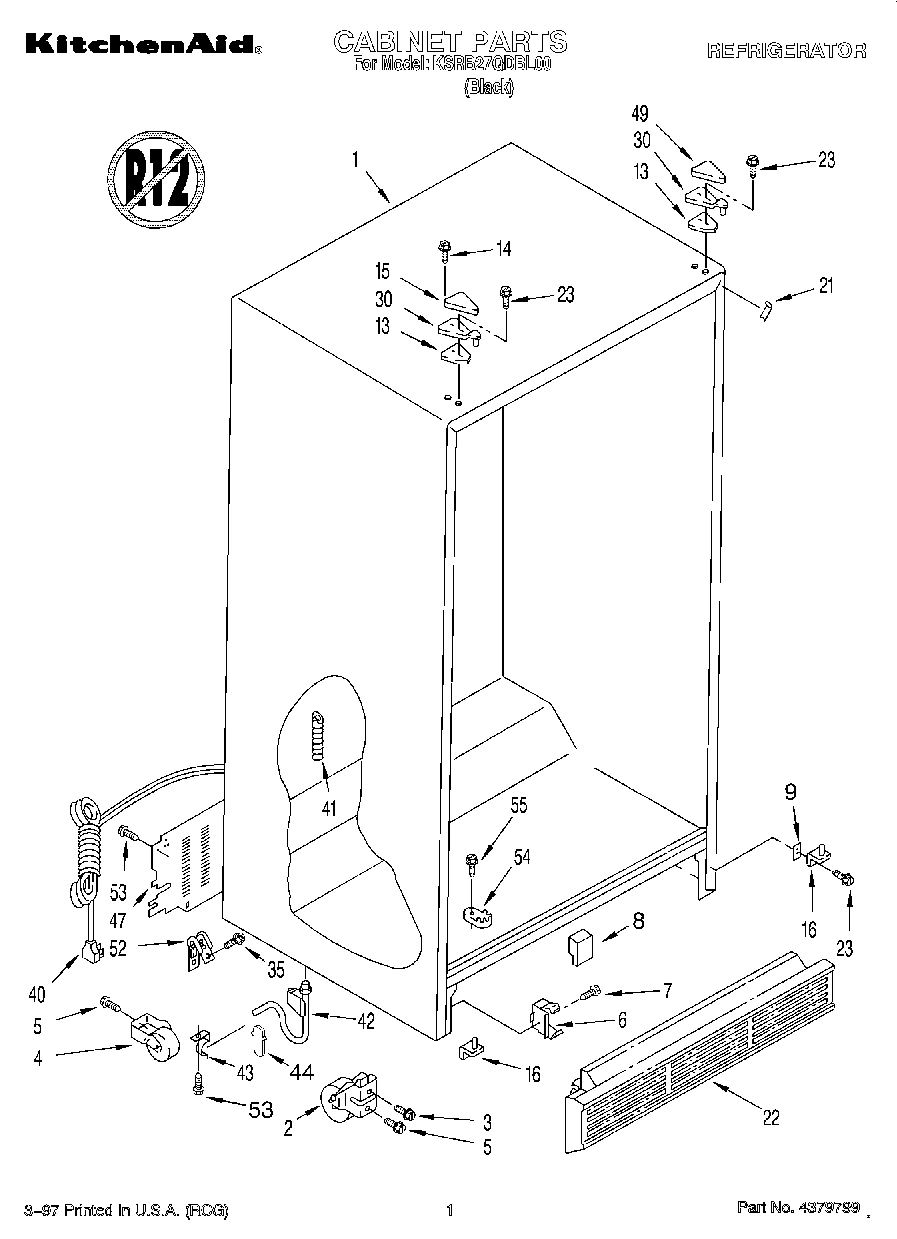

01 - CABINET

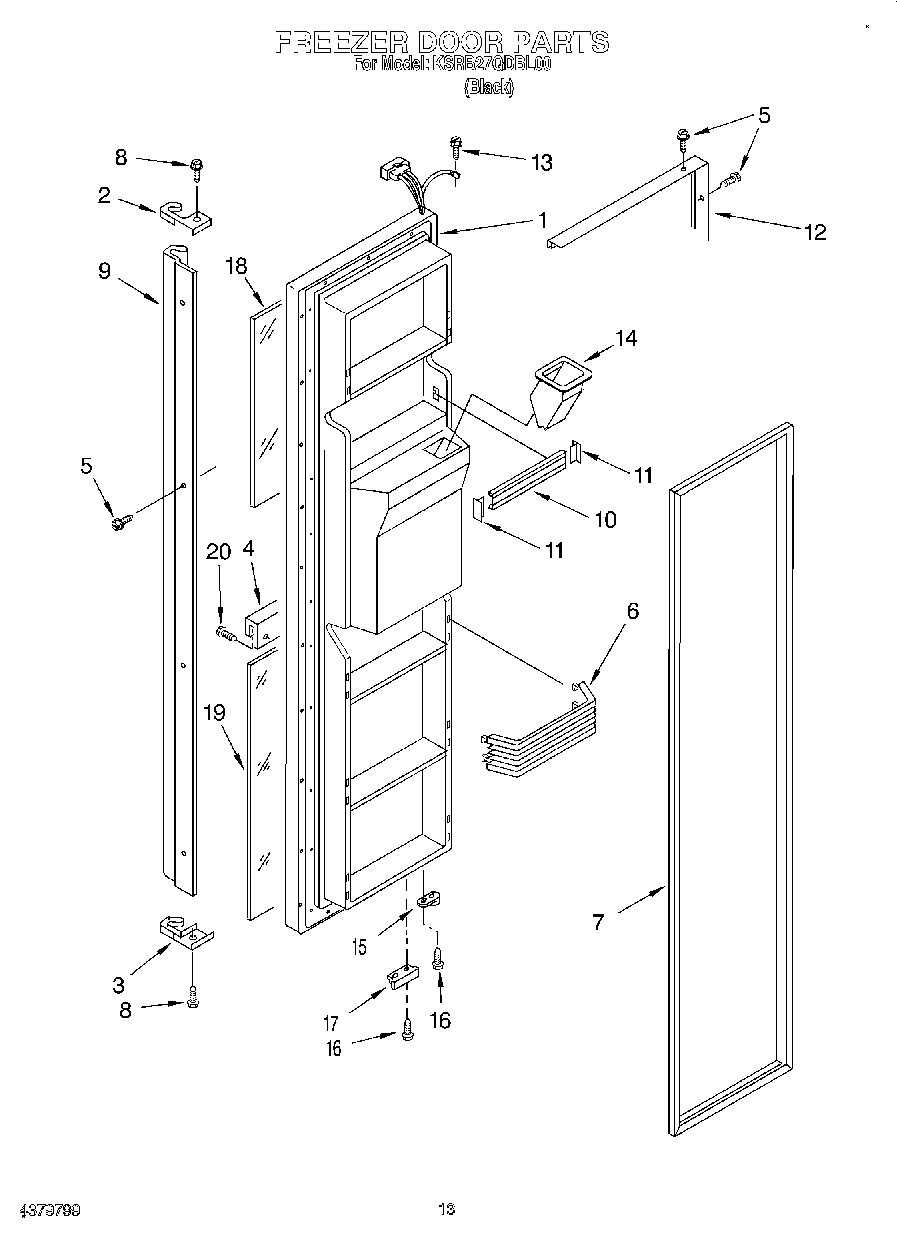

08 - FREEZER DOOR

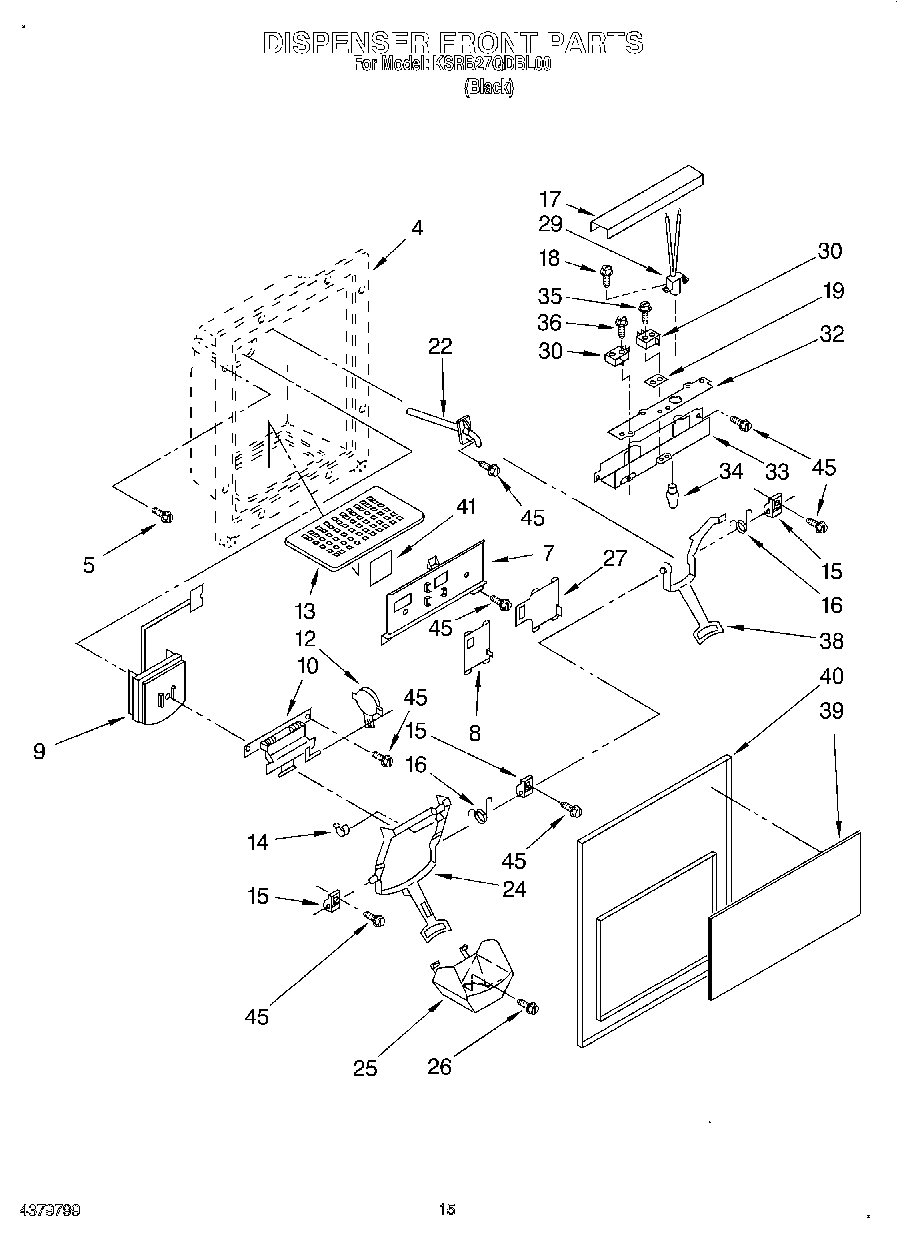

09 - DISPENSER FRONT

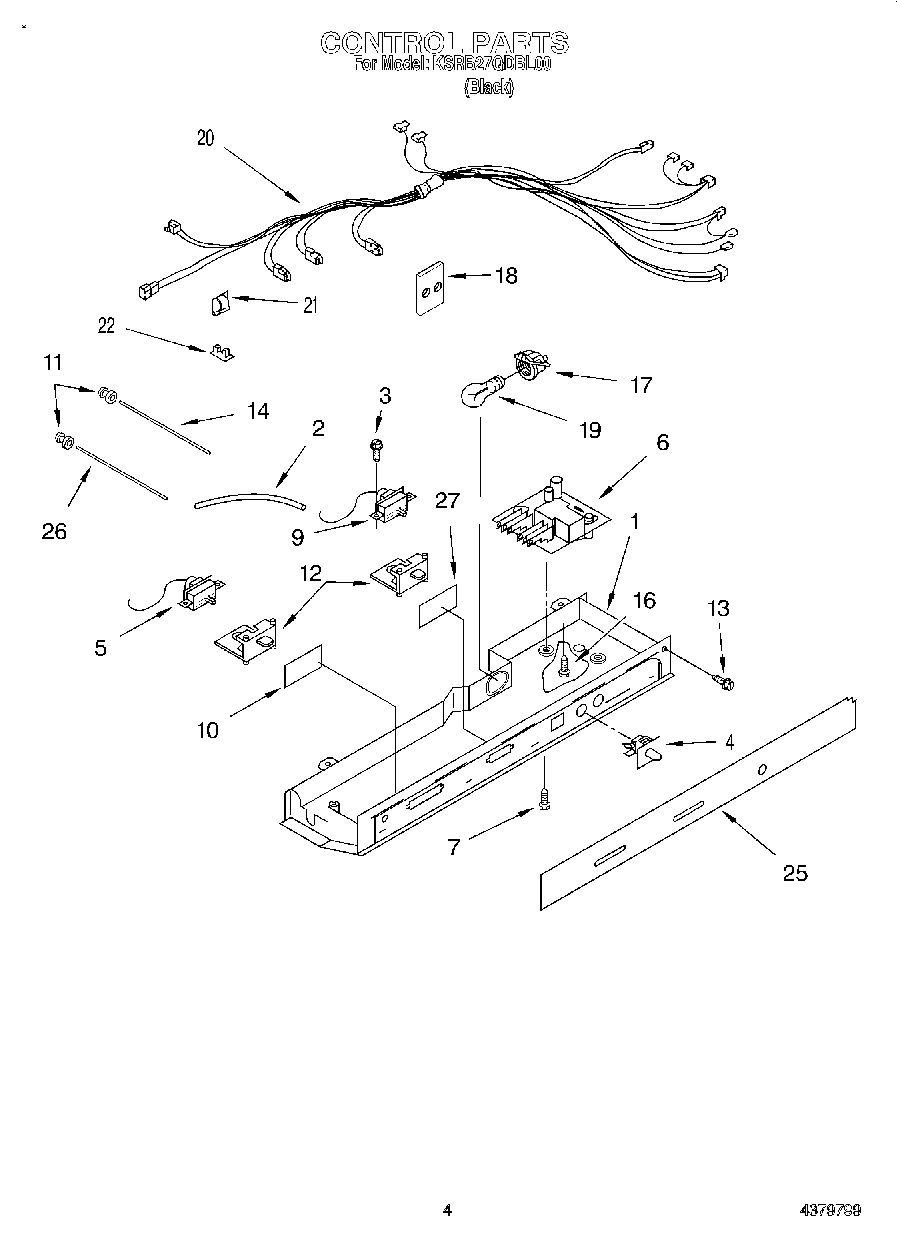

03 - CONTROL

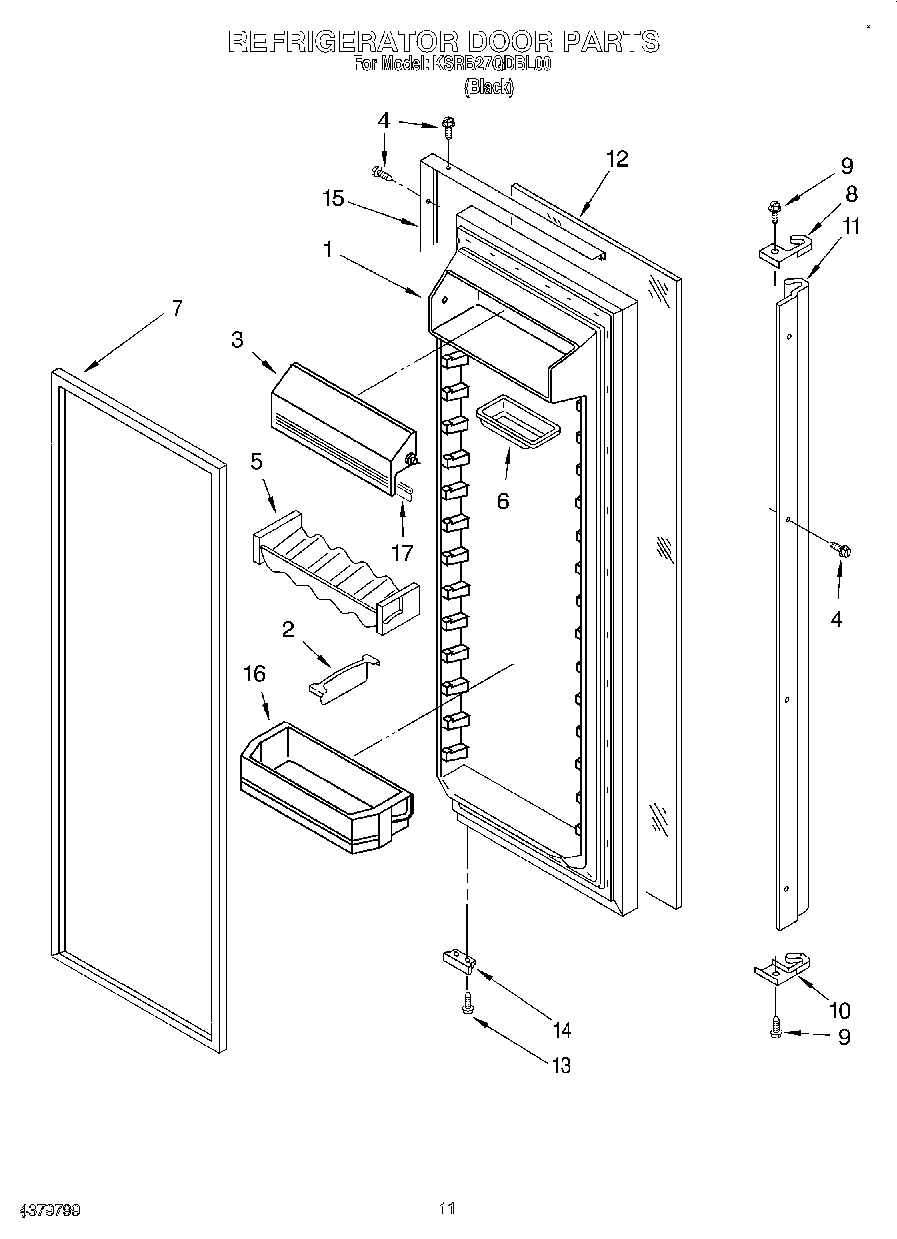

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRB27QDBL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161473 WPL LIT2161473 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2180066 WPL LIT2180066 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95108A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI95107A3 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI95106A3 Contact Us For Availability
1
Freezer Door (Includes Item 7 And Dispenser F WPL 2180045 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Refrigerator Door (Includes Item 7) WPL 2180044 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load Lock WPL 2171283 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Trim, Dispenser WPL 1125980 Contact Us For Availability
4
Screw WPL 489376 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI95109A8 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Holder, Beverage WPL 1125981 Contact Us For Availability
6
Shelf Bin (4) WPL 2171070 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
End Cap WPL 1126074 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171996 Contact Us For Availability
9
Screw WPL 489112 Contact Us For Availability
10
End Cap WPL 1126073 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Handle WPL 1126070 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Trim, Door WPL 1126072 Contact Us For Availability
12
Black Glass WPL 1126015 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171869 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Chute, Ice WPL 2156145 Contact Us For Availability
14
Bracket, Door Stop WPL 2155331 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover WPL 2171947 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Trim, Door WPL 1117901 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2171777 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2171778 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Black Glass, Upper WPL 1126016 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Black Glass, Lower WPL 1126017 Contact Us For Availability
20
Screw WPL 489374 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Basket, Middle WPL 2171700 Contact Us For Availability
21
Filler, Wrapper WPL 1127272 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Upper WPL 2171702 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
Enamel, Almon WPL 978883 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2177143 Contact Us For Availability
25
Basket, Lower WPL 2171701 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2177148 Contact Us For Availability
39
Insert, Cover WPL 2174340 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 2179388 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
