Model Whirlpool KSRB25QGSS01 – Common Parts & Diagrams
04 - FREEZER LINER
05 - MOTOR AND ICE CONTAINER

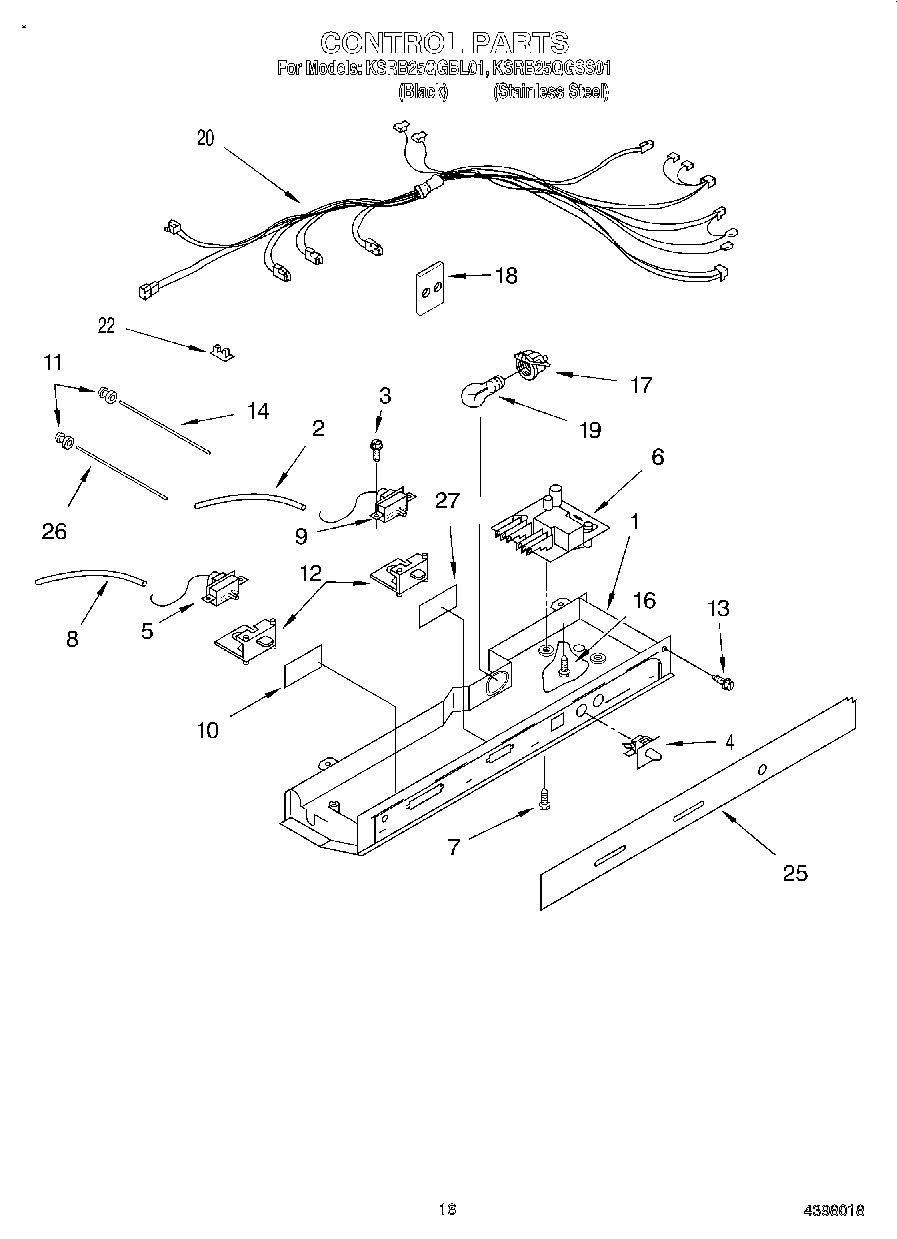

10 - CONTROL

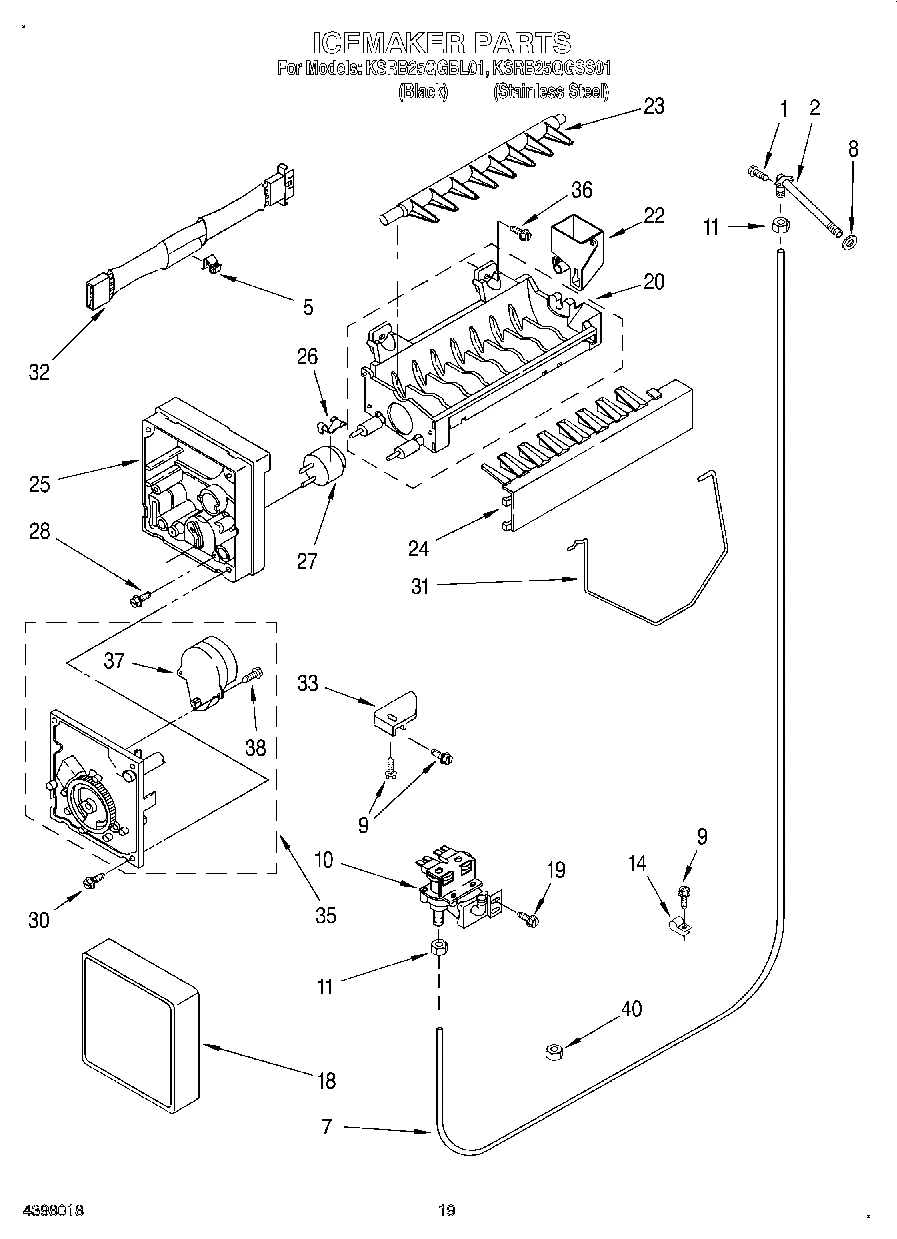

12 - ICEMAKER, LIT/OPTIONAL

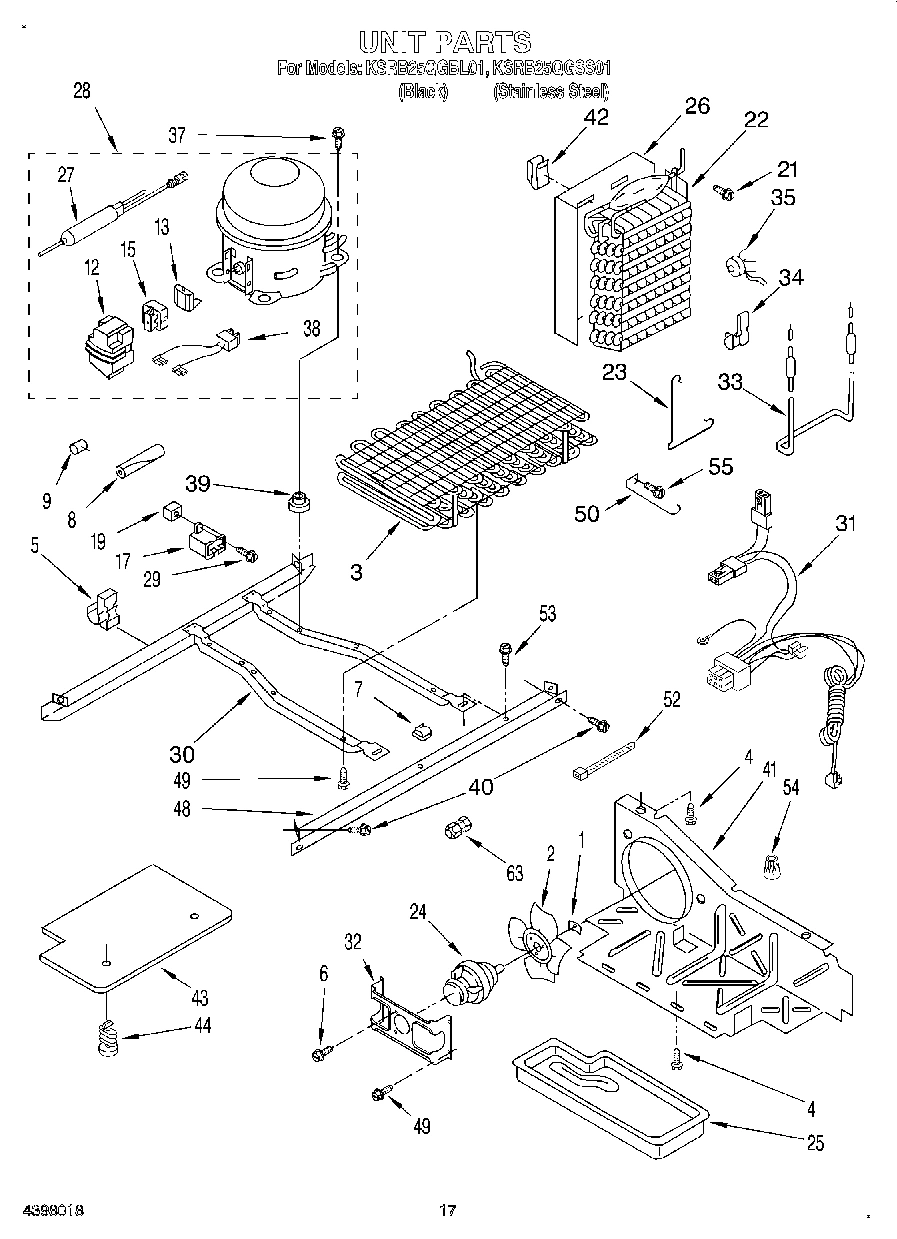

11 - UNIT
03 - REFRIGERATOR SHELF

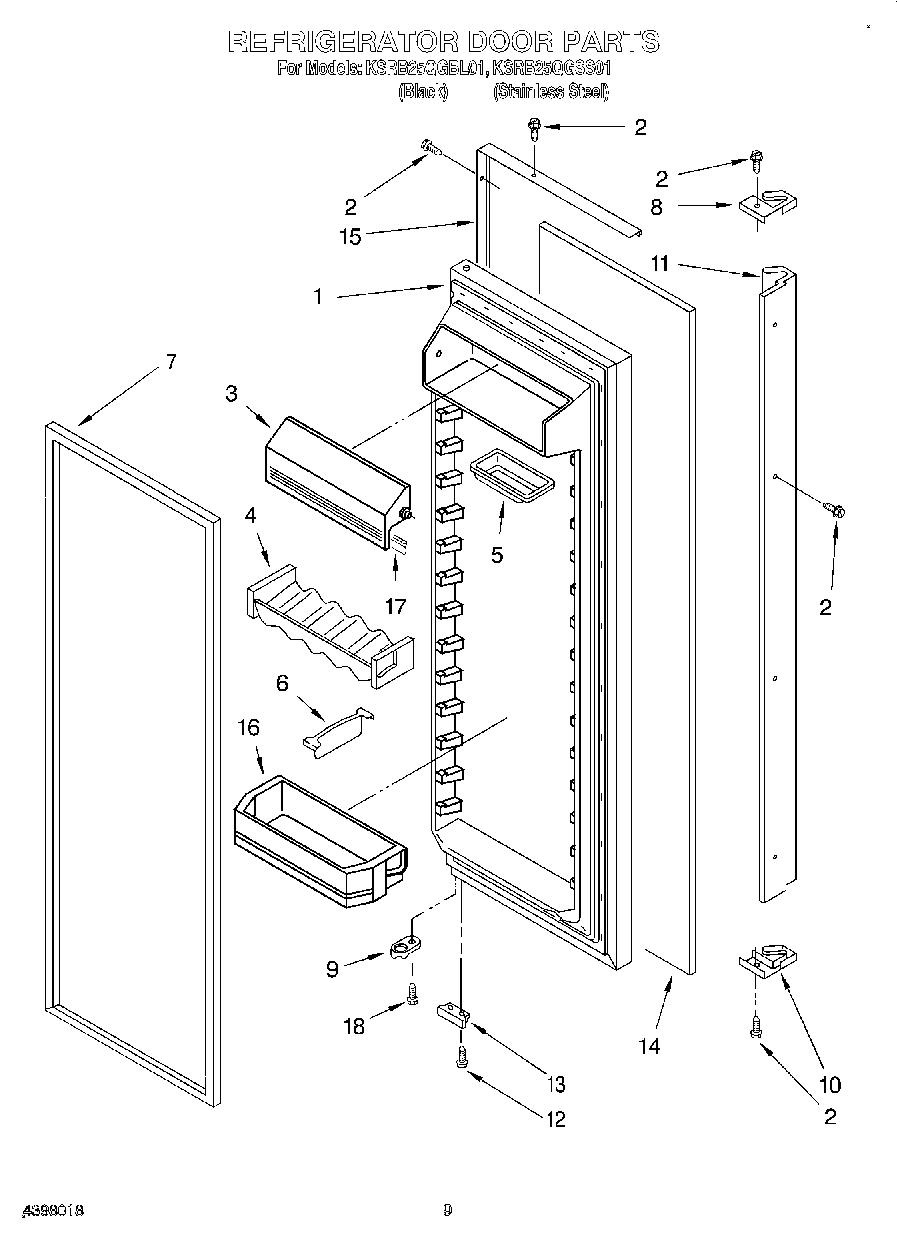

06 - REFRIGERATOR DOOR

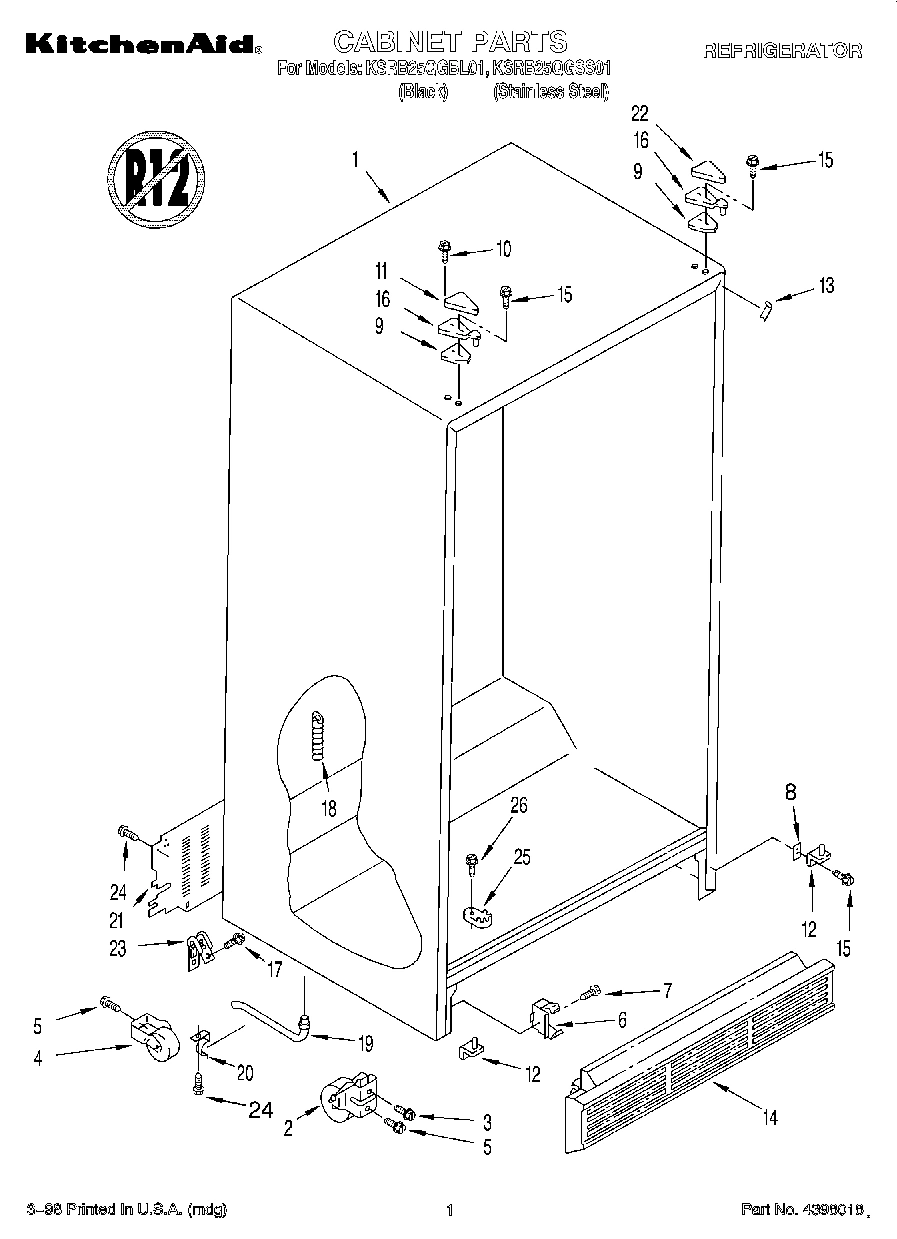

01 - CABINET

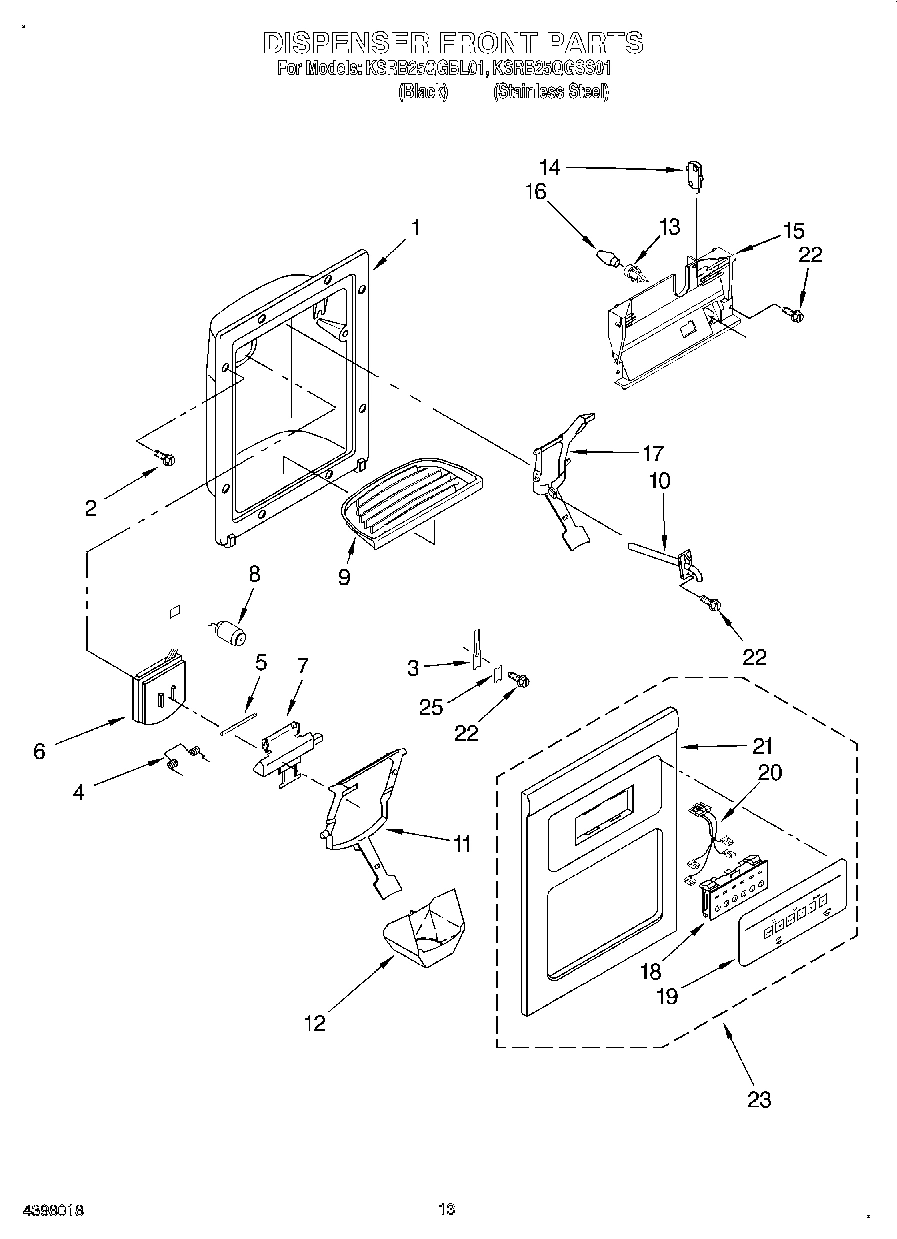

08 - DISPENSER FRONT

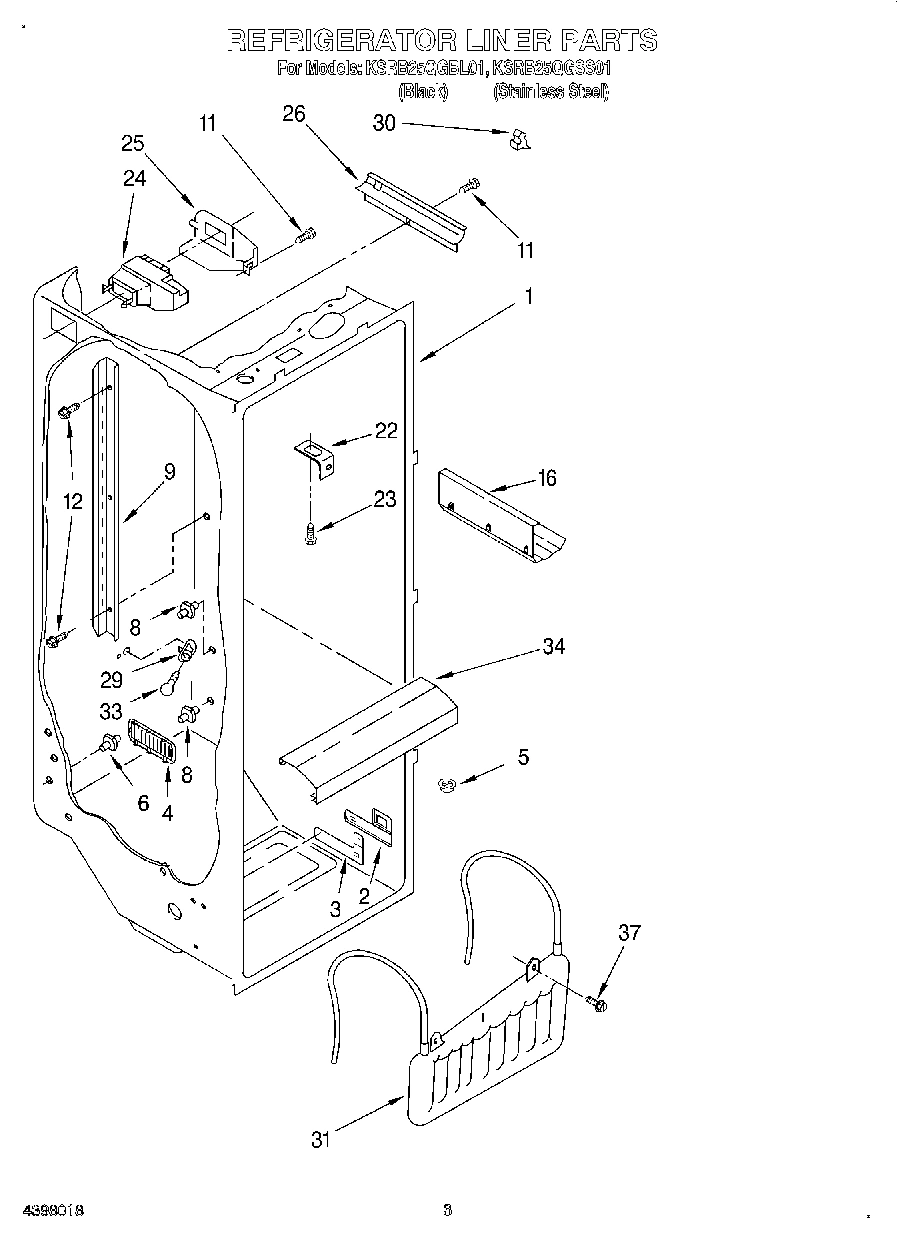

02 - REFRIGERATOR LINER

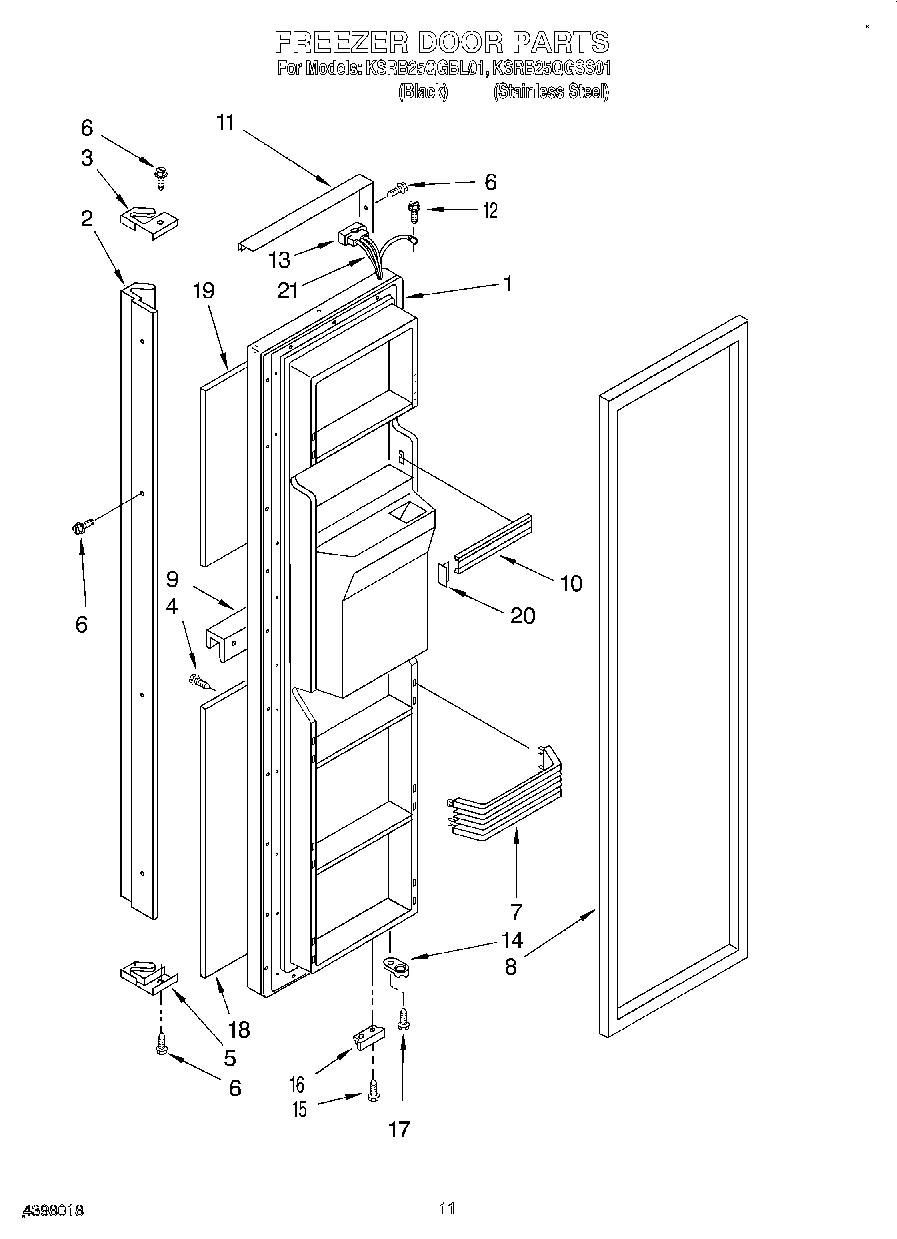

07 - FREEZER DOOR
09 - AIR FLOW
Common parts from model Whirlpool KSRB25QGSS01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2194958 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI94910A5 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI94913A7 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94911A6 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2194961 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Handle WPL 2194946 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap WPL 2198098 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Screw WPL 489374 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
5
End Cap, Bottom WPL 2198100 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Screw WPL 489481 Contact Us For Availability
6
Load Lock WPL 2195497 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Trim, Dispenser WPL 2194945 Contact Us For Availability
10
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Hinge Cover WPL 2171947 Contact Us For Availability
11
Lever, Ice Dispenser WPL 2180261 Contact Us For Availability
11
Trim, Door WPL 2194953 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper WPL 1127272 Contact Us For Availability
14
Grille WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Panel (Black Glass) WPL 1126015 Contact Us For Availability
14
Panel (Stainless Steel) WPL 2194928 Contact Us For Availability
15
Trim, Door WPL 2194950 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Panel Lower Black Glass WPL 1126017 Contact Us For Availability
18
Panel, Lower (Stainless Steel) WPL 2194930 Contact Us For Availability
19
Overlay, Front Cover WPL 2180370 Contact Us For Availability
19
Panel Upper, Black Glass WPL 1126016 Contact Us For Availability
19
Panel, Upper (Stainless Steel) WPL 2194929 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI94914A1 Contact Us For Availability
21
Wire Harness WPL 2180229 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180398 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Glass, Cover WPL 2174148 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK ( WPL 799344 Contact Us For Availability
× ![]()
