Model Whirlpool KSRB25QFSS00 – Common Parts & Diagrams
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR

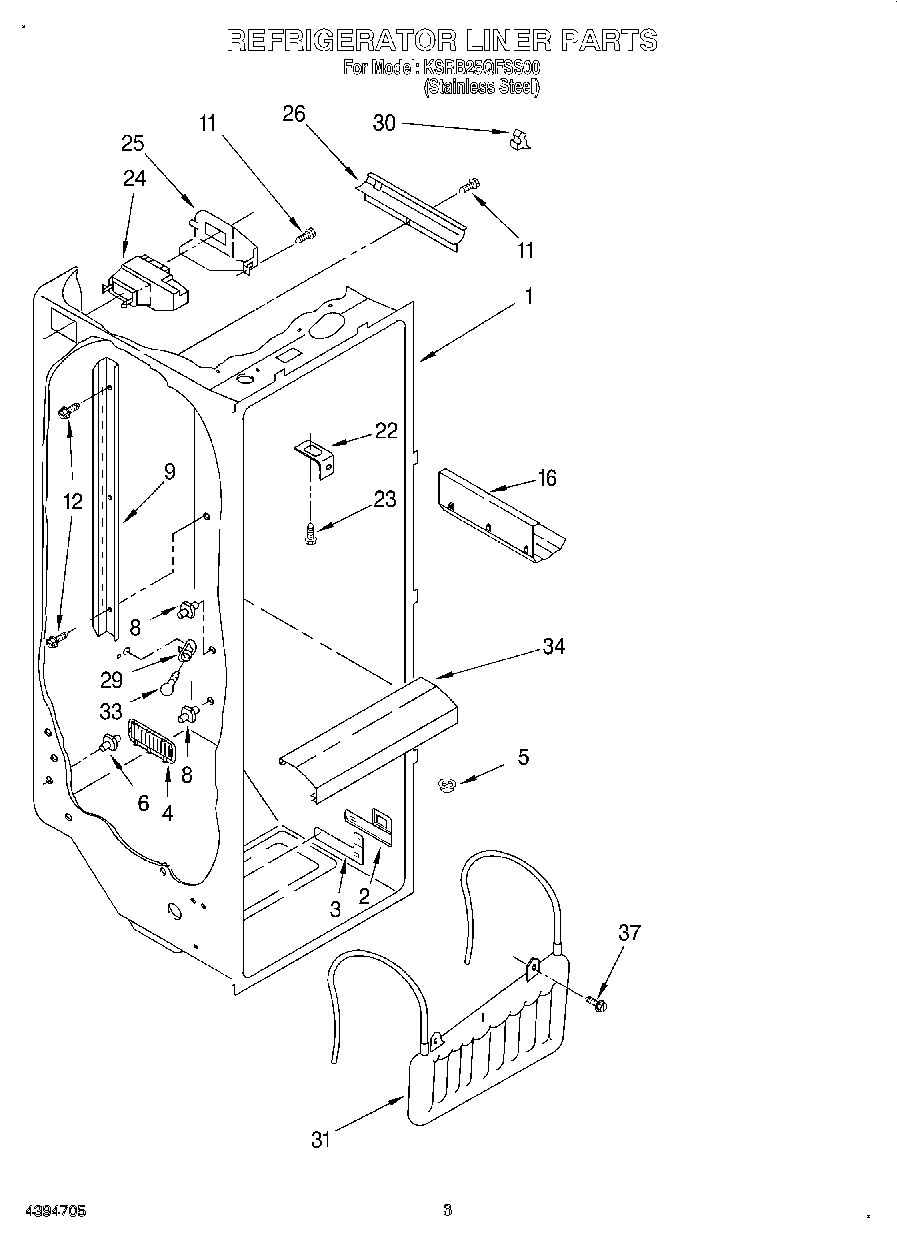

02 - REFRIGERATOR LINER

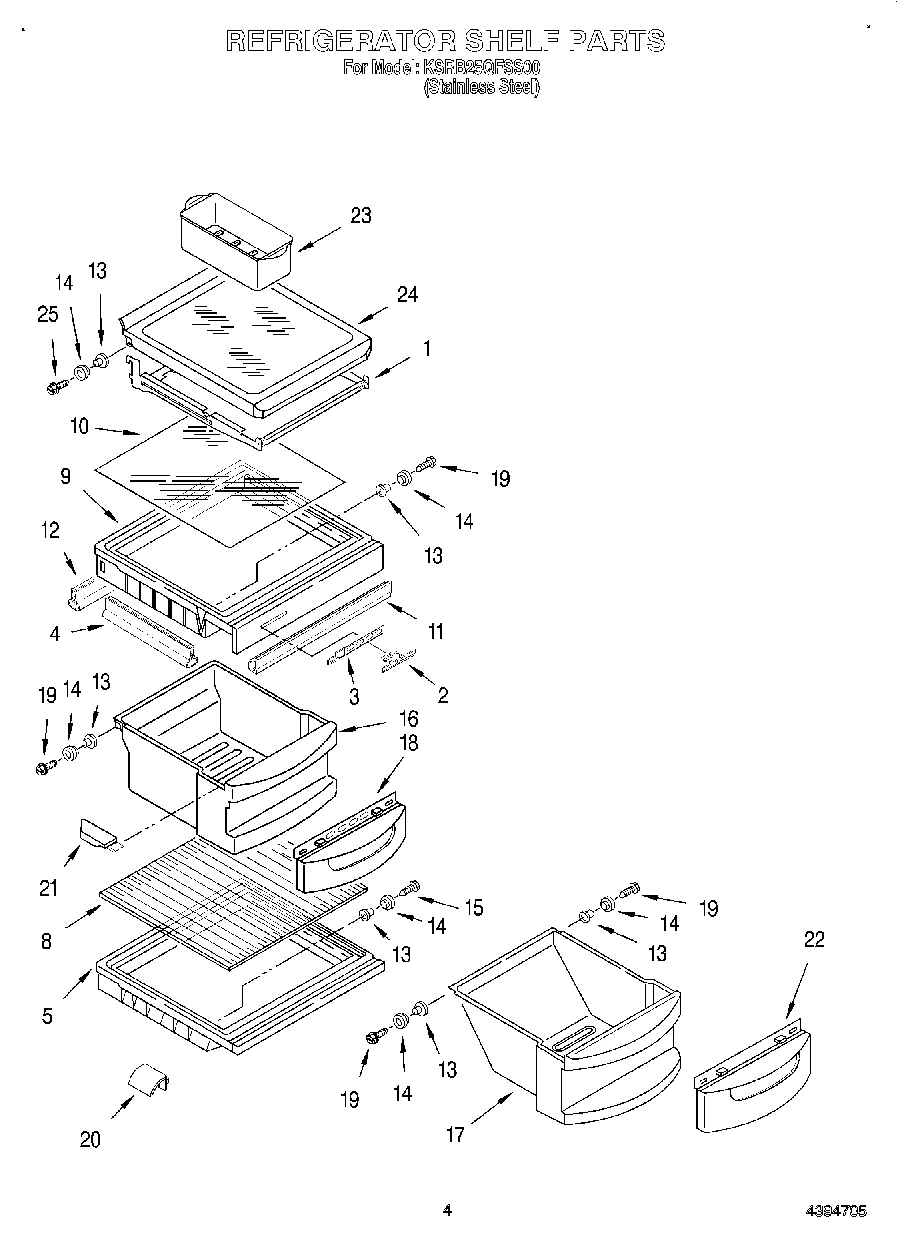

03 - REFRIGERATOR SHELF

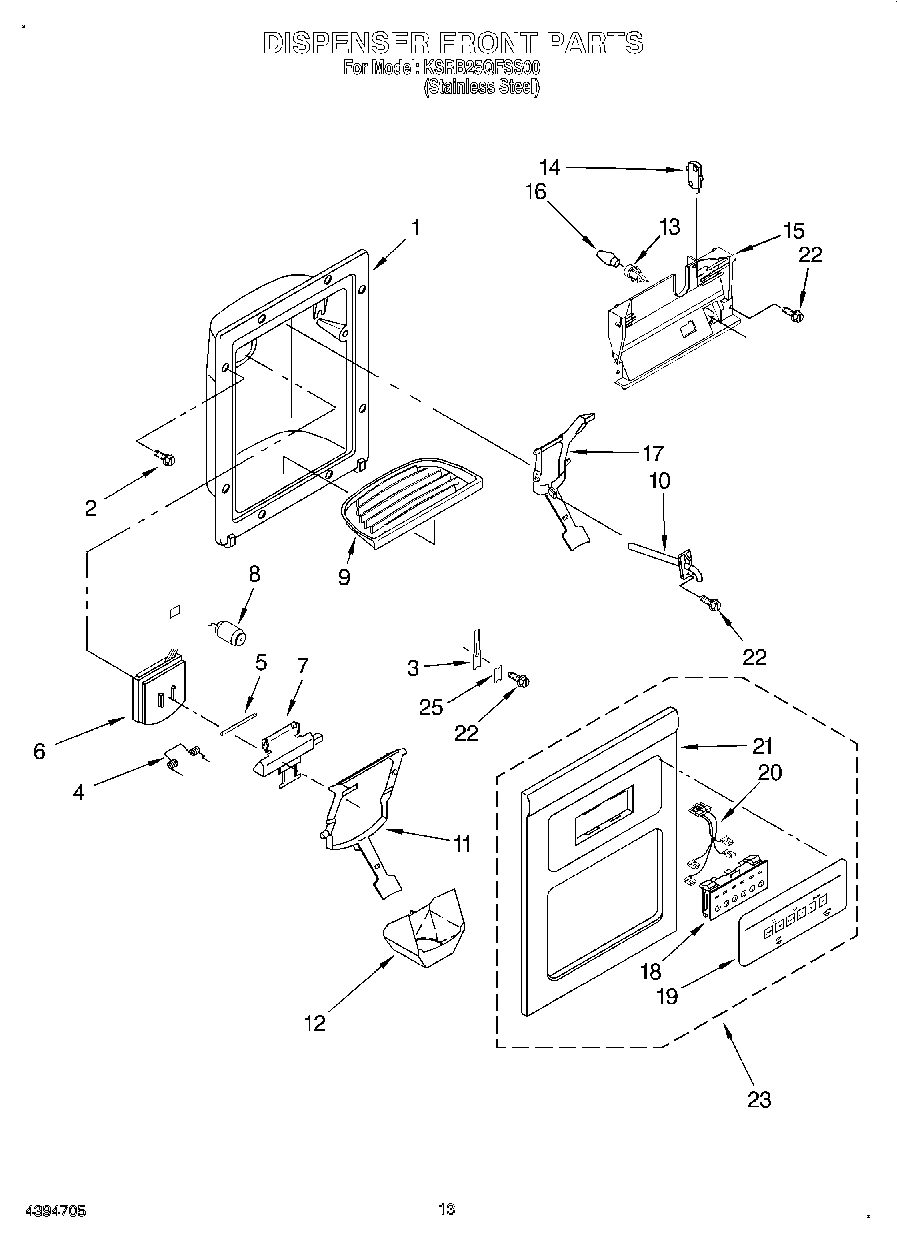

08 - DISPENSER FRONT

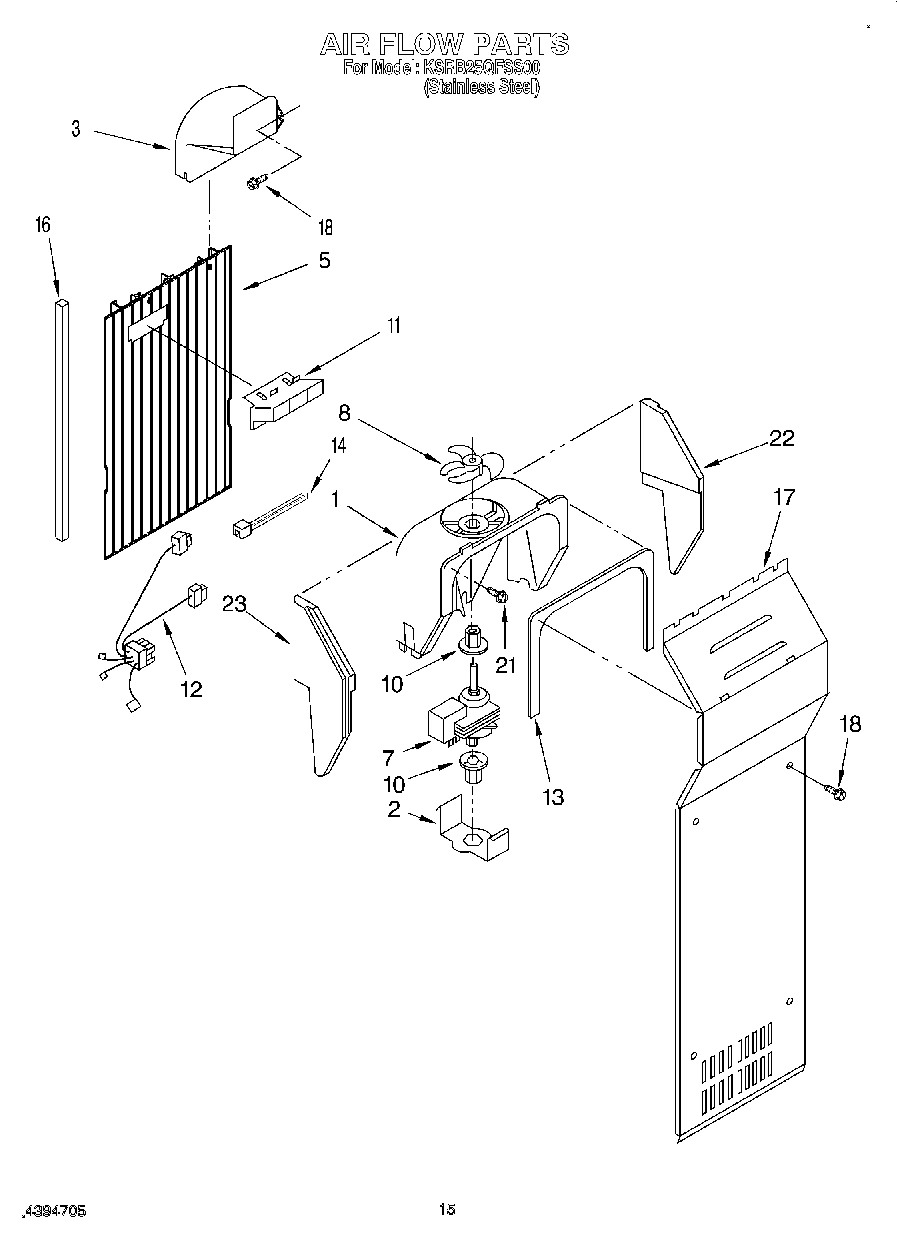

09 - AIR FLOW

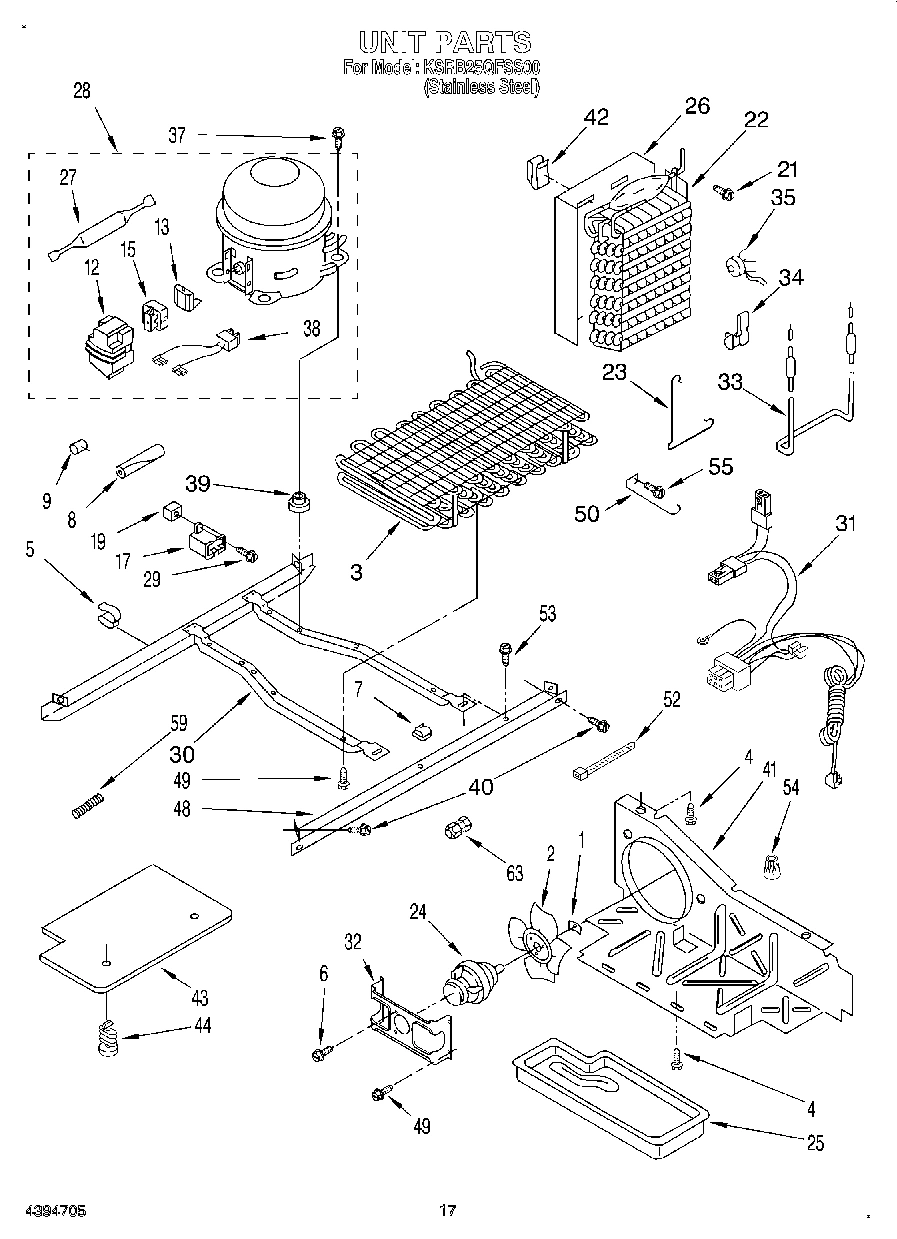

11 - UNIT

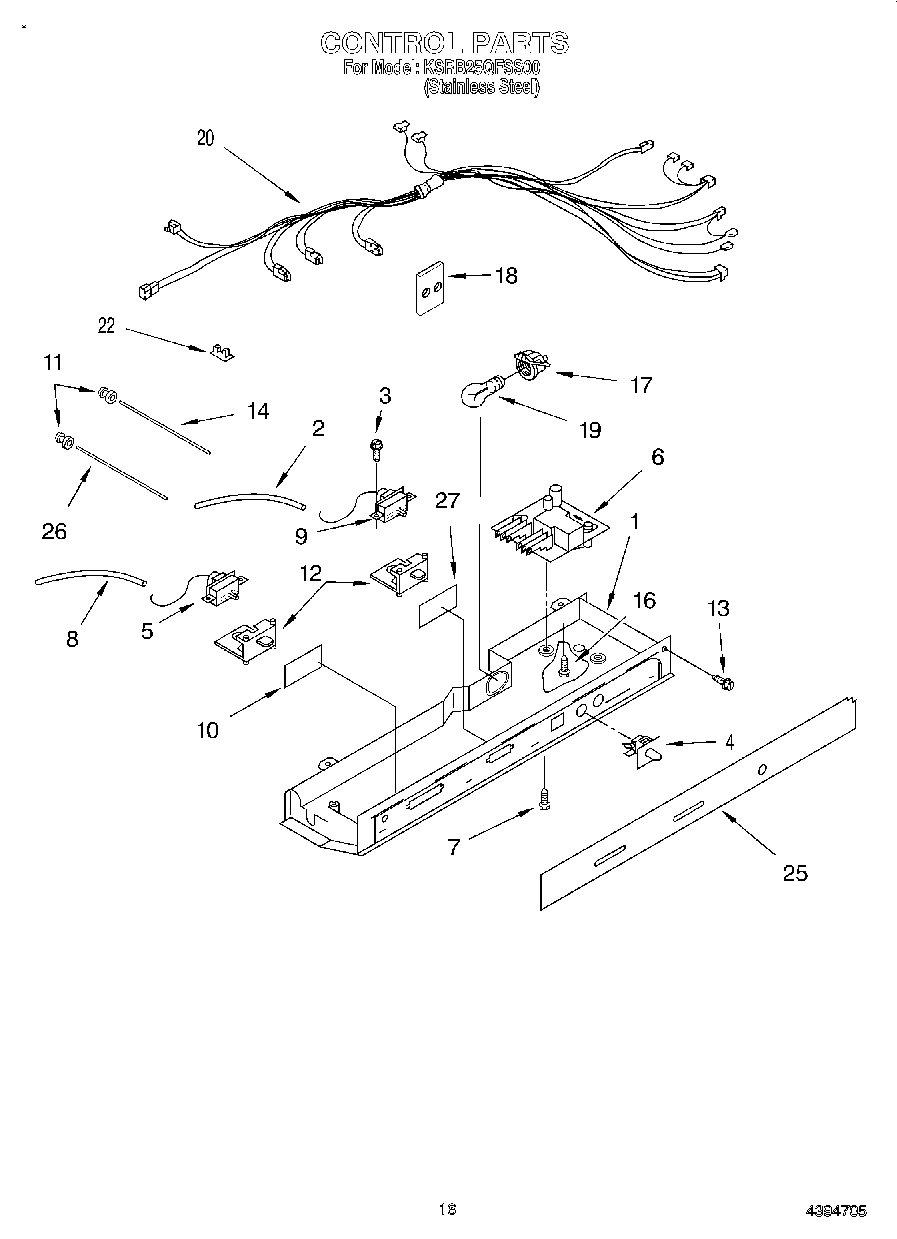

10 - CONTROL
12 - ICE MAKER, LIT/OPTIONAL

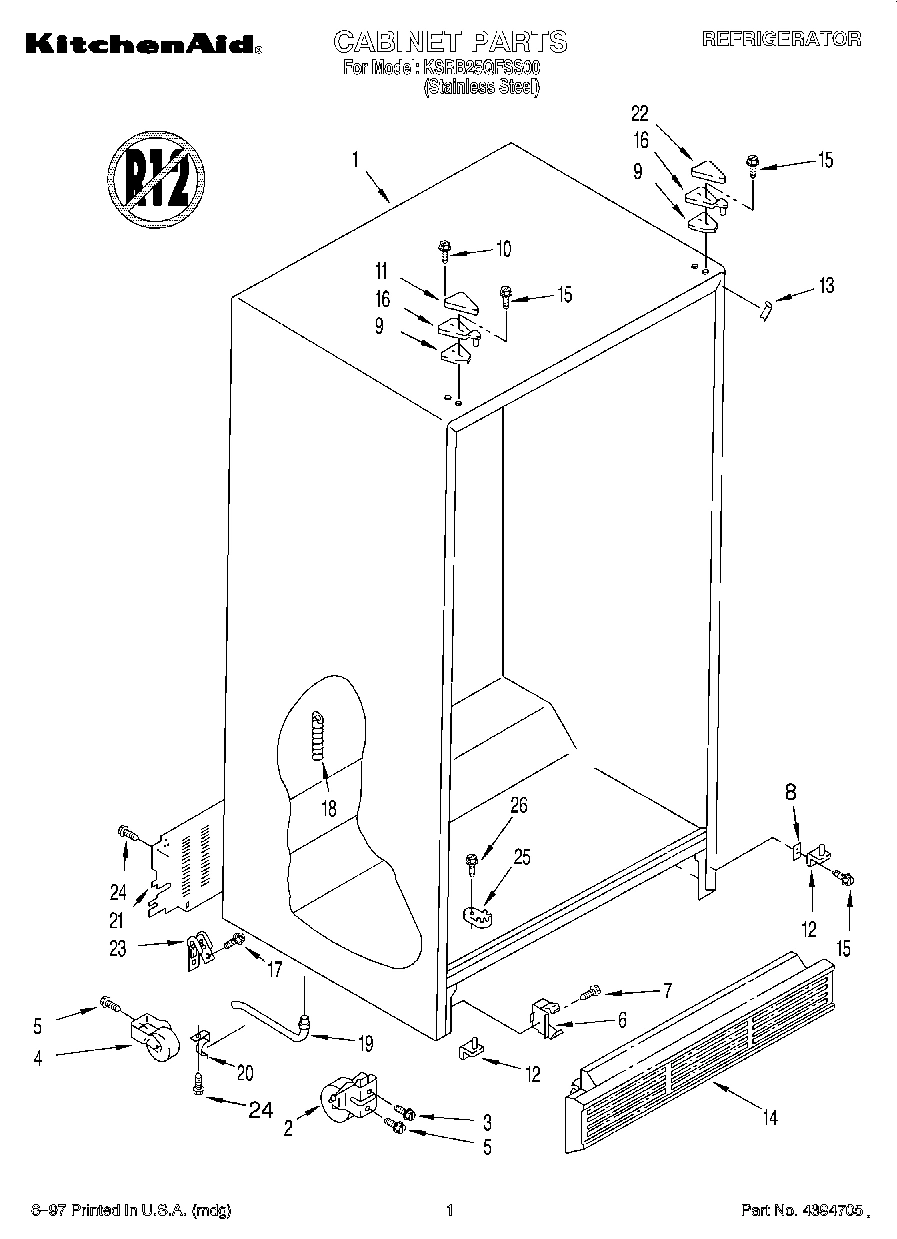

01 - CABINET
04 - FREEZER LINER

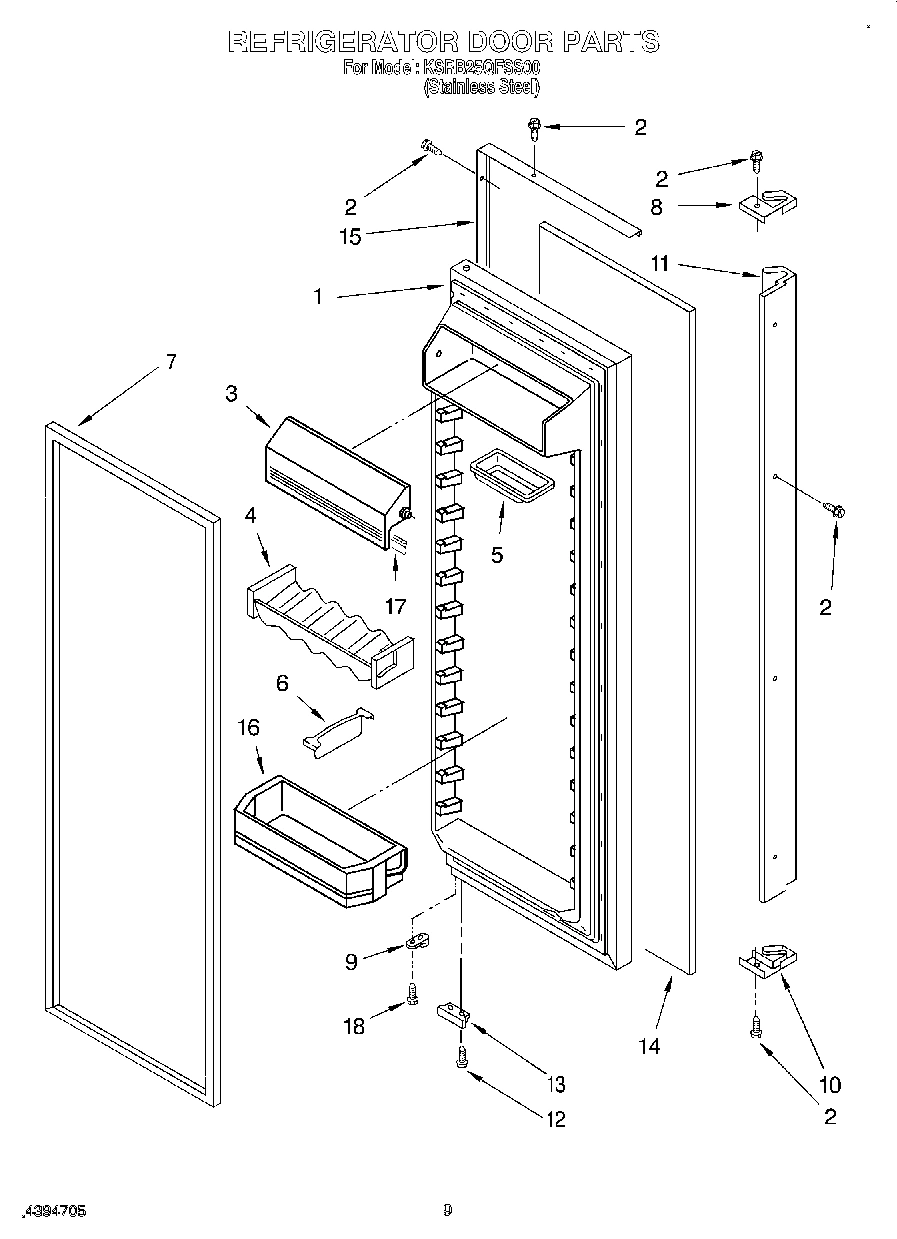

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRB25QFSS00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2182866 WPL LIT2182866 Contact Us For Availability
WPL LIT2194922 WPL LIT2194922 Contact Us For Availability
WPL LIT2198139 WPL LIT2198139 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2172930 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI94887A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94889A8 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2194958 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Screw WPL 489481 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Load Lock WPL 2195497 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
End Cap, Top WPL 2198100 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Shim, Hinge Top WPL 2196049 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
End Cap, Bottom WPL 2198098 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Hinge Cover WPL 2171947 Contact Us For Availability
11
Handle WPL 2194946 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper WPL 1127272 Contact Us For Availability
14
Grille WPL 2155485 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Panel (Stainless Steel) WPL 2194928 Contact Us For Availability
15
Trim, Door WPL 2194950 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
20
Control Box Harness WPL 2172953 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
22
Hinge Cover WPL 2155938 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Shim Kit, Black Glass Panel WPL 2182010 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Bl WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
