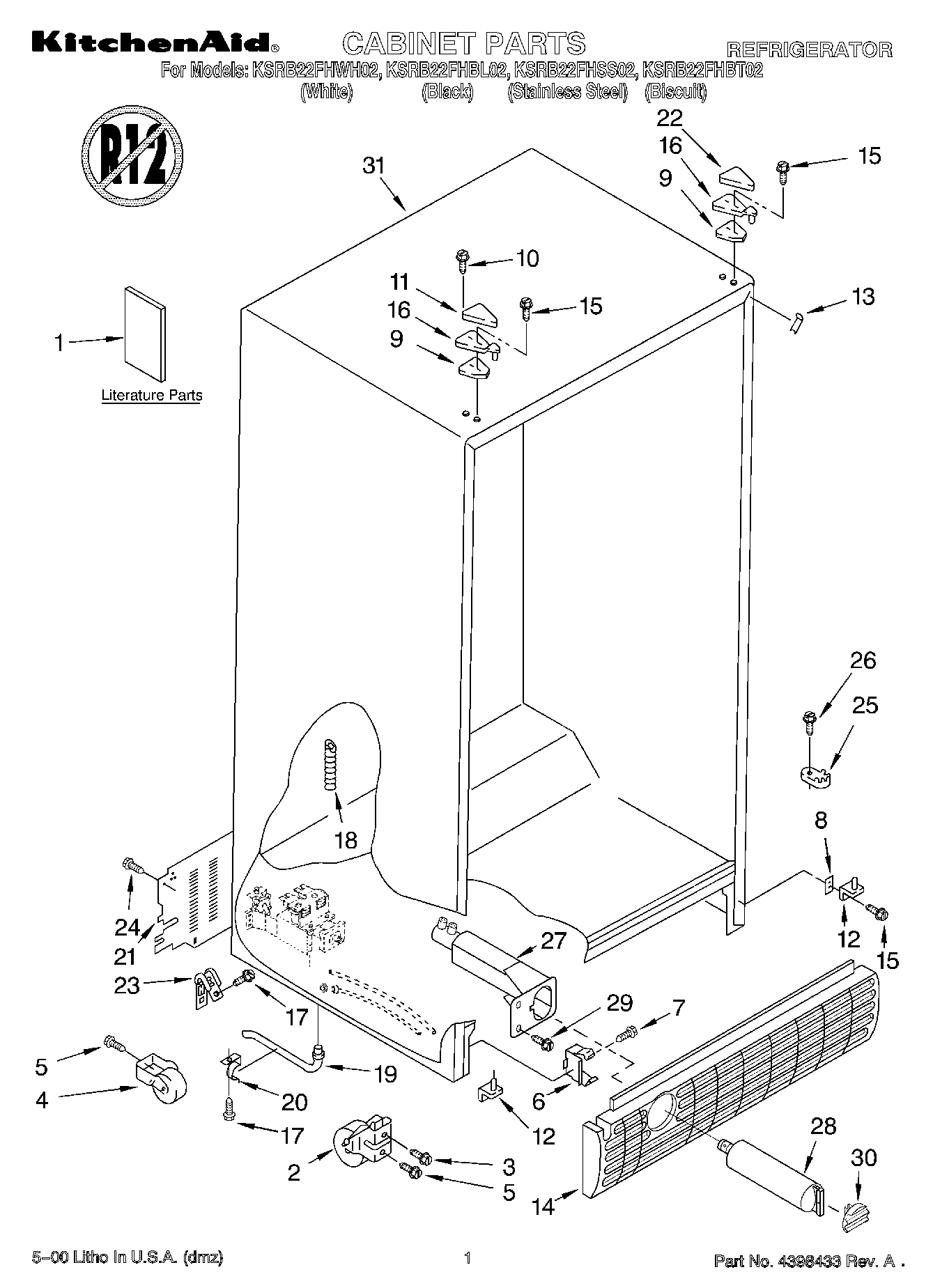

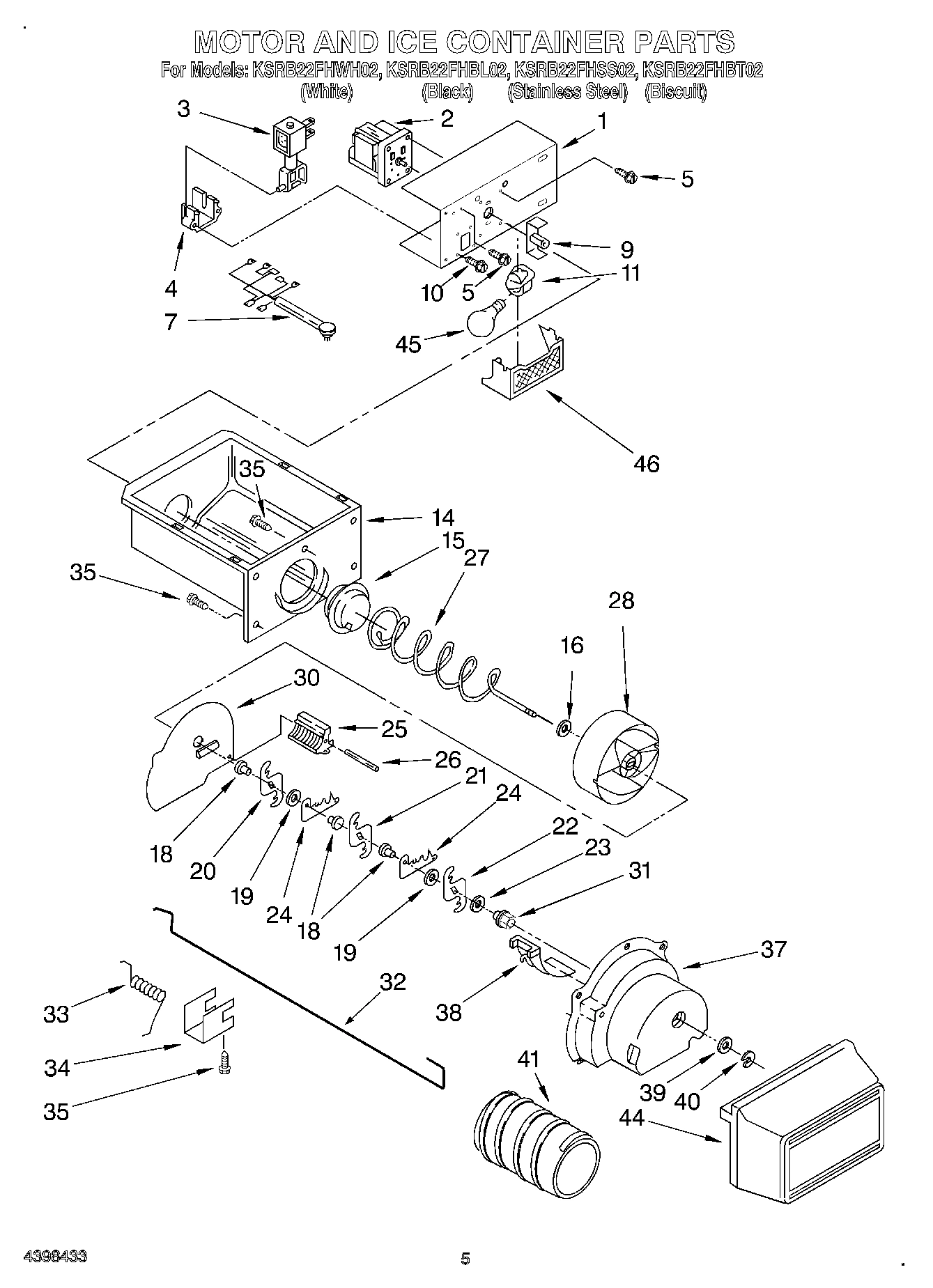

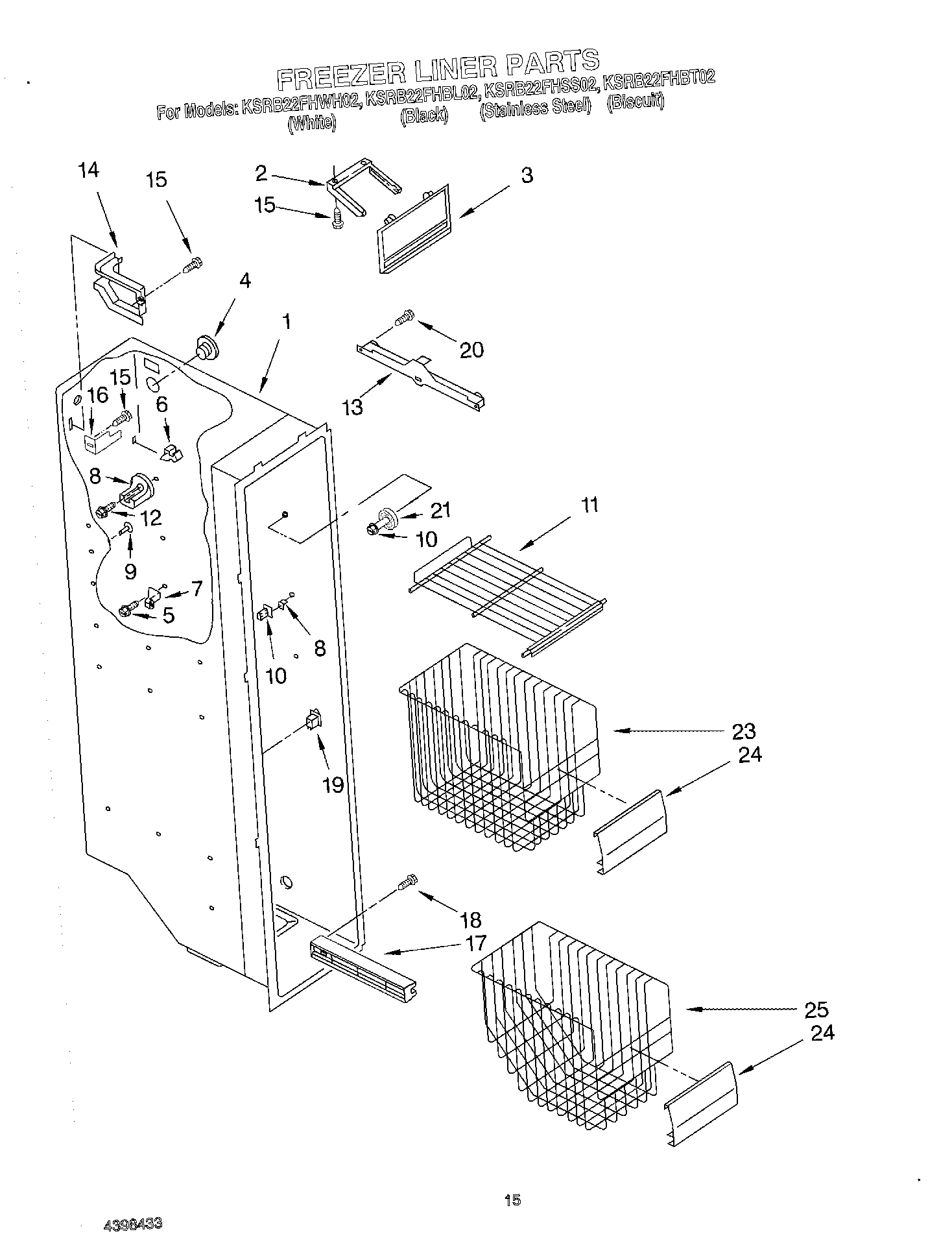

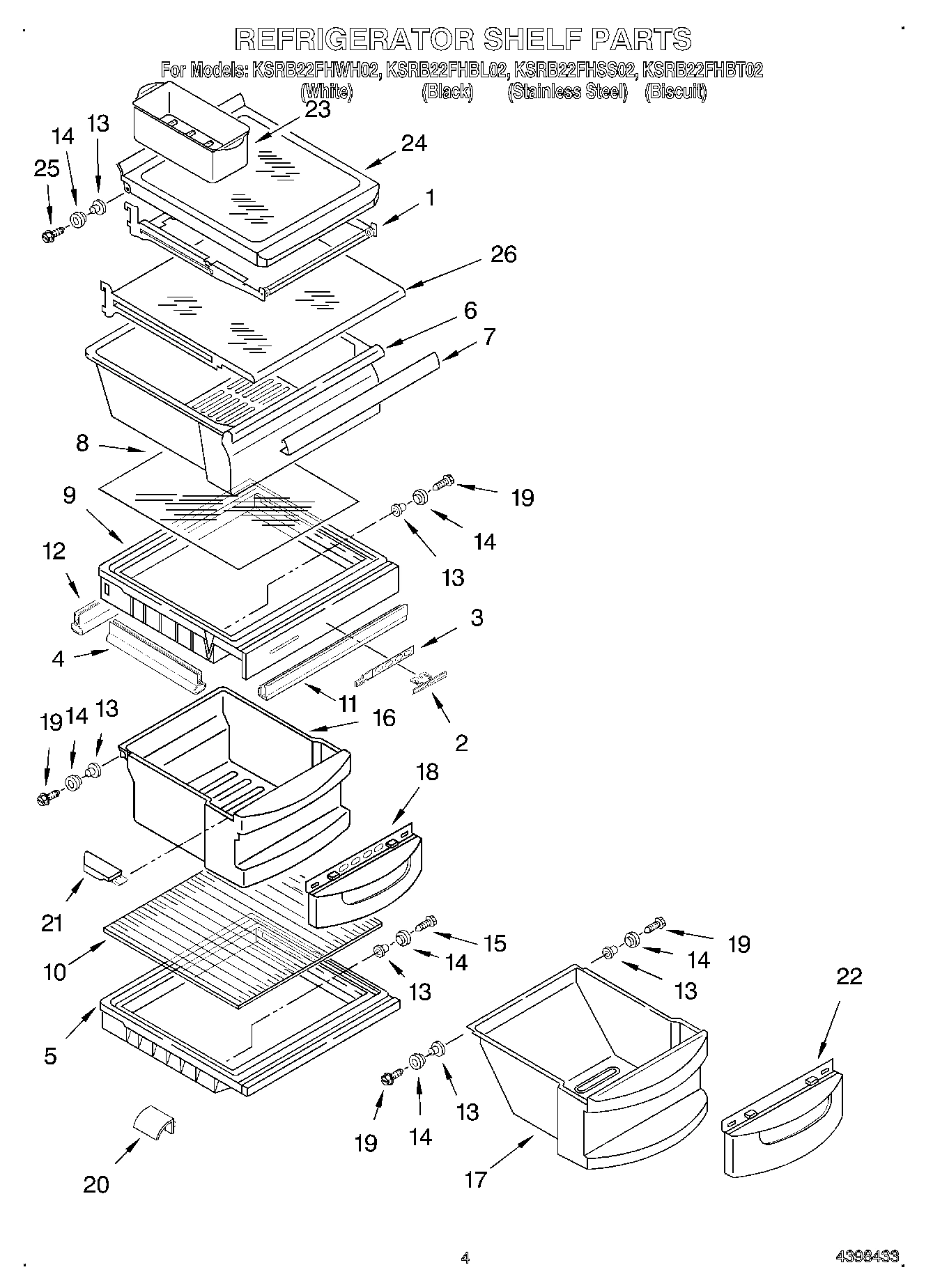

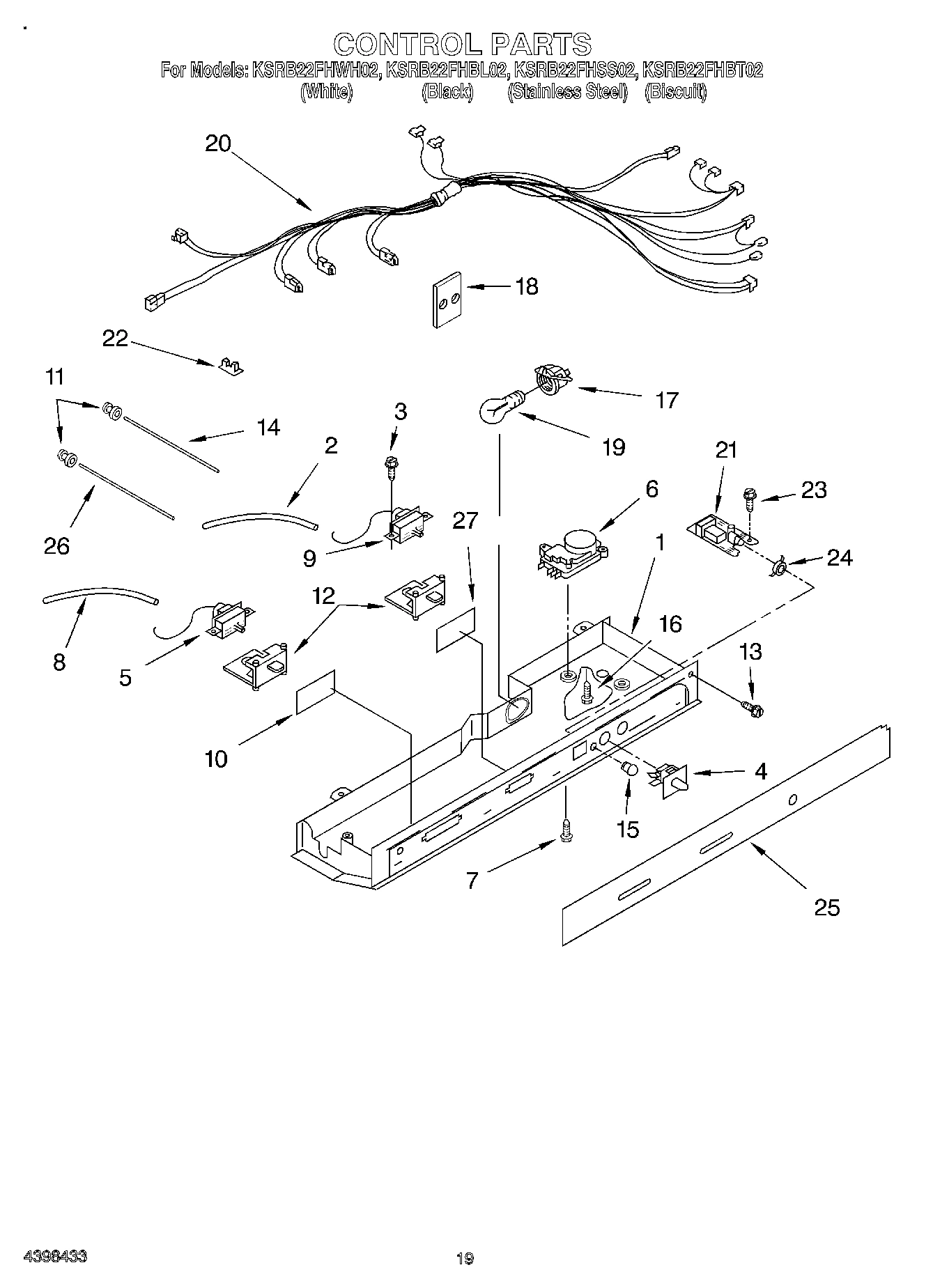

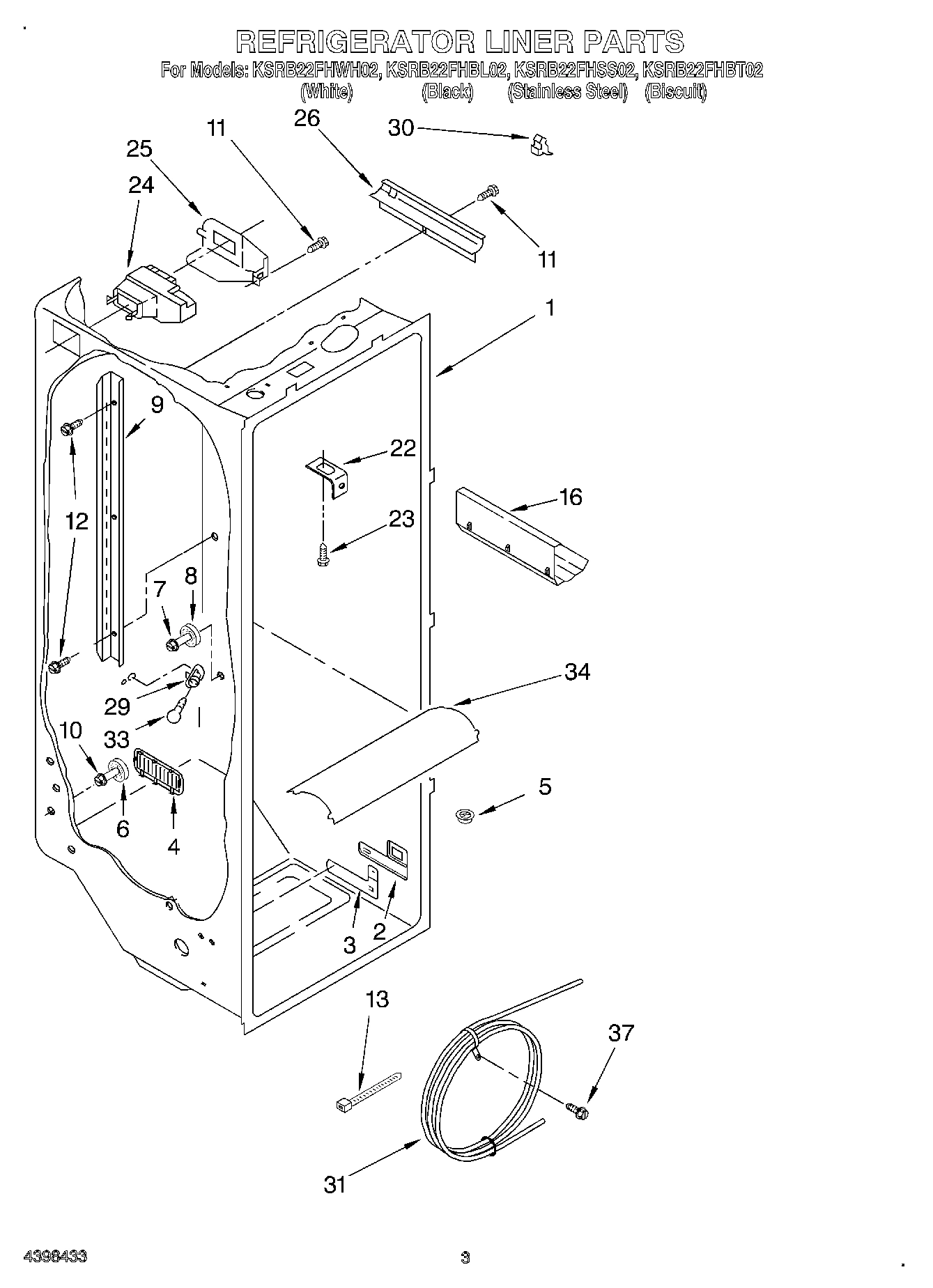

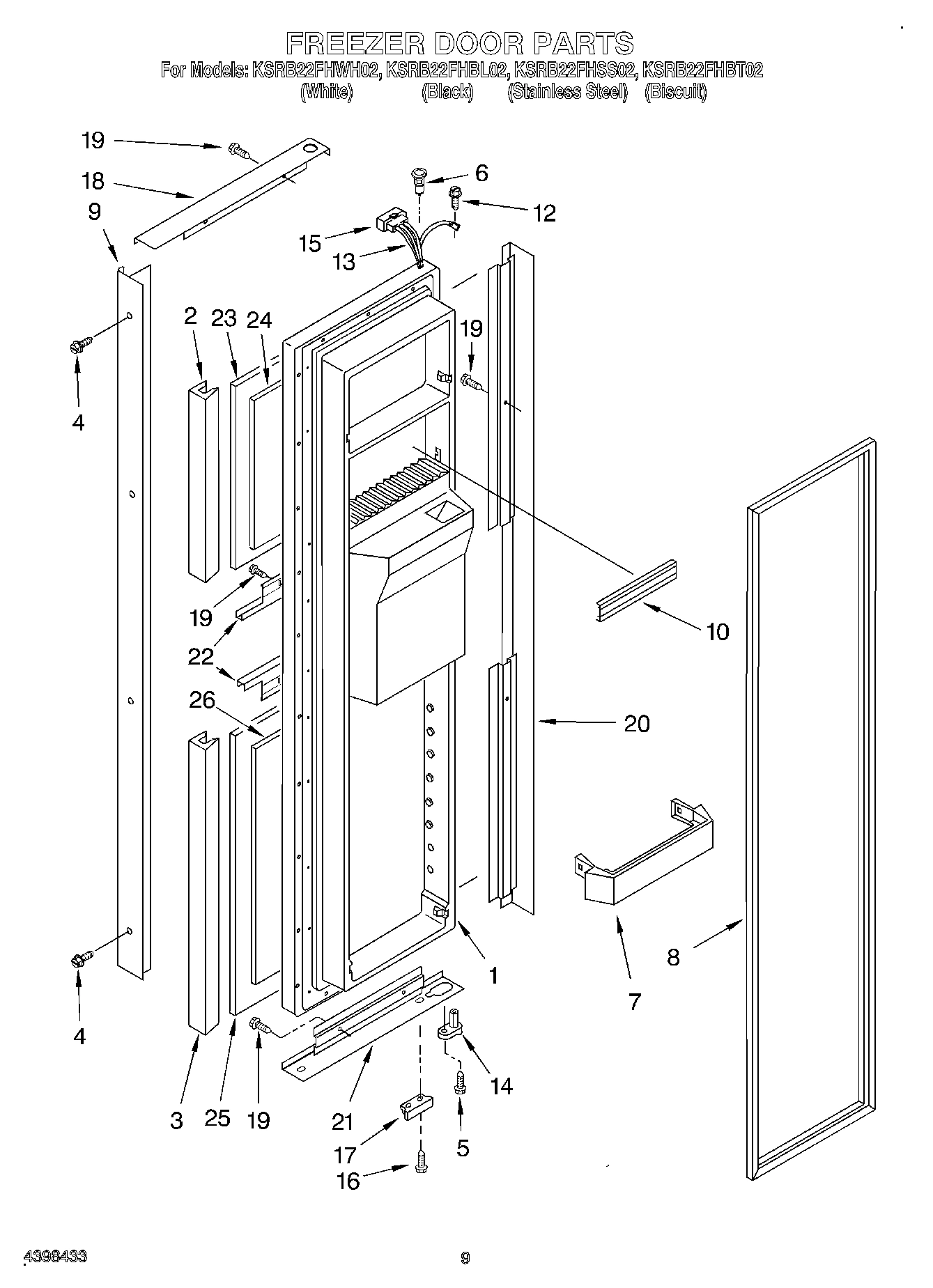

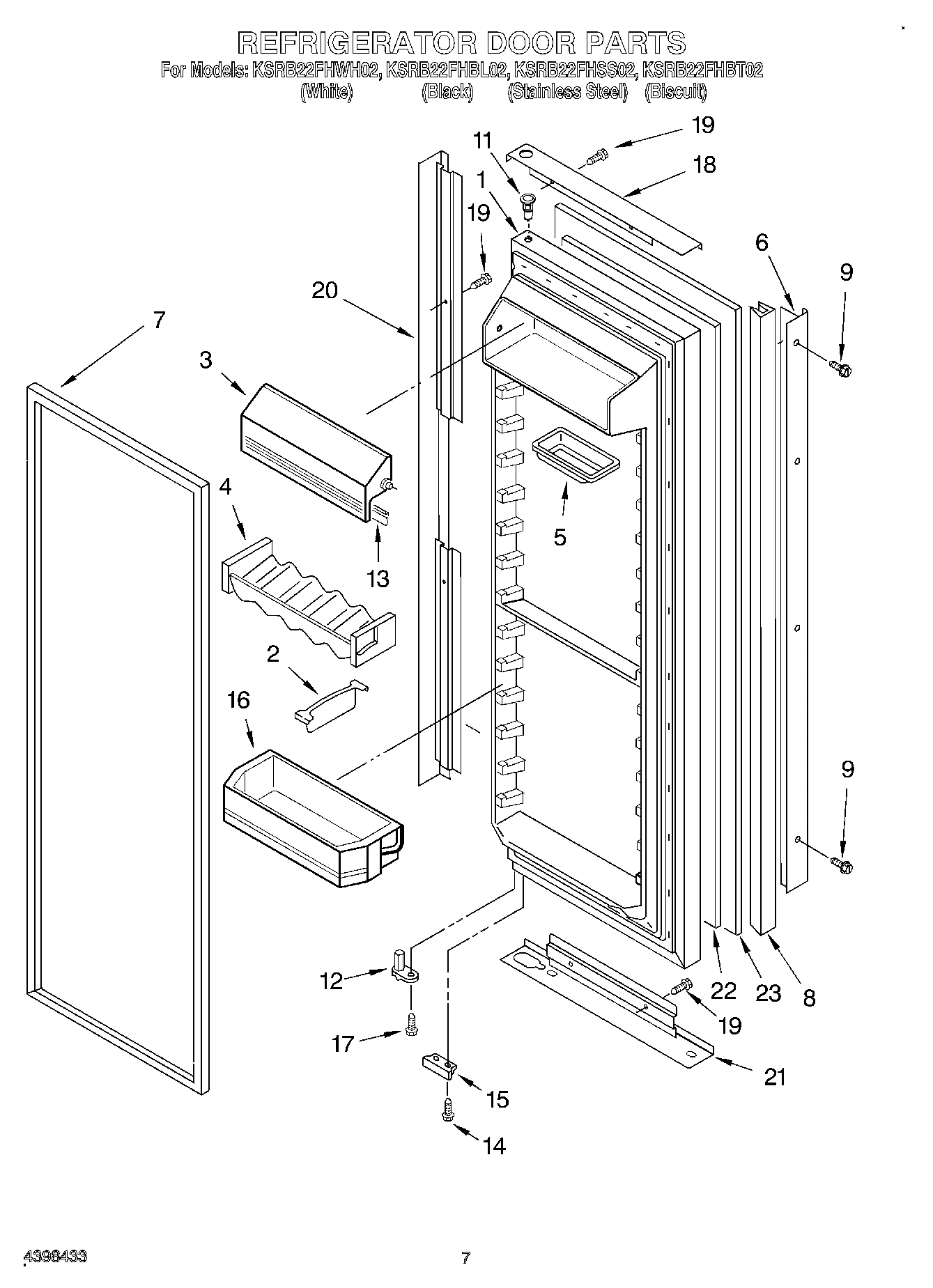

Model Whirlpool KSRB22FHWH02 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2203355B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2203355T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2203355W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI94196A9 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200279 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability

1

Energy Label WPL LIT2206422 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover Backorder WPL WP2161491 $78.23

5

WP2182770 Whirlpool Refrigerator Thermostat Backorder WPL WP2182770 $115.91

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Handle (Black) WPL 2203809B Contact Us For Availability

6

Handle (Biscuit) WPL 2203809T Contact Us For Availability

6

Handle (White) WPL 2203809W Contact Us For Availability

6

Handle (Stainless Steel) WPL 2203815S Contact Us For Availability

6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Glass, Cover WPL 2189526 Contact Us For Availability

8

Edging, Panel (Black) WPL 2204373B Contact Us For Availability

8

Edging, Panel (Biscuit) WPL 2204373T Contact Us For Availability

8

Edging, Panel (White) WPL 2204373W Contact Us For Availability

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Screw (Black) WPL 3400899 Contact Us For Availability

9

Screw (Stainless) WPL 3400897 Contact Us For Availability

9

Screw (White) WPL 3400898 Contact Us For Availability

9

Screw (Biscuit) WPL 8281135 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Shim, Hinge Top WPL 2196049 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $83.91

Glass, Cover WPL 2174148 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Shadow Almond WPL 2186850 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability

Hinge Cover (White) WPL 2171947W Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wire Harness WPL 2198272 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $55.37

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop WPL 2195950 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Shelf Bin (4) WPL 2171063 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203370B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203370T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203370W Contact Us For Availability

Trim, Door (Top) (Stainless Steel) WPL 2203371S Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203380B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203380T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203380W Contact Us For Availability

Trim, Door (Top) (Stainless Steel) WPL 2203381S Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186718T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $28.80

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Trim, Door (Hinge Side) (Black) WPL 2186687B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2186687T Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2186687W Contact Us For Availability

Trim, Door (Hinge Side) (Stainless Steel) WPL 2186764S Contact Us For Availability

Control Box Harness WPL 2200441 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Trim, Door (Bottom) (Bla WPL 2203364B Contact Us For Availability

WPL 2203364T WPL 2203364T Contact Us For Availability

WPL 2203364W WPL 2203364W Contact Us For Availability

WPL 2203365S WPL 2203365S Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

Trim, Door (Bottom) (Black) WPL 2203376B Contact Us For Availability

Trim, Door (Bottom) (Biscuit) WPL 2203376T Contact Us For Availability

Trim, Door (Bottom) (White) WPL 2203376W Contact Us For Availability

Trim, Door (Bottom) (Stainless Steel) WPL 2203377S Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI94197A3 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

WPL 2186701B WPL 2186701B Contact Us For Availability

WPL 2186701T WPL 2186701T Contact Us For Availability

WPL 2186701W WPL 2186701W Contact Us For Availability

WPL 2186777S WPL 2186777S Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

Filler, Panel WPL 2208276 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPL 2203283B WPL 2203283B Contact Us For Availability

WPL 2203283T WPL 2203283T Contact Us For Availability

WPL 2203283W WPL 2203283W Contact Us For Availability

WPL 2203289S WPL 2203289S Contact Us For Availability

Panel (Black) WPL 2203287B Contact Us For Availability

Panel (Biscuit) WPL 2203287T Contact Us For Availability

Panel (White) WPL 2203287W Contact Us For Availability

Panel WPL 2203293S Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186713B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186713T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186713W Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPL 2208274 WPL 2208274 Contact Us For Availability

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

Retainer, Light Lens WPL 2200097 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPL 2203285B WPL 2203285B Contact Us For Availability

WPL 2203285T WPL 2203285T Contact Us For Availability

WPL 2203285W WPL 2203285W Contact Us For Availability

WPL 2203291S WPL 2203291S Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WPL 2208275 WPL 2208275 Contact Us For Availability

Shelf, Snack Bin WPL 2208298 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Cabinet (Not A Serviceable Part) WPL ARI94194A3 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
