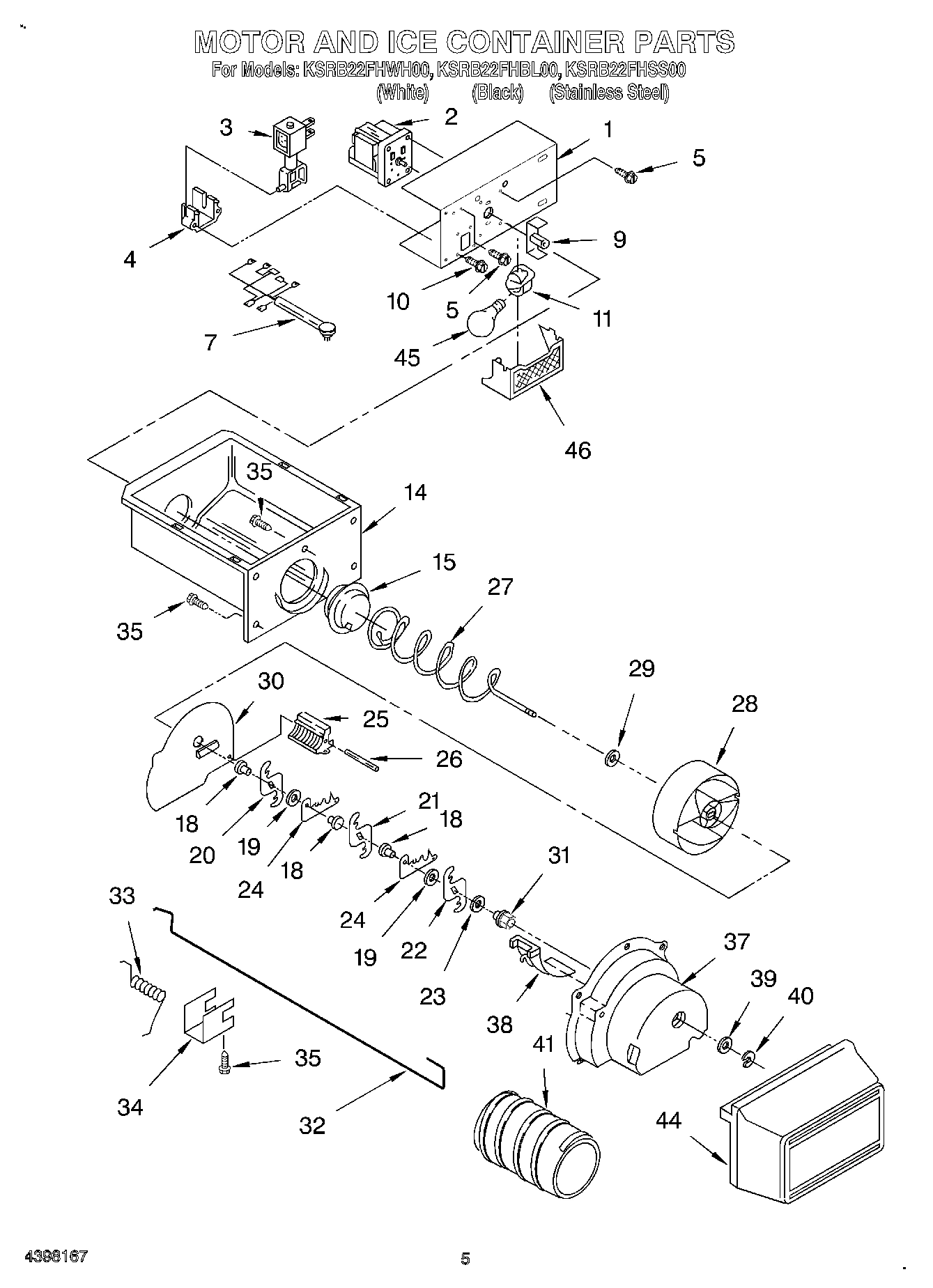

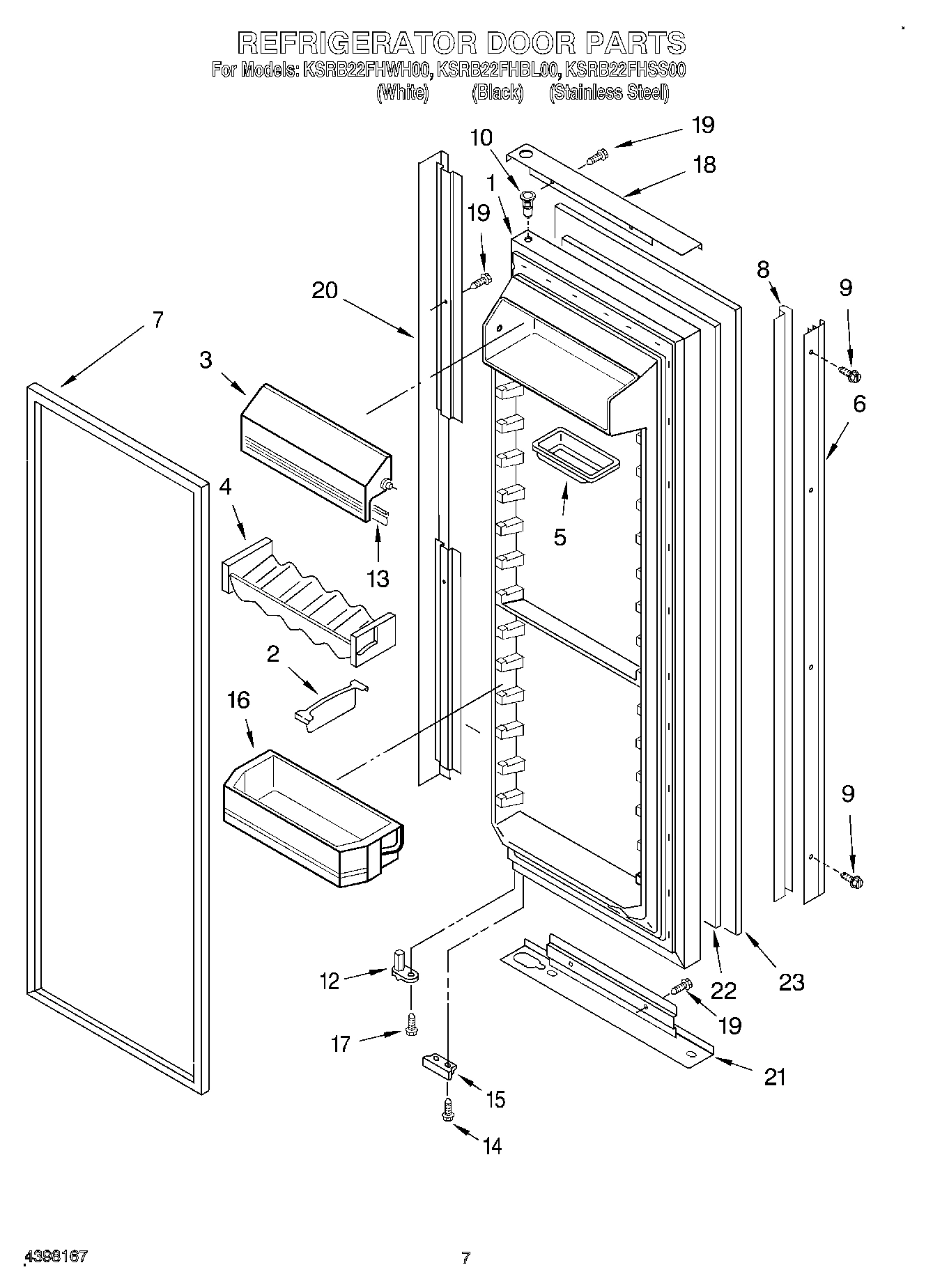

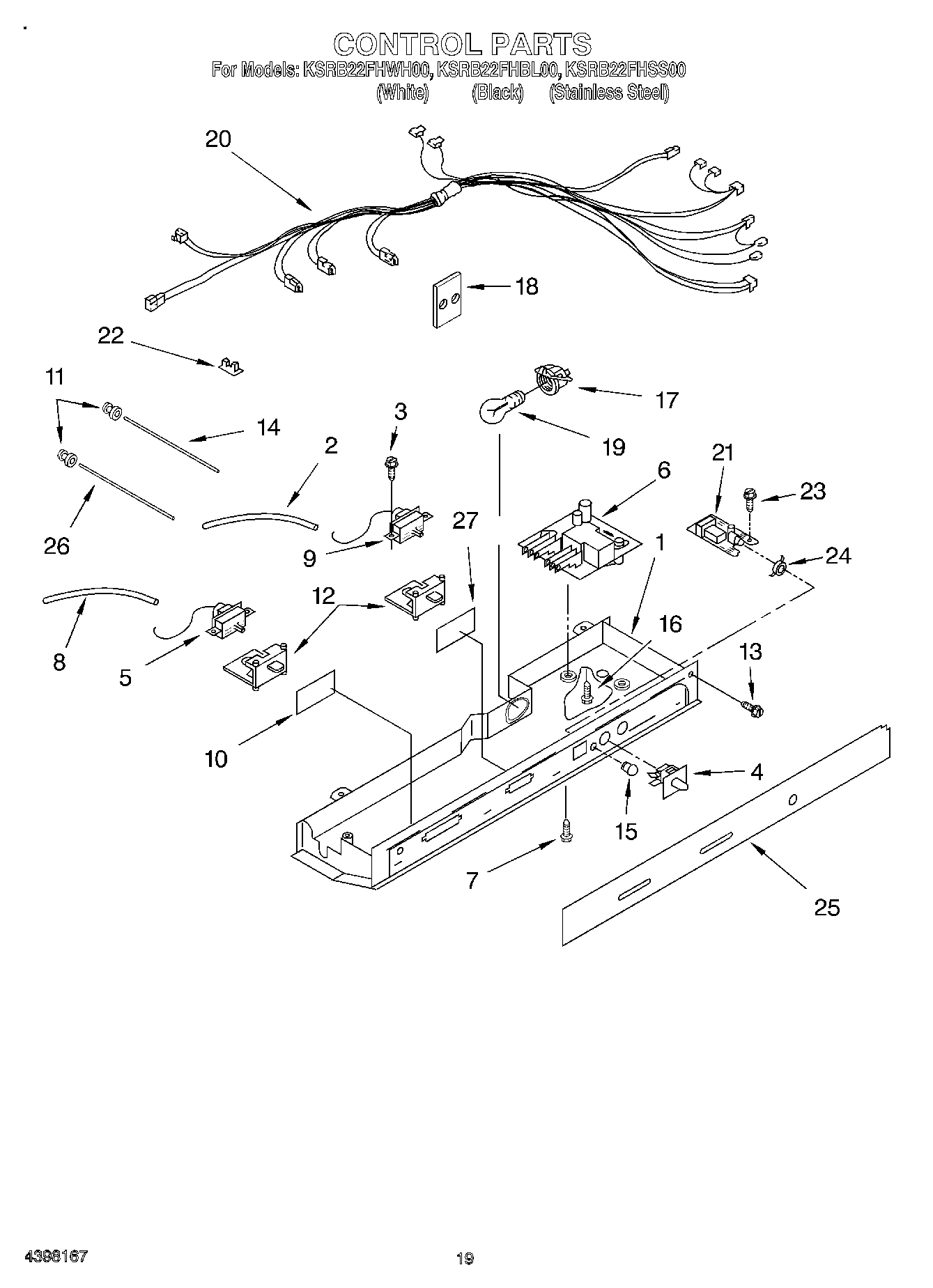

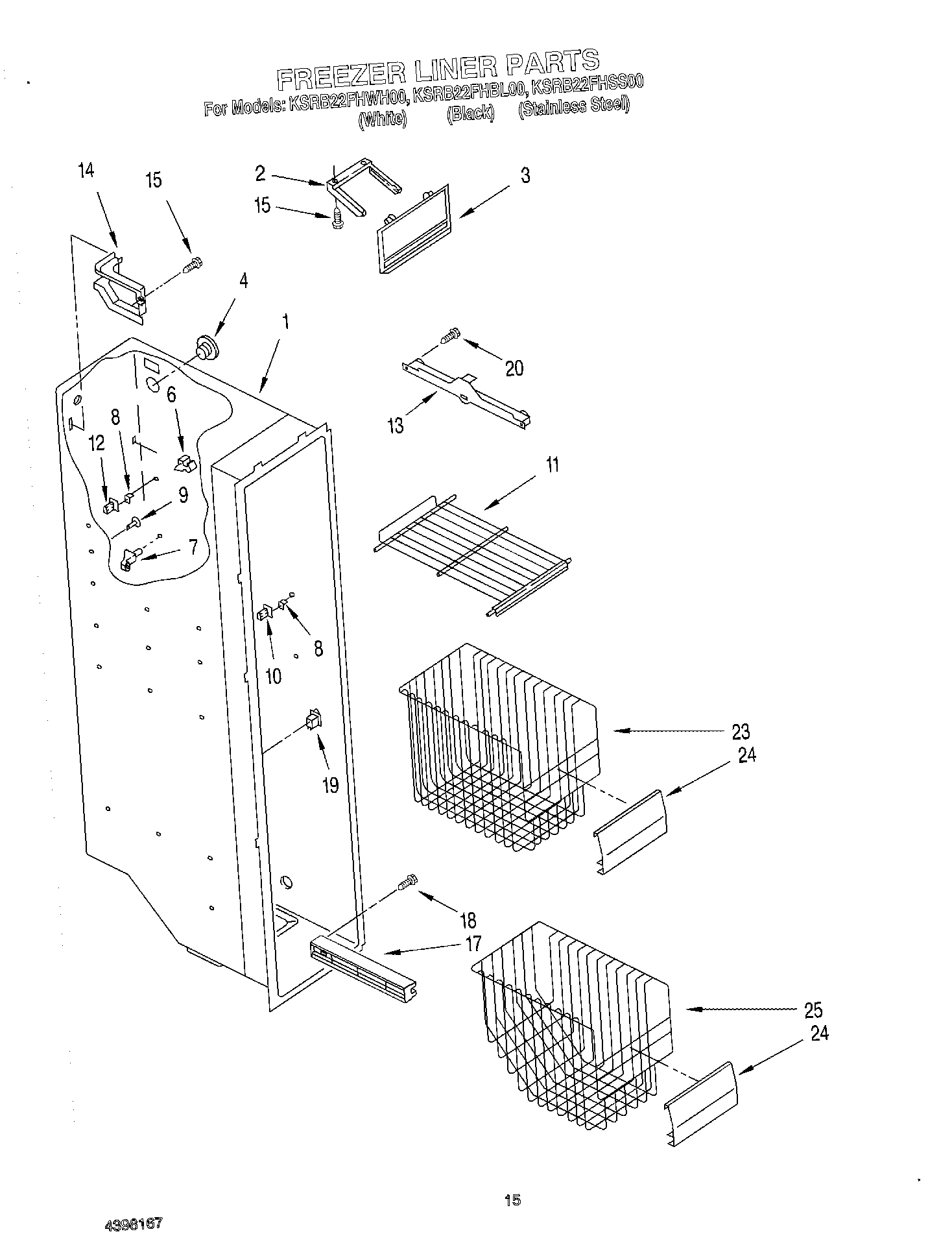

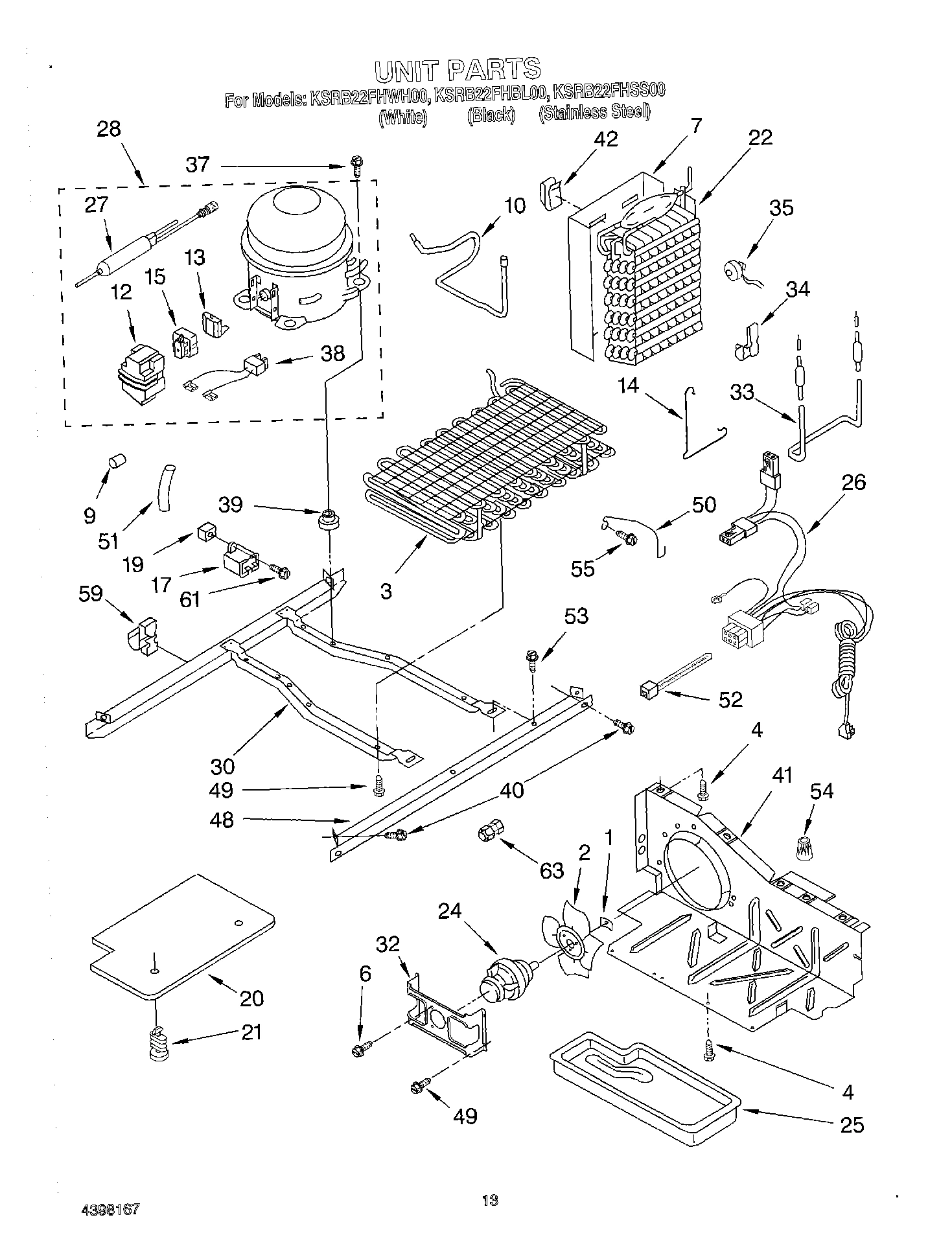

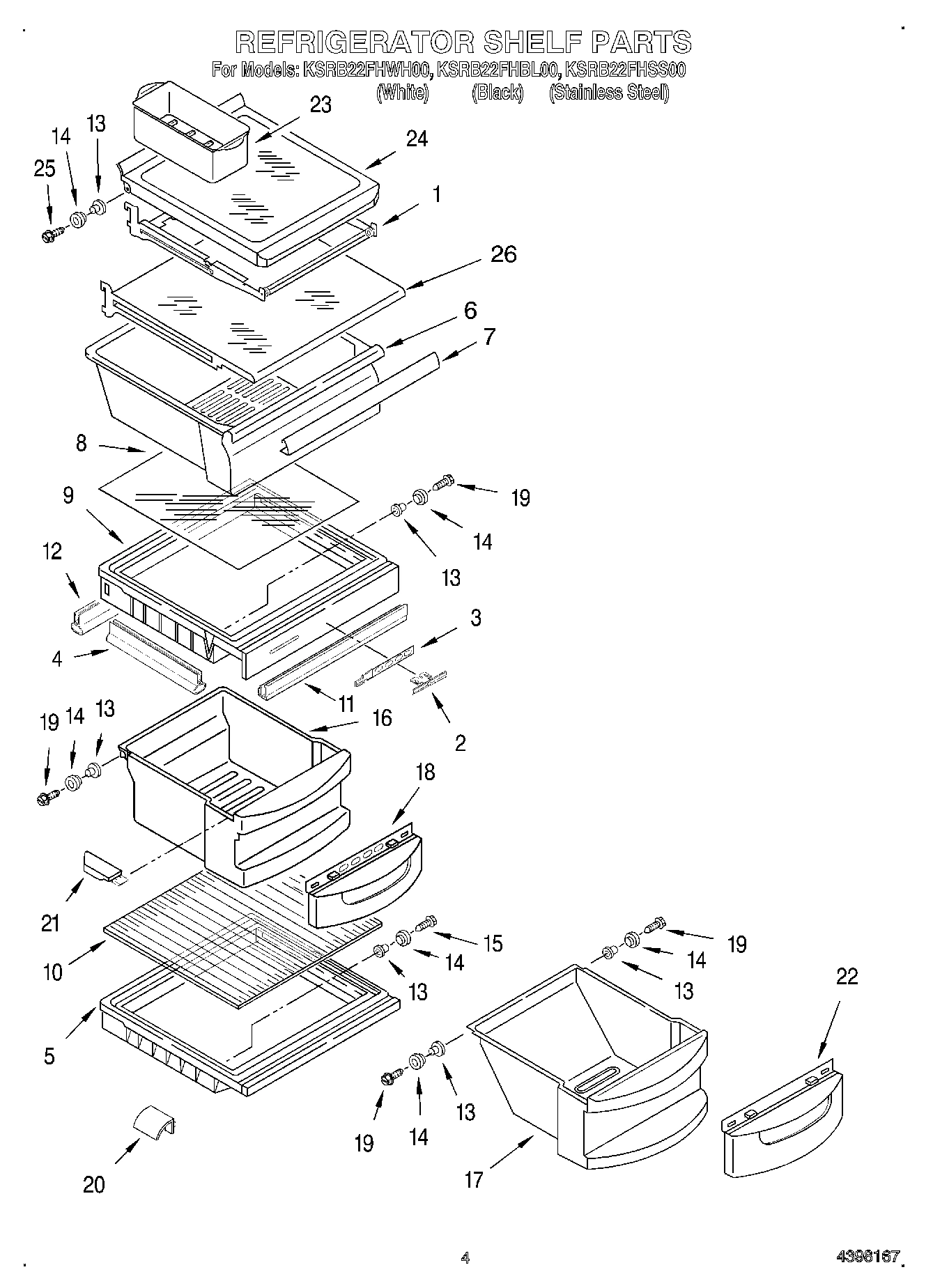

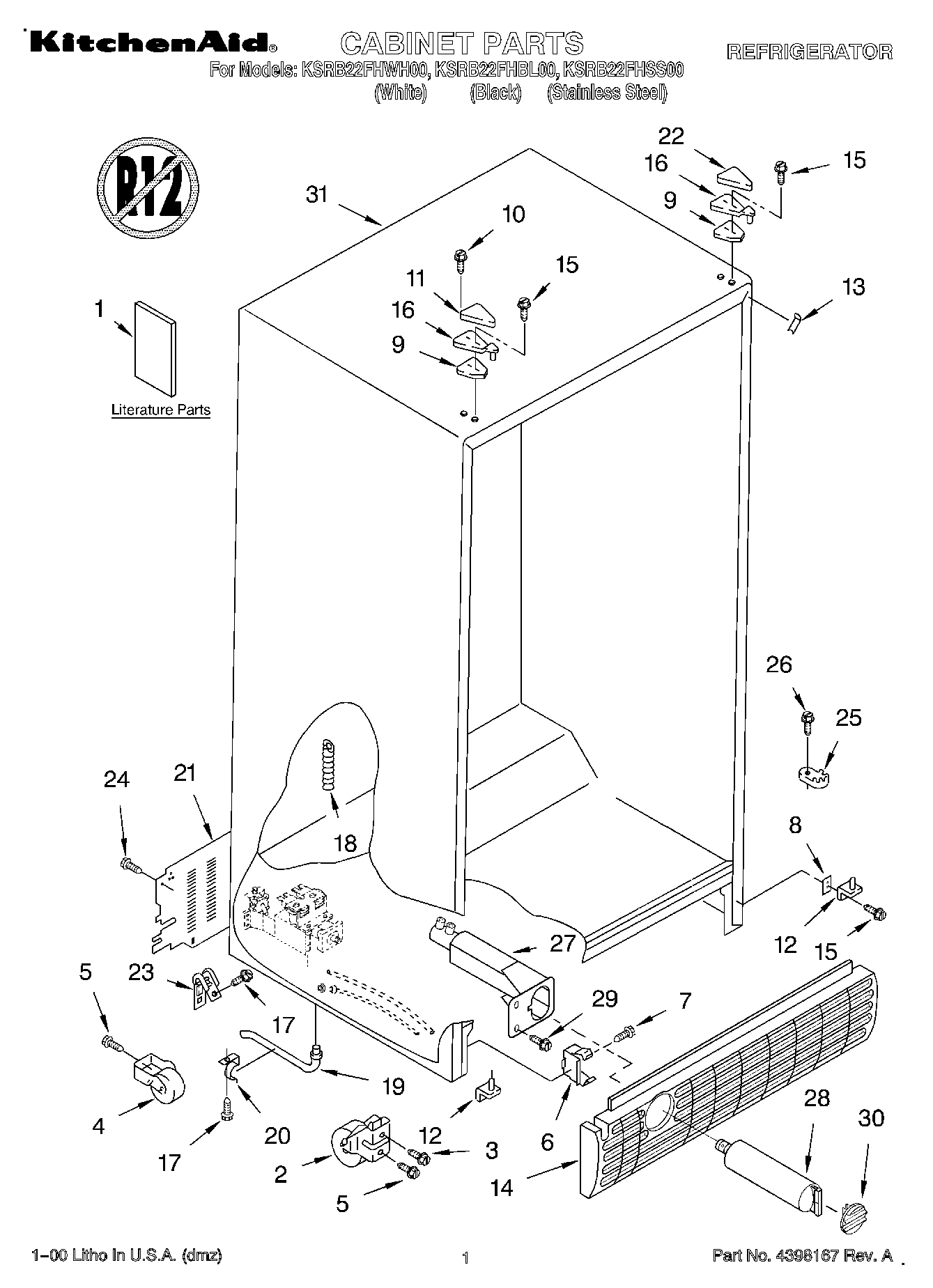

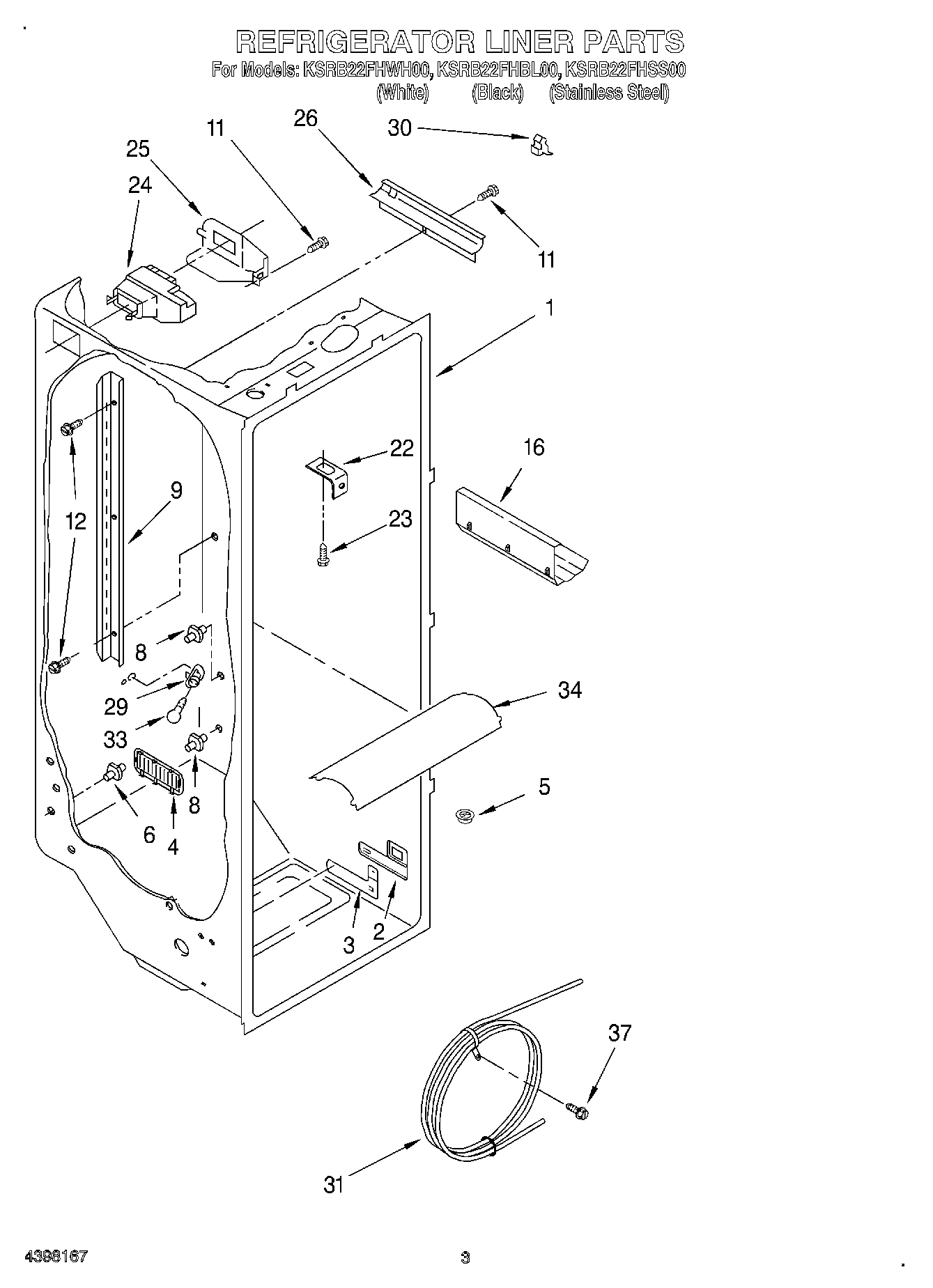

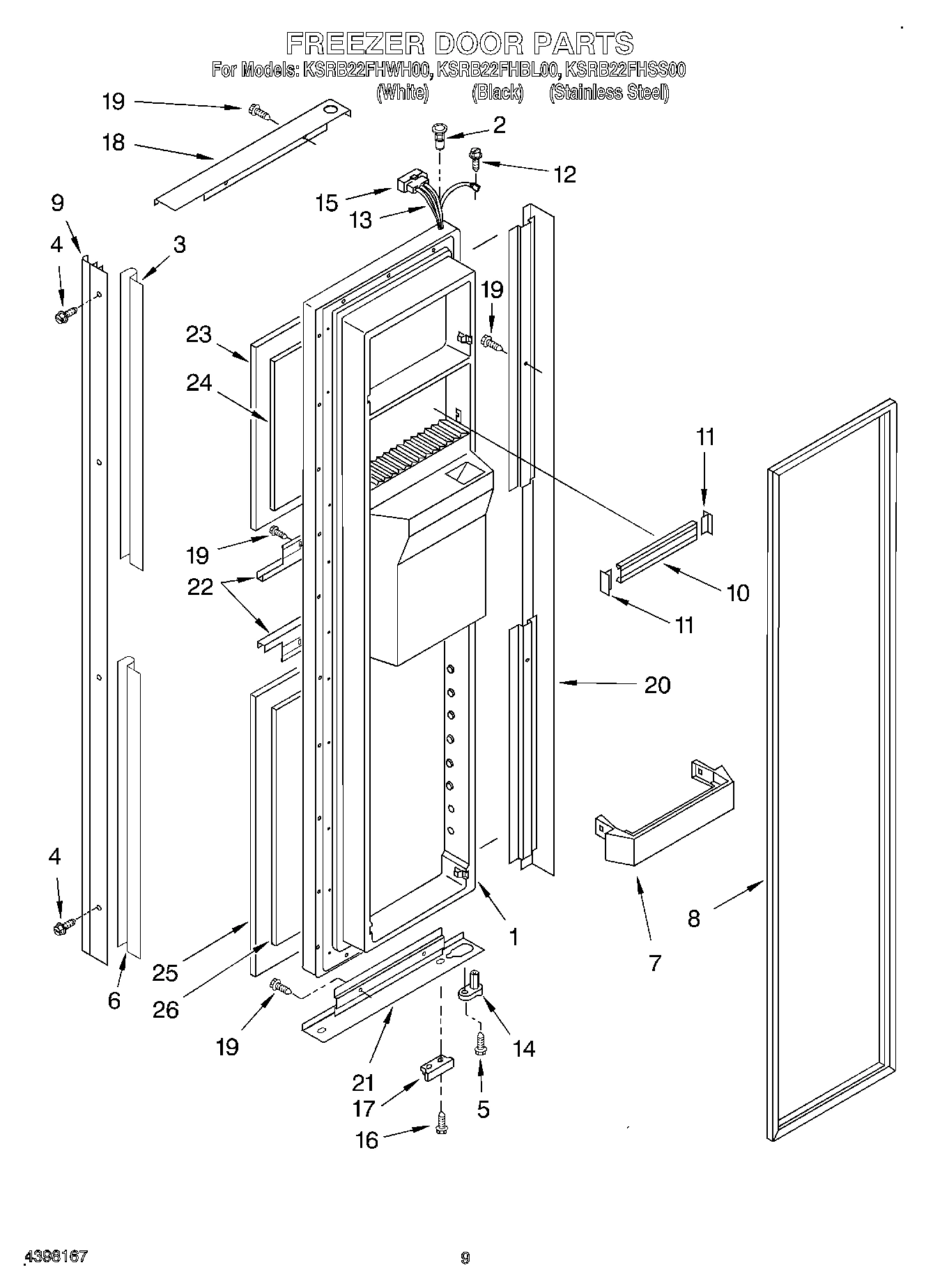

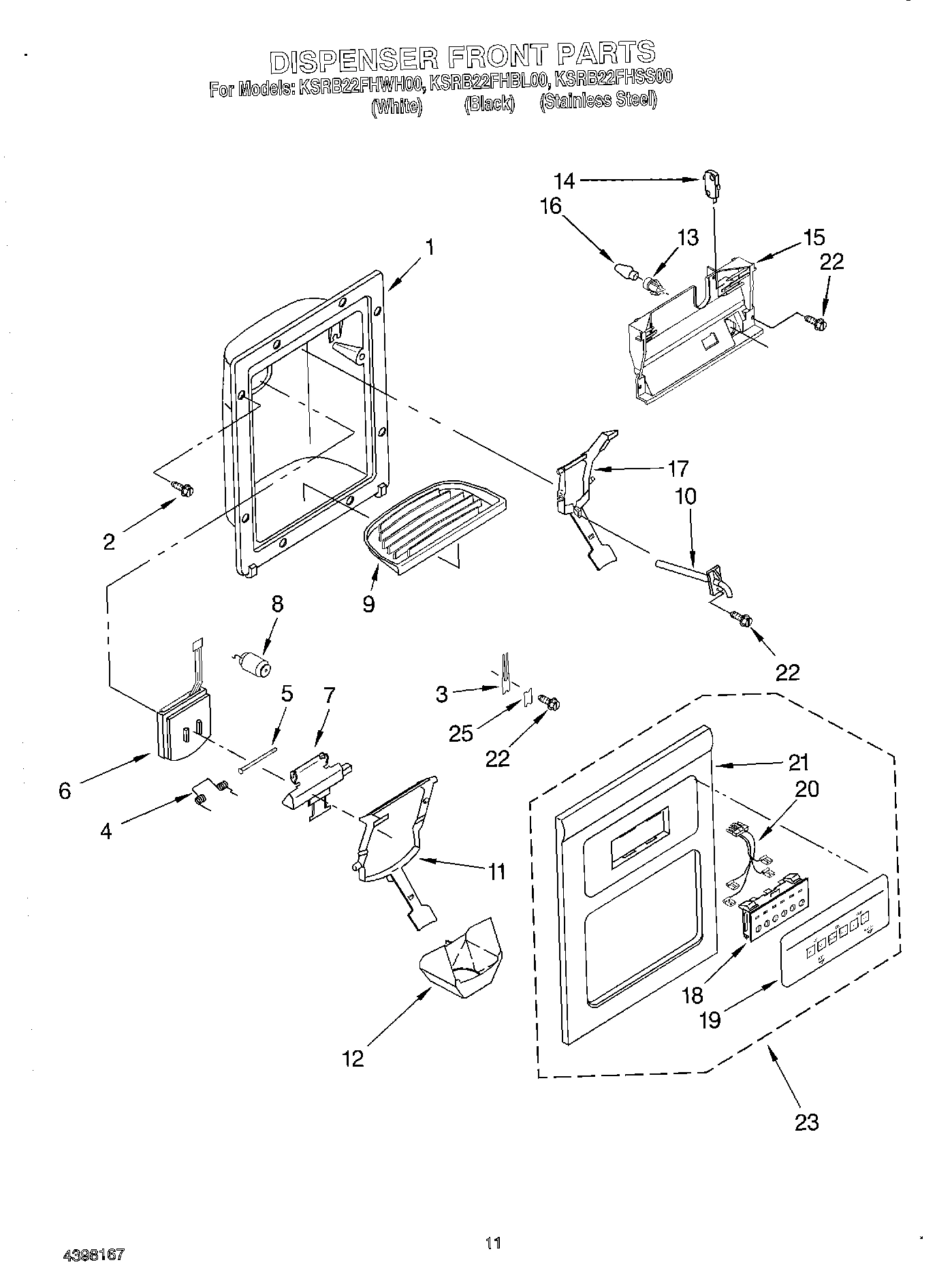

Model Whirlpool KSRB22FHSS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI94146A9 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability

1

LITERATURE PARTS (Service and Wiring Sheet) WPL LIT2200278 Contact Us For Availability

1

Energy Label WPL LIT2204298 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI94147A1 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI94149A3 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Screw (Black) WPL 3400899 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $82.14

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

4388539 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388539 $9.30

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Door, Ice WPL 2180205 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

Glass, Cover WPL 2189526 Contact Us For Availability

8

Delay Mechanism WPL 2180223 Contact Us For Availability

8

Support, Stud (2) WPL 946355 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability

9

Shim, Hinge Top WPL 2196049 Contact Us For Availability

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $88.11

Glass, Cover WPL 2174148 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Stud, Front WPL 946356 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (White) WPL 2171947W Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Gasket, (Rear) WPL 2174274 Contact Us For Availability

Stud, Rear WPL 1106982 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $51.22

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Relay WPL 2183454 Contact Us For Availability

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

Capacitor (Production) WPL 2169137 Contact Us For Availability

Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

Window, Crisper WPL 2174076 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Screw Grommet WPL 509812 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2186718B Contact Us For Availability

Overlay, Front Cover (White) WPL 2186718W Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $30.25

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI94148A9 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Front Cover Assembly (Includes Items 18, 19, WPL 2186713B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186713W Contact Us For Availability

Basket, Upper WPL 2181761 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

NLA:SCREW Backorder WPL WPW10141645 $3.70

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

Front, Basket WPL 2171768 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Screw WPL 489439 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Basket, Lower WPL 2181762 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf, Snack Bin WPL 2208298 Contact Us For Availability

Harness, Intermediate WPL 2194749 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE ( WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Cabinet (Not A Serviceable Part) WPL ARI94145A3 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

Screw WPL 488280 Contact Us For Availability

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
