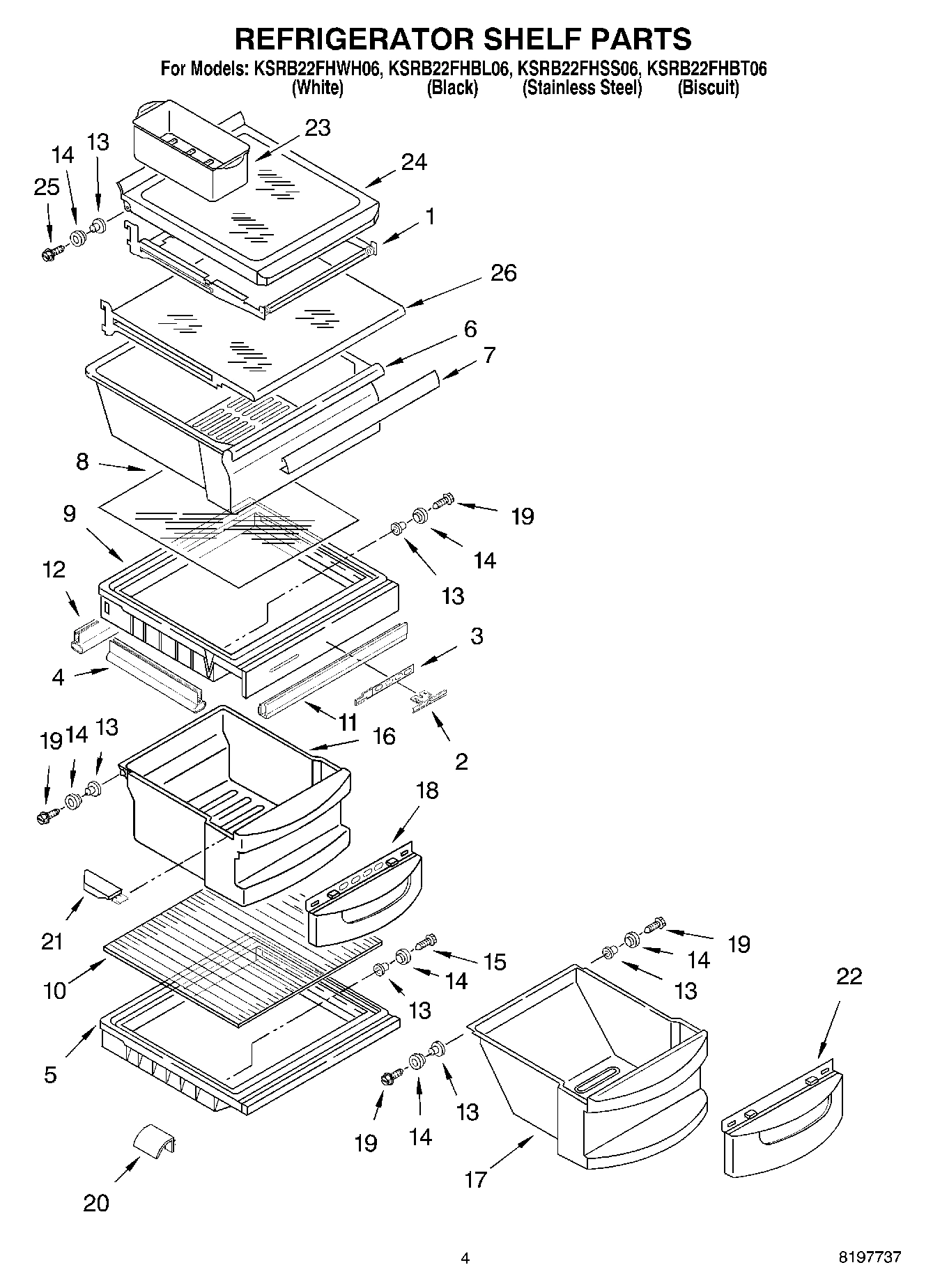

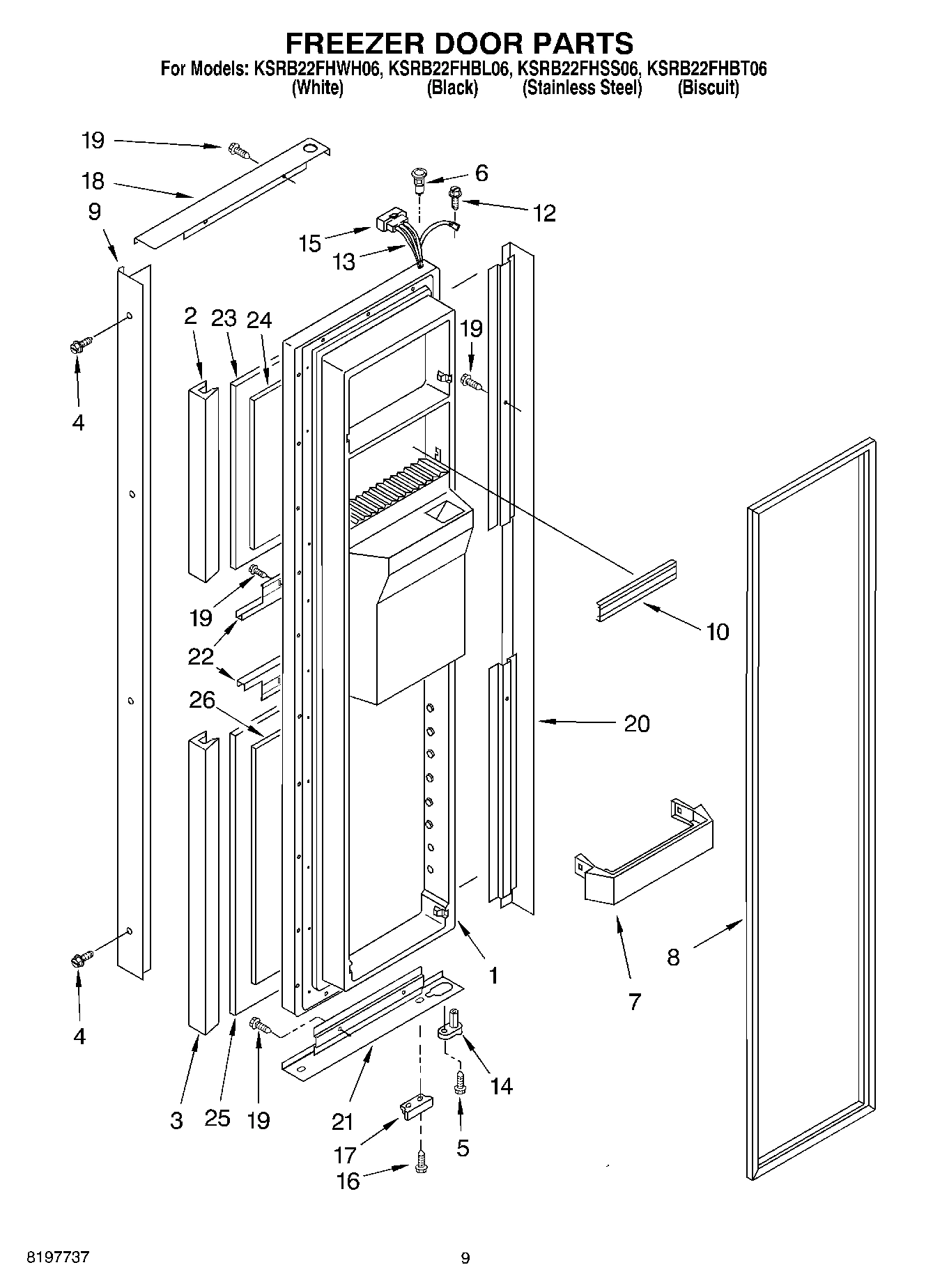

Model Whirlpool KSRB22FHBL06 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211868 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216975 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Bracket, Motor WPL 2183728 Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2203358B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Stainless WPL 2203358S Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2203358T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2203358W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $153.80

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Gasket WPL 2209604 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $121.72

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Adaptive Defrost Control WPL 2162046 Contact Us For Availability

6

Handle (Black) WPL 2203809B Contact Us For Availability

6

Handle (Biscuit) WPL 2203809T Contact Us For Availability

6

Handle (White) WPL 2203809W Contact Us For Availability

6

Handle (Stainless Steel) WPL 2203815S Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Shim WPL 2209697 Contact Us For Availability

8

Edging, Panel (Black) WPL 2204373B Contact Us For Availability

8

Edging, Panel (Biscuit) WPL 2204373T Contact Us For Availability

8

Edging, Panel (White) WPL 2204373W Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $153.97

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Screw (Black) WPL 3400899 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Shim, Hinge Top WPL 2196049 Contact Us For Availability

9

Screw (Stainless) WPL 3400897 Contact Us For Availability

9

Screw (White) WPL 3400898 Contact Us For Availability

9

Screw (Biscuit) WPL 8281135 Contact Us For Availability

9

Gasket WPL 2209605 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2171947T Contact Us For Availability

Hinge Cover (White) WPL 2171947W Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

NLA:SCREW Backorder WPL WPW10141645 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Bracket, Door Stop WPL 2195950 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Start Device, Combination (Start Relay and Ov WPL 2212193 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $133.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door (Top) (Black) WPL 2203380B Contact Us For Availability

Trim, Door (Top) (Biscuit) WPL 2203380T Contact Us For Availability

Trim, Door (Top) (White) WPL 2203380W Contact Us For Availability

Trim, Door (Top) (Stainless Steel) WPL 2203381S Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Screw Grommet WPL 509812 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2206516 Contact Us For Availability

Trim, Door (Hinge Side) (Black) WPL 2186687B Contact Us For Availability

Trim, Door (Hinge Side) (Biscuit) WPL 2186687T Contact Us For Availability

Trim, Door (Hinge Side) (White) WPL 2186687W Contact Us For Availability

Trim, Door (Hinge Side) (Stainless Steel) WPL 2186764S Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $68.58

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

Trim, Door (Bottom) (Black) WPL 2203376B Contact Us For Availability

Trim, Door (Bottom) (Biscuit) WPL 2203376T Contact Us For Availability

Trim, Door (Bottom) (White) WPL 2203376W Contact Us For Availability

Trim, Door (Bottom) (Stainless Steel) WPL 2203377S Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Filler, Pane WPL 2208276 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPL 2203287B WPL 2203287B Contact Us For Availability

WPL 2203287T WPL 2203287T Contact Us For Availability

WPL 2203287W WPL 2203287W Contact Us For Availability

WPL 2203293S WPL 2203293S Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $162.82

Retainer, Light Lens WPL 2200097 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

Harness, Unit WPL 2216406 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Cabinet (Not A Serviceable Part) WPL ARI94104A1 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Rail, Unit Mounting WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
