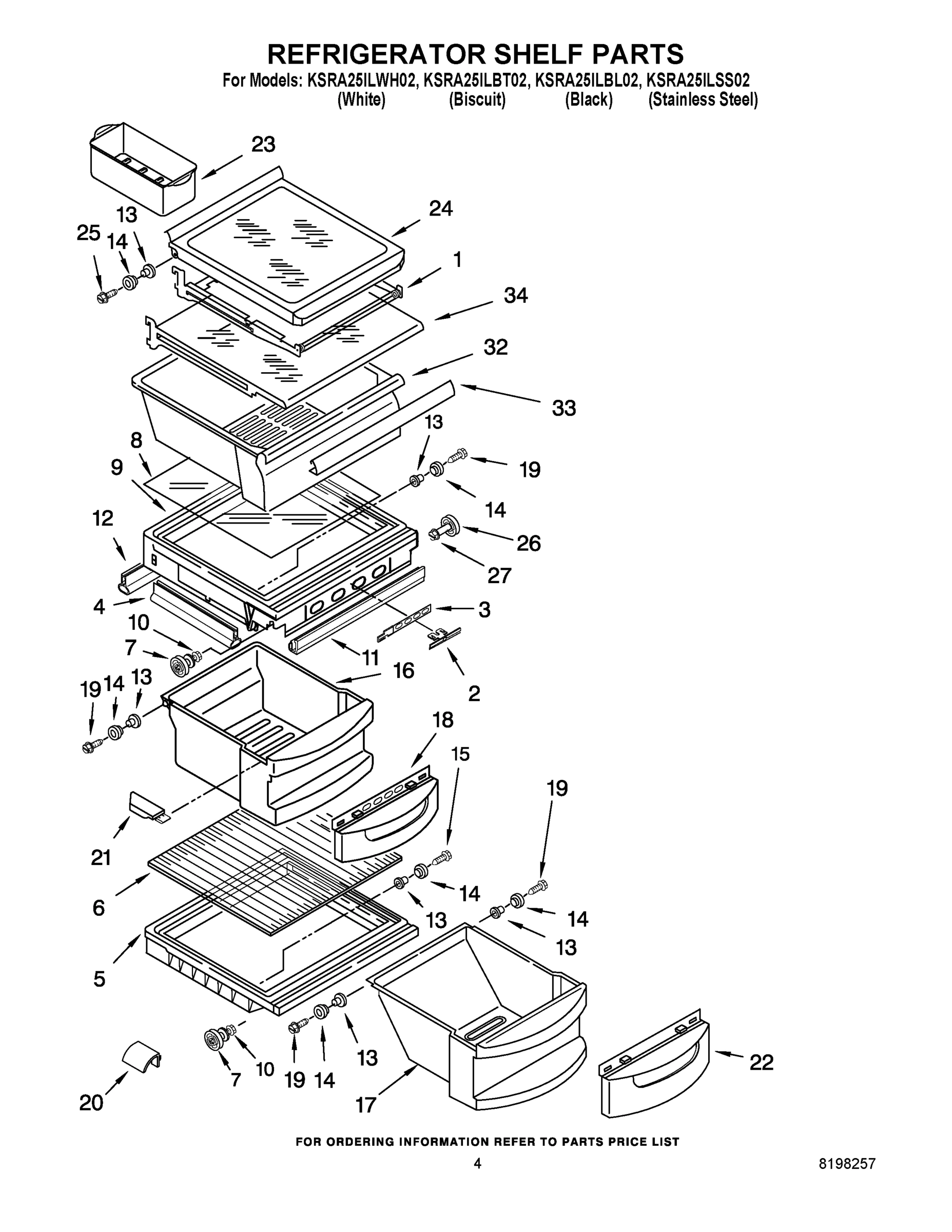

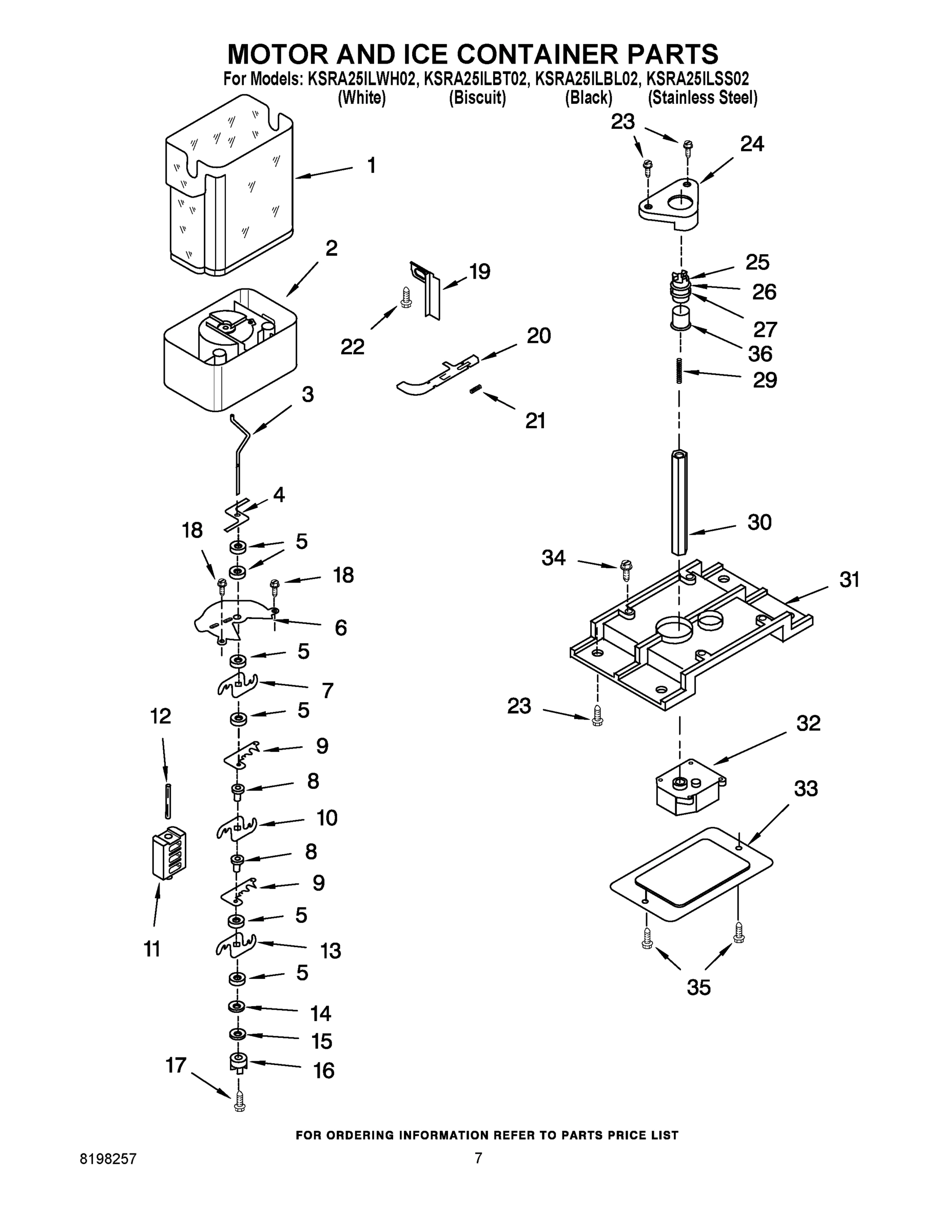

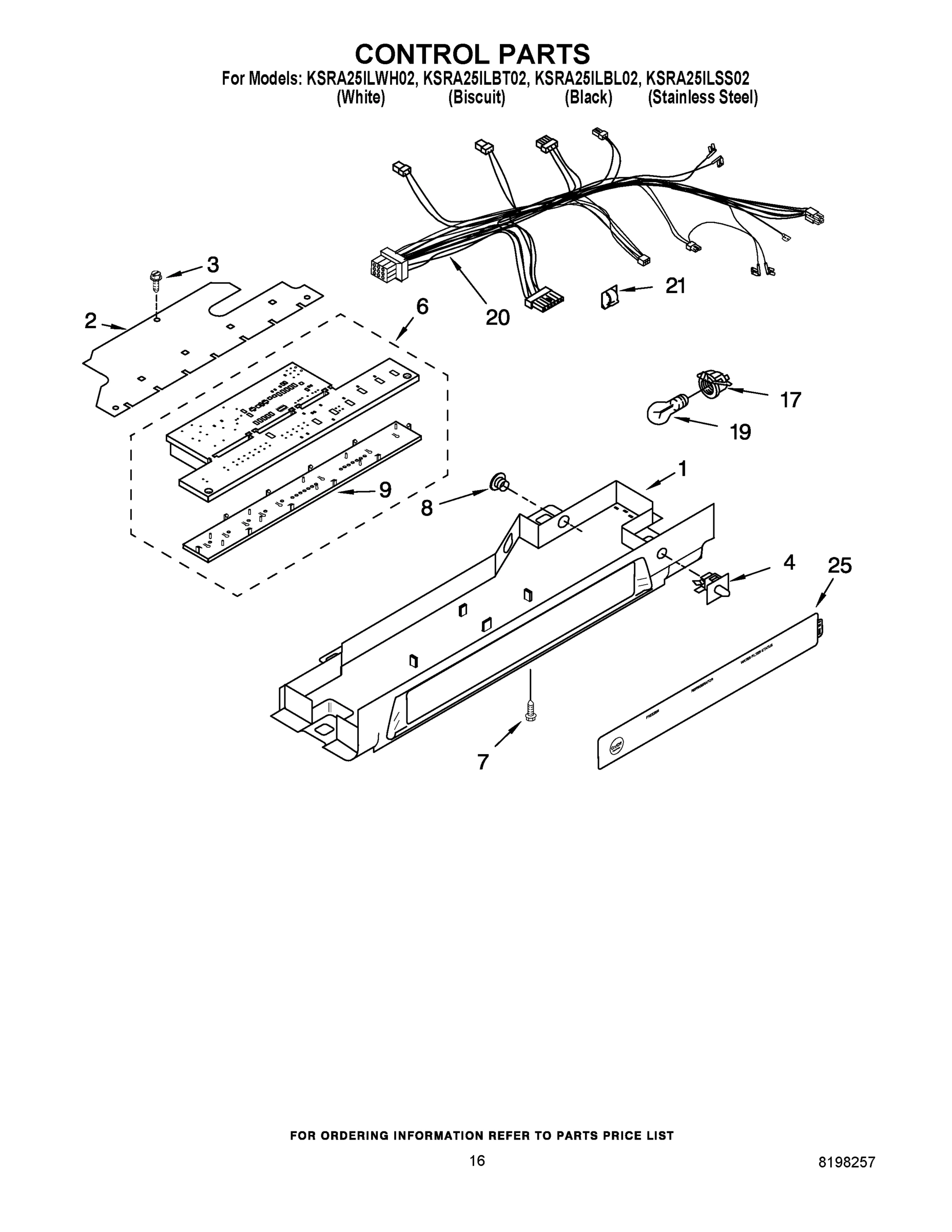

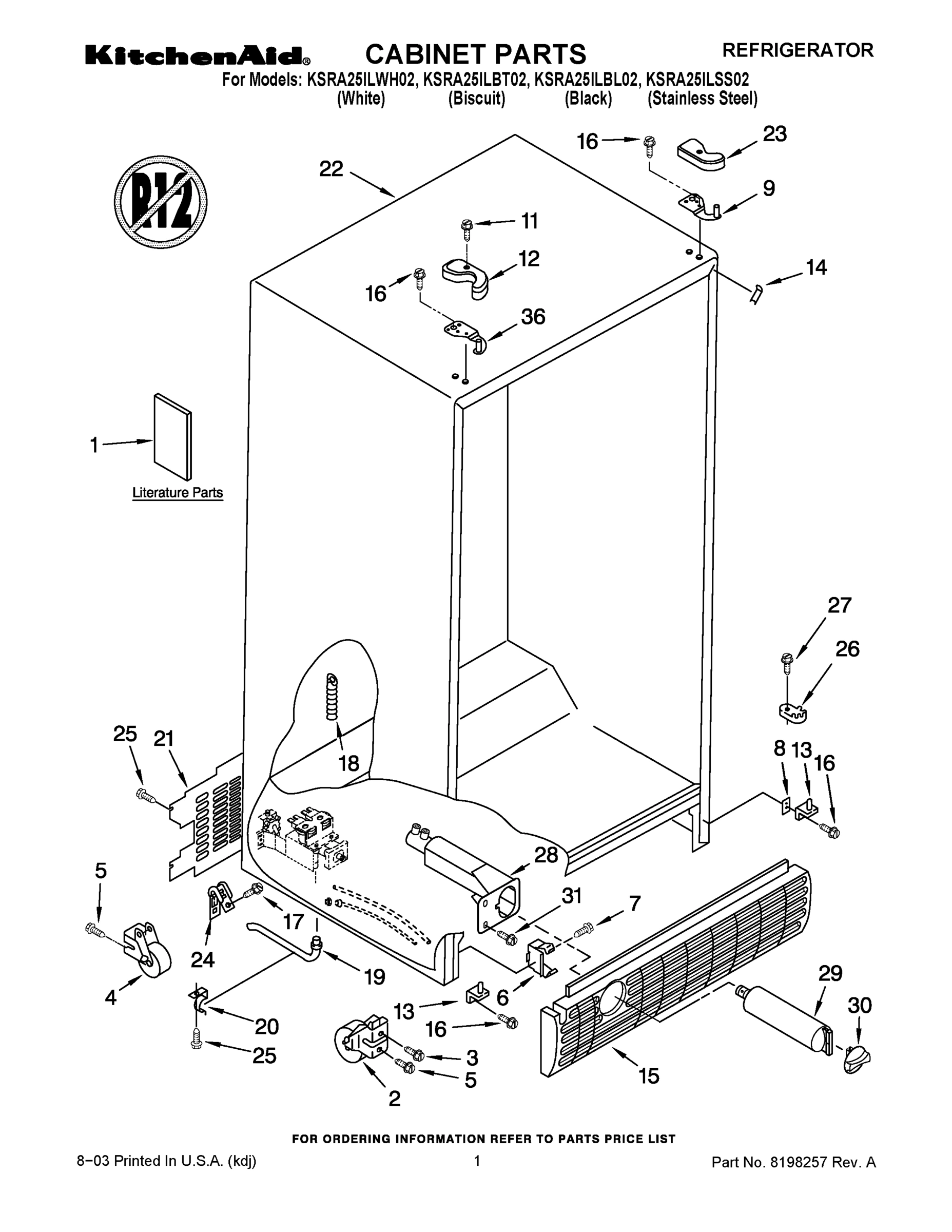

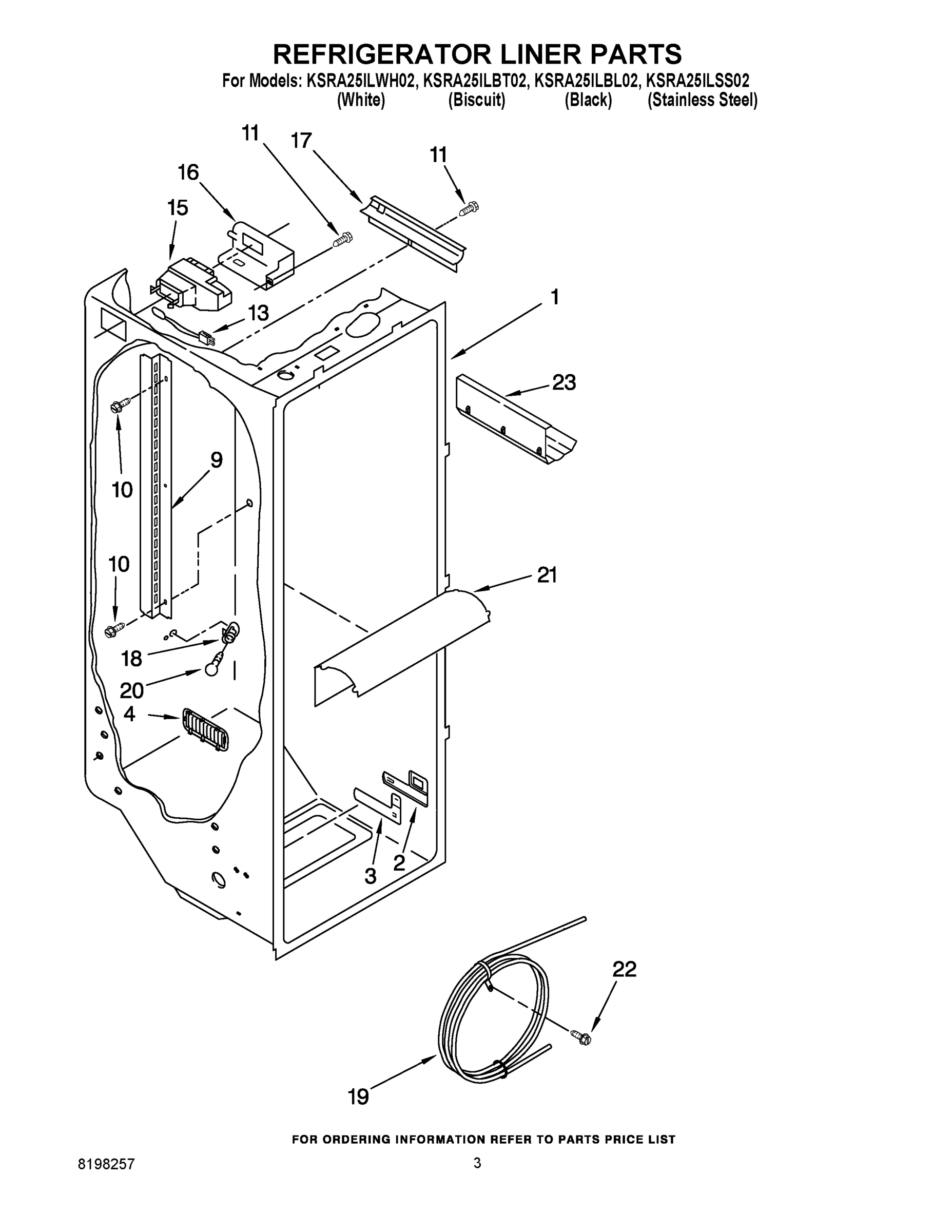

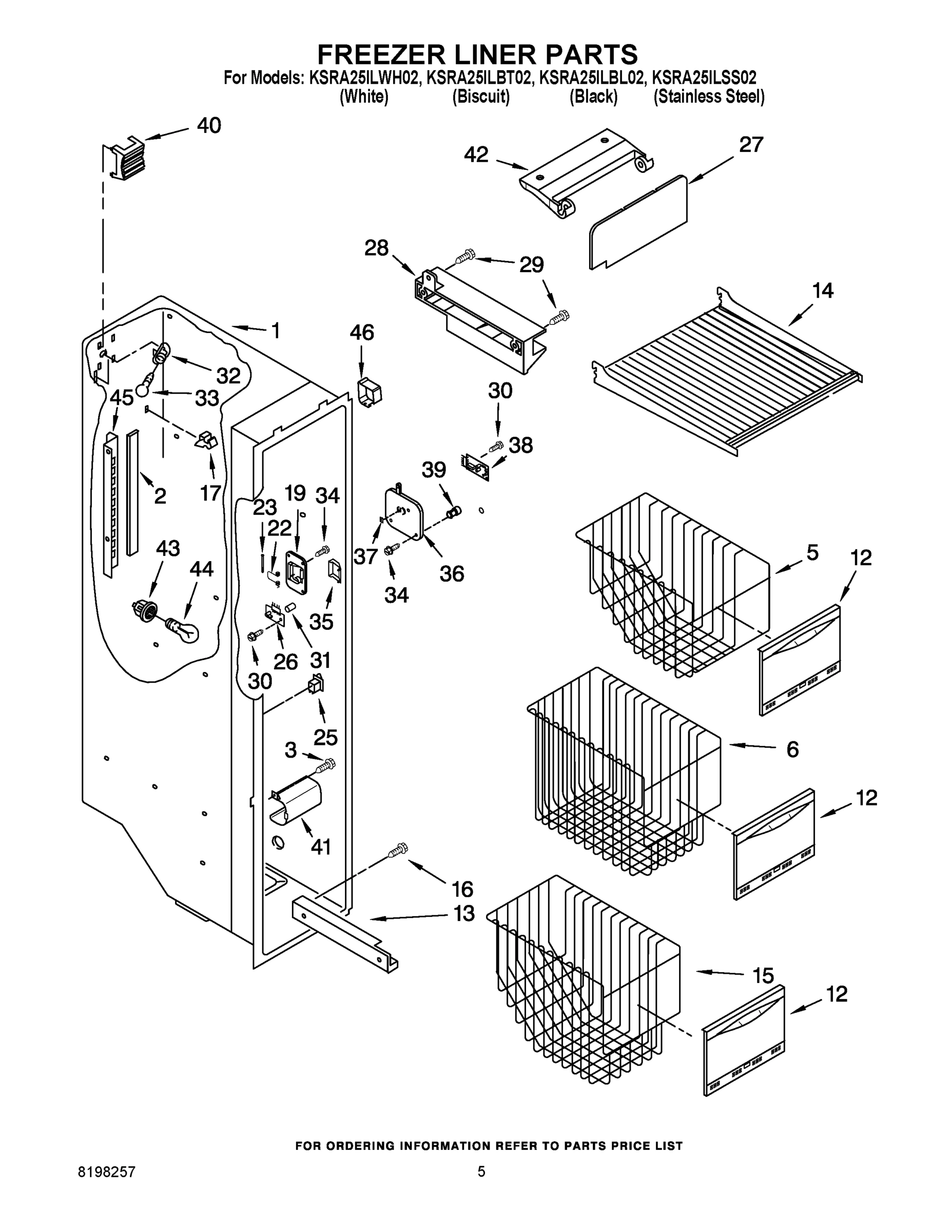

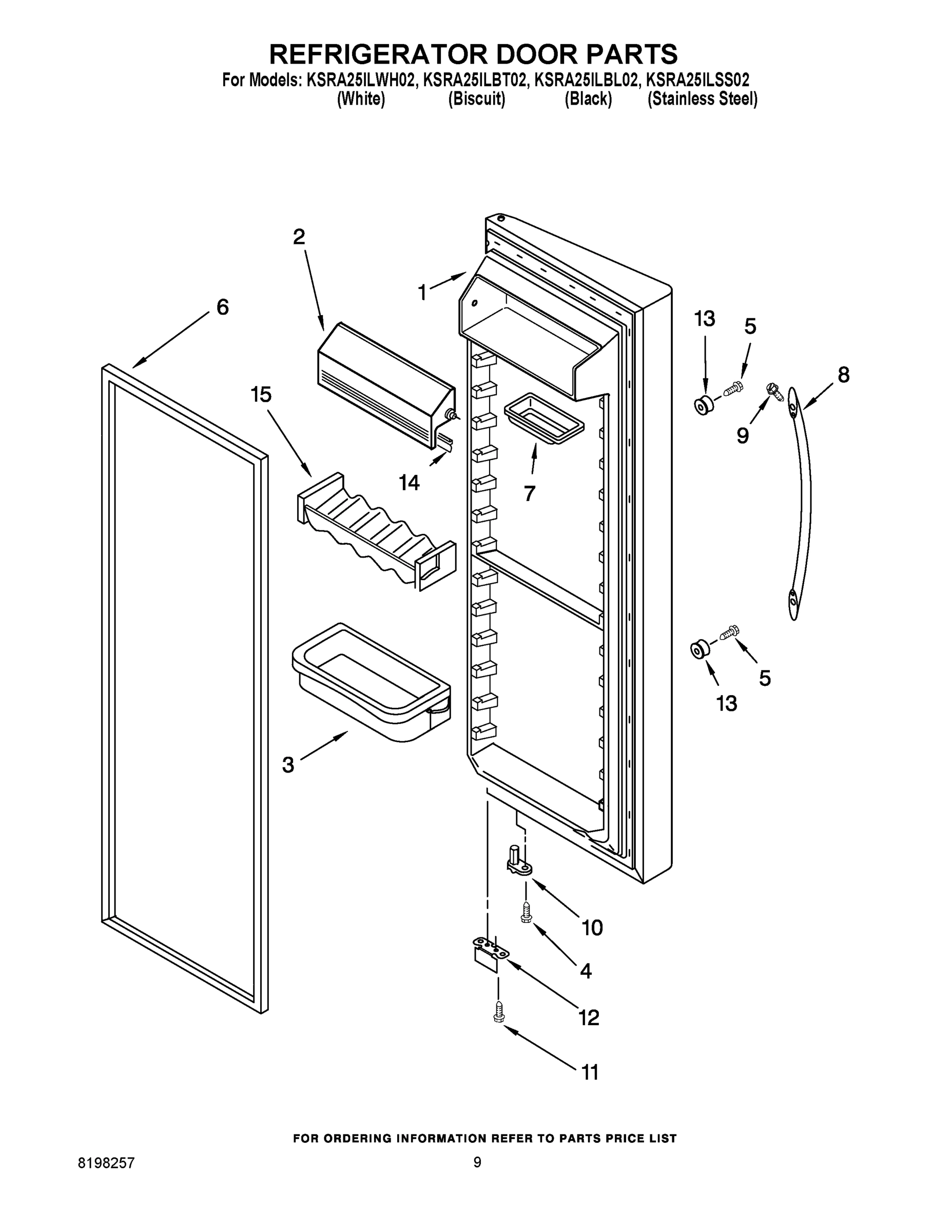

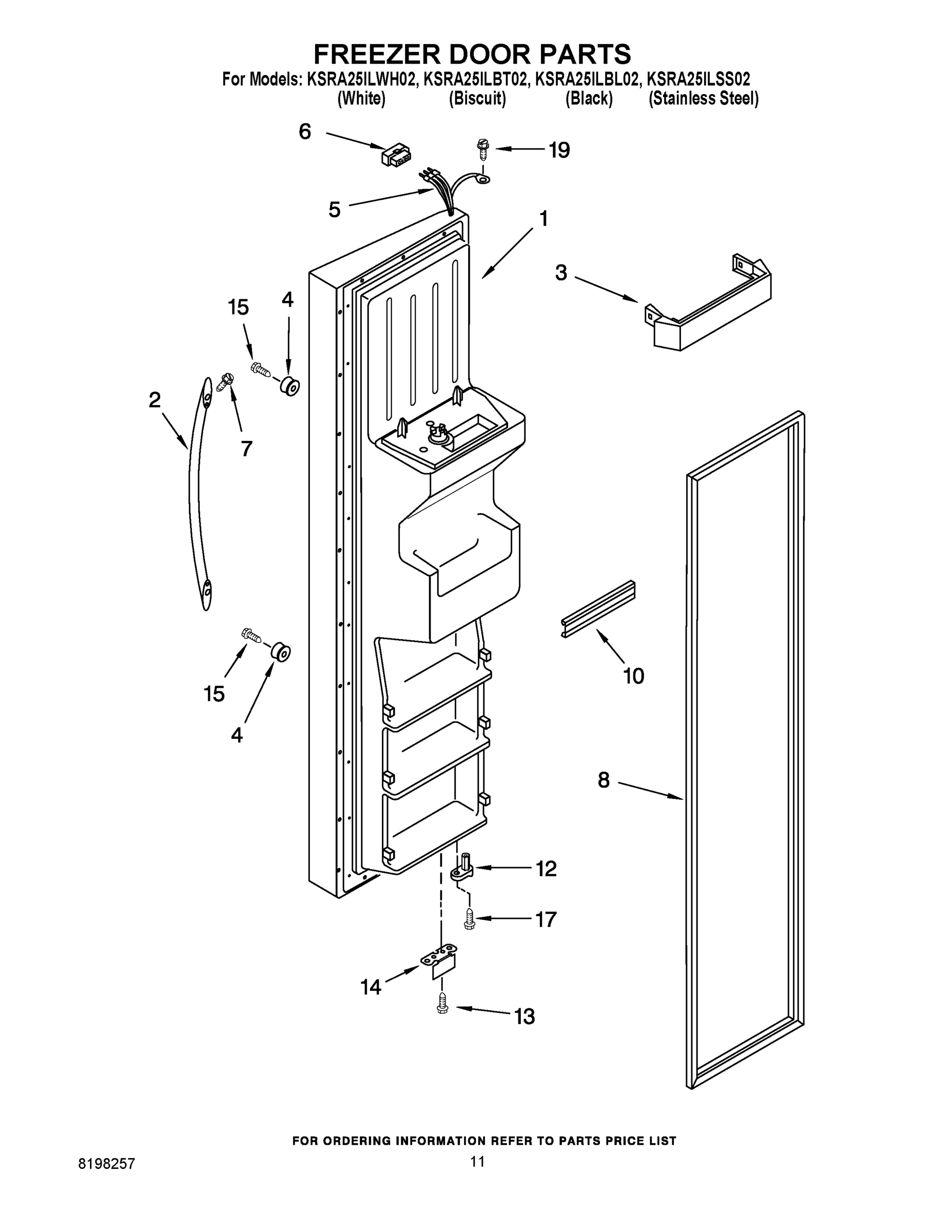

Model Whirlpool KSRA25ILBT02 REFRIGERATOR, SIDE-BY-SIDE – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

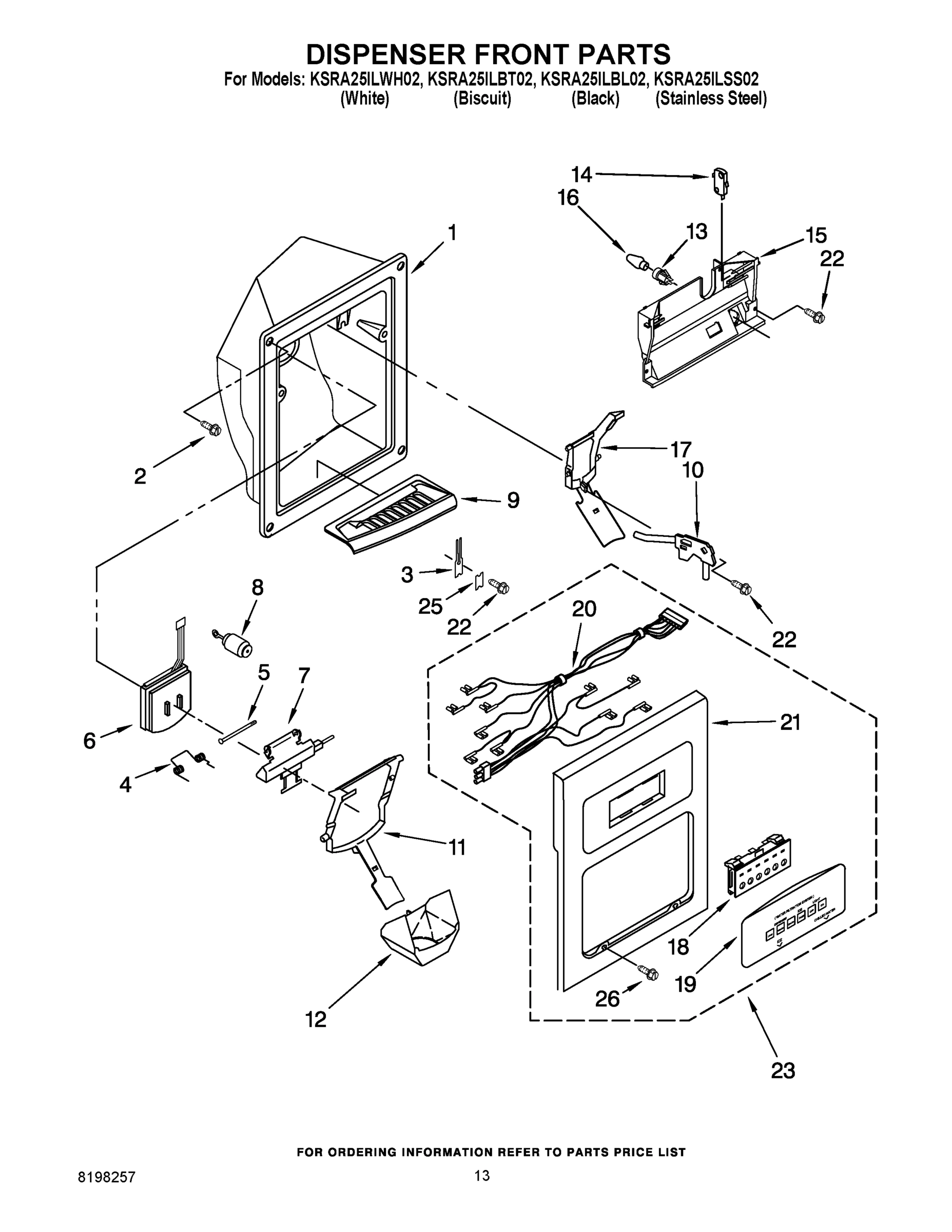

CONTROL BOX WPL 2212005 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM #6) (WHITE) WPL 2206779W Contact Us For Availability

1

FREEZER DOOR (INCLUDES #8 AND DISPENSER FRONT WPL 2206783W Contact Us For Availability

1A

REFRIGERATOR DOOR (INCLUDES ITEM #6) (BISCUIT WPL 2206779T Contact Us For Availability

1A

FREEZER DOOR (INCLUDES #8 AND DISPENSER FRONT WPL 2206783T Contact Us For Availability

1B

REFRIGERATOR DOOR (INCLUDES ITEM #6) (BLACK) WPL 2206779B Contact Us For Availability

1B

FREEZER DOOR (INCLUDES #8 AND DISPENSER FRONT WPL 2206783B Contact Us For Availability

1C

REFRIGERATOR DOOR (INCLUDES ITEM #6) (STAINLE WPL 2206779SB Contact Us For Availability

1C

FREEZER DOOR (INCLUDES #8 AND DISPENSER FRONT WPL 2206783SB Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

2

FAN, BLADE WPL 2190685 Contact Us For Availability

2

CRUSHER BIN WPL 2212367 Contact Us For Availability

2

COVER WPL 2216879 Contact Us For Availability

2

HANDLE (WHITE) WPL 2188635W Contact Us For Availability

2A

HANDLE (BISCUIT) WPL 2188635T Contact Us For Availability

2B

HANDLE (BLACK) WPL 2188635B Contact Us For Availability

2C

HANDLE (STAINLESS) WPL 2188635S Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger In Stock WPL WP2198574 $75.59

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

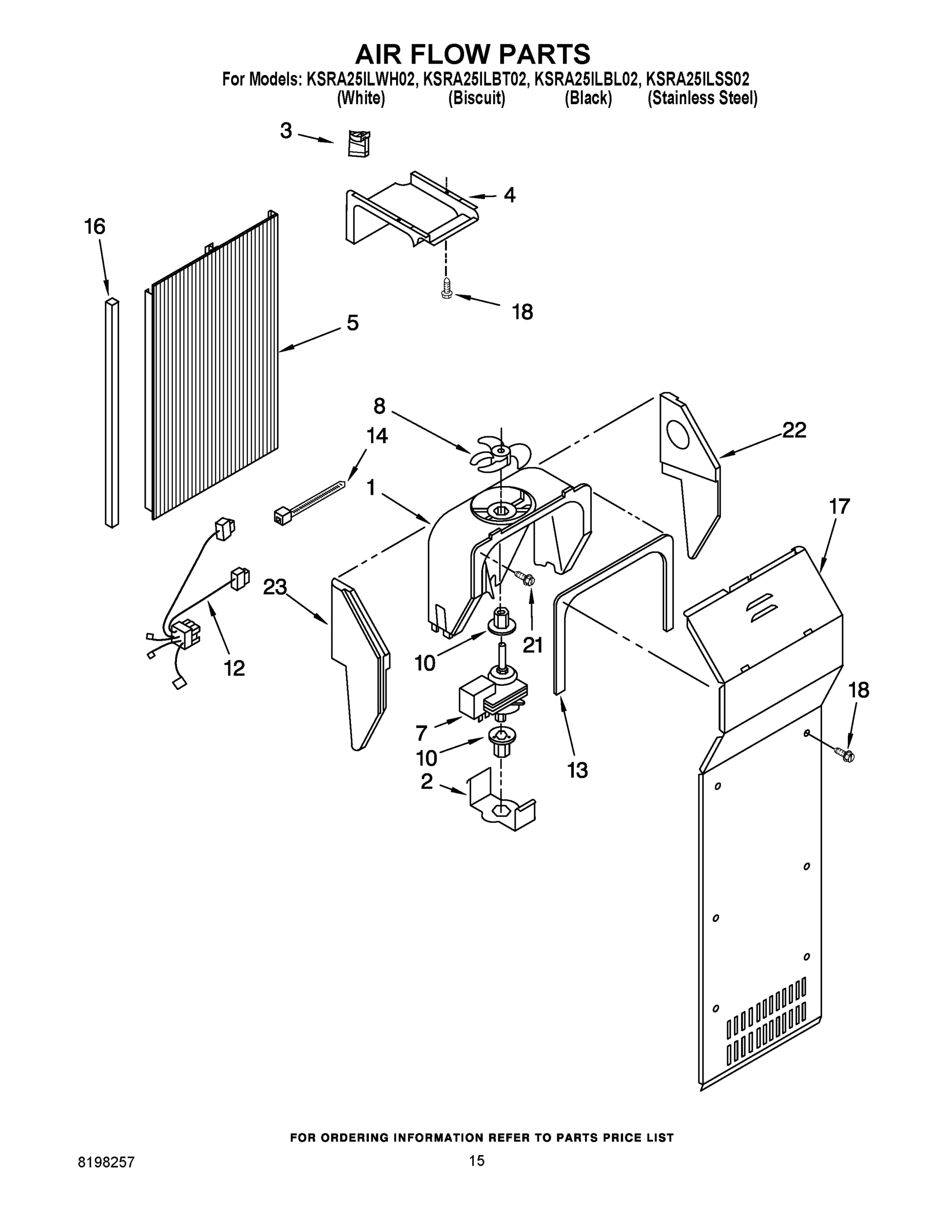

AIR SCOOP WPL 2198595 Contact Us For Availability

3

SHELF BIN (4) WPL 2205821 Contact Us For Availability

3

SHELF BIN (4) WPL 2171070 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

AIR DUCT, UPPER WPL 2212377 Contact Us For Availability

4

STUD-HANDLE WPL 2203690 Contact Us For Availability

4

BLADE, STIRRING WPL 2198603 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $162.66

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

DISPENSER HARNESS WPL 2206178 Contact Us For Availability

5

AIR DUCT FREEZER WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

COVER, CRUSHER WPL 2255460 Contact Us For Availability

6

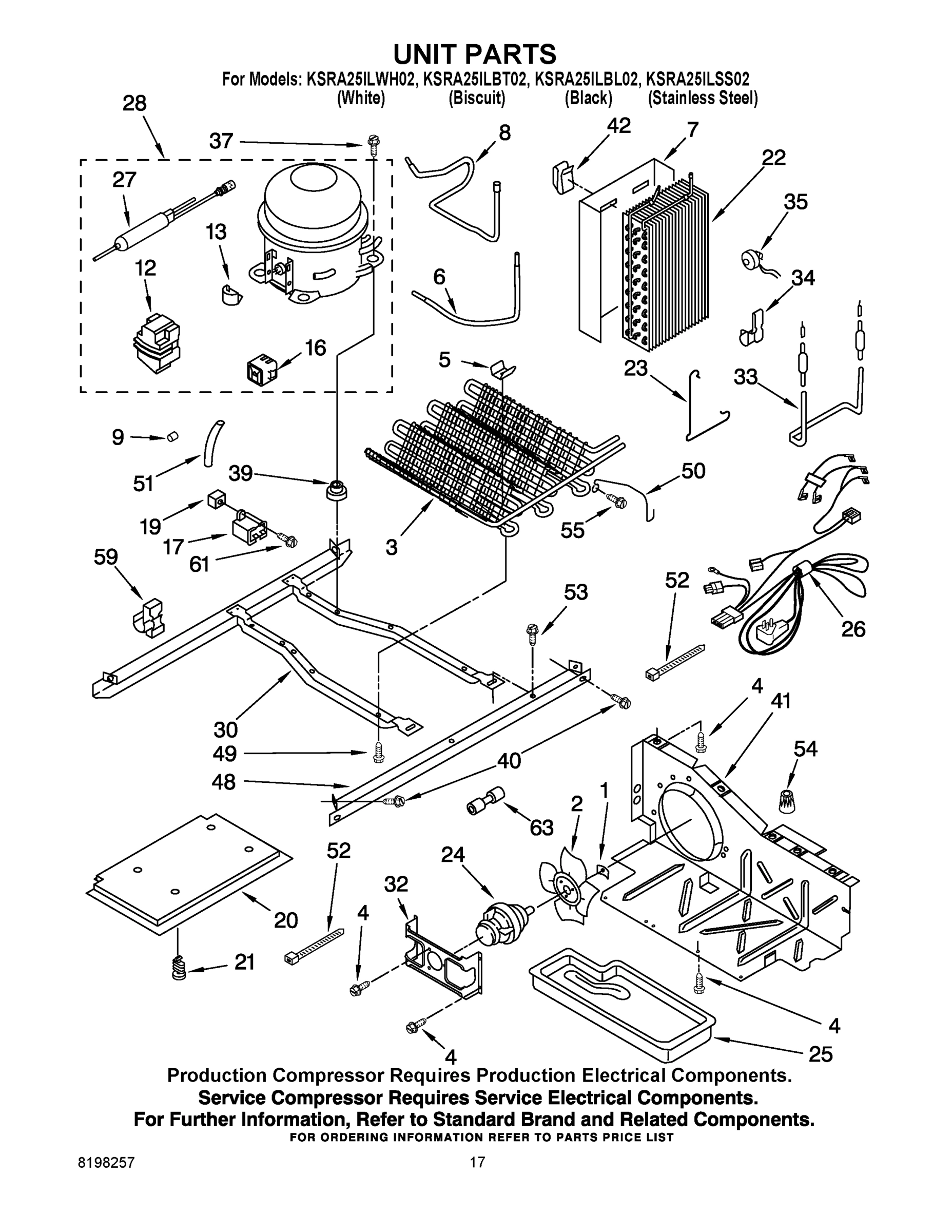

TUBE, CONDENSER TO HEAT LOOP WPL 2211760 Contact Us For Availability

6

GLASS, MEAT PAN COVER WPL 2255144 Contact Us For Availability

6

CONTROL BOARD WPL 2220512 Contact Us For Availability

6A

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

BUTTER DISH WPL 2165792 Contact Us For Availability

7

SET SCREW WPL 98654 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8A

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8A

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

GRILLE, OVERFLOW (WHITE) WPL 2207007W Contact Us For Availability

9

INSERT, CONTROL BOARD WPL 2212011 Contact Us For Availability

9

BLADE, FIXED WPL 2198601 Contact Us For Availability

9A

GRILLE, OVERFLOW (BISCUIT) WPL 2207007T Contact Us For Availability

9B

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $35.96

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

LEVER, ICE DISPENSER (WHITE SHADOW PAD) WPL 2180259 Contact Us For Availability

BLOCK, BLADE WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

HARNESS, FAN EVAPORATOR AND HEATER WPL 2216116 Contact Us For Availability

12A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

12B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

EYELET, ROLLER WPL 2174478 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

FILLER, WRAPPER (WHITE) WPL 2196094 Contact Us For Availability

BRACKET, DOOR STOP (CHROME) WPL 2200082 Contact Us For Availability

GASKET WPL 2159124 Contact Us For Availability

14A

BRACKET, DOOR STOP (BLACK) WPL 2200082B Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

BEVERAGE HOLDER WPL 2193409 Contact Us For Availability

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

MEAT PAN (INCLUDES 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

COVER, EVAPORATOR WPL 2206314 Contact Us For Availability

17A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

WINDOW, CRISPER WPL 2174076 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

CONTROL BOX HARNESS WPL 2187558 Contact Us For Availability

20

LATCH, BIN WPL 2212371 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

CAP, CRISPER PAN (RIGHT SIDE) WPL 2223286 Contact Us For Availability

21A

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

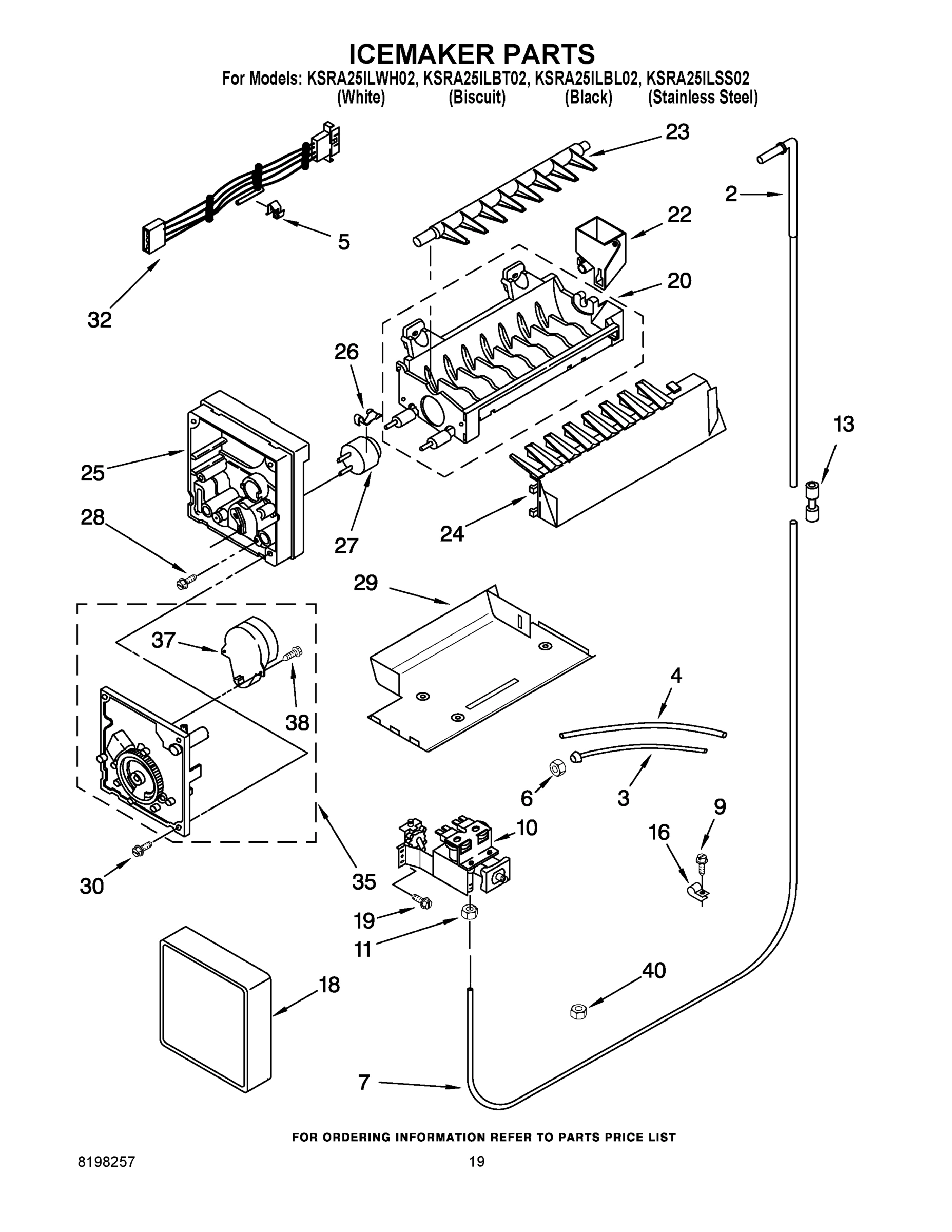

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

CLIP WPL 2161324 Contact Us For Availability

23B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

24

HOLDER WPL 2212369 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

OVERLAY, CONTROL BOX WPL 2220255 Contact Us For Availability

26

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

28

SLIDE, ICE MAKER MOUNTING WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

TUBE, P.C. BOARD WPL 2198665 Contact Us For Availability

31

BRACKET, MOTOR WPL 2198655 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

32

DISPENSER, MOTOR WPL 2198594 Contact Us For Availability

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

33

COVER WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

SCREW WPL 8281162 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

COVER, RECEIVER WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

LIGHT SHIELD WPL 2198589 Contact Us For Availability

41

LIGHT LENS WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

45

LADDER (LEFT SIDE) WPL 2198609 Contact Us For Availability

45A

LADDER (RIGHT SIDE) WPL 2198610 Contact Us For Availability

46

SHIELD, WIRING WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $13.54

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2258236 Whirlpool Ice Container and Auger A In Stock WPL WP2258236 $240.35

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 80051 WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

MISCELLANEOUS, CLEANER, STAINLESS STEEL WPL 2006783 Contact Us For Availability

REFINISHING MATERIAL, ENAMEL, BISCUIT (1 QT. WPL 4392900 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1-1/4 OZ. WPL 542639 Contact Us For Availability

REFINISHING MATERIAL, ENAMEL, BLACK (1 QT. UN WPL 799340 Contact Us For Availability

MISCELLANEOUS, KIT, EVAPORA WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability
