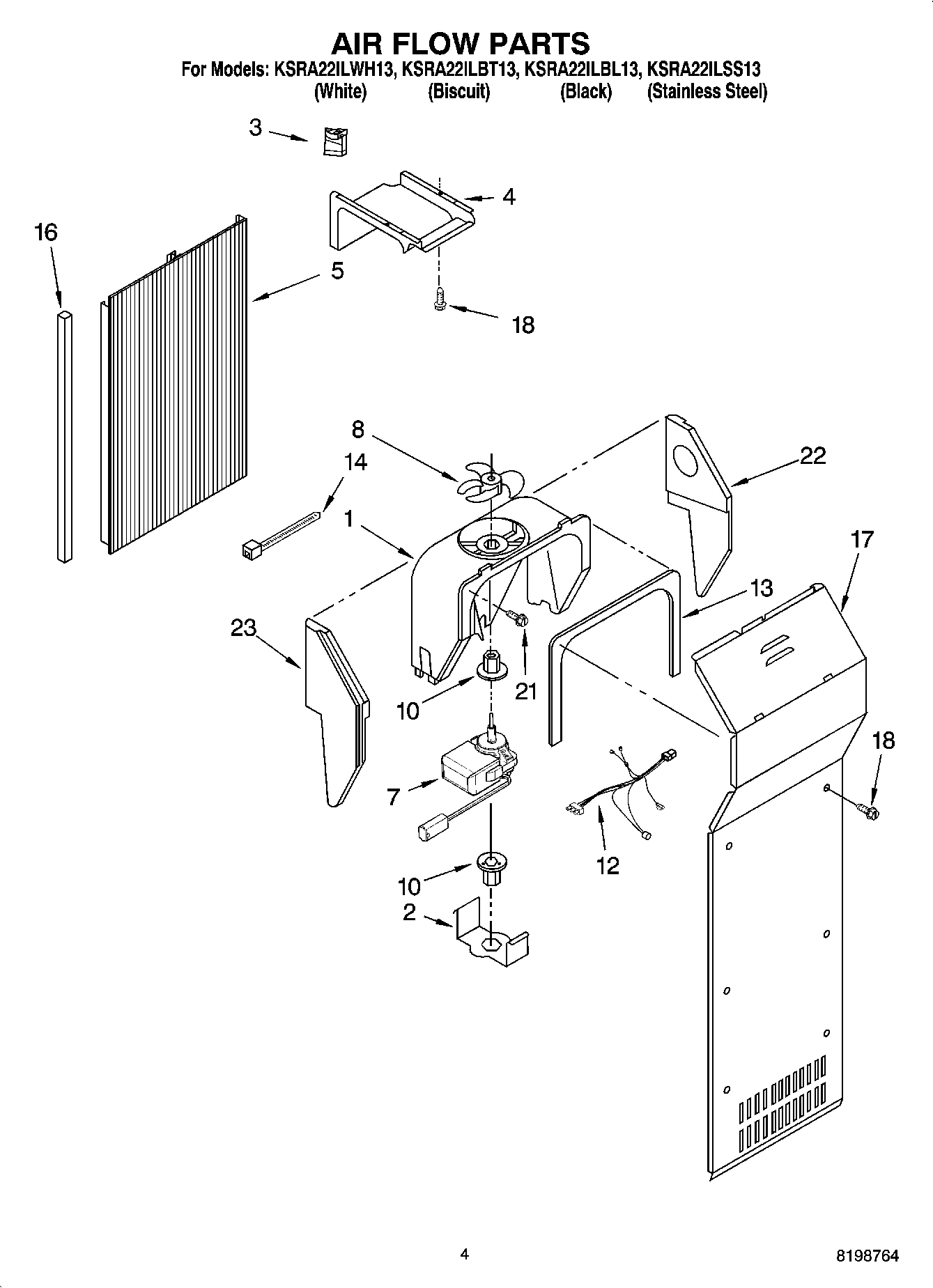

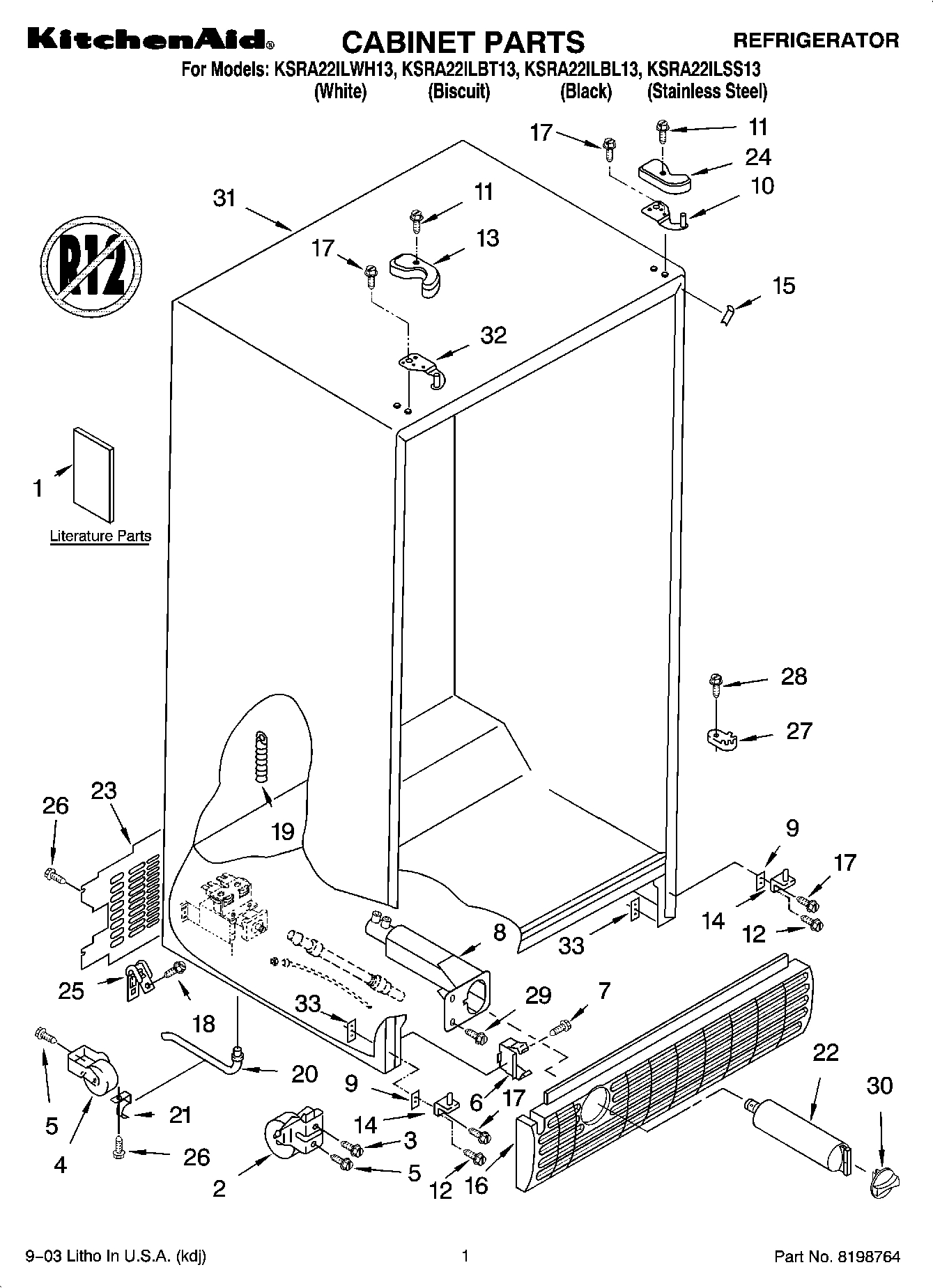

Model Whirlpool KSRA22ILWH13 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability

Ice Container Assembly WPL 2212303 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI93064A3 WPL ARI93064A3 Contact Us For Availability

WPL ARI93065A3 WPL ARI93065A3 Contact Us For Availability

WPL ARI93066A9 WPL ARI93066A9 Contact Us For Availability

WPL ARI93067A5 WPL ARI93067A5 Contact Us For Availability

WPL ARI93068A8 WPL ARI93068A8 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI93055A5 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI93057A7 Contact Us For Availability

1

Control Box WPL 2212005 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $170.79

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

6

Control Board WPL 2252140 Contact Us For Availability

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2256149 Contact Us For Availability

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

Glass, Meat Pan Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Shim WPL 2209697 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207048T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207048W Contact Us For Availability

9

Insert, Control Board WPL 2212011 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Wire Harness WPL 2207213 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

Insert, Bracket WPL 2216997 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Window, Crisper WPL 2174076 Contact Us For Availability

Switch Assembly (Not Available Order 23) WPL ARI93058A2 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI93059A1 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $43.79

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2216115 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Screw, Set WPL 98654 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI93060A6 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 18, 19, WPL 2207335B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207335T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207335W Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Overlay, Control Box WPL 2220255 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

26

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $94.84

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI93061A1 Contact Us For Availability

and Optional Pa WPL ARI93062A2 Contact Us For Availability

WPL ARI93063A4 WPL ARI93063A4 Contact Us For Availability
