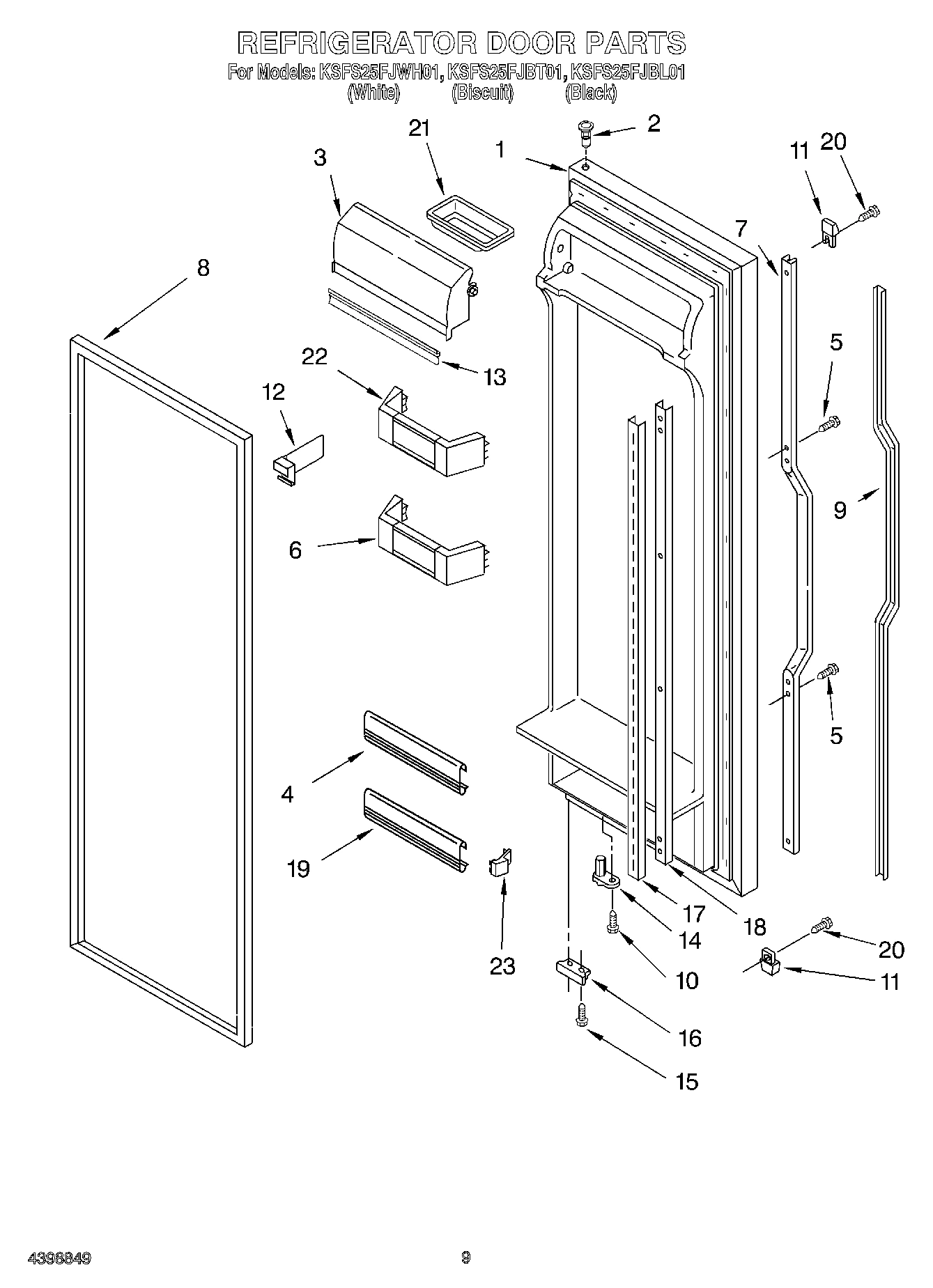

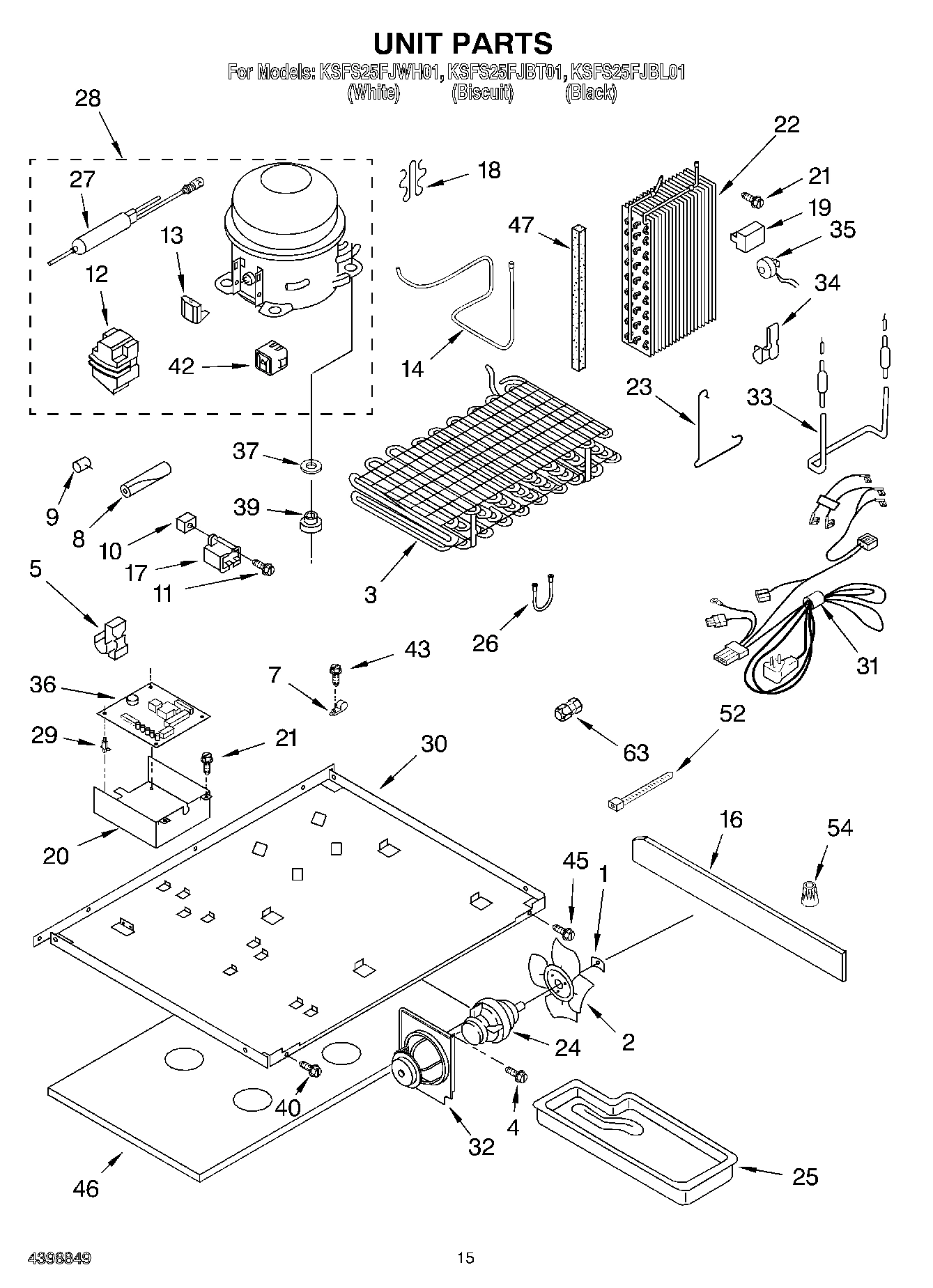

Model Whirlpool KSFS25FJBL01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI92057A3 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2199974 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2210719 Contact Us For Availability

1

Energy Label WPL LIT2211871 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI92055A2 Contact Us For Availability

1

Shelf Assembly, Cantilever (3) WPL 2203054 Contact Us For Availability

1

Bracket, Motor WPL 2199843 Contact Us For Availability

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2203007 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Circuit Board, Interface WPL 2203080 Contact Us For Availability

3

Bolt WPL 3400512 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

Roller (Rear) (2) WPL 2203008 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Tube, Filter Inlet WPL 2203198 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Eyelet, Roller WPL 2174478 Contact Us For Availability

5

Bolt WPL 3400511 Contact Us For Availability

5

Cover, Meat Pan (Includes Items 13, 14 & 15) WPL 2203034 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

CLIP, GRILLE WPL 2189356 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2206503 Contact Us For Availability

8

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Service) (Black) WPL 2209515 Contact Us For Availability

8

Glass, Cover WPL 2203038 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209514 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Clip WPL 2209529 Contact Us For Availability

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $40.99

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Screw WPL 3400515 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

Valve, Solenoid WPL 2199838 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $54.86

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $46.59

2307007T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007T $47.54

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $55.98

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $16.76

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $46.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W11239930 Whirlpool Refrigerator Overload Rel Backorder WPL W11239930 $61.96

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Shim, Hinge Top WPL 2196048 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Roller WPL 2188212 Contact Us For Availability

Ice Container WPL 2199895 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $133.84

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Bracket, Door Stop WPL 2195950 Contact Us For Availability

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2186515B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186515T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186515W Contact Us For Availability

Screw WPL 3400110 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

Front Cover, Housing (Not Available, Order No WPL ARI92058A7 Contact Us For Availability

Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability

Filler, Wrapper (White) WPL 2203067W Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Grille (Black) WPL 2199904B Contact Us For Availability

Window, Meat Pan WPL 2174076 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Grille (Biscuit) WPL 2199904T Contact Us For Availability

Grille (White) WPL 2199904W Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Bin, Door (2) WPL 2199992 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511W Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $131.88

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Endcap WPL 2195917 Contact Us For Availability

Air Diffuser Assembly WPL 2209755 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10270150 Whirlpool Crisper Drawer Cover In Stock WPL WPW10270150 $212.25

Conveyor WPL 2160602 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

Beverage Pan WPL 2203028 Contact Us For Availability

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

Handle, Beverage WPL 2203029 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

32

Control Arm WPL 2002728 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

36

Circuit Board, Dual Temp. WPL 2203076 Contact Us For Availability

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

42

Extension Tube WPL 2199954 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

47

Cover, Unit WPL 2199963 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI92054A9 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Ice Crusher Mechanism Assembly WPL 2160606 Contact Us For Availability

Ice Contianer Assembly WPL 2199894 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability
