Model Whirlpool KSCS25QFWH01 REFRIGERATOR – Common Parts & Diagrams

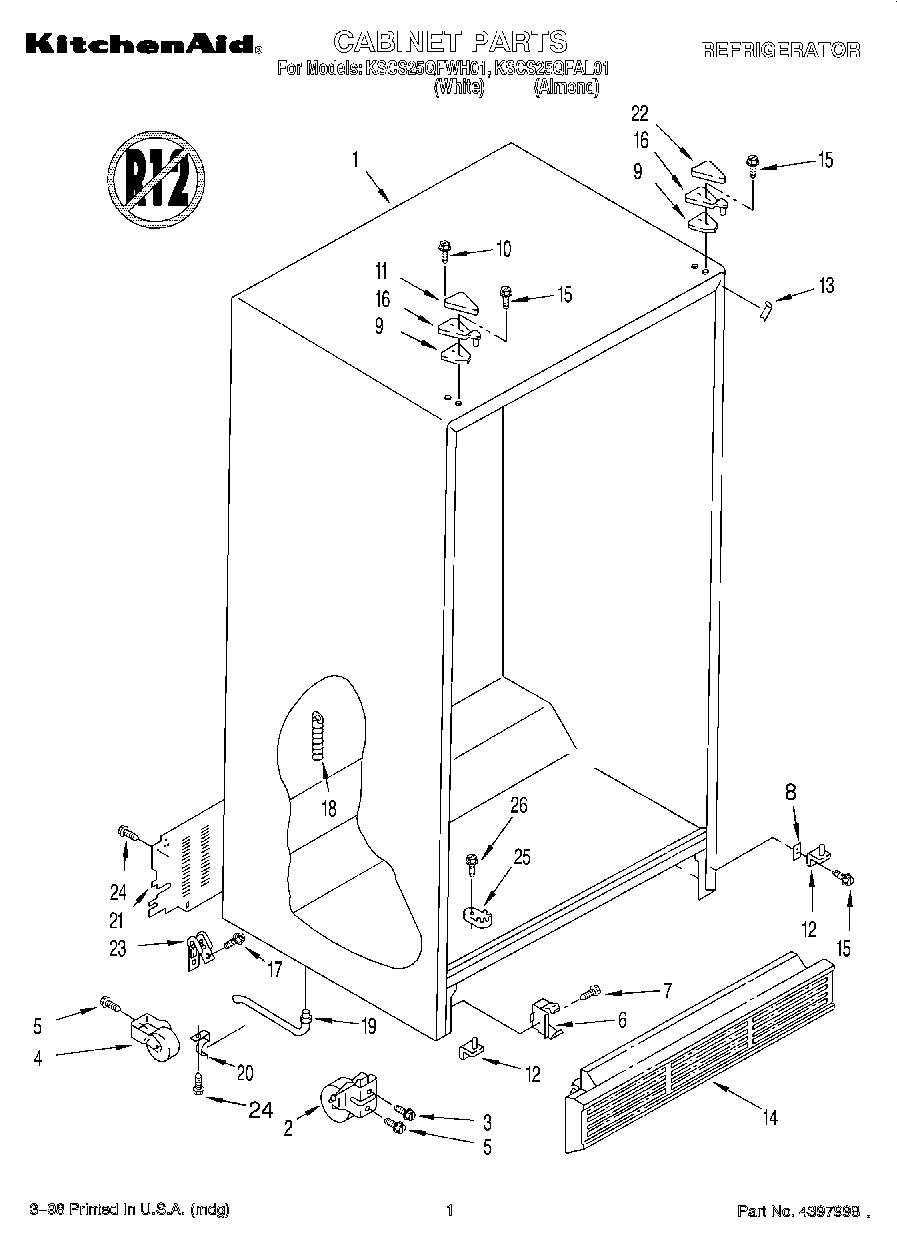

01 - CABINET

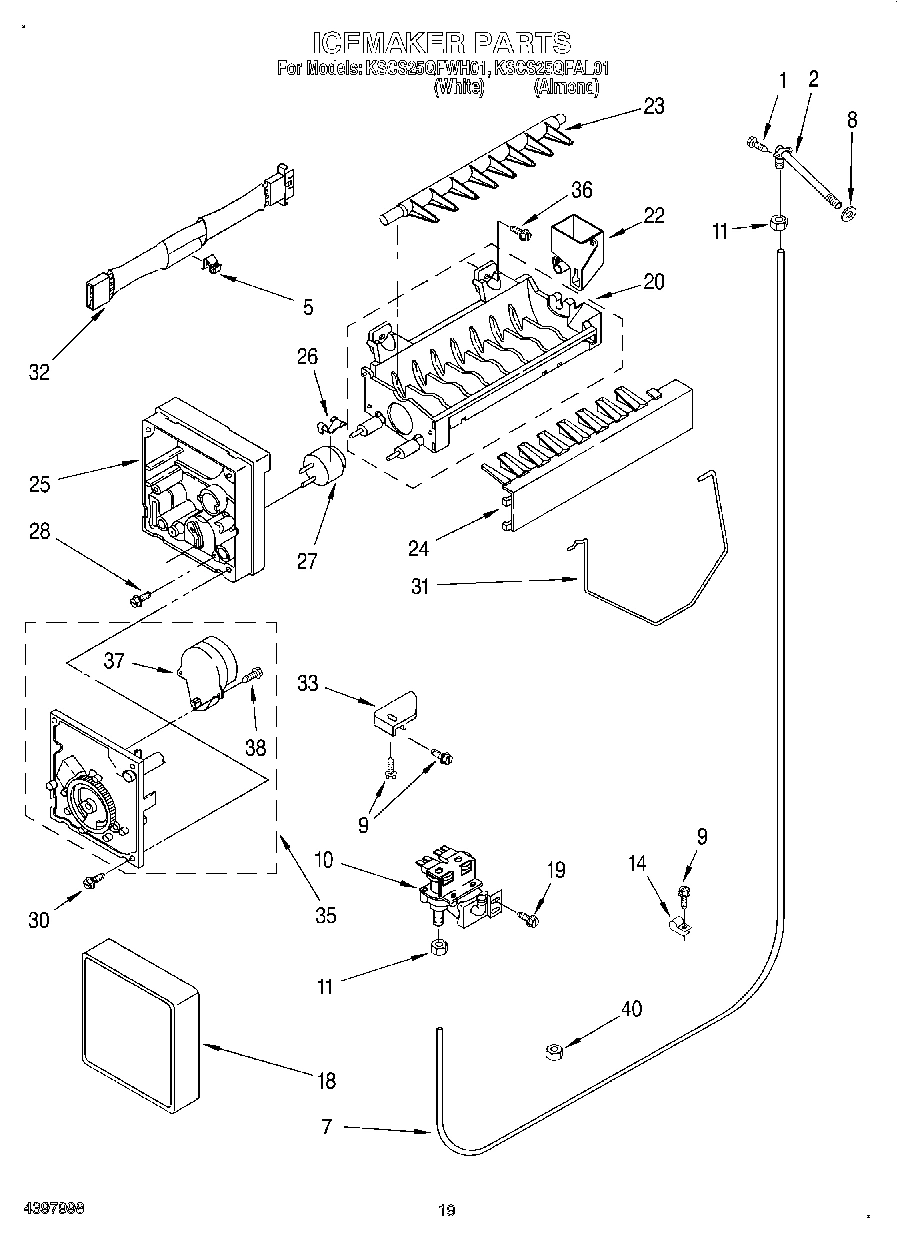

11 - ICEMAKER

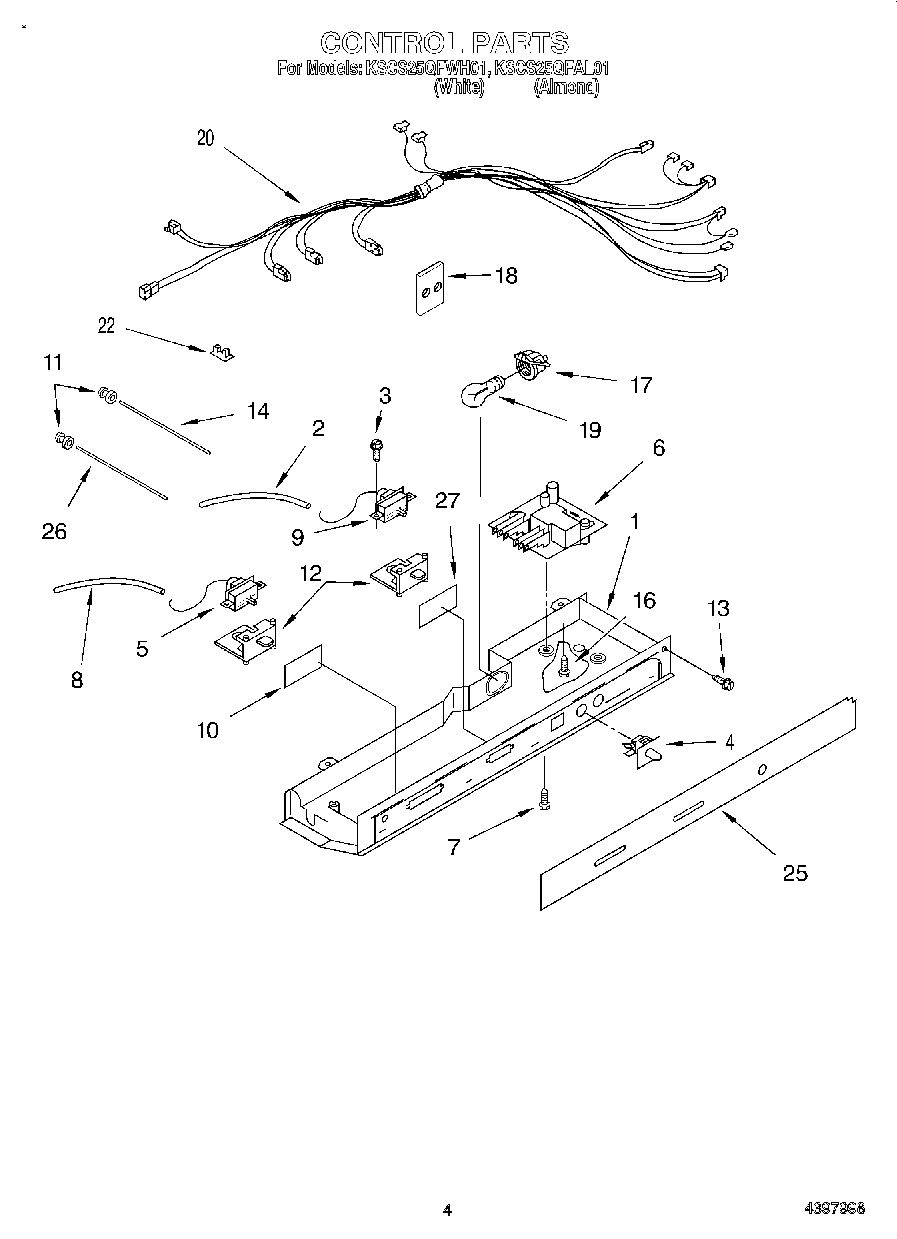

03 - CONTROL

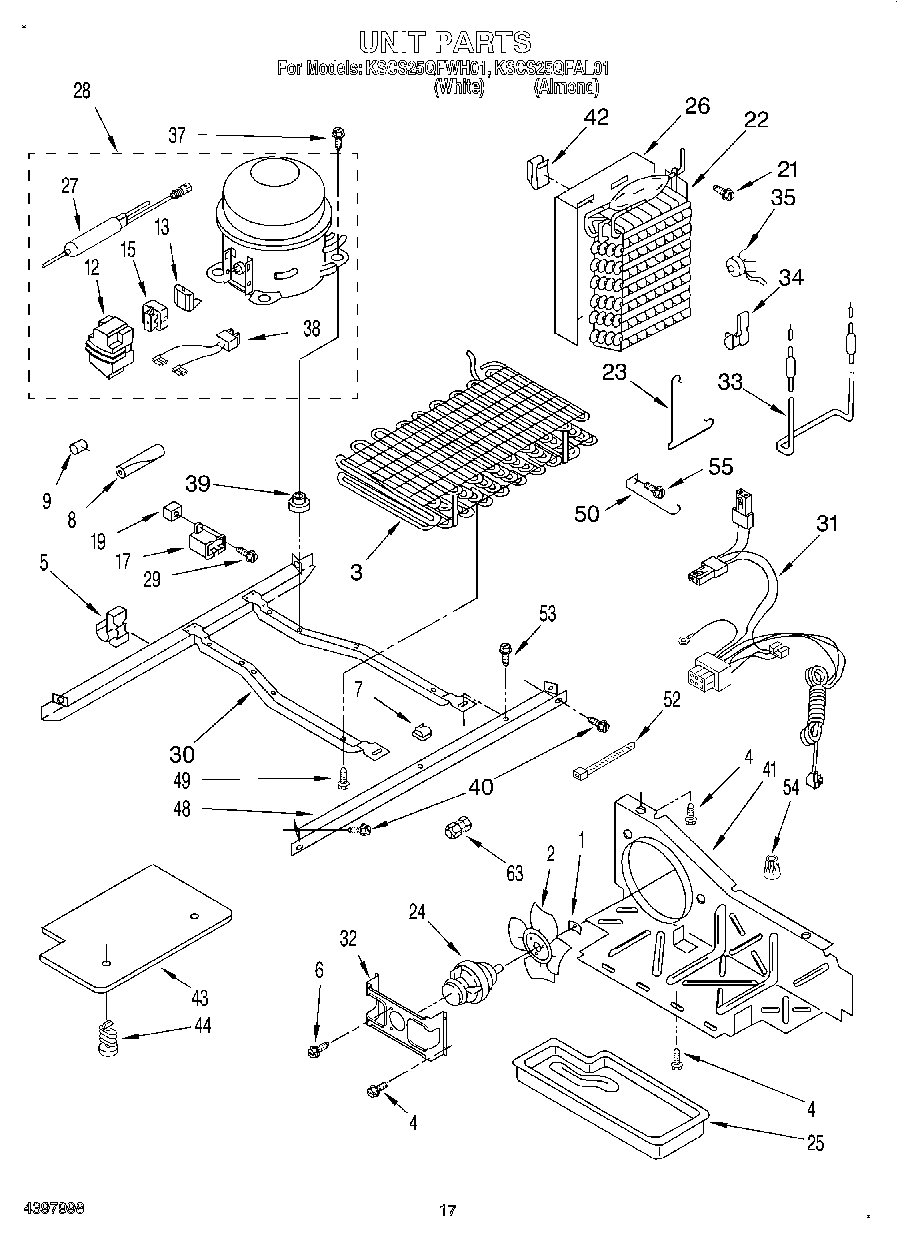

10 - UNIT
07 - REFRIGERATOR DOOR

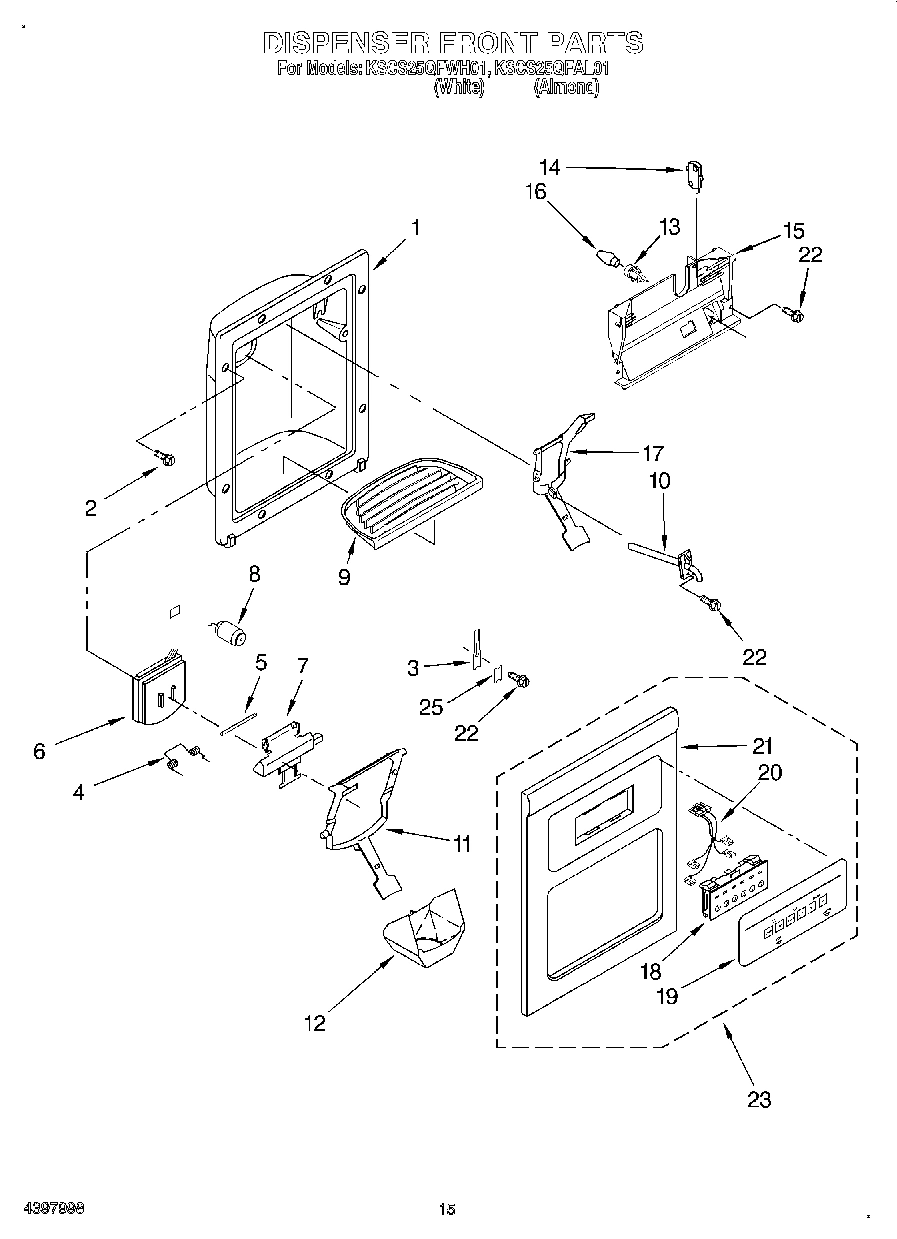

09 - DISPENSER FRONT
06 - MOTOR AND ICE CONTAINER

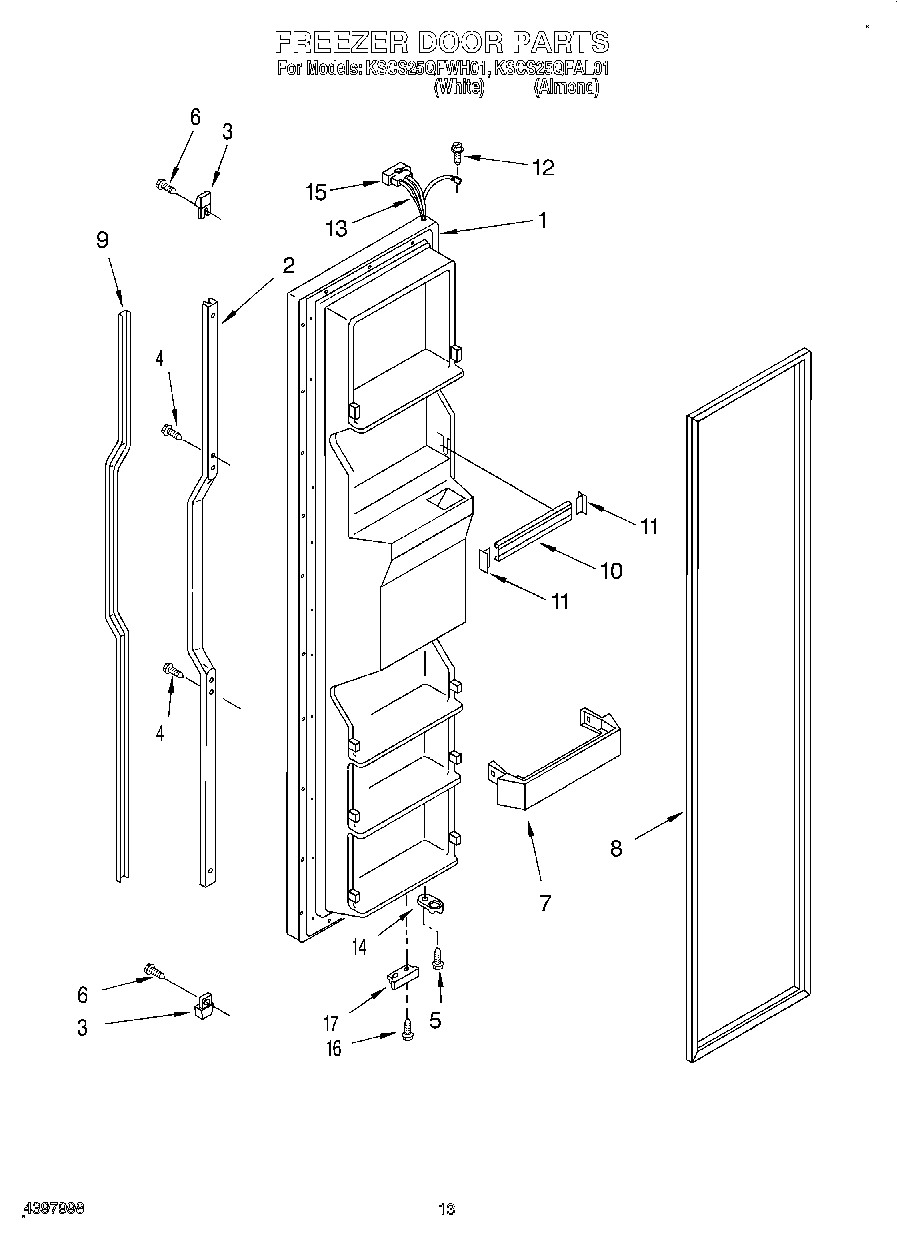

08 - FREEZER DOOR
05 - FREEZER LINER
12 - AIR FLOW, LIT/OPTIONAL

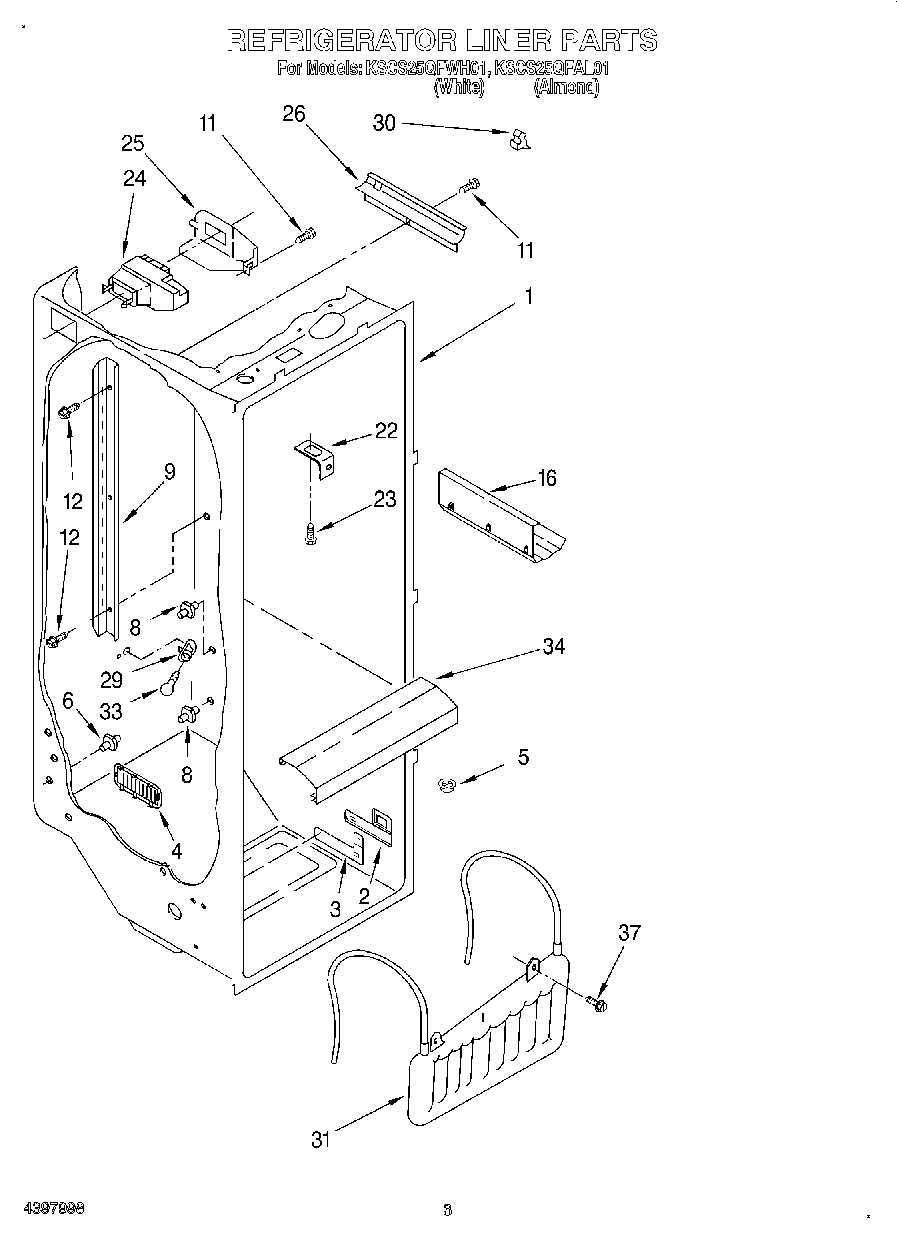

02 - REFRIGERATOR LINER

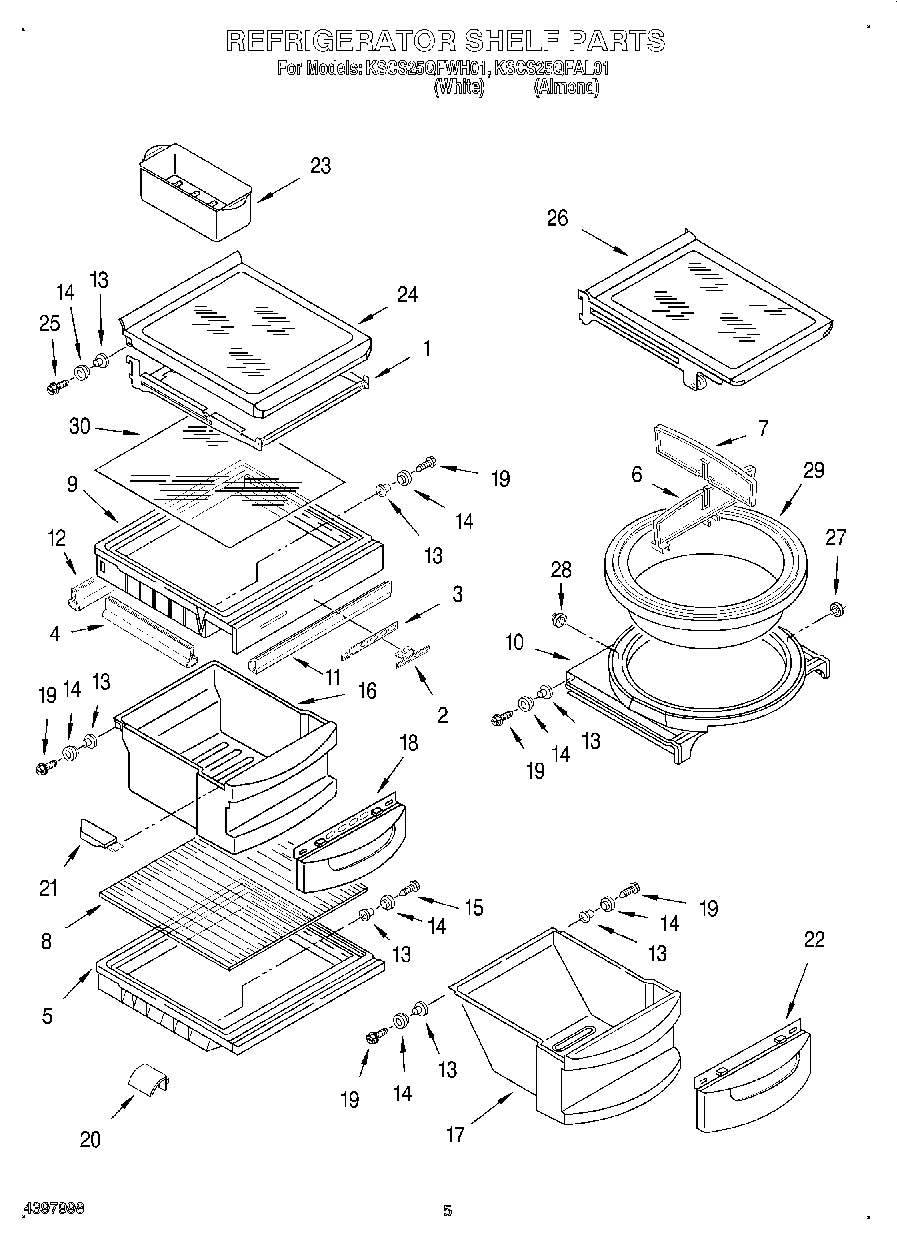

04 - REFRIGERATOR SHELF
Common parts from model Whirlpool KSCS25QFWH01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2186928 WPL LIT2186928 Contact Us For Availability
WPL LIT2198139 WPL LIT2198139 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182883 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2182884 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92024A9 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92023A3 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Insert (Almond) WPL 2194777N Contact Us For Availability
2
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
3
End Cap (2) (White) WPL 2194778W Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Divider, 1/2 WPL 2174363 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
7
Divider, 1/4 WPL 2174364 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Insert, Handle (White) WPL 2173825 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
10
Carriage WPL 2168792 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Wire Harness WPL 2180229 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2195950 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
21
Basket, Shallow WPL 2181763 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180397 Contact Us For Availability
23
Basket, Square WPL 2181765 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Frame And Roller Assembly WPL 2174387 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Roller, Front (2) WPL 2179486 Contact Us For Availability
28
Roller, Rear (2) WPL 2179487 Contact Us For Availability
29
Round Pan WPL 2168793 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Glass, Cover WPL 2174148 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
