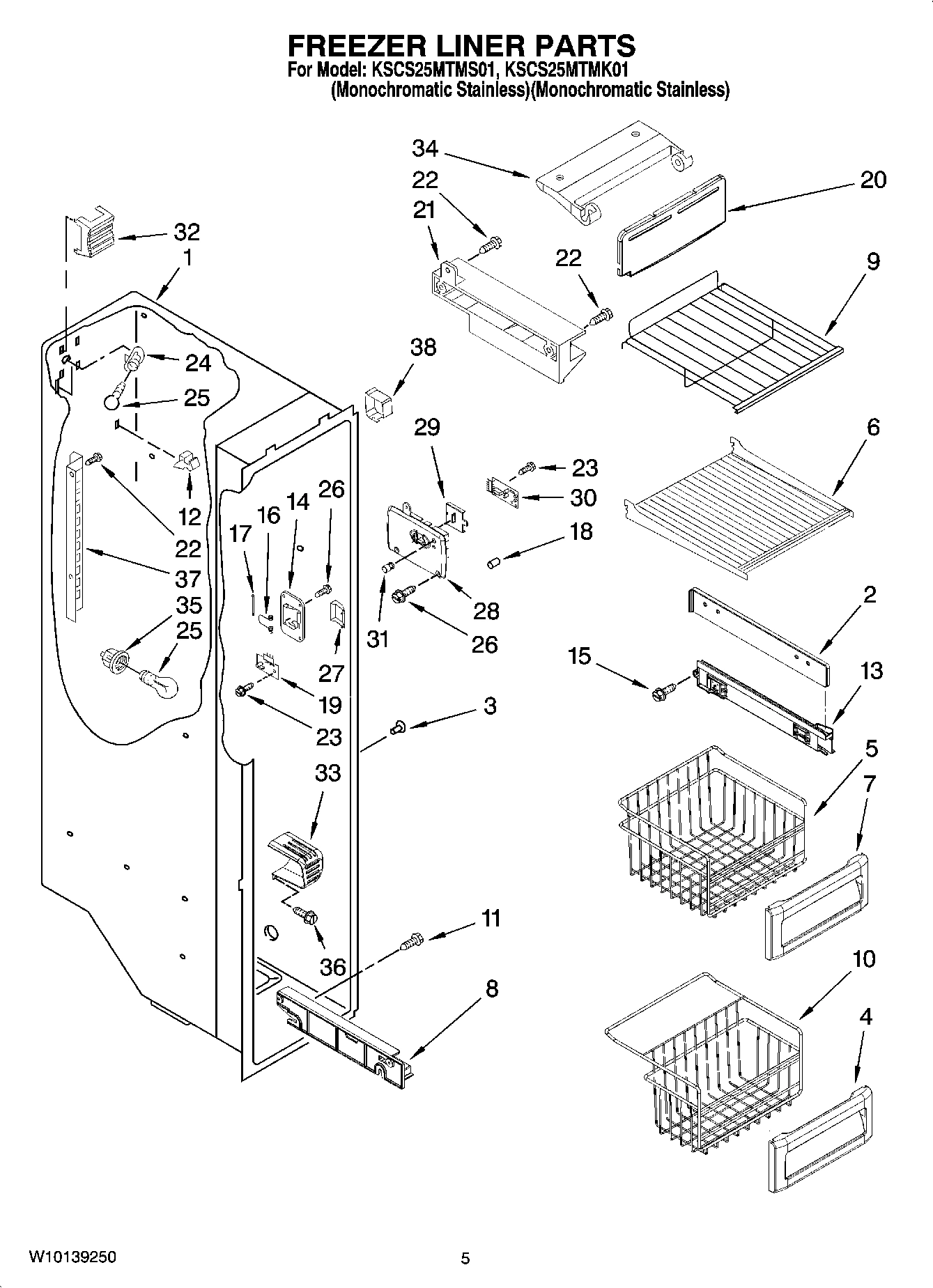

Model Whirlpool KSCS25MTMK01 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

1

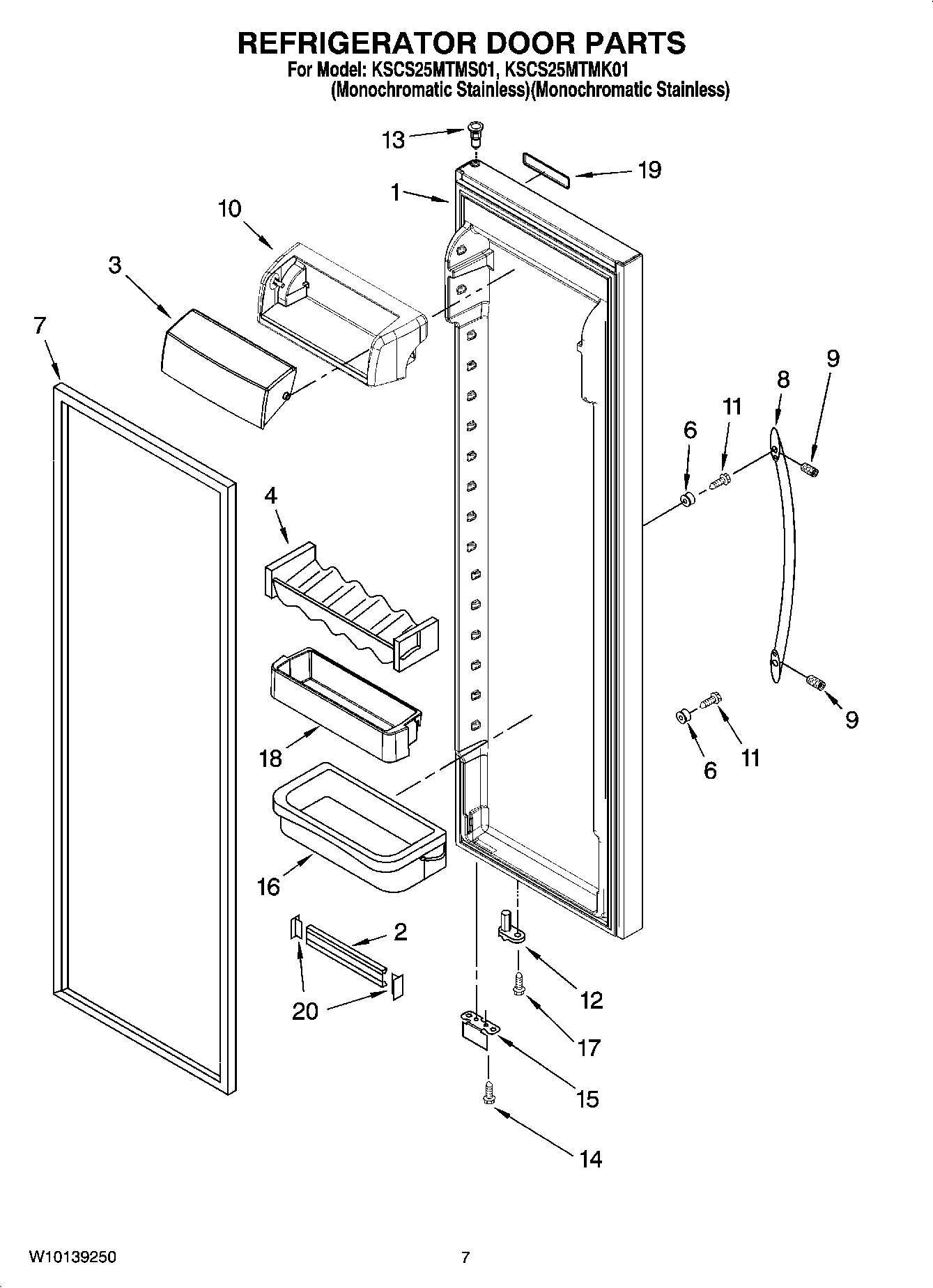

Refrigerator Door (Includes 7) (Monochromatic WPL 2307198SA Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $48.20

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

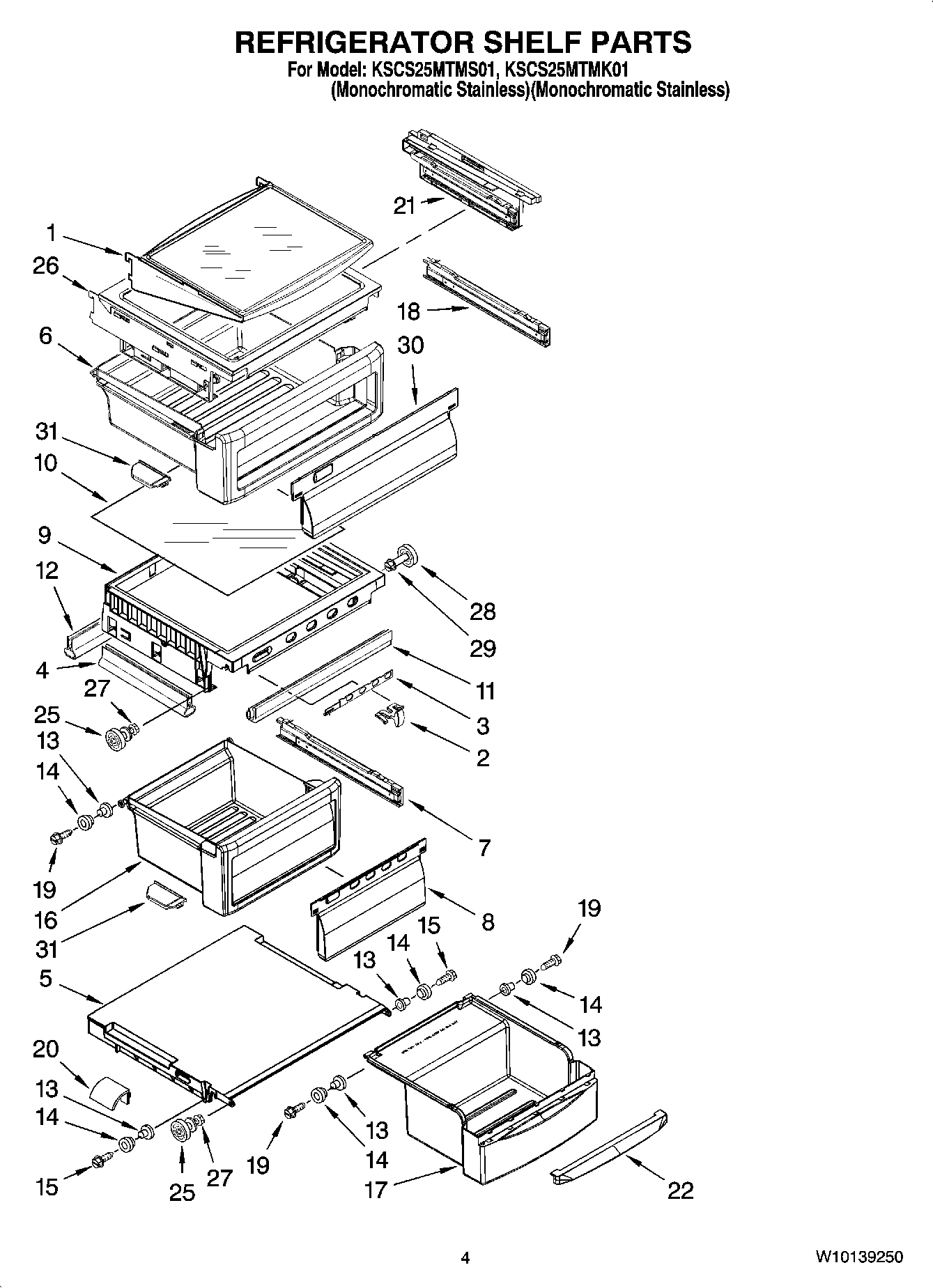

Trim, Shelf WPL 2203087K Contact Us For Availability

3

W10193018 Whirlpool Refrigerator Condenser Backorder WPL W10193018 $180.89

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

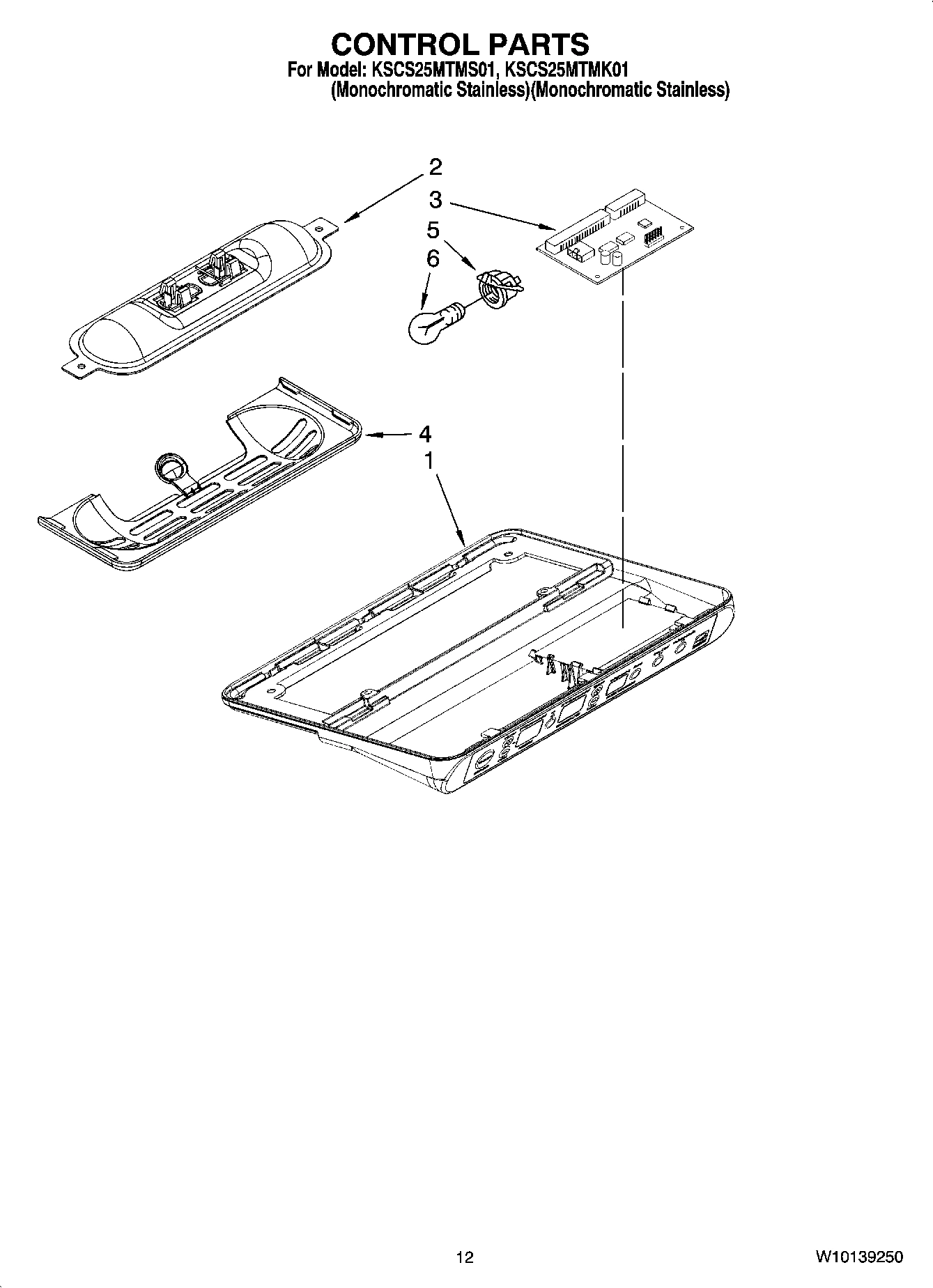

Control Board Asm WPL 2307037 Contact Us For Availability

3

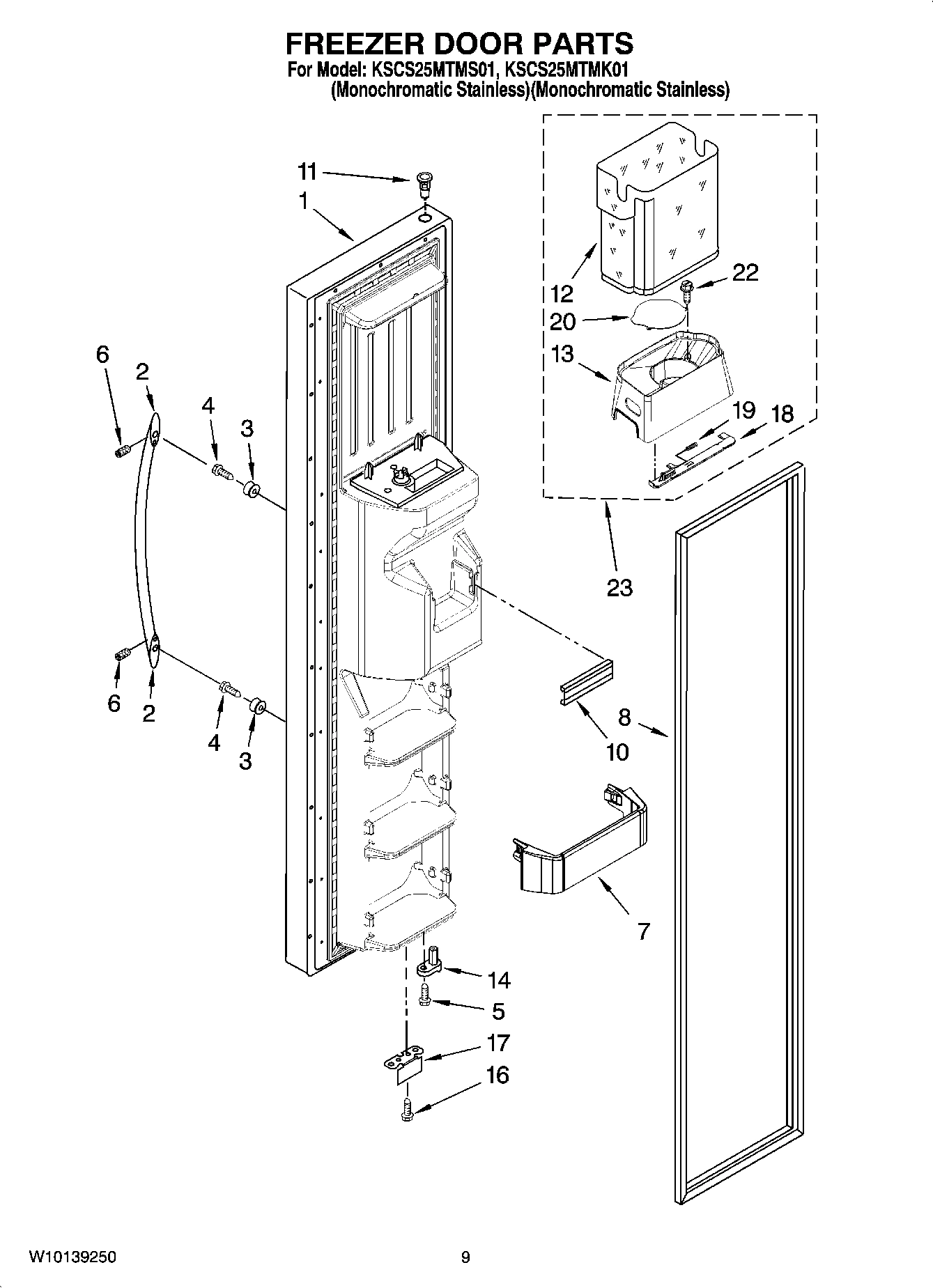

Dairy Door WPL 2255421 Contact Us For Availability

3

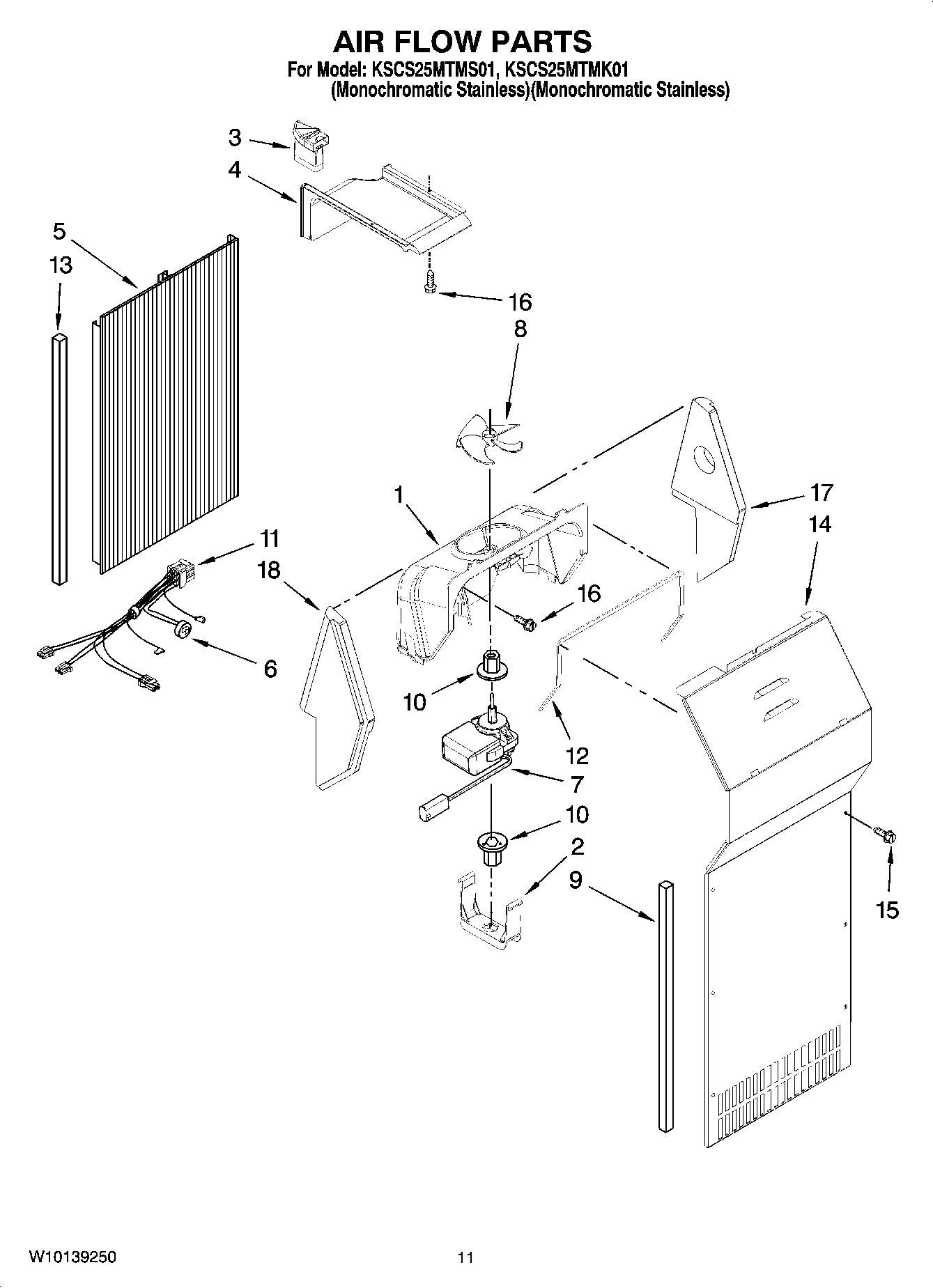

Air Scoop WPL 2223298 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

4

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

4

Caddy, Can WPL 2223883 Contact Us For Availability

5

2317200 Whirlpool Refrigerator Inlet Valve Backorder WPL 2317200 $87.26

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.26

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

W10528579 Whirlpool Refrigerator Tube Backorder WPL W10528579 $179.64

7

Glide Assembly (Crisper Pan) (Right Side) WPL 2301548 Contact Us For Availability

7

Housing, Door Control WPL 2301234 Contact Us For Availability

7

Front, Basket WPL 2224053 Contact Us For Availability

7

Door Gasket, Magnetic (Mist Beige) WPL 2223326 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

8

Shim WPL 2223545 Contact Us For Availability

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Release Valve WPL 2171846 Contact Us For Availability

Dairy Compartment WPL 2223879 Contact Us For Availability

Plate, Mounting WPL 2301979 Contact Us For Availability

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.70

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

Hinge Assembly, Bottom-RC (Includes 34) WPL 2307179 Contact Us For Availability

Upper Bin WPL 2223317 Contact Us For Availability

Thimble Cam, RC WPL 2307048 Contact Us For Availability

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

Eyelet, Roller WPL 2174478 Contact Us For Availability

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Cover, Emitter WPL 2259487 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Thimble Cam, FC WPL 2307050 Contact Us For Availability

15

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

15

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $104.18

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $41.15

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $34.44

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $47.93

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2223353 Contact Us For Availability

W10219463-includeCORE Whirlpool W10219463 Con Backorder WPL W10219463-includeCORE $254.73

WP2198608 Whirlpool Refrigerator Spring Backorder WPL WP2198608 $3.70

Tube, Extension WPL 2254566 Contact Us For Availability

NAMEPLATE WPL W10046610 Contact Us For Availability

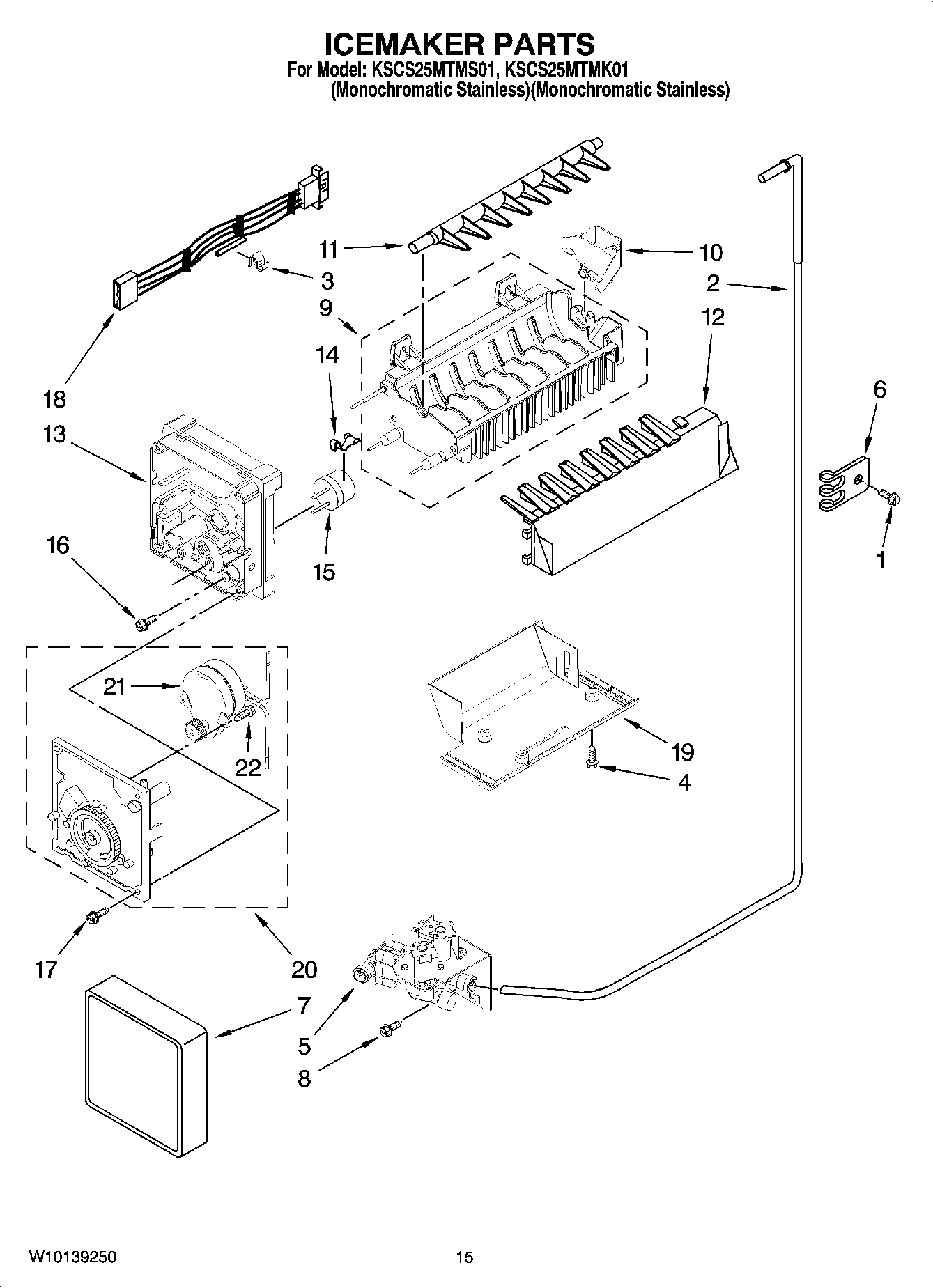

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

20

Baseplate WPL 2306932 Contact Us For Availability

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

Light Lens WPL 2223663 Contact Us For Availability

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Handle WPL 2203031 Contact Us For Availability

23

Clamp WPL 2161324 Contact Us For Availability

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $55.65

25

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

25

Hinge Assembly, Bottom-FC (Includes 29 & 32) WPL 2307152 Contact Us For Availability

25

Tray, Evaporator WPL 2223398 Contact Us For Availability

26

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

26

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

26

Heat Shield WPL 2224022 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $15.13

28

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $330.00

28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

28

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

29

Door Closer, FC WPL 2307051 Contact Us For Availability

29

Spacer (5) WPL 2223800 Contact Us For Availability

30

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $21.77

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

Harness, Main Control WPL 2187849 Contact Us For Availability

Cap, Snack Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Snack Pan (Left Side) WPL 2301017 Contact Us For Availability

32

Fan, Motor Bracket WPL 2224024 Contact Us For Availability

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $66.57

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

34

Door Closer (RC) WPL 2307049 Contact Us For Availability

35

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $237.60

36

Screw WPL 489473 Contact Us For Availability

37

Tube, Discharge WPL 2223352 Contact Us For Availability

38

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

38

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

39

Extension, Air Baffle WPL 2223394 Contact Us For Availability

40

Clip, Heat Shield WPL 2155547 Contact Us For Availability

41

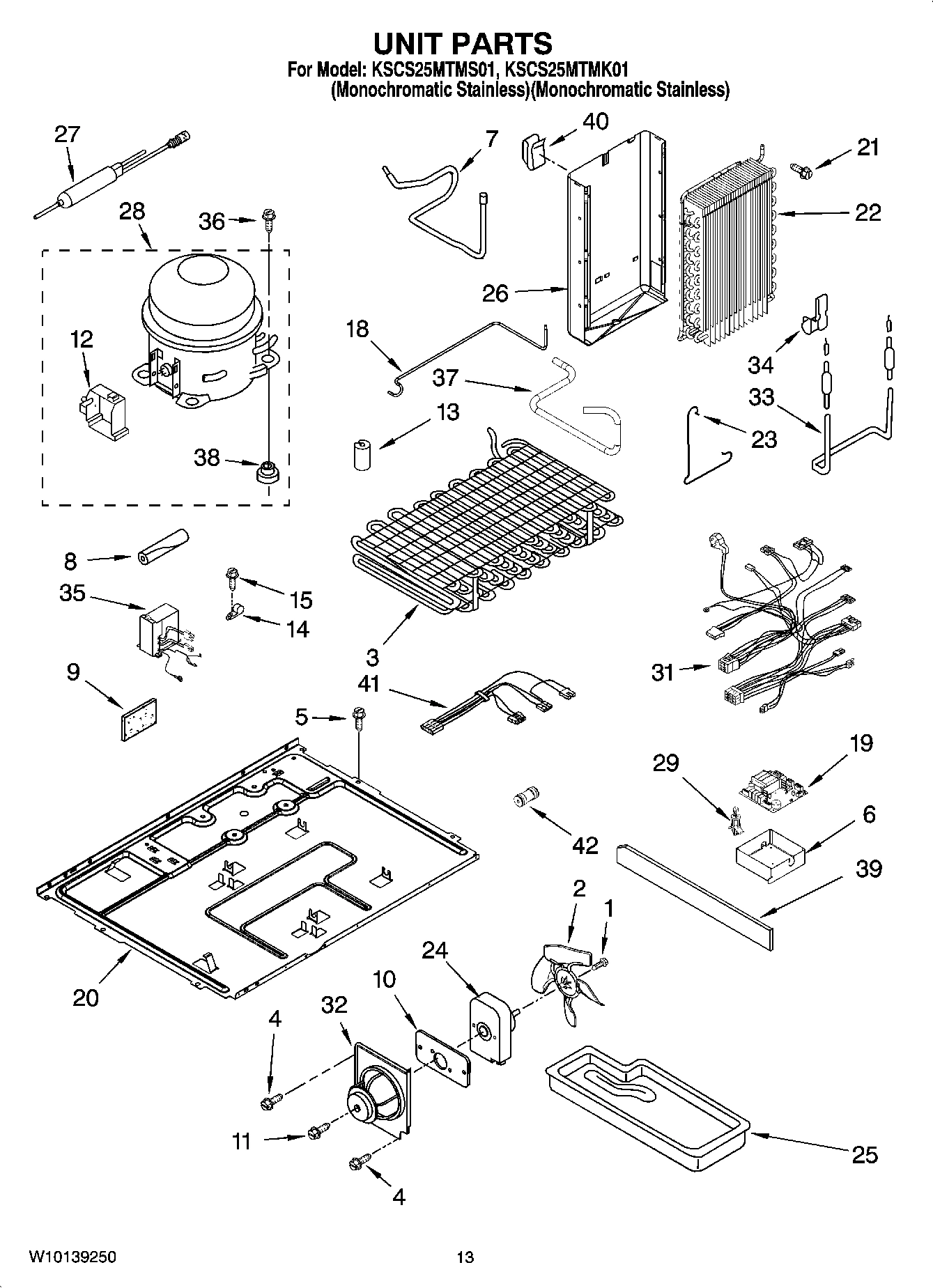

Unit Harness WPL 2310119 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI91963A9 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI91964A6 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $89.56
